Majestic REFLECTION 5.0 User manual

REFLECTION 5.0 OCTAVE MARIMBA
user manual

1
Components
Item Parts Description Inner Carton
1 Leg Assembly – Bass End (with height adjustment handle) 1/11
2 Leg Assembly – Treble End 2/11
3 Cross Bar – Bass End (straight) 3/11
4 Cross Bar – Treble End (curved) 3/11
5 Truss – Bass End 4/11
6 Truss – Treble End 5/11
7 Transmission shaft for height adjustment – connecting side (male) 4/11
8 Transmission shaft for height adjustment – receiving side (female) 4/11
9 Resonator – Natural Bass Section 6/11
10 Resonator – Natural Middle Section 8/11
11 Resonator – Natural Treble Section 3/11
12 Resonator – Accidental Bass Section 7/ 1 1
13 Resonator – Accidental Middle Section 8/11
14 Resonator – Accidental Treble Section 3/11
15 Rack – Bass Section 9/11
16 Rack – Middle Section 10/11
17 Rack – Treble Section 11/11
18 Tone Bars – Natural Treble Section 2/11
19 Tone Bars – Natural Bass Section 2/11
20 Tone Bars – Accidental Treble Section 1/11
21 Tone Bars – Accidental Bass Section 1/11
22 Protective Cover 1/11
23 Mallets x 2 PR 1/11
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
X
W

REFLECTION 5.0 OCTAVE MARIMBA
user manual
2
Leg Assembly
1. Connect the cross bar (D+E)
Remove the knobs pre-installed to bass end cross bar (straight) from the bracket.
Align the 2 connecting holes on treble end cross bar (curved) to the holes on bracket.
Tighten the knobs.
2. Assemble cross bar to legs (B+C+DE)
Remove the pre-installed knobs on the bass end leg bracket.
Insert the straight end section of the cross bar into the bracket and align the holes.
Insert knobs and tighten.
Repeat the process at the other end.
Engage brakes before putting Leg Assembly together to provide stability and traction.
Wheels with brake should be positioned facing audience side.
Make sure the pins in
bracket are inserted
into the holes on
cross bar before
tightening knobs.
Serial number located on inner side.
1
2
2
Bass end
Treble end

3
2. Attach truss frame to leg assembly (FG+B~E)
Remove both knobs from each leg assembly truss receiver.
Set the truss center bar into the receiving bracket of each leg assembly.
Insert knobs and tighten on both ends.
Assemble Truss
1. Assemble the truss (F+G)
Loosen and remove the quick release mechanism on bass end truss.
Connect the treble and bass truss sections together by fully inserting the connecting end of the treble
section into the receiving end of the bass section.
Restore and tighten the quick release mechanism.
Truss Assembly
1
2
3
Be sure the height on each leg is set to the same height level prior to
mounting the truss system onto the leg assembly. Leg height on both legs
has been pre-set to level "4" to help ensure proper instrument setup.
If NOT, please use the handle at bass end to adjust and match with treble
end height before truss is assembled to leg.
Quick release on the truss
must be fully tightened and
folded down for secure
connection.
1
2
3
Bass end
Treble end

REFLECTION 5.0 OCTAVE MARIMBA
user manual
4
Truss Assembly

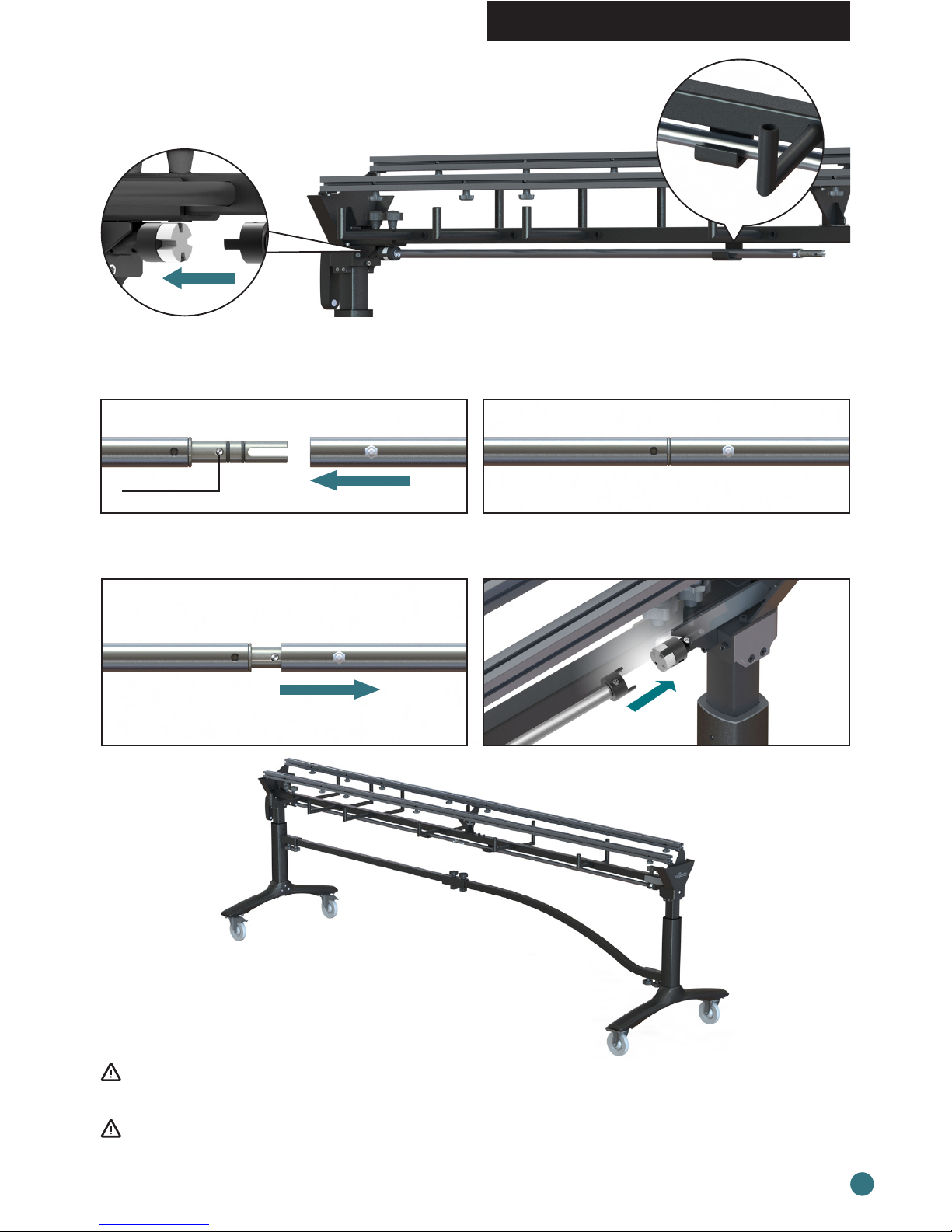

Assemble Transmission Shaft (H+I)
Take the connecting side (male) shaft, and lay it on the support platform.
Connect the coupling to bass end leg.
Take the receiving side (female) shaft, and lay it on the other support platform.
Push the spring pin on connecting tube, and connect the shafts.
Make sure the indicators (a nut on both sides) are aligned.
Connect the receiving side (female) shaft coupling to treble end leg.
The spring pin will lock both sides of shaft in place.
Spring pin
There will be a small gap between the two sections of the shaft once it has been assembled and connected
properly to the treble end leg.
To check whether the shaft is assembled properly, use the handle at bass end leg to adjust height.
Both sides should move up or down simultaneously.
Bass end
Treble end

5
Resonator Assembly
Slide resonator set onto the support arms extended from truss.
There are 3 sections on each side.
Due to package space constraints,
the G#2 tuning cap is not pre-
installed in the resonator tube.
Be sure to insert this cap prior to
setting up the resonators.
Bass end
Treble end
J
K
L
M
N
O

REFLECTION 5.0 OCTAVE MARIMBA
user manual
6
Rack Assembly
Put the rack on top of the truss, bar posts facing up.
Tighten the knobs (4 knobs every section) underneath truss to secure the racks.
P
Q
R

7

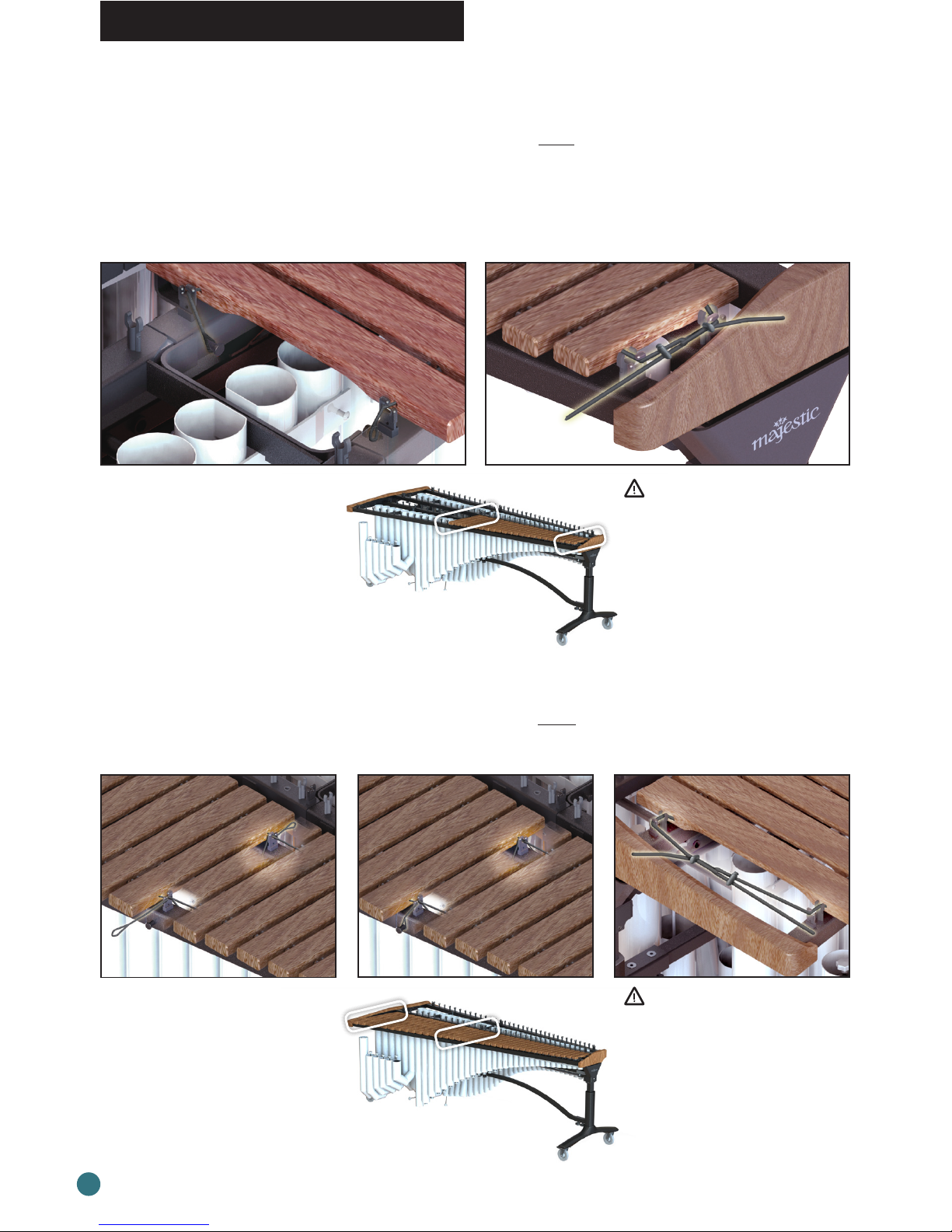

Tone Bar Placement
Natural Bars
1. Treble Section (S)
Gently lay the treble section natural bars on rack.
Bar cord should go around metal post before hooking on the inner side columns.
Position each tone bar between bar posts, beginning from bass (large) end, working progressively toward
treble (small) end.
Once tone bars are in place, pull excess bar cord to treble end, and bring bar cord around metal posts.
Tighten cord fastener.
2. Bass Section (T)
Gently lay the bass section natural bars on rack.
Bar cord should go around metal post before hooking on the outer side columns.
Repeat the same process as treble end, but position tone bars from treble (small) to bass (large) end.
When tightening bar cord,
be sure to pull the cord taut.
When tightening bar cord,
be sure to pull the cord taut.

REFLECTION 5.0 OCTAVE MARIMBA
user manual
8
Tone Bar Placement
Accidental Bars
1. Treble Section (U)
Gently lay the treble section accidental bars on rack.
Closed bar cord should go around metal posts at treble end.
Position each tone bar between bar posts, beginning from treble (small) end, working progressively
toward bass (large) end. Place bars over capped resonators only.
Once tone bars are in place, pull excess bar cord to bass end, and bring bar cord around metal posts.
Tighten cord fastener.
2. Bass Section (V)
Gently lay the bass section acidental bars on rack.
Bar cord should go around metal post before hooking on the columns at inner side.
Repeat the same process as treble end.
When tightening bar cord,
be sure to pull the cord taut.
When tightening bar cord,
be sure to pull the cord taut.

9
1. How to use tuning cap
Syringe-inspired tuning system ensures an air-tight seal
and allows for quick, easy adjustment to environment.
Simply pull and push the rod of each tunable cap to
ideal tonal position.
All tuning caps were processed with lubricant to ensure
smoothness. It may wear out through time. We strongly
recommend using a silicon based spray lubricant.
Lightly spray on the rubber fins of tuning cap, and
wipe clean excess fluid to avoid running or dripping.
* Each tuning cap is intended for the specific resonator
in which it is originally inserted. For best results, caps
should not be moved to different tubes.
2. How to move the instrument safely
Grasp the bottom of the bass end piece. You will feel the metal structure inside.
Please hold this to pull / push the instrument for the utmost safety and support.
3. How to handle the bar set safely
The innovative modular frame and bar set design splits natural and accidental bars into 2 sections each.
This makes it extremely easy for one person to lift and install the bar sets.
Due to our special design, you will find the bar cords have one open end (except for #20 Accidental
Treble Section bars).
Please remember to hold open end bar cords tightly, in order to lift the bar set safely.
4. Pull the bar cord tight
Make sure to pull the bar cord tight when placing bar sets.
The soft bar cord material works together with our free-floating bar posts,
but slack in the cord will impair results.
5. Keep the transmission shaft safe
When disassembling the instrument, please do not overtighten the knobs
which are used to secure the truss (see accompanying image).
It may damage the transmission shaft connecting coupling.
6. If parts or warranty service should be needed, please contact the dealer through which the instrument
was purchased. Please be prepared to provide the instrument serial number, which can be found on the
inner side of the bass end leg.
Maintenance Notes
