Hearth & Home Heatilator Eco Choice PS50-C User manual

1June 18, 20197059-800B
PELLET BURNING APPLIANCE
MODEL(S):
PS50-C
Installation and service of this appliance should be performed by
qualified personnel. Hearth & Home Technologies recommends
HHT Factory Trained or NFI certified professionals.
Installation Manual
Installation & Appliance Set-Up
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
NOTICE: DO NOT DISCARD THIS MANUAL
If the information in these instructions is
not followed exactly, a re could result
causing property damage, personal injury,
or death.
WARNING
• Do not store or use gasoline or other ammable
vapors and liquids in the vicinity of this or any
other appliance.
• Do not over re - If appliance or chimney connector
glows, you are over ring. Over ring will void
your warranty.
• Comply with all minimum clearances to combustibles
as specied. Failure to comply may cause house re.
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
WARNING
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room
as replace.
• Alert children and adults to hazards of
high temperatures
• High temperatures may ignite clothing or other
ammable materials.
• Keep clothing, furniture, draperies and other
ammable materials away.
CAUTION
Check building codes prior to installation.
• Installation MUST comply with local, regional, state
and national codes and regulations.
• Consult local building, re o󰀩cials or authorities
having jurisdiction about restrictions, installation
inspection, and permits.
CAUTION
Tested and approved for wood pellets, Burning of any
other type of fuel voids your warranty.
NOTE: To obtain a French translation of this
manual, please contact your dealer or visit
www.heatilatorecochoice.com
REMARQUE : Pour obtenir une traduction française
de ce manuel, s’il vous plaît
contacter votre revendeur ou visitez
www.heatilatorecochoice.com

2June 18, 20197059-800B
HEATILATOR ECO-CHOICE PS50
1 Important Safety Information.............3
A. Appliance Certication....................... 3
B. BTU & E󰀩ciency Specications ............... 3
C. Glass Specications ........................ 4
D. Electrical Rating (on high) .................... 4
E. Mobile Home Approved ...................... 4
F. Non-Combustible Materials ................... 4
G. Combustible Materials ...................... 4
H. Sleeping Room ............................ 4
I. Stove Composition .......................... 4
J. California - Prop65 .......................... 4
2 Getting Started....................................5
A . Design, Installation & Location Considerations .........5
B. Thermostat Wall Control Location .............. 6
C. Tools And Supplies Needed .................. 6
D. Inspect Appliance and Components ............ 6
E. Install Checklist ............................ 7
3 Dimensions and Clearances..............8
A. Appliance Dimensions ....................... 8
B. Clearances to Combustibles (UL and ULC) ...... 9
C. Hearth Pad Requirements................... 10
D. Alcove .................................. 11
4 Vent Information................................12
A. Venting Termination Minimum Requirements .... 12
B. Avoiding Smoke and Odors.................. 13
C. Negative Pressure......................... 14
D. Draft ................................... 14
E. Chimney and Exhaust Connection ............ 14
F. Equivalent Feet of Pipe ..................... 15
G. Pipe Selection Chart ....................... 15
5 Venting Systems ...............................16
A. Through The Wall ......................... 16
B. Vertical into Existing Class A Chimney ......... 17
C. Vertical - Interior - Typical Installation . . . . . . . . . . 17
D. Through The Wall & Vertical - External ......... 17
E. Masonry................................. 18
F. Alternate Masonry ......................... 18
6 Appliance Set-Up ..............................19
A. Outside Air Kit ............................ 19
B. Top Vent Adapter Installation................. 20
C. Rear Vent Adapter Installations............... 20
D. Thermostat Installation ..................... 20
7 Mobile Home Installation..................21
8 Reference Materials..........................22
A. Service & Maintenance Log ................. 22
B. Accessory List ............................ 23
TABLE OF CONTENTS
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Indicates practices which may cause damage to the appliance or to property.
Heatilator Eco Choice is a registered trademark of Hearth & Home Technologies.

3June 18, 2019 7059-800B
HEATILATOR ECO-CHOICE PS50
Model PS50-C
Laboratory Intertek
Safety
Report No. 4001508
Type Solid Fuel Room Appliance/Pellet Fuel
BurningType
Standard
ASTM E1509-04 and ULC S627-00, ULC/
ORD-C1482-M1990 Room Appliance
Pellet Fuel Burning type and (UM) 84-
HUD, Mobile Home Approved.
1 Important Safety Information
A. Appliance Certication
NOTICE: This installation must conform with local codes. In the absence of local codes you must comply with the
ASTM E1509-04, ULC S627-00, (UM) 84-HUD and ULC/ORD-C-1482.
B. BTU & E󰀩ciency Specications
Emissions Report #: 0061PS085E
Emission Laboratory: OMNI Test Laboratories, Inc.
EPA Certied
Emissions: 1.0 grams/hour
*LHV Tested E󰀩ciency: 69.5%
**HHV Tested E󰀩ciency: 65.1%
***EPA BTU Output: 7,500 to 36,600 per hr
****BTU Input: 13,100 to 49,900 per hr
Vent Size: 3 or 4 inches, “L” or “PL”
Hopper Capacity: 83 lbs.
Fuel Premium Wood Pellets
*Weighted average LHV (Low Heating Value) e󰀩ciency
using data collected during EPA emissions tests.
**Weighted average HHV (High Heating Value) e󰀩ciency
using data collected during EPA emissions tests.
***A range of BTU outputs calculated using HHV
e󰀩ciency and the burn rates from the EPA tests.
****Based on the maximum feed rate per hour multiplied
by approximately 8600 BTU’s which is the average BTU’s
from a pound of pellets.
‡ Grade of pellet fuel as certied by Pellet Fuels Institute (PFI), ENPlus
or CANplus.
This pellet appliance needs periodic inspection and repair for proper operation. It is against federal regulations to operate
this pellet appliance in a manner inconsistent with operating instructions in this manual.
The PS50 is Certied to
comply with 2020 particulate
emission standards.

4June 18, 20197059-800B
HEATILATOR ECO-CHOICE PS50
E. Mobile Home Approved
• This appliance is approved for mobile home
installations when not installed in a sleeping room and
when an outside combustion air inlet is provided.
• The structural integrity of the mobile home oor, ceiling,
and walls must be maintained.
• The appliance must be properly grounded to the frame
of the mobile home with #8 copper ground wire, and
use only listed double-wall connector pipe.
• Outside Air Kit, part 811-0872 or OAK-3 must be
installed in a mobile home installation.
• Appliance must be secured to mobile home structure.
C. Glass Specications
This appliance is equipped with 5mm ceramic glass.
Replace glass only with 5mm ceramic glass. Please
contact your dealer for replacement glass.
D. Electrical Rating (on high)
H. Sleeping Room
When installed in a sleeping room it is recommended that
3ft of vertical be installed prior to horizontally exiting the
room and a smoke/CO alarm be installed in the bedroom.
The size of the room must be at least 50ft³ per 1,000 Btu/hr
stove input, if the stove exceeds the room size, out air must
be installed.
I. Stove Composition
These pellet burning stoves are made of steel, cast iron or
a combination of both with a ceramic viewing glass. These
stoves incorporate a self-feeding system including a fuel
storage hopper and a mechanical feed system which is
controlled by a micro-processing control board. Each model
contains a variable speed distribution blower to circulate
room air through the heat exchanger and out to the room
and a combustion blower which forces the exhaust out of
the stove.
G. Combustible Materials
F. Non-Combustible Materials
Material which will not ignite and burn, composed of any
combination of the following:
- Steel
- Plaster
- Brick
- Iron
- Concrete
- Tile
- Glass
- Slate
Materials reported as passing ASTM E 136, Standard Test
Method for Behavior of Metals, in a Vertical Tube Furnace
of 750° C.
Material made of/or surfaced with any of the following
materials:
- Wood
- Compressed Paper
- Plant Fibers
- Plastic
- Plywood/OSB
- Sheet Rock (drywall)
Any material that can ignite and burn: ame proofed or not,
plastered or non-plastered.
J. California - Prop65
WARNING
This product and the fuels used to operate this product (wood), and
the products of combustion of such fuels, can expose you to
chemicals including carbon black, which is known to the State of
California to cause cancer, and carbon monoxide, which is known to
the State of California to cause birth defects or other reproductive
harm. For more information go to: WWW.P65Warnings.ca.gov
NOTE: Hearth & Home Technologies, manufacturer
of this appliance, reserves the right to alter
its products, their specications and/or price
without notice.
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage.
For assistance or additional information, consult a qualied
installer, service agency or your dealer.
• Installation and use of any damaged appliance.
• Modication of the appliance.
• Installation other than as instructed by Hearth &
Home Technologies.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
• Operating appliance without fully assembling all
components.
• Operating appliance without legs attached (if
supplied with appliance).
• Do NOT Over re - If appliance or chimney connector
glows, you are over ring.
Any such action that may cause a re hazard.
WARNING
Fire Risk
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be
voided by, the following actions:
115 VAC, 60 Hz, Start 5.1 Amps, Run 3.0 Amps

5June 18, 2019 7059-800B
HEATILATOR ECO-CHOICE PS50
Recommended
Location
Marginal
Location
Location
Not
Recommended
Recommended
Location
Location NOT
Recommended
Multi-level Roofs
Windward
Leeward
Outside Air Kit Termination Cap
Figure 5.1
Install Guide
2 Getting Started
A . Design, Installation & Location Considerations
1. Appliance Location
Since pellet exhaust can contain ash, soot or sparks, you
must consider the location of:
• Windows
• Air Intakes
• Air Conditioner
• Overhang, so󰀩ts, porch roofs, adjacent walls
• Landscaping, vegetation
• Horizontal or vertical vent termination
2. Floor Support
The supporting oor under the appliance must be able to
handle the weight of the appliance, fuel load and the weight
of the chimney.
Ensure that your oor will support these weights prior to
installation. Add su󰀩cient additional support to meet this
weight requirement prior to installation. The weight of the
appliance is 240 lbs.
WARNING
Risk of Fire.
Damaged parts could impair safe operation. Do NOT
install damaged, incomplete or substitute components.
CAUTION
If burning shelled eld corn, you must use approved
venting specically designed for corn to prevent
corrosion or degradation. Follow the instructions from the
venting manufacturer.
NOTICE: Check building codes prior to installation.
• Installation MUST comply with local, regional, state and
national codes and regulations.
• Consult insurance carrier, local building inspector,
re o󰀩cials or authorities having jurisdiction over
restrictions, installation inspection and permits.
It is a good idea to plan your installation on paper, using
exact measurements for clearances and oor protection,
before actually beginning the installation. Location of the
appliance and chimney will a󰀨ect performance.
Consideration must be given to:
• Safety, convenience, tra󰀩c ow
• Placement of the chimney and chimney connector and
to minimize the use of chimney o󰀨sets.
• Place the appliance where there will be a clear passage
for a Listed chimney through the ceiling and roof
(vertical) or through exterior wall (horizontal).
• Installing the required outside air kit will a󰀨ect the
location of the vent termination.
When locating vent and venting termination, the ideal
location is to vent above roof line when possible. This
minimizes the a󰀨ects of wind loading.

6June 18, 20197059-800B
HEATILATOR ECO-CHOICE PS50
C. Tools And Supplies Needed
B. Thermostat Wall Control Location
The thermostat wall control’s location will have some a󰀨ect
on the appliance’s operation.
• Maximum wire length from appliance is 100 feet
(30.48m) continuous non-spliced wire. Recommended
20 gauge wire, solid copper.
• When located close to the appliance, it may require a
slightly higher temperature setting to keep the rest of
the house comfortable.
• When located in an adjacent room or on a di󰀨erent
oor level, you will notice higher temperatures near the
appliance.
D. Inspect Appliance and Components
• Open the appliance and remove all the parts and
articles packed inside the Component Pack. Inspect all
the parts and glass for shipping damage.
• Report to your dealer any parts damaged in shipment.
• All labels have been removed from the glass door.
• Plated surfaces have been wiped clean with a soft
cloth, if applicable.
• Read all the instructions before starting the
installation. Follow these instructions carefully
during the installation to ensure maximum safety
and benet.
• Follow pipe manufacturer instructions for
installation and air clearance requirements.
Reciprocating Saw
Channel Locks
Hammer
Phillips Screwdriver
Tape Measure
Plumb Line
1/4” Self-Tapping Screws
Tools and building supplies normally required
for installation, unless installing into an existing
masonry replace:
Framing Material
Hi-temp Caulking Material
Gloves
Safety Glasses
Framing Square
Electric Drill & Bits (1/4”)
Level
May also need:
Vent Support Straps Venting Paint
Risk of Fire!
• Damaged parts could impair safe
operation.
• Do NOT install damaged, incomplete or
substitute components.
WARNING
WARNING
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be
voided by, the following actions:
• Installation and use of any damaged appliance.
• Modication of the appliance.
• Installation other than as instructed by Hearth &
Home Technologies.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
• Operating appliance without fully assembling all
components.
• Operating appliance without legs attached (if supplied
with appliance).
• Do NOT Over re!
Or any such action that may cause a re hazard.

7June 18, 2019 7059-800B
HEATILATOR ECO-CHOICE PS50
E. Install Checklist
YES IF NO, WHY?
Verified clearance to combustibles.
Appliance is leveled and connector is secured to appliance.
Hearth extension size/height decided.
Outside air kit installed.
Floor protection requirements have been met.
If appliance is connected to a masonry chimney, it should be cleaned and
inspected by a professional. If installed to a factory built metal chimney, the
chimney must be installed according to the manufacturer’s instructions and
clearances.
Appliance Install
Chimney configuration complies with diagrams.
Chimney installed, locked and secured in place with proper clearance.
Chimney meets recommended height requirements (5 feet minimum vertical).
Roof flashing installed and sealed.
Terminations installed and sealed.
Venting/Chimney
Clearances
Verified all clearances meet installation manual requirements.
Mantels and wall projections comply with installation manual requirements.
Floor protection and heart extensions installed per manual requirements.
Appliance Setup
All protective materials removed.
All labels have been removed from the door.
All packaging materials are removed from inside/under appliance.
Manual bag and all of its contents are removed from inside/under the appliance
and given to the party responsible for use and operation.
WARNING! Risk of Fire or Explosion! Failure to install appliance to these instructions can lead to a fire or
explosion.
Hearth & Home Technologies recommends the following:
Photographing the installation and copying this checklist for your file.
That this checklist remain visible at all times on the appliance until the installation is complete.
Electrical
120 VAC unswitched power provided to the appliance.
Check outlet with multi-meter for proper polarity and voltage (115-120 VAC).
Record voltage reading: _____________
ATTENTION INSTALLER:
Follow this Standard Work Checklist
This standard work checklist is to be used by the installer in conjunction with, not instead of, the instructions contained in this installation manual.
Customer:
Date Installed:
Lot/Address:
Location of Appliance:
Installer:
Dealer/Distributor Phone Number:
Serial Number:
Model Name:
__________________________________________________________________________
______________________________________________________________________
_______________________________________________________________________
________________________________________________________________
___________________________________________________________________________
________________________________________________________
______________________________________________________________________
_______________________________________________________________________
Started appliance and verified that all motors and blowers operate as they should.
Checked draft using a Manometer. Record readings: ______________________
Comments: Further description of the issues, who is responsible (Installer/Builder/Other Trades, ets.) and corrective action needed:
Comments communicated to party responsible __________________________ by ______________________ on ____________
(Builder/Gen. Contractor) (Installer) (Date)
Checked vacuum using a Manometer. Record readings: ____________________

8June 18, 20197059-800B
HEATILATOR ECO-CHOICE PS50
Figure 8.2- Front View
Figure 8.1 - Top View
Figure 8.3 -Side View Figure 8.4 - Side View with Top Vent Adapter
24-1/4
(616)
24-1/4
(616)
26-7/16
(672)
28-5/16
(719)
9-3/4
(248)
2-3/8
(60)
20-1/4
(514)
32
(813)
35-3/4
(908)
10-11/16
(272)
23-1/4
(591)
3-1/8 (79)
4-3/8 (111)
29-5/8
(752)
31-5/8
(803)
3 Dimensions and Clearances
A. Appliance Dimensions

9June 18, 2019 7059-800B
HEATILATOR ECO-CHOICE PS50
C
C
D
E
F
G
G
A
B

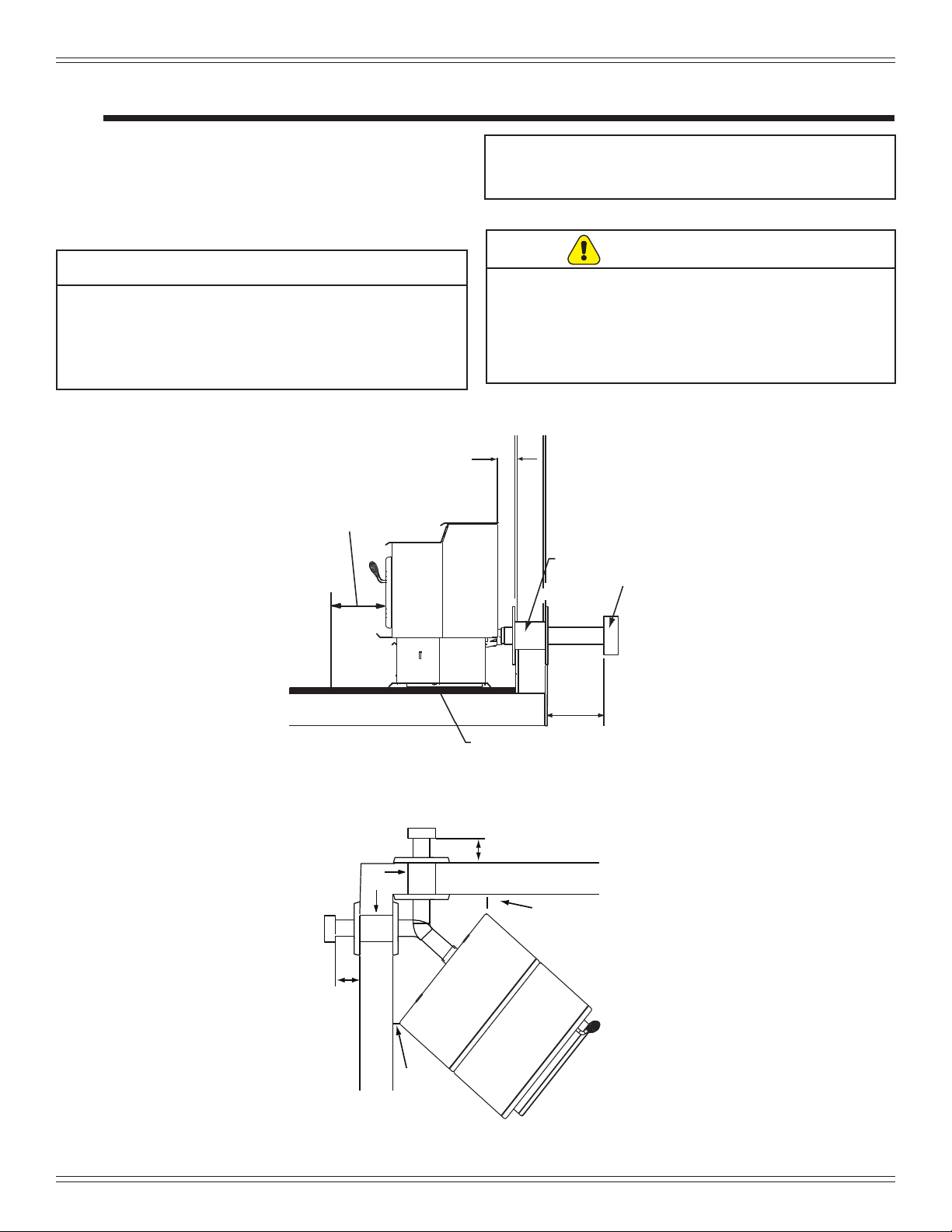

B. Clearances to Combustibles (UL and ULC)
Installations with
3 to 3 inch Top Vent Adapter
Installations with
3 to 6 inch O󰀨set Adapter
Straight Back Against Wall Inches Millimeters
ABack Wall to Appliance 251
BSide Wall to Appliance 14 356
Corner Installation Inches Millimeters
CWalls to Appliance 251
Vertical Installation Inches Millimeters
DBack Wall to Adapter 125
ESide Wall to Appliance 14 356
FBack Wall to Appliance 6-1/4 159
Corner Installation Inches Millimeters
GWalls to Appliance 251
Vertical Installation Inches Millimeters
DBack Wall to Adapter 376
ESide Wall to Appliance 14 356
FBack Wall to Appliance 10-3/4 274
Corner Installation Inches Millimeters
GWalls to Appliance 251
NOTE:
• Illustrations reect typical installations and are FOR
DESIGN PURPOSES ONLY.
• Illustrations/diagrams are not drawn to scale.
• Actual installation may vary due to individual design
preference.

10 June 18, 20197059-800B
HEATILATOR ECO-CHOICE PS50

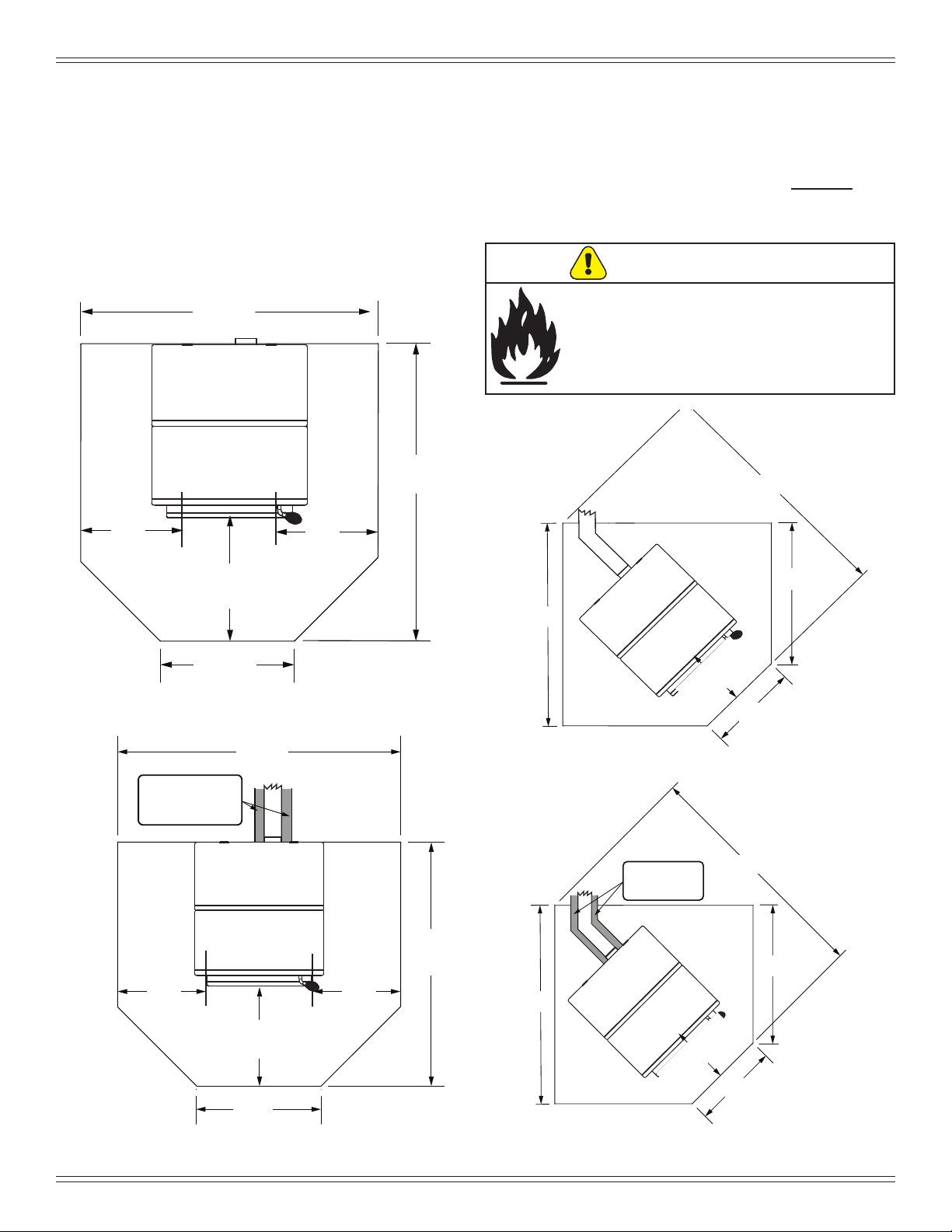

C. Hearth Pad Requirements (UL and ULC)
EMBER PROTECTION: It is necessary to install a Type I
oor protector.
Floor protector must be non-combustible material,
extending beneath appliance with a minimum of 6 inches
(152mm) in front of glass and 6 inches (152mm) to both
sides of the fuel loading door. Open the door and measure
6 inches (152mm) from the side edge of the opening in the
face of the appliance.*See exception.
25-3/4 in.
minimum
31-1/8 in.
minimum
6 in
from the fuel door
opening
6 in
USA
6 in
Front of glass
13-5/8 in.
152mm
from fuel door opening
152mm
652mm
minimum
790mm
minimum
CANADA
Must extend 51mm
beyond each side
of pipe (shaded area)
to the wall thimble.
152mm
Front of glass
348mm
USA INSTALLATIONS: A non-combustible oor protection
is recommended extending beneath the ue pipe when
installed with horizontal venting or under the Top Vent
Adapter with vertical installation.
CANADA INSTALLATIONS: A non-combustible oor
protection extending beneath the ue pipe is required
with horizontal venting or under the Top Vent Adapter with
vertical installation.
Figure 10.1
Figure 10.2
45-7/8 in.
27-5/8 in.
13-3/4 in.
37-1/4 in.
USA
6 in.
from the
front of glass
1164mm
700mm
348mm
946mm
CANADA
Must extend 51mm
beyond each side
of pipe (shaded area)
to the wall thimble.
152mm
from the
front of glass
Figure 10.3
Figure 10.4
Fire Risk
Comply with all minimum clearances to
combustibles as specied.
Failure to comply may cause house re.
WARNING

11June 18, 2019 7059-800B
HEATILATOR ECO-CHOICE PS50
A
C
B
D
Mantel
E
F
D. Alcove
Model: Minimum Maximum
PS50-C Inches Millimeters Inches Millimeters
A Height 56-3/4 1441 n/a n/a
B Width 53 1346 n/a n/a
C Depth n/a n/a 48 1219
DSide
Wall 14 356 n/a n/a
ETop 16 533 n/a n/a
FMantel
Depth n/a n/a 36 914
Installations Into Alcove
All minimums listed are to a combustible surface.
NOTE:
• Illustrations reect typical installations and are FOR
DESIGN PURPOSES ONLY.
• Illustrations/diagrams are not drawn to scale.
• Actual installation may vary due to individual design
preference.

12 June 18, 20197059-800B
HEATILATOR ECO-CHOICE PS50
4 Vent Information

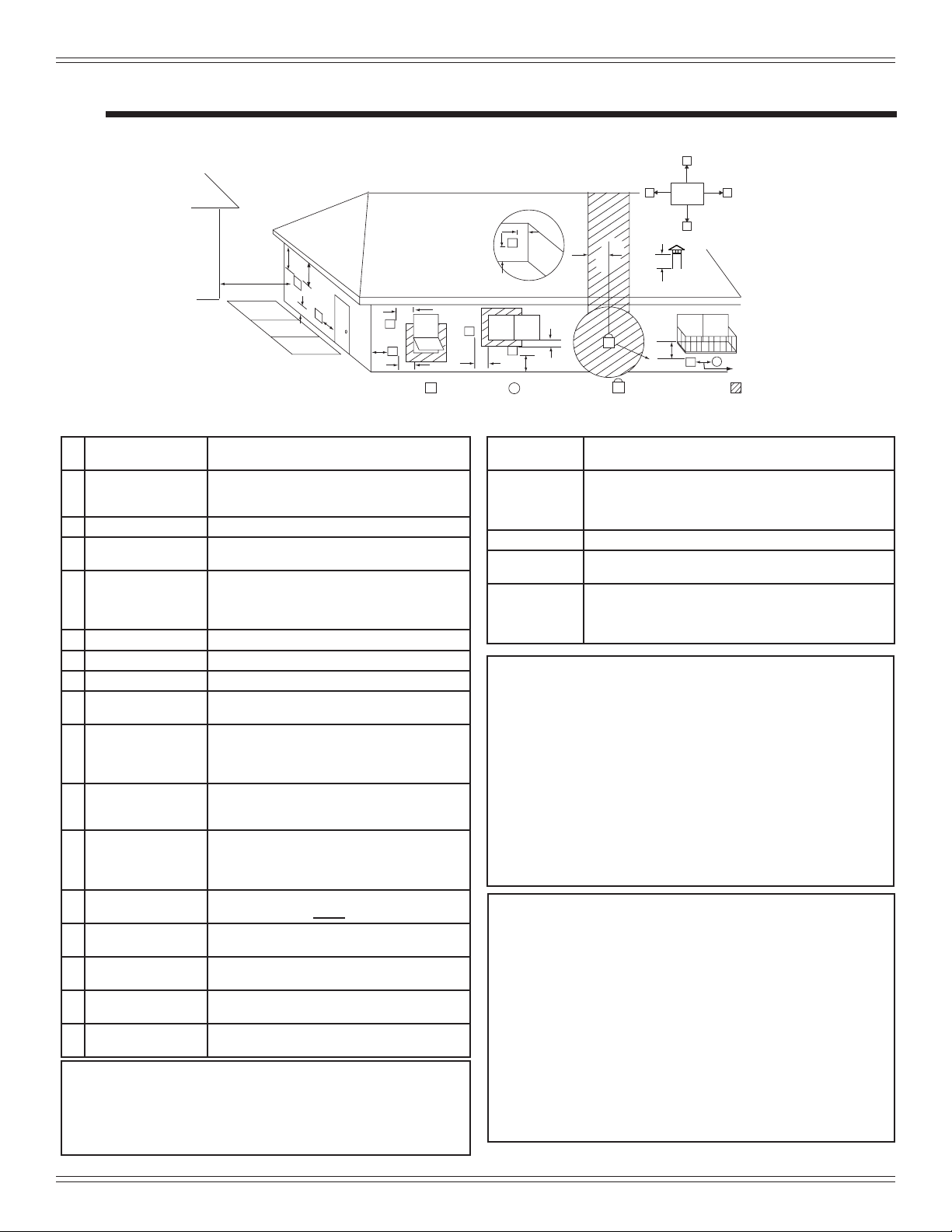

A. Venting Termination Minimum Requirements
J ou K
X
V
M
I
H
A
V
G
B
V
V
A
B
V
FV
C
B
B
E
L
V
D
V
Service
Électrique
V
N
VN
V
N
N
V
Angle Intérieur
FERMÉ
ATTACHÉ
OUVERT
OUVERT
FERMÉ
ATTACHÉ
VX
G
G
Extrémité du terminal Arrivée d'air Compteur à gaz Zone à accès limité
O
P
A305 mm (12 po) Au-dessus du niveau dé nitif du sol (la surface du
sol doit être en matériau incombustible)
B305 mm (12 po)
1,22 m (48 po) sans
OAK
Ouvrir la porte ou la fenêtre : en dessous ou sur le
côté
B305 mm (12 po) Ouvrir la porte ou la fenêtre : au-dessus
C152 mm (6 po) Fenêtre fermée en permanence : au-dessus, des-
sous ou sur le côté
D457 mm (18 po)
914 mm (36 po) sans
prise d’air extérieur
Dégagement vertical par rapport au so󰀩 te ventilé
situé au-dessus du terminal à une distance horizon-
tale maximum de 610 mm (2 pi) de la ligne médiane
du terminal.
E305 mm (12 po) Dégagement par rapport au so󰀩 te non ventilé
F305 mm (12 po) Dégagement par rapport à l’angle extérieur
G305 mm (12 po) Dégagement par rapport à l’angle intérieur
H914 mm (36 po) Mesuré au-dessus du compteur à gaz/régulateur,
depuis l’axe horizontal du régulateur
I914 mm (36 po) États-
Unis
1,83 m (72 po)
Canada
Dégagement par rapport à la sortie d’air du régu-
lateur
J305 mm (12 po)
1,22 m (48 po) sans
OAK
Dégagement par rapport à l’entrée d’air non méca-
nique du bâtiment ou l’entrée d’air de combustion
d’un autre appareil
K3 m (10 pi) horizonta-
lement
914 mm (3 pi) vertica-
lement
Dégagement par rapport à une source d’air méca-
nique
L2,1 m (7 pi) Au-dessus d’un trottoir ou d’une allée goudronnée
située sur un terrain public
M305 mm (12 po) Sous une véranda, un porche, une terrasse ou un
balcon ouvert
NVoir la remarque voir
ci-dessous*
Service électrique : au-dessus, au-dessous ou sur
les côtés (sans obstruer ou gêner l’accès)
O610 mm (24 po) Bâtiment adjacent, clôtures et pièces dépassant de
la structure
P305 mm (12 po) Dégagements au-dessus du toit pour les abat-vents
verticaux.
Tous les dégagements minimum correspondent à une installation avec un ensemble de prise d’air extérieur (OAK), sauf
indication contraire  gurant au tableau ci-dessous.
610 mm (24 po) Au-dessus de l’herbe, des plantes, du bois ou de tout autre
matériau in ammable
305 mm (12 po)
914 mm (36 po)
sans prise d’air
extérieur
Dégagement depuis n’importe quelle prise d’air forcé d’un
autre appareil
305 mm (12 po) Dégagement horizontal par rapport au mur in ammable
381 mm (15 po) Évacuation traversant directement un mur, longueur minimum
du conduit horizontal
152 mm (6 po)
horizontalement
305 mm (12 po)
verticalement
Les extrémités horizontales et verticales de terminal doivent
au moins sortir du mur.
*REMARQUE : Pour les restrictions, reportez-vous au code
local de construction des bâtiments, aux
pompiers ou autres autorités compétentes.
Les dégagements exigés peuvent varier en
fonction des codes et règlements locaux.
AVIS : Ne placez PAS l'extrémité du conduit d'évacuation :
• À un endroit où les gaz ou la suie évacués du
conduit peuvent pénétrer dans le bâtiment ou
le souiller.
• À un endroit où il peut gêner ou présenter
un danger.
• Dans un endroit clos ou partiellement clos, tels
qu’un abri auto, un garage, un grenier, un plafond
bas, sous une véranda ou près d’un chemin.
• Dans un espace contenu ou tout autre endroit
où les gaz peuvent s’accumuler, tels qu’une
cage d’escalier, un passage couvert entre les
bâtiments, etc.
AVIS : L'extrémité du conduit doit être située au-dessus de la
prise d’air.
• Il est recommandé d’installer au minimum 1,52 m
(60 po) de conduit vertical si l'appareil est évacué
directement à travers un mur. Cela permet d'obtenir
un tirage naturel qui empêche à la fumée ou aux
odeurs d'évacuation de pénétrer dans la maison en
cas de panne de courant.
• Cela évite également que des personnes
ou des buissons soient exposés à des
températures élevées.
• La méthode d’évacuation des gaz la plus sûre et la
meilleure est un conduit vertical traversant le toit ou
au-dessus du toit.

13June 18, 2019 7059-800B
HEATILATOR ECO-CHOICE PS50
B. Avoiding Smoke and Odors
Negative Pressure, Shut-Down and Electrical Power
Failure
To reduce the probability of back-drafting or burn-back
in the pellet appliance during power failure or shut down
conditions, it must be able to draft naturally without exhaust
blower operation.
Negative pressure in the house will resist this natural draft if
not accounted for in the pellet appliance installation.
Heat rises in the house and leaks out at upper levels. This
air must be replaced with cold air from outdoors which
ows into lower levels of the house.
Vents and chimneys into basements and lower levels of the
house can become the conduit for air supply and reverse
under these conditions.
Outside Air
An outside air kit is recommended in all installations. The
Outside Air Kit must be ordered separately.
Per national building codes, consideration must be given
to combustion air supply to all combustion appliances.
Failure to supply adequate combustion air for all appliance
demands may lead to back-drafting of those and other
appliances.
When the appliance is roof vented (strongly recommended):
The air intake is best located on the exterior wall
oriented towards the prevailing wind direction during
the heating season.
When the appliance is side-wall vented:
The air intake is best located on the same exterior wall
as the exhaust vent outlet and located lower on the wall
than the exhaust vent outlet.
The outside air supply kit can supply most of the demands
of the pellet appliance, but consideration must be given to
the total house demand.
House demand may consume the air needed for the
appliance. It may be necessary to add additional
ventilation to the space in which the pellet appliance is
located.
Consult with your local HVAC professional to determine the
ventilation demands for your house.
CAUTION
• DO NOT CONNECT THIS Appliance TO A CHIMNEY
FLUE SERVICING ANOTHER APPLIANCE.
• DO NOT CONNECT TO ANY AIR DISTRIBUTION
DUCT OR SYSTEM.
Vent Congurations
When installing a pellet appliance with a horizontal vent
conguration the frequency of power outages should be
considered:
• Power outages during operation will cause the
appliance to immediately turn o󰀨 and may create
conditions where smoke will back draft into the house.
In order to reduce the likelihood of smoke back drafting
into the house during a power outage, Hearth and
Home Technologies strongly suggests:
- Installing the pellet venting with a minimum vertical
run of 5 feet (1.52m).
- Installing the outside air kit at least 4 feet (1.22m)
below the vent termination.
To prevent soot damage to exterior walls of the house and
to prevent re-entry of soot or ash into the house:
• Maintain specied clearances to windows, doors and
air inlets, including air conditioners.
• Vents should not be placed below ventilated so󰀩ts.
Run the vent above the roof.
• Avoid venting into alcove locations.
• Vents should not terminate under overhangs, decks or
onto covered porches.
• Maintain minimum clearance of 12 inches (305mm)
from the vent termination to the exterior wall. If you
see deposits developing on the wall, you may need to
extend this distance to accommodate your installation
conditions.
Hearth & Home Technologies assumes no responsibility
for, not does the warranty extend to, smoke damage
caused by reverse drafting of pellet appliances under
shut down or power failure conditions.

14 June 18, 20197059-800B
HEATILATOR ECO-CHOICE PS50
C. Negative Pressure
Negative pressure results from the imbalance of air
available for the appliance to operate properly. It can be
strongest in lower levels of the house.
Causes include:
• Exhaust fans (kitchen, bath, etc.)
• Range hoods
• Combustion air requirements for furnaces, water
appliances and other combustion appliances
• Clothes dryers
• Location of return-air vents to furnace or air
conditioning
• Imbalances of the HVAC air handling system
• Upper level air leaks such as:
- Recessed lighting
- Attic hatch
- Duct leaks
To minimize the e󰀨ects of negative air pressure:
• Install the outside air kit with the intake facing prevailing
winds during the heating season
• Ensure adequate outdoor air for all combustion
appliances and exhaust equipment
• Ensure furnace and air conditioning return vents are
not located in the immediate vicinity of the appliance
• Avoid installing the appliance near doors, walkways or
small isolated spaces
• Recessed lighting should be a “sealed can” design
• Attic hatches weather stripped or sealed
• Attic mounted duct work and air handler joints and
seams taped or sealed
WARNING
Risk of Asphyxiation!
Negative pressure can cause spillage of combustion
fumes and soot.
Hearth & Home Technologies assumes no responsibility
for the improper performance of the chimney system
caused by:
• Inadequate draft due to environmental conditions
• Down drafts
• Tight sealing construction of the structure
• Mechanical exhausting devices
NOTICE
D. Draft
Draft is the pressure di󰀨erence needed to vent an
appliance successfully. When an appliance is drafting
successfully, all combustion byproducts are exiting the
home through the chimney.
Install through the warm airspace enclosed by the building
envelope. This helps to produce more draft, especially
during lighting and die-down of the re.
Considerations for successful draft include:
• Preventing negative pressure
• Location of appliance and chimney

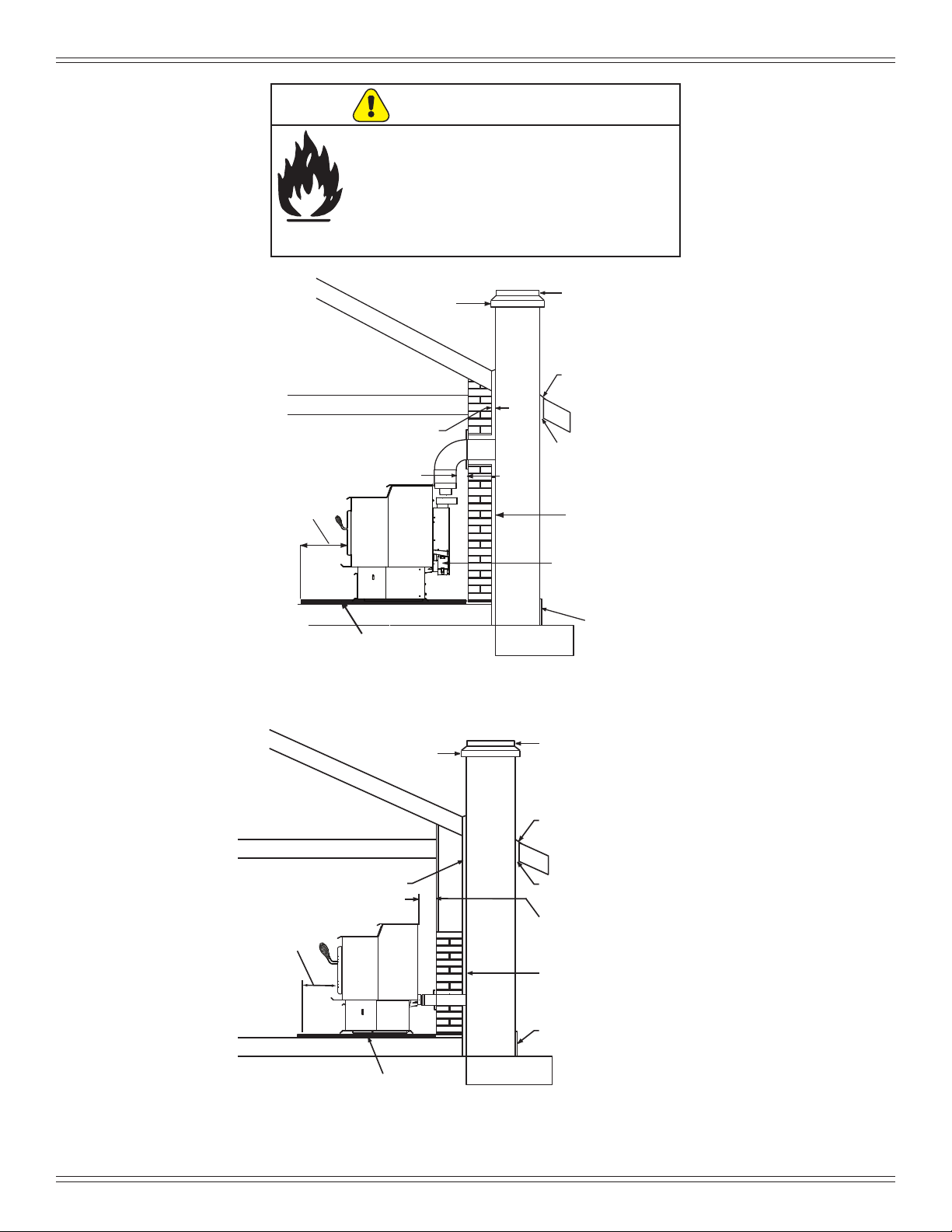

E. Chimney and Exhaust Connection
1. Chimney & Connector: Use 3 or 4 inch (76-102mm)
diameter type “L” or “PL” venting system. It can be
vented vertically or horizontally.
2. Mobile Home: Approved for all Listed pellet vent. If
using the 3 inch (76mm) vertical Top Vent Adapter Kit
or the 3 to 6 inch (76-152mm) Top Vent O󰀨set Adapter,
use Listed double wall ue connector. A Quadra-Fire
Outside Air Kit must be used with manufactured home
installations.
3. Residential: The 3 inch (76mm) vertical Top Vent
Adapter Kit and the 3 to 6 inch (76-152mm) Top Vent
O󰀨set Adapter are tested to use 24 gauge single wall
ue connector or Listed double wall ue connector to
Class A Listed metal chimneys, or masonry chimneys
meeting International Residential Code standards for
solid fuel appliances.
4. INSTALL VENTAT CLEARANCES SPECIFIED BY THE
VENT MANUFACTURER.
5. Secure exhaust venting system to the appliance with
at least 3 screws. Also secure all connector pipe joints
with at least 3 screws through each joint.
6. DO NOT INSTALL A FLUE DAMPER IN THE
EXHAUST VENTING SYSTEM OF THIS Appliance.
7. DO NOT CONNECT THIS Appliance TO A CHIMNEY
FLUE SERVING ANOTHER APPLIANCE.
NOTE: If burning shelled eld corn, you must use
approved venting specically designed for
corn. Follow the instructions from the venting
manufacturer.
NOTE: All pipe must be welded seam pipe whenever
possible. Seal pipe joints with high temperature
silicone (500°F [260°C] minimum rated only).
.075 inches W.C.
Minimum Vacuum Requirements per Appliance

15June 18, 2019 7059-800B
HEATILATOR ECO-CHOICE PS50
F. Equivalent Feet of Pipe
The table below can help you calculate the equivalent feet
of pipe which is a method used to determine pellet vent
size (Figure 15.1).
2 ft.
2 ft.
3 ft.
2 ft.
Example of 3 Elbow-Rear Vent Termination Calculation
NOTE: This is a generic example and is not intended to represent any
specic fuel type.
Figure 15.2
3 in. or 4 in. (76mm or
102mm) Diameter Pipe
3 in. or 4 in. (76mm or
102mm) Diameter Pipe
Equivalent Pipe
Length In Feet
Equivalent Pipe
Length In Feet
ALTITUDE IN THOUSANDS OF FEETALTITUDE IN THOUSANDS OF FEET
0
20
30
1 2 3 4 5 6 7 8 9 10
4 in. (102mm) Diameter Pipe Only4 in. (102mm) Diameter Pipe Only
10
Example 1Example 1
Example 2
Example 2
• Example 1: If the equivalent length of pipe is 23 feet
(7m) with altitude of 8,000 feet (2438m) you must use 4
inch (102mm) diameter type “L” or “PL” vent.
• Example 2: If the equivalent length of pipe is 12 feet
(3.7m) with altitude of 6,000 feet (1829m) you may
use 3 or 4 inch (76 to 102mm) diameter type “L” or
“PL” vent.
G. Pipe Selection Chart
The chart will help you in determining proper venting
size according to the equivalent feet of pipe calculated
previously and the altitude above sea level of this
installation (Figure 15.2).
1. Locate the calculated equivalent feet of pipe on the
vertical left side of the chart.
2. Move to the right horizontally on the chart until you
reach your altitude above sea level.
3. If you fall below the diagonal line, 3 or 4 inch (76 to
102mm) pipe may be used.
4. If it is anywhere above the diagonal line, a 4 inch
(102mm) diameter pipe is required.
Figure 15.1
Vent surfaces get HOT, can cause burns
if touched. Non-combustible shielding or
guards may be required.
WARNING
Pellet
Venting
Component
# of
Elbows Feet of Pipe Multiplied By Equivalent Feet
Components
Equivalent
Feet
90° Elbow
or Tee 3 X 5 15
45° Elbow X 3
Horizontal
Pipe 7 X 1 7
Vertical
Pipe 2 X 0.5 1
Total Equivalent Feet 23
NOTICE!
• A 90° elbow is 5 times as restrictive to the ow of
exhaust gases under positive pressure as 1 foot
(305mm) of horizontal pipe.
• A foot of horizontal pipe is twice as restrictive as a
foot of vertical pipe.
Risk of Injury or Property Damage.
• Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage.
• Refer to the owner’s information manual
provided with this appliance.
• For assistance or additional information
consult a qualied installer, service
agency or your dealer.
WARNING
Risk of Fire!
• Only LISTED venting components may be
used.
• NO OTHER vent components may be
used.
• Substitute or damaged vent components
may impair safe operation.
WARNING

16 June 18, 20197059-800B
HEATILATOR ECO-CHOICE PS50
A. Through The Wall
Horizontal termination cap must be a minimum of 6
inches. (152mm) from the wall. Approved for mobile home
installations. Must use 3 or 4 inch (76-102mm) “L” or “PL”
listed pellet venting or Listed double wall pipe and an
authorized Outside Air Kit in mobile homes.
Figure 16.1
6 in.
(152mm)
Minimum
Non-combustible Hearth Pad
Wall
Thimble
Horizontal
Termination
Cap
2 in.
(51mm)
Minimum
6 in.
(152mm)
Minimum
From Glass
Wall
Thimble
Illustration shows venting going in both directions.
Choose which one is best for your installation.
2 in. (51mm)
Minimum
2 in.
(51mm)
Minimum
6 in (152mm) Minimum
6 in (152mm)
Minimum
Figure 16.2
5 Venting Systems
NOTE: In Canada, where passage through a wall or
partition of combustible construction is desired,
the installation shall conform to CAN/CSA-B365
NOTICE:
Please note that while the minimum clearance for
the termination cap is 6 inches (152mm) there is the
possibility of soot build-up around the termination area.
If this occurs we suggest to move the termination further
away from the house to prevent it.
We strongly recommend that you DO NOT DOWNWARD
VENT.
The following may occur:
• The appliance will not vent properly
• Smoke spillage in the house
• Excessive sooting
CAUTION
Straight Out
45 Degree

17June 18, 2019 7059-800B
HEATILATOR ECO-CHOICE PS50
We strongly recommend a minimum of 60
inches (1.5m) vertical, however above the eve is
preferred.
Both installations are approved for mobile home
installations. Must use 3 or 4 inch (76 to 102mm) “L” or
“PL” Listed pellet venting or Listed double wall pipe and
authorized Outside Air Kit in mobile homes. Single wall
pipe is approved for residential installations only.
Air Clearance to Pipe:
This appliance was tested with standard 3 inch (76mm)
Listed pellet vent.
Pellet pipe manufactures Listed reduce clearance pipe
may be use for reduce clearance from 3 inch (76mm) air
clearance to no less than 1 inch (25mm) air clearance to
combustibles for approved Listed pellet pipe.
Follow pipe manufactures listed air clearances to
combustibles and installation instructions for all reduced air
clearances installations.
B. Vertical into Existing Class A Chimney
Firestop
Flashing
Rain Cap
6 in.
(152mm)
Minimum.
Non-combustible Hearth Pad
3 in. (76mm) Minimum.
Cleanout Cover
12 in. (305mm) Minimum
Ceiling Support
6 in. (152mm) Flue
Connector
6 in. (152mm) Class A
Chimney Connector
Adapter
3 in. to 6 in.
(76-152mm)
Top Vent Kit
Non-combustible Hearth Pad
Clean-out Cover
Tee
Wall Thimble
Support
Bracket
Every 60 in.
(1.5m)
12 in.
(305mm)
Minimum
Rain Cap
Flashing
2 in. (51mm) Minimum
6 in. (152mm)
Minimum
Figure 17.3
Firestop
Flashing
Rain Cap
6 in.
(152mm)
Min.
Non-combustible Hearth Pad
3 in. (76mm) Min.
12 in.
(305mm)
Minimum
3 in. to 3 in.
(76-76mm)
Top Vent Kit
Clean-out Cover
Figure 17.2
D. Through The Wall & Vertical - External
C. Vertical - Interior - Typical Installation
PREFERRED METHOD #1
PREFERRED METHOD #2
Figure 17.1
NOTE: In Canada, where passage through a wall or
partition of combustible construction is desired,
the installation shall conform to CAN/CSA-B365

18 June 18, 20197059-800B
HEATILATOR ECO-CHOICE PS50
E. Masonry
F. Alternate
Masonry
Figure 18.1
Figure 18.2
Non-combustible
Hearth Pad
Airtight Clean-out Door
Sheathing
2 in. (51mm) Minimum
Flashing
1 in. (25mm) Clearance
1 in. (25mm)
Clearance with Firestop
6 in.
(152mm)
Minimum
Fireclay Flue Liner
with Airspace
Concrete Cap
Non-combustible Hearth Pad
Airtight
Clean-Out Door
Clean-Out cover
Sheathing
3 in. (76mm) Minimum
1 in. (25mm) Clearance
Flashing
Fireclay flue
Liner with Airspace
Concrete Cap
1 in. (25mm) Clearance
with Firestop
6 in. (152mm)
Minimum
Fire Risk
Inspection of Chimney:
• Masonry chimney must be in good
condition.
• Meets minimum standard of NFPA 211
• Factory-built chimney must be a minimum
6 inch (152mm) UL103 HT.
WARNING

19June 18, 2019 7059-800B
HEATILATOR ECO-CHOICE PS50
Figure 19.1
Figure 19.2
6 Appliance Set-Up
A. Outside Air Kit
The Outside Air Kit that is available for purchase for this
appliance is 811-0872. This kit uses a 2 inch ex hose
(which is included in the kit) and uses hose clamps to
secure the hose.
Parts Included in 2 inch Kit 811-0872:
1 piece of 2 inch x 3 ft. ex hose, 2 hose clamps, 1 collar
assembly, 1 termination cap assembly, trim ring, 1 intake
air channel, fasteners (Discard the air intake channel, it is
not needed for this appliance.
Tools Needed:
Termination Cap
Hose Clamp
Trim Ring
2 inch flex hose
Hose Clamp
Collar Assembly
Air Intake Channel
(Discard)
Phillips Head screw driver; wire cutters; and hole saw or
jig saw.
1. Measure distance from oor to air vent opening in
appliance and mark location on wall.
2. Use a saw to cut opening in wall:
-2 inch kit: Cut a 2-1/2 to 3 inch opening on inside
wall and a 3 to 3-1/2 inch opening on outside of
house.
3. Use wire tie or hose clamp depending on the Outside
Air Kit to secure ex pipe to collar assembly.
4. Slide trim ring over ex pipe and run pipe through wall.
5. Attach ex pipe to outside termination cap with second
wire tie or hose clamp.
6. Secure termination cap to outside surface.
7. Secure trim ring to interior wall.
Shock hazard.
• Do NOT remove grounding prong
from plug.
• Plug directly into properly grounded 3
prong receptacle.
• Route cord away from appliance.
• Do NOT route cord under or in front
of appliance.
CAUTION
CAUTION
Never draw outside combustion air from:
• Wall, oor or ceiling cavity
• Enclosed space such as an attic or garage

20 June 18, 20197059-800B
HEATILATOR ECO-CHOICE PS50
B. Top Vent Adapter Installation
3 to 3 inch Top Vent Adapter
3 to 6 inch Top Vent O󰀨set Adapter
1. Put a layer of high temperature silicone on the 3 inch
(76mm) exhaust outlet. Do not put silicone inside of
pipe (Figure 20.1).
2. Slide the top vent adapter onto the rear exhaust
outlet and adjust the assembly to a vertical position
(Figure 20.1).
3. Drill 4 holes with #26 drill bit (provided) into the back of
the appliance using the outer shield as a pattern (make
sure the assembly is vertical) (Figure 20.1).
4. Install the 4 mounting screws.
5. Drill 2 holes with #26 drill bit through the rear exhaust
outlet using the 2 holes already in the short horizontal
pipe in the top vent adapter as a guide. Install the 2
screws (Figure 20.1).
6. Install the vent pipe into the top vent adapter (be sure
to silicone all joints).
7. To clean the top vent adapter open the clean-out cover
(Figure 20.1).
Silicone Rear Exhaust Outlet
3 to 6 inch
Offset Adapter
3 to 3 inch
Offset Adapter
Use Hole on Each
Side as Drilling Guide
Figure 20.1
C. Rear Vent Adapter Installations
1. Put a layer of high temperature silicone on the 3 inch
(76mm) exhaust outlet. Do not put silicone inside of
pipe (Figure 20.1).
2. Slide the adapter onto the rear exhaust outlet and
adjust the assembly to the appropriate position.
3. Install the vent pipe into the adapter (be sure to silicone
all joints)
Clean-Out Cover
Clean-Out Cover
Figure 20.2 - Rear Vent
Adapter
Figure 20.3 - Rear to Top Vent
Adapter - 90°
D. Thermostat Installation
1. A low voltage thermostat is required to operate this
pellet appliance. You may use the included wall mount
thermostat (Figure 20.4) or purchase an optional
programmable thermostat or remote control. It is
equipped with an adjustable heat anticipator. The
current rating is .05 amps. The anticipator needs to be
adjusted to the lowest setting available.
2. When mounting a thermostat on a wall, be sure to
follow your thermostat installation instructions carefully.
Figure 20.4
Figure 20.5
Back of Appliance
Terminal Block
Center 2 Screws for
Thermostat Wires
Power Outlet
NOTE: Thermostat must be mounted level for accurate
readings. The thermostat should be mounted
on an inside wall and not in direct line with the
appliance convection air.
NOTE: If the thermostat is located too close to the
appliance, you may need to set the temperature
setting slightly higher to maintain the desired
temperature in your home.
3. There is a 4 screw terminal block located on the back
lower left corner of the appliance directly above the
power cord inlet. The center 2 screws are for the
thermostat wires (Figure 20.5).
Shock hazard.
• Do NOT remove grounding prong from
plug.
• Plug directly into properly grounded 3
prong receptacle.
• Route cord away from appliance.
• Do NOT route cord under or in front
of appliance.
CAUTION
