SERVICE MANUAL
PP60 / PP60-B / PP70 / PP130 / PP130-B

206/218390-016A
PELPRO TROUBLESHOOTING MANUAL
INTRODUCTION
The purpose of this troubleshooting guide is to provide step by step procedures for diagnosing issues with the PelPRO
PP60, PP60-B, PP70, PP130, PP130-B. A digital or analog multimeter will be required for many of the troubleshooting steps
in this guide.
When troubleshooting with the multimeter, it’s important to disconnect the appliance from wall power while locating the
electrical connections that need to be checked. Connect the multimeter to the test locations detailed in this guide and then
plug the appliance back into wall power. Take care to avoid letting any exposed wires or connectors from contacting the
metal chassis of the appliance or from touching exposed skin. The appliance is energized with 115VAC power from the wall
and there is a risk of shock or electrocution. If you are not familiar or comfortable working with energized electrical circuits,
please contact a certied NFI Installer or certied electrician to complete that portion of troubleshooting.
When instructed to check a appliance for power from the control board, the multimeter will need to be set to check Voltage,
often displayed as “V” on the meter. If the meter is not auto-sensing, AC voltage will need to be chosen when specied in
the instructions. AC voltage is also sometimes shown as ~ V on multimeters. If instructed to check VDC, DC voltage will
have to be chosen on the multimeter. Voltage checks are typically used when motors and blowers are not running and we
are attempting to determine if the component is bad or is the control board is not sending power to the component.
Some components can be veried for functionality by checking the resistance of the part. Igniters and fuses are the most
common parts that can be veried by resistance checking with a multimeter. Resistance is measured in ohms (Ω) and
most multimeters will have that symbol next to the resistance setting. Unlike voltage, resistance is always measured with
the appliance completely deenergized from wall power. There is no risk of shock or electrocution when the appliance is
unplugged from wall power and components are being veried for resistance. When resistance is being checked, this
manual will provide an expected resistance in Ω, however a number slightly above or below the specied value does not
indicate a bad component. If the multimeter shows MAX or Out of Range, this indicates innite resistance, meaning an open
circuit and a bad component. A resistance of 0 ohms for a component indicates an electric short circuit and again a bad
component.

306/218390-016A
Service Parts List

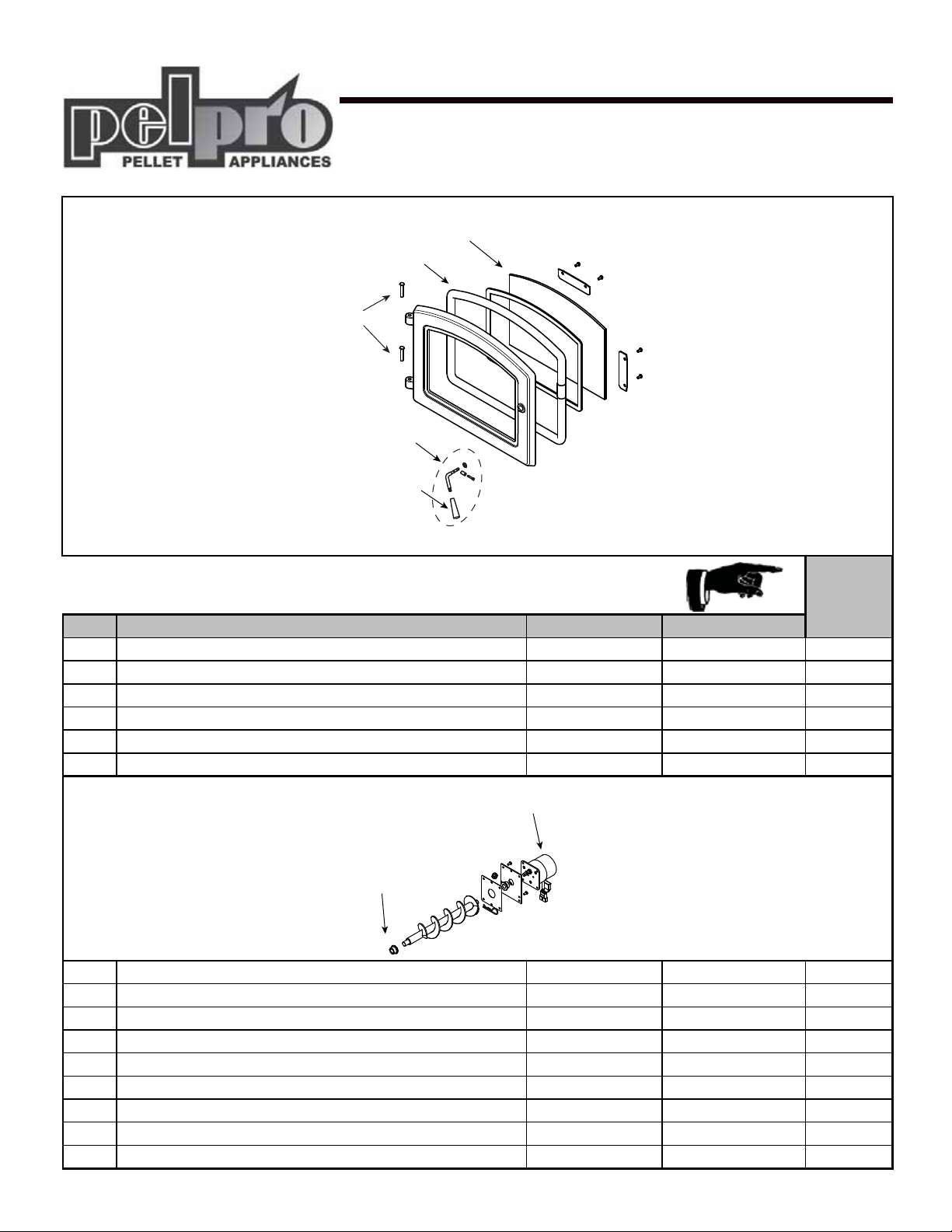

Service Parts
Beginning Manufacturing Date: July 2013
Ending Manufacturing Date: Active
PP60
Pellet Stove
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for
your appliance please provide model number and serial number. Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1 Hopper Lid Assembly SRV7083-019
Handle, Hopper Lid SRV200-0110
2 Side Curtain, Left Hand SRV7083-154 Y
3 Snap disc, Manual Reset SRV230-0080 Y
4 Exhaust Combustion Blower 812-4400 Y
Gasket, Between Blower Housing and Stove SRV240-0812 Y
Gasket, Between Blower Housing and Motor 812-4710 Y
5 Door Assembly SRV7086-021 Y
6 Bafe Kit SRV7079-006
7 Firepot SRV7077-003 Y
8 Igniter Chamber Kit SRV7077-110
9 Igniter Kit SRV7000-660 Y
10 Convection Blower SRV7000-659 Y
11 Control Board SRV7079-050 Y
12 Vacuum Switch SRV7000-531 Y
Vacuum Hose, 5/32 ID 3 Ft SRV240-0450 Y
13 Side Curtain, Right Hand SRV7083-153 Y
14 Dial Control SRV7083-036 Y
Wire Harness, Dial Control SRV7000-667 Y
15 Feed Assembly Kit SRV7077-014 Y
16 Hopper Switch SRV7000-612 Y
See Following page for additional servcie parts 6/18
1
2
3
4
5
6
78910 11
12
13
15
16
14

406/218390-016A
Service Parts
Beginning Manufacturing Date: July 2013
Ending Manufacturing Date: Active
PP60
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for
your appliance please provide model number and serial number. Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
5 Door Assembly SRV7086-021 Y
5.1 Glass Assemlby SRV7081-173 Y
5.2 Rope, Door, 3/4” x 84” 832-1680 Y
5.3 Hinge Pins Pkg of 2 433-1590/2 Y
5.4 Threaded Handle Assembly Kit SRV7093-024 Y
5.5 Handle Black Phenolic Kit KS-5140-1442 Y
15 Feed Assembly Kit SRV7077-014 Y
15.1 Feed Shaft Bushing Pkg of 2 7000-600/2 Y
15.2 Feed Motor SRV7000-670 Y
Bearing Assembly SRV7000-820
Ambient Probe SRV7000-668 Y
Exhaust Probe SRV7000-669 Y
Wire Harness SRV7093-184 Y
Wire Clip Pkg of 10 7000-400/10 Y
Power Cord 812-1180 Y
15.2
15.1
#5 Door Assembly
#15 Feeder Assembly
5.4
5.3
5.2
5.1
5.5

506/218390-016A

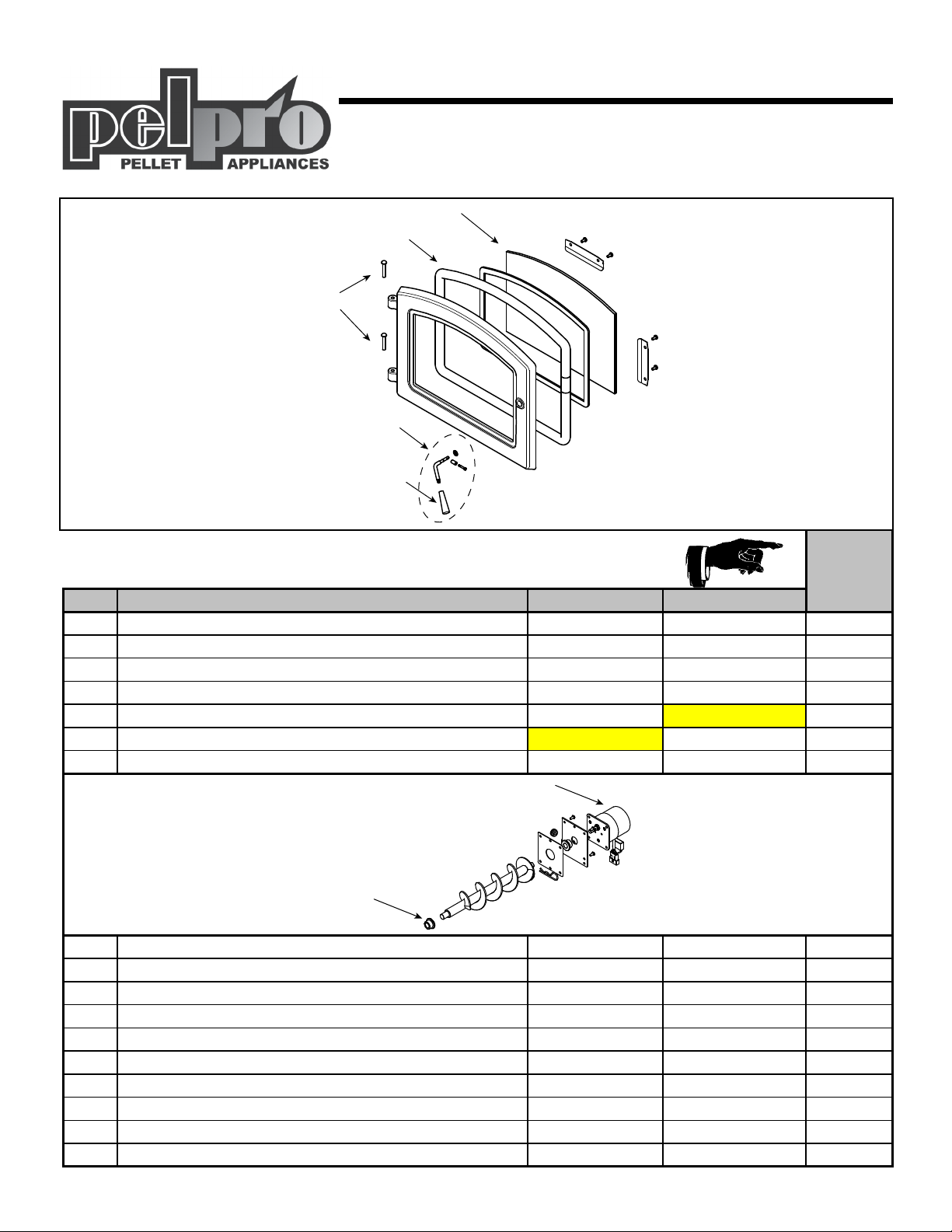

Service Parts
Beginning Manufacturing Date: April 2019
Ending Manufacturing Date: Active
PP60-B
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for
your appliance please provide model number and serial number. Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1Hopper Lid Assembly SRV7083-019
Handle, Hopper Lid SRV200-0110
2 Side Curtain, Left Hand SRV7083-154 Y
3 Snap disc, Manual Reset SRV230-0080 Y
4 Exhaust Combustion Blower 812-4400 Y
Gasket, Between Blower Housing and Stove SRV240-0812 Y
Gasket, Between Blower Housing and Motor 812-4710 Y
5Door Assembly See Following Page Y
6Ba󰀪e Kit SRV7079-006
7 Firepot SRV7077-003 Y
8Igniter Chamber Kit SRV7077-110
9Igniter Kit SRV7000-660 Y
10 Convection Blower SRV7000-659 Y
11 Control Board SRV7079-050 Y
12 Vacuum Switch SRV7000-531 Y
Vacuum Hose, 5/32 ID 3 Ft SRV240-0450 Y
Hose, Barb Assembly SRV229-0920
13 Side Curtain, Right Hand SRV7083-153 Y
14 Dial Control SRV7083-036 Y
Wire Harness, Dial Control SRV7000-667 Y
15 Feed Assembly Kit See Following Page Y
16 Hopper Switch SRV7000-612 Y
See Following page for additional servcie parts 6/21
Pellet Stove
1
2
3
4
5
6
78910 11
12
13
15
16
14

606/218390-016A
Service Parts
Beginning Manufacturing Date: April 2019
Ending Manufacturing Date: Active
PP60-B
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for
your appliance please provide model number and serial number. Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
5Door Assembly SRV7086-021 Y
5.1 Rope, Door, 3/4” x 84” 832-1680 Y
5.2 Glass Assemlby SRV7081-173 Y
5.3 Hinge Pins Pkg of 2 433-1590/2 Y
5.4 Threaded Handle Assembly Kit SRV7093-024D Y
Shoulder Bolt, 1/4 x 1 No longer available SRV7000-944
5.5 Handle Black Phenolic Kit KS-5140-1442 Y
15 Feed Assembly Kit SRV7077-014 Y
15.1 Feed Shaft Bushing Pkg of 2 7000-600/2 Y
15.2 Feed Motor SRV7000-670 Y
Bearing Assembly SRV7000-820
Ambient Probe SRV7000-668 Y
Exhaust Probe SRV7000-669 Y
Wire Harness SRV7093-184 Y
Wire Clip Pkg of 10 7000-400/10 Y
Component Pack SRV7083-062
Power Cord 812-1180 Y
#5 Door Assembly
#15 Feeder Assembly
15.2
15.1
5.4
5.3
5.2
5.1
5.5

706/218390-016A
Service Parts
Beginning Manufacturing Date: Sept 2018
Ending Manufacturing Date: Active
PP70
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for
your appliance please provide model number and serial number. Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1Hopper Lid Assembly SRV7103-019
Handle, Hopper Lid SRV200-0110
2 Side Curtain, Left Hand SRV7103-154 Y
3 Snap disc, Manual Reset SRV230-0080 Y
4 Exhaust Combustion Blower 812-4400 Y
Gasket, Between Blower Housing and Stove SRV240-0812 Y
Gasket, Between Blower Housing and Motor 812-4710 Y
5Door Assembly SRV7086-021 Y
6Ba󰀪e Kit SRV7079-006
7 Firepot SRV7077-003 Y
8Igniter Chamber Kit SRV7077-110
9Igniter Kit SRV7000-660 Y
10 Convection Blower KS-5020-1052 Y
Convection Blower Gasket SRV7081-195
11 Control Board SRV7103-050 Y
12 Vacuum Switch SRV7000-531 Y
Vacuum Hose, 5/32 ID 3 Ft SRV240-0450 Y
Hose, Barb Assembly SRV229-0920
13 Side Curtain, Right Hand SRV7103-153 Y
14 Dial Control SRV7083-036 Y
Wire Harness, Dial Control SRV7000-667 Y
15 Feed Assembly Kit SRV7077-014 Y
16 Hopper Switch SRV7000-612 Y
See Following page for additional servcie parts 6/21
Pellet Stove
1
2
3
4
5
6
7
8
9
10
11
12
13
15
16
14

806/218390-016A
Service Parts
Beginning Manufacturing Date: Sept 2018
Ending Manufacturing Date: Active
PP70
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for
your appliance please provide model number and serial number. Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
5Door Assembly SRV7086-021 Y
5.1 Glass Assemlby SRV7081-173 Y
5.2 Rope, Door, 3/4” x 84” 832-1680 Y
5.3 Hinge Pins Pkg of 2 433-1590/2 Y
5.4 Threaded Handle Assembly Kit SRV7093-024D Y
Shoulder Bolt, 1/4 x 1 No longer available SRV7000-944
5.5 Handle Black Phenolic Kit KS-5140-1442 Y
15 Feed Assembly Kit SRV7077-014 Y
15.1 Feed Shaft Bushing Pkg of 2 7000-600/2 Y
15.2 Feed Motor SRV7000-670 Y
Bearing Assembly SRV7000-820
Ambient Probe SRV7000-668 Y
Component Pack SRV7103-028
Exhaust Probe SRV7000-669 Y
Wire Harness SRV7093-184 Y
Wire Clip Pkg of 10 7000-400/10 Y
Power Cord 812-1180 Y
#5 Door Assembly
#15 Feeder Assembly
15.2
15.1
5.4
5.3
5.2
5.1
5.5

906/218390-016A
Service Parts
Beginning Manufacturing Date: Apr 2014
Ending Manufacturing Date: Active
PP130
Pellet Stove
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for
your appliance please provide model number and serial number. All parts listed in this manual must
be ordered from a dealer.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1 Hopper Lid Assembly SRV7086-019
Hopper Extension PPHE200
Handle, Hopper Lid SRV200-0110
2 Side Curtain, Left Hand SRV7086-154
3 Exhaust Combustion Blower 812-4400 Y
Gasket, Between Blower Housing and Stove SRV240-0812 Y
Gasket, Between Blower Housing and Motor 812-4710 Y
4 Snap disc, Manual Reset SRV230-0080 Y
5 Door Assembly SRV7086-021 Y
6 Bafe Kit SRV7077-006
7 Firepot SRV7077-003 Y
8 Igniter Chamber Kit SRV7077-110
9 Igniter Kit SRV7000-660 Y
10 Control Board SRV7077-050 Y
11 Convection Blower KS-5020-1052 Y
Convection Blower Bracket SRV7081-210
12 Vacuum Switch SRV7000-531 Y
Vacuum Hose, 5/32 ID 3 Ft SRV240-0450 Y
13 Side Curtain, Right Hand SRV7086-153 Y
14 Dial Control SRV7083-036 Y
Wire Harness, Dial Control SRV7000-667 Y
15 Hopper Switch SRV7000-612 Y
See Following page for additional servcie parts 6/18
1
2
10
11
3
4
5
69
8
7
12
13
14
16
15

10 06/218390-016A
Service Parts
Beginning Manufacturing Date: Apr 2014
Ending Manufacturing Date: Active
PP130
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for
your appliance please provide model number and serial number. All parts listed in this manual must
be ordered from a dealer.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
5 Door Assembly SRV7086-021 Y
5.1 Glass Assembly SRV7081-173
5.2 Rope, Door, 3/4” x 84” 832-1680
5.3 Hinge Pins Pkg of 2 433-1590/2
5.4 Threaded Handle Assembly Kit SRV7093-024 Y
5.5 Handle Black Phenolic Kit KS-5140-1442 Y
16 Feed Assembly Kit SRV7077-014 Y
16.1 Feed Motor SRV7000-670 Y
16.2 Feed Shaft Bushing Pkg of 2 7000-600/2 Y
Power Cord 812-1180 Y
Ambient Probe SRV7000-668 Y
Exhaust Probe SRV7000-669 Y
Wire Harness SRV7093-184 Y
Wire Clip Pkg of 10 7000-400/10 Y
#5 Door Assembly
#16 Feed Assembly Kit 16.1
16.2
5.4
5.3
5.2
5.1
5.5

11 06/218390-016A
Service Parts
Beginning Manufacturing Date: Sept 2018
Ending Manufacturing Date: Active
PP130-B
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for
your appliance please provide model number and serial number. All parts listed in this manual must
be ordered from a dealer.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1Hopper Lid Assembly SRV7086-019
Hopper Extension PPHE200
Handle, Hopper Lid SRV200-0110
2 Side Curtain, Left Hand SRV7086-154
3 Exhaust Combustion Blower 812-4400 Y
Gasket, Between Blower Housing and Stove SRV240-0812 Y
Gasket, Between Blower Housing and Motor 812-4710 Y
4 Snap disc, Manual Reset SRV230-0080 Y
5Door Assembly SRV7086-021 Y
6Ba󰀪e Kit SRV7077-006
7 Firepot SRV7077-003 Y
8Igniter Chamber Kit SRV7077-110
9Igniter Kit SRV7000-660 Y
10 Control Board SRV7104-050 Y
11 Convection Blower KS-5020-1052 Y
Convection Blower Gasket SRV7081-195
Convection Blower Bracket SRV7081-210
12 Vacuum Switch SRV7000-531 Y
Vacuum Hose, 5/32 ID 3 Ft SRV240-0450 Y
Hose, Barb Assembly SRV229-0920
13 Side Curtain, Right Hand SRV7086-153 Y
14 Dial Control SRV7083-036 Y
Wire Harness, Dial Control SRV7000-667 Y
15 Hopper Switch SRV7000-612 Y
See Following page for additional servcie parts 6/21
Pellet Stove
1
2
10
11
3
4
5
69
8
7
12
13
14
16
15

12 06/218390-016A
Service Parts
Beginning Manufacturing Date: Sept 2018
Ending Manufacturing Date: Active
PP130-B
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for
your appliance please provide model number and serial number. All parts listed in this manual must
be ordered from a dealer.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
5Door Assembly SRV7086-021 Y
5.1 Glass Assembly SRV7081-173
5.2 Rope, Door, 3/4” x 84” 832-1680
5.3 Hinge Pins Pkg of 2 433-1590/2
5.4 Threaded Handle Assembly Kit SRV7093-024D Y
Shoulder Bolt, 1/4 x 1 No longer available SRV7000-944
5.5 Handle Black Phenolic Kit KS-5140-1442 Y
16 Feed Assembly Kit SRV7077-014 Y
16.1 Feed Motor SRV7000-670 Y
16.2 Feed Shaft Bushing Pkg of 2 7000-600/2 Y
Power Cord 812-1180 Y
Ambient Probe SRV7000-668 Y
Component Pack SRV7104-028
Exhaust Probe SRV7000-669 Y
Wire Harness SRV7093-184 Y
Wire Clip Pkg of 10 7000-400/10 Y
#5 Door Assembly
#16 Feed Assembly Kit 16.1
16.2
5.4
5.3
5.2
5.1
5.5

13 06/218390-016A
PART LOCATIONS
Note: Other models are in similar location.
Left Side
Exhaust Blower
Feed Motor
Over Heat Snap Disc
Igniter
Right Side
Convection Blower
Control Board
Dial Control

14 06/218390-016A
Operation Flow Chart
1: Set dial control to desired temperature. (green light on
dial control will change from a slow blink to rapid blink)
2: Exhaust blower turns on.
3: Igniter turns on.
4: Vacuum switch closes.
5: Feed motor will turn on after the 1 min igniter preheat
sequence expires. Initial feed will be for 60 seconds
and stop.
6: Pellets ignite in the repot.

15 06/218390-016A
9: Flame stabilization mode begins. Appliance will feed
at .8 second “on time” for 3 minutes.
Operation Flow Chart
7: Exhaust probe senses a 6 degree increase per minute
for 2 consecutive minutes.
8: Igniter turns o󰀨.
10: Convection blower turns on and increases speed as
the appliance heats up.
The exhaust probe will
sense 140 degrees and
turn on the convection
blower at a low speed.
11: Green blink on the dial
control will change its
blinks to show the current
power level. Power level
will vary depending on
room temp vs set temp
on the dial.
These times are at trim 0: (7 Second Cycle)
PP60/PP60-B PP130 PP70 PP130-B
Power Level 1: 0.9 sec “on time” 0.9 sec “on time” 0.8 sec “on time” 1.0 sec “on time”
Power Level 2: 1.3 sec “on time” 1.5 sec “on time” 1.1 sec “on time” 1.2 sec “on time”
Power Level 3: 1.6 sec “on time” 2.0 sec “on time” 1.4 sec “on time” 1.6 sec “on time”
Power Level 4: 2.0 sec “on time” 2.5 sec “on time” 1.7 sec “on time” 2.1 sec “on time”
Power Level 5: 2.4 sec “on time” 3.1 sec “on time” 2.0 sec “on time” 2.6 sec “on time”
12: Set temperature is met.

16 06/218390-016A
OPERATION FLOW CHART
13: Feed motor turns o󰀨.
14: Exhaust blower starts the shutdown cycle. Blower
will run at maximum rpm. Dial control will show a
rapid yellow blink.
15: Fire goes out in the repot. Appliance will continue to
cool.
16: Exhaust probe drops below 140 degrees and shuts
the convection blower o󰀨.
17: 12 minute shutdown timer expires and the exhaust
blower shuts o󰀨.
18: End of the cycle. Green light on the dial control will go
to the slow “ready” blink.

17 06/218390-016A
ERROR CODE DEFINITIONS
Alarm code will be displayed on the dial control as
a series of red blinks.
1 Red Blink Empty Hopper Alarm. Most likely the appliance ran out of fuel or the ames are
adjusted too low.
2 Red Blinks Exhaust Probe Failure. A bad connection on the probe or a broken wire.
3 Red Blinks Ambient Probe Failure. A bad connection on the probe or a broken wire.
4 Red Blinks Missed ignition. Appliance failed to light the fuel or read a rise in temperature.
8 Red Blinks Exhaust temperature over heat alarm. Appliance got too hot. Check the heat
exchanger and exhaust system for obstructions.

18 06/218390-016A
Troubleshooting
REFER TO THE OWNERS MANUAL FOR
INFORMATION ON MAKING ADJUSTMENTS TO
THE Appliance OR FOR THE PROCEDURES FOR
REPLACING PARTS.
ALARM CODE T/S CHART
1 Flash: Empty Hopper.................................................................Page 23
2 Flashes: Exhaust Probe Fail ...........................................................Page 31
3 Flashes: Ambient Probe Alarm .........................................................Page 30
4 Flashes: Missed Ignition ..............................................................Page 27
8 Flashes: Exhaust Over Temperature .....................................................Page 20
SYMPTOM
Not Feeding Pellets ...................................................................Page 37
Not Lighting the Fuel..................................................................Page 34
Lazy or Sooty Flames .................................................................Page 21
No Power ...........................................................................Page 39
Convection Blower Not Coming On......................................................Page 17
Exhaust Blower Not Coming On ........................................................Page 35
Appliance Is Not Sensing Temp in the Room ..............................................Page 30
Firebox Vacuum Low or VAC Switch not Working ..........................................Page 25
Dial Control Not Working ..............................................................Page 41
WARNING
ALWAYS UNPLUG THE STOVE BEFORE
CLEANING, REPLACING COMPONENTS,
RESETTING SNAP DISCS AND
CHECKING WIRE CONNECTIONS.

19 06/218390-016A
PP70 & PP130-B APPLIANCES
CONVECTION BLOWER TROUBLESHOOTING
CONVECTION BLOWER NOT COMING ON
WARNING
Exposed Skin, Electric Shock Hazard
Unit must be connected to power for some
troubleshooting steps. DO NOT allow
energized connections to touch appliance
body.
APPLY HEAT TO
EXHAUST SENSOR
IS THE EXHAUST
PROBE SENSOR
WORKING?
IS THE EXHAUST
PROBE SENSOR
SECURED TO THE
EXHAUST BLOWER?
SYSTEM
IS REPAIRED
IS THE
BLOWER
RUNNING?
YES NO
REPLACE THE
CONVECTION
BLOWER.SEE EXHAUST
PROBE TESTING
CHECK BLOWER
WIRE CONNECTIONS
CHECK VOLTS TO
BLOWER. IS THERE
60 VAC OR HIGHER?
YES NO
YES
NO
REPLACE THE
CONTROL BOARD
YES NO
REPAIR THE PROBE
MOUNT LOCATION.
REPLACE THE PROBE
Testing Locations & Readings on next page.

20 06/218390-016A

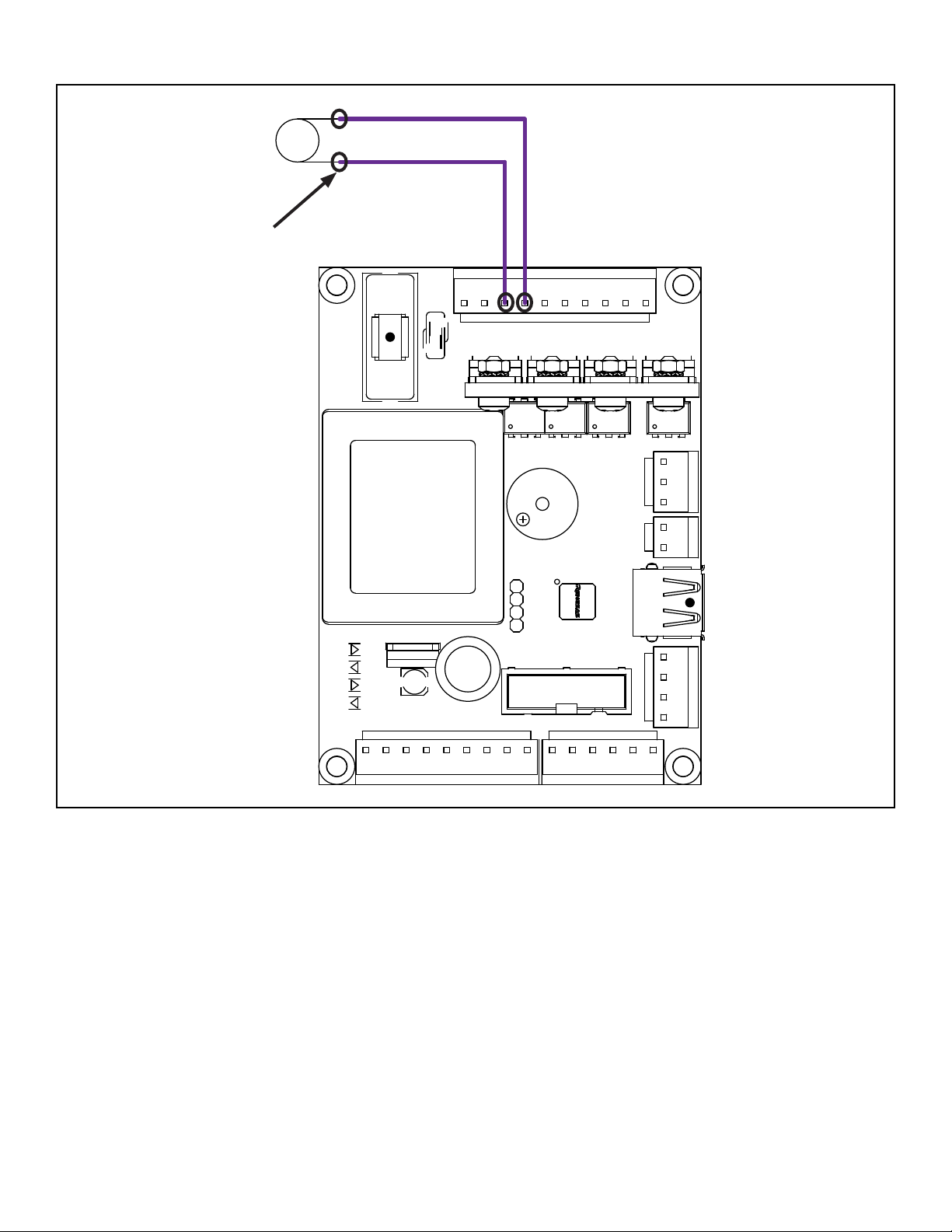

M
CONVECTION
BLOWER
BLACK WHITE PURPLE PURPLE BLUE
BLUE
WHITE
RED
BLACK BLACK
CONVECTION BLOWER TROUBLESHOOTING
CONVECTION BLOWER VOLTS RANGE: 62VAC TO 115VAC (+/- 5VAC)
Convection blower range changes depending on power level.
TEST POINTS FOR
CHECKING VOLTAGE
