HearthStove Manchester 8330 User manual

Manchester Pellet Model 8330
Report: 261-S-04b-2
Manual: 6400-40468
R: 4 - 7/31/2012
Manchester
(Model 8330)
Pellet Stove
OWNER’S MANUAL
Operating Instructions
Please read this entire manual before installation and use of this pellet fuel burning room heater.
Failure to follow these instructions could result in property damage, bodily injury, or even death.
CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION
INSPECTION REQUIREMENTS IN YOUR AREA.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE!

Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove
Page 2 of 43
Intentionally Blank

Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove
Page 3 of 43
Table of Contents
Introduction............................................................................................................................ 4
Important Notes ................................................................................................................................................... 4
Specifications........................................................................................................................ 6
General Specifications.........................................................................................................................................7
Electrical Specifications....................................................................................................................................... 7
Components........................................................................................................................... 8
Operation.............................................................................................................................. 10
Loading Pellets ..................................................................................................................................................10
Modes of Operation ...........................................................................................................................................11
Quick Operations Guide ....................................................................................................................................12
Ash Disposal......................................................................................................................................................30
Maintenance......................................................................................................................... 31
Daily...................................................................................................................................................................31
Weekly or as Needed ........................................................................................................................................32
Monthly ..............................................................................................................................................................32
Yearly or Every Ton of Pellets...........................................................................................................................33
As Needed.........................................................................................................................................................35
Glass Replacement Procedures........................................................................................................................36
Troubleshooting .................................................................................................................. 37
Display Messages:.............................................................................................................................................37
General Issues:..................................................................................................................................................39
Replacement Parts & Optional Accessories List.............................................................. 41
Safety Label ......................................................................................................................... 42

Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove
Page 4 of 43
Introduction
Congratulations on your purchase of Hearthstone’s Manchester pellet fired stove. The Manchester Pellet stove
incorporates the latest in pellet burning technology providing you with clean, efficient heat for years to come.
Your decision to purchase a Hearthstone Manchester Pellet stove reflects a choice to purchase a premium
product and a technology which is carbon neutral, meaning that operation of this stove will not introduce any
“new” CO2into our atmosphere and minimizes your carbon footprint.
Burning pellets produces essentially the same amount of CO2 that the same amount of wood decomposing in
the forest would produce. Purchase of this product illustrates forward thinking and the thoughtfulness to
purchase an environmentally responsible product.
Pellet fuel is proven to provide the cleanest burn of any solid fuel, exhausting an average well below the United
States EPA wood burning limit. Your Hearthstone Manchester Pellet stove is certified at 1.3g/hr of particulate
emissions, well below the EPA standard of 7.5 g\hr, making your stove not only beautiful, but extremely clean
burning and efficient as well. This is because the combustion air is closely monitored and modulated by our on-
board computer, which optimizes the burn efficiency.
If you have any questions, comments or concerns please contact your local Hearthstone authorized dealer.
They are certified industry professionals and should always be consulted on the installation and operation of
your Hearthstone appliance for premium performance and trouble free operation and installation.
Hearthstone Quality Home Heating Products offers the best warranty in the industry. Satisfied customers are
our top priority.
Important Notes
Please Read this Owner’s Manual
Please read this manual in its entirety before installing your stove, thoroughly reading and understanding this
manual will help you operate and maintain this pellet heater to ensure years of efficient, economical use.
Please operate your stove in accordance with the instructions in this manual. For your safety and trouble free
operation, observe a few simple safety precautions and perform some minimal maintenance. The unit will
remain appealing while providing years of quality performance.
WARNING: ENSURE ONLY A HEARTHSTONE DEALER OR AN NFI CERTIFIED PELLET SERVICE TECHNICIAN
INSTALLS, AND REPAIRS THIS APPLIANCE. A QUALIFIED SERVICE TECHNICIAN MUST INSPECT THE
APPLIANCE BEFORE USE, AND AT LEAST ANNUALLY.
WARNING: REGULAR CLEANING IS REQUIRED OR ASH BUILDUP IN THE FIRE BOX COULD IMPEDE
OPERATION. IT IS IMPERATIVE THAT THE CONTROL COMPARTMENTS AND CIRCULATING AIR PASSAGES
OF THE APPLIANCE ARE KEPT CLEAN AND FREE OF OBSTRUCTIONS. THIS IS NOT A SET AND FORGET
APPLIANCE!
NEVER BURN PAPER, WOOD OR OTHER MATERIALS
CAUTION: DO NOT OPEN THE FRONT DOOR OR ASH PAN UNTIL THE STOVE HAS COOLED COMPLETELY.
The Manchester Pellet is a pellet fuel burning heater certified and is designed to burn premium natural wood
pellets only. Never burn any fuel not intended for use with this unit.
Hot Surfaces
Certain exposed surfaces of the Manchester will reach high temperatures during normal operation. Clearances
to combustibles must be maintained, as specified in the “Clearances to Combustibles” section of this manual.
DUE TO HIGH TEMPERATURES, LOCATE THE APPLIANCE OUT OF TRAFFIC LANES AND AWAY FROM
FURNITURE, DRAPERIES, CLOTHING AND FLAMMABLE MATERIALS. AS A GENERAL RULE, KEEP ALL
COMBUSTIBLES 36 INCHES AWAY.
Alert children and adults to the hazards of high surface temperatures and the need to stay away to avoid burns
to skin or clothing ignition.

Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove
Page 5 of 43
Introduction
Ensure young children are carefully supervised when in the same room as the appliance. Do not place clothing
or other flammable material on or near the appliance.
Fire Hazard
In the unlikely event of a soot, or creosote fire – leave the front door and ash drawer closed and shut
the unit off (unplug the unit if the chimney fire does not go out immediately). Have the unit and
venting inspected before further use.
Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this appliance.
Locate stove out of traffic and away from furniture, draperies, clothing, and flammable material.
Never use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fluid, or similar liquids to
start or ‘freshen up’ a fire in this heater. Keep all such liquids well away from the heater while it is in
use.

Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove
Page 6 of 43
Specifications
Listed as: Pellet-Fired Direct-Vent Fireplace Heater
Model: Manchester Pellet (8330)
Testing Agency: OMNI-Test Laboratories, Inc.
Tested to:
•
ASTM E 1509-04 Standard Specification for Room Heaters, Pellet Fuel-Burning Type
•
ULC/ORD-C1482-M1990 Requirements for Space Heaters for Use with Particulate Solid Fuels
•
ULC-S627-00 Space Heaters for Use with Solid Fuels
Report No.: 261-S-04b-2 Certified for US and Canada.
Approved for Mobile Home Installation
Output Specifications
*BTU measurements assume
8,500 btu/lb. Lower quality fuel
will reduce heat output and
overall performance.
% max burn
lbs/hr
BTU's*
Hours of burn, 40lb
30
1.8
15,300
22.2
45
2.7
22,950
14.8
70
4.2
35,700
9.5
100
6.0
51,000
6.7

Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove
Page 7 of 43

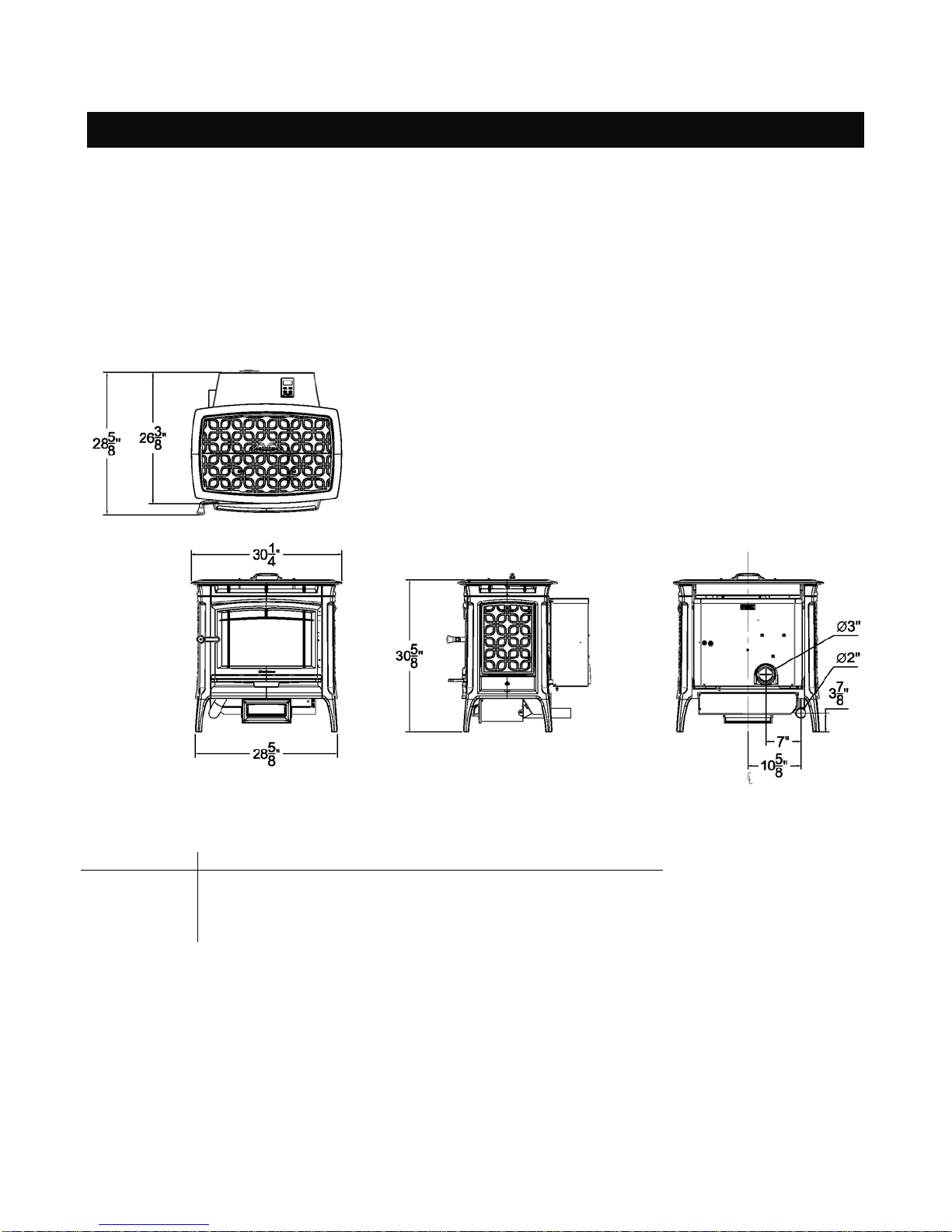

Specifications
General Specifications
Stove Weight…………………………………………………………………………………………….350 lbs
Pellet Hopper Capacity……………………………………………………………….………….……..50 lbs*
Approximate Heating Ability (sq ft)……………………… …………………………………………..up to 2000 sq ft
Burn Rate (lbs/hr)………………………………………… …………………………………………..1.8 – 6.00 lbs/hr
Fuel…………………………………………………...................………PFI certified premium or better Wood Pellets
(Refer to Appendix A for more information about pellet fuel in general)
EPA Certified Particulate Emissions….………………………………………………………………1.3g/hr
(EPA Standard – 7.5 g/hr)(Data from Omni-Test Laboratories, Inc. Report: 261-S-04-8.3)
Electrical Specifications
Electrical Rating…………………………………………………………120 V.A.C. 60Hz, 4 Amps
(A grounded surge protector is recommended to protect the circuit board. If the voltage entering your
home is below 116 volts your stove may not work properly. Ensure that the polarity of the electrical
receptacle that the stove is plugged into is correct.)
Fuse replacement: 3.5 amp minimum to 4 amp maximum rating. Hearthstone PN 7000-185
Watts used (startup) (approx)……………………………….………….300 Watts
Watts used (max/high burn) (approx)………………………………….160 Watts
Watts used (min/low burn) (approx)……………………………………60 Watts
*All void spaces in hopper filled.
^Dependent on energy efficiency of structure, fuel quality, user operation, and your installation.

Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove
Page 8 of 43
Components
Components and features:
Maintenance Tool
Heat Exchanger
Rake Rod (x2)
Control Panel
Secondary Hopper Door
Ash Pan
Screen
(below grill)
Door
Handle
Main Hopper Door
Burn Pot
Firebox
Baffle
Hopper Door Handle
Hopper Door
Sensor
Sensor Magnet
Front Door
Burn Pot
Pellet
Feed
Tube
Ignitor

Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove
Page 9 of 43

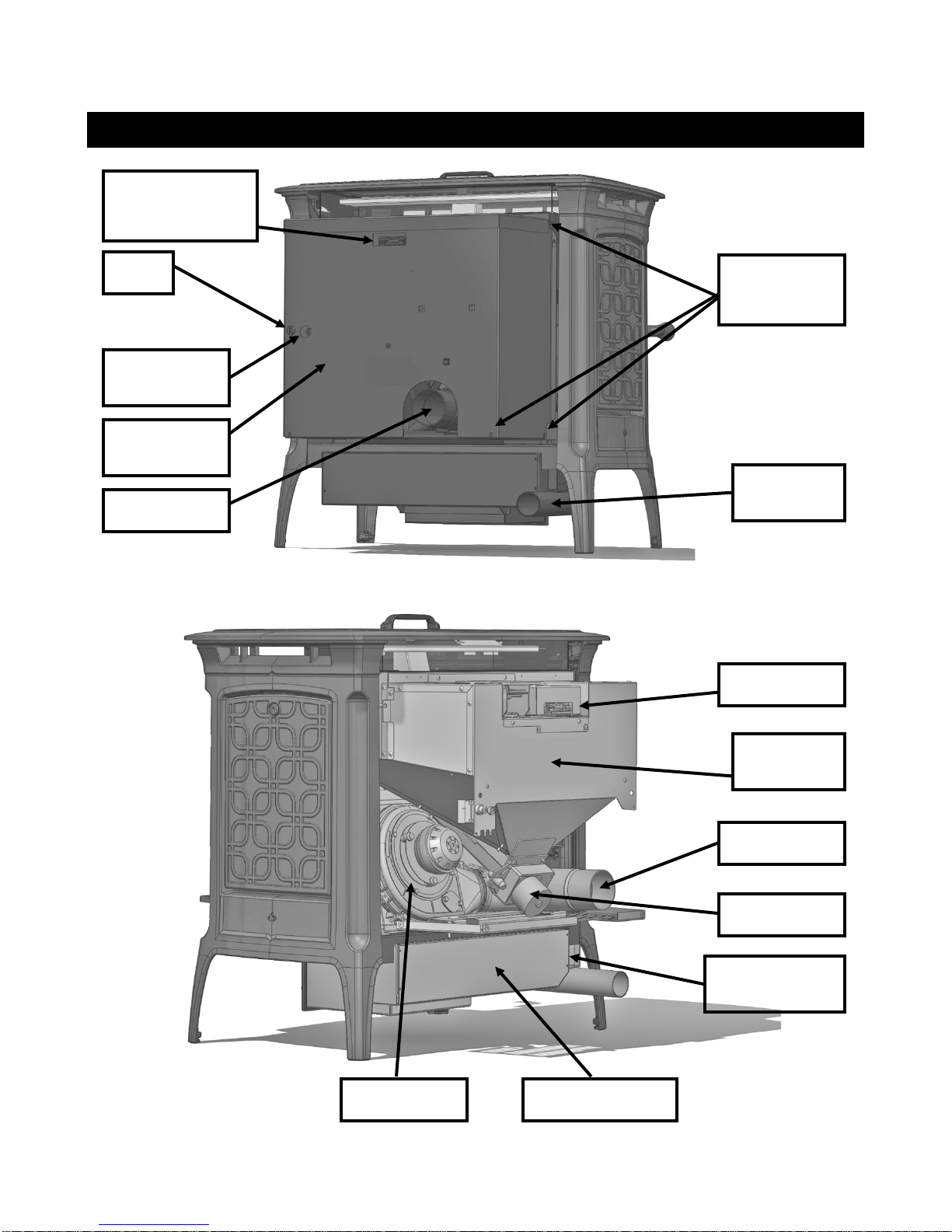

Components
Exhaust Vent
Fuse
Room Sensor &
Thermostat
Connectors
Outside Air
Inlet
STB Reset
Switch
Exhaust Fan
Auger Motor
Convection Fan
Rear Cover
Panel
Hopper
Housing
Intake Air Flow
Sensor
Panel
Mounting
Screws (6)
Motherboard
Exhaust Vent

Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove
Page 10 of 43
Operation
CAUTION: HOT WHILE IN OPERATION! KEEP CHILDREN, CLOTHING, AND FURNITURE AWAY. CONTACT MAY
CAUSE SKIN BURNS.
CAUTION: DO NOT USE CHEMICALS OR FLUIDS TO START THE FIRE.
CAUTION: DO NOT BURN GARBAGE, FLAMMABLE LIQUIDS SUCH AS GASOLINE, NAPHTHA, OR ENGINE OIL.
CAUTION: THIS UNIT IS DESIGNED TO BURN ONLY PREMIUM NATURAL WOOD PELLETS. DO NOT BURN ANY
OTHER MATERIAL NOT DESIGNATED AS WOOD PELLET FUEL. USE OF CHUNK WOOD IN THIS STOVE IS
PROHIBITED BY LAW. BURNING ANYTHING OTHER THAN WOOD PELLET FUEL CAN CAUSE OVERFIRING,
DAMAGE THE APPLIANCE, AND WILL VOID THE WARRANTY.
USE ONLY THE BURN POT DESIGNED FOR THIS STOVE – DO NOT SUBSTITUTE WITH OTHER PARTS OR USE
A GRATE TO HOLD THE FUEL.
WARNING: DO NOT ABUSE THE FRONT DOOR GLASS BY STRIKING, OR BY SLAMMING THE DOOR.
CAUTION: DO NOT OPERATE THIS UNIT WITH BROKEN DOOR GLASS.
DO NOT ALLOW FIRE TO BURN TOO CLOSE TO THE GLASS.
DO NOT OPERATE WITH THE FRONT DOOR, OR ASH DRAWER OPEN – THE UNIT WILL SHUT DOWN.
DISCONTINUE OPERATION IF YOU SMELL SMOKE COMING FROM THE HEATER.
IF A MALFUNCTION IS SUSPECTED, TURN THE UNIT OFF USING THE CONTROL PANEL, DO NOT UNPLUG!
IF THE FLAMES BECOME SOOTY, OR THE BURN POT OVERFILLS WITH PELLETS, IT IS RECOMMENDED TO
TURN OFF THE STOVE AND THOROUGLY CLEAN ALL STOVE AREAS AS PER MAINTENANCE DIRECTIONS.
WHEN OPERATING NORMALLY, THIS APPLIANCE COULD TRIGGER SMOKE DETECTORS INSTALLED TOO
CLOSE TO THE UNIT.
Loading Pellets
Lift the hopper door vertically until fully opened, open secondary hopper door; add pellets into hopper until full.
In order to maximize hopper capacity, push pellets into void spaces. With all voids full, maximum hopper
capacity is approximately 50 lbs of pellets. To reduce the introduction of fines, or spillage, we recommend the
use of a secondary container to add pellets. Clean up any pellets spilled on, or down inside the stove.
Store pellets in a dry location, and outside the required clearances to combustibles of the heater.
NOTES:
WARNING! TOP GRILL AND FRONT EDGE OF STOVE CAN BECOME VERY HOT, AVOID ALL CONTACT WITH
HEATED SURFACES
IF THE HOPPER DOOR IS LEFT OPEN, A CAP OPEN MESSAGE WILL SHOW ON THE DISPLAY. AN OPEN
HOPPER DOOR WILL AUTOMATICALLY STOP FUNCTION OF THE FEED AUGER AND IGNITOR, AS THE AUGER
POSES A HAZARD TO FINGERS DURING OPERATION. TO ACKNOWLEDGE THIS MESSAGE, SIMPLY CLOSE
THE HOPPER DOOR.

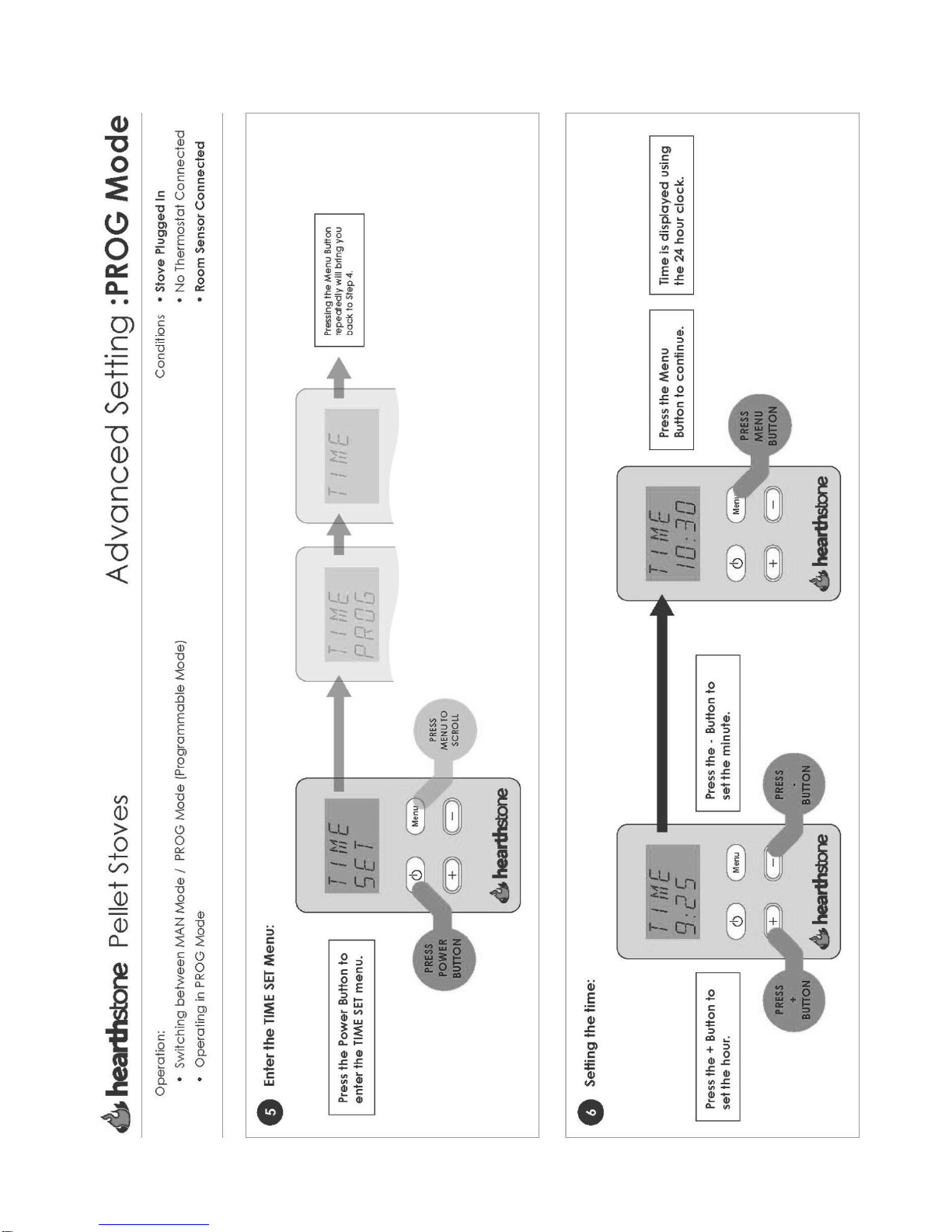

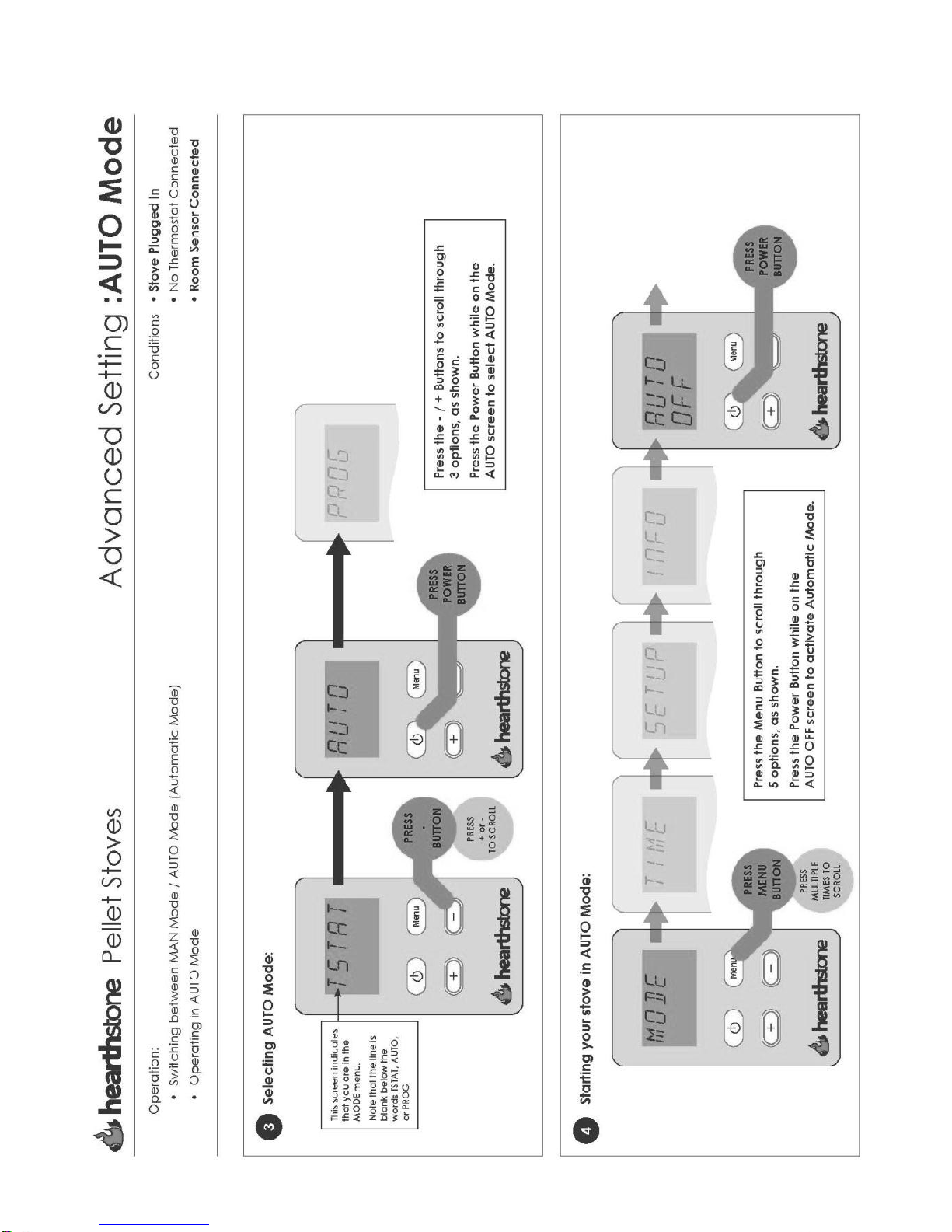

All operations of the stove are initiated from the User Interface pad. This pad is designed to provide simple,
user-friendly operation of the stove. There are only four buttons on the interface pad, Power (On/Off), MENU,
+, -. During normal operation, the interface screen will illuminate red. When the unit is in OFF mode, but power
is supplied, the pad will display its operational state without the red backlighting. If an error is detected, an error
message is displayed, and the readout will flash.
Power
Plus
Menu
Minus

Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove
Page 11 of 43
Operation
Modes of Operation
The Manchester Pellet Stove has various modes of operation. They are:
Manual – Most basic mode (no thermostatic control).
Thermostat – Optional mode. Requires an external milli-volt thermostat sold at your local Hearthstone
dealer or hardware store.

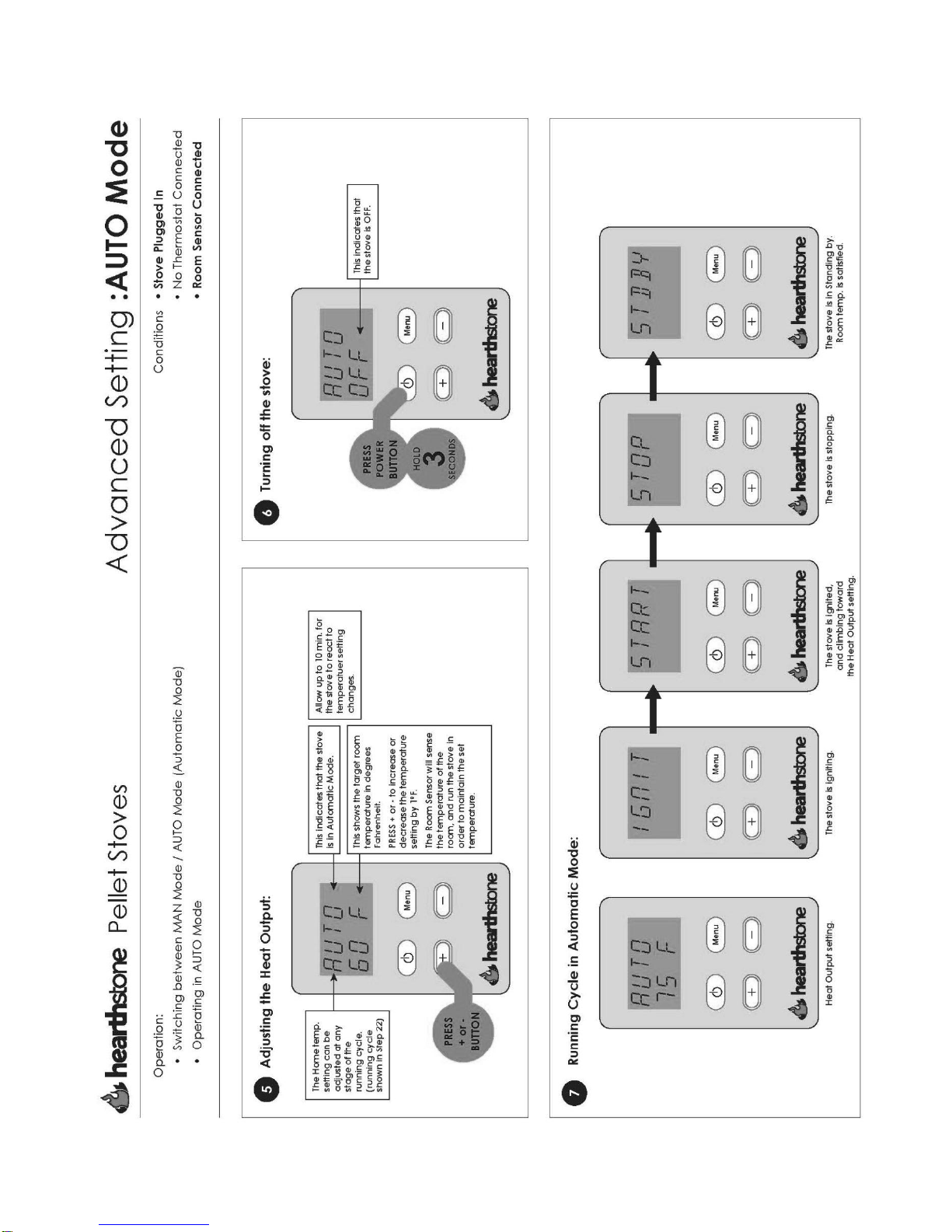

Automatic – Easiest automatic mode. Requires the use of the Hearthstone’s Room Sensor (included with
the stove).

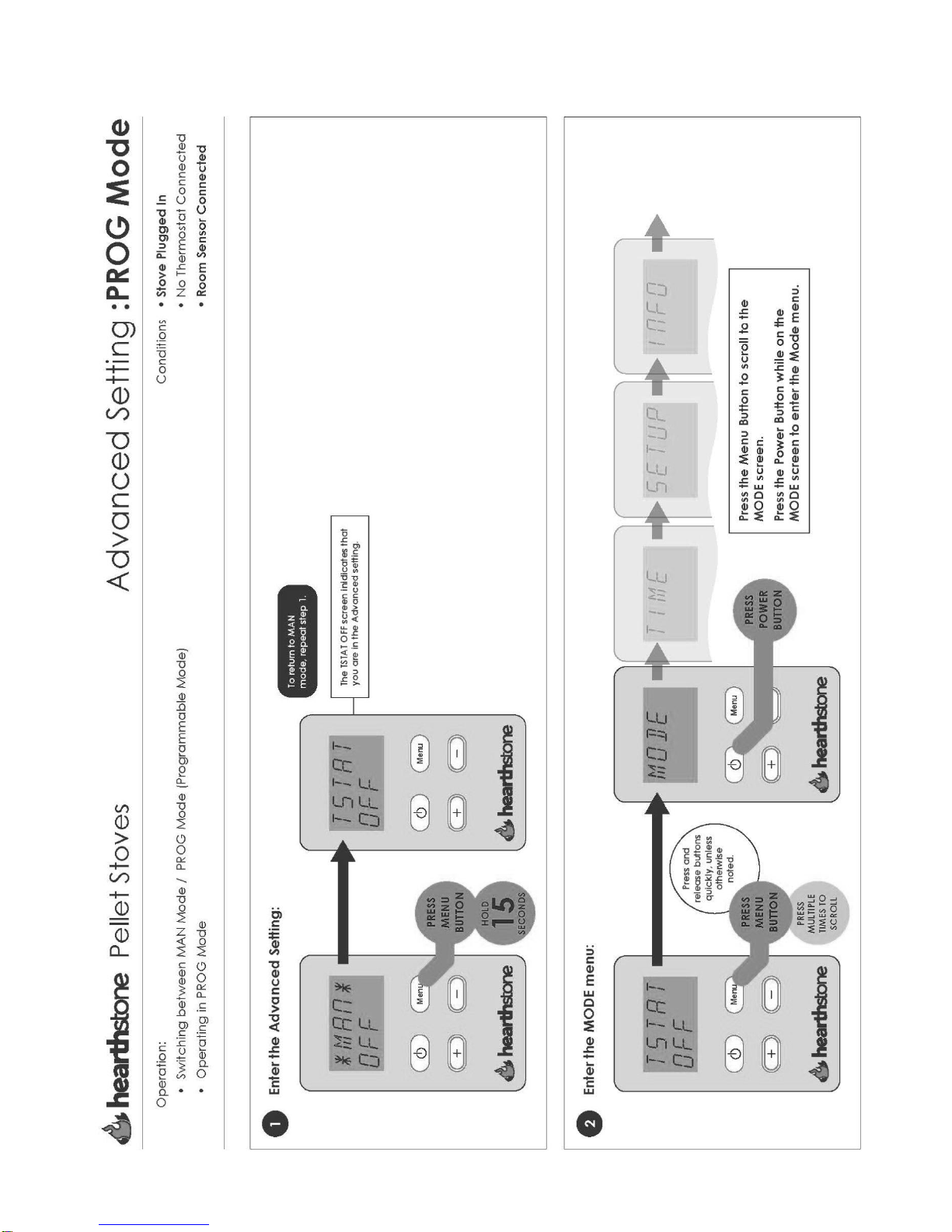

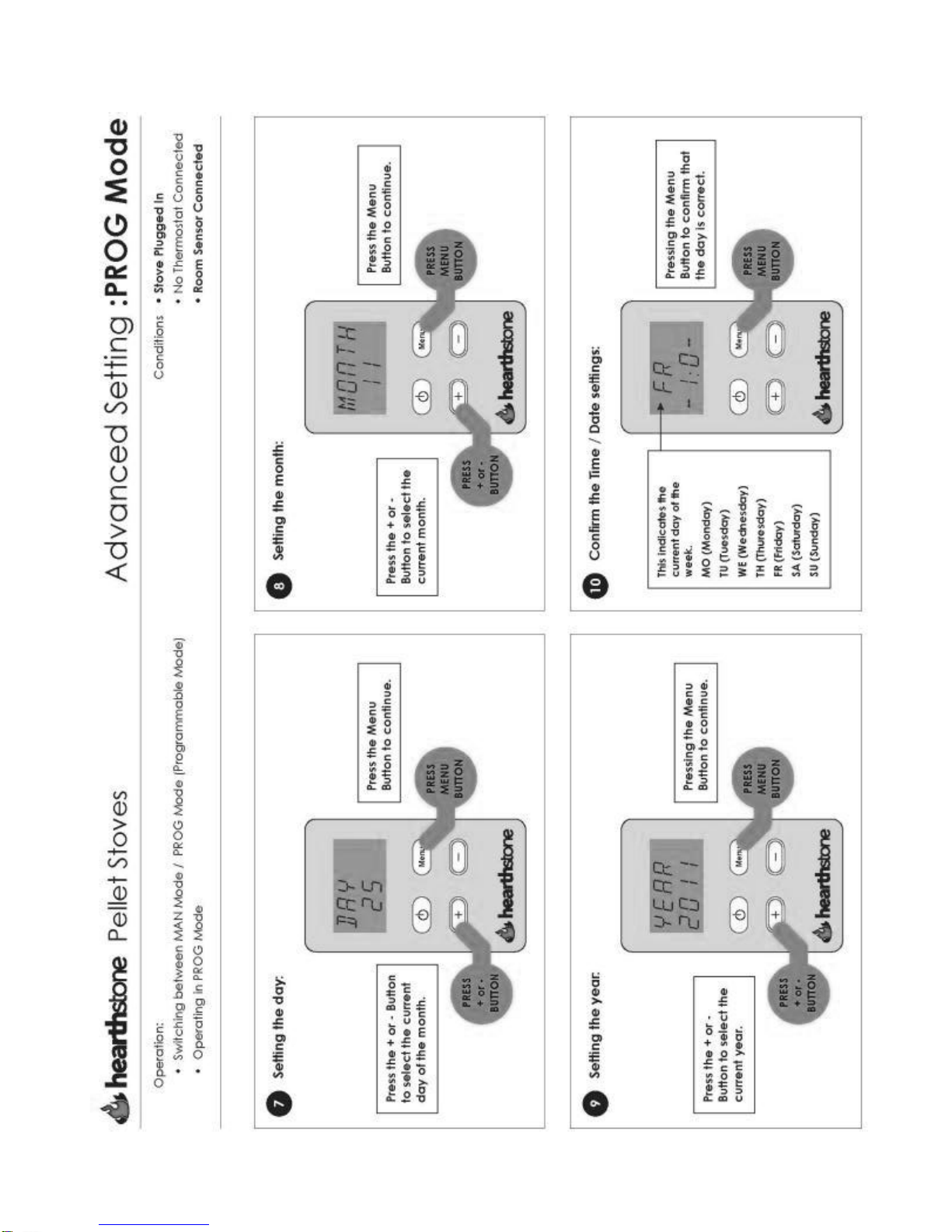

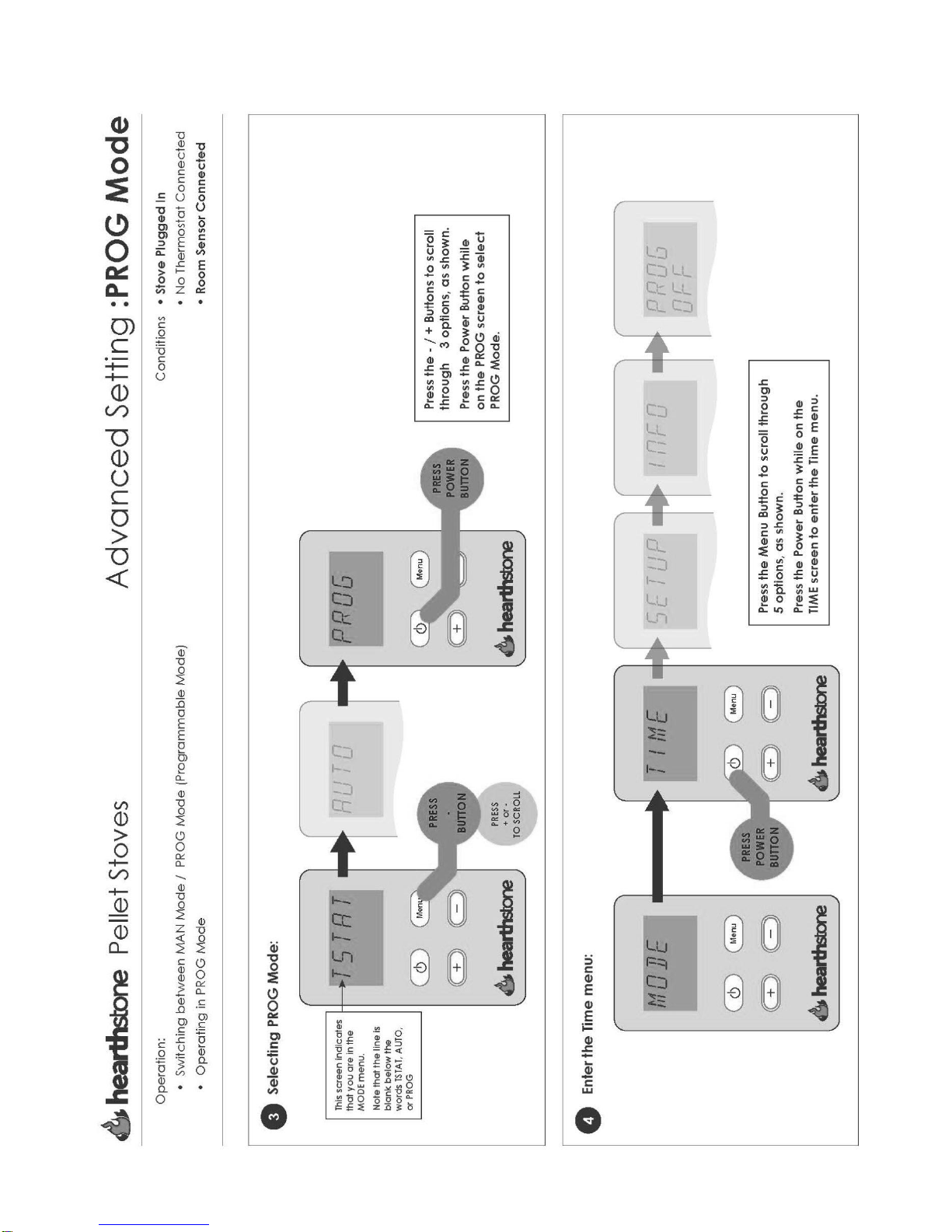

Programmable – Best automatic mode. Requires the use of the Hearthstone’s Room Sensor (included with
the stove).
Note: If the stove is triggered to shut down and then triggered to turn back on immediately, it may still go
through the complete shut down and startup process.

Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove
Page 12 of 43
Quick Operations Guide

Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove
Page 13 of 43

Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove
Page 14 of 43

Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove
Page 15 of 43

Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove
Page 16 of 43

Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove
Page 17 of 43

Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove
Page 18 of 43

Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove
Page 19 of 43

Hearthstone Quality Home Heating Products, Inc. Manchester Model 8330 Pellet Stove
Page 20 of 43
