Heartland 3400 User manual

User’s Manual
Metro/ Legacy Residential Wall Mount Hood
Models:
3410 Legacy 36” Hood 900 cfm
3415 Metro 36” Hood 900 cfm
3400Legacy30”Hood 500cfm
3405Metro30”Hood 500cfm 3420 Legacy 42” Hood 900 cfm
3425 Metro 42” Hood 900 cfm
#3936 052301
© 2001HEARTLANDAPPLIANCESINC.
®
Residential Use Only
READ AND SAVE THESE INSTUCTIONS
INSTALLER:LEAVETHIS MANUALTOHOMEOWNER
HOMEOWNER:USEANDCARE INFORMATION ON PAGE 15
L
I
S
T
E
D
®
L
I
S
T
E
D
®
C

ImportantSafetyInstructions.................. 2
Parts List ............................................... 3
Technical Specifications .......................... 4
Installation Instructions .......................... 5
1.Framing ......................................... 5
A.BackInstallation ................. 5
B. Strip Installation ............... 5
C. Top Installation ................... 6
2.Preparating theInstallation .............. 7
3.Hood Installation ............................ 8
A.BackInstallation ................. 8
B. Strip Installation ............... 9
C. Top Installation ................. 10
4.DuctingConnection....................... 11
A.CutOutHoleInformation ... 11
B.DuctingInstallation.............. 12
C. Method ofDucting ............ 12
5.Duct CoverInstallation ................... 12
6.BacksplashInstallation ................... 12
7.ElectricalConnections .................... 13
8.HeatLamp..................................... 13
9.FilterInstallation ............................. 14
MaintenanceInstructions ........................ 15
1. Blowerand Filters .......................... 15
2.StainlessSteel orEnamel Finish ..... 16
OperationInstructions.............................. 16
WiringDiagram ........................................ 18
ServicePartsDiagram ............................. 19
Warranty ............................................... 20
Table of Contents

3
ResidentialWallMountHood
ImportantSafetyInstructions
1. Use this unit only in the manner intended by the manufac-
turer. If you have questions, contact the manufacturer at
the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at
service panel and lock service disconnecting means to
prevent power from being switched on accidentally. When
the service disconnecting means cannot be locked,
securely fasten a prominent warning device, such as a tag,
to the service panel.
3. Installation work and electrical wiring must be done by
qualified personnel in accordance with all applicable codes
and standards, including fire-rated construction codes and
standards.
4. Sufficient air is needed for proper combustion and
exhausting of gasses through the flue (chimney) of fuel
burning equipment to prevent backdrafting. Follow the
heating equipment manufacturer’s guidelines and safety
standards such as those published by the National Fire
Protection Association (NFPA), and the American
Society for Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling , do not
damage electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any solid-state speed control
device.
8. To reduce the risk of fire, use only steel ductwork.
9. This unit must be grounded.
TOREDUCETHE RISK OFFIRE, ELECTRIC SHOCK
ORINJURYTOPEOPLEOBSERVE THE FOLLOW-
ING:
TOREDUCE THE RISKOFA RANGE TOPGREASE
FIRE:
1. Never leave units unattended at high settings. Boil overs
cause smoking and greasy spil overs that many ignite.
Heat oils slowly on low or medium settings.
2. Always turn hood ON when cooking at high heat or when
cookingflamming foods.
3.Clean ventilating fans frequently. Grease should not be
allowed to accumulate on the fan or filter.
4. Use proper pan size. Always use cookware appropriate
for the size of the surface element
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet
or metal tray, then turn off the burner. BE CAREFUL TO
PREVENT BURNS. IF THE FLAMES DO NOT GO OUT
IMMEDIATELY, EVACUATE AND CALL THE FIRE
DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN - you may be burned.
3. DO NOT USE WATER, including wet dishclothes or towels.
This could cause a violent steam explosion.
4. Use an extinguisher ONLY if:
A. You own a Class ABC extinguisher and you know how
to operate it.
B. The Fire is small and contained in the area where it
started.
C. The fire department has been called
D. You can fight the fire with your back to an exit.
(* Based on “Kitchen Fire Safety Tips” published by NFPA)
1. For general ventilating use only. Do not use to exhaust
hazardous or explosive materials and vapors.
2. To avoid motor bearing damage and noisy and/or unbalanced
impellers, keep drywall spray, construction dust, etc. off
power unit.
3. Your hood motor has a thermal overload which will
automatically shut off the motor if it becomes overheated.
The motor will restart when it cools down. If the motor
continues to shut off and restart, have the hood serviced.
4. For best capture of cooking impurities the bottom of the
hood should be at a minimum of 20” (24” over a gas range)
and at a mazimum of 36” above the cooking surface.
5. Two installers are recommended to install this hood, because
of its large size and weight.
6. Please read specification label on product for further
information and requirements.
7. To reduce the risk of fire and to properly exhaust air, be
sure to duct air outside-Do not exhaust air into spaces within
walls or ceilings or into attics, crawl spaces or garage.
8. This product is equipped with a thermostat which
may start blower automatically. To reduce the risk of
injury and to prevent power from being switched on
accidentally, switch power off at service panel and
lock or tag service panel.
9. Because of the high exhausting capacity of this hood,
you should make sure enough air is entering the
house to replace exhaused air by opening a window
close to or in the kitchen.
TOREDUCE THE RISKOFINJURY TO PEOPLEIN
THEEVENTOFARANGETOPGREASEFIRE,
OBSERVETHEFOLLOWING*:
CAUTION
WARNING
WARNING

4
ResidentialWallMountHood
Parts List

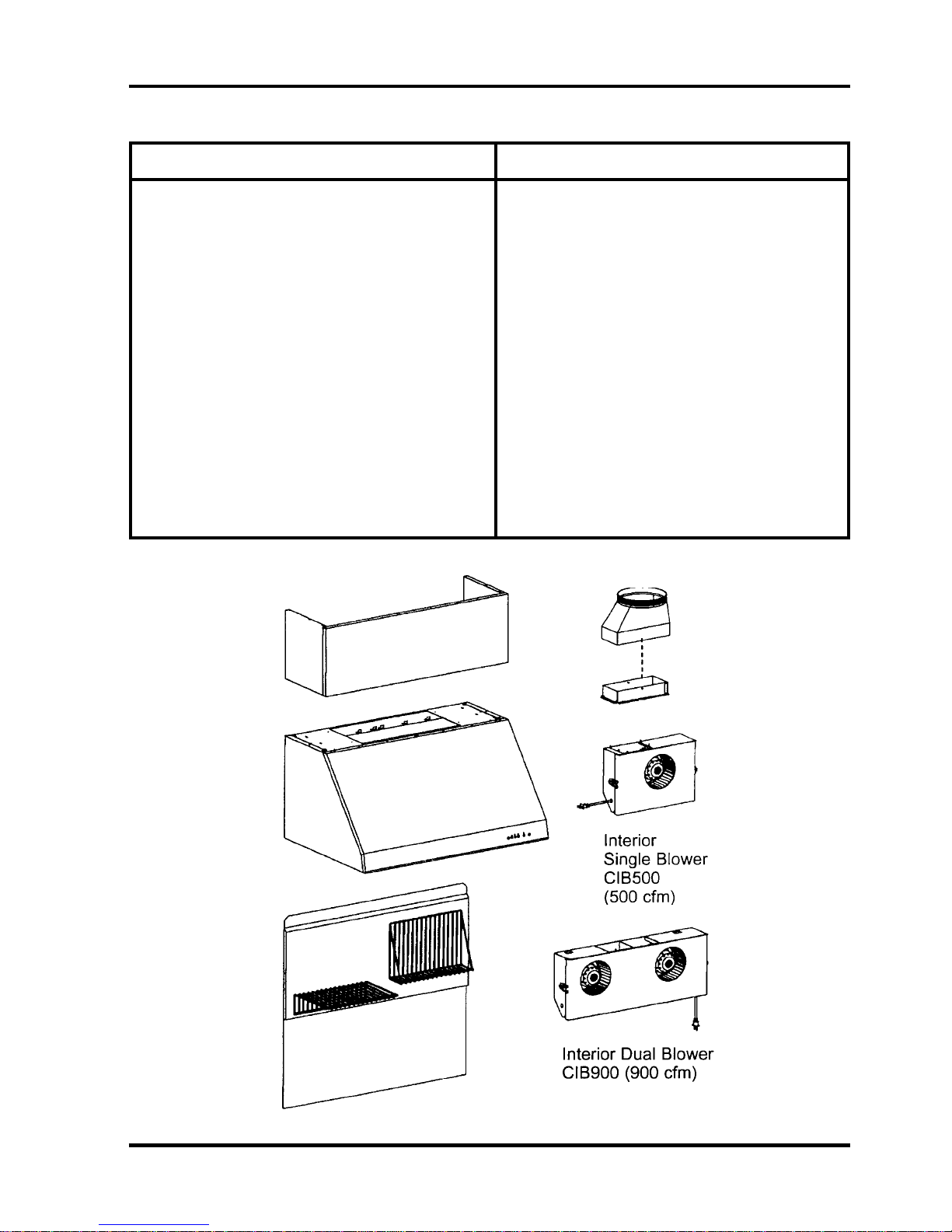

Parts included with your unit:
Canopy hood assembly
Blowerasssemblies-installed
Adaptor with dampers
Transition
User’s Manual
Filters (2,3, or 4 depending on hood size)
Installation kit
Wood strip
Wire clamp connector
3/8” screws for lower installation
3/4” screws for hood installation
(may not need all screws, depending on
hood size and blower quanitity)
Halogen lights (2)
Size R20, 50 Watts maximum
Parts to be purchased separarately:
Backsplash(optional-from Heartland)
Duct cover (optional-from Heartland)
Heat lamp bulbs (2)
Size IR175R PAR
175 Watts maximum
Red Infared
Duct tape (2” wide)
Wall anchors (if needed)
Standardducting:
8”Rigid Galvanized ducting
Flashings & Rain Caps: 8” dia (for square rain
caps, use an equivalent cross sectional area).
Flashings & rain caps are available from local
Building Supply Centers or can be custom made
by local sheet metal shops to match home’s
features
Vent Hood
Duct Cover Kit
(Optional)
SplashBack Kit
(Optional)
Transition
Adaptor

5
ResidentialWallMountHood

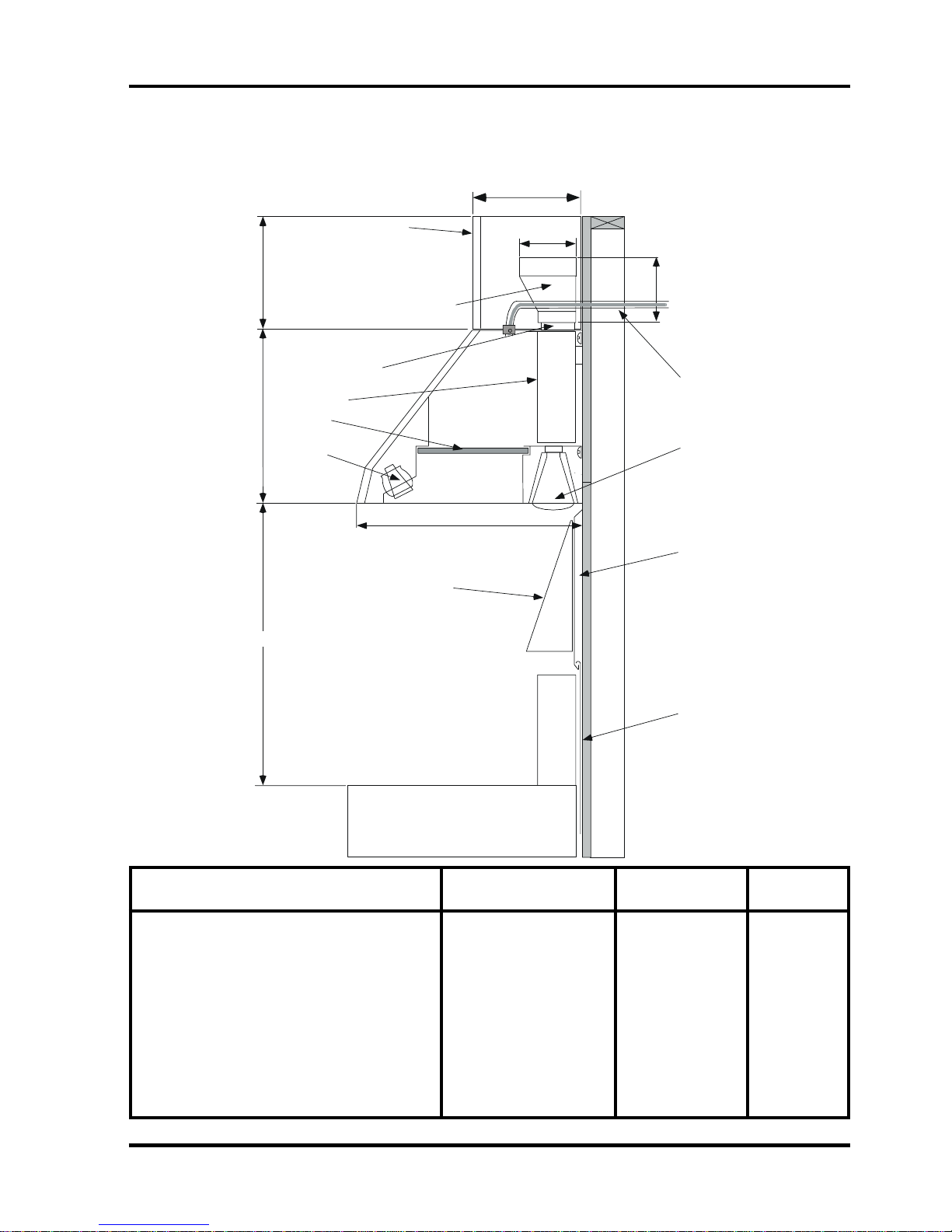

Hood Model 30” 36” 42”
Power supply 120 Vac, 60 Hz same same
Lighting power R20 Halogen bulbs (2) 2X50W same same
Heating lamp power R38 Infrared (2) 2 X175 W same same
Blower quantity 1-500 CFM 1-900 dual 1-900 dual
HoodWidth 30" 36" 42”
Blower power 165 W 330 W 330 W
Maximumunitpower 615 W 780 W 780 W
Technical Specifications
(not supplied)
Ductcover(optional)
Transition 9 7/8" x 4 1/4" to 8"
(251 mm x 108 mm
to 203 mm)
Transition Adaptor
with damper
Blower
Filters
Pivotable
halogene
lights
Backsplash(optional)
includingwarmingshelf,
upperand lowerSections
Lower
section
Upper
section
Heat
lamps
Power
supply
24"
30" to 36"
11-1/2"
8"
12"
12"
18"
Ask for kit numbers:
3801 for 30"
3802 for 36"
3803 for 42"
and specify colour
Ask for kit numbers:
3804 for 30"
3805 for 36"
3806 for 42"
and specify colour

6
ResidentialWallMountHood
Installation Instructions

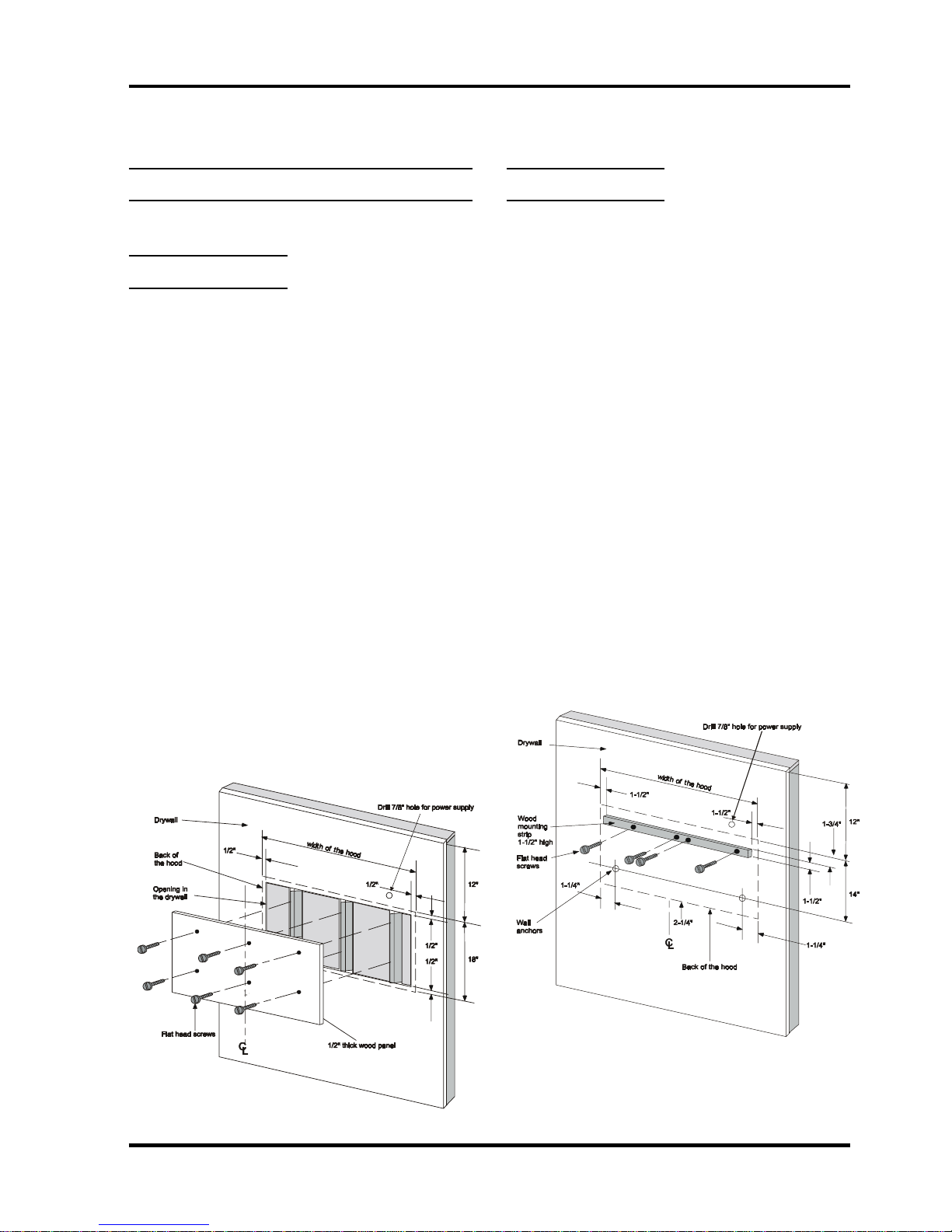

A. Back Installation
1. Locate and mark the centerline of the
hood. Mark the area of the center back
of the hood on the drywall.
2. Mark a rectangular opening in the
drywall, 1/2" smaller than the back of
the hood.
3. Cut 1/2" thick wood panel at the same
dimensions as the opening.
4. Drill 7/8" diameter hole through the dry
wall 2” above the rectangular opening,
for the conduit wire and run 120 VAC,
15A (minimum) circuit electrical power
cable from the service panel through the
7/8" hole in the dry wall. MAKE SURE
THE POWER IS OFF.
5. Screw the wood panel to the wall studs.
Aminimumof two studs mustcontactthe
wood panel. Use six screws to secure
the wood panel to the wall studs.
B. Strip Installation
1. Locate and mark the centerline of the
hood. Mark the area of the back of the
hood on the drywall.
2. Use the wood strip 1/2" thick by 1-1/2”
high (included inside the hood).
3. Screw the mounting strips to the
drywall and make sure to hit the wall
studs. A minimum of two studs must
contact the mounting strip.
4. Install two wall anchors to the drywall
to secure the bottom rear hood. See the
sketch for location.
5. Drill 7/8" diameter hole through the
drywall 2” above the area of the back of
the hood for the conduit wire.
6. Run 120 VAC, 15A (minimum) circuit
electrical power cable from the service
panel through the 7/8" hole in the
drywall. MAKE SURE THE POWER
IS OFF.
1. Framing
(3options)

7
ResidentialWallMountHood

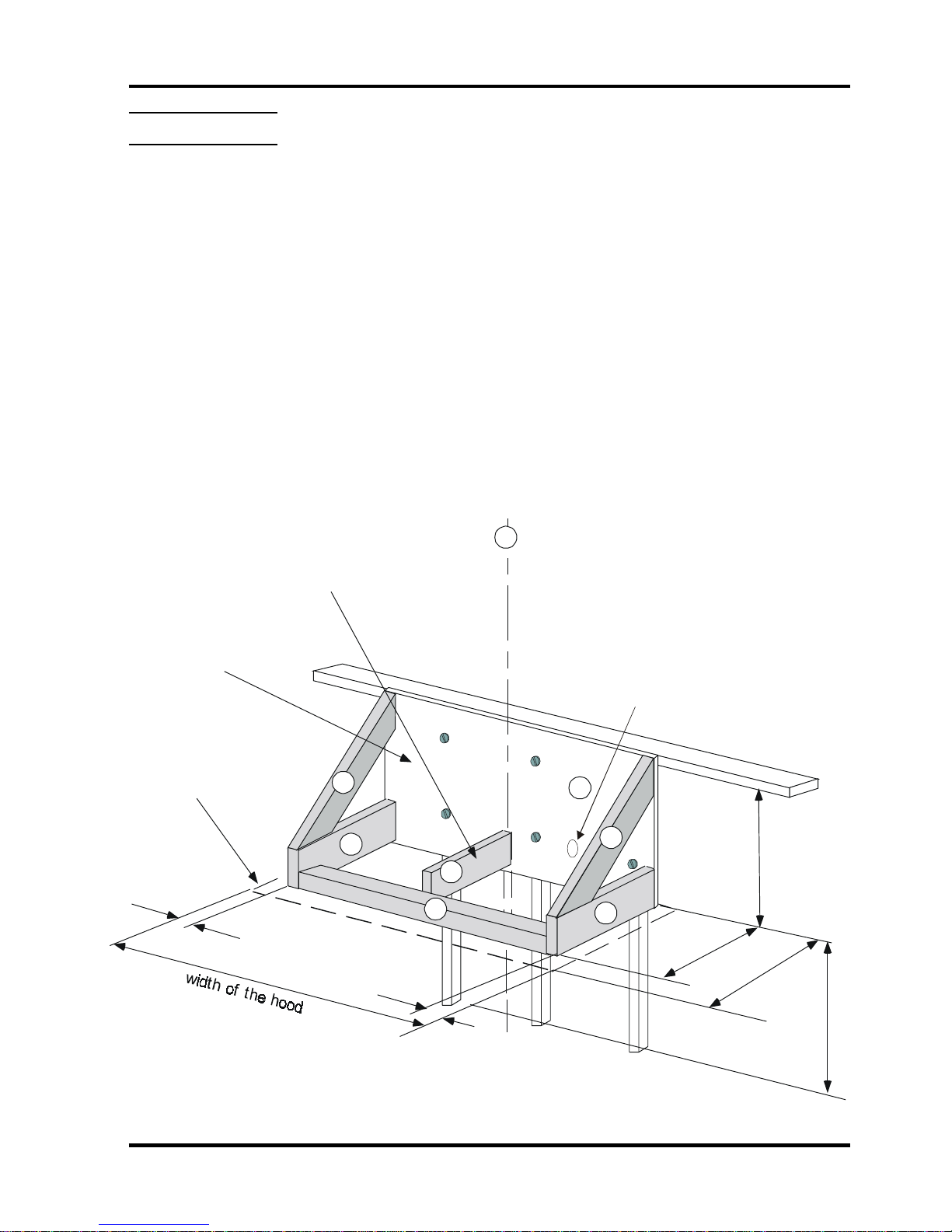

C. Top Installation
1. Locate and mark the centerline of the
hood.
2. Use wood panel of 1/2" thick by 12"
high (see the sketch to determine width
of panel).
3. Screw two 2" X 4" (thin side down)
perpendicular and at the bottom of the
wood panel. See sketch for location.
4. Screw a second set of 2" X 4’s angled
to reach the front end of both previous
2" X 4"s and each top side of the wood
panel.
5. Screw another 2" X 4" inside the ends
of first set of 2" X 4"s (wide side
down).
6. Add one 2" X 4" (thin side down) in the
middle when using a to blower unit. Add
two 2" X 4’s (thin side down) in the
middle when using a three blower unit.
With one blower unit, no middle stud is
necessary
7. Drill 7/8" diameter hole through the 1/2”
tick wood panel and drywall 2” above
the top of the hood for the conduit wire.
8. Run 120 VAC, 15A (minimum) circuit
electrical power cable from the service
panel through the 7/8" hole of drywall.
MAKE SURE THE POWER IS OFF.
Top of the hood
Optional wood frame support used
when the unit includes two blowers
Drill 7/8” hole in the dr
y
wall
for the power suppl
y
.
C
L
1
2
5
6
4
4
3
3
3/4"
3/4"
12"
15-1/2"
12"
11"
Wood panel of 1/2" thick

8
ResidentialWallMountHood
(figA)
123
4
5
2. PREPARE THE INSTALLATION

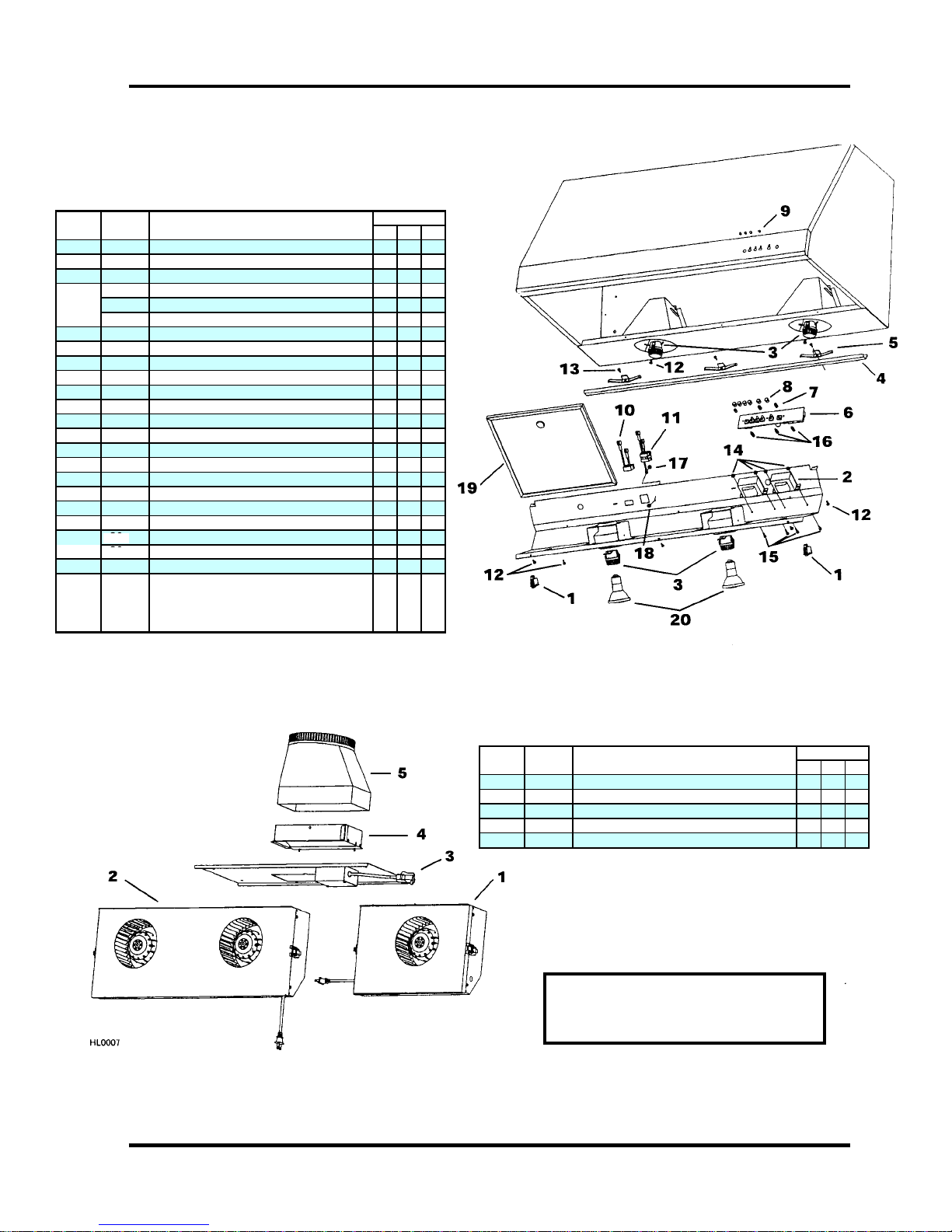

Parts sold separately:
-Heatlamps (120V,IR 175W,PAR 38)
-Backsplash (optional)
-Duct (optional)
Remove the installation kit from inside the hood.
Makesure thefollowingitems are included:
-Filters
-Halogenlights (120V,50W,PAR20)
-Wood mounting strip
-Bag of parts including:
(1) Wire clamp, (2) Wire connectors, (2) Wall
anchors, (4) #10-2” countersunk head screws,
(6) #8-3/4 screws, (10) #8-3/8” screws,
(4) Locknuts, (2) Washers 3/16” ID x ¾” OK
Using a Phillips #2 or a Robertson #2 screwdriver,
unscrew the hood from the bottom of crate. Refer to
figure below to locate all screws (fig A). discard the
screws and remove hood from wood pallet.

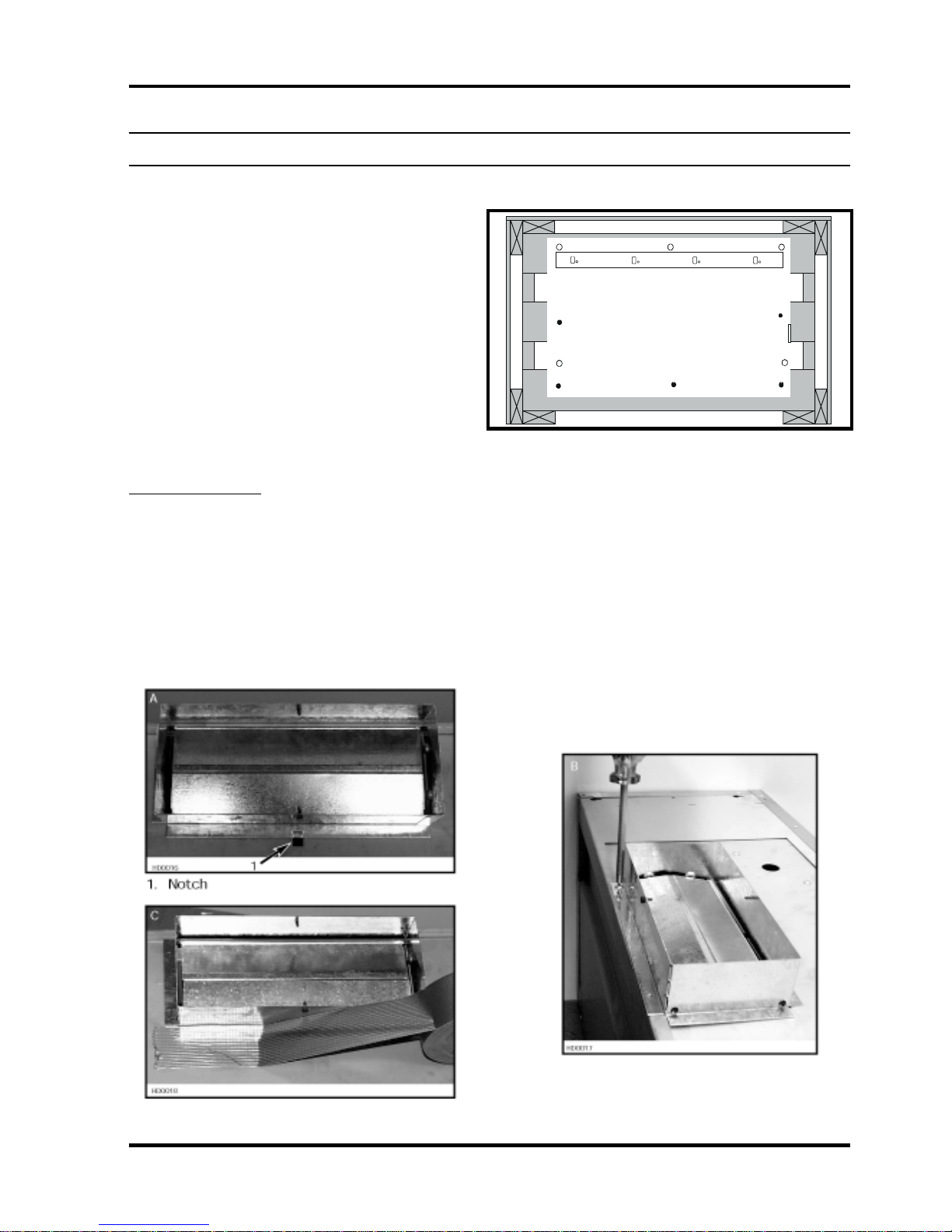

Install the adaptor:
A) Slide the adapter tab in its notch, onexterior side of the rought-in plate.
B) Using two (2) #8-3/8” screws, secure the adapter to the top of the hood.
C) Seal the adapter to the hood using duct tape.

9
ResidentialWallMountHood
3. Hood Installation
(3 choices depending on framing choice)

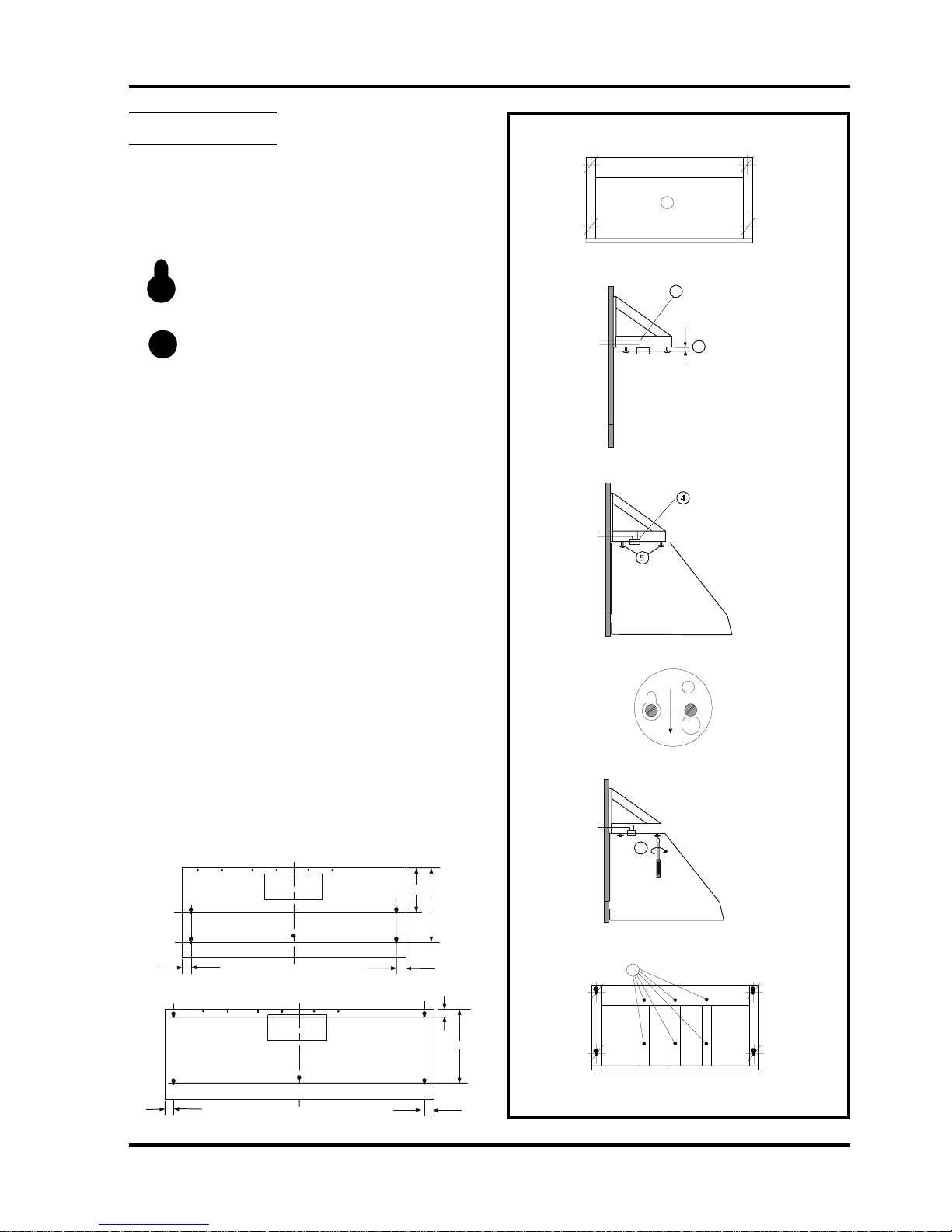

A. Back Installation
Note: Use only keyholes and holes shown in
black, as illustrated below, and on the
sketches provided.
Keyholes provided for easy installa-
tion. These should all be used.
Optional holes provided only for
stronger installation when necessary.
1. Mark the location of the 5 installation
screws (keyholes) on the wood panel.
2. Do not tighten the installation screws
(3/4") down. The hood can be placed on
them before tightening.
3. Insert the electrical wire (power supply)
in the hole, ensuring the wire clamp
connector is in place.
4. Insert the screw heads inside the key-
holes of the hood.
5. Move down the hood and insert the
screws into the slot of the keyholes.
6. Tighten the five screws to attach the
hood firmly on the wood panel.
7. Install (only if necessary) 2 or 4 addi-
tional screws at the locations shown on
the sketch. The numbers of additional
screws depend on the size of the hood.
FRONT VIEW
all other models
FRONT VIEW
30"
3/4"
1-1/4" 1-1/4"
13-5/8"
3/4" 1-1/4"1-1/4"
13-5/8"
6
4
3
wire clamp
connector

10
ResidentialWallMountHood

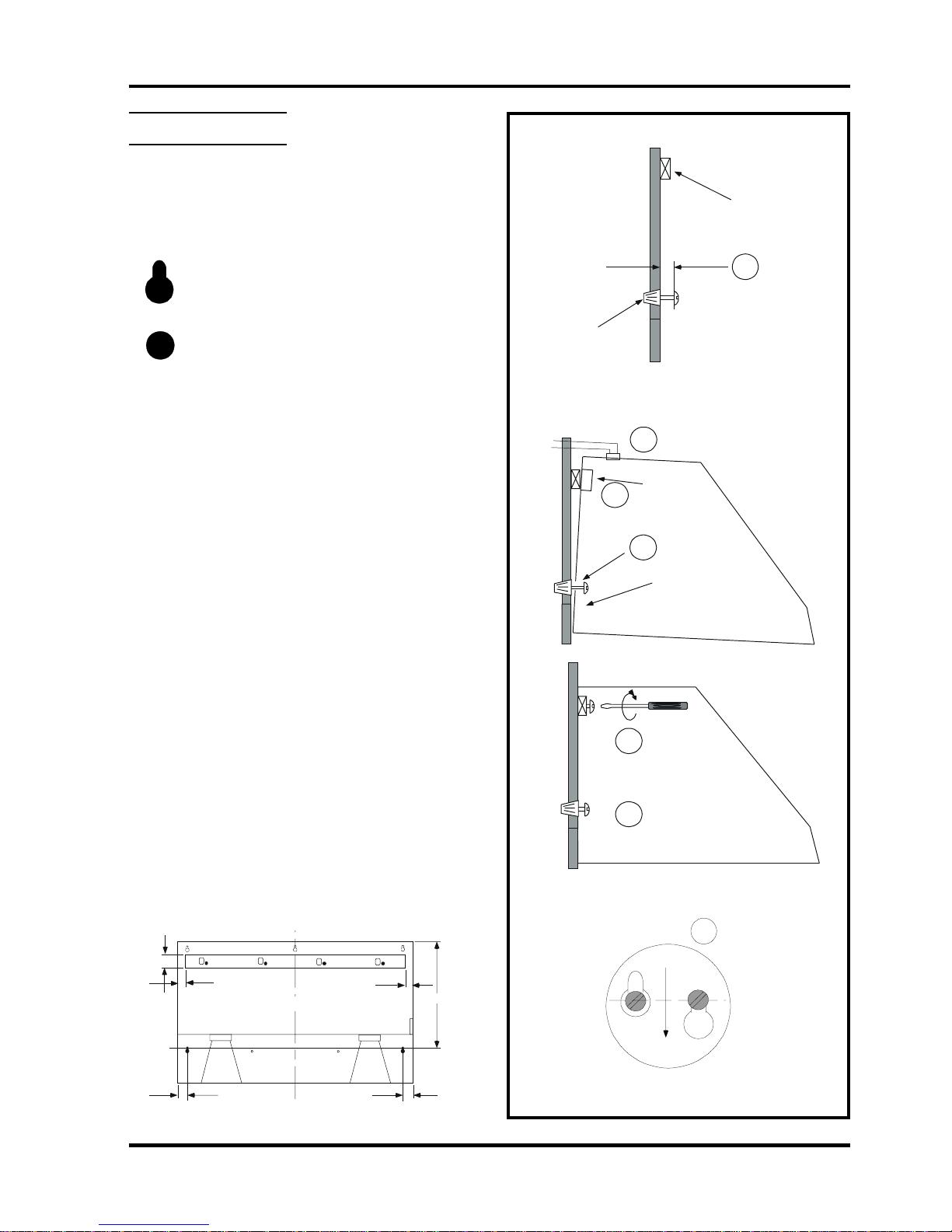

B. Strip Installation
Note: Use only keyholes and holes shown in
black, as illustrated below, and on the
sketches provided.
Keyholes provided for easy installa-
tion. These should all be used.
Optional holes provided only for
stronger installation when necessary.
1. Install the two screws (3/4") in the wall
anchors. Do not tighten the installation
screws down so the hood can be placed
on them before tightening.
2. Insert the electrical wire (power supply)
in the hole, ensuring the wire clamp
connector is in place.
3. Insert the screw heads inside the key-
holes of the hood. Hold the hood with a
slight angle to allow clearance space
from the mounting strip.
4. Move down the hood and insert the
screws into the slot of the keyholes.
5. Pivot the hood to insert the wood-
mounting strip inside the back cavity of
the hood. Continue to hold the hood
during this operation.
6. Tighten the screws (4 or 6 depending on
hood size) so the hood is firmly attached
to the wood mounting strip.
7. Firmly tighten the two screws on lower
part of the hood to secure the hood on
the wall.
wall anchor
1
wood mounting strip
7
wire clamp
back cavity
5
3
2
6
4
# 3400 / # 3410 / # 3420
FRONT VIEW
1-5/8"
1-1/4"1-1/4"
1" 1" 13-5/8"
wire clamp
connector

11
ResidentialWallMountHood
C. Top Installation
Note: Use only keyholes and holes shown in
black, as illustrated below, and on the
sketches provided.
Keyholes provided for easy installa-
tion. These should all be used.
Optional holes provided only for
stronger installation when necessary.
1. Mark location of the 4-installation
screws (keyholes) on the top wood
frame.
2. Do not tighten the installation screws
(3/4") down. The hood can be placed on
them before tightening.
3. Insert the electrical wire (power supply)
in the drywall hole.
4. Insert the electrical wire in the hole of
the hood, ensuring the wire clamp
connector is in place.
5. Insert the screw heads inside the key-
holes of the hood.
6. Push the hood to the wall and insert the
screws into the slot of the keyholes.
7. Tighten the four screws so the hood is
firmly attached to the top wood frame.
8. Install additional screws at the location
shown on the sketch depending on
number of optional 2" X 4"s previously
installed.
30"
TOP VIEW
1-1/4" 1-1/4"
10-5/8"
6-3/4"
36" - 42"
TOP VIEW
1-1/4" 1-1/4"
1-5/8"
10-5/8"
bottomview
1
2
3
6
7
bottomview
8
wire clamp
connector

12
ResidentialWallMountHood
A.CutOutHoleInformation
Cabinet cut out area: use the area shown in bold.
Ceiling cut out area: use the diameter dimension of the
transition. ( 8”)
30"
36"
42"
C
L
¾"
BlowerVented
30 to 42
Transition to 8” dia
8” dia duct
Single or double blower
unitducting.
10 1/2”X4 1/2”
cutout

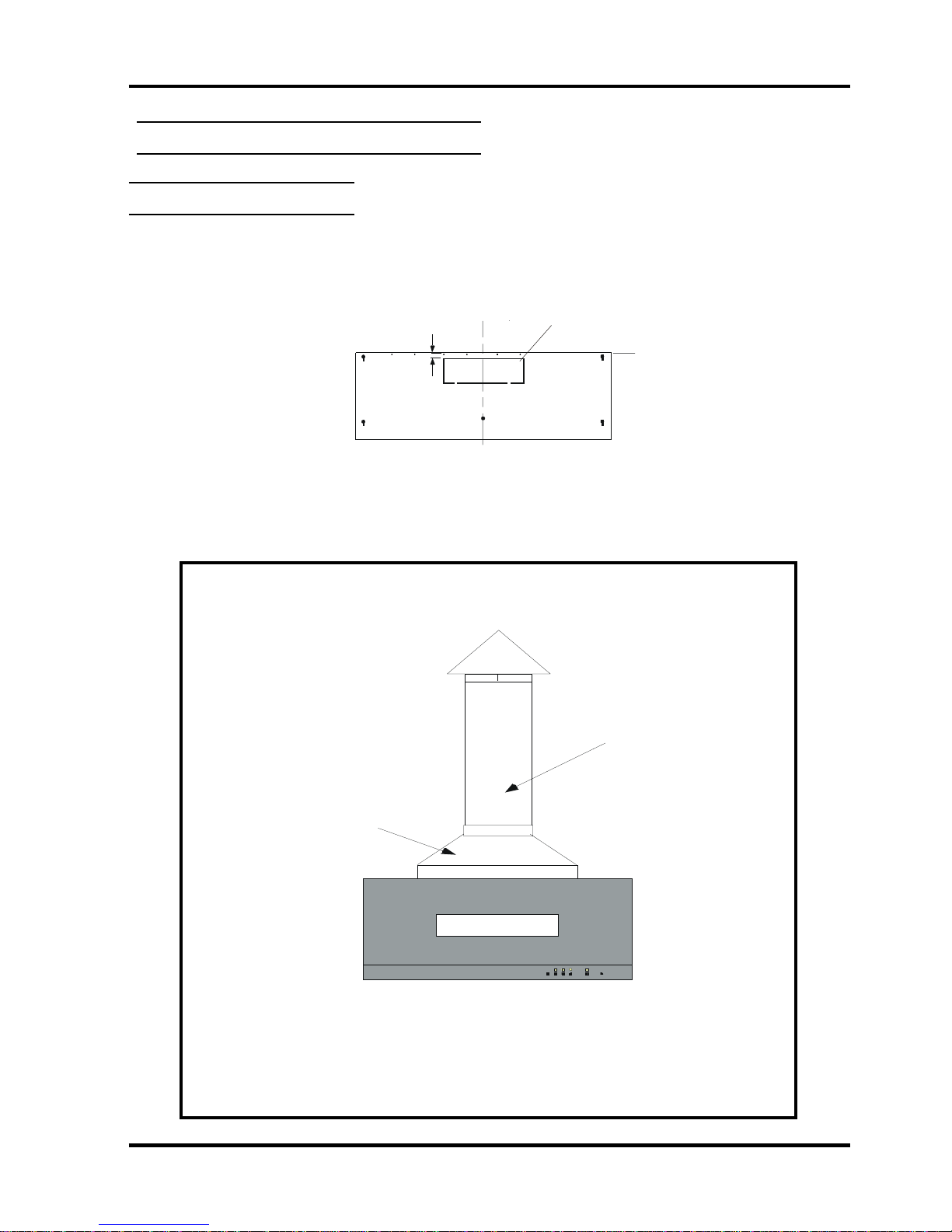

4. Ducting Connection

13
ResidentialWallMountHood
B.DuctingInstallation
1. Mark the opening area to cut out, as per
dimensions and locations on sketches.
2. Use standard 8”rigid galvanized ducting
(availablefromlocalBuildingSupply
Stores)
3. Maximum run of ducting for 500 CFM is
40 linear feet and for 900 CFM is 45
linear feet. Each 90 degree elbow will
reduce overall duct run by 10 linear feet
and each 45 degree elbow will reduce
overallduct runby 5linearfeet.
4. Position the transition around the
adapter. Use duct tape to seal the joint
between the transition and the adapter.
Respect the transition size for the
8”ductingthroughoutthe installation.
5. Standard flashings and rain caps are
availablefromlocalBuildingSupplyStores
orcan becustommade locallyto match
thehome’sfeatures(therearenominimum
heightrequirementsthataraincapmust
extendpast theroof line)
NOTE
1. To reduce the risk of fire and improper exhaust
air, be sure to duct air directly outside. Do not
vent exhaust air into spaces within walls or
ceilings or into attic, crawls spaces or garages.
2. Make sure you tape all joints with duct tape.
3. Flexible ducting is not recommended
4. Rain caps should be oversized whenever
possible to offset air flow reductions due to bug
screens, etc.
5. If installing square rain caps, please ensure
cross sectional area remains the same.

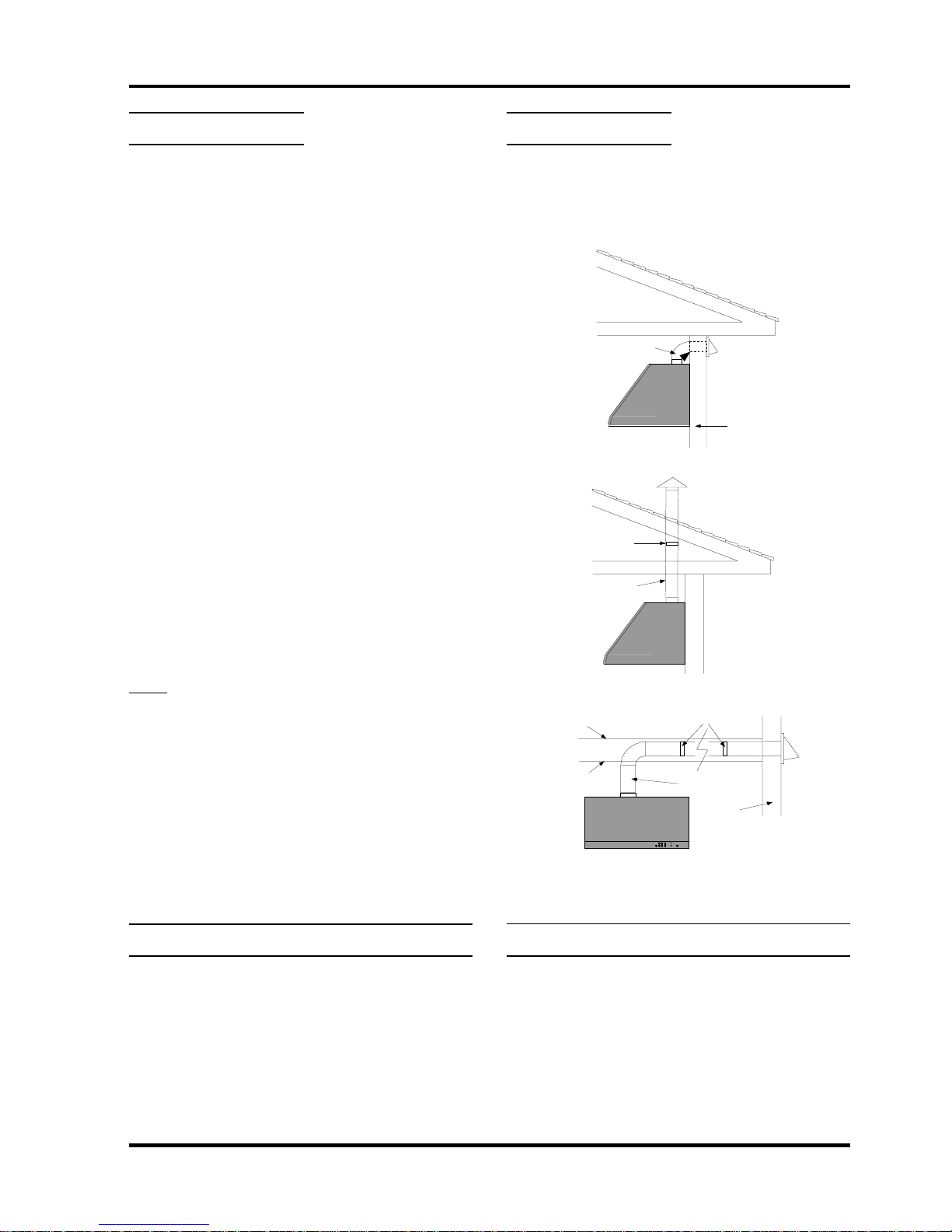

C.Methodofducting
Select the most appropriate method for your
installation
5. Duct Cover Installation
See separate installation instructions for this
unit.
Outside
wall
Duct
Tape
Duct
Tape
Outside
Wall
Ceilin
g
2nd floor
Duct
Ask for kit numbers:
3804 for 30"
3805 for 36"
3806 for 42"
and specif
y
colour
Ask for kit numbers:
3801 for 30"
3802 for 36"
3803 for 42"
and specif
y
colour
6. Backsplash Installation
See separate installation instruction for this

14
ResidentialWallMountHood
Riskofelectrical shock.Electricalwiringmustbedoneby qualified personnel in accordance
withallapplicablecodesandstandards. Beforeconnecting wires, switch power off at service
panelandlockservicedisconnectingmeanstoprevent powerto be switched on accidentally.

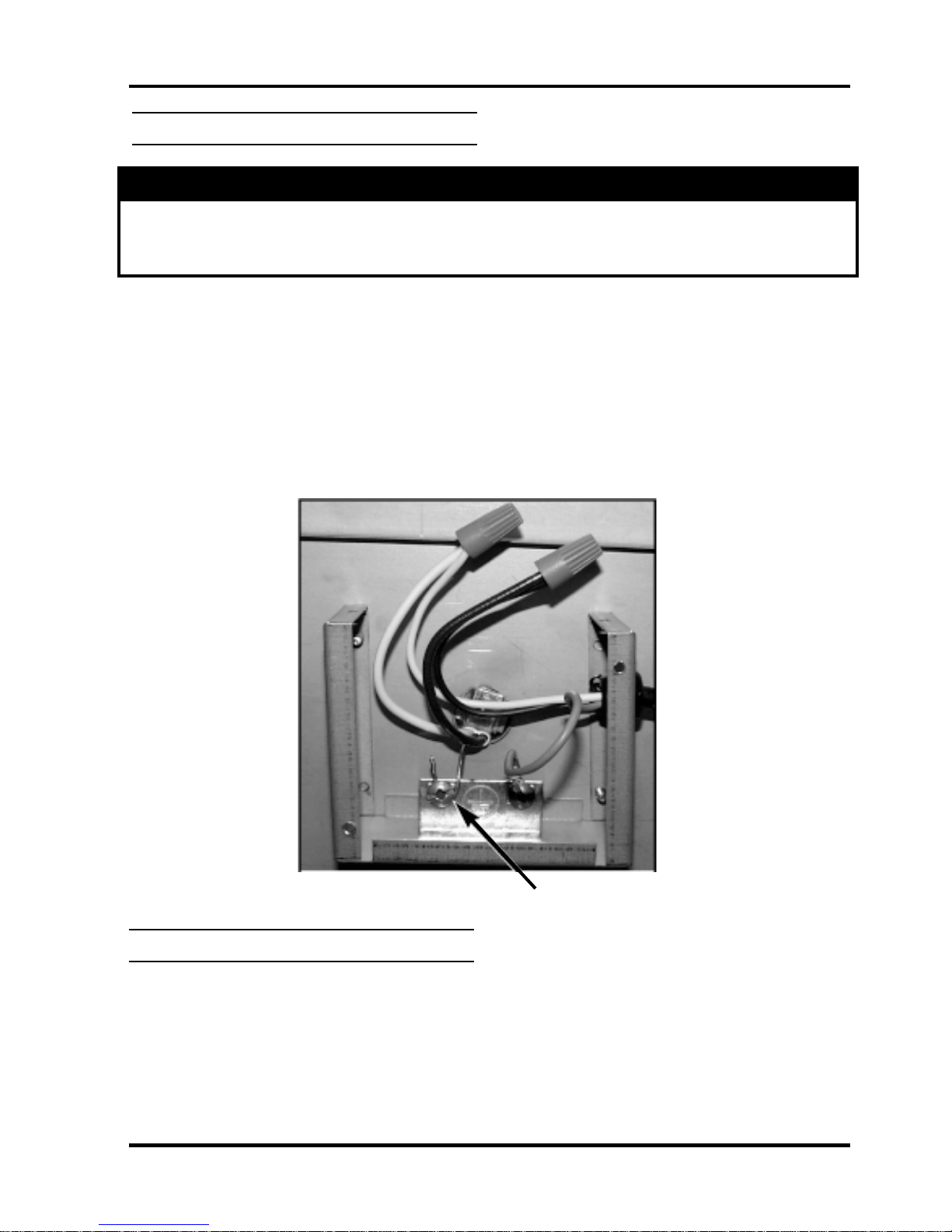

Run power cable to installation location. Remove wiring cover, install wire clamp, insert cable in hood
through wire clamp and secure by tightening the wire clamp.
Connect cable into wiring box, located on rough-in plate, using wire nuts.
Connect wires as follows: BLACK to BLACK, WHITE to WHITE and GROUND wire under ground
screw. Reinstall wiring cover
8. Heat Lamps
The heat lamps required are 120V, 175W max, infrared bulbs. (120V,1R 175W, PAR 38)
You can use white halogen lights if warming shelves are not used. (120V, 90W, PAR 38)
Install the lamps by rotating them clockswise into their socket holder.
Heat lamps are not included with Hood and not available from Heartland Appliances.
7. Electrical Connections
WARNING
Ground Screw

15
ResidentialWallMountHood

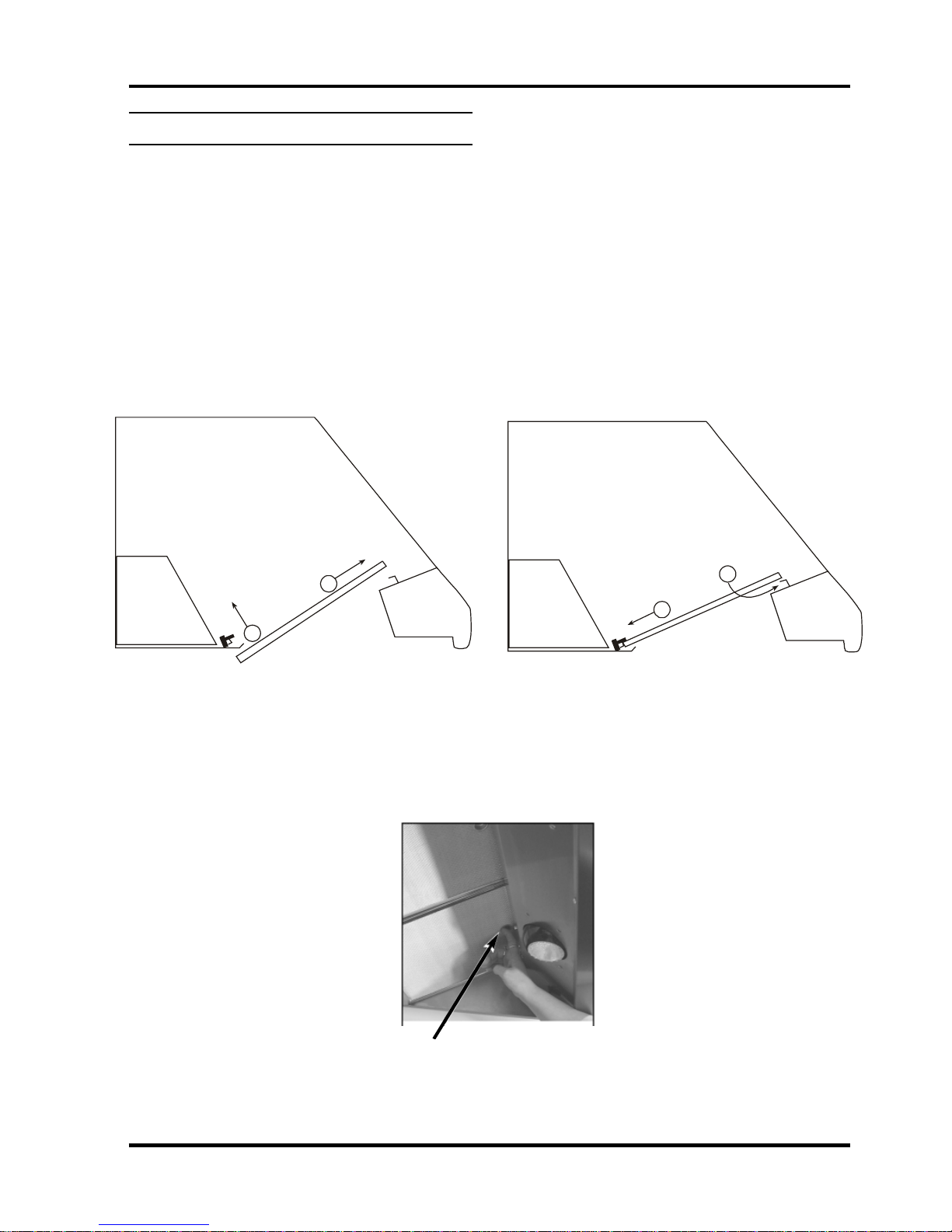

8. INSTALL FILTERS
Caution:remove protectiveplasticfilm coveringfiltersinstalling them.
It is recommended to install side filters first and finish with center one.
MESHFILTERINSTALLATION
2
1
1.Insertupper endof filterintothehood(finger
sizedcup side).
2.Raiselowerend towardtheinside ofhood.
3.Position lower end of filter into channel.
4.Using finger sized cup, pull on the upper end of filter
and insert it under the inner retaining piece.
Finger sized cup in filter
3
4
Finger sized cup in filter

16
ResidentialWallMountHood
9. USE AND CARE
GREASE FILTERS AND IMPELLER(S):
The grease filters, impeller(s) and grease collector channel should be cleaned frequently. Use a warm
detergent solution. Grease filters and impeller(s) are dishwasher safe.
To remove mesh filters, using finger sized cup, pull on the upper end of filter and disengage it from under the
inner retaining piece. Then, pull out filters from hood.

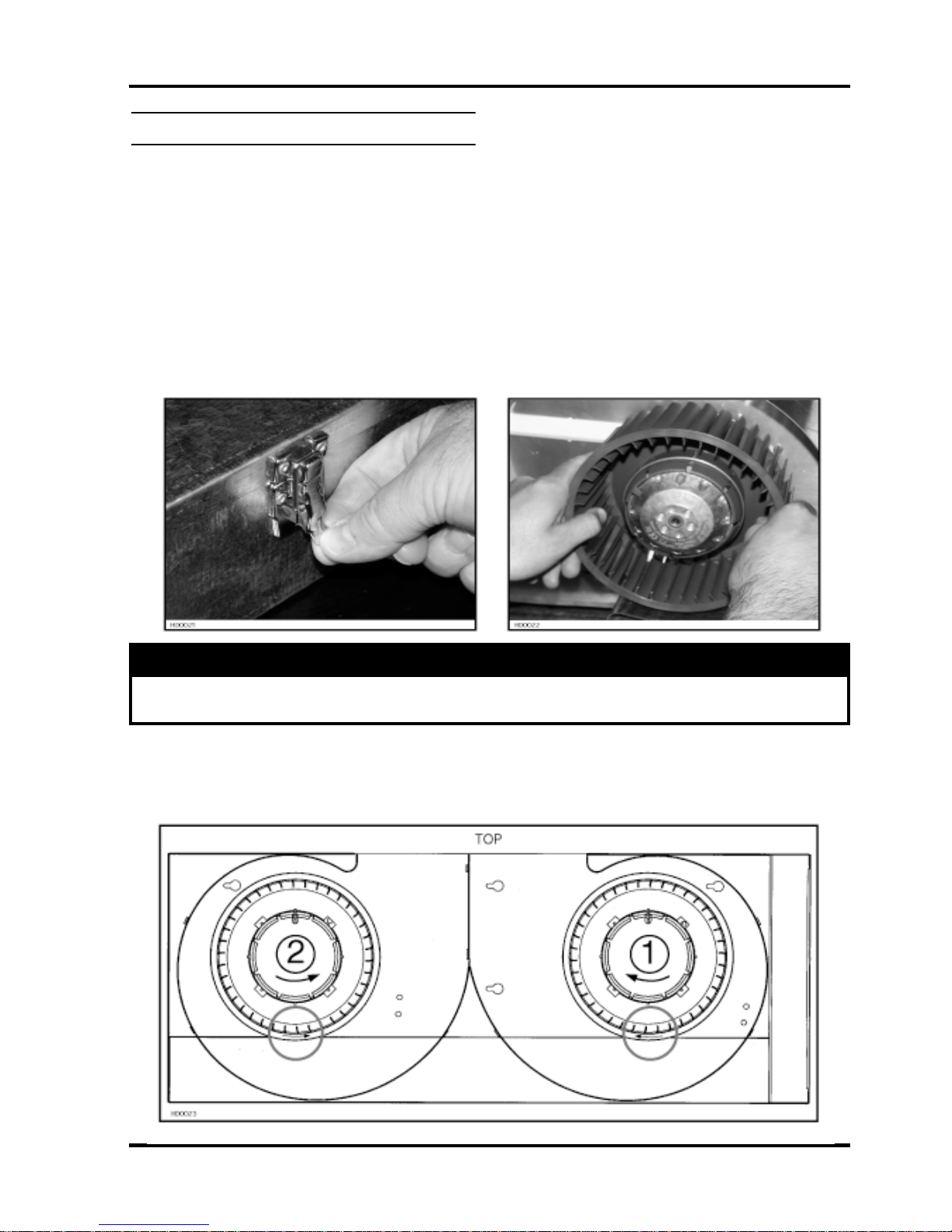

Use following instructions to clean the blower. (Impellers are dishwasher safe)
Remove cover from the blower assembly. Remove the impeller(s) by pulling it (them) out gently.
(see pictures below)
For dual blowerunit,makesuretheimpellers are correctly installed;thehoodwillnotwork
properlyiftheimpellers are reversed.
In the dual blower, both impellers are different: one rotates clockwise and the other one rotates counter
clockwise. Each wheel and motor have an arrow and a number on them, you must match them correctly
(see drawing below).
CAUTION

17
ResidentialWallMountHood
Hood Cleaning:
Stainless Steel: How to maintain its “BRIGHT LOOK”
Do:
-Wash surfaces regularly with a clean cloth or rag soaked in warm water with mild soap or dishwashing
detergent.
-Always clean in the direction of original polish lines.
-Always rinse well with clear water (2 or 3 times) after cleaning. Wipe dry completely.
-You may also use a specialized household stainless steel cleaner.
Don’t:
-Do not use any steel or stainless steel wool or any other scrapers to remove stubborn dirt.
-Do not use any harsh or abrasive cleansers.
-Do not allow dirt to accumulate.
-Do not let plaster dust or any other construction residues reach the hood. During construction or renovation,
cover the hood to make sure no dust sticks to stainless steel surface.
Avoid: (when choosing a detergent)
-Any cleaners that contain bleach will attack the stainless steel.
-Any products containing: chloride, fluoride, iodine or bromide will deteriorate surfaces rapidly.
-Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly
explosive and should never be used close to a range.
Enamelfinish:
Clean with warm water and mild detergent only. If discoloration occurs, use a good enamel polish such as
automotive polish. (DO NOT use a rough abrasive cleaner or porcelain cleaner).
10. OPERATION
Always turn ON your hood before you begin cooking in order to establish an air flow in the kitchen. Let the
blower run for a few minutes to clear the air after you turn off the range. This will help keep the whole
kitchen cleaner and brighter

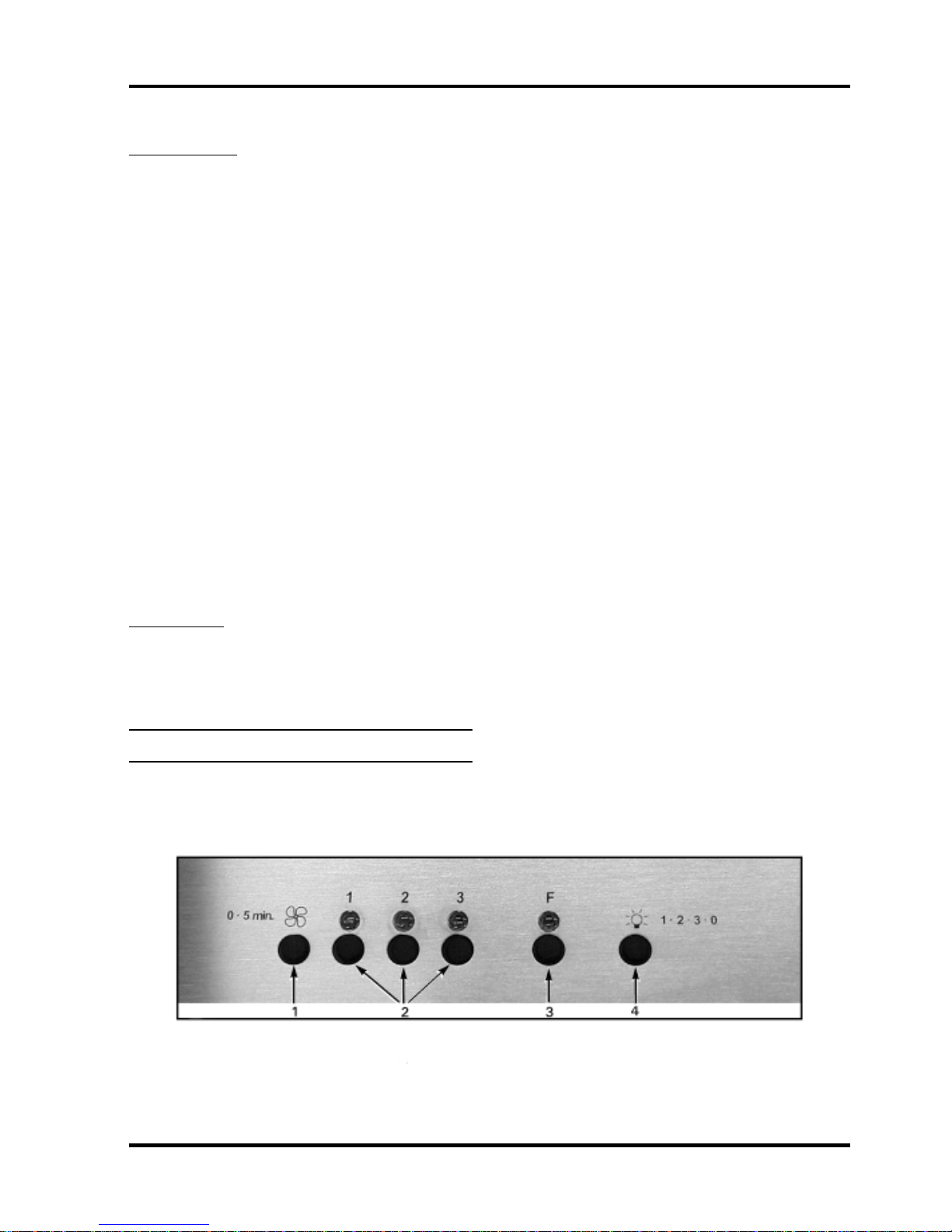

Electronic Control
1) Delay Switch
2) Start, stop, speed selectiuon switches
3) Master off / Filter maintanence switch / Heat Detector
4) Light switch

18
ResidentialWallMountHood
1. Delay Switch:
When a fan speed is selected, press the delay switch to activate its function. The corresponding speed
indicator light will start flashing to indicate this function is activated. The fan will continue to operate for 5
minutes and will stop automatically. To cancel the delay function, press the delay switch once again.
2. Start/Stop Speed Selection Switches:
Press the switch corresponding to the desired fan speed. The light indicates the selected speed, speed “1”
being the Silentsure mode. To turn off the fan, press once more on the corresponding fan speed switch.
3. Master Off/Filter Maintenance Switch/Heat Detector: (this switch has a triple function)
a) To turn OFF the motor(s) and the lights simultaneously, press the switch once.
b) After 25 hours of operation, the filter maintenance light indicator will turn itself ON. This indicates that
the filters and the blower wheel(s) need to be cleaned in order to maintain efficient operation of the unit.
The indicator light will stay ON until the function is reactivated by pressing this switch.
c) The light indicator is used for the Smartvent function as well (see below).
Smartvent :
When an excessively high temperature is detected, the detector takes control over the blower and ensures
that an appropriate ventilation is produced. The controller is equipped with two detection levels.
Protected Mode Level 1: When medium heat is detected, the blower sets itself to speed 2,
the corresponding light indicator comes ON and the F indicator flashes.
Protected Mode Level 2: When a greater heat is detected, the blower then sets itself to speed 3,
the light indicator 3 turns ON and the F indicator flashes.
Theprotectedmodecanstartthe blower even if the hood is turned OFF. In protectedmode,
itisimpossibleto turn the blowerOFFwiththepushbuttons.If you must stop theblower,do
itfromthe main electrical panel.
Neverplacehighlyflammablematerialunderheatlamps.
The blower will remain ON until the heat is back to normal and then returns to the speed previously
selected.
4. Light Switch:
The light switch allows three different lighting levels according to your needs (2 or 3 x 50 Watts maximum).
Use halogen light bulbs (120V, 50W, PAR 20).
5. Heat Lamp Switches:
Press the black rocker switches on the halogen light panel to activate the heat lamps independently.
Use infrared light bulbs (120V, IR175W, PAR 38) or white halogen bulbs (120V, 90W, PAR 38) if food
warming shelves are not used.
*TM in Canada only, US TM pending.
TM*
TM*
TM*
WARNING
WARNING

19
ResidentialWallMountHood
10. WIRING DIAGRAM

20
ResidentialWallMountHood
NOTE:
When ordering parts, please specify
Hood Model number and Serial number.
KEY PART DESCRIPTION QTY/WIDTH
# # 30" 36" 42"
1 12380 INTERNAL BLOWER 500 CFM 1 - -
2 13281 INTERNAL BLOWER 900 CFM - 1 1
3 13898 ROUGH-IN PLATE KIT CWC 1 1 1
4 13672 ADAPTER & DAMPER 9 7/8" x 4 1/4" 1 1 1
5 03880 TRANSITION 9 7/8" x 4 1/4" TO 8" 1 1 1
KEY PART DESCRIPTION QTY/WIDTH
# # 30" 36" 42"
1 02563 BLACK SPST ROCKER SWITCH 2 2 2
2 02414 AUTOTRANSFORMER 2 2 2
3 03882 PORCELAIN SOCKET LIGHT 4 4 4
13216 GREASE COLLECTOR 30" SS 1 - -
13217 GREASE COLLECTOR 36" SS - 1 -
13218 GREASE COLLECTOR 42" SS - - 1
5 03686 FILTER CLIP 3 3 4
6 03597 ELECTRONIC CONTROL H098 1 1 1
7 03580 NYLON SPACER #6-32 x 1/2" 3 3 3
8 02543 CANOPY PUSH BUTTON 6 6 6
9 02577 HEYCO PLUG #1300 4 4 4
10 02772 FEMALE MOTOR CONNECTOR 1 1 1
11 02773 MALE MOTOR CONNECTOR 1 1 1
12 * SCREW #8-3/8" 7 7 7
13 * SCREW #6 x 1/2" PAN HEAD 3 3 4
14 * LOCK NUT #8-32 4 4 4
15 * SCREW #8-32 x 1/2" QDRX 4 4 4
16 02802 NYLON SPACER MF 1/4" x 9/16" 3 3 3
17 * MACHINE SCREW #6-32 x 1/4" 1 1 1
18 * LOCK NUT #6-32 1 1 1
19 3394 FILTER 11.925" x 8.95" 2 - 2
3395 FILTER 11.925" x 11.950" 1 3 2
20 * CAPSYLITE LAMP PAR 20 2 2 2
03888
PARTS BAG: 8 - screws #8x3/4", 1 - wire
clamp, 4 - screws #10x2", 2 - wall
anchors, 2 - washers, 4 - nuts #10-32, 8 -
screws #8x3/8", 2 - wire connectors 111
33955
33956
