Heat Controller Comfort-Aire BG-101A User manual

Through-The-Wall
Air Conditioning
Important Information
•Please read carefully and thoroughly this manual before operating this unit.
•Contact a qualified sevice technician for installation, repair and maintenance of this unit.
•The appliance is not intended for use by young children or those who require supervision.
•Young children should be supervised to ensure that they do not play with the appliance.
HEAT CONTROLLER, INC.
Models: BG-81A
BG-101A
BG-123A

2Room Air Conditioner
Window-Type Air Conditioner Owner’s Manual
TABLE OF CONTENTS
FOR YOUR RECORDS
Write the model and serial numbers here:
Model #
Serial #
You can find them on a label on the side of each unit.
Dealer's Name
Date Purchased
■Staple your receipt to this page in the event you need it
to prove date of purchase or for warranty issues.
READ THIS MANUAL
Inside you will find many helpful hints on how to use and
maintain your air conditioner properly. Just a little preventive
care on your part can save you a great deal of time and
money over the life of your air conditioner.
You'll find many answers to common problems in the chart
of troubleshooting tips. If you review our chart of
Troubleshooting Tips first,youmaynotneedtocallfor
service at all.
PRECAUTION
•Contact the authorized service technician for repair
or maintenance of this unit.
• Contact the installer for installation of this unit.
• The air conditioner is not intended for use by young
children or invalids without supervision.
• Young children should be supervised to ensure that
they do not play with the air conditioner.
• When the power cord is to be replaced, replacement
work shall be performed by authorized personnel only
using only genuine replacement parts.
• Installation work must be performed in accordance
with the National Electric Code by qualified and
authorized personnel only.
Safety Precautions..........................3
Before Operation.............................7
Introduction ....................................8
Electrical Safety ..............................9
Installation ....................................11
Operating Instructions .................18
Maintenance and Service ............21

Owner’s Manual 3
ENGLISH
Safety Precautions
Safety Precautions
To prevent injury to the user or other people and property damage, the following instructions
must be followed.
■Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness
is classified by the following indications.
■Meanings of symbols used in this manual are as shown below.
WARNING
CAUTION
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to properties only.
WARNING
■Installation
Be sure not to do.
Be sure to follow the instruction.
Don’t use a power cord, a
plug or a loose socket which
is damaged.
•Otherwise, it may cause a fire
or electrical shock.
Always plug into a grounded
outlet.
•Otherwise, it may cause a fire
or electrical shock.
Do not modify or extend the
power cord length.
•It will cause electric shock or fire
due to heat generation.
Do not disassemble or
modify products.
•It may cause failure and
electric shock.
Be caution when unpacking
and installing.
•Sharp edges may cause
injury.
Do not use the power cord near
flammable gas or combustibles
such as gasoline, benzene,
thinner, etc.
•It may cause explosion or fire.
Gasolin

4Room Air Conditioner

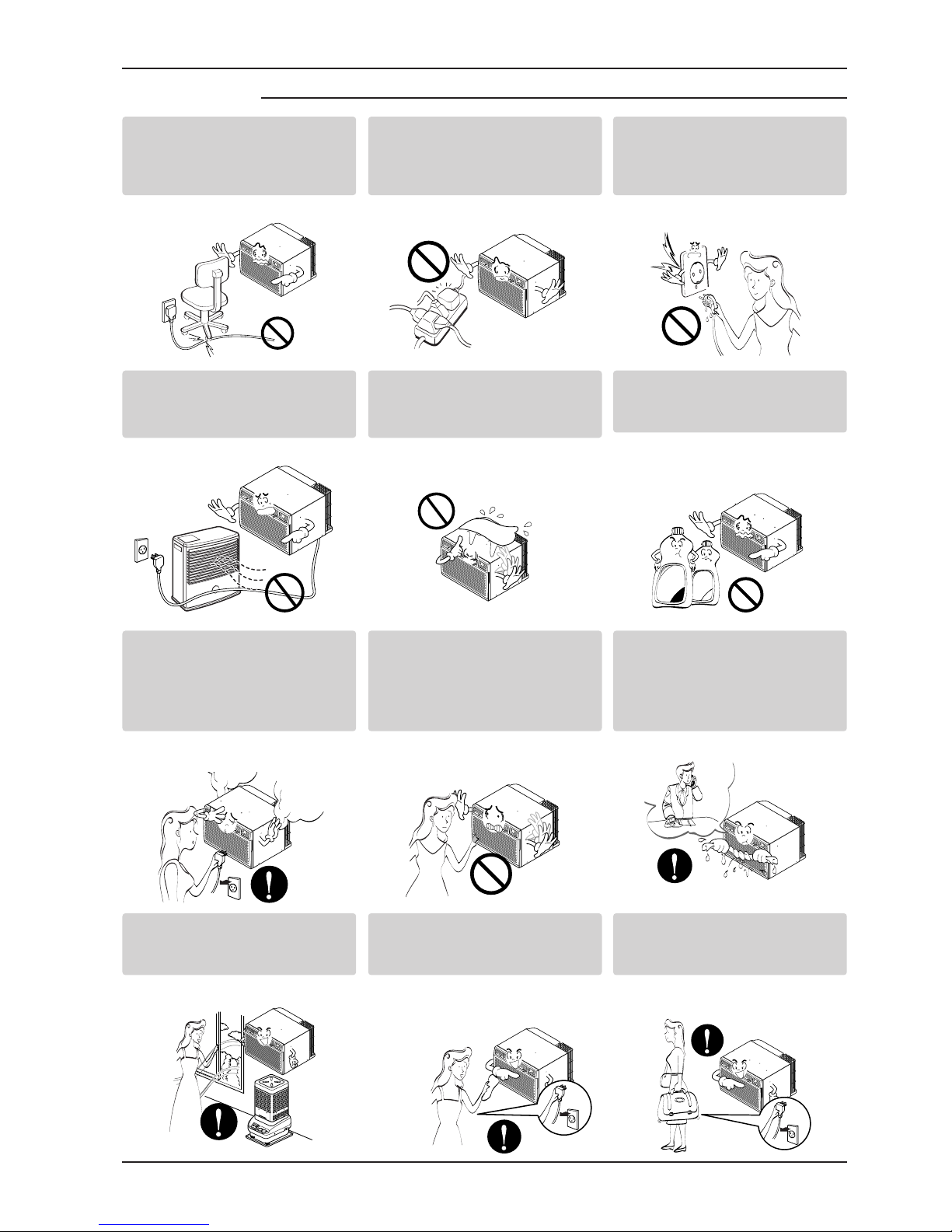

Safety Precautions
■Operation
Do not place the power cord
near a heater.
•It may cause fire and electric
shock.
Do not allow water to run
into electric parts.
•It will cause failure of machine or
electric shock.
Use a soft cloth to clean. Do
not use wax, thinner, or a
strong detergent.
•The appearance of the air
conditioner may deteriorate,
change color, or develop surface
flaws.
Wax
Thinner
Ventilate the room well when
using this appliance
together with a stove, etc.
•An oxygen shortage may occur.
Turn off the power and
breaker firstly when
cleansing the unit.
•Since the fan rotates at high
speedduringoperation,itmay
cause injury.
Turn off the main power
switch when not using it for
alongtime.
•Prevent accidental startup and
the possibility of injury.
Unplug the unit if strange
sounds, odors, or smoke
come from it.
•Otherwise it may cause fire and
electric shock accident.
Do not open the suction
inlet grill of the product
during operation.
•Otherwise, it may electrical
shock and failure.
If water enters the product, turn
off the the power switch of the
main body of appliance. Contact
service center after taking the
power-plug out from the socket.
Do not place heavy object
on the power cord and take
care so that the cord should
not be pressed.
•Thereisdangeroffireorelectric
shock.
Do not share the outlet with
other appliances.
•It will cause electric shock or fire
due to heat generation.
Take the power plug out if
necessary, holding the head
of the plug and do not touch
it with wet hands.
•Otherwise, it may cause a fire
or electrical shock.

Owner’s Manual 5
ENGLISH
Safety Precautions
CAUTION
■Installation
Do not operate or stop the
unit by inserting or pulling
out the power plug.
•It will cause electric shock or fire
due to heat generation.
Do not damage or use an
unspecified power cord.
•It will cause electric shock or fire.
Do not operate with wet
hands or in damp
environment.
•It will cause electric shock.
Hold the plug by the head
when taking it out.
•It may cause electric shock and
damage.
When gas leaks, open the
window for ventilation
before operating the unit.
•Otherwise, it may cause
explosion, and a fire.
Never touch the metal parts
of the unit when removing
the filter.
•They are sharp and may cause
injury.
Install the product so that the noise or hot
wind from the outdoor unit may not cause
any damage to the neighbors.
•Otherwise, it may cause dispute with the
neighbors.
Keep level parallel in installing the product.
•Otherwise, it may cause vibration or water
leakage.

6Room Air Conditioner
Safety Precautions
■Operation
Be cautious not to touch the
sharp edges when
installing.
•It may cause injury.
Avoid excessive cooling and
perform ventilation
sometimes.
•Otherwise, it may do harm to
your health.
Do not insert the hands or
bars through the air inlet or
outlet during operation.
•Otherwise,itmaycause
personal injury.
Do not put a pet or house
plant where it will be
exposedtodirectairflow.
•It may cause injury.
Do not block the inlet or
outlet of air flow.
•It may cause product failure.
Useasoftclothtoclean.Do
not use wax, thinner, or a
strong detergent.
•Theappearanceoftheair
conditioner may deteriorate,
change color, or develop surface
flaws.
Do not step on the
indoor/outdoor unit and do
notputanythingonit.
•It may cause an injury through
dropping of the unit or falling
down.
Always insert the filter
securely.
Clean it every two weeks.
•Operation without filters will
cause failure.
Do not drink water drained
from air conditioner.
•It contains containments and will
make you sick.

Before Operation
Owner’s Manual 7
ENGLISH
Before Operation
1. Contact an installation specialist for installation.
2. Plug in the power plug properly.
3. Use a dedicated circuit.
4. Do not use an extension cord.
5. Do not start/stop operation by plugging/unplugging the power cord.
6. If the cord/plug is damaged, replace it with only an authorized replacement
part.
1. Being exposed to direct airflow for an extended period of time could be
hazardous to your health. Do not expose occupants, pets, or plants to direct
airflow for extended periods of time.
2. Due to the possibility of oxygen deficiency, ventilate the room when used
together with stoves or other heating devices.
3. Do not use this air conditioner for non-specified special purposes (e.g.
preserving precision devices, food, pets, plants, and art objects). Such usage
could damage the items.
1. Do not touch the metal parts of the unit when removing the filter. Injuries can
occur when handling sharp metal edges.
2. Do not use water to clean inside the air conditioner. Exposure to water can
destroy the insulation, leading to possible electric shock.
3. When cleaning the unit, first make sure that the power and breaker are turned
off. The fan rotates at a very high speed during operation. There is a
possibility of injury if the unit’s power is accidentally triggered on while
cleaning inner parts of the unit.
For repair and maintenance, contact your authorized service dealer.
Preparing for Operation
Usage
Cleaning and Maintenance
Service

8Room Air Conditioner

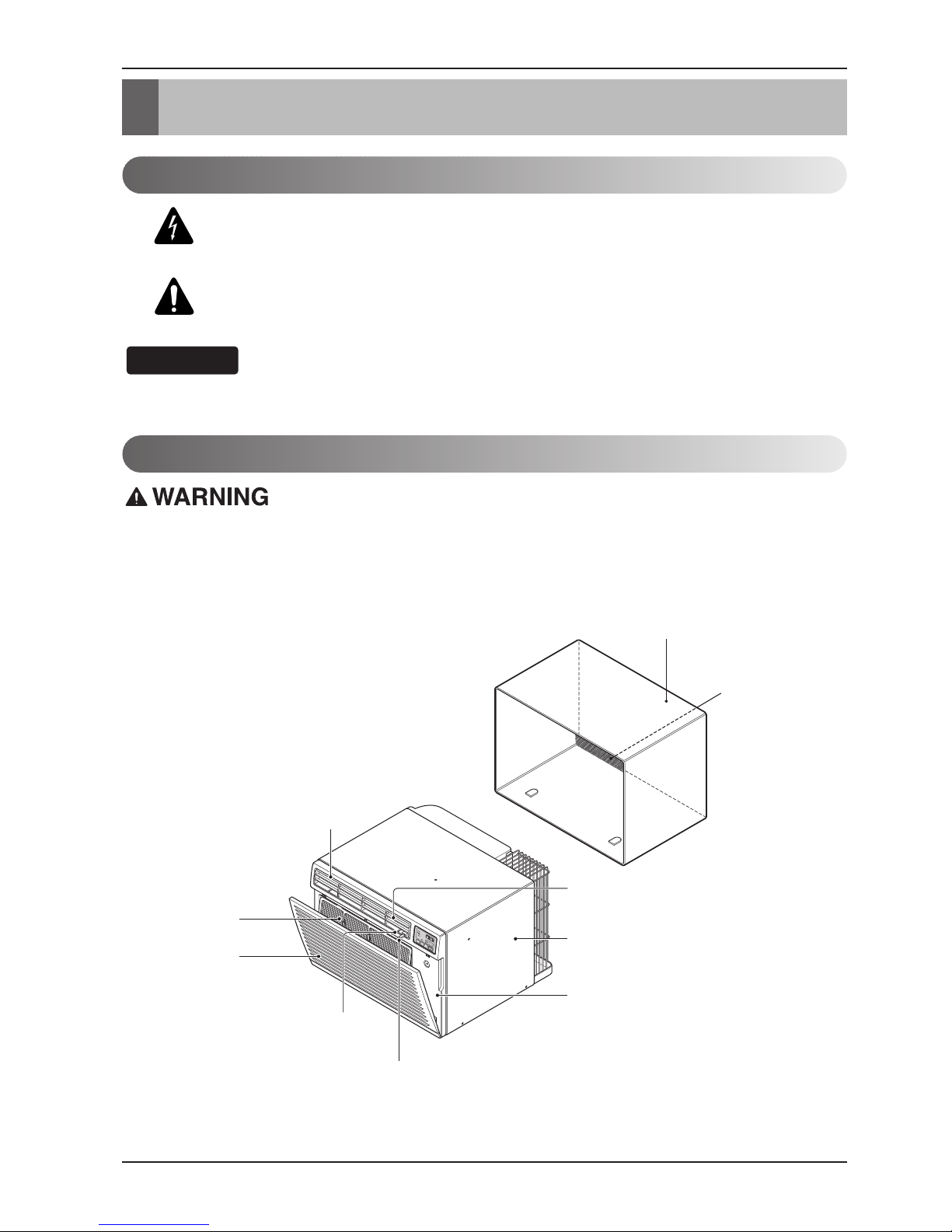

Introduction
This symbol alerts you to the risk of electric shock.
This symbol alerts you to hazards that could cause harm to
the air conditioner.
This symbol indicates special notes.
NOTICE
This appliance should be installed in accordance with the National Electric Code.
Introduction
Symbols Used in this Manual
Features
CABINET
FRONT GRILLE
INLET GRILLE
(Air Intake)
AIR FILTER
HORIZONTAL AIR DEFLECTOR
(Vertical Louver)
VENT CONTROL
VERTICAL AIR DEFLECTOR
(Horizontal Louver)
AIR DISCHARGE
SLEEVE ASSEMBLY
(Including Aluminum Rear grille)
THE SLEEVE AND THE REAR GRILLE
(optionally supplied with your unit)
THE UNIT
REAR GRILLE
(Aluminum Rear grille)

Electrical Safety
Owner’s Manual 9
ENGLISH

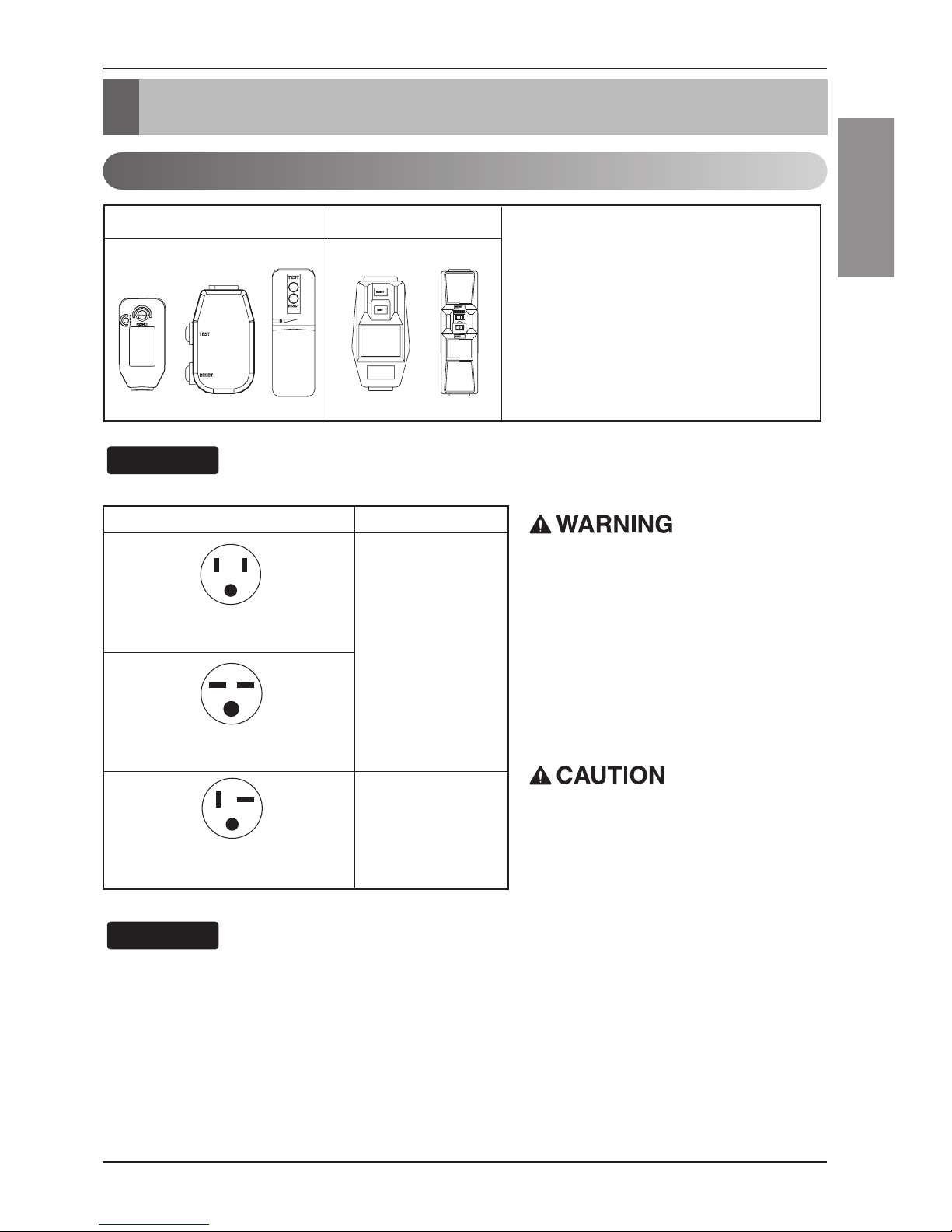

Electrical Safety
Electrical Data
115V~ 230V~
Power cord may include a current
interrupter device. A test and reset button is
provided on the plug case. The device
should be tested on a periodic basis by first
pressing the TEST button and then the
RESET button. If the TEST button does not
trip or if the RESET button will not stay
engaged, discontinue use of the air
conditioner and contact a qualified service
technician.
Use Wall Receptacle Power Supply
Standard 125V, 3-wire grounding
receptacle rated 15A, 125V AC
Standard 250V, 3-wire grounding
receptacle rated 15A, 250V AC
Use 15 AMP. time
delay fuse or 15 AMP.
circuit breaker.
Use 20 AMP. time
delay fuse or 20 AMP.
circuit breaker.
Standard 250V, 3-wire grounding
receptacle rated 20A, 250V AC
Never push the test button during
operation
Otherwise this plug can damaged.
This device contains chemical, including
lead, known to the State of California to
cause cancer, and birth defects or other
reproductive harm.
Wash hands after handling.
Do not remove, modify or immerse this plug.
If this device trips, the cause it to be
corrected before further use.
The conductors inside this cord are
surrounded by shields, which monitor
leakage current.
These shields are not grounded.
Periodically examine the cord for any
damage. Do not use this product in the
event the shields become exposed.
Avoid shock hazard, this unit can not
be user serviced opening the tamper
resistant. Sealed portion of the unit
voids all warranties and performance
claims. This unit not intended for use
as an on-off switch.
The shape may be different according to its model.
NOTICE
DO NOT USE AN EXTENSION CORD on 230,
208, and 230/208 Volt units.
All wiring should be made in accordance with local
electrical codes and regulations.
Aluminum house wiring may pose special
problems. Consult a qualified electrician.
NOTICE

10 Room Air Conditioner
Electrical Safety
Electrical Safety
IMPORTANT
(PLEASE READ CAREFULLY)
FOR THE USER'S PERSONAL SAFETY, THIS
APPLIANCE MUST BE PROPERLY GROUNDED
The power cord of this appliance is equipped with a
three-prong (grounding) plug. Use this with a standard
three-slot (grounding) wall power outlet to minimize the
hazard of electric shock. The customer should have the
wall receptacle and circuit checked by a qualified
electrician to make sure the receptacle is properly
grounded.
DO NOT CUT OR REMOVE THE THIRD (GROUND)
PRONG FROM THE POWER PLUG.
A. SITUATIONS WHEN THE APPLIANCE WILL BE
DISCONNECTED OCCASIONALLY:
Because of potential safety hazards, we strongly
discourage the use of an adapter plug. However, if you
wish to use an adapter, a TEMPORARY CONNECTION
may be made. Use UL-listed adapter, available from
most local hardware stores.
The large slot in the adapter must be aligned with the
large slot in the receptacle to assure a proper polarity
connection.
: Attaching the adapter ground terminal to the wall
receptacle cover screw does not ground the appliance
unless the cover screw is metal, and not insulated, and
the wall receptacle is grounded through the house
wiring. The customer should have the circuit checked
by a qualified electrician to make sure the receptacle
is properly grounded.
Disconnect the power cord from the adapter, using one
hand on each. Otherwise, the adapter ground terminal
might break. DO NOT USE the appliance with a broken
adapter plug.
B. SITUATIONS WHEN THE APPLIANCE WILL BE
DISCONNECTED OFTEN.
Do not use an adapter plug in these situations.
Unplugging the power cord frequently can lead to an
eventual breakage of the ground terminal. The wall
power outlet should be replaced by a three-slot
(grounding) outlet instead.
USE OF EXTENSION CORDS
Because of potential safety hazards, we strongly
discourage the use of an extension cord. However, if
you wish to use an extension cord, use a CSA
certified/UL-listed 3-wire (grounding) extension cord,
rated at 15A, 125V.

Owner’s Manual 11
ENGLISH
Installation
Installation
Remove packing materials from the wall sleeve and tape
from the air conditioner.
INSTALLATION REQUIREMENTS
If you use an existing wall sleeve, you should
measure its dimensions.
Install the new air conditioner according to these
installation instructions to achieve the best
performance. All wall sleeves used to mount the new
air conditioner must be in good structural condition
and have a rear grille to securely attach the new air
conditioner. (FIG. 1)
With the HCI sleeve(optionally supplied with your
unit), you can maintain the best performance of the
new air conditioner. (FIG. 2)
ELECTRICAL SERVICE
Check your available electrical service. The power
supply available must be the same as that shown on
the unit nameplate (found on left side of cabinet).
All models are equipped with a 3-prong service plug
to provide proper service and safe positive
grounding. Do not change plug in any way. Do not
use an adapter plug. If your present wall outlet does
not match your plug, call a qualified electrician to
make the necessary corrections. SAVE CARTON for
storage and this OWNER'S MANUAL for future
reference. The carton is the best way to store unit
during winter or when not in use.
INSTALLATION HARDWARE
14-
13
/ 32 "
(366 mm)
24"(610 mm)
18-
15
/ 32 "(468 mm)
20-
3
/ 32 "
(511 mm)
1
5
6
7
8
3
2 4
9
2 Size options
2 Size options
To avoid risk of personal injury, property
damage, or product damage due to the weight of
this device and sharp edges that may be
exposed:
•Air conditioners covered in this manual pose an
excessive weight hazard. Two or more people are
needed to move and install the unit.
To prevent injury or strain, use proper lifting and
carrying techniques when moving unit.
•Carefully inspect location where air conditioner will
be installed. Be sure it will support the weight of
theunitoveranextendedperiodoftime.
•Handle air conditioner with care. Wear protective
gloves whenever lifting or carrying the unit. AVOID
the sharp metal fins of front and rear coils.
•Make sure air conditioner does not fall during
installation.
REQUIRED TOOLS:
•Tight Fitting gloves
•Standard screwdriver
•Phillips screwdriver
•Pliers
•Sharp knife
•3/8-inch open end
wrench or adjustable
wrench
•1/4-inch hex socket
and ratchet
•Tape measure
•Electric drill
•1/4-inch drill bit
FIG. 1
Air Conditioner
ITEM NAME OF PARTS Q'TY
1 PLASTIC GRILLE 1
2 VERTICAL INSULATION STRIP 1
3 AROUND INSULATION STRIPS 2
4 HORIZONTAL INSULATION STRIP 1
5 SUPPORT BLOCK 2
6 BAFFLE 1
7TRIMFRAME 2
8SHIM 2
9 PLASTIC NUTS AND WASHER SCREWS 4
15-
17
/ 32 "
(394 mm)
16-
23
/ 32 "
(425 mm)
25-
7
/ 8 "
(656 mm)
Aluminum metal grille
FIG. 2
HCI Wall Sleeve

12 Room Air Conditioner

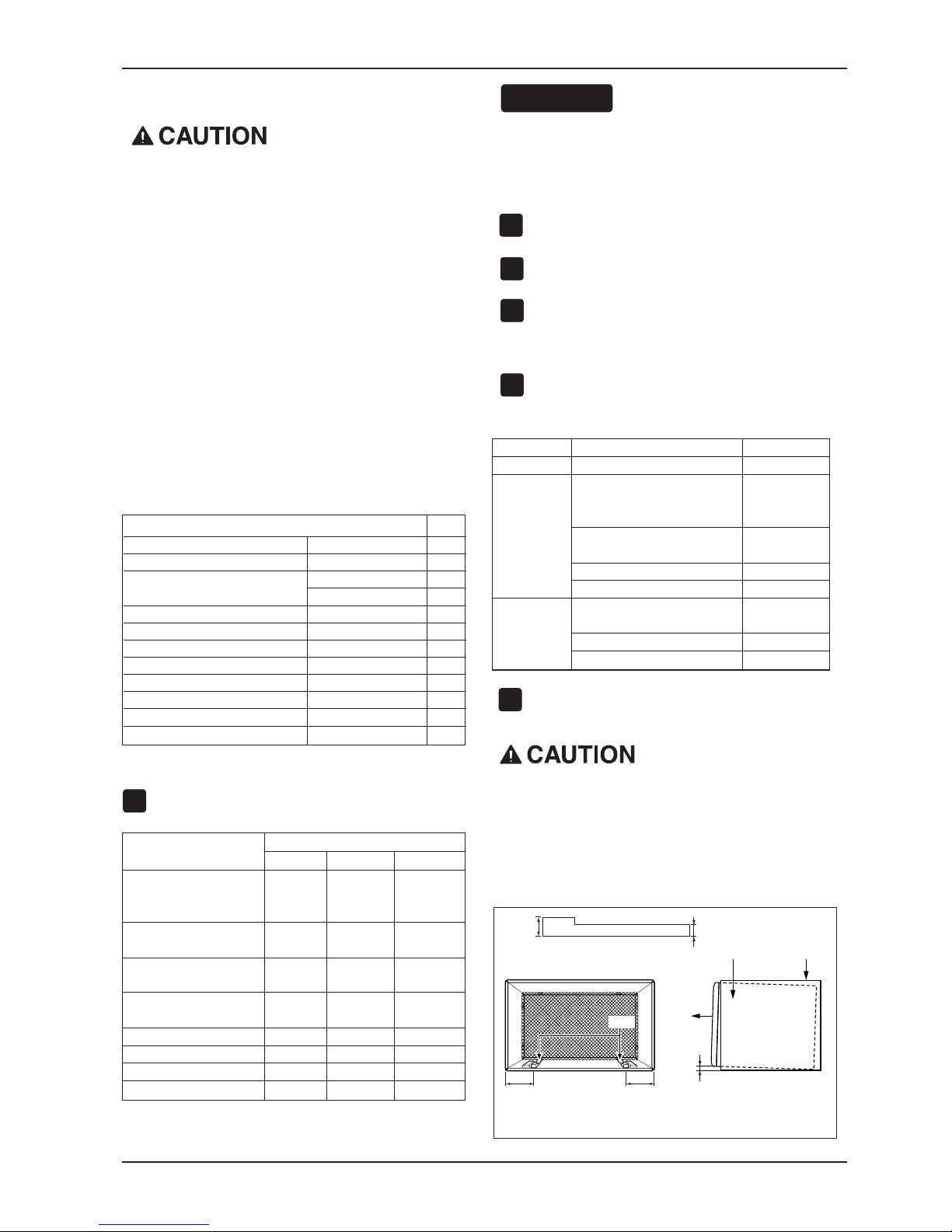

Installation
INSTALLATION
•Pick a location which will allow the conditioned air
to blow into the area you want. Good installation
with special attention to the proper position of the
unit will lessen the chance that service will be
needed.
ITEMS IN INSTALLATION HARDWARE
You may not need all parts in the kit. Discard unused
parts
HOW TO INSTALL
Identify the existing wall sleeve before installing
the unit from the listed below.
All wall sleeves used to mount the new Air
Conditioner must be in sound structural condition
and have a rear grille that securely attaches to
sleeve, or rear flange that serves as a stop for the
Air Conditioner.
Remove old air conditioner from existing wall
sleeve.
Clean the interior of an existing sleeve.
(Do not disturb seals.)
Wall sleeve must be securely fastened in wall
before installing the air conditioner. Use the
nails or screws through sleeve into wall, if
needed. Repaint sleeve if needed.
Prepare the wall sleeve for installation of the
unit. If you plan to use your existing wall sleeve,
and it is not HCI, use procedure B or C below.
Install new unit into wall sleeve.
When installation is completed, replacement unit
MUST have a rearward slope as shown. To
achieve 1/4" slope, remove the backing from the
11-13/16" shim strips and attach them as shown
below in Fig. 3. Place the higher portion of shim to
the front of the rib on base of wall sleeve.
NOTICE
1
2
3
4
5
6
1/4"
Wall Sleeve
FRONT
UNIT
SHIM PLACEMENT UNIT INSTALLATION
1" high 3/4" High
Shim
6" 6"
FIG. 3
We strongly recommend the removal of the
old wall sleeve and the installation of a new
HCI Wall Sleeve.
If you decide to keep the existing wall sleeve,
you have to redirect the louvers at the back of
the wall sleeve illustration. The use of pliers is
recommended. If you DO NOT redirect, you
run the risk of poor performance or product
failure. This is not covered under the terms of
the HCI warranty.
ITEM (inches) Qty.
Plastic grille 263/4x16
1/21
Vertical insulation strip 159/16 x1
3/8x1 3/81
Around Insulation Strips 671/8x1
3/8x25/32 1
5927/32 x1
3/8x1 3/81
Horizontal Insulation Strip 237/32 x1
3/8x1
3/16 1
Support Block 13/4x1
3/8x4 5/16 2
Baffle 14 x 41/2 x
1/81
Shim 1113/16 x1x3/42
Tr i m Fr a m e 2
Washer Screw 4
Nuts(Plastic) 4
Grille Rear 1
Wall Sleeve Dimensions (inches)
Brand Width Height Depth
White-Westinghouse
25-1/2 15-1/4 16, 17-1/2
Frigidaire or 22
Carrier (52F series)
General Electric 26 15-5/8 16-7/8
/Hotpoint
Whirlpool 25-7/8 16-1/2 17-1/8
or 23
Fedders/Emerson 27 16-3/4 16-3/4
or 19-3/4
HCI 25-7/8 15-17/32 16-23/32
Emerson/Fedders 26-3/4 15-3/4 15
Carrier (51S Series) 25-3/4 16-7/8 18-5/8
Friedrich 27 16-3/4 16-3/4
Procedure Brand Depth(inches)
A HCI 16-23/32
White-Westinghouse
Frigidaire Carrier 16, 17-1/2
(52F series) or 22
BGeneral Electric 16-7/8
/Hotpoint
Whirlpool 17-1/8 or 23
Carrier (51S series) 18-5/8
Fedders/Emerson 16-3/4
or 19-3/4
CEmerson/Fedders 15
Friedrich 16-3/4

Owner’s Manual 13
ENGLISH
Installation

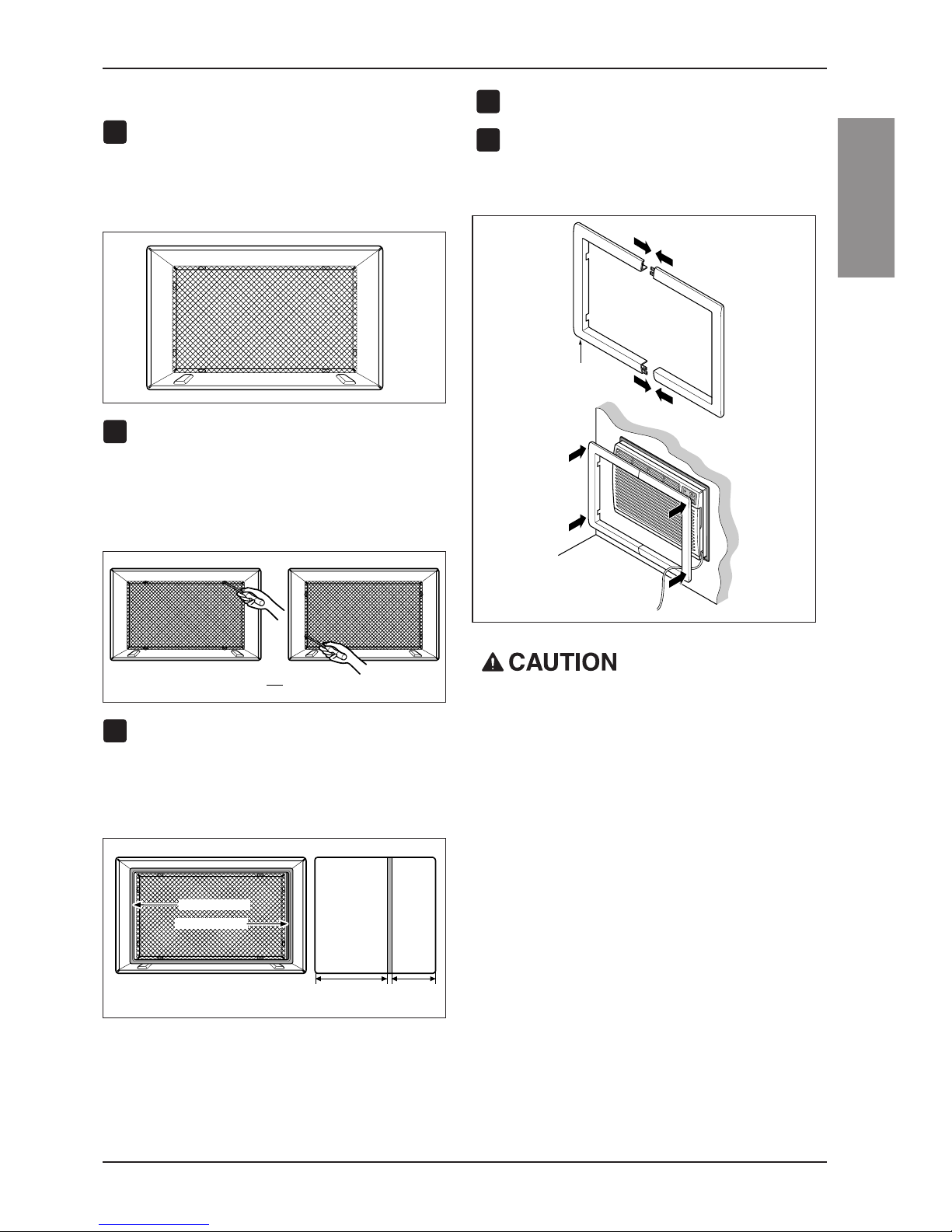

PROCEDURE A
Ifyouareusingthenewsleeve(optionally
supplied with your unit),skip to step 3.
Otherwise, install the plastic grille from the kit.
Cut the plastic grille to 25-1/2" wide and 15-
1/4" high. Place the plastic grille to the inside
of the wall sleeve at the rear flange.
Fasten the 4 washer screws to secure the grille
to the wall sleeve. If you need plastic nuts to
mount plastic grille to the inside of the wall
sleeve, there are plastic nuts in the installation
kit. The nuts are installed from the inside of the
sleeve and are pressing into the square holes
of the rear flanges.
Remove the backing from the Vertical Insulation
strip 159/16 x1
3/8x1 3/8and attach that to the
inside right of the sleeve as shown below.
Remove the backing from the Around Insulation
strip 671/8x1
3/8x25/32 and attach that to the
inside front of the sleeve as shown below.
Install the new unit into the wall sleeve.
To assemble trim, snap the tab of each piece
into the slot of the other piece as shown below.
Slide trim over the front of the air conditioner
until trim is flush with sleeve as shown below.
FIG. 4
Around Insulation
Vertical Insulation
9 1/2"6"
Indoor Outdoor
FIG. 6
or
FIG. 5
1
2
3
4
5
Wall
Trim (2 ea)
FIG. 7
• Air conditioners covered in this manual pose an
excessive weight hazard. Two or more people are
needed to move and install the unit.
To prevent injury or strain, use proper lifting and
carrying techniques when moving unit.
• When handling the air conditioner, be careful to
avoid cuts from sharp metal fins on front and rear
coils.
• Make sure air conditioner does not fall during
removal.
• If unit does not operate after installation check, to
be sure the circuit interrupter has not been tripped.
Refer to the Troubleshooting guide for reset
procedure.

14 Room Air Conditioner
Installation
PROCEDURE B
Redirect the louvers at the back of the wall
sleeveto 60°angle as shown in the FIG 8.The
use of pliers is recommended.
If the wall sleeve already has a rear grille, skip
to step 4. If the wall sleeve does not have a rear
grille or louvered panel, install the plastic grille
from the kit. Cut the plastic grille to 25-1/2" wide
and 15-1/4" high. Place the plastic grille to the
inside of the wall sleeve at the rear flange.
Fasten the 4 washer screws to secure the grille
to the wall sleeve. If you need plastic nuts to
mount plastic grille to the inside of the wall
sleeve, there are plastic nuts in the installation
kit. The nuts are installed from the inside of the
sleeve and are pressed into the square holes of
the rear flanges.
Remove the backing from the Vertical Insulation
strip 159/16 x1
3/8x1 3/8and attach that to the
inside right of the sleeve as shown below.
Remove the backing from the Around Insulation
strip 671/8x1
3/8x25/32 and attach that to the
inside front of the sleeve as shown below.
If the depth of your existing wall sleeve is less
than or equal to 18", skip to step 7. Otherwise,
cut the baffles and the support blocks according
to length "A" in the table below.
1
4
2
3
FIG. 9
Around Insulation
Vertical Insulation
9 1/2"6"
Indoor Outdoor
FIG. 11
or
FIG. 10
Rear Louvers
(Top View)
60°60°
7 3/32"
FIG. 8
Depth"D" of the existing
wall sleeve (inches)
Length "A"
(inches)
Support
Block
Baffle
A
A
3/4
1-3/4
4
18 D 18-
5
/ 8
18-
5
/ 8 D 19-
3
/ 4
19-
3
/ 4 D 22
5
Place the plastic grille
Fasten the screws
FIG. 12

Owner’s Manual 15
ENGLISH
Installation
PROCEDURE B
Remove the backing from the support blocks
and attach them to the inside of the wall sleeve
as shown FIG 13.Slide the baffle into slots of
the support blocks.
Install the new unit into the wall sleeve.
Assemble trim as described in Step 5,
Procedure A.
8
Wall
Wall
Sleeve Baffle
( 7 3/32" )
Front
Support
Block
FIG. 13
6
7
CAUTION
•Air conditioners covered in this manual pose an
excessive weight hazard. Two or more people are
needed to move and install the unit.
To prevent injury or strain, use proper lifting and
carrying techniques when moving unit.
•When handling the air conditioner, be careful to
avoid cuts from sharp metal fins on front and rear
coils.
•Make sure air conditioner does not fall during
removal.
•If unit does not operate after installation check, to be
sure the circuit interrupter has not been tripped.
Refer to the Troubleshooting guide for reset
procedure.

16 Room Air Conditioner
Installation
PROCEDURE C
Redirect the louvers at the back of the wall
sleeveto 60°angle as shown in the FIG 14.
The use of pliers is recommended.
If the wall sleeve already has a rear grille, skip
to step 4. If the wall sleeve does not have a rear
grille or louvered panel, install the plastic grille
from the kit. Cut the plastic grille to 26-1/2" wide
and 15-1/2" high. Place the plastic grille to the
inside of the wall sleeve at the rear flange.
Fasten the 4 washer screws to secure the grille
to the wall sleeve. If you need plastic nuts to
mount plastic grille to the inside of the wall
sleeve, there are plastic nuts in the installation
kit. The nuts are installed from the inside of the
sleeve and are pressed into the square holes of
the rear flanges.
Remove the backing from the Horizontal
Insulation strip 237/32 x1
3/8x1 3/16 and attach
that to the inside right of the sleeve as shown
below. Remove the backing from the Around
Insulation strip 5927/32 x1
3/8x1 3/8and attach
thattotheinsidefrontofthesleeveasshown
below.
If the depth of your existing sleeve is less than
or equal to 18”, skip to step 7. Otherwise, cut
the baffles and the support blocks according to
Length "A" in the table below.
Remove the backing from the support blocks
and attach them to the inside of the wall sleeve
as shown FIG 19.Slide the baffle into slots of
the support blocks
Depth"D" of the existing
wall sleeve (inches)
Length "A"
(inches)
Support
Block
Baffle
A
A
3/4
1-3/4
4
18 D 18-
5
/ 8
18-
5
/ 8 D 19-
3
/ 4
19-
3
/ 4 D 22
Wall
Wall
Sleeve Baffle
Front Support
Block
(7 3/32")
FIG. 19
FIG. 18
1
4
2
3
FIG. 15
8 1/2"
Indoor Outdoor
Around Insulation
Horizontal Insulation
FIG. 17
or
FIG. 16
Rear Louvers
(Top View)
60°
7 3/32"
60°
FIG. 14
5
6
Place the plastic grille
Fasten the screws

Installation
Owner’s Manual 17
ENGLISH
PROCEDURE C
To achieve rearward slope for unit draining,
remove the backing from the 1113/16"shim
strips and attach them as shown below in Fig.
21.The higher portion of shim is to be placed
in front of the rib on the base of wall sleeve.
Install the new unit into the wall sleeve
Assemble trim as described in Step 6,
Procedure A.
8
9
7
FIG. 20
1" high 3/4" High
Shim (2EA)
6" 6"
FIG. 21
•Air conditioners covered in this manual pose an
excessive weight hazard. Two or more people are
needed to move and install the unit.
To prevent injury or strain, use proper lifting and
carrying techniques when moving unit.
•When handling the air conditioner, be careful to avoid
cuts from sharp metal fins on front and rear coils.
•Make sure air conditioner does not fall during
removal.
•If unit does not operate after installation check, to be
sure the circuit interrupter has not been tripped.
Refer to the Troubleshooting guide for reset
procedure.

18 Room Air Conditioner
Operating Instructions
Operating Instructions

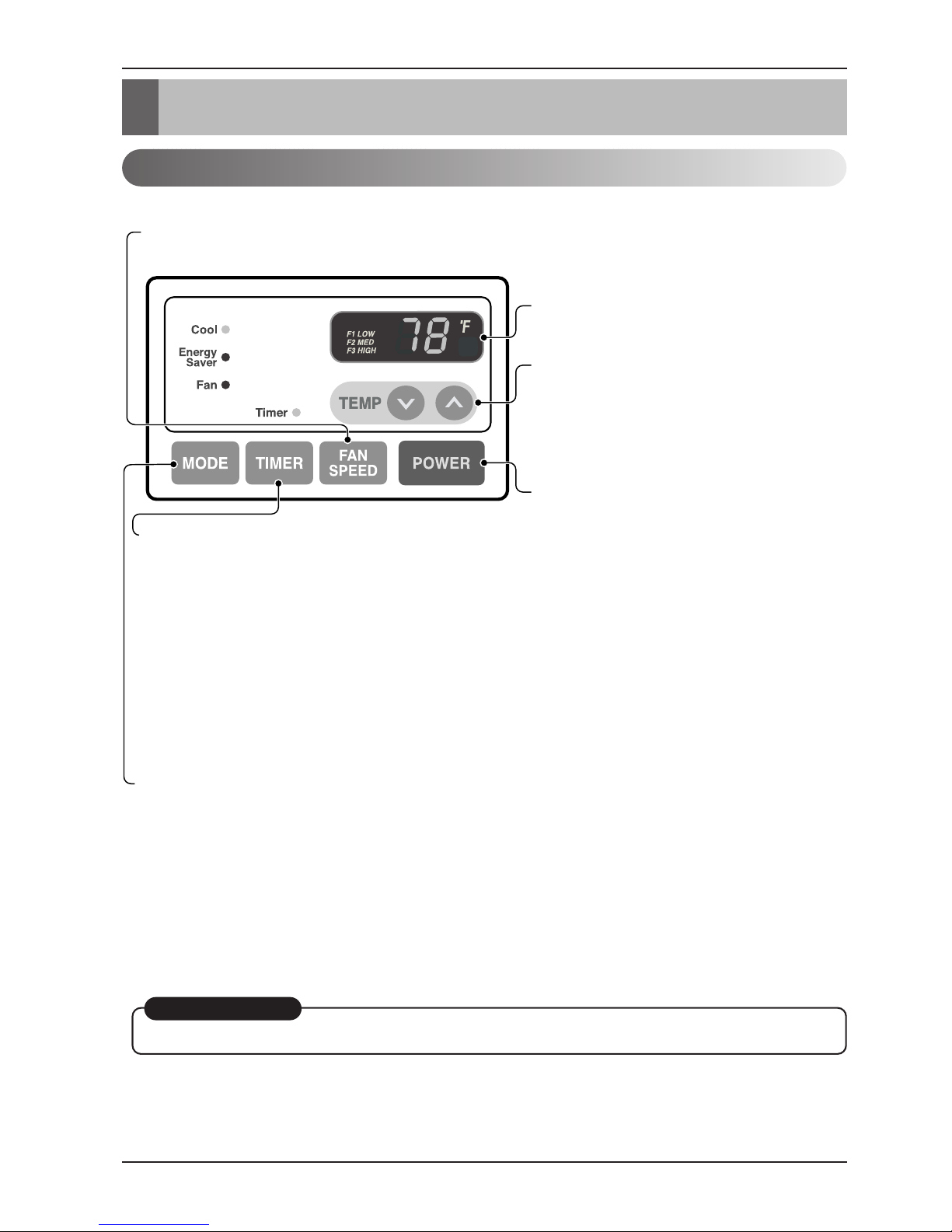

Controls
The controls will look like one of the following.
REMOTE CONTROL SIGNAL
RECEIVER
POWER
MODE
- Push this button to shift mode of operation from COOL → ENERGY SAVER → FAN.
- COOL:
•Fan runs continually for normal cooling operation.
- ENERGY SAVER:
•The fan stops when the compressor stops cooling. Approximately every 3 minutes the fan will turn on and the unit will
check the room air temperature to determine if cooling is needed.
- FAN:
•Fan-only operation.
TIMER
- SHUT-OFF TIME
•You will usually use shut-off time while you sleep.
•If unit is running, use Timer to set number of hours until shut-off.
•For your sleeping comfort, once Time is set, the Temperature
setting will raise 2°F after 30 min., and once again after another
30 min.
•Push Timer button to advance setting from 1Hour →2Hours → ...
→ 12Hours maximum.
- START TIME
•If unit is off, use Timer to set number of hours before unit starts.
•Push Timer button to advance setting from 1Hour →2Hours → ...
→ 12Hours maximum.
TEMPERATURE SETTING
•Use this button to automatically control the
temperature of the room.
The temperature can be set within a range of
60°F to 86°F by increments of 1°F.
•The setting appears in the display.
•To turn the air conditioner ON, push this button.
To turn the air conditioner OFF, push the button
again.
•This button takes priority over any other button.
•When you first turn it on, the unit is in cool
mode, High fan speed, Temperature setting at
72°F.
FAN SPEED
•Every time you push this button, it advances the setting as follows: {High →Low →Med →High}
AUTO RESTART
When power is restored after an electrical power failure, the unit will begin to run at its last setting.

Owner’s Manual 19
ENGLISH
Operating Instructions

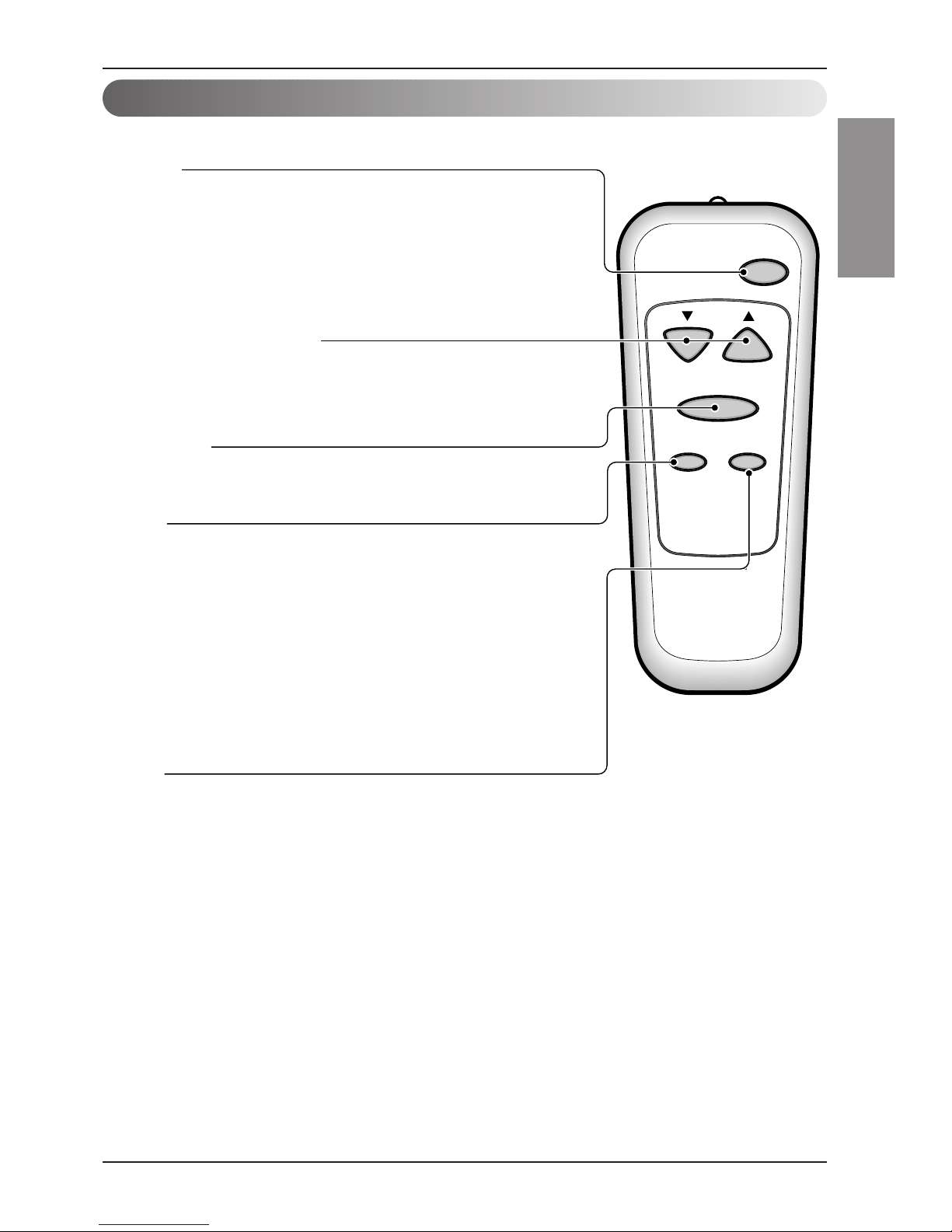

Remote control
The remote control and control panel will look like one of the following pictures.
Power
Temp
Fan Speed
Timer Mode
POWER
•To turn the air conditioner ON, push this button.
To turn the air conditioner OFF, push the button again.
•This button takes priority over any other button.
•When you first turn it on, the unit is in cool mode, High fan speed,
Temperature setting at 72°F.
•Auto Restart
In the event at a power failure, the unit will run at the previous setting once
power returns.
TEMPERATURE SETTING
•Use this button to automatically control the temperature of the room.
The temperature can be set within a range of 60°F to 86°F by
increments of 1°F.
•The setting appears in the display.
FAN SPEED
•Every time you push this button it advances the setting as follows:
(High →Low →Med →High)
TIMER
- SHUT-OFF TIME
•You will usually use shut-off time while you sleep.
•If unit is running, use Timer to set number of hours until shut-off.
•For your sleeping comfort, once Time is set, the Temperature setting will
raise 2°F after 30 min, and once again after another 30 min.
•Push Timer button to advance setting from 1Hour → 2Hours → ... →
12Hours maximum.
- START TIME
•If unit is off, use Timer to set of hours before unit starts.
•Push Timer button to advance setting from 1Hour → 2Hours → ... →
12Hours maximum.
MODE
- Push this button to shift mode of operation from COOL → ENERGY SAVER → FAN.
- COOL:
•Fan runs continually for normal cooling operation.
- ENERGY SAVER:
•The fan stops when the compressor stops cooling. Approximately every 3 minutes the fan will turn on
and the unit will check the room air temperature to determine if cooling is needed.
- FAN:
•Fan-only operation.

20 Room Air Conditioner
Operating Instructions
PULL OPEN / PUSH CLOSE
Ventilation
Air Direction
The ventilation lever is located in the right of the air discharge.
The ventilation lever must be in the CLOSE position in order to
maintain the best cooling conditions.
When fresh air is necessary in the room, set the ventilation lever to
the OPEN position.
The damper is opened and room air is exhausted outside.
The direction of air can be controlled wherever you want by adjusting the horizontal louver and the vertical louver.
• HORIZONTAL AIR-DIRECTION
CONTROL
The horizontal air direction is adjusted by moving
vertical louver.
The lever of vertical louver is located in the right and
left side of the air discharge.
• VERTICAL AIR-DIRECTION CONTROL
The vertical air direction is adjusted by moving the
horizontal louver.
How to insert Batteries
1. Remove the cover from the back of the remote
controller.
2. Insert two batteries.
•Be sure that the (+) and (-) directions are
correct.
•Be sure that both batteries are new.
3. Re-attach the cover.
•Do not use rechargeable batteries.
Such batteries differ from standard
dry cells in shape, dimensions, and
performance.
•Remove the batteries from the
remote controller if the air
conditioner is not going to be used
for an extended length of time.
