Heat Controller Comfort-Aire RAD-183B User manual

Room Air Conditioner
MODEL:RADS-151A
RAD-183B
RADS-151ARADS-151A
Important Information
• Please read this manual carefully and thoroughly before operating this unit.
• Contact a qualified sevice technician for installation, repair and maintenance of this unit.
• The appliance is not intended for use by young children or those who require supervision.
• Young children should be supervised to ensure that they do not play with the appliance.
HEAT CONTROLLER, INC.

Electrical Data

Owner’s Manual
3
Safety Precautions
To prevent injury to the user or other people and property damage, the following instructions
must be followed.
■Incorrect operation due to ignoring instructions will cause harm or damage. The seriousness
is classified by the following indications.
■Because of the weight of the product, it is recommended that you have a helper to assist in
the installation.
■Meanings of symbols used in this manual are as shown below.
WARNING
CAUTION
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to property only.
WARNING
■Installation
Always install the expansion panel(s).
• Improper assembly or installation may cause
incorrect operation including injury,fire,
poor performance, and electric shock hazards.
Do not place the power cord near a heater.
•It may cause fire and electric shock.
Do not use the power cord near flammable
or combustible materials suchas gasoline,
benzene,paint thinner,etc.
Do not disassemble or modify products.
•It may cause electric shock and failure.
Be sure not to do.
Be sure to follow the instruction.
Safety Precautions
Gasolin
ENGLISH
•It may cause explosion or fire.

4Room Air Conditioner
Safety Precautions

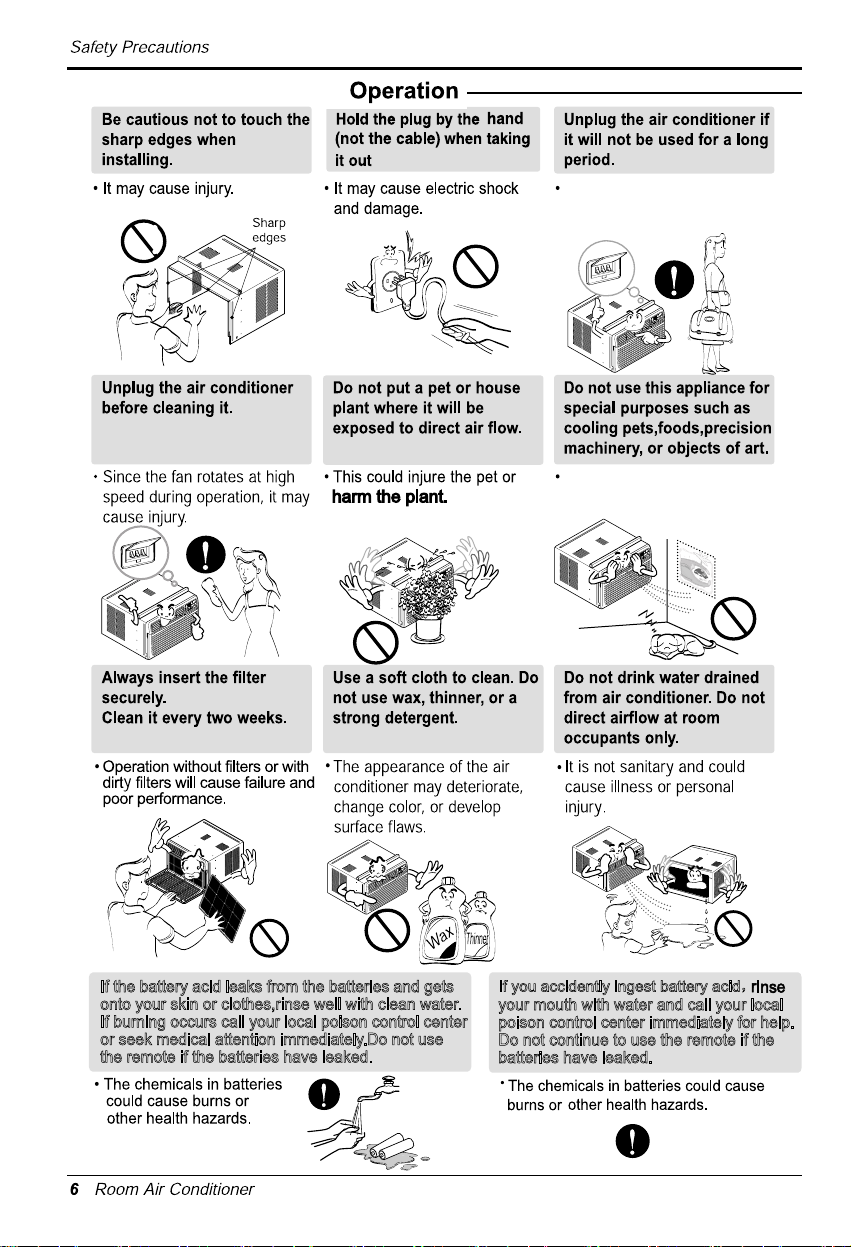

■Operation
Plug in the power cord
properly.
•Otherwise, it will cause
electric shock or fire.
Do not operate or stop the
unit by inserting or pulling
out the plug.
•It will cause electric shock or
fire.
Do not damage or use an
unspecified power cord.
•It will cause electric shock or
fire.
Do not modify power cord
length.
•It will cause electric shock or
fire.
Use the air conditioner on a
single outlet circuit. (See page 7.)
Do not share the outlet with
other appliances.
•It will cause electric shock or
fire.
Always plug into a
grounded outlet.
•No grounding may cause
electric shock.
Unplug the unit if strange
sounds, odors, or smoke
come from it.
•Otherwise it will cause fire
and electric shock.
Do not use the socket if it is
loose or damaged.
•It may cause fire and electric
shock.
Do not operate with wet
hands or in damp
environment.
•It may cause electric shock.
ON
ON

Owner’s Manual 5
ENGLISH
CAUTION
■Installation
Safety Precautions
Never touch the metal parts
of the unit when removing
the filter.
•Edges are sharp and may
cause injury.
Do not block the inlet or
outlet. Ensure that the outer case is not damaged by age or
wear.
•If the outer case is damaged,
it must be repaired or
replaced immediately.
Leaving it damaged could
result in the air conditioner
falling out of the window,
creating a safety hazard.
Close all doors, windows and other outside
openings to the room.
•The air conditioner must be operated in a
enclosed area to be most effective.
Do not operate the air conditioner if you
smell gas.
•It may cause an explosion or fire.
If water enters the product, turn off the
power switch of the main body of appliance.
Contact service center after taking the power-
plug out from the socket.
•It will cause electric shock or failure of
machine.
Do not clean the air conditioner with water.
•Water may enter the unit and degrade the
insulation. It may cause an electric shock.
•It may cause failure of
appliance or performance
deterioration.

your mouth with water and call your local
poison control center immediately for help.
Do not continue to use the remote if the
batteries have leaked.
If you accidently ingest battery acid，
If the battery acid leaks from the batteries and gets
onto your skin or clothes,rinse well with clean water.
If burning occurs call your local poison control center
or seek medical attention immediately.Do not use
the remote if the batteries have leaked.
The air conditioner is not designed
to act as a refrigeration system.
It will waste power and may
cause an accident.
•

Owner’s Manual 7
Before Operation
1. Plug in the power cord properly.
2. Use a dedicated circuit. Overloading the line could create a fire hazard.
3. Do not use an extension cord. See page 11 for more details.
4. Do not start/stop operation by plugging/unplugging the power cord.
5. If the power cord is damaged and requires replacement, have an Authorized
Servicer install an exact replacement part.
1. Being exposed to direct airflow for an extended period of time could be
hazardous to your health. Do not expose occupants, pets, or plants to direct
airflow for extended periods of time.
2. Due to the possibility of oxygen deficiency, ventilate the room when used
together with stoves or other heating devices.
3. Do not use this air conditioner for non-specified special purposes (e.g.
preserving precision devices, food, pets, plants, and art objects). Such usage
could damage the items.
4.The air conditioner is a consumer comfort appliance, not a precision climate
control system.
1. Do not touch the metal parts of the unit when removing the filter. Injuries can
occur when handling sharp metal edges.
2. Do not use water to clean inside the air conditioner. Exposure to water can
destroy the insulation, leading to possible electric shock.
3. When cleaning the unit, first make sure that the power and breaker are turned
off. The fan rotates at a very high speed during operation.There is a
possibility of injury if the unit’s power is accidentally triggered on while
cleaning inner parts of the unit.
For repair and maintenance, contact an Authorized Service Center. See the
warranty page for details or call 1-877-755-7932. Have your model number and
serial number available.They should be written on page 2 of this manual.
Before Operation
Preparing for Operation
Usage
Cleaning and Maintenance
Service

8Room Air Conditioner
Introduction
This symbol alerts you to the risk of electric shock.
This symbol alerts you to hazards that could cause harm to the
air conditioner.
This symbol indicates special notes.
Tip!
WARNING:This appliance should be installed in accordance with the
National Electric Code.
Introduction
Symbols Used in this Manual
Features
Upper Guide
Cabinet
Front Grille
Air Filter
Horizontal Air Deflector
(Horizontal Louver)
Brace
Compressor
Condenser
Base Pan
Power Cord
Evaporator
Control Board
Remote Controller
Vertical Air Deflector
(Vertical Louver)
Air Discharge
Air Intake
(Inlet Grille)

Electrical Safety
9
Electrical Safety
Electrical Data
115V~ 230V~
Power cord may include a current
interrupter device. A test and reset button is
provided on the plug case. The device
should be tested on a periodic basis by first
pressing the TEST button and then the
RESET button. If the TEST button does not
trip or if the RESET button will not stay
engaged, discontinue use of the air
conditioner and contact a qualified service
technician.
,
Use Wall Receptacle Power Supply
Standard 125V, 3-wire grounding
receptacle rated 15A, 125V AC
Standard 250V, 3-wire grounding
receptacle rated 15A, 250V AC
Use 15 AMP time delay fuse or 15 AMP
circuit breaker.
Use 20 AMP time
delay fuse or 20 AMP
circuit breaker.
Standard 250V, 3-wire grounding
receptacle rated 20A, 250V AC
ELECTRICAL SAFETY
IMPORTANT GROUNDING INSTRUCTIONS
Air conditioner has a three-prong grounding plug on its power supply cord, which must be plugged into
properly grounded three-prong wall receptacle for your protection against possible shock hazard.

WARNING: This appliance must be properly grounded.
The power cord of this appliance is equipped with a three-prong grounding plug.
To minimize the risk of electric shock, use the plug with a standard three-slot
grounding wall power outlet. If the power outlet does not include a grounding slot,
have a qualified electrician replace the outlet before you use the room air
conditioner.
WARNING: Changing the outlet without making the appropriate wiring
changes will create an unsafe condition that could result in fire or
electric shock. Refer all such work to a licensed and qualified
electrician.
WARNING: Do not cut or remove the grounding prong from the power
plug.
WARNING: Attaching the adapter ground terminal to the wall
receptacle cover screw does not ground the appliance unless the
cover screw is metal and not insulated, and the wall receptacle is
grounded through the house wiring.
WARNING: If you have any doubt whether the air conditioner is
properly grounded, have the wall receptacle and circuit checked by a
qualified electrician.
Preferred method
Ensure proper ground
exists before use
Electrical Safety
10 Room Air Conditioner
Electrical Safety

We strongly discourage the use of an adapter due to potential safety hazards.
For temporary connections, use only a UL-listed adapter, available from most
local hardware stores. Ensure that the large slot in the adapter is aligned with
the large slot in the receptacle for a proper polarity connection.
To disconnect the power cord from the adapter, use one hand on each to avoid
damaging the ground terminal. Avoid frequently unplugging the power cord as
this can lead to eventual ground terminal damage.
WARNING: Never use the appliance with a broken adapter.
Electrical Safety
Temporary method
Adapter Plug
Receptacle Cover
Metal Screw
Temporary Use of an Adapter
Temporary Use of an Extension Cord
Owner’s Manual 11
115VOLT UNIT
All wiring should be made in accordance with local electrical codes and regulations.
Aluminum house wiring may pose special problems. Consult a qualified electrician.
NOTICE
These units are equipped with a three-prong grounding plug on the power supply cord, which
must be plugged into a matching properly grounded three-prong wall receptacle for your protection
against possible shock hazard. If such an outlet is not present, one must be installed by a qualified
electrician in accordance with the National Electrical Code and local codes and ordinances.
NOTICE
230,208, and 230/208 VOLT UNITS
DO NOT USE AN EXTENSION CORD on 230,208, and 230/208 Volt units.
We strongly discourage the use of an extension cord due to potential safety
hazards.For temporary situations,use only CSA certified and UL listed 3-wire
grounded extension cords,rated 15 A,125V.

Room Air Conditioner
Installation
12
About 1/2"
30"~60"
Awning
Cooled air
Fence
Over 20"
Heat
radiation

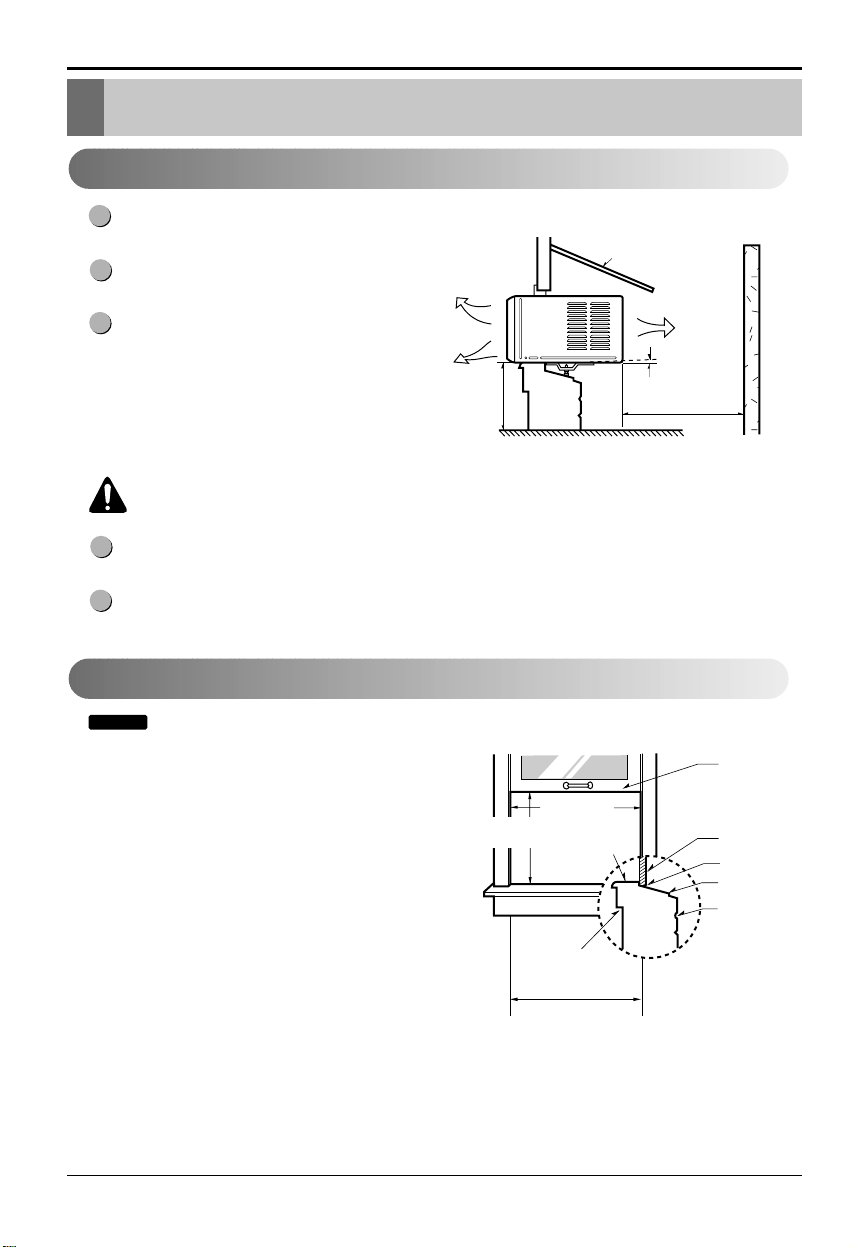

How to Install the Unit
To prevent vibration and noise, make sure the unit
is installed securely and firmly
Install the unit where the sunlight does not shine
directly on the unit.
The outside of the cabinet must extend outward for
at least 12" and there should be no obstacles, such
as a fence or wall, within 20" from the back of the
cabinet because it will prevent heat radiation of the
condenser.
Restriction of outside air will greatly reduce the
cooling efficiency of the air conditioner.
Install the unit a little slanted so the back is slightly lower than the front (about 1/2").
This will force condensed water to flow to the outside.
Install the unit with the bottom about 30"~60" above the floor level.
5
4
3
2
1
Window Requirements
: All supporting parts should be secured to firm wood, masonry, or metal.
•This unit is designed for installation in standard double
hung windows with actual opening widths from 29"
to 41".
•The top and bottom window sash must open sufficiently
to allow a clear vertical opening of 18" from the bottom
of the upper sash to the window stool.
NOTICE
CAUTION: All side louvers of the cabinet must remain exposed to the outside of the
structure.
29" to 41"
Offset
Window
Sash
sill
Exterior
Interior wall
29" min.
(Without frame curtain)
18" min
(With frame curtain)
Stool
Installation

Owner’s Manual 13
Installation

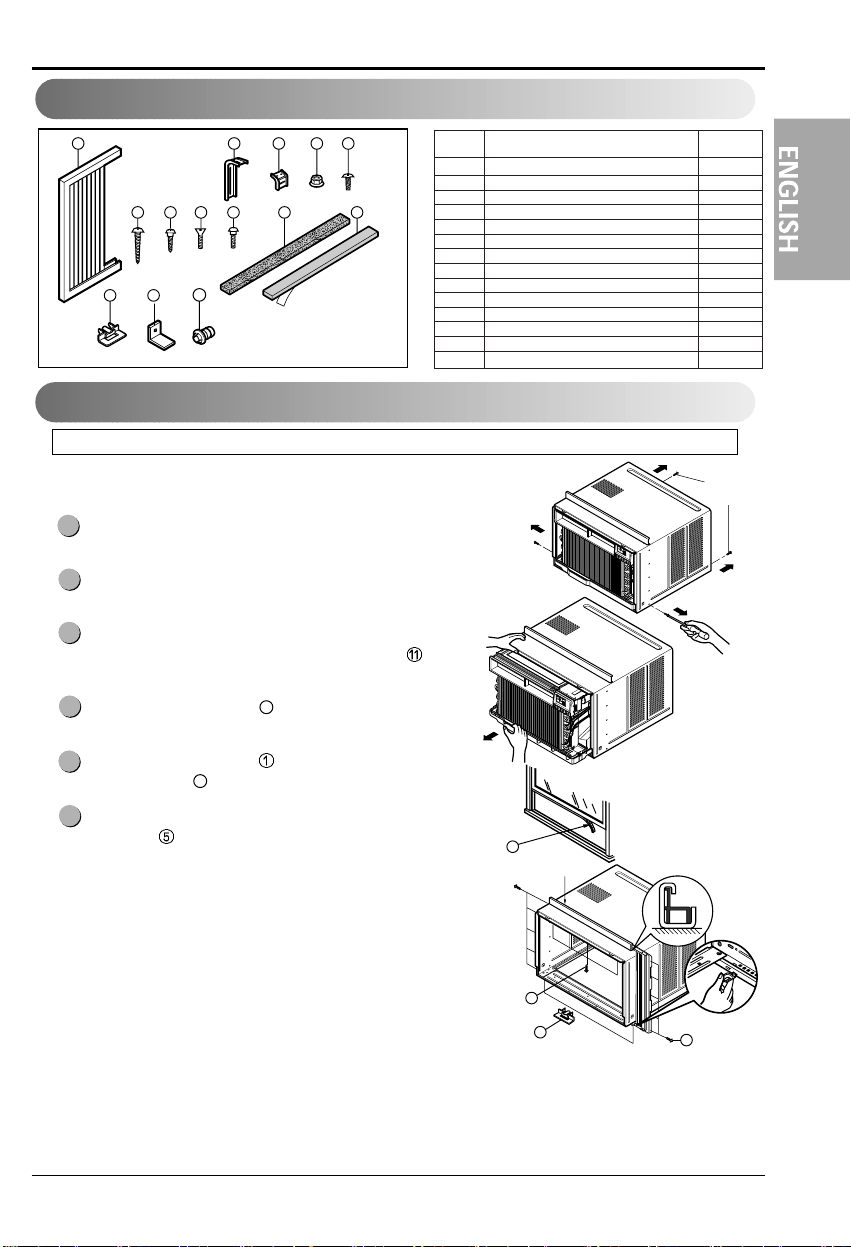

Installation Kits Contents
Suggested Tool Requirements
1 2 3 4 5
6 7 8 9 10 11
14 12
13
NO. NAME OF PARTS Q'TY
1 FRAME CURTAIN 2
2 SUPPORT BRACKET 2
3 SILL BRACKET 2
4 LOCK NUT 4
5 SCREW (TYPE A) 11
6 SCREW (TYPE B) 7
7 SCREW (TYPE C) 5
8 SCREW (TYPE D) 2
9 CARRIAGE BOLT 2
10 FOAM STRIP 1
11 FOAM SEAL 1
12 WINDOW LOCKING BRACKET 1
13 DRAIN PIPE 1
14 FRAME GUIDE 2
SCREWDRIVER(Philips and Flathead), RULER, KNIFE, HAMMER, PENCIL, LEVEL
PREPARATION OF CHASSIS
Remove the screws which fasten the cabinet at both
sides and at the back.
Slide the unit from the cabinet by gripping the base pan
handle and pulling forward while bracing the cabinet.
Cut the window sash seal to the proper length.
Peel off the backing and attach the Foam-Seal to the
underside of the window sash.
Insert the Frame Guides into the bottom of the
cabinet.
Insert the Frame Curtain into the Upper Guide and
Frame Guides .
Fasten the curtains to the unit with 10 Type
A screws .
6
5
4
3
14
14
2
1
(Type A)
5
(Type A)
5
14
11
Upper guide
Shipping
Screws
DEFROST
HEAT
COOL
INDOORDESIRED
ENERGY
SAVER
AIR
PURYFIER
AUTO
RESTART
FAN
FAN
DRY
DEFROST
HEAT
COOL
INDOORDESIRED
ENERGY
SAVER
AIR
PURYFIER
AUTO
RESTART
FAN
FAN
DRY

Room Air Conditioner14
Installation
3
9
2
6
3
11
2
4
Support
Bracket
Lock nut
Sill
Bracket
Carriage
Bolt
Front angle Window stool
Window sash Upper Guide
Cabinet
Foam
-Seal
Frame curtain
Foam-PE
(Type B)
Cabinet
Track hole
Support
Bracket
Carriage bolt
and lock nut
Machine screw(Type D)
and lock nut
Outer edge
of window
sill
Sill bracket
Upper
Guide
Cabinet Installation
Open the window. Mark a line on the center of the
window stool between the side window stop
moldings.
Loosely attach the sill bracket to the support
bracket using the carriage bolt and the lock nut.
Attach the sill bracket to the window sill using the
screws (Type B).
Carefully place the cabinet on the window stool
and align the center mark on the bottom front with
the center line marked window stool.
Using the M-screw and the lock nut, attach the
support bracket to the cabinet track hole. Use the first
track hole after the sill bracket on the outer edge of
the window sill. Tighten the carriage bolt and the lock
nut. Be sure the cabinet slants outward.
Pull the bottom window sash down behind the Top
retainer bar until they meet.
4
3
2
1
CAUTION: Do not drill a hole in the bottom
pan. The unit is designed to operate with
approximately 1/2" of water in bottom pan.
:1. Do not pull the window sash down so tightly
that the movement of Frame curtain is
restricted.
Attach the cabinet to the window stool by
driving the screws (Type B) through the
cabinet into window stool.
2. The cabinet should be installed with a very
slight tilt downward toward the outside.
NOTICE

Owner’s Manual 15
Installation
(Type C)
6
Screw
Screw
DEFROST
HEAT
COOL
INDOORDESIRED
ENERGY
SAVER
AIR
PURYFIER
AUTO
RESTART
FAN
FAN
DRY
Screw(Type B)
Front Angle
Sash track
Window locking
bracket
Foam-Strip
Power Cord
Pull each Frame curtain fully to each window sash
track, and pull the bottom window sash down behind
the Top retainer bar until it meets.
Attach each Frame curtain the window sash by using
screws (Type C.)
Slide the unit into the cabinet.
Cut the Foam-strip to the proper length and insert
between the upper window sash and the lower
window sash.
Attach the Window locking bracket with a screw
(Type C.)
9
8
7
6
5
CAUTION: For security purpose,
reinstall screws(Type A)
at cabinet's sides.
7

Room Air Conditioner16
Installation
TIMEMODETEMPPOWER
FAN
SPEED

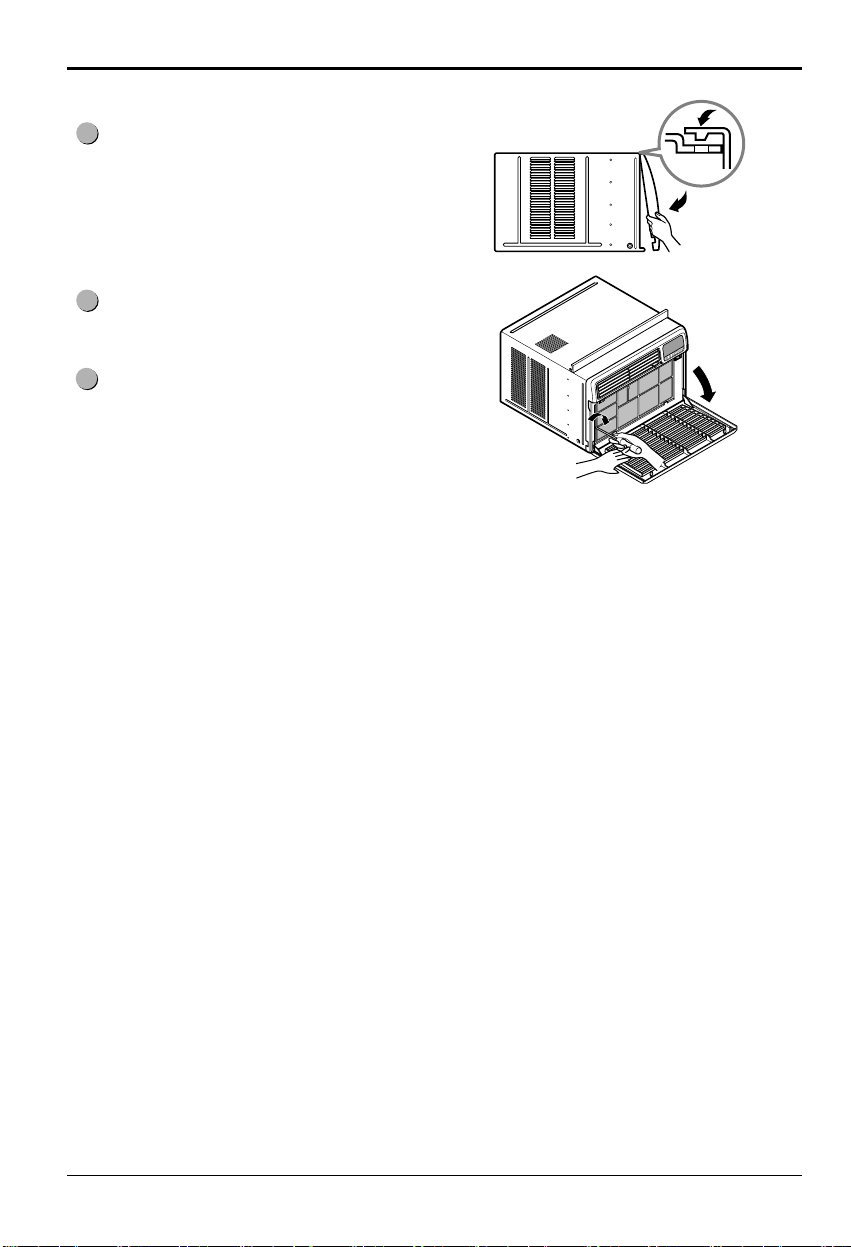

Attach the front grille to the cabinet by inserting the
tabs on the grille into the tabs on the front of the
cabinet. Push the grille in until it snaps into place.
Lift the inlet grille and secure it with a screw (Type A)
through the front grille.
Window installation of room air conditioner is now
completed. See ELECTRICAL DATA for attaching
power cord to electrical outlet.
12
11
10

Owner’s Manual 17
Operating Instructions
AUTO RESTART
In failure of electric power, the unit runs as previous setting operation.
POWER
Operation starts when this button is pressed and
stops when you press the button again.
TEMPERATURE CONTROL
The thermostat monitors room temperature to
maintain the desired temperature.
The thermostat can be set between 60 F~86 F
(16 C~30 C).
The unit takes an average of 30 minutes to adjust the
room temperature by 1 F.
OPERATION MODE SELECTOR
Select cooling mode to cool the room.
Select energy saver mode for energy saving
operation.
Select fan mode for basic ventilating fan operation.
Select dry mode for dry operation.
FAN SPEED SELECTOR
For increased power while cooling, select a higher
fan speed.
3 steps: High Low Med
ON/OFF TIMER
The timer can be set to start and stop the unit in
You will usually use shut-off time while you sleep.
For your sleeping comfort, once Time is set, the Temperature setting will
raise 2°F after 30 min, and once again after another 30 min.
hourly increments (up to 12 hours).
REMOTE CONTROL SENSOR
6
5
4
3
2
1

Operating Instructions
Room Air Conditioner18

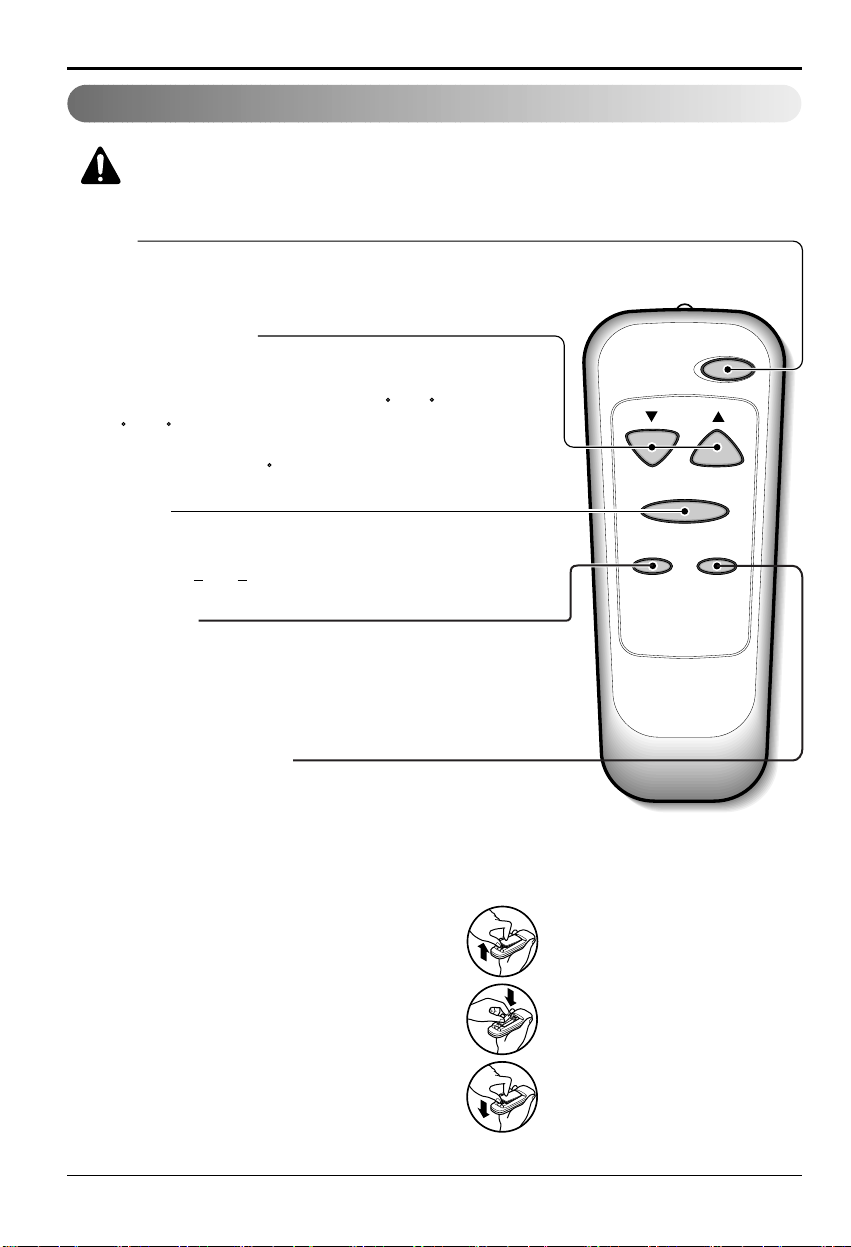

CAUTION: The Remote Controller will not function properly if strong
light strikes the sensor window of the air conditioner or if there are
obstacles between the Remote Controller and the air conditioner.
How to Insert Batteries
Auto
Swing
Power
Temp
Fan Speed
Timer Mode
Temperature Control
Fan Speed
Power

Operation Mode Selector
On/Off Timer
1. Remove the cover from the back of the remote
controller
2.
Remote Controller
Insert two size AAA batteries.
Be sure of the polarity when installing the
batteries.
Be sure that both batteries are new.
3. Re-attach the cover.
Do not use rechargeable
batteries. Such batteries
differ from standard dry cells
in shape, dimensions, and
performance.
Remove the batteries from
the remote controller if the air
conditioner is not going to be
used for an extended length
of time.
Operation starts when this button is pressed and
stops when you press the button again.
For increased power while cooling, select a higher
fan speed.
3 steps: High
Low Med
The timer can be set to start and stop the unit in
Select cooling mode to cool the room.
Select energy saver mode for energy saving
operation.
Select fan mode for basic ventilating fan operation.
Select dry mode for dry operation.
The thermostat monitors room temperature to
maintain the desired temperature.
The thermostat can be set between 60 F~86 F
(16 C~30 C).
The unit takes an average of 30 minutes to adjust the
room temperature by 1 F.
You will usually use shut-off time while you sleep.
For your sleeping comfort, once Time is set, the Temperature setting
will raise 2°F after 30 min, and once again after another 30 min.
hourly increments (up to 12 hours).

Operating Instructions
Owner’s Manual 19
Airflow can be adjusted by changing the direction of the
air conditioner's louvers. This can also increase the
cooling efficiency of the air conditioner.
Adjusting Horizontal Air Flow Direction
Adjusting the vertical louvers left and right will
change horizontal airflow.
Adjusting Vertical Air Flow Direction
Adjusting the horizontal vane up and down will
change vertical airflow. The vane can be adjusted
by nudging the back or up and down of the vane.
Recommended orientation of louvers
Adjust louvers to face upwards when cooling
to maximize cooling efficiency.
VENTCLOSE OPEN
For maximum cooling efficiency, CLOSE the vent. This will allow internal air circulation.
OPEN the vent to discharge stale air.
Adjusting horizontal air flow
Adjusting vertical air flow
Air Direction
Vent Control
Additional Features

Operating Instructions
Room Air Conditioner20

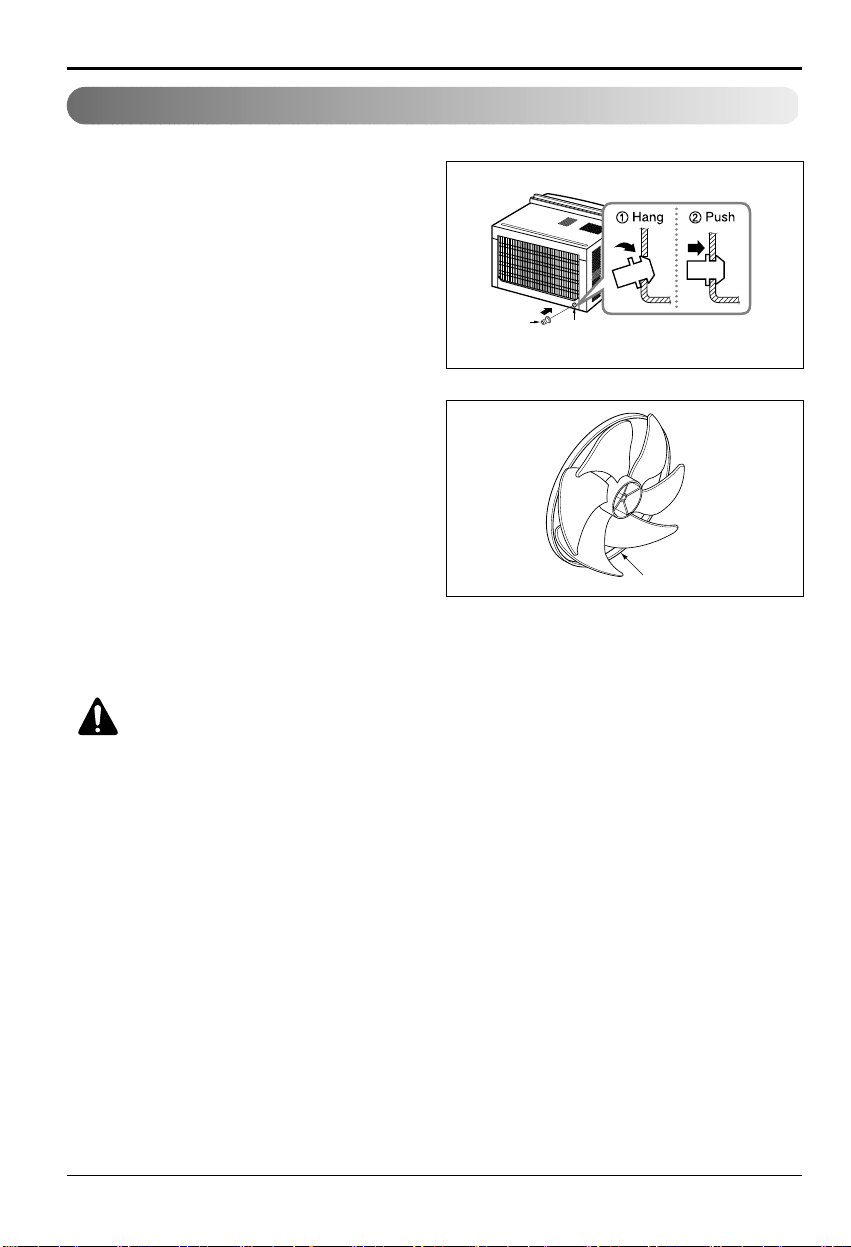

Drain Pipe
In humid weather, excess water may
cause the Base Pan to overflow. To
drain the water, remove the Drain Cap
and secure the Drain Pipe to the rear
hole of the Base Pan.
Press the drain pipe into the hole by
pushing down and away from the fins
to avoid injury.
This air conditioner is equipped with a
slinger fan. (See drawing, right.)
The fan has an outer ring that runs in
the water that collects in the base pan
if it gets deep. That condensate is then
picked up by the fan and expelled
through the condenser, making the air
conditioner more efficient.
CAUTION: Be careful when inserting the drain pipe. Push away from
the sharp fin area to avoid injuring yourself.
Removal From Window
Turn the air conditioner off, disconnect the power cord, remove the L bracket, the
screws and Support Bracket installed through the top and bottom of the guide
panels, and save for reinstallation later. Close the guide panels. Keeping a firm grip
on the air conditioner, raise the sash, and carefully tilt the air conditioner backward,
draining any condensate. Lift the air conditioner from the window and remove the
sash seal from between the windows.
Be sure to drain ALL condensate from the air conditioner. If you don't, it could run
out while you carry the unit, making a mess and creating a slipping hazard. This
simple step will save you much cleaning and make a safer work environment.
Drain Pipe Drain Cap
Ring
Ad
Additional Features
