TABLE OF CONTENTS INTRODUCTION
Thank you for purchasing the AS-P-603W. Your new home theater power solution
provides clean AC power to sensitive home theater electrical equipment. Four smart
outlets, four switched outlets and one always on front outlet (nine total) provide
premium surge protection and noise filtering. Additional connections supply two
pairs of DSS/coaxial connections for cable protection.
Features
• Three kinds of lter circuitry isolates and protects digital, analog and high current
equipment.
• LCD display shows voltage and amperage levels.
• System provides overload protection with a 120V/15A electrical rating.
• Remote 110V and 12V DC trigger allows remote turn on/off of switched outlets.
• DSS/coax surge protection provided.
• A total of nine outlets includes 4 switched and 4 smart and 1 front always on.
Safety Information
•To reduce the risk of electrical shock, unplug the AS-P-603W and allow it to cool
before cleaning.
• There are no replaceable parts in the AS-P-603W. Do not attempt to disassemble
this unit for any reason.
• Use in an indoor, dry location only.
Package Contents
• Home Theater AS-P-603W
surge protector/conditioner
• This User Manual
AS-P-603W Page 2Page 1 AS-P-603W
Introducon .................................................................................................... 2
Features .............................................................................................................. 2
Safety Information .............................................................................................. 2
Package Contents ................................................................................................ 2
Installaon ...................................................................................................... 3
Descriptions .................................................................................................... 4
Operation........................................................................................................ 5
LCD Control Panel ............................................................................................... 5
LED Indicators ..................................................................................................... 5
Remote Trigger Operation................................................................................... 5
Specifications .................................................................................................. 6
App Setup ....................................................................................................... 7
App Operation ............................................................................................... 10

INSTALLATION
Page 3 AS-P-603W AS-P-603W Page 4
DESCRIPTIONS
1. LCD Display - Monitor the AS-P-603W's main functions.
2. LED Power Indicators – Monitor ground, protection and switched power statuses.
3. USB C - 3A USB C connection for charging devices.
4. USB A - 2.4 Amp USB A connection for charging devices.
5. Power Switch - Switches on and off the four (4) switched outlets on the back.
6. Always on Outlet - Always on AC outlet.
7. Wi-Fi Antenna - Provides connection to Wi-Fi for remote control from Tuya App.
8. Wi-Fi Activity LED - Shows Wi-Fi status and used during Tuya App setup.
9. Wi-Fi Reset button - Used to reset the Wi-Fi connection.
10. Smart Outlet Status LEDs - Shows smart outlet on/off state.
11. Smart AC Outlets - Four (4) Smart AC Outlets that can be controlled remotely by
the Tuya App.
12. Switched AC Outlets - Four (4) switched AC outlets that are controlled by the
power switch on the front of the AS-P-603W.
13. DSS/Coax Line Input/Output – Protect coaxial cable lines from power surges and
spikes that can disturb and damage your equipment. Connect your cable TV,
satellite TV, antenna, HDTV, broadband or other coaxial cable lines.
14. DC IN – Control the switched outlets using the remote trigger function of another
power management unit.
15. 15-Amp Overload Reset-able Circuit Breaker – Provides overload protection with
a manually recoverable function.
16. Power Cord - 14 gauge insulated power cord.
17. Includes detachable rack mount ears and thumb screws for temporary mounting.
This power center for TEMPORARY MOUNTING ONLY. NOT INTENDED FOR
PERMANENT MOUNTING.

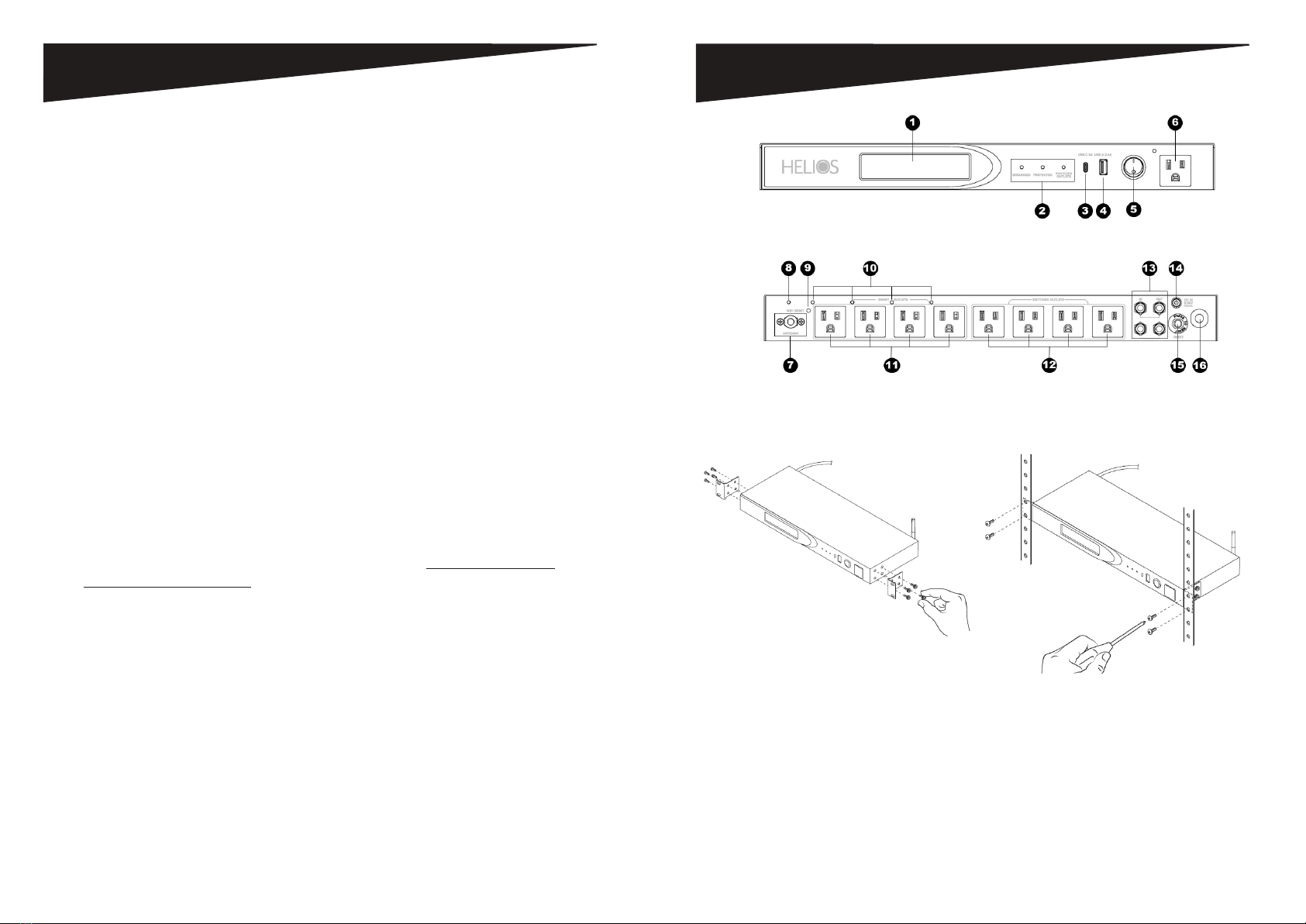

Figure 2 - Front View Controls and Indicators
Figure 3 - Rear View Controls
Remote Operation
Download App titled "Tuya Smart" from Google Play store or Apple app store
for easy remote operation of the 4 smart outlets
Figure 4- Optional Rack ear installation
Step 1. Use included thumb screws
to attach rack ears to power center.
Step 2. Install screws in the upper and
lower mounting holes to secure power
center to the rack.

AS-P-603W Page 6Page 5 AS-P-603W
OPERATION
LCD Panel
The AS-P-603W is equipped with an LCD Panel (Figure 5) that allows the user
to monitor input voltage and output current.
20 5 . 0
VOLTS CURRENT
Figure 5- LCD Panel
• “VOLT” indicates the input voltage from the AC wall outlet.
•“AMPS” indicates the output current from the outlet banks.
LED Indicators
The LED indicators on the front panel (Figure 6) allow you to monitor
important power and safety information.
GROUNDED PROTECTED SWITCHED
OUTLETS
Figure 6- Front Panel LED Indicators
• “GROUNDED” indicates the status of the AC outlet. Green indicates that the AC
wall outlet is properly grounded.
• “PROTECTED” indicates the status of the Power Soluon surge protecon. Orange
indicates that the surge protecon is turned on.
• “SWITCHED POWER” indicates whether the “Switched” outlets are ON or OFF.
Remote Trigger Operation
This AS-P-603W can be controlled remotely by another power solution equipped with
a remote trigger out feature. To use remote trigger control, connect the remote DC
cable from the “DC OUT” connection on the power solution equipped with remote
trigger out to the “DC IN” connection (Figure 7) on the AS-P-603W.
Figure 7 - DC IN Connection
SPECIFICATIONS
Width 482.6mm
Height 44mm
Length 220.1mm
Weight 3.5kgs
Power Cord 14 AWG with 36 degree angle
(8 Feet)
Electrical Rang 120V/15A
Clamping Voltage L-N 400V, L-G 500V, N-G 500V
Surge Energy Joule Rang 2160J
Maximum Peak Spike Current 144000A
Maximum Spike Voltage 6KV
EMI/RFI Noise Filter X2 Capacitor (uF) 1.0uF*1; 0.22uF*1
Coil (T) 1mH*1
Frequency (KHz) 150KHz~100MHz
Aenuaon (dB) up to 65dB
DC Trigger Input Jack ψ 3.5
Voltage 3~30V
Current Requirement 10mA
DSS/COAX Cable
Protecon
Surge Arrestor Gas Tube
Breakdown Voltage <75V
Inseron Loss @10MHz <0.1dB
RF Connectors 3 Pairs, Gold nish
NOTE: Specicaons subject to change without noce.
USB Charger Total Output Total 5V/4.8A
USB-A Output up to 5V/2.4A
USB-C Output up to 5V/3A

APP SETUP
APP SETUP
AS-P-603W Page 8Page 7AS-P-603W
Device setup for app connection

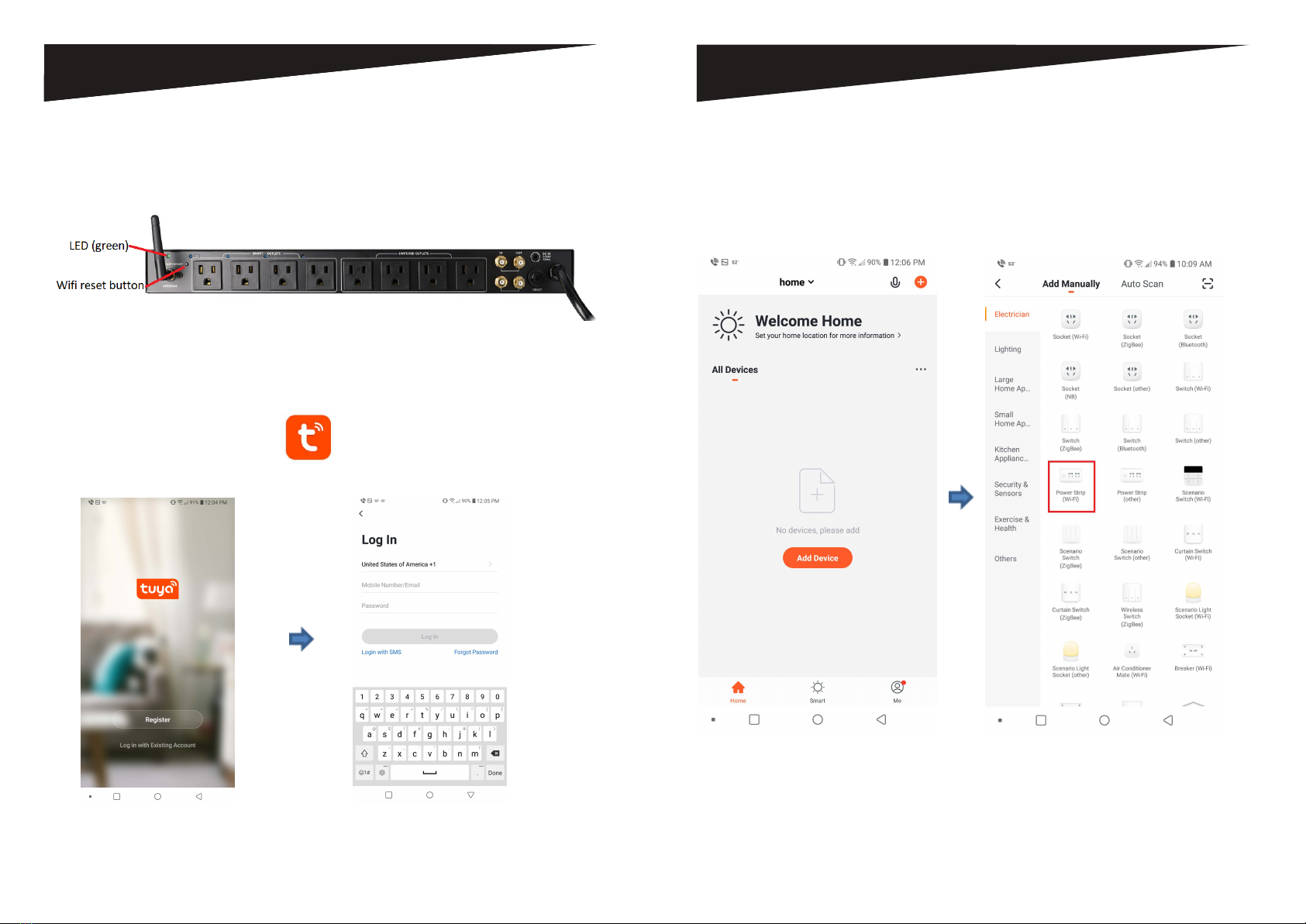

Press the wifi reset button for 8 seconds or until you see the wifi LED (green) blinking
and then release the wifi reset button to connect to the app.
App installation & setup
1. Connect Android or iOS device to wifi router
2. Download and install Tuya app from Google play store or Apple App
store.
3. Register new account or login to existing account.
4. After logging into the app, add the
device.
5. Select "Power Strip (Wi-Fi)"

APP OPERATION
APP SETUP
AS-P-603W Page 10Page 9AS-P-603W
6. Enter WiFi credentials for 2.4GHz
Network.
7. Device added successfully. Select
device.
8. Turn outlets on or off by tapping
individual or all outets. Tap
Schedule to create schedules per
outlet.
9. Set schedule per outlet by time.
