Aperto F.U.N.™ Loudspeaker Kit
This design is strictly for the home DIY enthusiast and not to be used professionally or for commercial purposes without
prior written permission from Hemp Acoustics. For inquiries please e-mail us at [email protected]. Thank you.
Aperto F.U.N.™
Welcome to HEMP Acoustic’s F.U.N.™ Loudspeaker Kit
full range driver bookshelf

This design is strictly for the home DIY enthusiast and not to be used professionally or for commercial purposes without
prior written permission from Hemp Acoustics. For inquiries please e-mail us at [email protected]. Thank you.
2
Aperto F.U.N.™ Loudspeaker Kit 2
Table of Contents
Getting Started _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 4
Cabinet Parts _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _5
Bafe _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 6
Bafe Construction Steps_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 7
Bafe & Back Panel Raw Cuts _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 8
Back Panel _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 9
Back Panel Construction Steps_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _10
Left & Right Panel _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 11
Left & Right Panel Raw Cuts _ _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ 12
Left & Right Panel Construction Step _ _ _ _ _ _ _ _ __ _ _ _ _ _12
Top Panel_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 13
Top & Bottom Raw Cuts_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _14
Top Panel Construction Step _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 14
Bottom Panel _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 15
Bottom Panel Construction Steps_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _16
Bracing _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 17

3
3
Aperto F.U.N.™ Loudspeaker Kit
This design is strictly for the home DIY enthusiast and not to be used professionally or for commercial purposes without
prior written permission from Hemp Acoustics. For inquiries please e-mail us at [email protected]. Thank you.
Stand _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 18
Stand Parts _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 18
Stand Front Panel_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _19
Stand Center Panel _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _20
Cabinet Assembly_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 21
Notes _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 22

This design is strictly for the home DIY enthusiast and not to be used professionally or for commercial purposes without
prior written permission from Hemp Acoustics. For inquiries please e-mail us at [email protected]. Thank you.
4
Aperto F.U.N.™ Loudspeaker Kit 4
List of Suppliers within North America
- www.soundanchors.com
- www.madisound.com
- www.solen.ca
- www.e-speakers.com
- www.diycable.com
- www.alpiwood.com
- www.veneers.com
Getting Started
Components per Individual Loudspeaker
1 X MDF sheets OR high grade Plywood, 4’ X 8’ X 3/4” thick
1 X 8” Woofer (8” HEMP Acoustics FR8C)
1 X 2” Port Kit, 2” ID X 2” long (a dual ared port kit is suggested)
1 X Deex Pads OR Black Hole OR Acoustic Foam 1” thick
1 X pair of Binding Posts (suggestions; www.cardas.com, www.wbtusa.com,
www.eichmanncables.com)
1 X Hook-up Wire (high grade 0.999999 copper or silver)
3 X 1.5” Tip Toes
4 X 4 mm X 60 mm T-nuts OR Wood Screws (for mounting FR8C woofer)
4 X wood screws (for mounting Port maybe needed, depending on Port style)
1 X Custom T-Base / Stand from www.soundanchors.com (OPTIONAL)
2 X Damping Pad, see notes on page 17 (www.dynamat.com) (OPTIONAL)
Tools
Wood Glue
PVC Glue
5 X Large Rubber Bands / Hockey Elastics
Multihead Screwdriver
Rubber Mallet
Hole Saw OR Jig Saw
Glue Roller OR Paint Brush
Cleaning Rag
Solder
Soldering Iron
Square Ruler
Pencil
Router (OPTIONAL)
X

5
5
Aperto F.U.N.™ Loudspeaker Kit
This design is strictly for the home DIY enthusiast and not to be used professionally or for commercial purposes without
prior written permission from Hemp Acoustics. For inquiries please e-mail us at [email protected]. Thank you.

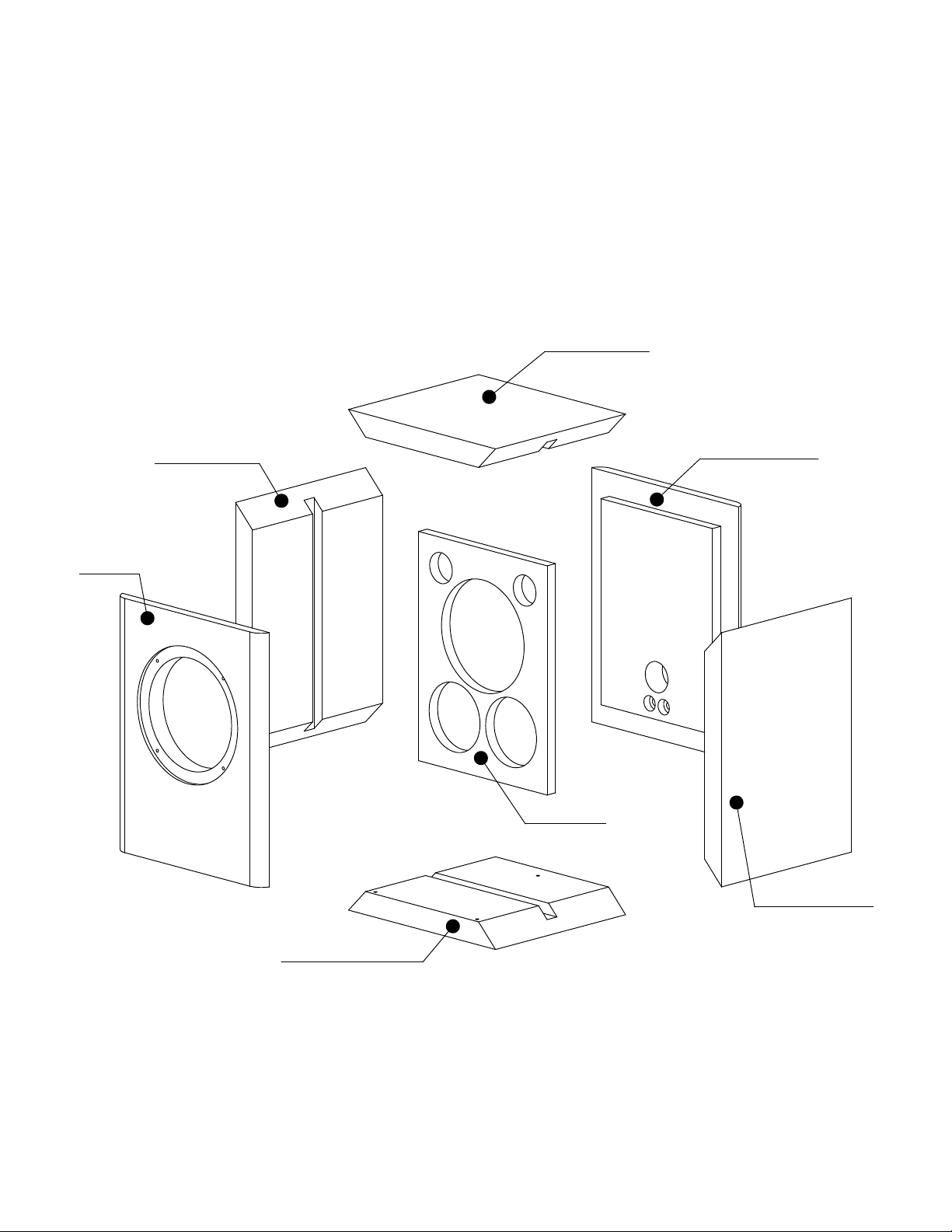

Cabinet Parts








This design is strictly for the home DIY enthusiast and not to be used professionally or for commercial purposes without
prior written permission from Hemp Acoustics. For inquiries please e-mail us at [email protected]. Thank you.
6
Aperto F.U.N.™ Loudspeaker Kit 6



 





 






 


 
 
Bafe, 1 piece 1-1/2” thick
Dimensions are in cm [inches]
Bafe
Front View Back View
* T-nut
recommended

7
7
Aperto F.U.N.™ Loudspeaker Kit
This design is strictly for the home DIY enthusiast and not to be used professionally or for commercial purposes without
prior written permission from Hemp Acoustics. For inquiries please e-mail us at [email protected]. Thank you.

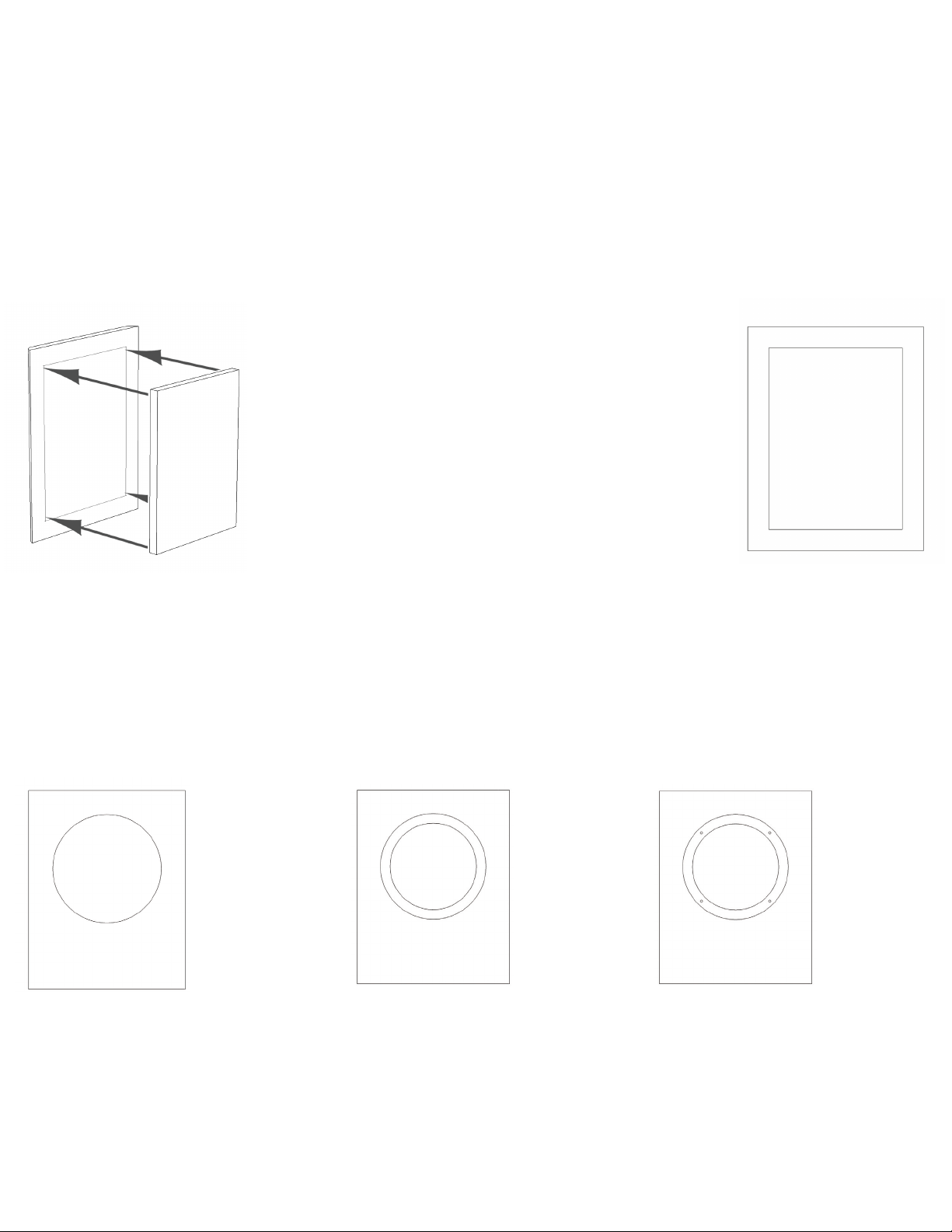

Bafe Construction Steps
Step 2 Step 3 Step 4
Front View
Back View
Step 1
OR
Option 1
-Draw an outline with a
pencil onto panel B of
where piece A goes
-Then glue pieces A onto
panel B in its
designated area
-Allow glue to set before
proceeding to Step 2
Option 2
-Start with a 41.9 cm
(16-1/2”) H X 33 cm (13”) W X
(1-1/2”) TH sheet of MDF
-Than router out grooves
B
A
-Cut-out circular
groove with router
[Depth 8 mm (5/16”)]
-This will allow
woofer to be ush
with bafe surface
-Cut-out woofer
mounting hole
with a hole saw
or a jig saw
-Drill 4 holes for
wood screws or
T-nuts
* T-nuts require
clearance drill
size and wood
screws require
tap drill size
* Option 1 & Option 2 apply to Bafe, Back Panel, Top Panel, Bottom Panel, Right Panel, and Left Panel
(No router needed) (Router needed)

This design is strictly for the home DIY enthusiast and not to be used professionally or for commercial purposes without
prior written permission from Hemp Acoustics. For inquiries please e-mail us at [email protected]. Thank you.
8
Aperto F.U.N.™ Loudspeaker Kit 8




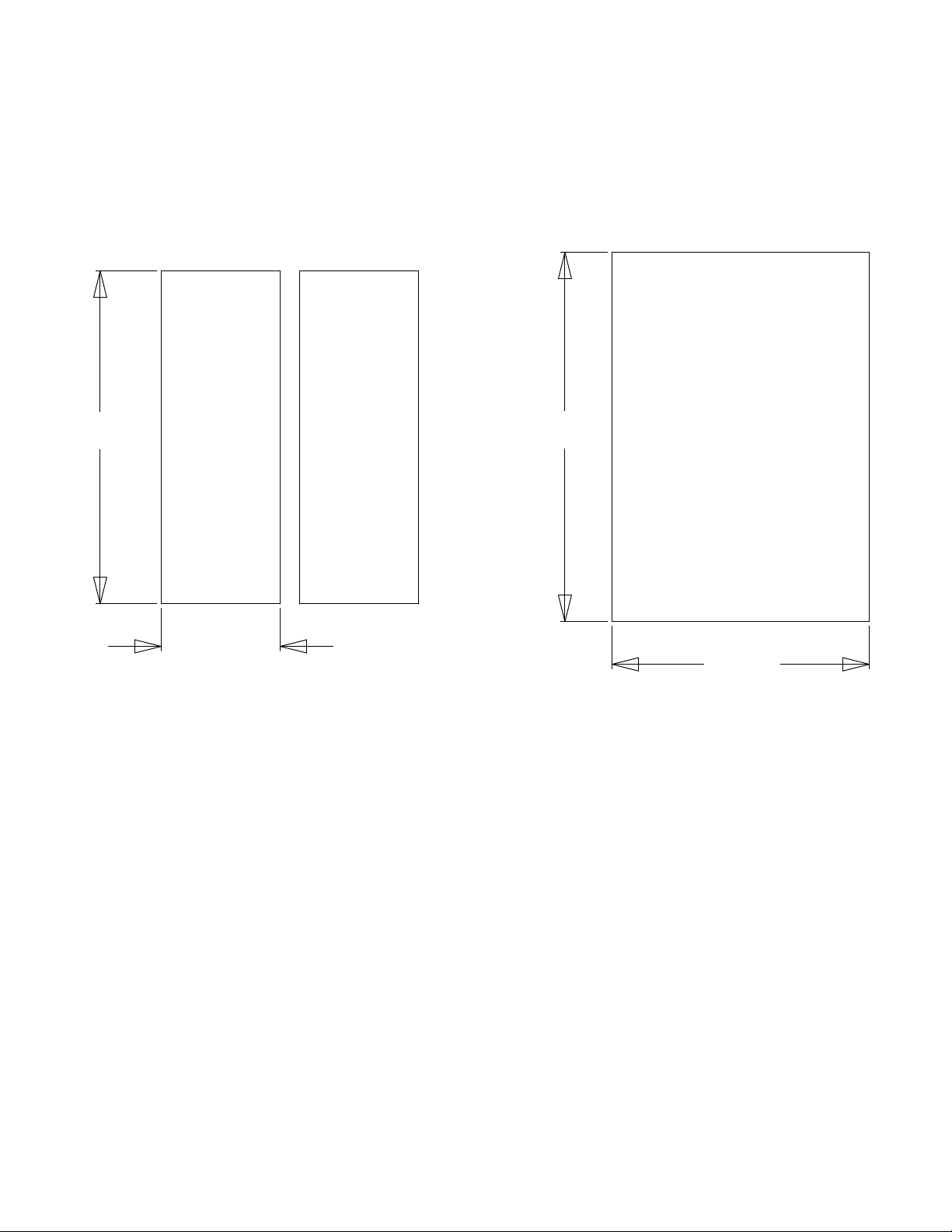

Bafe & Back Panel Raw Cuts
For Option 1 on Page 7
A
Pieces are 3/4” thick
Dimensions are in cm [inches]
B



41.9

9
9
Aperto F.U.N.™ Loudspeaker Kit
This design is strictly for the home DIY enthusiast and not to be used professionally or for commercial purposes without
prior written permission from Hemp Acoustics. For inquiries please e-mail us at [email protected]. Thank you.



 

 










 

 
 
Back Panel
Back View
Back Panel, 1 piece 1-1/2” thick
Dimensions are in cm [inches]
*Size of cutout may
vary depending on
port style

This design is strictly for the home DIY enthusiast and not to be used professionally or for commercial purposes without
prior written permission from Hemp Acoustics. For inquiries please e-mail us at [email protected]. Thank you.
10
Aperto F.U.N.™ Loudspeaker Kit 10

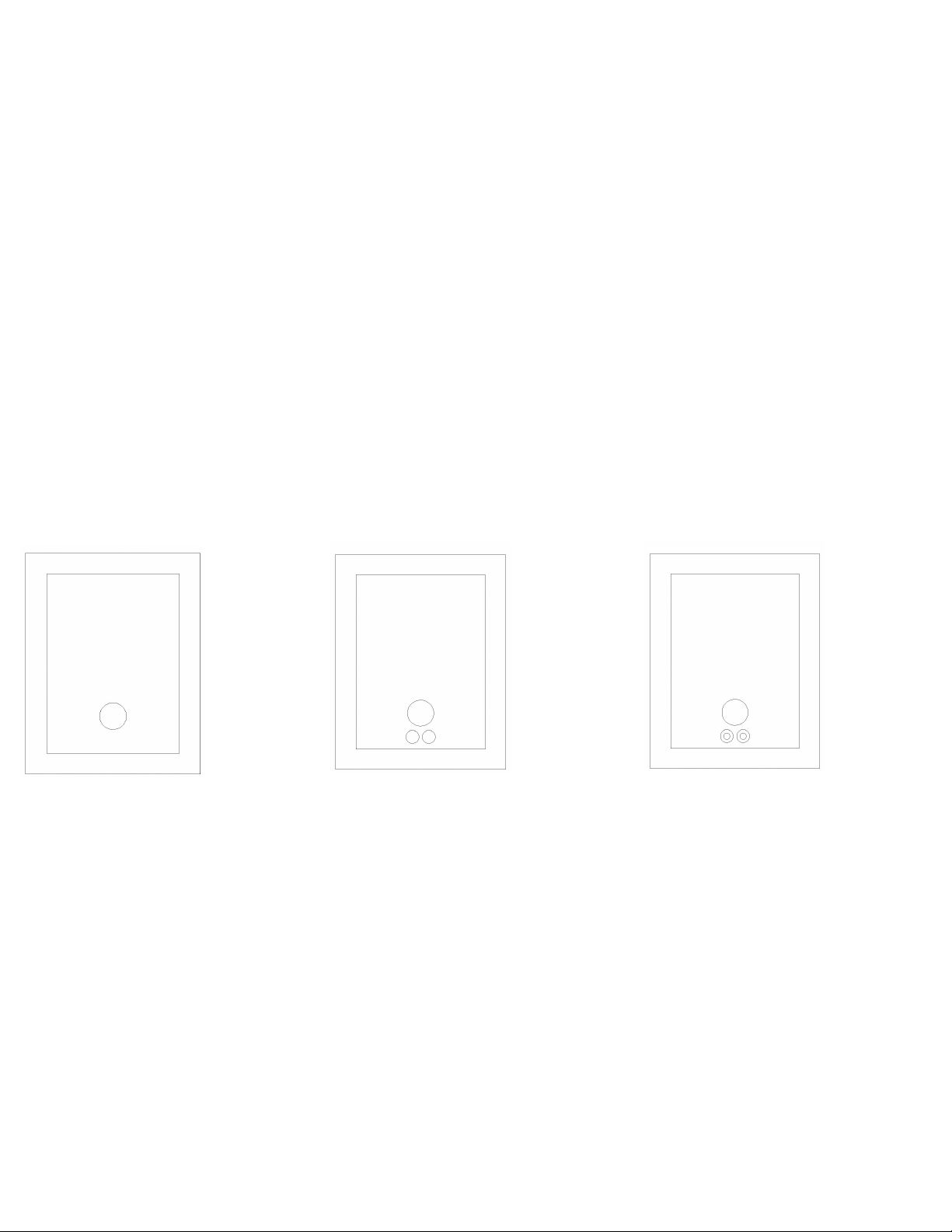

Back Panel Construction Steps
Step 1
Step 3 Step 4
Please refer back to Step 1 on Page 7
-Cut-out
circular groove
with router
[Depth 2.5 cm
(1”)]
-Drill holes for
binding posts
-Cut-out port
hole with hole
saw or jig saw
*Size of cutout
may vary
depending on
Port style
Back View
Step 2

11
11
Aperto F.U.N.™ Loudspeaker Kit
This design is strictly for the home DIY enthusiast and not to be used professionally or for commercial purposes without
prior written permission from Hemp Acoustics. For inquiries please e-mail us at [email protected]. Thank you.
Left & Right Panel
Left & Right Panel, 2 pieces 1-1/2” thick
Dimensions are in cm [inches]
Back View





 




 

 

This design is strictly for the home DIY enthusiast and not to be used professionally or for commercial purposes without
prior written permission from Hemp Acoustics. For inquiries please e-mail us at [email protected]. Thank you.
12
Aperto F.U.N.™ Loudspeaker Kit 12

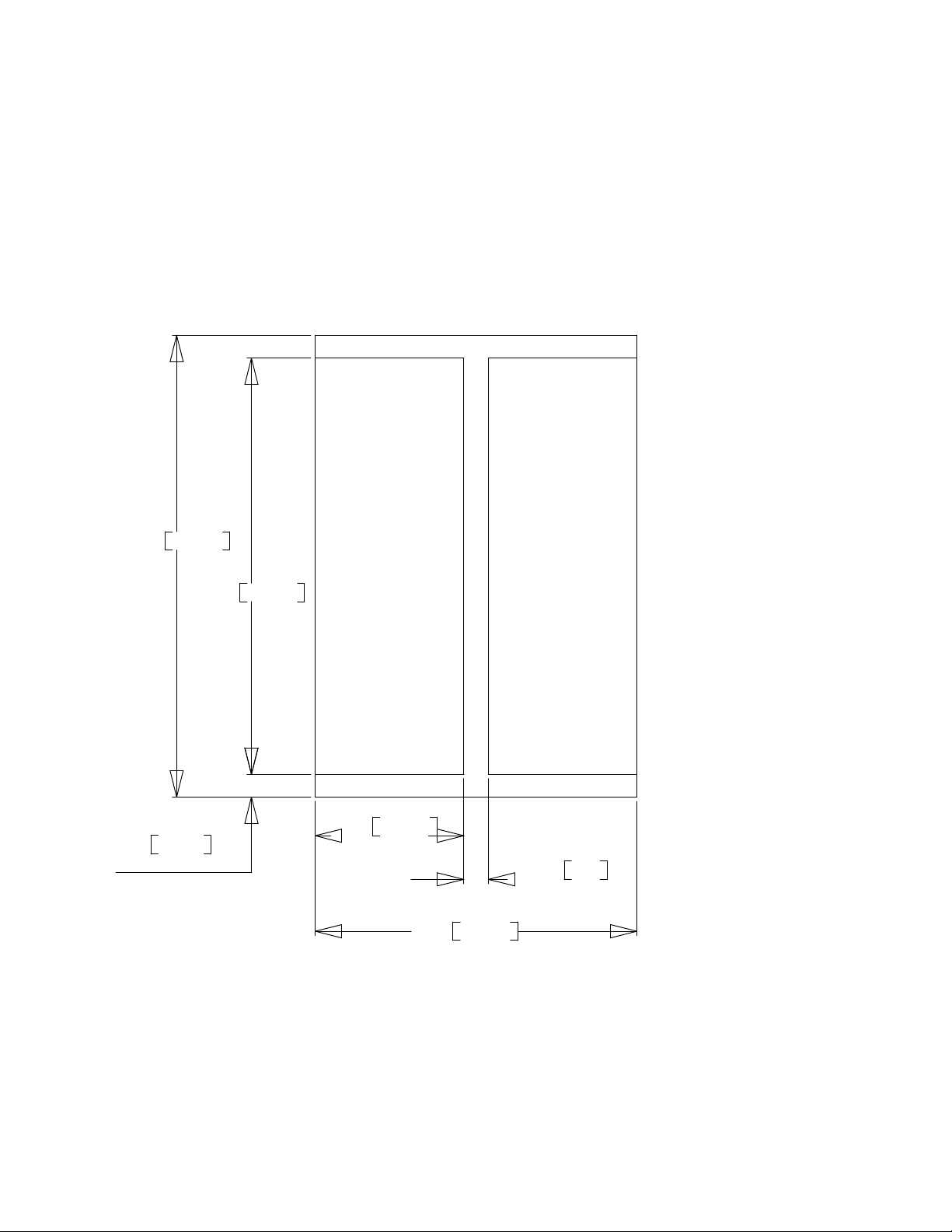

Left & Right Raw Cuts
For Option 1 on Page 7
Pieces are 3/4” thick
Dimensions are in cm [inches]
Left & Right Panel Construction Step
Please refer back to Step 1 on page 7 for assembly instructions




CD
37.8
13.5




E
41.9
29.2

13
13
Aperto F.U.N.™ Loudspeaker Kit
This design is strictly for the home DIY enthusiast and not to be used professionally or for commercial purposes without
prior written permission from Hemp Acoustics. For inquiries please e-mail us at [email protected]. Thank you.
Top Panel
Top Panel, 1 piece 1-1/2” thick
Dimensions are in cm [inches]
Bottom View









 


This design is strictly for the home DIY enthusiast and not to be used professionally or for commercial purposes without
prior written permission from Hemp Acoustics. For inquiries please e-mail us at [email protected]. Thank you.
14
Aperto F.U.N.™ Loudspeaker Kit 14

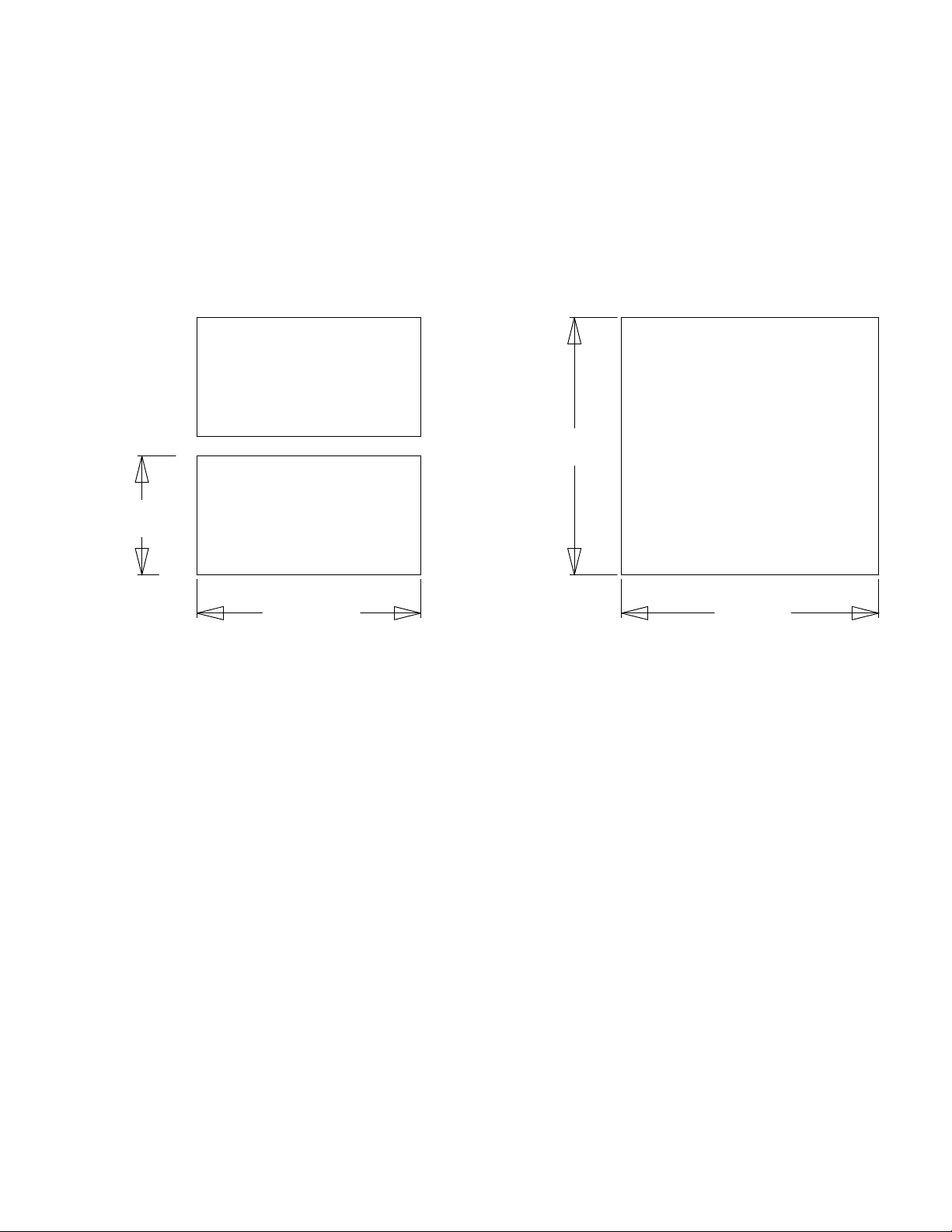

Top & Bottom Raw Cuts
For Option 1 on Page 7
Pieces are 3/4” thick
Dimensions are in cm [inches]
Top Panel Construction Step
Please refer back to Step 1 on page 7 for assembly instructions



13.5
25.4




29.2
29.2

15
15
Aperto F.U.N.™ Loudspeaker Kit
This design is strictly for the home DIY enthusiast and not to be used professionally or for commercial purposes without
prior written permission from Hemp Acoustics. For inquiries please e-mail us at [email protected]. Thank you.
Bottom Panel
Top View
Bottom Panel, 1 piece 1-1/2” thick
Dimensions are in cm [inches]


















 

 

 
 
Mounting Hole for Stand
Thru

This design is strictly for the home DIY enthusiast and not to be used professionally or for commercial purposes without
prior written permission from Hemp Acoustics. For inquiries please e-mail us at [email protected]. Thank you.
16
Aperto F.U.N.™ Loudspeaker Kit 16
Bottom Panel Construction Steps
Step 1
Please refer back to Step 1 on page 7 for assembly instructions
and page 14 for the Raw Cuts
Step 2
Top View
-Drill holes to
attach Stand

17
17
Aperto F.U.N.™ Loudspeaker Kit
This design is strictly for the home DIY enthusiast and not to be used professionally or for commercial purposes without
prior written permission from Hemp Acoustics. For inquiries please e-mail us at [email protected]. Thank you.
Bracing
Top View
Bracing, 1 piece 3/4” thick
Dimensions are in cm [inches]
 


 




 
 
 

 
 
 
 
 
 

This design is strictly for the home DIY enthusiast and not to be used professionally or for commercial purposes without
prior written permission from Hemp Acoustics. For inquiries please e-mail us at [email protected]. Thank you.
18
Aperto F.U.N.™ Loudspeaker Kit 18
Stand (OPTIONAL)
Options:
1. Build your own stand
2. Purchase a custom stand from Sound Anchor
3. Decide not to use a stand
 

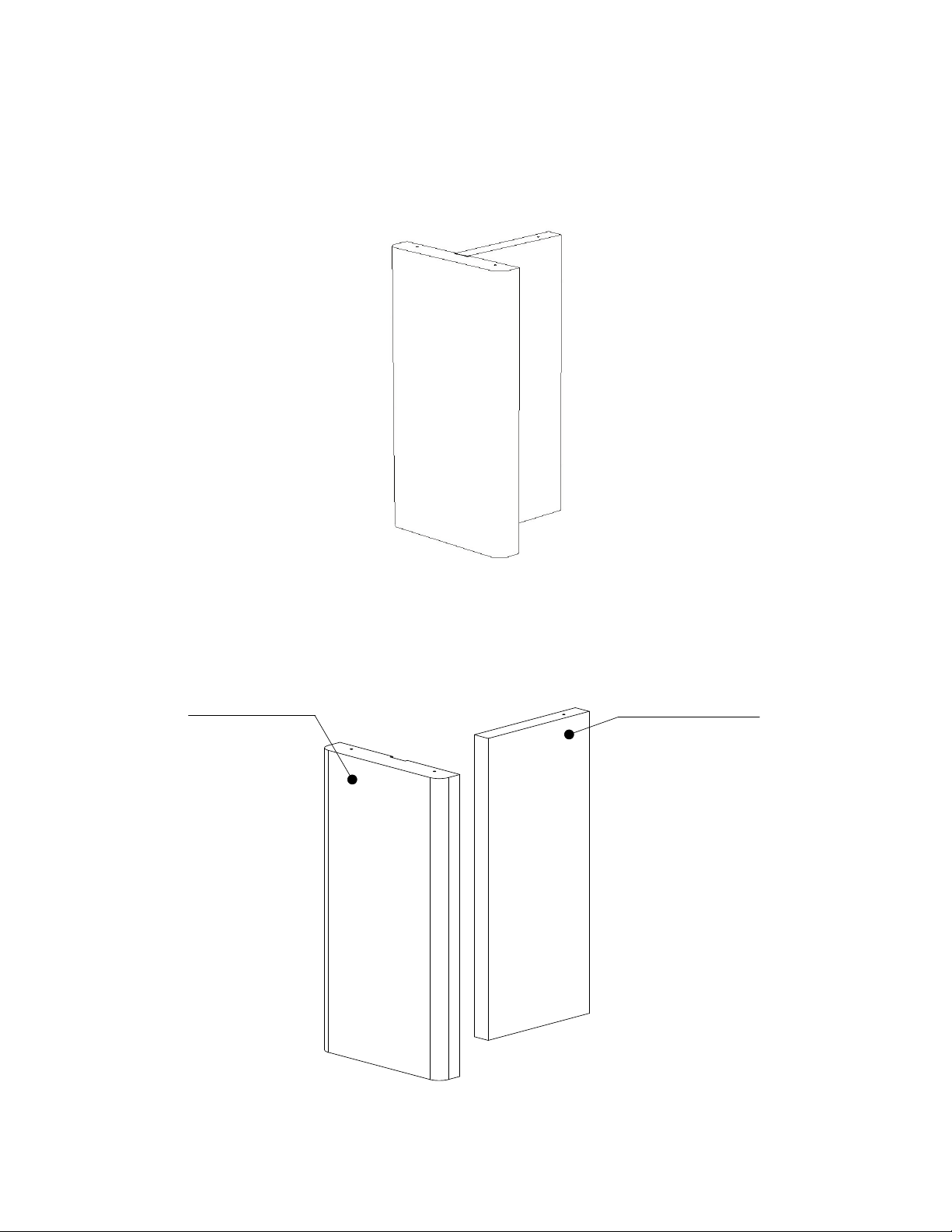

Stand Parts

19
19
Aperto F.U.N.™ Loudspeaker Kit
This design is strictly for the home DIY enthusiast and not to be used professionally or for commercial purposes without
prior written permission from Hemp Acoustics. For inquiries please e-mail us at [email protected]. Thank you.

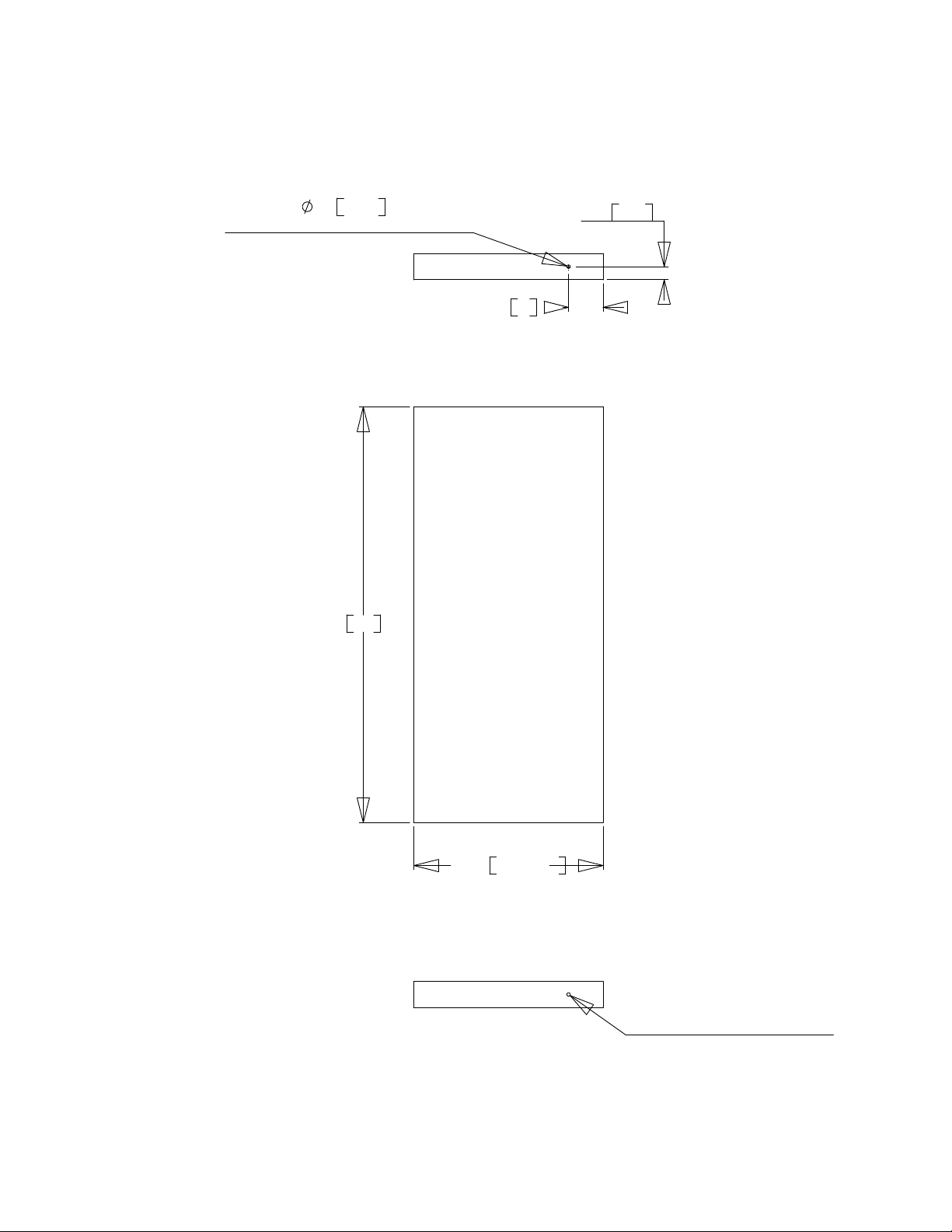

Stand, 1 piece 2-1/4” thick
Glue 3 pieces of 3/4” thick together
Dimensions are in cm [inches]


 

 
 
 

 


 

 
Top View
Refer to Top View for Dimensions
Front View
Bottom View
Stand Front Panel

This design is strictly for the home DIY enthusiast and not to be used professionally or for commercial purposes without
prior written permission from Hemp Acoustics. For inquiries please e-mail us at [email protected]. Thank you.
20
Aperto F.U.N.™ Loudspeaker Kit 20




 
 
 
 

Stand Center Panel
Top View
Front View
Bottom View
Stand, 1 piece 1-1/2” thick
Glue 2 pieces of 3/4” thick together
Dimensions are in cm [inches]
Refer to Top View for Dimensions
