PTC-2000 user manual
1. Introduction：
Please read this instruction manual carefully before use and operate the
heater properly. Keep the user manual in a safe place for later reference.
The product is Class I appliance and must be connected to a properly
earthed socket with adequate current capacity (15A or more).
The appliance bears many merits such as small dimension with novelty,
beautiful design and optimized construction. Being used under different
ambient temperature, the PTC heating element adjusts the heat output
automatically and safely, the warm air is sent out by the fan through forced air
circulation. The appliance heats up fast and uniformly. It also ensures safety
use through double protections (overheat protector and adjustable
thermostat).
2. Technical specifications:
Model Enclosure Rated voltage/
frequency Power input Packing
dimension Gross weight Net weight Other function
PTC-2000 Metal enclosure AC230V/
50Hz 2KW 197 ㎜×197 ㎜
×205 ㎜2.5 KG 2.36KG
Before using the appliance, ensure that the power line is connected to a 15A
fuse link.
The product can only be used as portable appliance.
The appliance is connected to the power supply through the power cord and
plug.
2. product description and use

①PTC heat element ②air outlet ③handle ④enclosure ⑤stand feet
⑥air inlet ⑦fan leaf ⑧cord anchorage ⑨switch ⑩thermostat
⑾power cord with plug

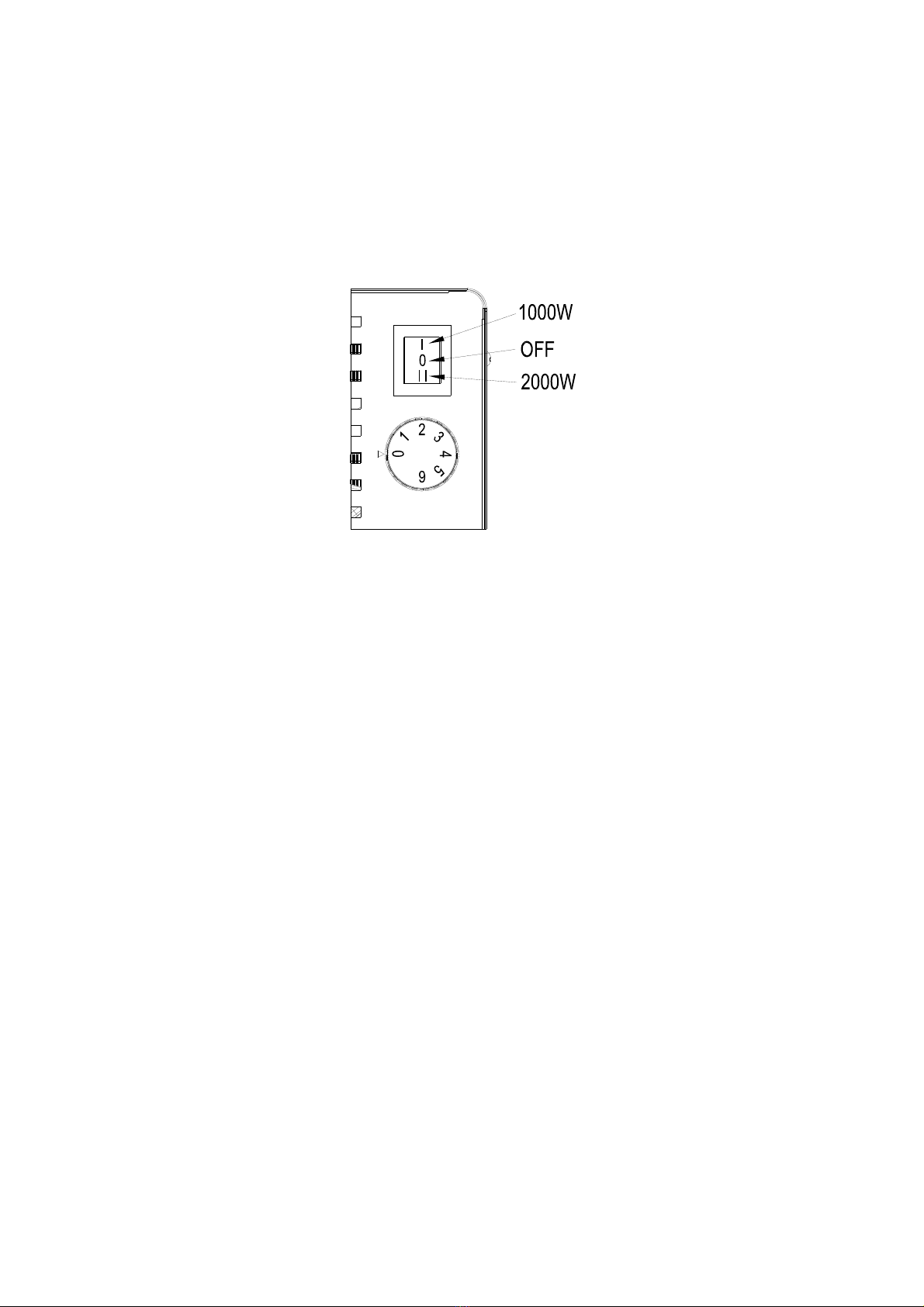

Control panel
1> Two levels switch with 3 positions, heating level I : 1000W、level II : 2000W。
2> Adjustable thermostat, 0～40 Celsius，270 degree.
3> First turn the thermostat to the maximum position，switch the appliance on with
the biggest power input，when the desired room temperature is reached，turn the
thermostat anticlockwise till it turns off (a “click ” is heard). The thermostat then
will automatic turn on and off to keep the room temperature constant.
4> It’s normal when odor is blew off from the PTC heating element by the first use. It
will cease to happen when used again.
5> After the use, follow the below steps to operate the heater: turn off the thermostat and switch(OFF
position), unplug and let the appliance cool down in the air. When the appliance cools down
completely, put it in the packaging. Avoid to store the unit before the heating element doesn’t cool
down, it’s dangerous to store the hot unit.
3. SAFETY INSTRUCTIONS
Warning:In order to avoid overheating, do not cover the heater.
It is important to read following instructions carefully before using the appliance：
1> Connect the plug only in an earthed socked with rated voltage.
2> Children should be supervised to ensure that they do not play with the appliance. The
appliance in not intended for use by person (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge. If the appliance is
damaged, do not use it any more.
3> The heating device shall not be installed below a socket-outlet.
4> Do not use outdoors or in humid place. Never use the heater in the bathroom, shower or
near a swimming pool etc.

5> Do not place the appliance on moving vehicles or some where easy to be tipped over.
6> When you don’t use the appliance for a long time, unplug the appliance. Don’t leave the
heater for a considerable amount of time when in use. Pull the plug straight out, never
remove the plug by pulling on the cord.
7> Use the appliance in places with good air ventilation; do not position it near a wall or
corner.
8> When the appliance is in use, keep it far from combustible, explosive articles or explosive,
corrosive gas. Keep the heater far from curtain or places where the air inlet can easily be
blocked.
9> It is recommended that a separate circuit serving only this appliance be provided，keep
the power cord far enough from the hot air outlet；
10> Do not use this heater with a programmer, timer or any other device that switches the
heater on automatically,；
11> The power coupler is waterproof when not in use. In order to prevent possible electric
shock or leakage current, never use the appliance with wet hand or operate the appliance
when there is water on the power cord.
12> If the supply cord is damaged, it must be replaced by the manufacturer or service agent
or a similarly qualified person in order to avoid a hazard.
13> In case the motor doesn’t turn after switching on of the power switch, stop using the
appliance and let it repaired by an approved electro technician before you use it again.
14> Heater is not located immediately below a socket-outlet.
15> Do not use this heater in the immediate surroundings of a bath, a shower or a swimming
pool.
16> Do not throw the appliance in dustbin. Do not dispose of electrical appliances as
unsorted municipal waste, use separate collection facilities. Contact you local
government for information regarding the collection systems available. If electrical
appliances are disposed of in landfills or dumps, hazardous substances can leak into the
groundwater and get into the food chain, damaging your health and well-being.
17>This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
18>Children should be supervised to ensure that they do not play with the appliance.
4.Cleaning and maintenance
Before cleaning the appliance, disconnect it from the socket and let it cool down.
The enclosure is easily to get dirty, wipe it often with soft sponge. For very dirty parts, wipe
with a sponge dipped in < 50℃water and mild detergent, then dry the heater enclosure with
clean cloth. Be careful not to let the water enter the appliance inner.

Don’t splash water onto the heater，never use solvent like gasoline, isoamyl acetate, toluene
etc to clean the heater, in order to protect the enclosure.
Clean the coupler, dry and pack it in a plastic bag.
When you store the heater, let it cool down first, keep it dry. Then cover it with a plastic bag,
put in the packing box and store it in a dry, ventilated place.
