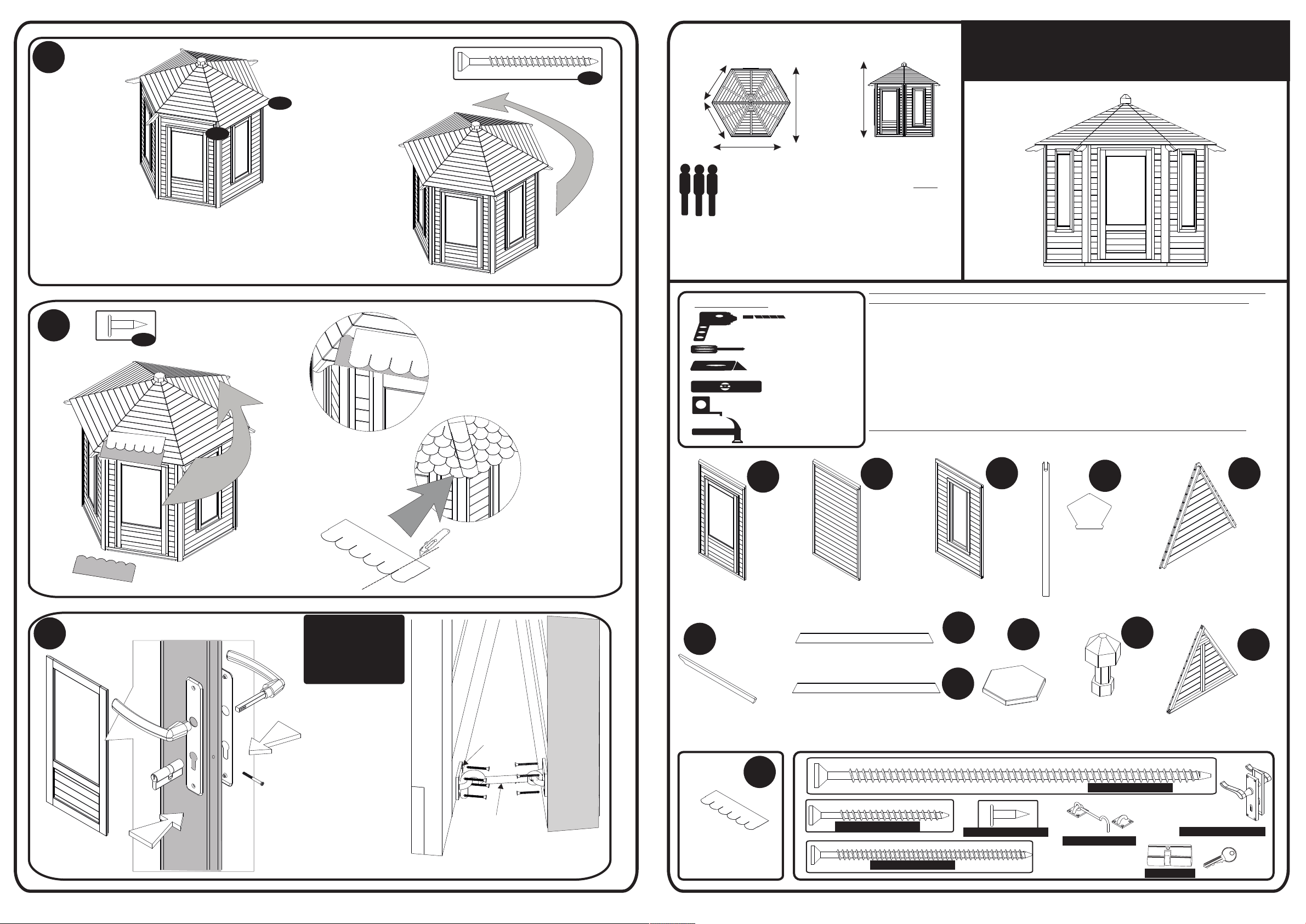

Henley Summerhouse hensum01 User manual

HENLEY SUMMERHOUSE

HENSUM01

Door Panel

HENSUMDPCV2

Plain Panel

HENSUMPPV2

Window Panel

HENSUMWPCV2

PROFILE

Roof Section

HENSUMRFV2

Floor Section

HENSUMFSV2

Finial

HENSUMFINV2

103191532A2

Loose roof board 1532mm

Rafter

HENSUMRAFV2

Felt tile pack

20 tiles per pack

HENSUMSHINP

FIXING PACK (HENSUMFIXP)

POZI DRIVE SCREWDRIVER

SHARP KNIFE TO

CUT ROOF FELT

SPIRIT LEVEL

TAPE MEASURE

DRILL

HAMMER

REQUIRED TOOLS : (NOT SUPPLIED)

REPEAT UNTIL

ROOF IS COMPLETE

45mm

Tack

X1 X1

X3 X6 X6

Thank you for choosing this garden building manufactured by the UK's largest manufacturer of

timber garden products. In order to gain the most benefit from it, please note the following:

- Exercise particular care and follow instructions whilst cutting felt tiles. If they are cut incorrectly,

additional felt tiles can be purchased from most good DIY retailers or garden centres.

- This building is pressure treated to ensure the longevity of all timber components and protect

against rot. This may leave a colour difference on some parts that will even out as the moisture

contents stabilize.

- In line with your statutory rights, please check all parts prior to assembly, as assembly of

damaged parts may be deemed to be acceptance and this may affect the remedies you are entitled

to. If the product is not constructed in accordance with the instructions, or is altered in anyway (eg

painted), the manufacturer cannot be held liable for any resulting damage.

- Timber is a natural material. It will shrink and swell as a result of varying moisture content.

- Please keep all plastic bags and small parts away from children in order to reduce the risk of

suffocation.

- Important Note : Do not lean or stand on roof during assembly. Roof is not load bearing.

- If there are any technical queries with the product, please contact our customer help line on 0333

7777 089 between the hours of 8.30 am and 5.00 pm Monday to Friday.

Hook

Eye

9 Fixing for the

door furniture

are supplied

with each item.

CUT INDIVIDUAL TILES TO

COVER THE EDGES.

TURN AROUND THE FIRST

LAYER OF SHINGLES SO

THAT THERE IS A STRAIGHT

EDGE AT THE OVERHANG

The Henley Summerhouse

must be built on a level

concrete base approximately

100 to 150mm thick.

3040mm

1381mm

2763mm

2393mm

ISSUE 0214

COVER EACH ROOF PANEL

STARTING AT THE BOARD

FURTHEST FROM THE

CENTRE. REPEAT UNTIL

ROOF IS COMPLETELY

COVERED

Upright

HENSUMUPV2

Floor Plug

HENSUMFLPV2

103191431A2

Loose roof board 1431mm

Slot the loose roof boards into the roof sections and

secure each board in place using 2 x 45mm screws,

screwing through the board into the rafters. RETAIN FOR FUTURE REFERENCE, PLEASE

READ CAREFULLY

Forest Garden Ltd Unit 288 Hartlebury Trading Estate, Hartlebury, Worcestershire, DY10 4JB

IMPORTANT :

ASSEMBLY OF THIS

SHED REQUIRES THREE

ADULTS

1381mm

70mm Screws Qty 84

120mm Screws Qty 7

45mm Screws Qty 48 Shingle Nails Qty 700 Handles & Catch Plate

Lock & Keys

Hook & Eye Qty 2

70mm

REPEAT UNTIL WALL CONSTRUCTION COMPLETE

Floor Plug

70mm

45mm

70mm

Flush

Notch

120mm

Fix each roof section to the

rafters by screwing down

through the cladded material

into the rafters using 3x 45mm

screws for each side

Top View

Secure the panels to the floor by

screwing through the bottom of the

panel framing into the floor using

the 70mm screws

Fix the post to the

panels by screwing

through the side panels

framing into the posts

using 70mm screws

MUST PRE DRILL

Place the sections

together and place the

floor plug in the centre

70mm

70mm 70mm

Fix the rafters to the finial by

screwing diagonally through the

rafter into the finial using

120mm screws. Lift the rafter

section into place.

Further secure the rafters to the

posts using 70mm screws as

shown.

70mm

Attention:

Take care when lifting the roof

sections into position and use a

minimum of two adults

Be careful not to trap fingers

This article contains biocidal products to give protection against wood destroying insects & wood rotting fungi. Contents may vary.

May contain : Basic copper carbonate (Copper (II) carbonate – Copper (II) hydroxide (1:1), Cupric oxide, Copper hydroxide carbonate, oxyethyl, ammoniumpropionate, Copper HDO, Propiconazole, Tebuconazole, Boric acid, Benzalkonium chloride.

Wear gloves when handling freshly treated wood. Avoid breathing dust when cutting treated or untreated wood. Dispose of off-cuts responsibly – do not burn.
