MODEL BCF-24
© 2006 Henny Penny Corporation, Eaton, OH 45320 USA Revised 12/04/07
PROJECT QUANTITY ITEM NO
General Information
Henny Penny’s BCF-24 blast
chiller/freezers cool up to 33 lbs. (11
kg) of hot food from 140°F (60°C) to
40°F (5°C) in less than 4 hours for
later storage, serving or
rethermalization. Units are also
capable of blast freezing 19s lbs. (6.5
kg) from 140°F (60°C) to 0°F (-18°C)
in 4 1/2 hours.
Foods rapidly chilled spend less
time in the “danger zone” between
160-40°F (71-3°C), assuring food
safety with minimal energy
consumption.
Foods also store longer, taste
better when reheated and have
colors, flavors and textures preserved
longer since very little moisture is lost
through evaporation.
The BCF-24 features 3 pairs of
removable, adjustable shelf runners
that accept standard steam table
pans and grids. Additional runners
are available. Fan is positioned on
the rear wall to accommodate side-
wall racking.
Unit includes stainless steel
temperature probe with 4 sensors that
enable the core temperatures of
different types of food products to be
measured accurately. Unit
automatically stops freezing/chilling
cycle when desired core temperature
level is reached.
Unit can also be operated in Timer
mode that ends the chilling cycle after
a desired time period and then
maintains temperature automatically.
The BCF-24 is cooled by a built-in
3/4 hp air-cooled condensing unit.
Models are available with right or
left-hinged doors. Compact size
requires minimal floor or counter
space.

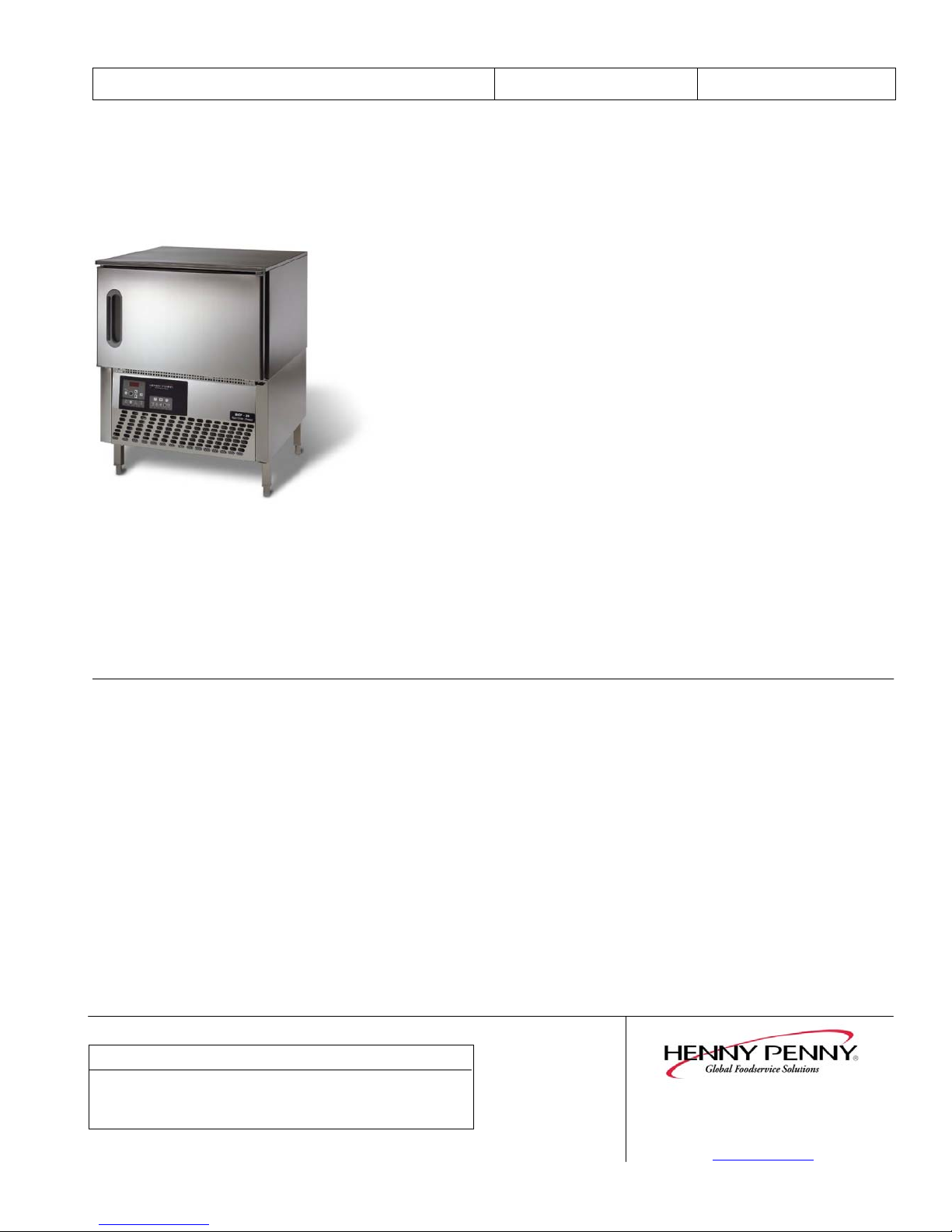

Compact blast chiller/freezer Model BCF-24
with adjustable racking, 24 lbs (11 kg) max
capacity.
Henny Penny Corporation
PO Box 60 Eaton OH 45320 USA
+1 937 456.8400 800 417.8417
+1 937 456.8434 Fax [phone] Fax
www.hennypenny.com
BCF-24 Blast Chiller/Freezer
Standard Features
•Stainless steel cabinet with
polyurethane foam injected
insulation.
•3 pairs of removable, adjustable
shelf runners accept full-size steam
table pans and grids.
•Touch-pad controls feature simple
icons and a large digital display.
•Temperature displays can be set in
°F or °C.
•The unit’s operations can be
controlled either by a timer or by
the multi-point Frigiprobe that
automatically controls food chilling.
•Automatic holding mode at end of
chilling cycle.
•Self-contained evaporation, no
drain or attachments needed.
•De-icing mode rapidly removes
excess ice or water Self-diagnostic
system identifies and displays
service requirements.
•Designed with coved corners,
round door gasket and removable
shelf runners and supports for easy
cleaning.
•Air-cooled 3/4 hp condensing unit.
•R404A refrigerant, CFC-free.
•Adjustable leveling legs.
Options, accessories
Door hinge
Right OR
Left
APPROVED APPROVED AS NOTED RESUBMIT
AUTHORIZED SIGNATURE DATE

© 2006 Henny Penny Corporation, Eaton, OH 45320 USA Revised 12/04/07
Continuing product improvement may subject specifications to change without notice.
PROJECT ITEM NO
Bidding Specifications
•Provide Henny Penny Model BCF-24 Blast
Chiller/Freezer capable of cooling full loads
in less than 4 hours and freezing half loads
in 4 ½ hours.
•Cabinet and door inside and outside is
stainless steel with 1/8 thick injected
plyurethane foam insualtion in full
compliance with NSF standards in force.
•Unit will use R404A refrigerant and have
built-in ¾ hp air-cooled condensing units.
•Unit shall have condensing unit hooding for
direct outside installation, liquid tank with
safety valve, condensing pressure control
and HP/LP safety cut-out.
•Unit will have LED digital controls located on
front panel.
•Unit will operate either by timer or a multi-
point food core probe that automatically
controls cycle
•(1) Frigiprobe temperature probe for probe-
controlled cooling shipped with unit.
www.hennypenny.com
•
Unit will automatically trigger holding mode at
the end of chilling cycle
•Unit will have a de-icing feature that prevent
ice from forming on evaporators
Volts Phase Cycle/Hz Watts Amps Wire
200 1 50’60 1800 11.0 2+G
208-240 1 60 2300 4.3 2+G
230 1 50 1800 9.0 2NG
Utilities connections
A Electrical
B Refrigerant in
C Drain
30 3/8 in. (770 mm) 31 1/2 in. (800 mm)
Net weight N/A
Crated weight 315 lbs. (143 kg)
Water connections
No water connection. 1 in. (25 mm) drain.
Required cooling capacity
N/A
Condensing unit
Air-cooled, 0.75 hp
Refrigerant type: R404A
Electrical
FRONT
PLAN
Dimensions
Height: 37 in. (955 mm)
Width: 30 3/8 in. (770 mm)
Depth: 31 ½ in. (800 mm)
Required clearances
Top: 16 in. (400 mm)
Sides: 4 in. (100 mm) air flow
Back: 4 in. (100 mm)
Front: 30 in. (762 mm) door open
Crated dimensions
Length: 35 in. (889 mm)
Depth: 34 ¼ in. (870 mm)
Height: 44 ½ in. (1130 mm)
Volume: 31 cu. ft. (0.86 m³)
Capacity
Maximum product capacity: 33 lbs. (15 kg)
chills 140-40°F (60-5°C) in less than 4 hours.
Freezes 19 lbs. (9 kg) 140-0°F (60--18°C) in
4 ½ hours.
Accepts full-size steam table pans and grids.
Adustable shelving: locations for 6 runners
on 1 3/8 in. (35 mm) centers. 4 runner pairs
shipped with unit.
MODEL BCF-24
BCF-24 Blast Chiller/Freezer
37 in.
(955 mm)
Laboratory certifications
