CONTENTS
Page
1. Foreword 1
2. Warning 2
3. Safety Notes 3
4. Specifications 4
5. Periodical Check and Services 5
6. Check Period to Operate 6
7. Operation 12
8. Correct Way of Driving 24
9. Abnormalities and Trouble Shooting 26
10. VIN number and service record 27
11. Assembly Instruction 30
12. Pre-Delivery Inspection 32

3
FOREWORD
May we, the manufacturer, take this opportunity to thank you for choosing our ATV to
serve you.
This Owner’s Manual is prepared for you the details as to operate and maintenance
necessarily to perform in safety. Therefore, we would like you to read the manual before
operate the vehicle.
It is our sincere wish that you enjoy operating the ATV and getting fun from it. Should
you have any problems, please feel free to contact our local dealer in your area.

4
WARNING
˙OPERATOR ONLY
This vehicle load limit and seating configuration is designed for operator only.
It is not safe for carrying a passenger.
˙ADULT SUPERVISION AND INSTRUCTION ARE REQUIRED
˙ALWAYS WEAR A HELMET
˙READ THIS OWNER’S MANUAL CAREFULLY
˙DO NOT OPERATE THIS VEHICLE IN THE NIGHT.
IT’S DANGEROUS TO DRIVE ON AN UNCLEAR ROAD CONDITION.

5
SAFETY NOTES
★Don’t allow your child to ride without your supervision.
★Keep a safety distance between your vehicle and other vehicles.
★This vehicle is designed to be operated only on level, off road surfaces, free of obstacles.
★Both the parent and their children must fully understand everything in this manual before
riding.
★When operate this vehicle on public streets, do not make turns with high speed to avoid
tumble-over. This vehicle does not equipped with differential gears.
★Do not operate this vehicle while under the influence of alcohol or drugs. This can impair
judgement and result in serious injury or even death.

6
SPECIFICATIONS
ENGINE CAPACITY
ATV-150S
ATV-150U
TYPE
OIL-COOLED，4 STROKE
STARTING
ELECTRIC
LUBRICATION
Wet sump, Oil Pump
TRANSMISSION
CVT with reverse
SPARK PLUG
NGK, CR8E
BATTERY
12V-7AH
OIL CAPACITY
1.2 Liter
FUEL TANK
8.2 Liter
OVERALL LENGTH
1770 mm
1790 mm
OVERALL WIDTH
1060 mm
1060 mm
OVERALL HEIGHT
1080 mm
1060 mm
SEAT HEIGHT
820 mm
820 mm
WHEEL BASE
1150 mm
1150 mm
CLAIMED DRY WEIGHT
168 kg
168 kg
BRAKE
Ront: R/L Disc Brake Rear: Disc Brake
SUSPENSION
Front: Dual A-arm with 5 way preload-adjustable shocks
Rear: Swing arm with 5 way preload-adjustable shock
FRONT TIRE
21 x 10-8
REAR TIRE
21 x 7-10

7
PERIODICAL CHECK & SERVICES
Maintenance Schedule
The maintenance intervals in the following table are based upon average riding conditions.
Riding in unusually dusty areas, require more frequent servicing.
Time of service
Items
Initial Service
(first week)
Monthly
(1000km)
Quarterly
(3000km)
Yearly
(6000km)
Air cleaner
C
C,I
Petrol filter/Fuel Tube
I
I
Tire pressure/Wear
I
I
Battery
I
Brake tolerance & Steering handle
I
A
Shock absorber
I
Tightness of screws
I
I
Spark plug
C
Replace gearbox oil
I
Lubricating of chassis
C,G
I
Carburetor
I
A
C
Drive chain
I
I,G
Oil quantity
I
I
C
C: Clean; A: Adjust; G: Grease; I: Inspection, check, replace if necessary

8
CHECK PRIOR TO OPERATE
Inspect your vehicle every day before you run it. It only takes a few minutes to check and may
save your life.
★Check the tires condition and pressure.
★Check the nuts, bolts and other fasteners.
★Check the drive chain condition and slack.
★Check the engine stop switch for good function.
★Check the throttle for smooth opening and closing.
★Check the fuel level in fuel tank and oil level in oil tank.
★Check the brake operation to see is there any tie-up by brake cables.
★Check the easiness for turning to the left and right of steering handle.
★Check brake lever for effective braking. The free play should be between 1-2 cm
(about 1/2 inch). Try braking soon as you are driving off.

9
CHECK PRIOR TO OPERATE
(1) Check and / or Refill Oil
CAUTIONS ：
(2) Check and refill fuel
CAUTIONS ：
＊Be sure to have sufficient oil, and the cap is installed correctly.
＊Total oil capacity：1.0Liter
＊Prescribed oil: 4-stroke engine oil only, synthetic type is recommended.
＊Use grade SAE 90 for transmission gear oil.
＊Long distance driving would damage or burn out the engine parts if oil is insufficient.
＊
＊
＊Stop the engine for refilling.
＊Use unleaded gasoline with octane level 92 or equivalent.
＊Turn the gasoline cap clockwise to tight up. Counter clockwise to loose it.
＊Do not over fill the gasoline, it could cause fire when the engine is hot.

10
CHECK PRIOR TO OPERATE

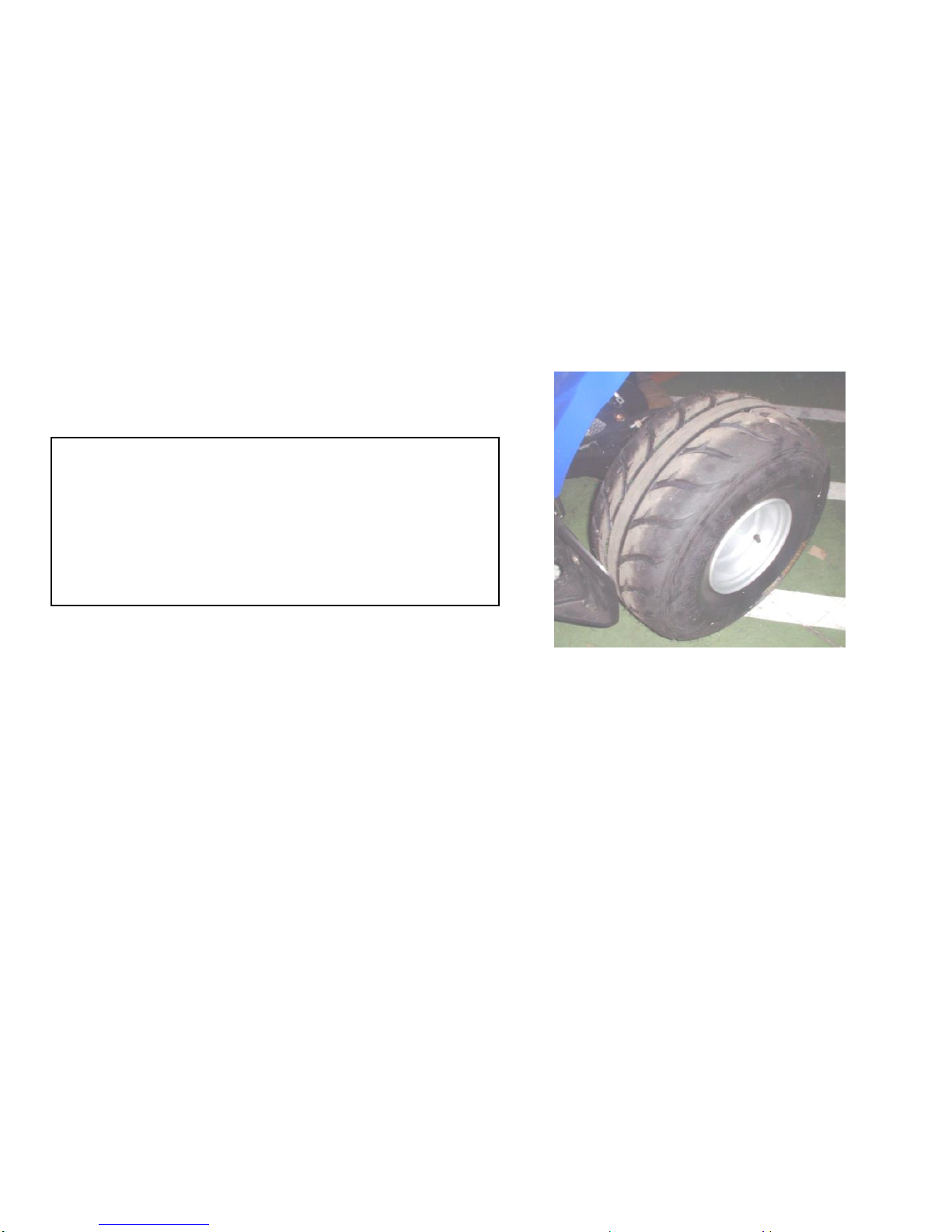

(1) Check tires pressure
＊Check tire pressure if they are normal.
※Inflate the tire pressure as indicated on the tire.
＊Check if there is any gravel in the tread grooves or any nail puncture. If so clean it.
＊Check for any crack or heavy worn-out, then replace it with new ones, if worn-out exceeds the
limit.
＊Detailed tire specification please check the marking on tires.
Tire size: front 21 x 7-10
Rear 21x10-8
Recommended tire
pressure: 10 psi (0.7 kgf/cm2)
Max. pressure : 15 psi (1.05 kgf/cm2)
Min. pressure : 3.5 psi (0.245kgf/cm2)

11
CHECK PRIOR TO OPERATE

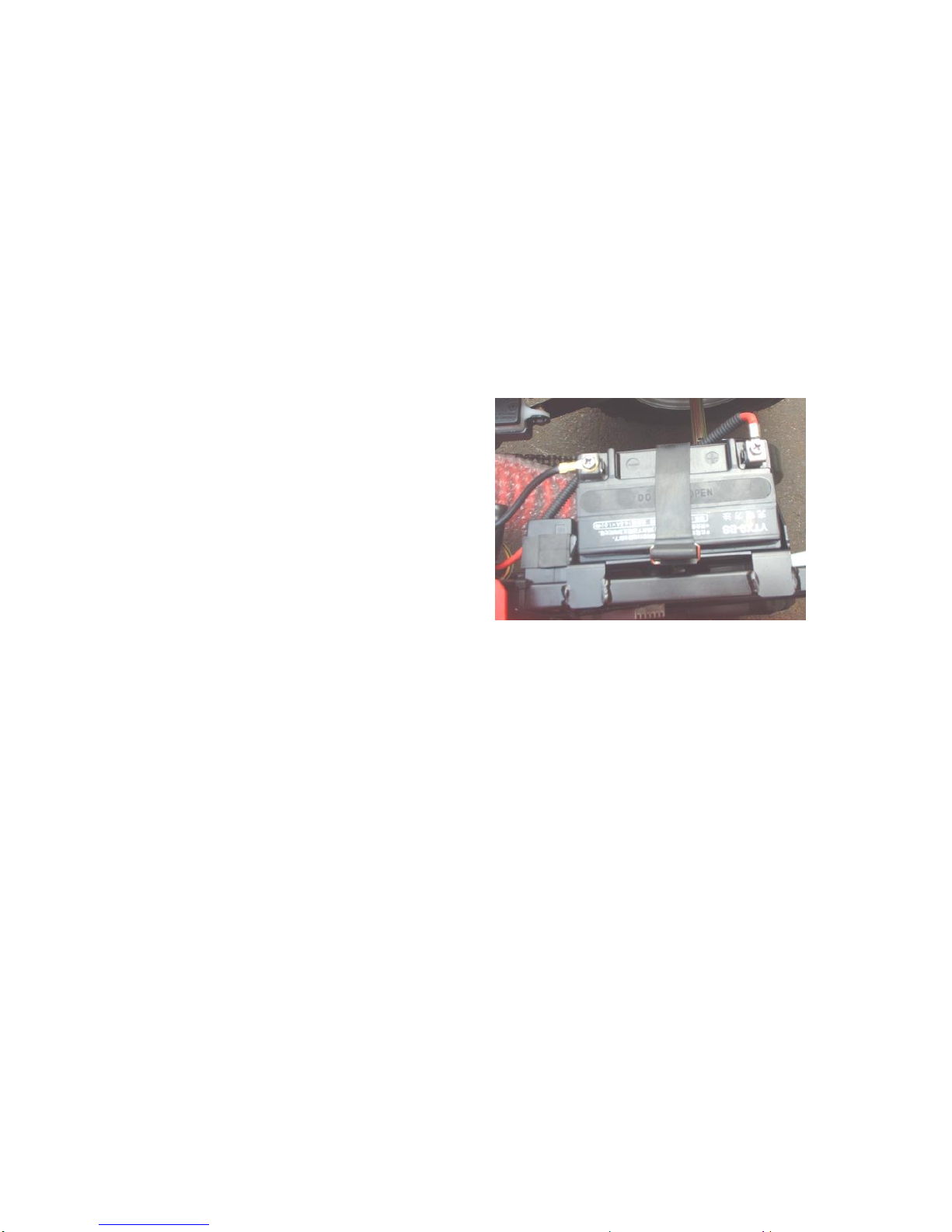

(2) Check battery
＊Open the seat.
＊Remove positive and negative terminals
(negative first).
＊Remove battery and check voltage.
＊Normal voltage：12V and above
＊Keep terminals clean constantly.
＊Charge the battery base on the instruction.
(3) Check front and rear shock absorbers.
＊Apply pressure on both front steering handle and seat to check the function of front and rear
absorbers.
(4) Check if exhaust is normal.

12
CHECK PRIOR TO OPERATE
1. Loosening the fastening screw of swing arm.
2. Swing the rear axle-bearing holder back and force to reach suitable chain tension.
3. Loosening the lock nuts and moving the chain tension plate by the both screws on the plates evenly
which can adjusts the chain tension at more or less 10-20mm space of the deviates ion from horizontal.
4. Tightening the lock nuts well.
5. Lock the fact engine screw of swing arm.

13
CHECK PRIOR TO OPERATE
PREVIOUSLY INSPECTION
FOR THE SAKE OF SAFETYAND TO PREVENT VEHICLE DAMAGE, THE PREVIOUSLY
INSPECTION IS ABSOLUTELY
REQUIRED.
CAUTION：
The temperature of engine and exhaust muffle is very high. Be careful while checking engine
oil to avoid burns.
A. ENGINE OIL CHECK、REFILLING ＆CHANGE

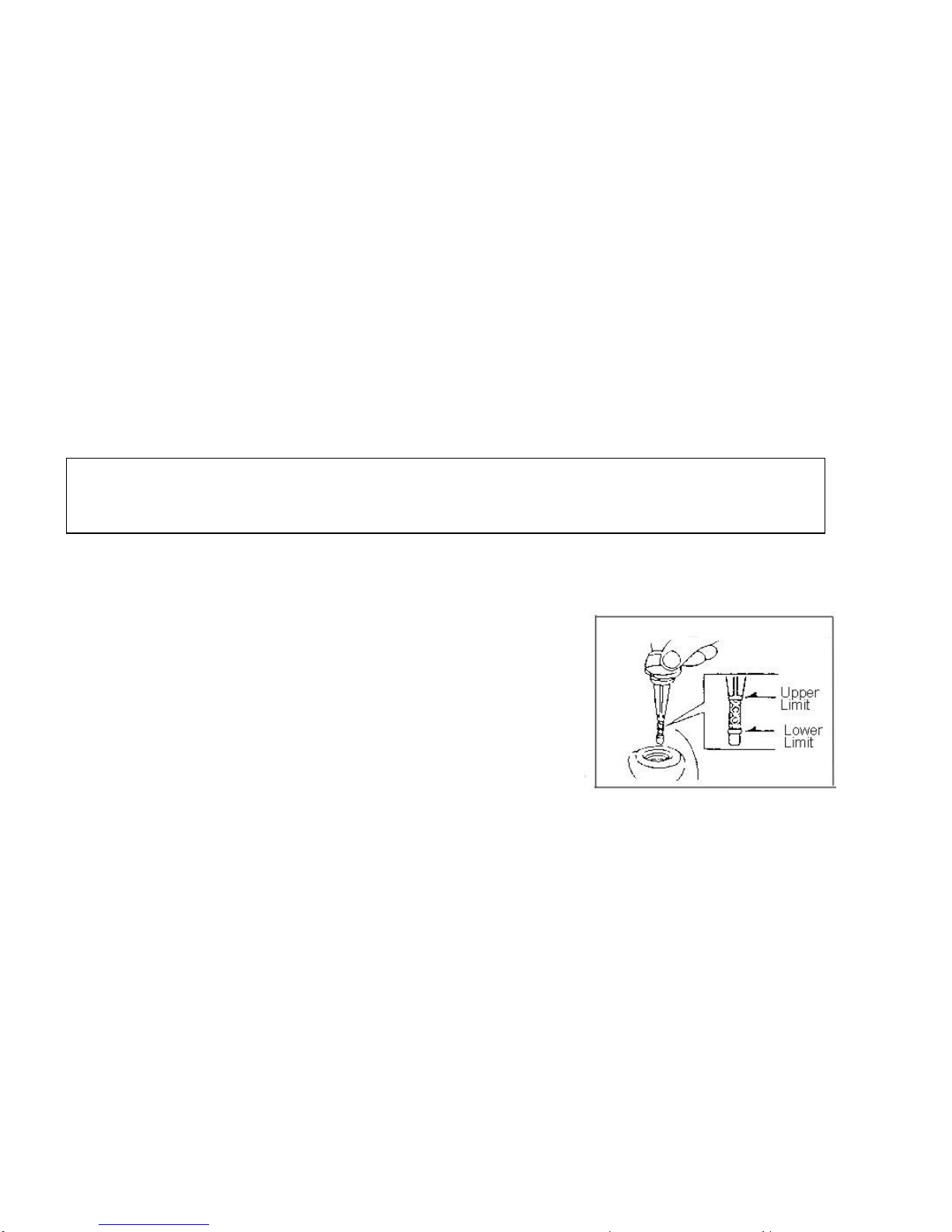

Check engine oil
1.Place the vehicle on its main stand. Take out the oil gauge
and wipe it clean.
2.Insert the oil gauge into the engine oil.(don’t lock it)
3.Take out the oil gauge and check the oil lever. If it is close to
the lower level, refill the engine oil to the upper level.

14
OPERATION
MAIN SWITCH
OFF
＊To turn off the engine.
＊The key can be extracted.
ON
＊To start the engine.
＊The key can not be taken out.
＊To operate the head light.
＊The key can not be taken out.

15
OPERATION
ELECTRIC STARTER
HEADLIGHT BEAM SWITCH
Low beam
＊For normal condition.
High beam
＊For farther lighting.
＊Cranks the engine.
CAUTIONS ：
※Don’t push down again the starter button as the engine is running.
※Don’t press the starter button more than 10 seconds when start up.

16
OPERATION
HORN BUTTOM
＊Turn on main switch and press down the horn
buttom, the horn will sound.
SIGNAL LIGHT SWITCH
Right signal light flashing indicates turning
to the right.
Left signal light flashing indicates turning to
the left.
CAUTIONS ：
※Turn on signal light for turns.
※Turn off signal light after turning.

17
OPERATION
HAZARD WARNINGAWITCH
HAZARD
＊The 4 direction lights will start blinking together.
STOP ˙

18
NOMENCLATURE & OPERATION

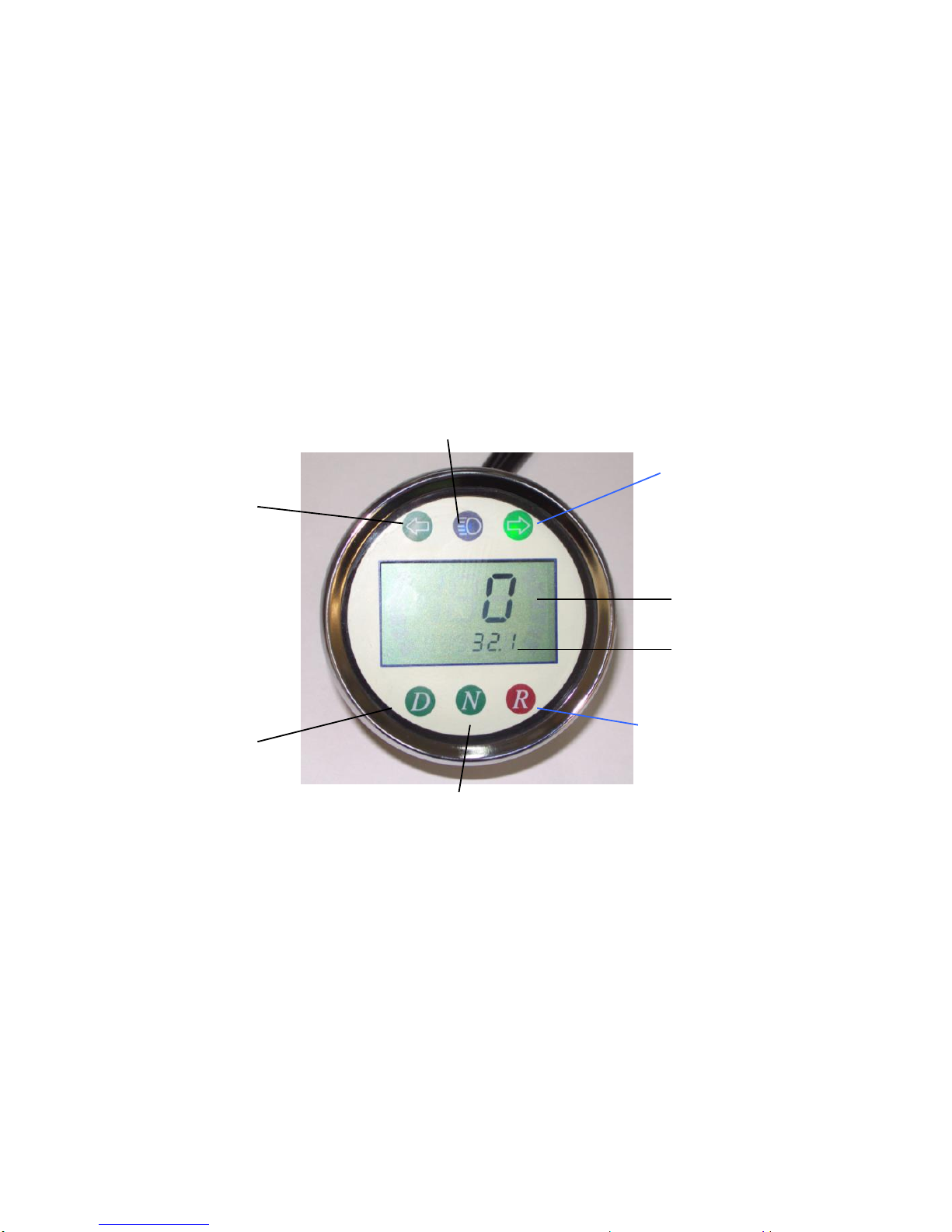

INSTRUMENTPANEL
REVERSE
INDICATOR
Neutral
Drive
SIGNAL
INDICATOR
HIGH BEAM
INDICATOR
SIGNAL
INDICATOR
SPEED
ODOMETER

19
OPERATION

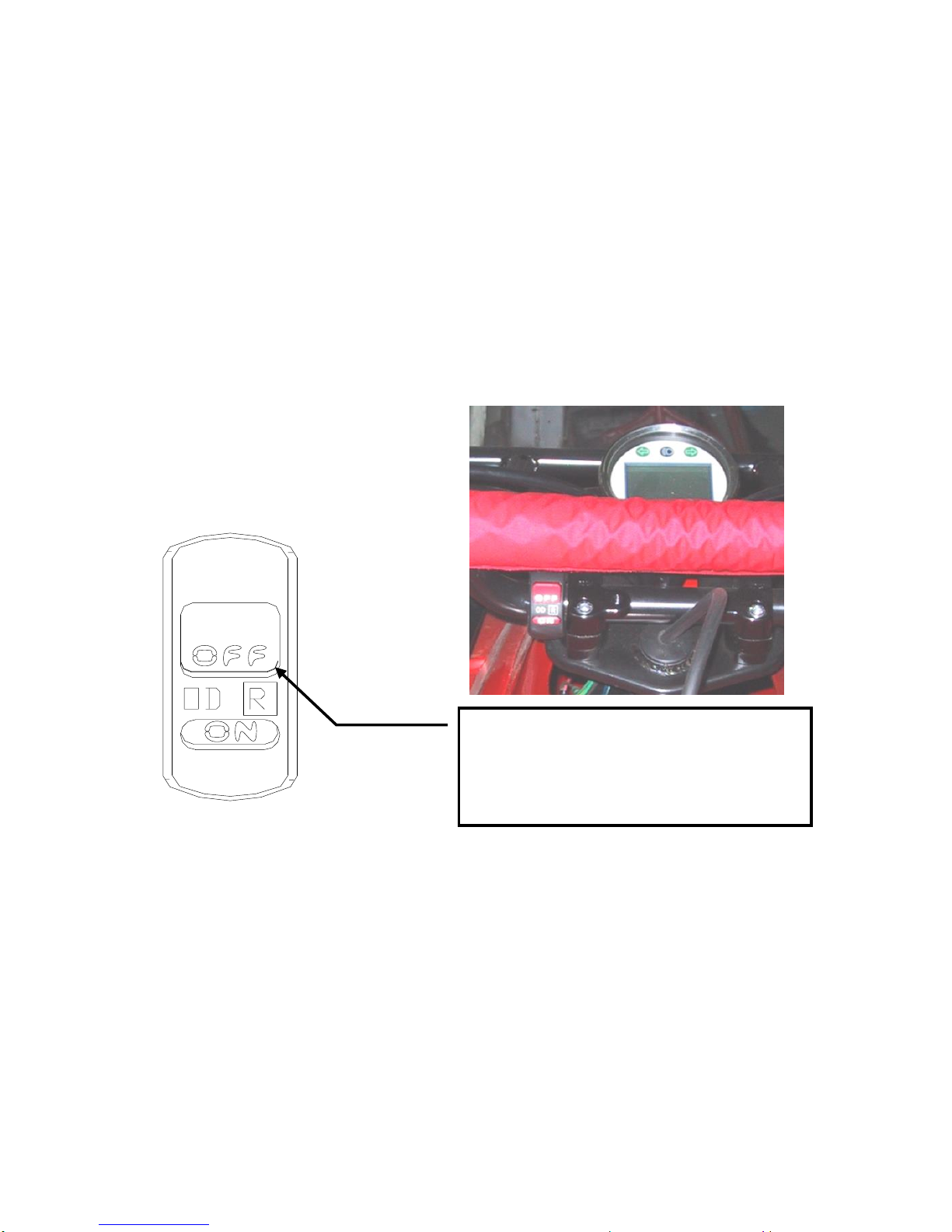

The operation way for two mode override switch
Option 1.
Press the bottom to (ON)position
to perform reverse override
function

20
OPERATION

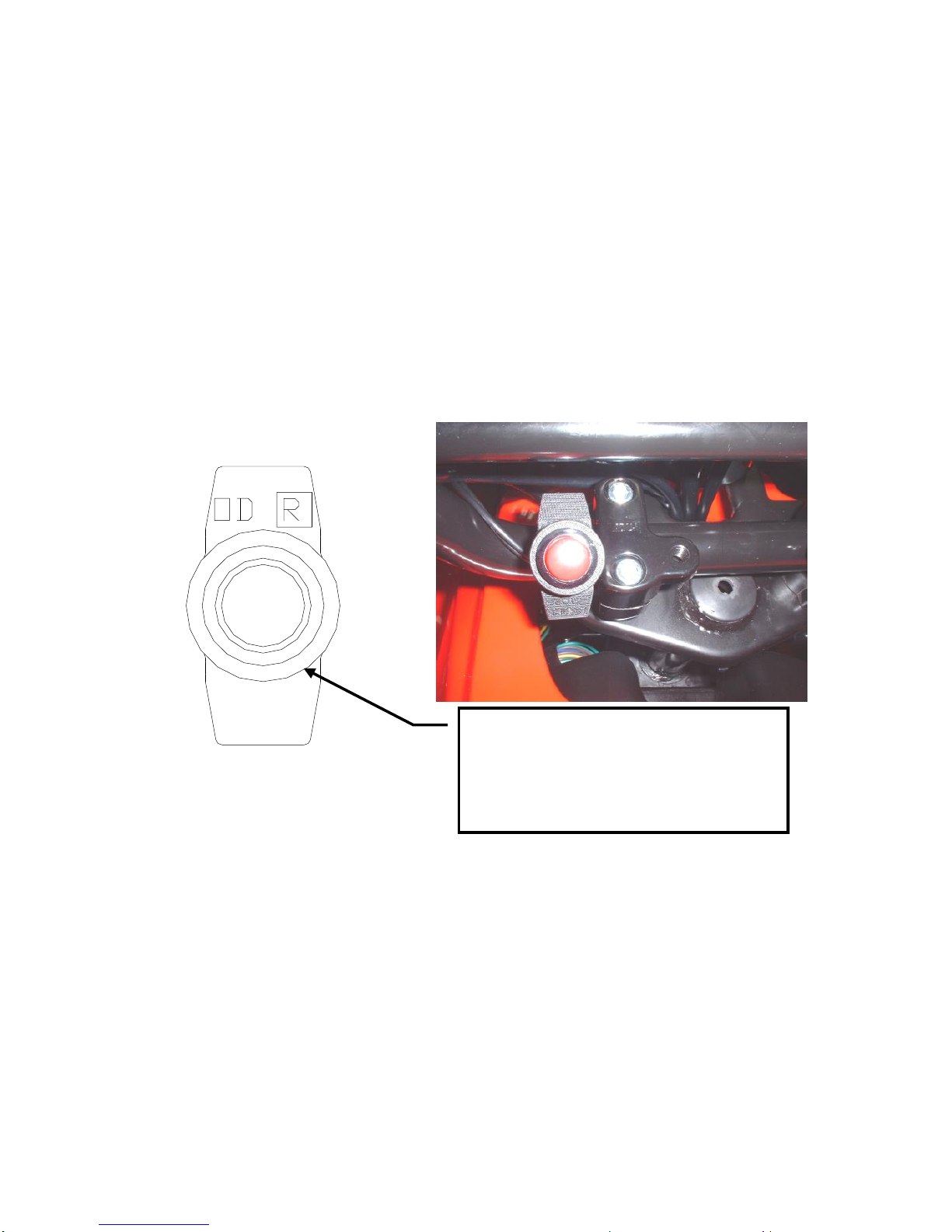

The operation way for two mode override switch
Option 2.
Press the bottom（ON）to
perform reverse override
function
