HERA MPX6 DYNAMIC WHITE SERIES Installation and operating instructions

Index
Congratulations on choosing a HERA product!
We thank you for your custom.
Please note that this product, as all the others in the rich HERA range, has been designed and made with total quality to ensure excellent performance and best meet your
expectations and requirements. Carefully read this instruction manual in its entirety and keep it safe for future reference. It is essential to know the information and comply
with the instructions given in this manual to ensure the fitting is installed, used and serviced correctly and safely. HERA disclaims all liability for damage to the fitting or to
other property or persons deriving from installation, use and maintenance that have not been carried out in conformity with this instruction manual, which must always
accompany the fitting. HERA reserves the right to modify the characteristics stated in this instruction manual at any time and without prior notice.
V.1.0
Cover & Index
1
Safety Information / Warning / Warranty /Marking
2
Ordering Information
Accessories & Recommended Products
9
Product Specifications
4
5
Explanation / Dimension
3
Back Cover
Installation Instruction
6
10
MPX6 DYNAMIC WHITE SERIES
User’s Manual & Installation Guide
Standart DMX Wiring Diagram
www.heraled.com

www.heraled.com 2
Safety Information
Warranty
Caution – unplug the power supply from the main power before connecting any cables as this can damage the products.
Caution – avoid looking directly into the led light source at close range for your own safety.
Any people installing this product should comply with local standards and regulations and must be qualified for the handling of
electrical equipment.
• Do not attempt to install or use the product until installation instructions and safety labels are fully understood.
This product is designed for indoor and outdoor usage.
• Ensure product operates within the specified temperature range.
• Do not attempt to open the product.
• Do not use the product if the power cables are damaged.
• Only use product for specified voltage.
• Always maintain connection to ensure waterproofing.
• If the product has been subjected to drastic temperature variances, for example, following transportation,
do not connect the fixture until it has reached room temperature, as moisture condensation may cause electric
shock and product damages.
• When installing the products and system power supplies, please ensure they will not be exposed to moisture and extreme heat
(and direct sunlight for outdoor products). Besides, keep a clean operating environment for the fixtures and system power supplies..
• Any non-compliance of the Installation Guide will void the Hera warranty.
Hera warrants the products for a period of five (5) years from date of purchase, provided that
the purchased items are used under the conditions stated in this user manual.
Warning
Please study this Installation Guide throughly and check the latest Technical Specification Sheets available from the
our website www.heraled.com before setup.
Marking
DMX
RDM
67
Risk of
Electric
Shock
Do Not Open
Products
Warning!
Refer to User
Manual.
Not Suitable
for Household Room
Illumination
DIRECTIVE 2012/19/EU
Waste Electrical
and Electronic Equipment
MPX6 DYNAMIC WHITE SERIES

Explanation
www.heraled.com 3

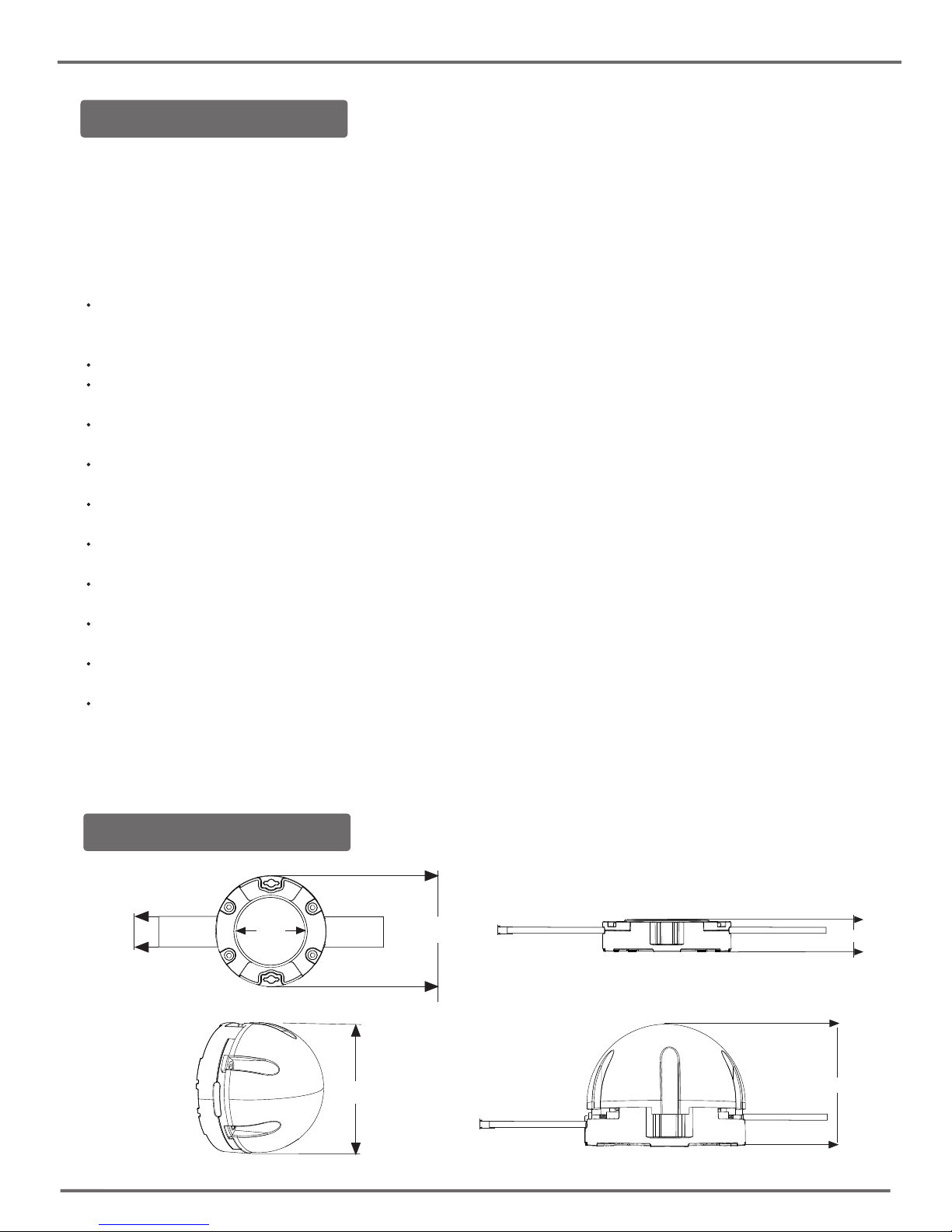

Dimension
Ø65mm / Ø2.55"
16,5 mm
0.64" 3mm / 0.11" 16mm / 0.62
Ø65mm / Ø2.55" 50mm / 1.96"
3mm / 0.11"
MPX6 DW Series are used in project such as media facades lighting, outdoor video display where high brightness, broad
color temperature and standard pixel pitch distance is needed. Splendid effects can be animated with large fixtures
without limitation of geometry, shape and range. It use X-PD 512 as a power supply. MPX 6DW Series produced in 100 mm,
200 mm, 300 mm, 400mm, 500mm pixel pitch in standard dimensions. However in case of customer demand, pixel pitch
distance can be customized. Dome cover can be used for changing angle and appearance. Unit consists of 6 LEDs and
can be seen from long distances.
· It communicates with other fixtures by standard DMX 512 and RDM protocols without requirements of any special
communication protocols or production identity. It is addressed by assigning start address to X-PD512, in the
sequel products address are assigned automatically. By courtesy of this feature pixel mapping and addressing are easier.
· Maximum 40 pixels can be linked in snake mode.
· This product is recommended to use with cable no longer than 30m due to its 24VDC working voltage. Starting cable (5m)
is included.
· Working status of fixtures, local temperature values, voltage input and output, serial number and DMX address
can be monitored via X-PD512. User is informed by mail and system can response automatically according to data.
· Fixtures work compatibly with Madrix® software and hardware. You can choose fixtures in library in order to have
easy pixel mapping.
· MPX 6DW Series are produced in 100 mm, 200 mm, 300 mm, 400 mm, 500 mm pixel pitch in standard dimensions. However in
case of customer demand, pixel pitch distance can be customized.
· Unit is produced in Direct View. Dome cover can be used for changing angle and appearance. Transparent and
opaque covers are resistant to UV light and impact. Due to its PMMA and PC materials, it will not go yellow.
· Fixtures are designed for harsh outdoor condition and resistant against vibration, impact and thermal shock owe to
their solid aluminum structures, special filling material and IP67 class protection markings.
· Power and data are transmitted by input and output connectors. IP68 screw type connectors can be installed
easily. Additional junction boxes are not needed with input and output.
· There are holes 4 mm in diameter for installation right and left side of fixture. Apart from that, there are slots for
steel rope 1mm in diameter.
· Fixtures are produced in RAL7016 grey color but according to customers' demand fixture can be painted to
different RAL colors.
42mm
1.65"
MPX6 DYNAMIC WHITE SERIES

Product Specifications
www.heraled.com 4
Light Source:
Lumen Maintenance:
Color Resolution:
Maximum in Chain:
Luminous Intensity:
Efficacy (lm/W):
Operating Voltage:
Power Consumption:
Control Interface:
Addressing:
Monitoring:
Housing:
Environment:
Operating Temperature:
Storage Temperature:
Voltage Monitoring, Temperature Monitoring, Status Monitoring, Power Cycle Monitoring, Lumen-Maintenance Life Monitoring with X-PD512
Die-Cast Aluminium Body
-40°C - 50°C (-40° - 122° F)
-40°C - 85°C (-40°C - 185° F)
Model
18pcs High intensity 3528 LEDs
60.000+ hours L70 @ 25° C (full output)
2 x 14-bit (Gamma correction)
Max 40pcs
24VDC
1,5W (all LEDs on)
USITT DMX 512 A
Auto Addressing
Direct View
Color Range: White CCT 2700-6500K
Diffused View
Product Specifications
Dimensions (H x W x D): Ø65x16 mm ( Ø2.55x0.62 in ) Ø65x50 mm ( Ø2.55x1.96 in )
Weight:
Viewing Angle: 120° 180°
Pixel Pitch: Standart 100mm-200mm-300mm-400mm-500mm, up to 1000mm for customized models
0.078 kg (0.17 lb) 0.094 kg (0.2 lb)
Certification:
PWM Frequency: 1,600Hz flicker free dimming to 0.1%
Please check IES and LTD Files out
Please check IES and LTD Files out
MPX6 DYNAMIC WHITE SERIES
I P67, IK09
EU EMC: EN 55024:2010/A1:2015, EN 55032:2015/AC:2016-07, -EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 61000-4-8
US Safety: UL 60950-22, UL 60950-1
US EMC: FCC Part 15 Class A
EU Safety: EN 60950-22:2006 + AC: 2008, EN 60950-1:2006+A2:2013, EN 62262:2002

www.heraled.com 5
Connection DiagramConnection DiagramConnection Diagram
Standart DMX Wiring Diagram
Outdoor Zone
DMX 1 DMX 2 DMX 3 DMX 4 DMX 5 DMX 6 DMX 7 DMX 8 DMX IN USB Ethernet
8
5 Pole Male XLR Connector
RJ45
RISK OF
ELECTRIC
SHOCK
90~264VAC 50/60Hz
AC Input
3 Pin VDE
The MADRIX Software is the ultimate
control tool for LED lighting.
Use pixel mapping at its best in 2D or 3D
PC
Ethernet
RJ45
RJ45 RJ45 RJ45 RJ45
RISK OF
ELECTRIC
SHOCK
90~264VAC 50/60Hz
RISK OF
ELECTRIC
SHOCK DMX Signal
* Maximum Leader Cable length must be 30 meters.
Maximum in Chain: 20 meters or 40 pieces
6 Pole Male
XLR Connector
2 Pin Power
Connector
RJ45
DMX IN DMX OUT
DMX Signal
Indoor Zone
MPX6 DYNAMIC WHITE SERIES

www.heraled.com 6

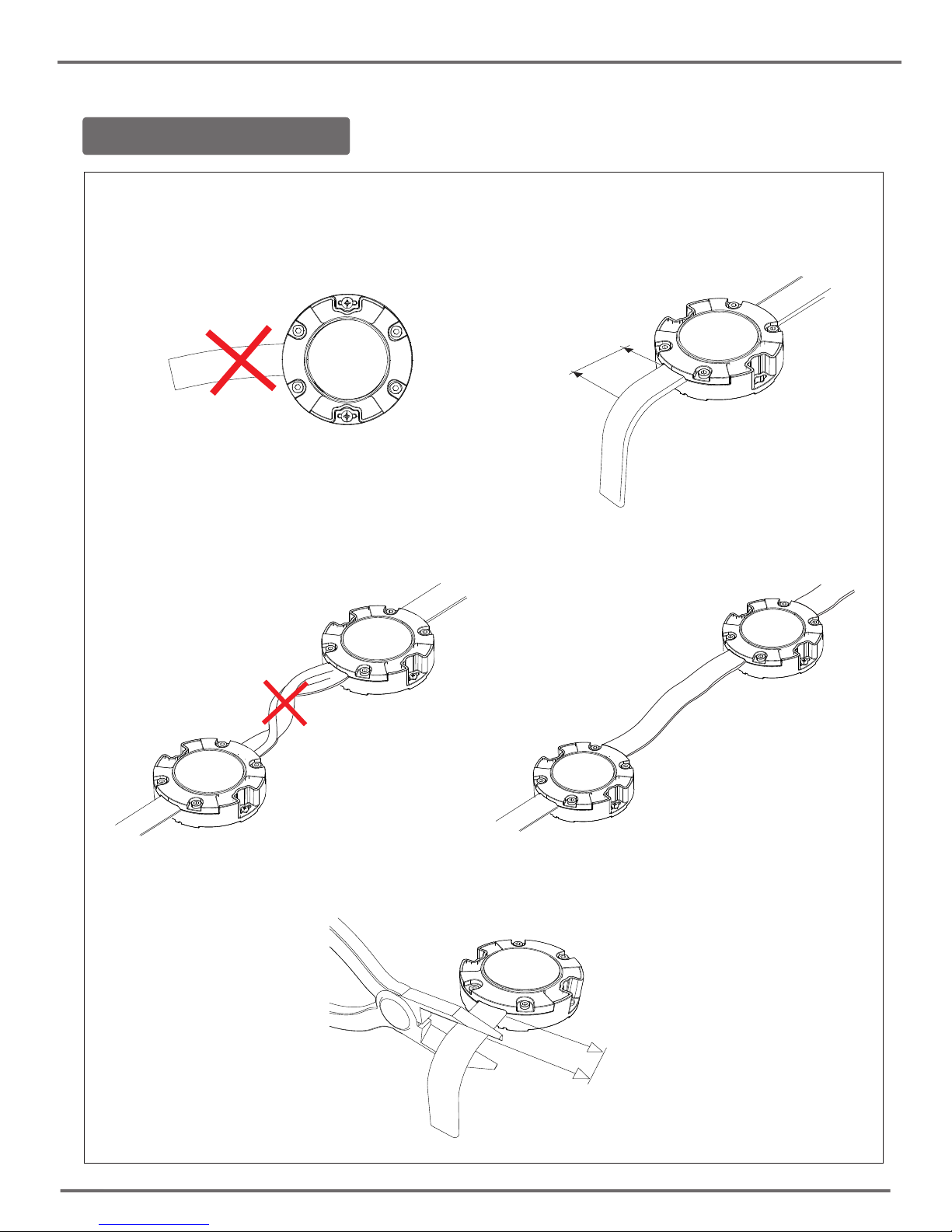

Installation InstructionInstallation Instruction
* Minimum clearance
from dot
20mm/0.79”
Warning!
*Do not twist the cable.
*Do not bend the cable.
* Install the product
without stretching the cable.
* Make space as 20mm cap.
20mm
MPX6 DYNAMIC WHITE SERIES

www.heraled.com 7

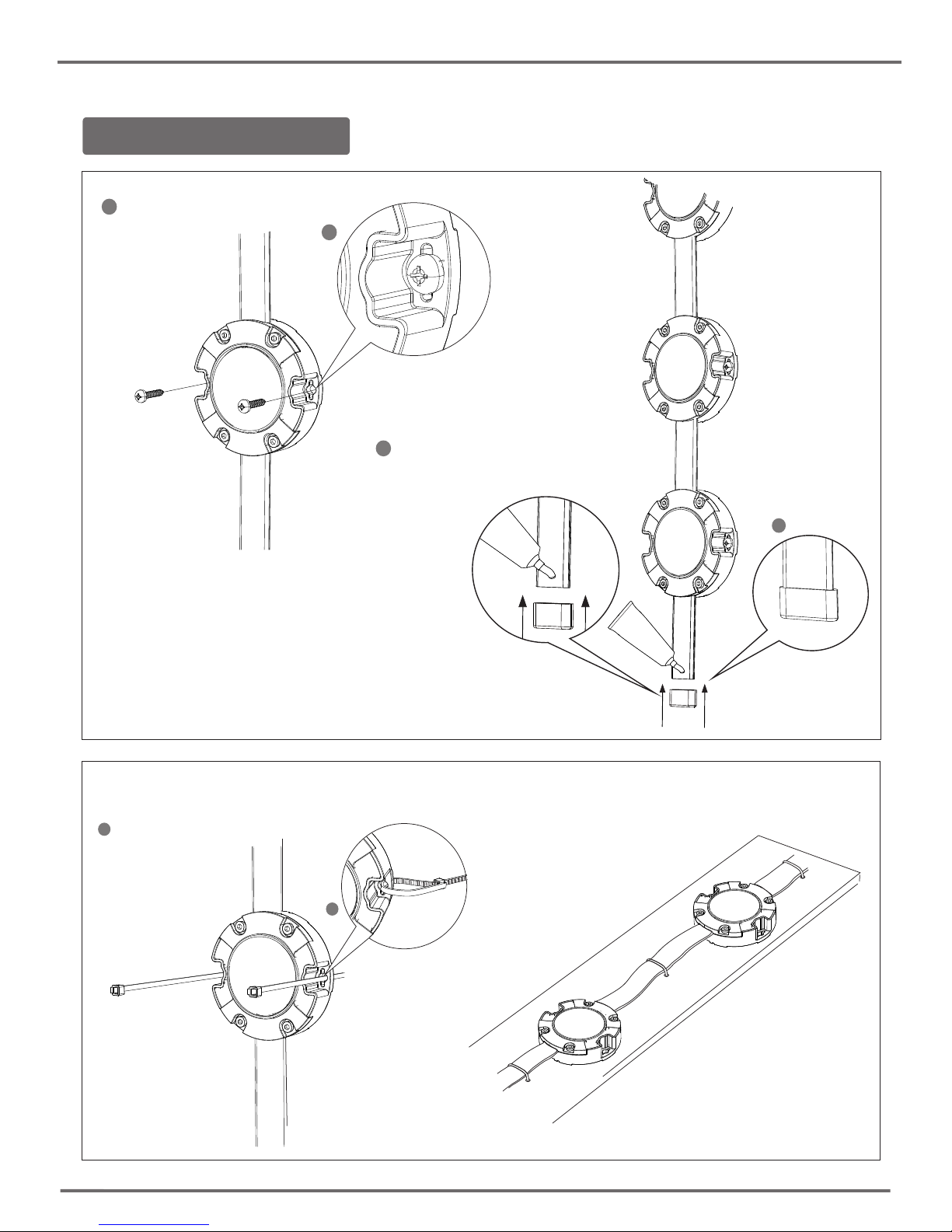

Installation Instruction
1
2
4
Install with the proper screw to the
montage area.
3Install cable cap by isolating the cable
with RTV silicon to protect last product cables
after montage.
1 Montage with plastic cable tie
as shown in the figure.
2
With Plastic Cable Tie Assembly
1
Montage without stretching product’s cables
in case of using plastic cable tie.
RTV Silicon
RTV Silicon
P20043
MPX Cable Cap
MPX6 DYNAMIC WHITE SERIES

www.heraled.com 8
Installation Instruction
Apply P20050 Steel Rope Mounting Bracked apparatus
on mesh implementation by following the steps as shown
in the figure.
With Mesh Installation
P20044 MPX Series For Dome Accessories Assembly
MPX6 DYNAMIC WHITE SERIES
Recommended Steel Rope Thicknees 1,5mm2

www.heraled.com 9
Ordering Information
*Standart product codes that we provided is above. Please contact us for special orders.
P01012125 MPX6-DW 100mm pitch 40 Pixel & 5m Leader Cable Sets
P01013125 MPX6-DW 200mm pitch 40 Pixel & 5m Leader Cable Sets
P01014125 MPX6-DW 300mm pitch 40 Pixel & 5m Leader Cable Sets
P01015125 MPX6-DW 400mm pitch 40 Pixel & 5m Leader Cable Sets
P01016125 MPX6-DW 500mm pitch 40 Pixel & 5m Leader Cable Sets
AccessoriesAccessories & Recommended Products
P20044
MPX Series For Dome
P08015
X-PD 512 RDM
Addressable Pixel Driver
20050
Steel Rope Mounting Bracked
P20040
3+5 Pin Leader
Cable for MPX Series 5Meter
P20041
3+5 Pin Leader
Cable for MPX Series 10Meter
P20042
3+5 Pin Leader
Cable for MPX Series 20Meter
20043
MPX Cable Cap
P08020
Mean Well ELG240-24A 240Watt
24V 8.4A IP67 SMPS
P08017
Mean Well ELG100-24A 100Watt
24V 8.4A IP67 SMPS
P08018
Mean Well ELG150-24A 150Watt
24V 8.4A IP67 SMPS
P08019
Mean Well ELG220-24A 200Watt
24V 8.4A IP67 SMPS
P08016
Mean Well ELG75-24A 75Watt
24V 8.4A IP67 SMPS
MPX6 DYNAMIC WHITE SERIES
