Hermes Yachting Alice Bavaria Cruiser 51 2016 User manual
Operation Manual
Alice Bavaria Cruiser 51 2016
Σελίδα 2από 25
Operation Manual
INTERIOR 4
Control Panel 4
AC Distribution Standard 230V 5
Battery Charger Location 6
Interior Radio 7
Exterior Radio 10
VHF 11
GMDSS 12
General Switches 12
Service 12
Engine 13
Thruster 13
Thermal Fuses 13
Anchor fuse 13
Batteries Location 14
Service 14
Engine 14
Thruster 14
Water System 15
Location of fresh water pump/ Location water tank switch 15
Location bilge pump 15
Operation of toilet 16
Operation of shower pumps 16
Operation /Location of Waste tanks/valves 17
Oven/Stove 18
Location of gas valves inside 18
Location of Gas bottles 18
Engine 19
Emergency stop 19
Engine oil check 19
Saildrive oil check 19
ΕΧTERIOR 20
Engine Control Panel 20
Σελίδα 4από 25
INTERIOR
Control Panel
Yacht control panels are electronic devices for the remote control of one or more
pieces of equipment including windlasses, navigation lights, and thrusters.
These devices can control the windlass, thrusters, navigation lights, alarms,
video surveillance systems, windshield wipers, engines, fuel, water and oil
levels, generators and other equipment.
The control panel is important because:
1. It is responsible for monitoring the health of Yacht
2. Keeping you safe
Σελίδα 5από 25
AC Distribution Standard 230V
1st
GENERAL SWITCH
2nd
WATER HEATER/BOILER
3rd
OUTLETS HEADS
4th
OUTLETS CABIN AND SALON
5th
CHARGER, MICROWAVE etc
Σελίδα 6από 25
Battery Charger Location
A battery charger or recharger is a device that stores energy in a battery by running an
electric current through it. The Cristec Charger supplies a maximum capacity
wherever you are via auto-ranging.
You will find it at the floor under of the chart table.
Σελίδα 7από 25
Interior Radio
Radio works by transmitting and receiving electromagnetic waves. The radio signal is
an electronic current moving back and forth very quickly. A transmitter radiates this
field outward via an antenna; a receiver then picks up the field and translates it to the
sounds heard through the radio.
Σελίδα 8από 25
Σελίδα 9από 25
Σελίδα 10 από 25
Exterior Radio
Σελίδα 11 από 25
VHF
A very high frequency (VHF) transceiver is a device that is composed of a transmitter
and receiver that operates between 30 megahertz (MHz) to 300 megahertz (MHz).
The wavelength of a VHF transceiver varies between 39.37 inches (1 m) to 393.70
inches (10 m), mainly depending on the frequency used.
Σελίδα 12 από 25
GMDSS
The Dual Energy Power Supplies and Battery Chargers are
designed and developed for charging and maintenance of
voltage on lead-acid batteries and provide consistent and
uninterrupted power supply (main or backup). You will find it
inside the seat of the chart table.
General Switches
This battery master switch functions as a battery isolator and a theft deterrent device.
The battery master switch is commonly used in vehicle applications, such as marine,
transportation and automotive. The switch has an impact-resistant housing and has a
detachable key for added security.
Service
You will find the service battery switch next to the control panel. Also, inside at the
cupboard next to the chart table you will
find a remote battery switch.
Σελίδα 13 από 25
Engine
You will find the main switch that turns off the boat's currents
under the stairs.
Thruster
The switch that turns off the Thruster battery power will be found at
the bow cabin inside the closet.
Thermal Fuses
Fuses are mechanisms that are inserted into an electrical circuit in order to interrupt
the supply of electricity throughout the electrical installation or in individual circuits
of the installation, when large current values occur due to short circuit or overload to
protect the wiring lines. Are always installed after the circuit breakers and are never
installed in ground conductors. The use of these fuses is as follows:
Anchor fuse
At the image indicates fuse of the Windlass at the left. In case the fuse
has fallen, you will see a yellow plastic protruding upwards, almost
vertically, with the use of your hand (fingers) you press the yellow
plastic downwards so that it reaches a horizontal position and clicks.
Then does an operation test to find out if everything is working
properly. You will find it under of the chart table.
Σελίδα 14 από 25

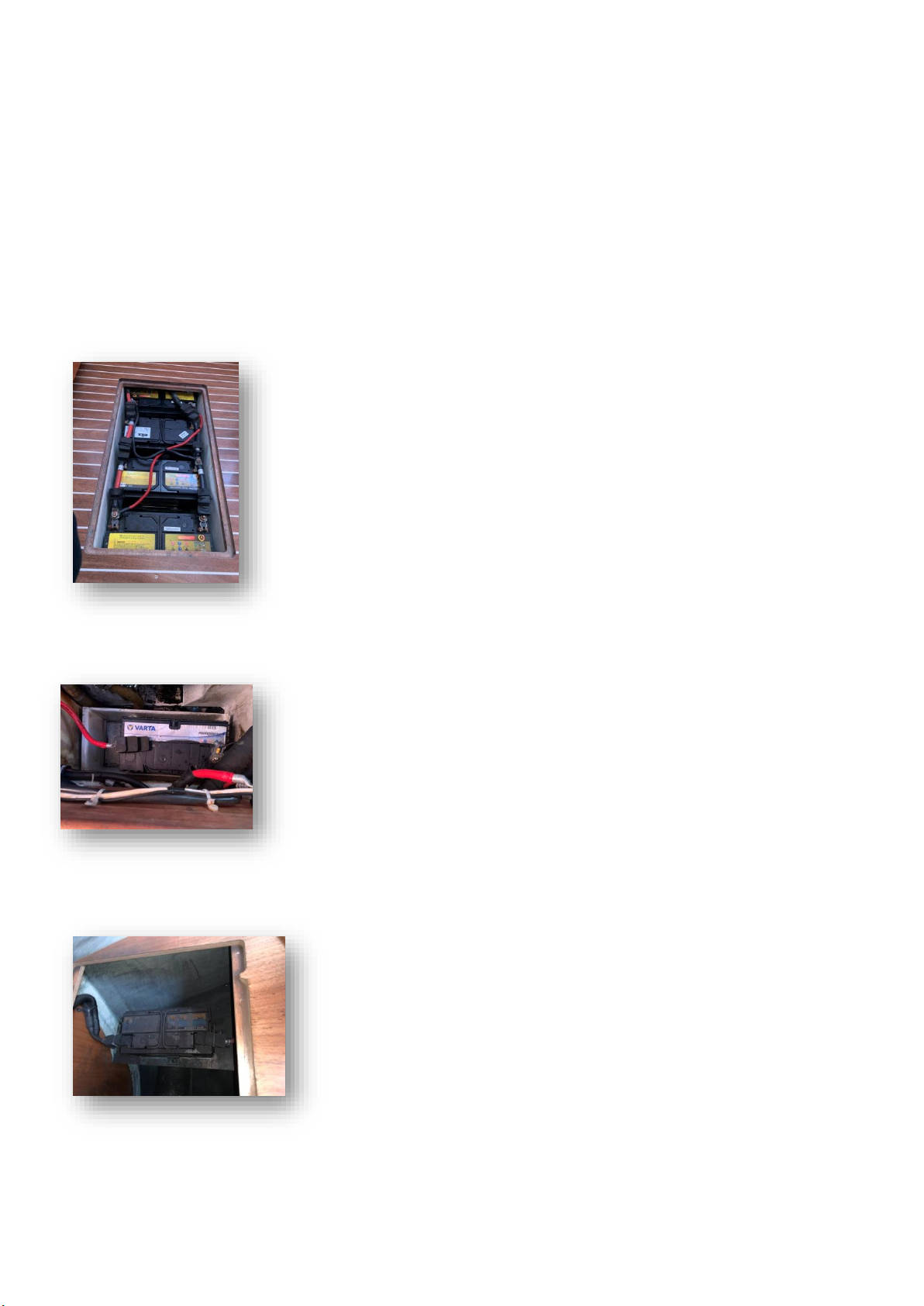

Batteries Location
A battery is a device that stores chemical energy and converts it to electrical energy.
The chemical reactions in a battery involve the flow of electrons from one material
(electrode) to another, through an external circuit. The flow of electrons provides an
electric current that can be used to do work.
Service
You will find the service batteries in front of the oven, at the
floor. You need to open the cup.
Engine
You will find the engine battery at the engine room.
Thruster
You will find the thruster batteries on the bow cabin right
under the bed.
Σελίδα 15 από 25
Water System
Freshwater pumps deliver water to fixtures onboard a boat. Pressurized water systems
make life aboard more comfortable by providing water "on tap" for dishwashing,
showers and other applications.
Location of fresh water pump/ Location water tank switch
If you want to change the water tanks, you need to go at
the stern right toilet, under the bath sink, you will find the
valves. When you turn on one of the valve the others must
be closed. When the letters are parallel with pipe it is
open, when the letters are vertical the pipe it is off.
Location bilge pump
A bilge pump is a water pump used to remove bilge water.
You will find it on the floor and under the stairs. On this yacht
the bilge pump is automatic. So keep the corresponding button
always on.
Σελίδα 16 από 25
Operation of toilet
The toilet is one of the most used pieces of equipment on your boat. Correct operation
of the toilet is essential for the safety and comfort of your crew and craft.
Half flush option provides a flush operating for five seconds with
approximately two liters water delivery.
Full flush option provides a flush operating for ten seconds with
approximately four liters water delivery.
NOTE: Do not put in: Sanitary Towels, Wet Strength Tissues, Cotton
Wool, Cigarettes, Matches, Chewing Gum, or any solid objects,
Petrol, Diesel, Oil, Solvents of any kind or water more than hand hot.
Operation of shower pumps
On this boat the shower pumps are automatics. You need only
to press F5 from the control panel for shower place.
When the pump is fitted with a special negative head kit, the
shower is operated by turning on the mixer valve and starting
the pump by turn on the switch once. The pump will then run as
normal, don’t forget to switch off the shower pump after use.
Σελίδα 17 από 25
Operation /Location of Waste tanks/valves
A stop-and-waste valve is a fitting that
attaches to your irrigation sprinkler lines, and
it prevents waste from freezing. When closed,
they go to waste tank until you open the
valve.
As all valves, when it's vertical to the tube
connected to it, it is closed and the excrement ends at the waste tanks. When it is
parallel to the tube then it is open and the waste tank contents are emptied to the sea.
You will find three waste valves, the 1st at the bow toilet inside the cap, the 2nd is at
the stern left toilet under the bath sink and the 3rd is at the stern right toilet under the
bath sink.
Σελίδα 18 από 25
Oven/Stove
In order to turn on the oven or a hob, press the respective switch
inwards and turn clockwise. Without letting go light up the hob
with a lighter and hold for 5 seconds, then release. If the flame
does not hold try holding in the switch for longer. Also make sure
no liquids are spilled on the hobs.
Location of gas valves inside
In case you need to insulate the gas inlet in the kitchen up to the oven,
opening the cupboard there is the gas outlet valve for the kitchen.
When the valve is parallel to the pipe it is open and when it is
perpendicular to the pipe it is closed.
Location of Gas bottles
For more safety if you want to close all system of gas you
need to go outside at the port side and to open the locker.
There, you will find the bottle gas. If you turn the valve
clockwise you open the gas system and when you turn the
valve from the other direction you close the gas system.
Σελίδα 19 από 25
Engine
An engine is some machine that converts energy from a fuel to some mechanical
energy, creating motion in the process.
Emergency stop
IN CASE OF EMERGENCY AND ONLY IN THIS CASE!!!
If you need to turn off the engine, you will be directed to the engine
room, you have a picture of the engine as in the photo.
If you want to turn it off, you will press the stop button down
continuously until the engine stop.
Engine oil check
If you want to check your oil, you will be directed to the
stern right cabin to have a picture of the engine oil as in
the photo.
Saildrive oil check
If you want to check the saildrive oil, you will be directed
to the stern right cabin you have a picture of the engine oil
as in the photo.
Σελίδα 20 από 25
ΕΧTERIOR
Engine Control Panel
An engine control unit (ECU), also commonly called an engine control
module (ECM), is a type of electronic control unit that controls a series
of actuators on an internal combustion engine to ensure optimal engine performance.
-Make sure engine is in
neutral.
-Press the ignition
switch then press the start
button until you hear the
engine running.
-When the engine is
running check to make sure
you have water coming out of
the exhaust.
-
-To stop the engine press the stop button until the engine has stopped.
-An alarm will sound after you stop the engine. Press the ignition once more to
turn off the ignition
Thruster Controller
Thrusters are designed with propellers facing in a sideways direction so when they are
turned on, they push the bow or stern of a boat sideways through the water, in
either direction. If only one thruster is used, for example in the bow, then the boat will
also turn and change orientation.
1. Turn main power switch for the bow thruster on. (Always turn off the main power
switch when not onboard.)
2. Please take some time to exercise thruster usage in open
water to avoid damages to your boat.
3. Turn the control panel on by pushing both "ON" buttons on
the original Side-Power panel simultaneously. If another type
of control is installed, engage the On/Off switch for the bow
thruster.
4. Turn the bow in the desired direction by pushing the red
button for port movement or the green button for starboard
movement. If you have a joystick control, move it in the
