Aqua-Marina BT-88810 User manual

INFLATABLE
SPORT BOATS
User’s Guide
Model: BT-88810, BT-88830, BT-88850, BT-88850AD，BT-88850AL
BT-06300WD, BT-06300AL, BT-06330WD, BT-06330AL，BT-06360WD，BT-06360AL
2016-2017 Version
www.aquamarina.com

2
STANDARD EN ISO 6185-2:2001
DESIGN CATEGORY C
BOAT TYPE TYPE V
ORIENTAL RECREATIONAL PRODUCTS (SHANGHAI) CO., LTD
NO. 1699 Da Ye Road, Fengxian, Shanghai, China
WWW.AQUAMARINA.COM MADE IN CHINA
BOAT MODEL BT-88850
=
7.5
kw
9.9
HP
=
3
=
1
=
320 kg (705 lbs)
=
0.16 bar (2.32 psi)
S/N CN-ORP
DATE
N.W
33.5 kg (73.9 lbs)
THANK YOU FOR CHOOSING AQUA MARINA
DELUXE SPORT BOATS
Compact and lightweight, these economical inflatable boats are great ship to shore tender crafts
or a highly portable pleasure boat for the boater on the go. Bring your roll-up boat with you to the
lake, the beach or wherever! With a set-up time of just minutes, no trailers and no special
equipment, these boats will allow easy access to some of those places you've only seen from
the shore. Various floor decks can be chosen at your disposal. Optional FRP console and
steering wheel remote control system enriches your fun of fishing and boating.
This manual has been compiled to help you achieve long term safe use and pleasure from your
Aqua Marina® boats.
GENERAL INFORMATION
SAFETY
In a manual of this type it is impossible to give adequate space to the topic of water safety.
Check in your local area for information and/or training as needed. Inform yourself about local
regulations and dangers related to boating and/or other water activities. It is your responsibility to
be aware of and comply with all relevant safety regulations. For all water recreation or sport you
should have a reasonable swimming ability. Just as swimmers have a cardinal rule about not
swimming alone. It is strongly advised that you should never go boating alone.
PLEASE KEEP THIS MANUAL IN A SECURE PLACE, AND HAND IT OVER TO THE NEW
OWNER WHEN YOU SELL THE CRAFT. RECORD THE "HULL IDENTIFICATION NUMBER"
(HIN) WHICH IS LABELLED ON THE BOAT
MANUFACTURER’S CERTIFICATION
Our boats comply with the ISO 6185 standard
established by the International Organization
for Standardization.

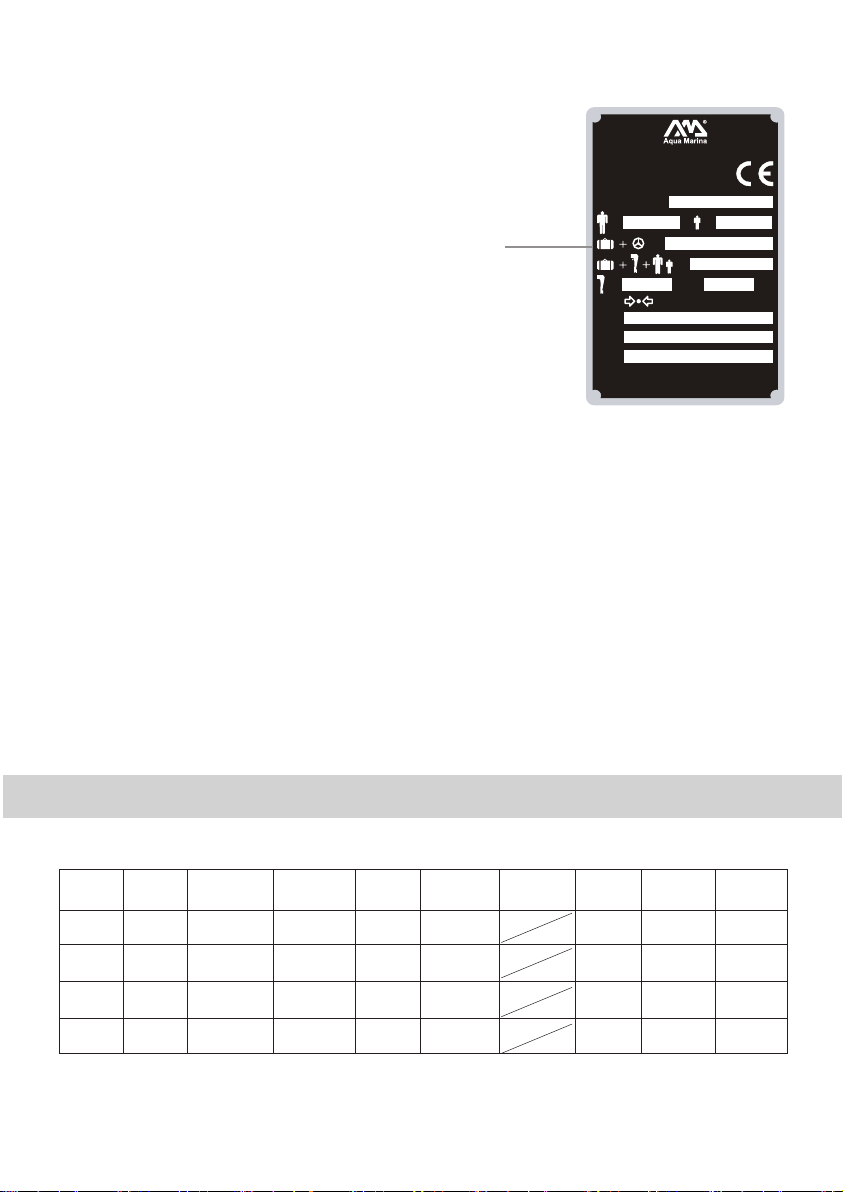

MANUFACTURER’S RECOMMENDATION
The total number of persons, motor power
and total weight shall not exceed the limits
labeled (Fig. 1) on the boat.
S/N
Fig.1
1
2
3
4
5
6
7
Label format for boat without the console

3
STANDARD EN ISO 6185-2:2001
DESIGN CATEGORY C
BOAT TYPE TYPE V
ORIENTAL RECREATIONAL PRODUCTS (SHANGHAI) CO., LTD
NO. 1699 Da Ye Road, Fengxian, Shanghai, China
WWW.AQUAMARINA.COM MADE IN CHINA
BOAT MODEL BT-06300WD
=
7.5
kw
9.9
HP
=
4
=
0
=
360 kg (794 lbs)
=
0.16 bar (2.32 psi)
S/N
CN-ORP
DATE
N.W
39 kg (85.8 lbs)
=
3
1. 94/25/EC as amended by Directive 2003/44/EC boat
Design Category C - Inshore: Designed for voyages
in coastal waters, large bays, estuaries, lakes and
rivers where conditions up to, and including, wind
force 6 and significant wave heights up to,
and including, 2m may be experienced.
2. Maximum person’s capacity without console
3. Manufacturer’s recommended maximum
load capacity
4. Maximum motor power
5. Manufacturer’s recommended working
pressure
6. Hull identification number (HIN)
7. Net weight
8. Maximum person’s capacity with console
SAFETY CHECK LIST & SAFETY WARNING
• Always wear an approved Personal Flotation Device (Life Preserver).
• Be aware of your local boating rules and regulations and abide by them accordingly.
• Check inflation levels each time before you go out and inflate your boat for a full 24 hours
before undertaking long trips.
• DO NOT allow children to use Aqua Marina unsupervised.
• DO NOT consume alcohol while boating or operating a boat while under the influence of
alcohol or drugs.
• DO NOT drag your Aqua Marina over rocks or gravel if it can be avoided.
• DO NOT exceed the certified maximum capacities of this boat under any circumstance.
• DO NOT go boating alone.
• DO NOT use compressors, co2 or compressed air for inflation, only use Aqua Marina
recommended pumps.
• DO NOT use your Aqua Marina Boat as a personal flotation device as they are designed for
leisure/recreation in mind.
• DO NOT sleep inside of your Aqua Marina while on the water.
INFLATABLE BOAT SPECS & FEATURES
SPECIFICATIONS
BT-
88810
BT-
88830
BT-
88850
BT-
88850AD
Category Item size Air
pressure
No. of air
chamber
Max.
passenger
w/o console
Max
passenger
w/ console
Max.
payload
Max.
motor
power
Net
weight
C
C
C
C
8’2”×4’3”
(2.5×1.29m)
8’2”×4’3”
(2.5×1.29m)
9’1”× 4’11”
(2.77×1.50m）
9’1”× 4’11”
(2.77×1.50m)
0.16bar hull
0.16bar hull
0.04bar floor
0.16bar hull
0.16bar hull
3
3+1
3+keel
3+keel+1
2+1
2+1
3+1
3+1
240kg
(529lbs)
240kg
(529lbs)
320kg
(705lbs)
320kg
(705lbs)
4HP/3KW
4HP/3KW
9.9HP/
7.5KW
9.9HP/
7.5KW
25kg
(55.1lbs)
21kg
(46.3lbs)
33.5kg
(73.9lbs)
32kg
(70.4lbs)
Fig.1
8
Label format for boat with the
*optional console

4
STANDARD EQUIPMENT
DESCRIPTION
NOTE: Drawings and pictures for illustration purpose only. Actual product may vary.
Not to scale.
BT-
88850AL
BT-
06300WD
BT-
06300AL
BT-
06330WD
BT-
06330AL
BT-
06360WD
BT-
06360AL
BT-88810
BT-88830
BT-88850
BT-88850AD
BT-88850AL
BT-06300WD
BT-06300AL
BT-06330WD
BT-06330AL
Wooden bench
seat
Pressure
gauge Hand pump Repair kit Carry bag Aluminum
oar
Model
Category Item size Air
pressure
No. of air
chamber
Max.
passenger
w/o console
Max
passenger
w/ console
Max.
payload
Max.
motor
power
Net
weight
C
C
C
C
C
C
C
1pc 1pc
19” hand pump
16” hand pump 1pc
(repair patch and
glue 30ml)
1pc 1pair
9’1”× 4’11”
(2.77×1.50m)
9’9”× 5’
(2.96×1.53m)
9’9”× 5’
(2.96×1.53m)
11’ ×5’
(3.30×1.53m)
11’ ×5’
(3.30×1.53m)
12’ ×5’9”
(3.59×1.76m)
12’ ×5’9”
(3.59×1.76m)
0.16bar hull
0.16bar hull
0.16bar hull
0.25 bar hull
0.25 bar hull
0.25 bar hull
0.25 bar hull
3+keel
3+keel
3+keel
3+keel
3+keel
3+keel
3+keel
3+1
4
4
5
5
5+1
5+1
2+1
3
3
4
4
4+1
4+1
320kg
(705lbs)
360kg
(794lbs)
360kg
(794lbs)
480kg
(1058lbs)
480kg
(1058lbs)
540kg
(1190lbs)
540kg
(1190lbs)
9.9HP/
7.5KW
9.9HP/
7.5KW
9.9HP/
7.5KW
15HP/
11KW
15HP/
11KW
20HP/
14.7KW
20HP/
14.7KW
35kg
(77LBS)
39kg
(85.8lbs)
41kg
(90.4lbs)
43kg
(94.6lbs)
42kg
(92.4lbs)
59kg
(129.8lbs)
57kg
(125.4lbs)
BT-06360WD
BT-06360AL
13
2
10
1
4
78
16
3
14
11
12
9
515
6
BT-06360

5
BOAT DECK:
1
4
7
10
13
16
2
5
8
11
14
3
6
9
12
15
Boat deck
Aluminum oar
Transom (Height15”/38.1cm)
Rubbing strake
Seat connector
(1 pair for BT-88810,BT-88830, BT-88850,
BT-88850AD/AL, BT-06300WD/AL,
2 pairs for BT-06330WD/AL, BT-06360WD/AL)
Tank fixing band
(For BT-88850AD/AL, BT-06300AL,
BT-06330AL,BT-06360WD/AL)
Recessed pressure valve
Rotation oarlock
(except BT-06360AL/WD）
Engine mount
Wooden bench seat
Safety grab handle
(2 pairs for BT-88810, BT-88830, 3 pairs for
BT-88850, BT-88850AD/AL BT-06300WD/AL,
BT-06330WD/AL, BT-06360WD/AL)
Oar holder
Velcro for oar
(only BT-06360AL/WD）
D-ring & towing rope
Inflatable keel (except BT-88810/30)
PVC lift handle
(1 pair for BT-06300WD/AL, BT-06330WD/AL,
2 pairs for BT-06360WD/AL)
Deck type Images models No.of decks No. of stringers
Slat wood deck
Inflatable deck
BT-88810 5 pcs
BT-88830
Wood deck
Aluminum deck
BT-88850
BT-06300WD
BT-06330WD
BT-06360WD
BT-06300AL
BT-06330AL
BT-06360AL
1 pc
1 pc
4 pcs
4pcs（A type
for both sides）
3pcs(”I” shape
among decks )
3 pcs 2pcs （A type
for both sides）
4pcs（A type
for both sides）
4 pcs
BT-88850AL
Air deck BT-88850AD
4
23
1
2
1
3
4
3
2
1

6
SET UP INSTRUCTION
UNFOLD THE BOAT
Choose a smooth and clean surface to
spread the boat out so that the inflatable
chambers can fill easily.
SLAT WOOD INSTALLATION (for BT-88810)
Clear a flat area (make sure it is clean and free of sharp objects). Remove the hull from box and
take off the plastic bag. BT-88810 is the easiest tender to set-up, it has slat floorboards ready to
be assembled, so just unroll the hull and lay it out. Insert the five slat wood deck boards with
proper order into boat floor.
ALUMINUM FLOOR INSTALLATION
1. BT-88850AL
1.1 Start the assembly from deck board installation. Insert the Board #1 into the bow and push it
forward until the Air Valve of the inflatable Keel is aligned with the hole on the board. Lift the
sides of the boat as necessary in order to slide the Board #1 into place. (Fig. 3)
1.2 Insert the Board #3 into the stern and push the board under the transom. (Fig. 2)
1.3 Align the slot on the Board #1 with the protrusion of Board #2 and push the two pieces
together. (Fig. 4)
1.4 Lift up Board #2, align the protrusion of Board #2 with the slot on the Board #3 and push the
two boards down making them flush. (Fig. 4)
1.5 Attach the two side stringers to keep the floorboards securely in place. (Fig. 1)
2. BT-06300AL/BT-06330AL/BT-06360AL
1.1 Start the assembly from deck board installation. Insert the Board #1 into the bow and push it
forward until the Air Valve of the inflatable Keel is aligned with the hole on the board. (Fig. 1)
1.2 Insert the Board #4 into the stern and push the board under the transom. (Fig. 2)
1.3 Align the protrusion of Board #1 with the slot on the Board #2 and push the two pieces
together. (Fig. 4)
Fig.1 Fig.2 Fig.3 Fig.4
11
23
123
3
2
3
1
1
4
4
Fig.1 Fig.2 Fig.3 Fig.4

7
1.4 Align the protrusion of Board #3 with the slot on the Board #4 and push the two pieces
together. (Fig. 4)
1.5 Lifting up Board #2 and #3, align the protrusion of Board #2 with the slot on the Board #3 and
push the two boards down making them flush. (Fig. 4)
1.6 Place the two curved and straight stringers to keep the floorboards securely in place. (Fig. 1)
NOTE:
• The floorboards must be assembled before inflating the boat.
• Identifying numbers on the floorboards must be faced upwards.
• After the assembly, carefully check the floorboards are secured and tight. If the floorboards
are not tight or smooth, re-do the assembly.
Fig.1
Fig.2
Tip: It's better to inflate the boat about 20% before Aluminum floor installtion.
a. Insert front bow section of the floor.(Fig.1)
d. Step on raised part of two connected floor sections and make sure that floor will flatten by
spreading inside the boat.(Fig.4) .Connect the side stringers.(Fig.5)
b. Insert second and last sections of the floor.(Fig.2)
Fig.3
c. Lift the middle section a bit and create a roof-like structure.（Fig.3)

8
back
bow
Fig.2
Tip: It's better to inflate the boat about 20% before plywood deck installation.
a. Start by fitting the wooden bow board between the air tubes and bottoms. Push it forward as
far as possible until it reaches the top of the bow (Fig. 2) and the air valve of the inflatable floor
fits into the hole of the stern wooden board. Fit the back board to the rear end. (Fig.3)
c. Step on raised part of two connected floor sections and push down the two boards at the joint.
Make sure the deck is flatten by spreading inside the boat (Fig 4).
Fig.3
b. Lift the middle section a bit and create a roof-like structure.(Fig.3)
Fig.4 Fig.5
Fig.1
e. Inflate the left and right tube of the boat firstly and then inflate bow section of the boat. Finally,
inflate the keel. Use hand pump to finish.
WOOD DECK INSTALLATION
1. BT-88850
BT-88850 is equipped with a foldable floorboard system. (Fig. 1)

9
Fig.2
b. Insert second and last sections of the floor.(Fig.2)
1.3 BT-06300WD/BT-06330WD/BT-06360WD
1.1 Start the assembly from deck board installation. Insert the Board #1 into the bow and push it
forward until the Air Valve of the inflatable Keel is aligned with the hole on the board. (FIG. 1)
1.2 Insert the Board #4 into the stern and push the board under the transom. (FIG. 2)
1.3 Connect the Board #1 with Board #2 by inserting the “I” shape stringer. (FIG. 3)
1.4 Connect the Board #3 with Board #4 by inserting the “I” shape stringer. (FIG. 4)
1.5 Connect the Board #2 with Board #3 by inserting the “I” shape stringer (FIG. 4)
2
3
4
1
4
1
4
3
2
1
Tip: It's better to inflate the boat about 20% before wooden floor installation.
Fig.4
d. Inflate left and right tube of the boat firstly and then inflate bow section of the boat. Finally,
inflate the keel. Use hand pump to finish.
Fig.1
a. Insert front bow section of the floor.(Fig.1)
Fig.2Fig.1 Fig.3 Fig.4

10
Fig.3
c. Lift the middle section a bit and create a roof-like structure.（Fig.3)
Fig.4
d. Step on raised part of two connected floor sections and make sure that floor will flatten by
spreading inside the boat.(Fig.4)
Fig.5
e. Connect the side stringers.(Fig.5)
Fig.6
f. Inflate left and right tube of the boat firstly and then inflate bow section of the boat. Finally, inflate
the keel. Use hand pump to finish.(Fig.6)

11
VALVE OPERATION
Follow the instructions below for valve operation and correct inflation and deflation procedures.
(This kind of valve is used for the boat hull, keel and air deck floor for BT-88850AD)
To close off the valve for inflation, make sure that the center
valve pin is in the “UP” position. If it is in the “down” position,
press down on the valve pin and turn it counterclockwise
until it pops up.
VALVE DIAGRAM
To open the valve for deflation, press down on the valve pin
and turn it clockwise so it locks down.
Be careful of any sand or debris around the valve area
when deflating as small particles could become airborne
with the release of the air pressure.
Always lock the valve cover over the valve stem when in
use. This will prevent accidental air release and entrance of
any particles into the air chambers.
INFLATION STEPS
1. Ensure the air valve’s center pin is properly in position by rotating the control stem until it pops
out. This ensures no air escapes during inflation.
2. Inflate the hull. After inflation, insert the provided pressure gauge into the air valve to check
the air pressure. The ideal pressure is 0.16bar - 0.25bar. (Fig. 1)
3. Inflate the keel (BT-88810, BT-88830 excluded)
Stop inflating until the pressure reaches 0.3bar. (Fig. 2)
Valve cap
Button
Valve base
Fig.2Fig.1

12
4. Inflate the floor (only BT-88830)
Inflation valve operation for BT-88830
1. Open the external cap and pull firmly to make it pushed out. (Fig.1)
2. Attach a suitable adapter nozzle to the inflation end of the pump. Insert the pump and start
pumping. (Fig.2)
3. When the boat is fully inflated, gently twist the adapter sleeve to right while backing pump out
of the valve. (Fig.3)
4. Fully remove the adapter and close the external stopper. (Fig.4)
After inflation, make sure the pressure of boat deck is 0.04bar.
NOTES: Check the pressure every time before usage. Air temperature and weather conditions
do affect the internal air pressure of inflatable products. In cold weather the product will lose
some pressure due to the fact that the air will contract. If this occurs, you may want to add a
little air to the product. However, in hot weather, the air will expand. You must let some air out to
prevent the product from failing due to overpressure.
• Only use Aqua Marina® approved inflation pumps.
• Never use motor-driven high-pressure air pumps as this may result in over-inflation. Fill with
cold air only.
• Under and over-inflation will result in safety hazards.
• Always check the inflation pressure before using the boat.
• Never stand on or rest objects on the boat during inflation.
• Never open the cap of air valve while the boat is in use.
• Be sure the valve is tightly closed before using the boat.
ACCESSORY ASSEMBLY
1. Wooden bench seat installation
Slide the bench seat into the position by inserting the flaps on both chamber of the boat into
notches on the Seat Board. Optional accessory like Swivel Seat (B0301762) can be installed on
the top of bench seat for fishing.
2. Insert the plug into the drain valve on the transom
Always make sure the plug is secured into the valve before launching the boat and do not open
while afloat.
Fig.1 Fig.2 Fig.3 Fig.4

13
OUTBOARD MOTOR INSTALLATION
After the boat is fully inflated and well assembled, attach your outboard motor onto the Engine
Mount at the center of the transom.
NOTE:
• Ensure the motor is always fixed on the transom.
• Read the instruction manual of the outboard motor for correct installation and operation.
WARNING: Overpowering a boat can result in serious injury, death or boat damage. Find the
maximum motor power marked on the boat label.
OPTIONAL CONSOLE INSTALLATION
Refer to AM removable fiberglass steering console instruction.
NOTE: The console should be installed before the inflation of keel

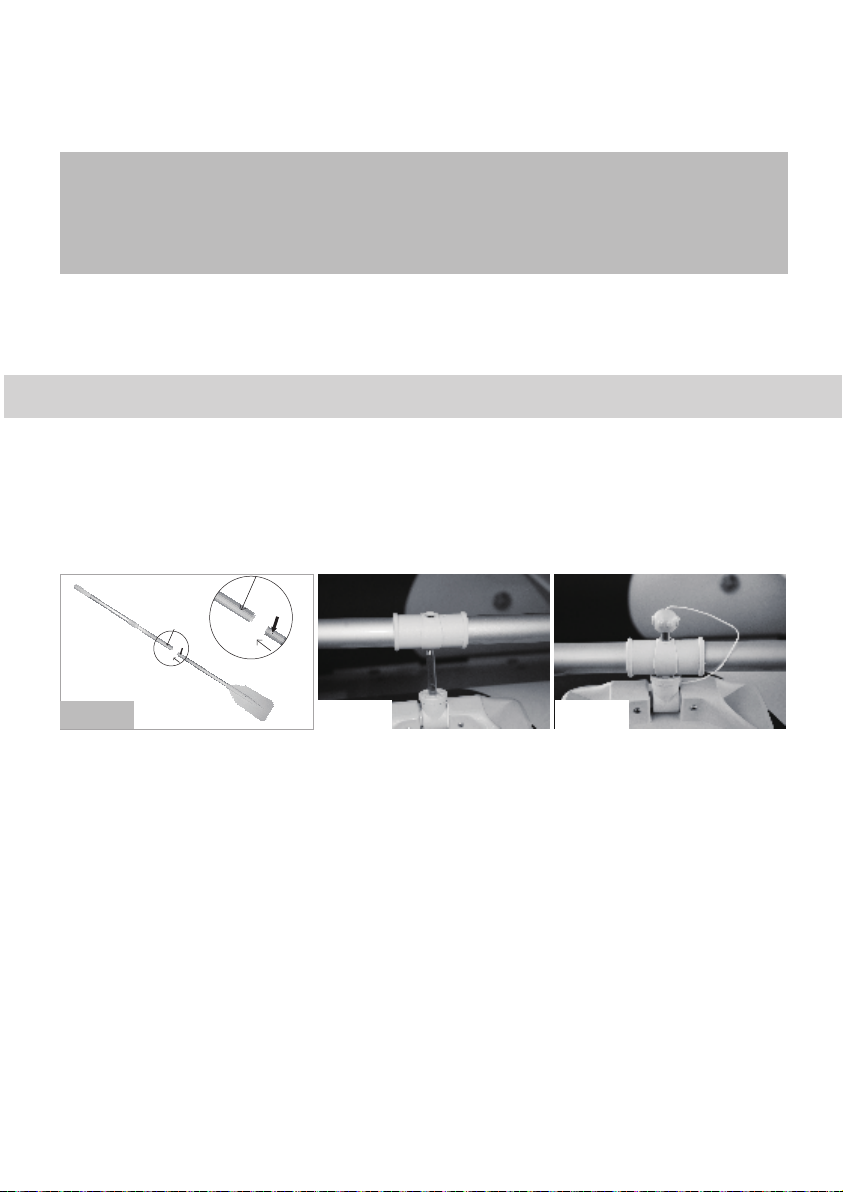

OAR ASSEMBLY INSTALLATION
1. Join the two shafts of the oars together with the couplers and securely tighten the couplers
covers. (Fig. 9)
NOTE: Completely insert the shafts into the Couplers or damage may occur.
2. Attach the oars to the rotation oarlocks and lock them into position. (Fig. 10 & 11)
NOTE: When the oars are not in use, insert the oars into the Oar Holders to avoid damage and
loss.
Pin
Fig.9 Fig.10 Fig.11

14
1 2
43
PRODUCT CARE AND STORAGE
The boat is made of the highest quality materials and complies with ISO 6185 standards. Altering
the construction of the boat will endanger your own safety, safety of the occupants and void the
limited warranty!
There is very little that you have to do to keep your boat in good condition for many years.
• When landing on the shore, carry the boat. Do not tow it on the sand or ground as damage
may occur.
• If you use the tow rings to tow the boat, go slowly to avoid over-towing as damage may occur.
• Clean your boat after a trip to prevent damage from sand, salt water or sun exposure. Most
dirt can be removed with a garden hose, a sponge and mild soap. Make sure the boat is
completely dry before storing. Use as few cleaning agents as possible, do not discharge
waste agents into water, and clean your boat preferably on land.
• Be sure your product is completely dry before storing.
• The products may be stored inflated, but do not place any heavy or sharp objects on it.
Hanging the boat is not recommended.
• Open all air valves including the keel’s and deflate boat completely. Remove all the
accessories from the boat; floor boards, seats and oars.
• Fold the boat from back to front to remove additional air. The boat storage bag is designed to
allow you to get your boat into the bag as easily as possible with minimal folds. Follow the
diagram below for the best folding procedures:
• Storage is best in a dry room. Ensure protection against rodents and other vermin, as they
feed on the fabric of the boat.
• Store the product and accessories in a dry, temperature controlled, between 32 degrees
Fahrenheit (0 degrees Celsius) and 104 degrees Fahrenheit (40 degrees Celsius) storage
location.

15
LEAK DETECTION AND REPAIR
AIR LEAK DETECTION
If your boat appears a bit soft, it might not be because of a leak. If the boat was inflated late in
the day with 32 °C (90 °F) air, that air might cool down to 25 °C (77 °F) overnight. The cooler air
exerts less pressure on the hull, so it could appear soft the next morning. If there has been no
temperature variation, you need to start looking for a leak:
• Take a good look at your boat from just a few feet away. Flip it over and closely check over the
outside. Any large leaks should be clearly visible.
• If you have an idea where your leak is, use a mix of dishwashing liquid and water in a spray
bottle, and spray over the suspicious areas. Any leak will produce bubbles that will pinpoint the
location of the leak.
• Check valves for leak, if necessary, spray soapy water around the valve and the valve base.
SMALL REPAIRS
Inadvertent punctures can be repaired using included vinyl repair patch and vinyl glue. You can
also purchase additional PVC or silicon based glue for repairing camping mats, tents or shoes
from your local market to patch your boat. Please refer to the instruction of the glue for patching.
1. Thoroughly clean and dry the damaged area. Completely deflate the product.
2. Cut a portion of the patch to cover the puncture and allow an additional 1/4” on all sides.
Always cut a round patch, never leave square corners.
3. Be sure the repair area is completely dry.
4. Apply generous coat glue to the vinyl repair patch and to the product.
5. Allow the glue to dry for 2 to 3 minutes, or until the glue becomes tacky.
6. Apply the patch to the product, using your thumb or finger; apply even pressure across the
entire surface of the patch. Make sure the edges of the patch are pressed down along the
entire diameter.
7. Allow the product to dry for at least 12 hours before inflating and using.
If there are large tears/cracks, please bring the water craft or any essential equipment part into a
professional repair shop for appropriate repair or replacement.

16
WARRANTY
AM warrants this product to be free from major defects in material or workmanship to the
original purchaser for a period of ONE (1) Year from the date of purchase. This warranty is
subject to the following limitations:
1. The warranty is valid only when the warranty card is completed and returns within 30 days of
date of purchase
2. The warranty is valid only when this product is used for normal recreational activities and
does not cover products used in rental or school operations
3. AM will make the final warranty determination, which may require inspection and/or photos of
the equipment, which clearly show the defect(s). If necessary, this information must be sent
to the AM distributor in your country with prepaid postage. Product can be returned only if a
return authorization number is given in advance by the AM distributor. The return
authorization number must be clearly labeled on the outside of the package, or it will be
refused
4. If a product is deemed to have manufacturing defect, the warranty covers the repair or
replacement
of the defective product only. AM will not be responsible for any costs, losses, or damages
incurred as a result of loss or use of this product
5. This warranty does not cover damage caused by misuse, abuse, neglect, normal wear and
tear including, but not limited to, punctures, damage due to excessive heat exposure,
damage caused by improper handling and storage, damage caused by use in waves or
shore break, board breakage caused by filling or crashing in surf conditions, or damage
caused by anything other than defects in material and workmanship
6. This product must not be modified and/or fitted with a motor
7. This product must not be used in excess of the manufacturers recommended maximum load
capacity
8. This warranty is void if any unauthorized repair, change or modification has been made to
any part of the equipment
9. The warranty for any repaired or replacement equipment is good from the date of the original
purchase only
10. The original purchase receipt must accompany all warranty claims. The name of the retailer
and date of purchase must be clear and legible
11. There are no warranties that extend beyond the warranty specified here in
This product is designed in accordance with standards for a specific use. Any
modifications or transformations higher than that indicated by the manufacturer
could result in serious risks for the user and will void the warranty.
WARNING
