CMA Dishmachines GWX-200 User manual

www.cmadishmachines.com
MODEL GWX-200
PARTS MANUAL
Rev. 1.00A
800-854-6417
FAX [phone]
CMA DISHMACHINES
12700 KNOTT AVENUE
GARDEN GROVE, CALIFORNIA 92841

TABLE OF CONTENTS
MODEL GWX-200
1. PARTS MANUAL ..........................................................................................3
1.1. INITIAL PARTS KIT (P/N 4001.00)................................................................................................... 3
1.2. OPTIONAL SANI ALARM .................................................................................................................. 4
1.3. EXPLODED VIEW DRAWINGS........................................................................................................... 5
1.3.1. Cabinet Assembly ................................................................................................................... 5
1.3.2. GLX Door Assembly............................................................................................................... 6
1.3.3. Spray System Assembly........................................................................................................... 7
1.3.4. S/S Pump Assembly................................................................................................................. 8
1.3.5. Plumbing System Assembly (Effective August 2012).............................................................. 9
1.3.6. Plumbing System Assembly....................................................................................................10
1.3.7. Drain System Assembly..........................................................................................................11
1.3.8. Control Box ...........................................................................................................................12
1.3.9. Control Panel ........................................................................................................................13
1.3.10. Power Box .............................................................................................................................14
1.3.11. Peristaltic Pump Assembly ....................................................................................................15
1.3.12. Drain Valve ...........................................................................................................................16
1.3.13. Heater Assembly....................................................................................................................17

Parts Manual
MODEL GWX-200 PARTS MANUAL Rev. 1.00APage 3
1. Parts Manual
1.1. Initial Parts Kit (P/N 4001.00)
P/N DESCRIPTION Qty
00200.10 Pump Assy, 110/220V 60 Hz, Open 1
00206.30 Pump Seal Kit 1
00208.40 Slip Joint Nut Gasket 1
00304.03 Spray Arm B GL-X 1
00308.50 Spray Arm End Plug SS 1
00404.82 Motor Contactor Relay 1
00411.00 Micro Switch 1
00415.00 Peristaltic Pump Assembly, 120V/60Hz 1
00421.40 Fill/Start Rocker Switch 1
00425.51 Chemical Tubing Blue 50 ft.
00425.53 Chemical Tubing Red 50 ft.
00425.54 Chemical Tubing White 50 ft.
00458.00 Squeeze Tube, Black (Detergent) 1
00501.00 Timer Motor, 2-Minute 1
00556.10 Reed Switch, ISI 1
00715.00 1/2 Ball Check Valve 1
02257.00 Squeeze Tube, 8”, Silicone 1
02257.30 Squeeze Tube, 30” 1
03415.00 Chemical Tube Bulkhead 1
03415.60 Chemical Bulkhead (Teflon) Assy 1
03480.00 Drain Rocker Switch 1
03604.30 Dema Valve Repair Kit 3/8",1/2" & 3/4 1
04110.00 SS L1-C/L-1X Drain Screen 1
04113.00 GL-X Drain Valve, 120V 1
04303.00 GL-X Spray Arm Bearing 1
04305.10 Red Silicone Gasket, 1/16 Thick 1
04517.15 Door Stop (Parallel) 1
NOTE: CMA recommends that the initial parts kit be kept on hand as a back up supply of critical
parts in the event your machine should require emergency service. All the parts
included in this kit are unique to the GL-X glasswasher.

Parts Manual
MODEL GWX-200 PARTS MANUAL Rev. 1.00APage 4
1.2. Optional Sani Alarm
Part Number 12508.00
Exploded View
ITEM
NO. NO. REQ’D
P/N DESCRIPTION ITEM
NO. NO. REQ’D
P/N DESCRIPTION
1
3
00400.00
Conduit, 3/8” Sealtite
8
5
00931.00
Wire Tie, Small
2
1
00401.00
S.T. 3/8” Straight Connector
9
1
12510.00
Sanitizer Alarm Box Assembly
3
1
00402.00
S.T. 90 Degree 3/8” Connector
10
1
12511.00
Sanitizer Low Level Vacuum Switch
4
1
00406.00
Control Box Light, .5” Diameter, Red
11
1
12512.00
Sanitizer Alarm Buzzer, 120 Volts
5
1
00435.00
Squeeze Tube, 8”
12
4
40126.10
#10 x 3/4" Sheet metal Screw
6 1 00521.00 Wire, 18 Gauge, Orange, 6 ft. 13 4 40127.00 Wall Anchors
7
1
00531.00
Wire, 18 Gauge, White, 6 ft.
14
1
00426.00
Y Hose Connector, 3/16”

Parts Manual
MODEL GWX-200 PARTS MANUAL Rev. 1.00APage 5
1.3. Exploded View Drawings
1.3.1. Cabinet Assembly
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1 15901.62 GL-X Body 13 1 00924.00 ¼” SS Washer
2 1 14503.50 GL-X EZ Top 14 2 00940.50 10-32 X 3/8” Truss Head Screw
3 1 15902.62 GL-X Stand 15 2 03415.00 Chemical Tube Bulkhead
4 2 15902.84 GL-X Stand Panel 16 16 00914.00 10-32 X 5/8” Panhead Screw
5 1 15915.62 GL-X Peri-Pump Panel 17 12 00439.00 Snap Bushing 500-6
6 1 04912.60 GL-X Tray Track (LH) 18 1 15922.62 GL-X Electrical Cover
7 1 04911.60 GL-X Tray Track (RH) 19 4 01310.00 Bullet Foot
8 1 13463.10 Liquid Level Switch 20 4 01572.64 GL-X Leg
9 2 03816.00 Nylon Retaining Washer 21 4 00941.00 10-32 X 5/8” Panhead Screw
10 1 03415.60 Chem. Tube Bulkhead 22 1 14506.50 Door Gasket
11 12 00912.00 ¼” SS Nut 23 1 14506.45 Gasket Bracket
12 4 00922.00 ¼” Lock Star Washer

Parts Manual
MODEL GWX-200 PARTS MANUAL Rev. 1.00APage 6
1.3.2. GLX Door Assembly
P/N 15905.10 DOOR ASSEMBLY INCLUDES ITEMS: 1,5,7,9,10,11,13,14 & 15.
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 2 15906.60 GL-X Door 11 2 00965.00 6-32 Lock Nut
2 2 04517.60 Door Support Rod Block 12 2 00605.20 Door Rod Spacer
3 1 14570.00 Door Hinge 13 2 04517.15 Door Stop (Parallel)
4 1 14570.50 Door Hinge (LH) 14 10 00912.00 1/4"-20 Nylon Lock Nut
5 2 04919.00 Door Rod Screw 15 14 00924.00 1/4" SS Washer
6 1 04918.64 Door Support Rod 16 4 00914.10 1/4"-20 x 5/8” Hex Head Bolt
7 1 04919.64 Door Support Rod 17 2 14518.00 Splash Guard
8 8 00557.80 Door Magnet 18 4 00924.00 1/4" SS Washer
9 2 00970.60 6 32 x 1/2" Flathead Screw 19 2 00605.00 Door Handle Button
10 1 14558.61 Door Magnet Holder

Parts Manual
MODEL GWX-200 PARTS MANUAL Rev. 1.00APage 7
1.3.3. Spray System Assembly
ITEM
NO. NO. REQ’D
P/N DESCRIPTION
1 8 00912.00 1/4"-20 Nylon Lock Nut
2 16 00924.00 1/4" SS Washer
3 8 00929.00 1/4"-20 x 3/4" Truss Head Bolt
4 2 04306.00 Square Manifold Gasket
5 2 04305.10 Red Silicon Gasket
6 2 04303.00 Spray Arm Bearing
7 2 00304.03 Spray Arm “B” Series
8 4 00308.50 Spray Arm End Plug
9 1 04304.64 GWX-200 Spray Manifold

Parts Manual
MODEL GWX-200 PARTS MANUAL Rev.1.00APage 8

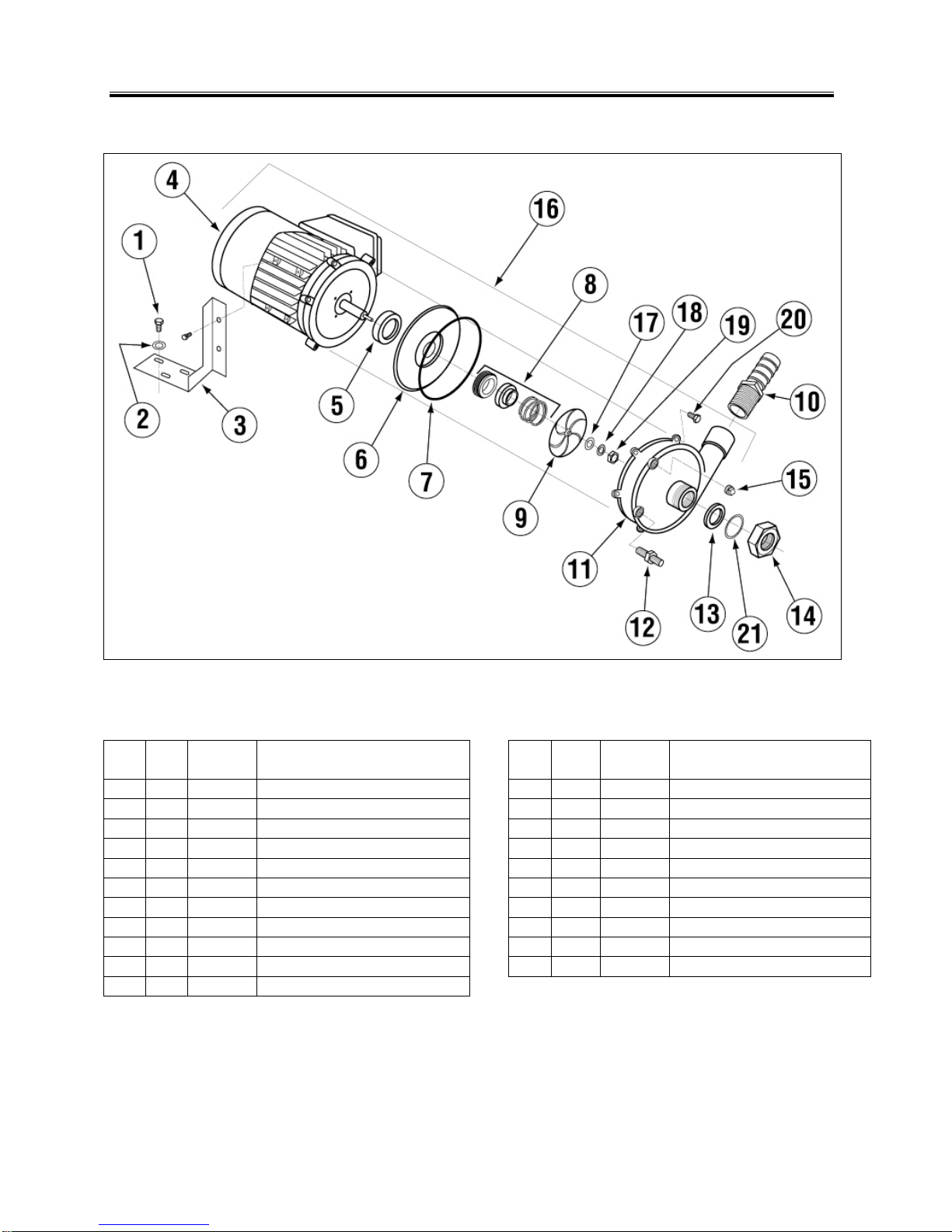

1.3.4. S/S Pump Assembly
Item not shown are the same as #20 in old assembly
ITEM
NO. NO. REQ’D
P/N DESCRIPTION ITEM
NO. NO. REQ’D P/N DESCRIPTION
1 3 00908.00 5/16”-18 x 5/8” SS Hexhead Bolt 12 1 00214.50 1/2" Comp x 3/8” MIP Adapter
2 3 00926.00 5/16” SS Washer 13 1 00208.40 Slip Joint Nut O Ring Buna
3 1 00200.78 SS Pump Motor Holder "L" 14 1 00207.00 Slip Joint Nut 1 1/2 x 1 1/4
4 1 00201.65 SS Wash Pump Motor 115v 15 1 00238.00 3/8” Male Plug
5 1 00201.96 Slinger Washer Cone Shape 16 1 00200.75 Includes Items 4,5,6,7,8,9,and 11
6 1 03224.60 SS Pump Backplate 17 1 03222.74 Flat Washer 8 mm
7 1 03226.70 Volute O-Ring For SS Pump 18 1 03222.72 Shaft Nut Lock Washer 8mm
8 1 00206.70 SS Pump Seal Kit 19 1 13809.70 SS Pump Seal Shaft Nut 8mm
9 1 03222.60 SS Pump Impeller 20 6 00914.70 Socket Head Screw 10 mm
10 1 50302.10 1" MPT x 1" Barb Brass 21 1 00208.21 Slip Joint Nut Friction Ring
11 1 04206.75 SS Pump Cover

Parts Manual
MODEL GWX-200 PARTS MANUAL Rev.1.00APage 9
1.3.5. Plumbing System Assembly (Effective August 2012)
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1 03603.10 JE ½” Solenoid Valve 17 1 50302.20 3/4" F X 1" Barb Plastic Fitting
2 1 00738.10 JE Solenoid Coil 18 1 05007.42 GWX-200 Motor’s Water Breathing Line
3 1 03603.20 1/2” Water Solenoid Bonnet 19 1 05007.40 GWX-200 Vaccum Breaker Water Line
4 4 13629.00 Nipple SS 1/2 x Close 20 1 03624.00 1/2" Vacuum Breaker – WATTS
5 1 13642.00 ½” Brass Plug 21 2 00421.51 6-32 X ¼” Panhead SS
6 1 00743.10 1/2" Tee FxFxF 22 1 00739.50 Vacuum Breaker Cap SS
7 2 00747.20 Nipple Brass 1/2 X 3 23 1 03624.25 Vacuum Breaker Bonnet Brass
8 1 00742.40 Nipple Brass 1/2 x 6 24 1 03623.00 1/2" Vac. Brkr Repair Kit – WATTS
9 2 00745.00 1/2 90Deg Street Elbow 25 1 00761.00 5/8 Comp X 3/4 MIP Adapter
10 1 41062.00 1/2 Strainer Ball Valve* 26 1 00743.11 ^1/2 Tee F x F x F SS
11 1 41062.00 ^ 1/2 Ball Valve Strainer Only 27 1 15925.00 GWX-200 Inlet Baffle
12 1 03108.60 Transfer Hose 1" Reinforced 2 ft 28 1 00721.00 1/2" Jamb Nut
13 2 03101.00 Hose Clamp # 16 1" 29 1 00786.00 JE Solenoid Valve Plunger
14 1 00798.00 SS Braded Hose 20 " 30 1 00707.00 JE ½” Solenoid Rep. Kit
15 1 00715.00 Ball Check Valve 31 1 00706.10 Solenoid Plunger Spring Only
16 3 00760.00 5/8" Comp. X ½”M.I.P. Adapter

Parts Manual
MODEL GWX-200 PARTS MANUAL Rev. 1.00APage 10
1.3.6. Plumbing System Assembly
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1 03604.00 S /S Water Solenoid Valve 15 1 00715.00 Ball Check Valve
2 1 41015.60 1/4 Water Solenoid Coil Only 110V 16 3 00760.00 5/8" Comp. X ½”M.I.P. Adapter
3 1 03604.30 Dema Valve Repair Kit 1/2" 17 1 50302.20 3/4" F X 1" Barb Plastic Fitting
4 4 13629.00 Nipple SS 1/2 x Close 18 1 05007.42 GWX-200 Motor’s Water Breathing Line
5 1 13642.00 ½” Brass Plug 19 1 05007.40 GWX-200 Vaccum Breaker Water Line
6 1 00743.10 1/2" Tee FxFxF 20 1 03624.00 1/2" Vacuum Breaker – WATTS
7 2 00747.20 Nipple Brass 1/2 X 3 21 2 00421.51 6-32 X ¼” Panhead SS
8 1 00742.40 Nipple Brass 1/2 x 6 22 1 00739.50 Vacuum Breaker Cap SS
9 2 00745.00 1/2 90Deg Street Elbow 23 1 03624.25 Vacuum Breaker Bonnet Brass
10 1 41062.00 1/2 Strainer Ball Valve* 24 1 03623.00 1/2" Vac. Brkr Repair Kit – WATTS
11 1 41062.00 ^ 1/2 Ball Valve Strainer Only 25 1 00761.00 5/8 Comp X 3/4 MIP Adapter
12 1 03108.60 Transfer Hose 1" Reinforced 2 ft 26 1 00743.11 ^1/2 Tee F x F x F SS
13 2 03101.00 Hose Clamp # 16 1" 27 1 15925.00 GWX-200 Inlet Baffle
14 1 00798.00 SS Braded Hose 20 " 28 1 00721.00 1/2" Jamb Nut

Parts Manual
MODEL GWX-200 PARTS MANUAL Rev. 1.00APage 11
1.3.7. Drain System Assembly
ITEM
NO. NO. REQ’D
P/N DESCRIPTION
1 1 04105.00 Pump Hose 6.5”
2 6 03101.00 1” Hose Clamp #16
3 1 04113.00 Drain Valve
4 1 03108.51 1” Goose Neck Drain Hose
5 1 04110.00 Drain Sump Screen
6 1 50302.06 1” MIP X 1” Barb PVC
7 1 03109.00 Drain Hose 90 deg. 1” I.D.

Parts Manual
MODEL GWX-200 PARTS MANUAL Rev. 1.00APage 12

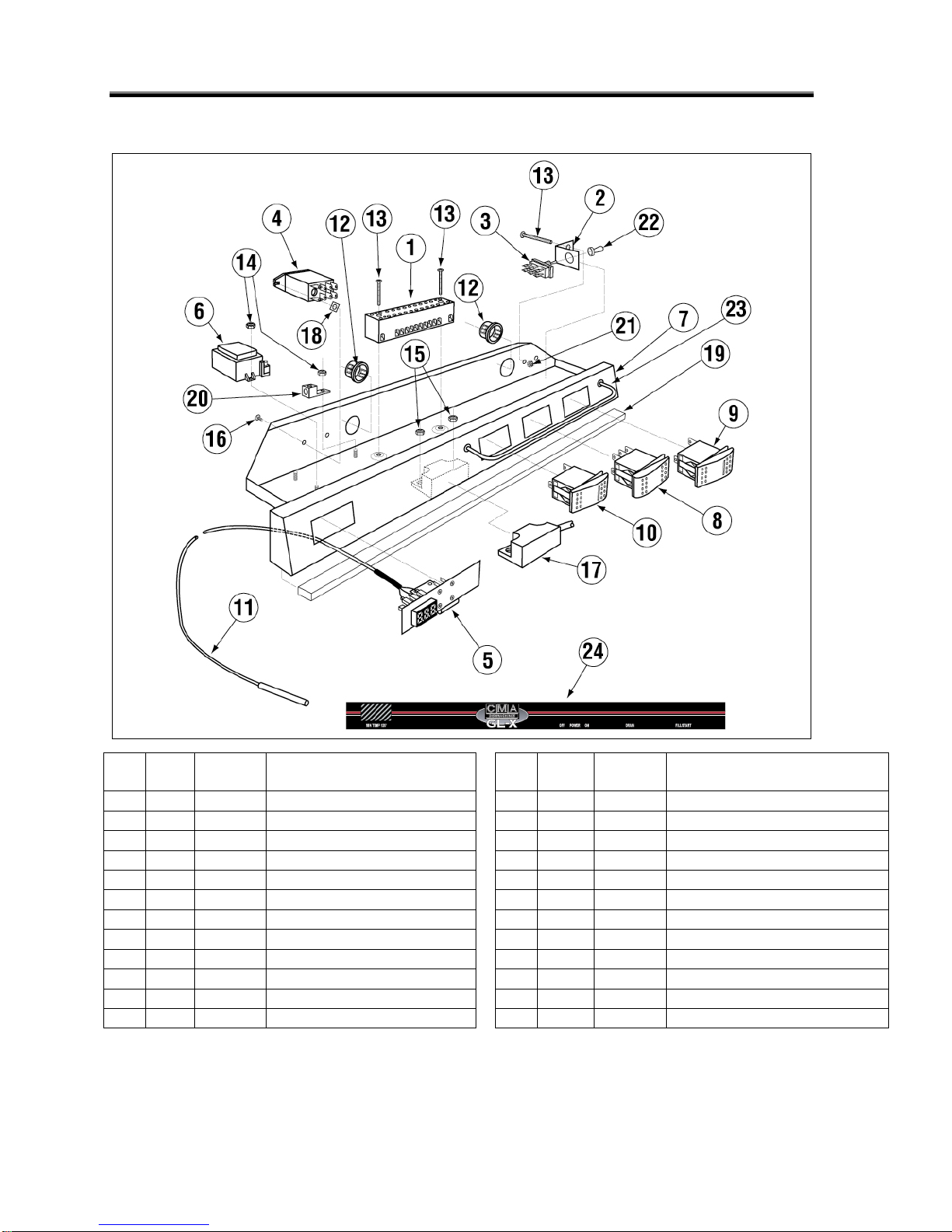

1.3.8. Control Box
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1 15520.00 Power Block 12 Position 13 3 01001.00 6-32 x 1” Panhead Screw
2 1 00474.00 Delimer switch Bracket 14 3 00971.10 4-40 Nylon Lock Nut
3 1 00475.30 Delimer Switch DPST 20 Amp. 15 6 00927.00 8-32 Nylon Lock Nut
4 2 00631.00 Ice Cube Relay 16 4 00631.00 8-32 X ½” Panhead Screw
5 1 03203.50 Single Temp. Display Unit 17 1 00556.10 Reed Switch
6 1 03202.60 Thermometer Transformer 18 4 00917.00 8-32 PM Nut
7 1 15904.62 Control Drawer 19 2 03705.82 Sponge Strip
8 1 03481.00 Drain Rocker Switch 20 1 13426.50 Ground Block
9 1 00421.40 Start/Fill Rocker Switch 21 1 00965.00 6-32 Nylon Lock Nut
10 1 15524.00 Power Rocker Switch 22 1 00470.10 Toggle Switch Rubber Boot
11 1 03202.66 Thermister 23 1 03485.00 Switch Guard (Undercounter Units)
12 1 00438.00 Snap bushing, Universal 24 1 06231.58 WD-200 Drawer Label (Front)

Parts Manual
MODEL GWX-200 PARTS MANUAL Rev.1.00APage 13

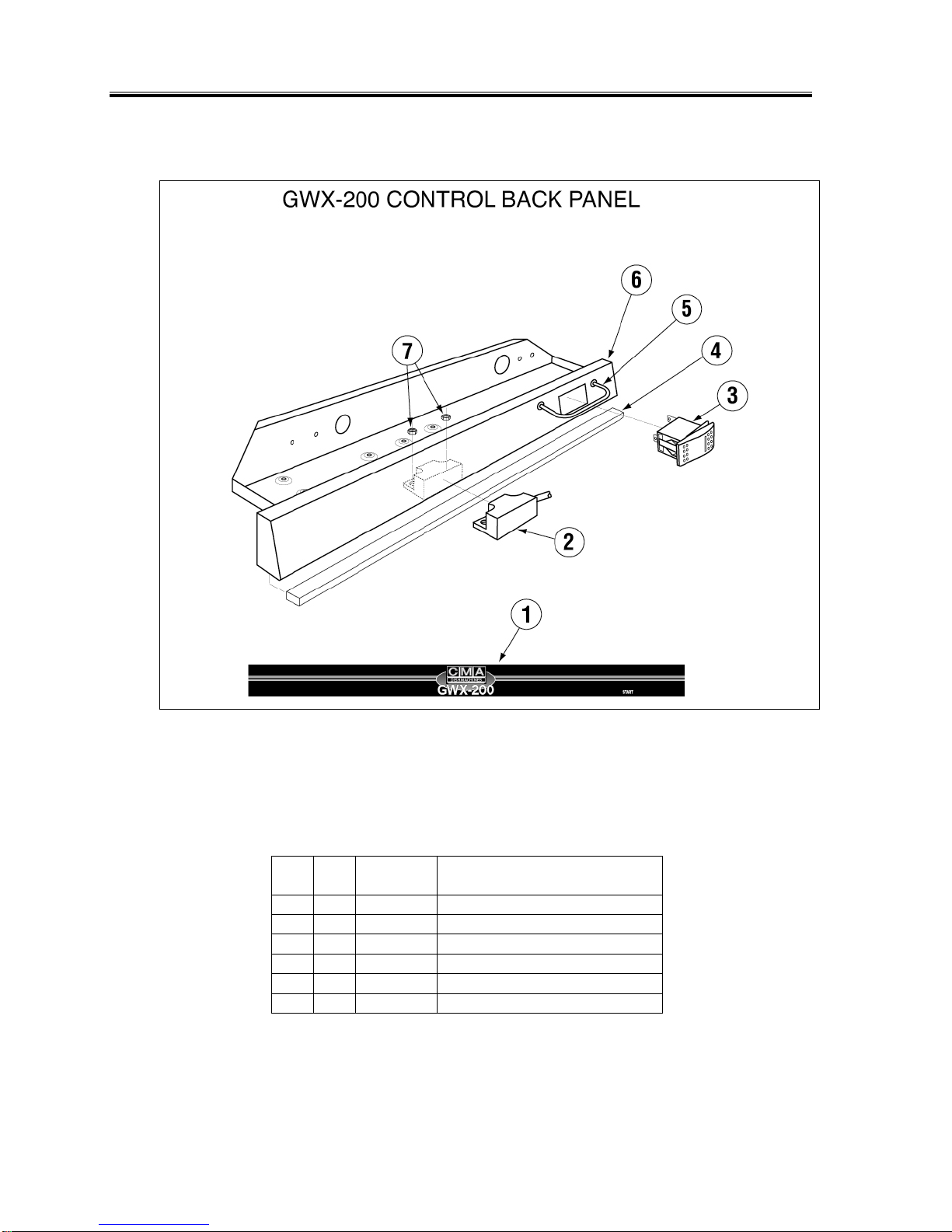

1.3.9. Control Panel
ITEM
NO. NO. REQ’D
P/N DESCRIPTION
1 1 06231.57 GWD-200 Drawer Label (back)
2 1 00556.10 Reed Switch
3 1 00421.40 Start/Fill Rocker Switch
4 2 03705.82 Sponge Strip
5 1 03485.10 Switch Guard
6 1 15904.62 Control Drawer

Parts Manual
MODEL GWX-200 PARTS MANUAL Rev.1.00APage 14
1.3.10. Power Box
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1 15923.62 GL-X Electrical Box 10 1 00408.80 2 Minute Timer GL-X
2 2 13012.15 GL-X Contactor 11 6 15400.10 ¾” Slit Ribbed Tubing
3 1 15520.50 Power Block 3 Position 12 1 15921.00 Timer Mount
4 3 00438.00 Snap Bushing Universal 13 2 00941.00 10-32 X 5/8” Pan Head Screw
5 0.5 13003.60 Contactor DIN Rail 14 2 03801.00 10-32 Nylon Lock Nut
6 2 13525.00 8-32 x 1” Pan Head Screw 15 1 15914.82 GL-X Peri-Pump Mount
7 2 00927.00 8-32 Nylon Lock Nut 16 3 03475.00 Primer Switches*
8 2 00941.00 10-32 Pan Head Screw 17 3 03476.00 Rubber Boots
9 2 03801.00 10-32 Nylon Lock Nut

Parts Manual
MODEL GWX-200 PARTS MANUAL Rev.1.00APage 15
1.3.11. Peristaltic Pump Assembly
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 3 00416.00 Peristaltic Pump Motor 10 6 00448.00 Barrel Connector (Male)
2 3 00417.10 Peristaltic Pump Block 11 AR 00425.51 Chemical Tubing (Blue)
3 6 00919.00 10-32 x 1 1/2" Pan Head Screw 12 AR 00425.53 Chemical Tubing (Red)
4 3 00918.00 10-32 x 1 1/2" Fillister HD Screw 13 AR 00425.54 Chemical Tubing (White)
5 6 00932.00 Wire Tie – Large 14 2 03415.00 Chemical Tube Bulkhead
6 7 00418.00 Peristaltic Pump Block Cover 15 2 00443.00 Tube Stiffener
7 12 00911.00 8-32 x 1/2" Pan Head Screw 16* 1 00415.00 Complete Peristaltic Pump
8 1
00458.00 Squeeze Tube – Black Detergent 17 1 03415.60 Bulk Head For Sanitizer
02257.00 Squeeze Tube 8" Norprene 18 1 02257.30 24” Squeeze Tube
9 3 00419.00 Peristaltic Rotor Assembly
*Item 16 includes items 1-4, 6-10.

Parts Manual
MODEL GWX-200 PARTS MANUAL Rev.1.00APage 16
1.3.12. Drain Valve
ITEM
NO. NO. REQ’D
P/N DESCRIPTION
1 1 00104.50 Drain Motor 120V
2 1 04103.14 Drain Valve Spring
3 1 04103.20 Drain Valve Drive Pin
4 1 04103.19 Drain Valve Washer (Thin)
5 1 04103.17 Drain Valve Seal Washer (V-Packer)
5A 1 04103.23 Drain Seal Bearing (White Washer)
6 1 04103.13 Drain Valve Housing Cover
7 4 04113.18 Valve Cover Screw
8 3 04103.16 Drain Valve Hinge/Seal
9 1 04103.15 Drain Valve Housing Gasket
10 1 04113.12 Drain Valve Housing
11 1 04103.18 #8 X 5/8 Self Threading Screw

Parts Manual
MODEL GWX-200 PARTS MANUAL Rev. 1.00APage 17
1.3.13. Heater Assembly
ITEM
NO. NO. REQ’D
P/N DESCRIPTION
1 1 15920.64 GL-X Heater Box
2 1 15417.30 1250 Watt Heater
3 1 04109.11 Sump Heater
4 1 13417.92 Thermostat
