HEX Alton User manual

Alton
Large Metal Storage Apex Shed Assembly Guide
8 x 8 ft (2.4 x 2.4 m)
Affix Serial Number
HERE
IMPORTANT: PLEASE REGISTER YOUR HEX LIVING PRODUCT AFTER ASSEMBLY
Using the unique serial number, simply register your product at www.hexliving.co.uk
or use the QR code above to access the HEX Living lifetime warranty and online support.

Advisory Data
i
IMPORTANT: IT IS ADVISABLE THAT THE PRODUCT IS ASSEMBLED AT, OR AS CLOSE AS POSSIBLE TO WHERE IT WILL BE FINALLY LOCATED
Ensure there is adequate clearance where the product is to be located:
2400 x 2490 x 2200mm
Footprint dimensions (L x W) 2300 x 2300mm
Clearance required for door to open (W x H) Doors open outwards 1454 x 1820mm
Exterior dimensions including overhang (L x W x H)
The objective of this instruction is to illustrate the recommended assembly sequence for this product, any deviation from this will
be the sole responsibility of whoever carries out the assembly.
PLEASE READ THIS DOCUMENT FULLY PRIOR TO STARTING ASSEMBLY PROCEDURE
Part Ref: FK7
Expansion Plug
Qty: x8
Part Ref: FK8
M8 x 50mm Coach Screw
Qty: x8
GROUND ANCHOR KIT
A Ground Anchor Kit is supplied, this is to secure the product to a
solid concrete base, the shed has x4 clamp plates in each corner.
WE STRONGLY ADVISE THAT THE SHED IS ANCHORED USING
THIS KIT
The diagram illustrates the typical fixing method, once the shed is
assembled, access the clamp brackets by removing the appropriate
floor panel and secure as required.
GROUND ANCHOR KIT
CARING FOR YOUR HEX LIVING PRODUCT
PRODUCT REGISTRATION
Your HEX Living product is designed to stand the test of time, which is why we’re happy to offer a lifetime warranty on our products.
With zero maintenance required, simply assemble your HEX Living product and enjoy putting it to great use in your garden.
Periodically, you might want to give your product a clean, these simple care tips are not essential to the performance of your product:
-
Remove surface dirt with plain water using a jet wash or sponge, the coating on our products will ensure dirt or mud simply
wipes away.
-
Periodically clear the lid of fallen leaves.
- If your product has guttering, remove leaves and garden debris as you would on your home.
IMPORTANT: Prior to assembly, please ensure you have registered your HEX Living product using the unique serial number found
on the cover of this document, please visit www.hexliving.co.uk to register your product and access the HEX Living lifetime warranty
and video instructions.
We advise appropriate personal protective
equipment is worn during assembly including
eye protection and gloves.
Most procedures will not require two
people but it may be easier to have
assistance.
x2
TWO PERSON ASSEMBLY PERSONAL PROTECTION EQUIPMENT
Eye Protection Gloves

Assembly Guide
1
ENSURE ALL ITEMS LISTED ARE PRESENT PRIOR TO STARTING ASSEMBLY PROCEDURE
SCALE OF ITEMS WILL VARY TO AID VISUAL IDENTIFICATION
Part Ref: 0213-01
Qty: x2
Part Ref: 0213-04
Qty: x2
Part Ref: 0205-09
Qty: x3
Part Ref: 0205-12 (1850 x 625mm)
Qty: x9
Part Ref: 0205-13 (1850 x 425mm)
Qty: x3
Part Ref: 0213-03 (1850 x 324mm)
Qty: x2
Part Ref: 0205-02
Qty: x2
Part Ref: 0205-74
Qty: x1

Assembly Guide
2
Part Ref: 0252-03
Qty: x6
Part Ref: 0252-06
Qty: x2
Part Ref: 0205-14 (1885mm Long)
Qty: x4
ENSURE ALL ITEMS LISTED ARE PRESENT PRIOR TO STARTING ASSEMBLY PROCEDURE
SCALE OF ITEMS WILL VARY TO AID VISUAL IDENTIFICATION
Part Ref: 0205-17 (L/H)
Qty: x1
Part Ref: 0213-02
Qty: x4
Part Ref: 0256-01
Qty: x1
Part Ref: 0256-03
Qty: x2
Part Ref: 0205-16 (R/H)
Qty: x1

Assembly Guide
3
Part Ref: 0252-04
Qty: x4
Part Ref: 0252-14
Qty: x2
Part Ref: 0256-06
Qty: x1
Part Ref: 0244-11
Qty: x2
Part Ref: 0244-16
Qty: x3
ENSURE ALL ITEMS LISTED ARE PRESENT PRIOR TO STARTING ASSEMBLY PROCEDURE
SCALE OF ITEMS WILL VARY TO AID VISUAL IDENTIFICATION
Part Ref: 0252-07
Qty: x2
Part Ref: 0252-11
Qty: x4
Part Ref: 0256-05
Qty: x2

Assembly Guide
4
Part Ref: 0205-36 (Right-hand)
Qty: x1
Part Ref: 0205-37 (Left-hand)
Qty: x1
ENSURE ALL ITEMS LISTED ARE PRESENT PRIOR TO STARTING ASSEMBLY PROCEDURE
SCALE OF ITEMS WILL VARY TO AID VISUAL IDENTIFICATION
Part Ref: 0205-39
Qty: x4
Part Ref: 0205-38-01
Qty: x2
Part Ref: 0213-09
Qty: x2
Part Ref: 0205-38-02
Qty: x2
Part Ref: 0213-21
Qty: x2

Assembly Guide
5
ENSURE ALL ITEMS LISTED ARE PRESENT PRIOR TO STARTING OF ASSEMBLY PROCEDURE
SCALE OF ITEMS WILL VARY TO AID VISUAL IDENTIFICATION
Part Ref: 0203-39
Qty: x4
Part Ref: 0205-66
Qty: x2
Part Ref: 0203-34
(Assembly)
Qty: x1
Part Ref: 0203-35
Qty: x2
Part Ref: 0203-36
Qty: x1
Part Ref: 0203-37
Qty: x4
Part Ref: 0203-32
(Assembly)
Qty: x1
Part Ref: 0203-28
(L/H Assembly)
Qty: x2
Part Ref: 0203-27
(R/H Assembly)
Qty: x2
Part Ref: 0203-33
(Assembly)
Qty: x1
Part Ref: 0203-40
Qty: x4
Part Ref: 0203-41
Qty: x1
Part Ref: 0203-03
Qty: x4
Part Ref: 0203-15
Qty: x4
Part Ref: 0205-57
Qty: x4
Part Ref: 0205-63
Qty: x2
Part Ref: 0205-68
Qty: x4
Part Ref: 0205-53
Qty: x1
Part Ref: 0205-52
Qty: x1
Part Ref: 0203-57
Qty: x4
Part Ref: FK7
Expansion Plug
Qty: x8
Part Ref: FK8
M8 x 50mm Coach Screw
Qty: x8
Part Ref: FK2
No.8 x 13mm Eco Fix
Qty: x25
Part Ref: FK3
M4 x 12mm C’Sunk Pozi Pan
Qty: x34
Part Ref: FK6
M8 Serrated Flange Nut
Qty: x5
Part Ref: FK4
M4 Rubber Washer
Qty: x62
Part Ref: FK5
M4 Serrated Flange Nut
Qty: x377
Part Ref: FK1
M4 x 10mm Roofing Bolt
This will be Pozi OR Slotted
Qty: x363
OR

Assembly Guide
6
SECURE EACH CORNER BRACE 0203-03 AS SHOWN ABOVE.
0203-03
PLEASE NOTE: SECTION VIEW OF TYPICAL FIXING METHOD.
FK1
ASSEMBLY STAGE 1
LOCATE AND SECURE A CORNER BRACE 0203-03 AT EACH LOCATION INDICATED.
FK5
0213-01
0213-01
0205-02
0205-02
0203-03 (x4)

Assembly Guide
7
2A
2B
0213-03
ENSURE WALL PANEL IS LOCATED
WITH CORRUGATION AS SHOWN
0213-03 (1850 x 324mm)
LOCATE WALL PANEL 0213-03 INTO POSITION AS SHOWN ABOVE.
IMPORTANT: ENSURE PANEL IS IN THE CORRECT ORIENTATION.
LOOSELY ATTACH WALL PANEL ONTO FLOOR RAIL AT LOCATION INDICATED.
2A 2B
FK1
x2
ASSEMBLY STAGE 2
LOCATE AND LOOSELY ATTACH WALL PANEL 0213-03 (1850 x 324mm).
FK5

Assembly Guide
8
FK1
FK5
FK6
LOCATE CORNER POST 0205-14 AS SHOWN ABOVE.
3A 3B
LOCATE AND LOOSELY ATTACH CORNER POST 0205-14.
ASSEMBLY STAGE 3
x2
0205-14
x2 HOLES AT TOP
3B
3A
FK5
IMPORTANT: DO NOT SECURE AT UPPER FIXING POINT AT THIS STAGE.
LOOSELY ATTACH CORNER POST AT LOCATION INDICATED ONLY.

Assembly Guide
9
ASSEMBLY STAGE 4
x2
LOCATE AND LOOSELY ATTACH SHORT CENTRE BRACE 0213-04 ONTO WALL PANEL.
0213-04
LOCATE AND LOOSELY ATTACH SHORT CENTRE BRACE
0213-04 AS SHOWN AT LOCATION INDICATED ABOVE.
IMPORTANT: DO NOT SECURE AT OUTER FIXING POINT AT THIS STAGE.
LOOSELY ATTACH AT LOCATION INDICATED ONLY.
FK5
FK1

Assembly Guide
10
IMPORTANT: DO NOT SECURE ANY FIXING POINTS OTHER THAN THOSE INDICATED.
LOOSELY ATTACH WALL PANEL AT x3 LOCATIONS INDICATED ONLY.
FK1
FK5
FK6
5B
LOCATE FIRST WALL PANEL 0205-12 (1850 x 625mm) AS SHOWN ABOVE.
IMPORTANT: ENSURE PANEL IS IN THE CORRECT ORIENTATION.
LOCATE AND LOOSELY ATTACH WALL PANEL 0205-12 (1850 x 625mm).
ASSEMBLY STAGE 5
x2
FK5
0205-12
5A
5B
5B
5B
5A
OUTSIDE
INSIDE
OUTSIDE
INSIDE

Assembly Guide
11
LOCATE AND LOOSELY ATTACH MID CENTRE BRACE 0205-09 AS
SHOWN AT x3 LOCATIONS INDICATED ABOVE.
IMPORTANT: DO NOT SECURE AT OUTER FIXING POINT INDICATED.
LOOSELY ATTACH AT x3 LOCATIONS INDICATED ONLY.
LOCATE AND LOOSELY ATTACH MID CENTRE BRACE 0205-09.
ASSEMBLY STAGE 6
x2
FK5
FK1
0205-09

Assembly Guide
12
FK5
FK1
LOOSELY ATTACH AT LOCATIONS INDICATED ONLY.
7B
LOCATE AND LOOSELY ATTACH WALL PANEL 0205-12 (1850 x 625mm).
ASSEMBLY STAGE 7
x2
7B
7B
7B
7B
0205-12
0205-12
FK1
LOCATE AND LOOSELY ATTACH WALL PANEL AT x3 LOCATIONS INDICATED.
IMPORTANT: ENSURE PANEL IS IN THE CORRECT ORIENTATION.
FK5
INSIDE
OUTSIDE
INSIDE
OUTSIDE
7A
7A
7A
7A
7A
7A
7A
7B
7B

Assembly Guide
13
FK5
FK1
LOOSELY ATTACH AT x2 LOCATIONS INDICATED ONLY.
8B
LOCATE AND LOOSELY ATTACH WALL PANEL 0205-13 (1850 x 425mm).
ASSEMBLY STAGE 8
x2
0205-13
8A
8A
8B
8B
FK1
LOCATE AND LOOSELY ATTACH WALL PANEL AT x2 LOCATIONS INDICATED.
IMPORTANT: ENSURE PANEL IS IN THE CORRECT ORIENTATION.
FK5
INSIDE
OUTSIDE
INSIDE
OUTSIDE
8A

Assembly Guide
14
FK1
FK5
FK6
LOCATE CORNER POST 0205-14 AS SHOWN ABOVE.
IMPORTANT: DO NOT SECURE AT UPPER FIXING POINT AT THIS STAGE.
LOOSELY ATTACH CORNER POST AT x2 LOCATIONS INDICATED ONLY.
9A 9B
LOCATE AND LOOSELY ATTACH CORNER POST 0205-14.
ASSEMBLY STAGE 9
x2
9B
9B
x2 HOLES AT TOP
9A
0205-14
FK5

Assembly Guide
15
10A
IMPORTANT: DO NOT SECURE ANY FIXING POINTS OTHER THAN THOSE INDICATED.
LOOSELY ATTACH WALL PANEL AT x2 LOCATIONS INDICATED ONLY.
FK1
FK5
FK6
LOCATE FIRST WALL PANEL 0205-13 (1850 x 425mm) AS SHOWN ABOVE.
IMPORTANT: ENSURE PANEL IS IN THE CORRECT ORIENTATION.
x2
LOCATE AND LOOSELY ATTACH WALL PANEL 0205-13 (1850 x 425mm).
ASSEMBLY STAGE 10
0205-13
10A
10B
10B
FK5
10B
OUTSIDE
INSIDE
OUTSIDE
INSIDE

Assembly Guide
16
LOCATE WALL PANEL 0205-12 INTO POSITION AS SHOWN ABOVE.
IMPORTANT: ENSURE PANEL IS IN THE CORRECT ORIENTATION.
11A
IMPORTANT: DO NOT SECURE ANY FIXING POINTS OTHER THAN THOSE INDICATED.
LOOSELY ATTACH BACK WALL PANEL AT x3 LOCATIONS INDICATED ONLY.
FK1
FK5
FK6
11B
x2
LOCATE AND LOOSELY ATTACH WALL PANEL 0205-12 (1850 x 625mm).
ASSEMBLY STAGE 11
11A
FK5
INSIDE
OUTSIDE
INSIDE
OUTSIDE
0205-12
11B
11B
11B

Assembly Guide
17
LOCATE AND LOOSELY ATTACH LONG CENTRE BRACE 0205-09
AS SHOWN AT x5 LOCATIONS INDICATED ABOVE.
IMPORTANT: DO NOT SECURE AT OUTER FIXING POINT INDICATED.
LOOSELY ATTACH AT x5 LOCATIONS INDICATED ONLY.
x2
LOCATE AND LOOSELY ATTACH LONG CENTRE BRACE 0205-09
ASSEMBLY STAGE 12
FK5
FK1
0205-09

Assembly Guide
18
FK1
FK5
LOOSELY ATTACH AT x3 LOCATIONS INDICATED ONLY.
13B

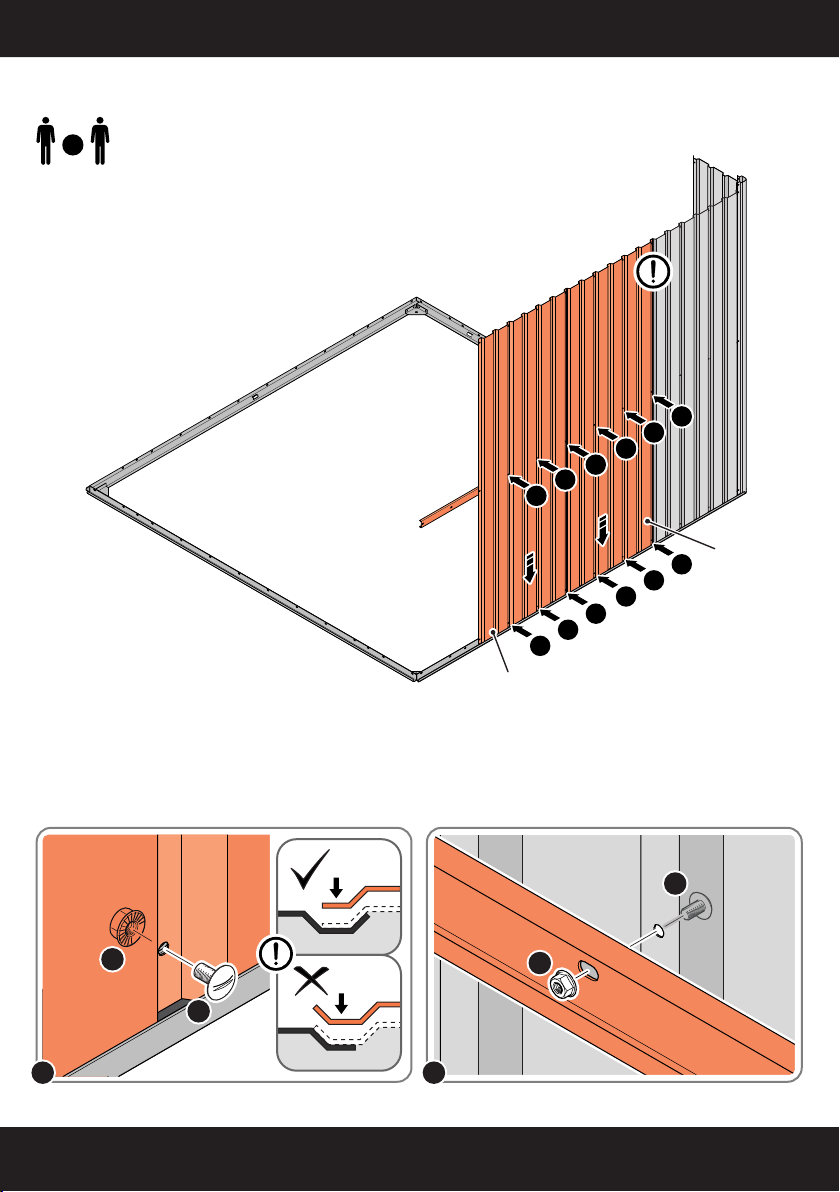

LOCATE AND LOOSELY ATTACH WALL PANEL 0205-12 (1850 x 625mm).
x2
ASSEMBLY STAGE 13
FK1
LOCATE AND LOOSELY ATTACH WALL PANEL AT x3 LOCATIONS INDICATED.
IMPORTANT: ENSURE PANEL IS IN THE CORRECT ORIENTATION.
FK5
INSIDE
OUTSIDE
INSIDE
OUTSIDE
13A
13B
13B
13B
13A
13A
13A
0205-12
