HEX Weston User manual

Weston
Vertical Metal Storage Shed Assembly Guide
Affix Serial Number
HERE
Using the unique serial number, simply register your product at www.hexliving.co.uk
or use the QR code above to access the HEX Living lifetime warranty and online support.
IMPORTANT: PLEASE REGISTER YOUR HEX LIVING PRODUCT BEFORE ASSEMBLY
Advisory Data
i
IMPORTANT: IT IS ADVISABLE THAT THE PRODUCT IS ASSEMBLED AT, OR AS CLOSE AS POSSIBLE TO WHERE IT WILL BE FINALLY LOCATED
Ensure there is adequate clearance where the product is to be located:
The objective of this instruction is to illustrate the recommended assembly sequence for this product, any deviation from this will
be the sole responsibility of whoever carries out the assembly.
PLEASE READ THIS DOCUMENT FULLY PRIOR TO STARTING ASSEMBLY PROCEDURE
1450 x 850 x 1850mm
Footprint dimensions (W x D) 1400 x 800mm
Clearance required for door to open (W x H) Doors open outwards 1250 x 1670mm
Exterior dimensions including overhang (W x D x H)
Part Ref: FK7
Expansion Plug
Qty: x4
Part Ref: FK8
M8 x 50mm Coach Screw
Qty: x4

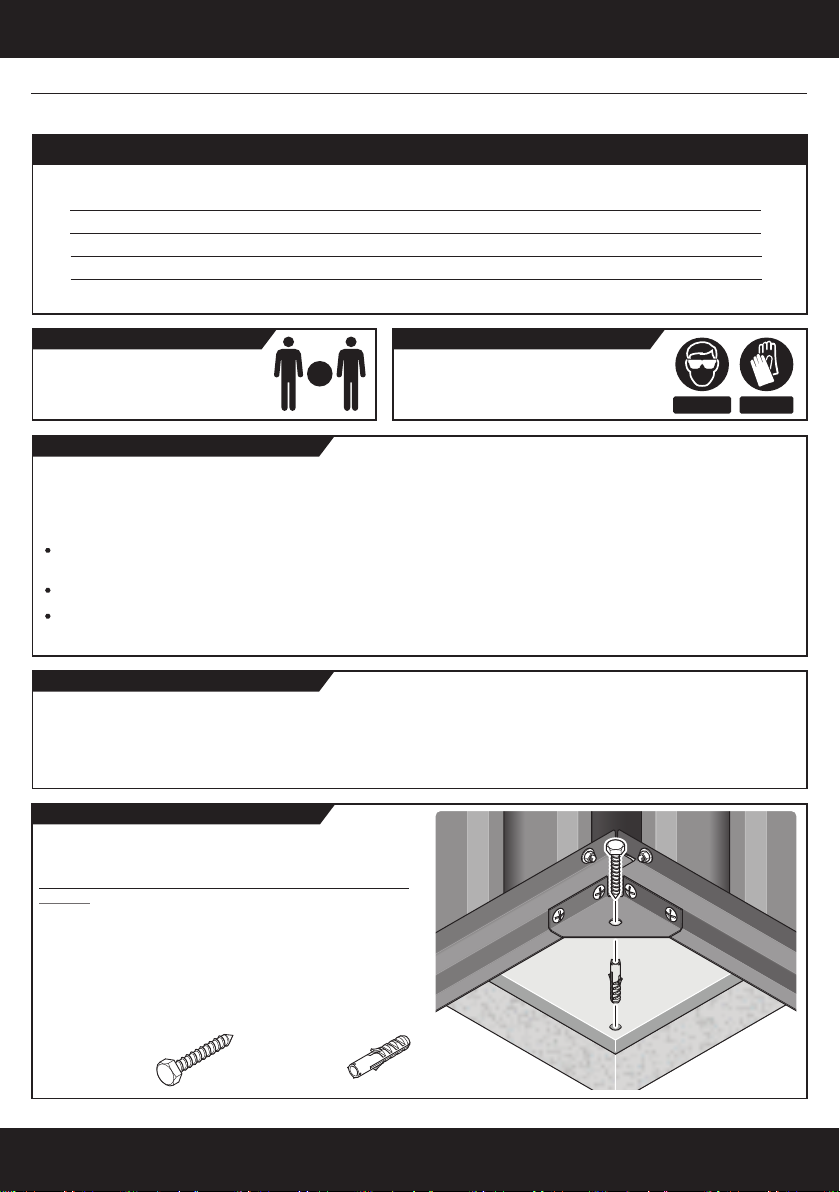

GROUND ANCHOR KIT
A Ground Anchor Kit is supplied, this is to secure the product to a
solid concrete base, the shed has x4 clamp plates in each corner.
WE STRONGLY ADVISE THAT THE SHED IS ANCHORED USING
THIS KIT
The diagram illustrates the typical fixing method, once the shed is
assembled, access the clamp brackets by removing the appropriate
floor panel and secure as required.
GROUND ANCHOR KIT
CARING FOR YOUR HEX LIVING PRODUCT
PRODUCT REGISTRATION
Your HEX Living product is designed to stand the test of time, which is why we’re happy to offer a lifetime warranty on our products.
With zero maintenance required, simply assemble your HEX Living product and enjoy putting it to great use in your garden.
Periodically, you might want to give your product a clean, these simple care tips are not essential to the performance of your product:
-
Remove surface dirt with plain water using a jet wash or sponge, the coating on our products will ensure dirt or mud simply
wipes away.
-
Periodically clear the lid of fallen leaves.
-
If your product has guttering, remove leaves and garden debris as you would on your home.
IMPORTANT: Prior to assembly, please ensure you have registered your HEX Living product using the unique serial number found
on the cover of this document, please visit www.hexliving.co.uk to register your product and access the HEX Living lifetime warranty
and video instructions.
We advise appropriate personal protective
equipment is worn during assembly including
eye protection and gloves.
Most procedures will not require two
people but it may be easier to have
assistance.
x2
TWO PERSON ASSEMBLY PERSONAL PROTECTION EQUIPMENT
Eye Protection
Gloves
Assembly Guide
1
Part Ref: 0203-09 (725mm Wide)
Qty: x2
Part Ref: 0203-10 (675mm Wide)
Qty: x2
Part Ref: 0203-08
Qty: x1
Part Ref: 0203-07
Qty: x2
Part Ref: 0203-06
Qty: x1
Part Ref: 0203-04
Qty: x3
Part Ref: 0203-03
Qty: x4
Part Ref: 0203-02
Qty: x2
Part Ref: 0203-01
Qty: x2
ENSURE ALL ITEMS LISTED ARE PRESENT PRIOR TO STARTING ASSEMBLY PROCEDURE
SCALE OF ITEMS WILL VARY TO AID VISUAL IDENTIFICATION
Assembly Guide
2
Part Ref: 0203-16
Qty: x2
Part Ref: 0203-17
Qty: x2
Part Ref: 0203-18
Qty: x3
Part Ref: 0203-20
Qty: x1
Part Ref: 0203-11 (1735mm Long)
Qty: x2
Part Ref: 0203-12 (1800mm Long)
Qty: x2
Part Ref: 0203-13 (R/H)
Qty: x1
Part Ref: 0203-14 (L/H)
Qty: x1
ENSURE ALL ITEMS LISTED ARE PRESENT PRIOR TO STARTING ASSEMBLY PROCEDURE
SCALE OF ITEMS WILL VARY TO AID VISUAL IDENTIFICATION
Assembly Guide
3
Part Ref: 0205-39
Qty: x2
Part Ref: 0203-25 (R/H)
Qty: x1
Part Ref: 0203-26 (L/H)
Qty: x1
Part Ref: 0203-38-01
Qty: x2
Part Ref: 0203-38-02
Qty: x2
Part Ref: 0203-42
Qty: x2
Part Ref: 0203-23 (R/H)
Qty: x1
Part Ref: 0203-24 (L/H)
Qty: x1
Part Ref: 0203-21
Qty: x1
Part Ref: 0203-22
Qty: x1
ENSURE ALL ITEMS LISTED ARE PRESENT PRIOR TO STARTING ASSEMBLY PROCEDURE
SCALE OF ITEMS WILL VARY TO AID VISUAL IDENTIFICATION
Assembly Guide
4
Part Ref: 0203-15
Qty: x4
ENSURE ALL ITEMS LISTED ARE PRESENT PRIOR TO STARTING ASSEMBLY PROCEDURE
Part Ref: 0203-32 (Assembly)
Qty: x1
Part Ref: 0203-33 (Assembly)
Qty: x1
Part Ref: 0203-34 (Assembly)
Qty: x1
Part Ref: 0203-35
Qty: x2
Part Ref: 0203-36
Qty: x1
Part Ref: 0203-37
Qty: x4
Part Ref: 0203-39
Qty: x4
Part Ref: 0205-63
Qty: x2
Part Ref: 0205-66
Qty: x2
Part Ref: FK2
No.8 x 13mm Eco Fix
Qty: x7
Part Ref: FK3
M4 x 12mm C’Sunk Pozi Pan
Qty: x31
Part Ref: FK7
Expansion Plug
Qty: x4
Part Ref: FK8
M8 x 50mm Coach Screw
Qty: x4
SCALE OF ITEMS WILL VARY TO AID VISUAL IDENTIFICATION
Part Ref: 0203-40
Qty: x4
Part Ref: 0203-41
Qty: x1
Part Ref: FK6
M4 x 40mm Pozi Pan Screw
Qty: x7
FIXING KIT: 0203-49
Part Ref: FK1
M4 x 10mm Roofing Bolt
This will be Pozi or Slotted
Qty: x127
OR
Part Ref: 0205-68
Qty: x4
Part Ref: FK4
M4 Serrated Flange Nut
Qty: x160
Part Ref: FK5
M8 Serrated Flange Nut
Qty: x5
Part Ref: 0203-57
Qty: x4
Part Ref: 0203-28 (L/H Assembly)
Qty: x2
Part Ref: 0203-27 (R/H Assembly)
Qty: x2
Assembly Guide
5
SECURE EACH CORNER BRACE 0203-03 AS SHOWN ABOVE.
0203-01
0203-01
0203-02
0203-02
0203-03 (x4)
0203-03
PLEASE NOTE: SECTION VIEW OF TYPICAL FIXING METHOD.
FK4
FK1
ASSEMBLY STAGE 1
LOCATE AND SECURE A CORNER BRACE 0203-03 AT EACH LOCATION INDICATED.
Assembly Guide
6
ASSEMBLY STAGE 2
0203-04 (x3)
0203-04
SLOT EACH FLOOR BRACE 0203-04 INTO POSITION AS SHOWN ABOVE.
LOCATE AND SECURE A FLOOR BRACE 0203-04 AT EACH LOCATION INDICATED.
PLEASE NOTE: ENSURE TOP OF FLOOR BRACE IS LEVEL WITH TOP OF FLOOR RAIL.
Assembly Guide
7
ASSEMBLY STAGE 3
0203-09 (725mm)
LOCATE WALL PANEL 0203-09 INTO POSITION AS SHOWN ABOVE.
IMPORTANT: ENSURE PANEL IS IN THE CORRECT ORIENTATION. IMPORTANT: DO NOT SECURE AT OUTER FIXING POINTS AT THIS STAGE.
LOCATE WALL PANEL 0203-09 (725mm WIDE), PLEASE NOTE EACH PANEL DOES NOT HAVE A SPECIFIC TOP OR BOTTOM,
SO CAN BE LOCATED EITHER WAY.
LOOSELY ATTACH WALL PANEL ONTO FLOOR RAIL AT x2 LOCATIONS INDICATED.
0203-09 (725mm)
3A
3B
3B
3A 3B
FK1
FK4
x2
Assembly Guide
8
LOCATE AND LOOSELY ATTACH SHORT CENTRE BRACE 0203-07 AS SHOWN AT
x2 LOCATIONS INDICATED ABOVE. IMPORTANT: DO NOT SECURE AT OUTER FIXING POINTS AT THIS STAGE.
LOOSELY ATTACH AT x2 LOCATIONS INDICATED ONLY.
0203-07
FK4
FK1
ASSEMBLY STAGE 4
LOCATE AND LOOSELY ATTACH SHORT CENTRE BRACE 0203-07 ONTO WALL PANEL.
x2
Assembly Guide
9
FK1
FK4
x2
ASSEMBLY STAGE 5
5B
5B
LOCATE CORNER POSTS 0203-11 & 0203-12 AS SHOWN AT x2 LOCATIONS ABOVE.
IMPORTANT: DO NOT SECURE AT UPPER FIXING POINTS AT THIS STAGE.
LOCATE AND LOOSELY ATTACH CORNER POSTS 0203-11 (1735mm) & 0203-12 (1800mm LONG) ONTO WALL PANEL.
LOOSELY ATTACH CORNER POSTS AT x4 LOCATIONS INDICATED ONLY.
0203-12 (1800mm LONG)
x3 HOLES AT TOP
0203-11 (1735mm LONG)
x2 HOLES AT TOP
5A
5A
5A 5B
5B
5B
Assembly Guide
10
IMPORTANT: DO NOT SECURE ANY FIXING POINTS OTHER THAN THOSE INDICATED.
LOOSELY ATTACH BACK WALL PANEL AT x3 LOCATIONS INDICATED ONLY.
FK1
FK4
ASSEMBLY STAGE 6
LOCATE BACK WALL PANEL 0203-10 (675mm WIDE), PLEASE NOTE THE PANEL DOES NOT HAVE A SPECIFIC TOP OR BOTTOM,
SO CAN THEREFORE BE LOCATED EITHER WAY.
0203-11 (1735mm LONG)
0203-10 (675mm WIDE)
6A
6A 6B
LOCATE FIRST BACK WALL PANEL 0203-10 (675mm WIDE) AS SHOWN ABOVE.
IMPORTANT: ENSURE PANEL IS IN THE CORRECT ORIENTATION.
6B
6B
6B
OUTSIDE
INSIDE
OUTSIDE
INSIDE
x2
Assembly Guide
11
LOCATE SECOND BACK WALL PANEL 0203-10 INTO POSITION AS SHOWN ABOVE.
IMPORTANT: ENSURE PANEL IS IN THE CORRECT ORIENTATION.
x2
ASSEMBLY STAGE 7
LOOSELY ATTACH BACK WALL PANELS 0203-10.
IMPORTANT: DO NOT SECURE ANY FIXING POINTS OTHER THAN THOSE INDICATED.
LOOSELY ATTACH BACK WALL PANEL AT x3 LOCATIONS INDICATED ONLY.
FK1
FK4
7B
0203-10 (675mm WIDE)
7A
7B
7B
7B
7A
INSIDE
OUTSIDE
INSIDE
OUTSIDE
Assembly Guide
12
0203-06
LOCATE AND LOOSELY ATTACH LONG CENTRE BRACE 0203-06 AS SHOWN AT
x2 LOCATIONS INDICATED ABOVE.
FK4
FK1
IMPORTANT: DO NOT SECURE OUTER FIXING POINT INDICATED AT THIS STAGE.
LOOSELY ATTACH AT x6 LOCATIONS INDICATED ONLY.
ASSEMBLY STAGE 8
LOCATE AND LOOSELY ATTACH LONG CENTRE BRACE 0203-06 ONTO BACK WALL.
x2
Assembly Guide
13
9B
9A
9B
FK1
FK4
LOCATE CORNER POST 0203-11 (1735mm) AS SHOWN ABOVE.
IMPORTANT: DO NOT SECURE AT TOP FIXING POINT AT THIS STAGE.
LOOSELY ATTACH CORNER POST AT x2 LOCATIONS INDICATED ONLY.
9B9A
0203-11 (1735mm LONG)
x2 HOLES AT TOP
x2
ASSEMBLY STAGE 9
LOCATE AND LOOSELY ATTACH CORNER POSTS 0203-11 (1735mm).
Assembly Guide
14
LOCATE WALL PANEL 0203-09 INTO POSITION AS SHOWN ABOVE.
IMPORTANT: ENSURE PANEL IS IN THE CORRECT ORIENTATION. IMPORTANT: DO NOT SECURE AT OUTER FIXING POINTS AT THIS STAGE.
LOOSELY ATTACH WALL PANEL ONTO FLOOR RAIL AT x3 LOCATIONS INDICATED.
FK1
FK4
10A 10B
9A
0203-09 (725mm)
10B
10B
10B
OUTSIDE
INSIDE
OUTSIDE
INSIDE
x2
ASSEMBLY STAGE 10
LOCATE WALL PANEL 0203-09 (725mm WIDE), PLEASE NOTE THE PANEL DOES NOT HAVE A SPECIFIC TOP OR BOTTOM,
SO CAN BE LOCATED EITHER WAY.
Assembly Guide
15
x2
0203-07
LOCATE AND LOOSELY ATTACH SHORT CENTRE BRACE 0203-07 AS SHOWN AT
x3 LOCATIONS INDICATED ABOVE. IMPORTANT: DO NOT SECURE AT OUTER FIXING POINT AT THIS STAGE.
LOOSELY ATTACH AT x3 LOCATIONS INDICATED ONLY.
FK4
FK1
ASSEMBLY STAGE 11
LOCATE AND LOOSELY ATTACH SHORT CENTRE BRACE 0203-07.
Assembly Guide
16
x3 HOLES AT TOP
0203-12 (1800mm LONG)
12B
12A
12B
FK1
FK4
LOCATE CORNER POST 0203-12 (1800mm) AS SHOWN ABOVE.
IMPORTANT: DO NOT SECURE AT TOP FIXING POINT AT THIS STAGE.
LOOSELY ATTACH CORNER POST AT x2 LOCATIONS INDICATED ONLY.
12B12A
x2
ASSEMBLY STAGE 12
LOCATE AND LOOSELY ATTACH CORNER POST 0203-12 (1800mm).
Assembly Guide
17
x2
ASSEMBLY STAGE 13
FK1
FK4
LOCATE SHORT TOP RAIL 0203-17 AS SHOWN ABOVE. LOOSELY ATTACH AT x4 LOCATIONS INDICATED AND REPEAT THIS FOR THE
OPPOSITE SIDE AS SHOWN ABOVE.
13A 13B
LOCATE AND LOOSELY ATTACH SHORT TOP RAIL 0203-17.
13A
13A
13B
13B
13B
13B
13B
13B
13B
13B
0203-17
0203-17
Assembly Guide
18
x2
ASSEMBLY STAGE 14
LOCATE LONG TOP RAIL 0203-16 AS SHOWN ABOVE. LOOSELY ATTACH AT x7 LOCATIONS INDICATED.
14A 14B
LOCATE AND LOOSELY ATTACH LONG TOP RAIL 0203-16.
14A
14B
14B
14B
14B
14B
14B
0203-16
14B
FK1
FK4

Other manuals for Weston

1

Other HEX Outdoor Storage manuals

HEX Bromley User manual

HEX

HEX Bromley User manual

HEX Alton User manual

HEX

HEX Alton User manual

Popular Outdoor Storage manuals by other brands

Lifetime 60370 Assembly instructions

Lifetime

Lifetime 60370 Assembly instructions

Duratuf MK4 Assembly instructions

Duratuf

Duratuf MK4 Assembly instructions

Holz-Blech Annika II 28 manual

Holz-Blech

Holz-Blech Annika II 28 manual

Arrow Storage Products EH1012 Owner's manual & assembly instructions

Arrow Storage Products

Arrow Storage Products EH1012 Owner's manual & assembly instructions

USP DURAMAX 10.5 Ft x 3 Ft SidePro owner's manual

USP

USP DURAMAX 10.5 Ft x 3 Ft SidePro owner's manual

Arrow Storage Products LM10667S Owner's manual & assembly guide

Arrow Storage Products

Arrow Storage Products LM10667S Owner's manual & assembly guide

Heartland BELMONT Assembly manual

Heartland

Heartland BELMONT Assembly manual

Rowlinson Garden Products SS431 Assembly instructions

Rowlinson Garden Products

Rowlinson Garden Products SS431 Assembly instructions

Biohort AvantGarde Assembly manual

Biohort

Biohort AvantGarde Assembly manual

AJ 240101 Assembly instructions

AJ

AJ 240101 Assembly instructions

TMG TMG-MS0506 product manual

TMG

TMG TMG-MS0506 product manual

ClearSpan Storage Master Solarguard Series Assembly manual

ClearSpan

ClearSpan Storage Master Solarguard Series Assembly manual

Sheds Direct Ireland SD-XN119-AP owner's manual

Sheds Direct Ireland

Sheds Direct Ireland SD-XN119-AP owner's manual

Hanover HANWS0103-NAT manual

Hanover

Hanover HANWS0103-NAT manual

Palmako Leif installation manual

Palmako

Palmako Leif installation manual

Patiowell T-PS1053S0BNA Assembly instructions

Patiowell

Patiowell T-PS1053S0BNA Assembly instructions

Mercia Garden Products 01DTSHRAX1008SDNW-V1 General instructions

Mercia Garden Products

Mercia Garden Products 01DTSHRAX1008SDNW-V1 General instructions

Mercia Garden Products 10DTBARK0804-V1 Assembly instructions

Mercia Garden Products

Mercia Garden Products 10DTBARK0804-V1 Assembly instructions

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
