HH Electronics TNA-2800SA User manual
1
TNA2800-SA
Active Subwoofer
User Manual
USER MANUAL
TNA-2800SA
Active Subwoofer
2
INTRODUCTION ............................................................................................................................3
FEATURES.................................................................................................................................. 3
CONTROLS.....................................................................................................................................4
INSTALLATION.......................................................................................................................... 7
POWER CYCLE.....................................................................................................................7
FREQUENCY RESPONSE ......................................................................................................... 8
CONNECTIONS .............................................................................................................................9
TECHNICAL SPECIFICATIONS...................................................................................................10
DIMENSIONAL DATA.............................................................................................................11
SAFETY INFORMATION..............................................................................................................12
3
The TNA-2800SA Active subwoofer features two HH designed 18" low frequency woofers
with exceptionally high output; each powered by a separate 1KW RMS power amplifier
giving 2KW RMS total power. Equipped with integrated rigging hardware, the TNA-
2800SA can be installed quickly and easily. The TNA-2800SA offers a max SPL of 144 dB
and offers a frequency response as low as 32Hz. The TNA-2800SA offers an ideal venue
installation or point source solution. Ideal for bars, clubs, venues, schools, sports, gyms,
hotels and more.
FEATURES
•High performance dual 18-inch active subwoofer
•High power Class-D amplifier
•Universal switched mode supply and global mains operation
•Adjustable input sensitivity, crossover, and delay settings
•Balanced XLR output with switchable full-range and crossover mode
•4pcs Heavy duty 100mm PU castors included.
4
1. INPUT SENSITIVITY
This control sets the input sensitivity of the TNA-2800SA. Turned fully anti-clockwise, the
system will accept a nominal +10dB signal such as that from a high output mixing console,
whereas when set to 0dB it is more suited to lower-level inputs such as those from PA link
outs. +10dB sensitivity is recommended for most setups. Increase if you need more
volume.
2. STATUS LEDs
4 LEDs for each woofer, A and B. Power, signal present, protect system and limiter are all
highlighted by their respective LED.
3. CROSSOVER SELECTOR
Adjust the full range frequency limit of the sub from 70Hz (fully anti-clockwise) to 120Hz
(fully clockwise). A full range setting is also included to aid setup and troubleshooting.
4. PHASE SWITCH
Switch the signal phase of the output between 0˚ and 180˚, with respect to the input
signal. Swap the phase to better integrate the subwoofer into a full speaker system and
keep it in phase with the rest of the speakers. Useful when the sub is positioned in a
corner for example. Link out is not affected by this.
5
5. DELAY CONTROLS
Add a delay to your signal if required to keep the sub in sync with the rest of the sound
system. Two switches are provided, with the left controlling the delay in milliseconds and
the right in microseconds. Can also be used to implement a cardioid function along with
the phase switch, multiple subwoofers required.
6. POWER SWITCH
Turn on and off the TNA-2800SA - jump to the power cycle section for more information.
7. INPUT SOCKET
Balanced XLR signal input socket for the TNA-2800SA.
8. LINK OUT SOCKET
Line level balanced XLR output socket to link the sub to the rest of your system.
9. LINK OUT SWITCH
Toggle the output signal at the link out between your set crossover frequency, or a full
range frequency response.
10. USB-B SOCKET
This socket is for service updates only and is typically not to be used.
11. POWER SOCKET
Connect the provided twist lock power cable here to power the subwoofer from mains
power. Note, as this system is typically wired into a distribution system, we only provide
the actual twist lock power connector socket, and any mains wiring must be made by the
end user. Mains voltages are deadly, and all wiring must be performed by qualified
personnel only. If in doubt consult a qualified electrician.
6

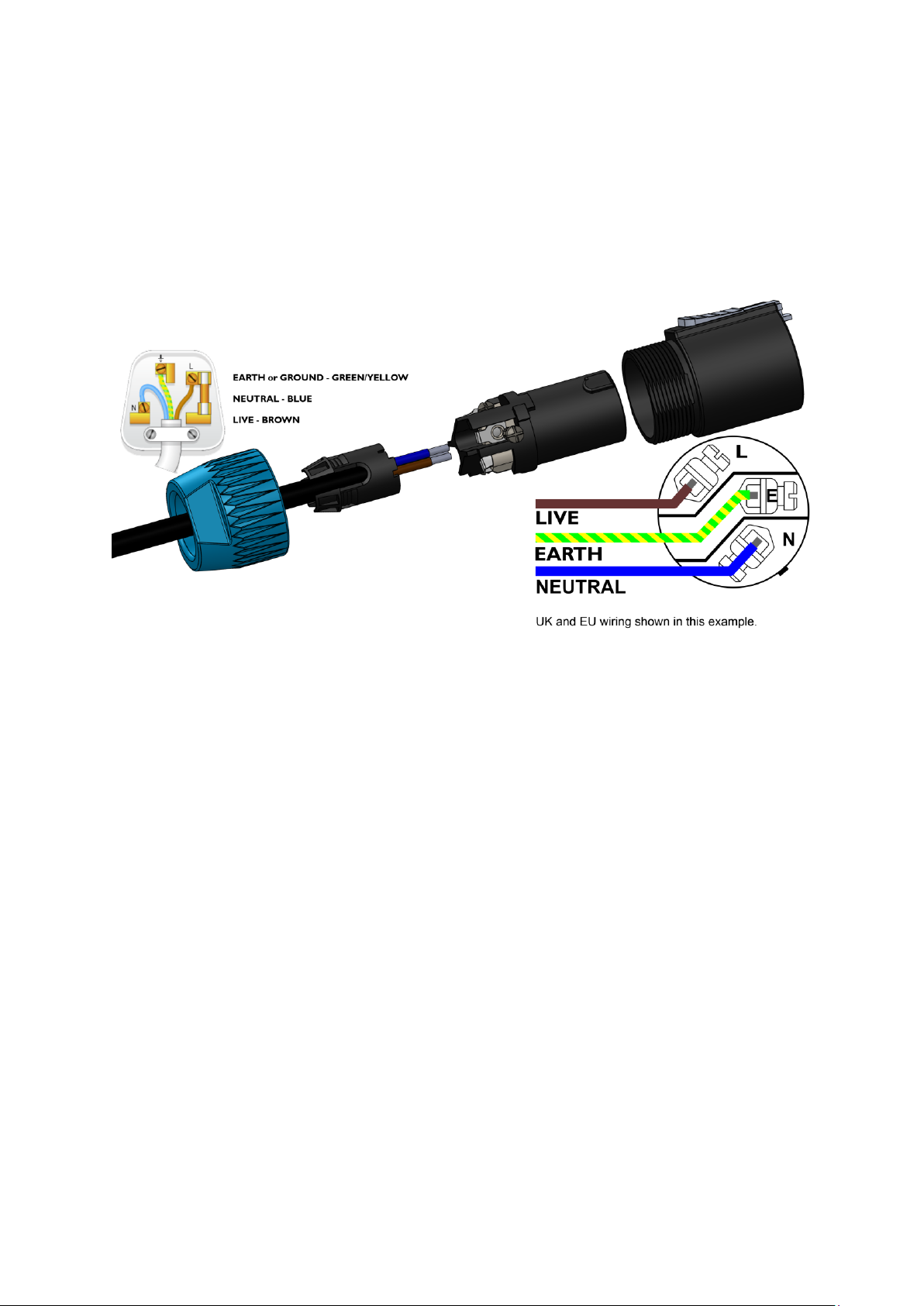

TWIST LOCK POWER CONNECTOR WIRING INFORMATION
The TNA-2800SA comes with an unterminated twist lock power connector compatible
connector. It is the user’s responsibility when making the mains cable assembly to ensure
the wiring conforms to local regulations / codes. It is vital that cable of suitable gauge is
used.
•3 CORE POWER CABLE - 1.5mm² 16 AWG.
THIS PRODUCT MUST BE EARTHED!
(powerCON is a registered trademark of Neutrik AG. All other trademarks are the property of their respective owners)
Ensure that the wiring convention applicable to the country where the amplifier is to be used is
strictly conformed to. As an example in the United Kingdom the cable colour code for connections
are shown for reference
7
INSTALLATION
Installation of the product should only be carried out by qualified installers. Do not
attempt any rewiring or reconfiguring if you do not possess the relevant training.
Carefully unpack your TNA-2800SA and check that no damage has occurred during
transportation.
When handling and moving the amplifier, always use the carrying handles provided.
WARNING: Due to the heavy weight of the product, at least two persons are required to
move and install the TNA-2800SA.
The TNA-2800SA comes with four heavy duty castors and fixing screws. If the amplifier is
to be a portable system, it is recommended to fit these for easy transportation.
Connect the input socket to either your signal source or a link out from another speaker.
Select your required phase and delay to ensure the subwoofer is kept in phase with the
rest of the system. Note that the placement of the product and the direction it faces,
compared to the other speakers, will determine how out of phase the output initially is
and a verification measurement is recommended.
Finally, when the input is connected, and all rear panel settings are correct, follow the
power cycle below to power up the 2800SA.
POWER CYCLE
The TNA-2800SA is a very powerful subwoofer, and when powered on with a signal
present, can be affected by transient surges that could damage the speakers.
To ensure this doesn’t occur, follow the sequence below when powering on (and in
reverse for powering off):
1. Ensure power switch is off.
2. Connect to power by plugging in the twist lock power cable and turning the mains
switch on.
3. Connect the input signal, ensuring it is muted and turned to its lowest setting.
4. Power the subwoofer on.
5. Set the input sensitivity to the required level.
6. Unmute the audio source and slowly increase the level.
8

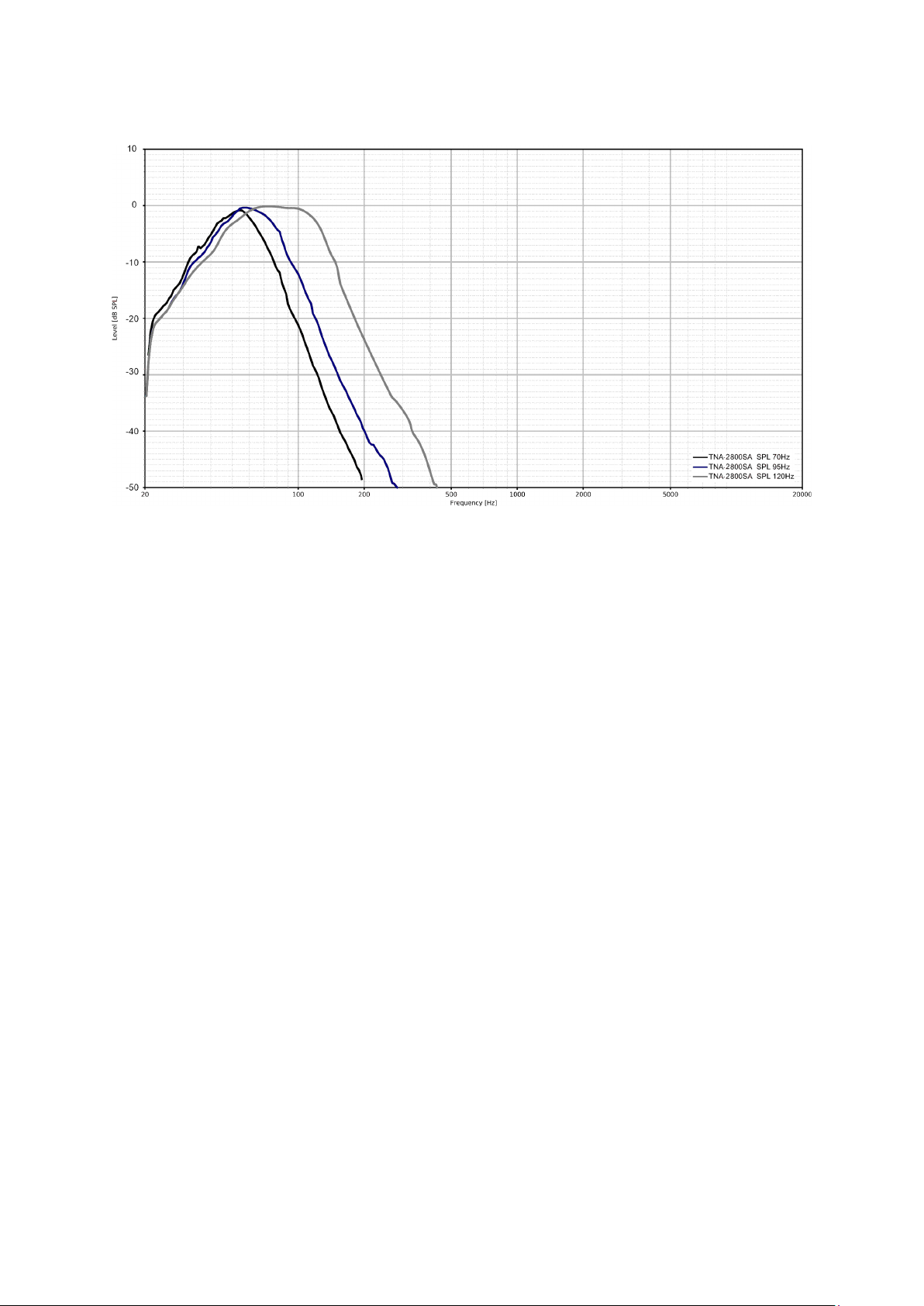

FREQUENCY RESPONSE
9
The TNA-2800SA as part of a full-range system:
Connect the TNA-2800SA as above, from the line level sub-out of the TNA-2120SA, to
utilise it as part of a full-range TNA system. Follow the power cycle instructions, and
gradually turn the TNA-2800SA input sensitivity up to a suitable level, this should be
around 10-11o’clock.
The TNA-2800SA can be wired up to a full floor system, or suspended system.
10
Specifications
Model
TNA-2800SA
System Type
Dual 18" Active Subwoofer, Direct Radiating, Bass Reflex
Frequency Response2
32Hz - 100Hz (-10dB)
37Hz - 100Hz (-3dB)
LF Driver
2x18'' High sensitivity HH designed driver. 4" Voice Coil
Max SPL 1m3
144
Crossover
Active - 70Hz to 120Hz
Amplifier
Power Rating
8000W Peak, 4000W Continuous, 2000W RMS
Input Sensitivity
0dBu to +10dBu Adjustable
Maximum Analogue Input
Level
+21dBu
Input Connector
Balanced Female XLR
Output Connector
Balanced Male XLR (Switchable Full Range/Xover)
Signal Indicators
Power, Signal Present, Clip Indicator, Protect
Controls
Input sensitivity, Crossover frequency, Phase Switch, Variable Delay (0>9.9mS)
AC Power
~100V-240V 50/60Hz
AC Power Consumption
700W Typical, 1500W Max
AC Power Inlet
Twist Lock Power Socket. (Plug included, to be wired by installer)
Enclosure
Cabinet
Acoustically optimised 18mm plywood cabinet with extensive internal bracing
Finish
Painted Black (White finish optional, subject to MOQ)
Mounting Points
8x M10 Penn Elcom tie down/flying points. 16x M8 inserts for included transport
wheels
Grille
1.5mm Thickness Steel, Hexagonal mesh, acoustic foam lined
Transport Wheels
4pcs Heavy duty 100mm PU castors included in the box
Unit dimensions (HWD)
562 x 1080 x 685mm, (22.1" x 42.5" x 27")
Unit weight
77.7Kg, 171 lbs
Carton dimensions (HWD)
700 x 1280 x 815mm, (27.6" x 50.4" x 32.1") , (0.73 M3)
Packed weight
91Kg, 201 lbs
EAN13
5060109458350
In the interest of continued development, HH reserves the right to amend the product specification without prior
notification.
11
DIMENSIONAL DATA
12
In order to take full advantage of your new product and enjoy long and trouble-free performance, please read this owner's
manual carefully, and keep it in a safe place for future reference.
1) Unpacking: On unpacking your product please check carefully for any signs of damage that may have occurred whilst in
transit from the HH factory to your dealer. In the unlikely event that there has been damage, please re-pack your unit in
its original carton and consult your dealer. We strongly advise you to keep your original transit carton, since in the
unlikely event that your unit should develop a fault, you will be able to return it to you dealer for rectification securely
packed.
2) Amplifier Connection: In order to avoid damage, Generally it is advisable to establish and follow a pattern for turning on
and off your system. With all system parts connected, turn on source equipment, mixers, effects processors etc,
BEFORE turning on your amplifier. Many products have large transient surges at turn on and off which can cause
damage to your speakers. By turning on your amplifier LAST and making sure its level control is set to a minimum, any
transients from other equipment should not reach your loud speakers. Wait till all system parts have stabilised, usually a
couple of seconds. Similarly when turning off your system always turn down the level controls on your amplifier and then
turn off its power before turning off other equipment.
3) Cables: Never use shielded or microphone cable for any speaker connections as this will not be substantial enough to
handle the amplifier load and could cause damage to your complete system. Use good quality shielded cables
everywhere else.
4) Servicing: The user should not attempt to service these products. Refer all servicing to qualified service personnel.
5) Heed all warnings.
6) Follow all instructions.
7) Do not use this apparatus near water.
8) Clean only with a dry cloth.
9) Do not block any of the ventilation openings. Install in accordance with manufacturer’s instructions.
10) Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers)
that produce heat.
11) An apparatus with Class I construction shall be connected to a mains socket outlet with a protective connection. Do not
defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than
the other. A grounding type plug has two blades and a third grounding prong. The wide blade or third prong is
provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
12) Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point
they exit from the apparatus.
13) Only use attachments/accessories provided by the manufacturer.
14) Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a
cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
15) The mains plug or appliance coupler is used as the disconnect device and shall remain readily operable. The user
should allow easy access to any mains plug, mains coupler and mains switch used in conjunction with this unit thus
making it readily operable. Unplug this apparatus during lightning storms or when unused for long periods of time.
16) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any
way, such as when power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
17) Never break off the ground pin. Connect only to a power supply of the type marked on the unit adjacent to the power
supply cord.
18) If this product is to be mounted in an equipment rack, rear support should be provided.
19) Note for UK only: If the colours of the wires in the mains lead of this unit do not correspond with the terminals in your
plug‚ proceed as follows:
oThe wire that is coloured green and yellow must be connected to the terminal that is marked by the letter E‚ the
earth symbol‚ coloured green or coloured green and yellow.
oThe wire that is coloured blue must be connected to the terminal that is marked with the letter N or the colour
black.
oThe wire that is coloured brown must be connected to the terminal that is marked with the letter L or the colour
red.
20) This electrical apparatus should not be exposed to dripping or splashing and care should be taken not to place objects
containing liquids, such as vases, upon the apparatus.
21) Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary
considerably in susceptibility to noise-induced hearing loss, but nearly everyone will lose some hearing
if exposed to sufficiently intense noise for a sufficient time. The U.S. Government’s Occupational Safety
and Health Administration (OSHA) has specified the following permissible noise level exposures:
According to OSHA, any exposure in excess of the above permissible limits could result in some hearing
loss. Earplugs or protectors to the ear canals or over the ears must be worn when operating this
amplification system in order to prevent a permanent hearing loss, if exposure is in excess of the limits
as set forth above. To ensure against potentially dangerous exposure to high sound pressure levels, it is
recommended that all persons exposed to equipment capable of producing high sound pressure levels such as this
amplification system be protected by hearing protectors while this unit is in operation.
22) If your appliance features a tilting mechanism or a kickback style cabinet, please use this design feature with caution.
Due to the ease with which the amplifier can be moved between straight and tilted back positions, only use the
amplifier on a level, stable surface. DO NOT operate the amplifier on a desk, table, shelf or otherwise unsuitable non-
stable platform.
23) Symbols & nomenclature used on the product and in the product manuals, intended to alert the operator to areas
where extra caution may be necessary, are as follows:
13
Intended to alert the user to the presence of uninsulated ‘Dangerous Voltage’ within the products enclosure
that may be sufficient to constitute a risk of electrical shock to persons.
Ce symbole est utililise pur indiquer a l’utilisateur de ce produit de tension non-isolee dangereuse pouvant
etre d’intensite suffisante pour constituer un risque de choc electrique.
Este simbolo tiene el proposito de alertar al usuario de la presencia de ‘(voltaje) peligroso’ que no tiene
aislamiento dentro de la caja del producto que puede tener una magnitud suficiente como para constituir
riesgo de corrientazo.
Dieses Symbol soll den Anwender vor unsolierten gefahrlichen Spannungen innerhalb des Gehauses warnen,
die von Ausrichender Starke sind, um einen elektrischen Schlag verursachen zu konnen.
Intended to alert the user of the presence of important operating and maintenance (Servicing) instructions in
the literature accompanying the product.
Dieses Symbol soll den Anwender vor unsolierten gefahrlichen Spannungen innerhalb des Gehauses warnen,
die von Ausrichender Starke sind, um einen elektrischen Schlag verursachen zu konnen.
Este simbolo tiene el proposito de la alertar al usario de la presencis de instrucccones importantes sobre la
operacion y mantenimiento en la literatura que viene conel producto.
Dieses Symbol soll den Benutzer auf wichtige Instruktionen in der Bedienungsanleitung aufmerksam machen,
die Handhabung und Wartung des Produkts betreffen.
CAUTION: Risk of electrical shock - DO NOT OPEN. To reduce the risk of electrical shock, do not remove the cover. No
user serviceable parts inside. Refer servicing to qualified personnel.
ATTENTION: Risques de choc electrique - NE PAS OUVIRIR. Afin de reduire le risque de choc electrique, ne pas enlever le
couvercle. II ne se trouve a l’interieur aucune piece pouvant etre reparee par l’utilisateur. Confier l’entretien a
un personnel qualifie.
PRECAUCION: Riesgo de corrientazo - no abra. Para disminuir el risego de carrientazo, no abra la cubierta. No hay piezas
adentro que el pueda reparar. Deje todo mantenimiento a los tecnicos calificadod.
VORSICHT: Risiko - Elektrischer Schlag! Nicht offen! Um das Risiko eines elektrischen Schlages zu vermeiden, nicht die
Abdeckung enfernen. Es befinden sich keine Teile darin, die vow Anwender repariert werden Konnten.
Reparaturen nur von qualifiziertem Fachpersonal durchfuhren lassen.
WARNING: To prevent electrical shock or fire hazard, do not expose this appliance to rain or moisture. Before using this
appliance please read the operating instructions for further warnings.
ADVERTISSEMENT: Afin de prevenir les risques de decharge electrique ou de feu, n’exposez pas cet appareil a la pluie ou a
l’humidite. Avant d’utiliser cet appareil, lisez les advertissments supplentaires situes dans le guide.
ADVERTENCIA: Para evitar corrientazos o peligro de incendio, no deja expuesto a la lluvia o humedad este aparato Antes de
usar este aparato, lea mas advertcias en la guia de operacion.
ACHTUNG: Um einen elektrischen Schalg oder Feuergefahr zu vermeiden, sollte dieses Gerat nicht dem Regen oder
Feuchtigkeit ausgesetzt werden. Vor Inbetriebnahme unbedingt die Bedienungsanleitung lesen.
This device complies with Part 15 of the FCC rules Operation is subject to the following two conditions:
1) This device may not cause harmful interference
2) This device must accept any interference received, that may cause undesired operation.
Warning: Changes or modification to the equipment not approved by HH can void the user's authority to use
the equipment.
Note: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try and correct the interference
by one or more of the following measures. Reorient or relocate the receiving antenna. Increase the separation
between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.
This product conforms to the requirements of the following European Regulations, Directives & Rules: CE
Mark (93/68/EEC), Low Voltage (2014/35/EU), EMC (2014/30/EU), RoHS (2011/65/EU), ErP (2009/125/EU)
SIMPLIFIED EU DECLARATION OF CONFORMITY
Hereby, HH Electronics Ltd. declares that the radio equipment is in compliance with Directives 2014/53/EU,
2011/65/EU, 2009/125/EU. Full text of the EU declaration of conformity is available at the following internet
address:
http://support.hhelectronics.com/approvals
The object of the declaration described above is in conformity with the relevant statutory requirement
Electrical Equipment (Safety) Regulations 2016, Electromagnetic Compatibility Regulations 2016, The
Restriction of the use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations
2012, The Ecodesign for Energy-Related Products and Energy Information, (Amendment) (EU Exit)
Regulations 2012
In order to reduce environmental damage, at the end of its useful life, this product must not be disposed of
along with normal household waste to landfill sites. It must be taken to an approved recycling centre
according to the recommendations of the WEEE (Waste Electrical and Electronic Equipment) directive
applicable in your country.
Table of contents
Other HH Electronics Subwoofer manuals
