Hi-FiD HFD-X1 User manual



UserManual




ModelNo.:HFD‐X1
BoxContent
1.1*TrueWirelessSpeaker
2.1*ChargingCable
3.1*AudioCable
4.1*UserManual


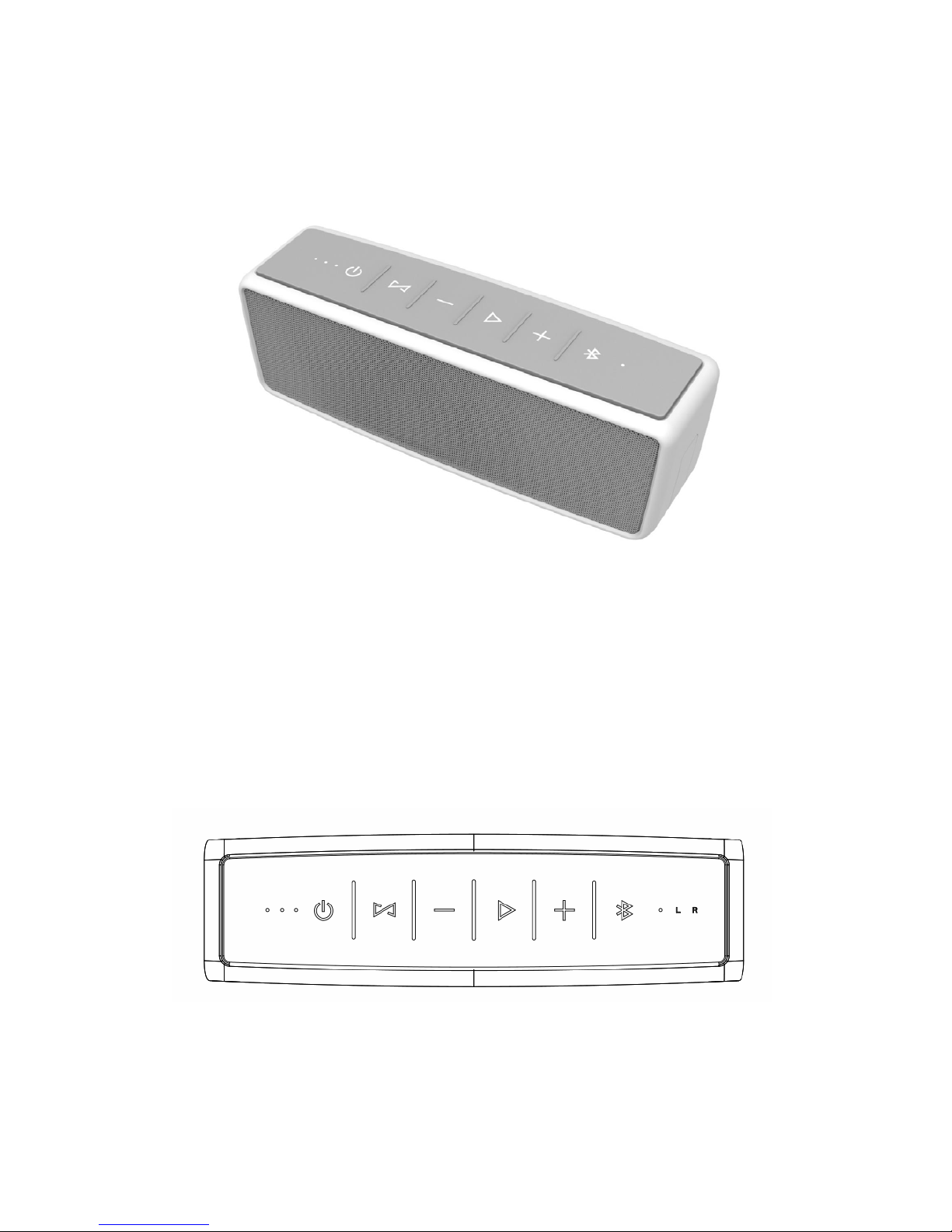

ProductOverview

1. BatteryLevelIndicater
30%Battery
60%Battery
100%Battery

ProductName：WirelessSpeaker



2.PowerButton
Pressandholdfor3secondstopoweron/offthespeaker.

3.Multi‐functionButton
ShortpressthisbuttontotogglebetweenBluetooth/AUX/TFcardmodes.
PressandholdthisbuttontoactivateTrueWirelesspairingmode.

4.V(olume)‐/Prevbutton
Pressandholdtodecreasethevolume.
Simplypresstonavigatetheprevioustrack.

5.Play/Pause/PhoneButton
Simplypressthebuttontoplay/pausethemusic.
Presstoanswer/endorpressandholdtodeclinethecall.
pressandholdfor2secondstoactivateorendSIRI,wheninbluetoothmode.

6.V(olume)+/NextButton
Pressandholdtoincreasethevolume.
Simplypresstonavigatethenexttrack.

7. Bluetoothbutton
Pressandholdthisbuttonfor2secondstoenterintobluetoothparingmodewiththealert
“Pairing”ordisconnectthepairing.

8.Multi‐functionIndicator
Solidblue:Speakerispoweredon
FlashBlueFast:Waittingtobepaired
FlashBlueSlowly:Bluetoothpairedsuccessfully
Flashingblue&red:Truewirelesspairing
Solidgreen:ThespeakerisinAuxmode
Solidorange:ThespeakerisinTFCardmode
Flashingred:Batterylow

9.L&RIndicator
Solid“L”:Thespeakersarepairedsuccessfullybytruewireless,thisoneistheMaster.
Solid“R”:Pairedsuccessfullybytruewireless,thisoneistheSlave.
Notes:
Theindicatorsareallindark,ifusesolely.
Theywillbeflashinginthesametimeuntilthespeakersarepairedsuccessfullywiththe
soundalert“Connected”,whenTrueWirelesspairing.





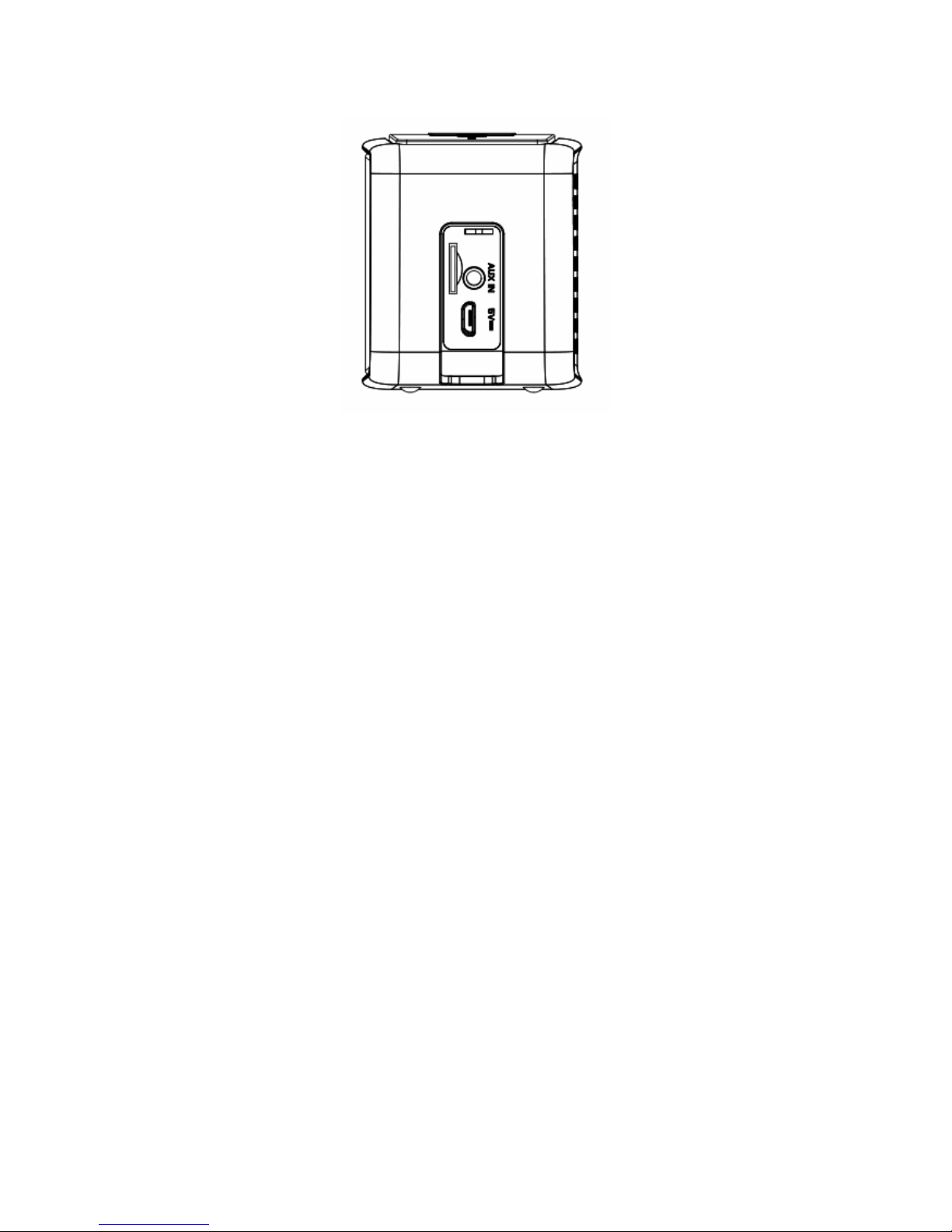

1. AUXINPort
Usethisporttoconnectanexternalmediadeviceviatheaudiocable.

2. ChargingPort
InsertthepowercordintotheMicro‐USBportofthedevice(Usewith5V/1Aadapter).
Chargingbeginsautomaticallyevenifthedeviceispoweredoff.(USBpoweradapternot
included)

3. TFCardPort
InserttheTFcardintothisslottoplaystoredmediasources.

INSTRUCTIONS
BlutoothMode
1. Pressandholdthebluetoothbuttonfor2secondstoenterbluetoothpairingmodewitha
soundalert“Pairing”,theindicatorisflashingfastinblue.
2. BTPairingModewillautomaticallybecanceledafter3minutes.Tore‐enterpairingmode,
simplybeginagainatstep#1.
3. Ensurebluetoothisenabledonthedeviceyouwishtopairwiththespeaker.
4. Keepyourdevicewithin3feetwiththespeaker,andsearchbluetoothname“X1”onyour
devicetopairthemtogether(sometimescalleda“Passkey”,“PINNumber”enter“0000”).
5. Playmusictoenjoyamazingwirelesssoundbythespeaker.
6. Thespeakerwillrecordthisdeviceasthelastdevicepaired.
7. Incomingcallswilloverridemusicandothermediawithanincomingcallvoicealert,simply
pressthebutton“Play/Pause”toanswer/endorpressandholdfor2secondstodeclinethe
call.
8. WheninBTmode,pressthebutton”Play/Pause”pressandhold2StoactivateSiri/S‐Voice.
9. Shouldyouwishtoswitchmusicplayers,simplypressandholdthebluetoothbuttonto
disconnectthepaireddevice,thenre‐pressandholdthebuttontoenterpairingmodelike
normal.




TrueWirelessFunction
1. Connectedonespeakertoyourdeviceasnormalbluetoothconnection.
2. Poweronanotherspeaker
3. Pressandholdthemulti‐functionbuttonsonthesetwospeakersatthesametimethe
Redandbluelightsalternatelyflash,whentheindicators“L”&“R”onbothspeakers
areflashingtogether,theywillbepairedtoeachothersuccessfullywiththesoundalert
“Connected”.
4. ThespeakerconnectedwithyourdeviceistheMasterwiththeindicator“L”insolid
white,theotheristheSlavewiththeindicater“R”insolidwhite.
5. Playmusiconyourdevice,bothofthemwillworktogether.

Notes:
1.Ifyoujustwanttouseone,pressandholdthebuttons“Volume‐”and“Volume+”together
untilthe“L”and“R”lightoffonthespeakerstoclearthepairingrecords,theneitherof
themcanbeusedsolelyafterre‐powerit.
2.IfyouusetheSlaveindividuallywithoutclearingthepairedrecord,PressandholdtheBluetooth
Buttonfor2seconds,willwiththesoundalert“Pairing”,“L”and“R”Lightoff,Bluelight
flashing,useyouphoneconnectit.NowtheSlaveisconnectyouphone.Openthe
Master,can’treturntoTWSstatus,needdisconnectthephonebluetooth,andRebootthetwo
speaker,itwillreturntheTWSstatus.

TFCardMode
1. PutinMicroSDcardintotheslot,itwillswitchtoTFCardmodeautomatically.
2. Theindicatorisinorange,whenpausethemusic.

Notes:SimplypresstheMulti‐functionbuttontoswitchthemodebetweenBT/AUX/TFCard
modes,theonewillbeignoredifnoinputmediasources.

FEATURES
1. AdvancedBTTruewirelessChipset,RealWirelessStereoSoundinRichQuality
2. Bluetooth,AUXandTFCardConnectionCapability
3. IPX6Waterproof
4. 10hoursofExtendedPlaytime(at50%volume)
5. HandsfreeCallwithHigh‐sensitiveMicrophone
6. SIRIandS‐VoiceSupported
7. AutoIdleShutoffin40minutestoSavePower

SPECIFICATIONS
1.Bluetoothversion:BT5.0chipwithTWSfunction.
2.Outpower:15WperUnit,TwoSpeakerscanWorktogether(30W).
3.Chargingvoltage:DC5V
4.built‐inRechargeableLi‐ionbattery
5.Batterypackcapacity:4000mAh
6.THD:<0.3%



7.SNR:>85dB
8.FrequencyResponse:65Hz‐18KHz
8.Modes:Bluetooth,TFCard,AUXin
9.Responsedistance:15meters.
10.Microphonebuiltin
11.HandfreeCalls,Voiceprompt,SIRIorS‐VoiceSupported
12.Demension:50*61*188mm

Toubleshooting
Speakerwillnotturnon
*IfoperatingonChargingmode,ensureyourspeakerisconnectedtoaworkingPowerAdapter.
*Ifoperatingonbatterypower,thebatterymaybeinprotectionmodeordischarged.Connectto
apoweradaptertorestorethebatterytooperationalmode.
CannotpairandconnectthespeakerwithmyBTdevice
*Ensureyourspeakerisdiscoverable(BTstatusindicatorblinksbluequickly).
*EnsureBTisactivatedonyourdevice,youhaveselectedtherightbluetoothnameintheBT
devicelist,andtheconnectionhasbeenconfirmedbyyourdevice.
*YourBTdevicesmaybeoutofrange.Trymovingitclosertothespeaker.
*Ifpossible,turnoffallothernearbyBTdevicesordisabletheirBTfunctionality.
Turnthespeakeroffandbackon,andpairyourdeviceandspeaker.
Thespeakerindicatesaconnection,butisnotplayingmusic
*Ensurethedeviceyouwanttohearisconnectedtothespeakerandplayingaudio.
*Ensurethespeakerisnotmutedandthespeakervolumeisturnedup.
*Turnupthevolumeonyourdevice.
*Yourdevicemaybeoutofrange.Trymovingitclosertothespeaker.
Moveyourdeviceawayfromanydevicethatgenerateselectromagneticinterference,suchas
anotherBTdevice,cordlessphone,micro‐waveoven,orwirelessrouter.
*TurnoffordisableBTfunctionalityonallothernearby
paireddevicesandreconnectthedeviceyouwanttohear.
*Turnthespeakeroffandbackon.

ProperUse
1.Pleasechargeyournewspeakersforatleasttwohoursbeforefirstuse.
2.Topreventdamageandriskofelectricalshock,donotexposethisdevicetodust,vibration,rain,
waterorliquidsofanykind.
3.Donotplacedeviceincloseproximitytoopenflamesorextremeheatsources.Alwaysplace
yourdeviceonlevel,flatandstablesurfaces.
4.Avoidplacingitemsontopofthespeakers.
5.Donotuseexcessiveforcewhenpressingbuttonsorhandlingspeakers.
6.Tocleanyourspeakers,useadry,softclothorminimallydampclothwithoutanycorrosive
solventorcleaningagent.






Safety
Topreventfires,shockorinjury,pleasedonotdisassembleorreplaceanypartsofthisdevice.In
theeventthatyourdevicemaybedamagedorinneedofrepair,pleasecontactaprofessional
maintenanceorqualifiedservicecenterforassistance.
Wearenotresponsibleforanypersonalinjuryorpropertydamagecausedbyimproperuseof
thisproduct.

FCCStatement
Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecould
voidtheuser'sauthoritytooperatetheequipment.
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,
pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotection
againstharmfulinterferenceinaresidentialinstallation.Thisequipmentgeneratesusesandcan
radiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,
maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethat
interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmful
interferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipment
offandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe
followingmeasures:
‐‐Reorientorrelocatethereceivingantenna.
‐‐Increasetheseparationbetweentheequipmentandreceiver.
‐‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris
connected.
‐‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp
Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothefollowingtwo
conditions(1)thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptany
interferencereceived,includinginterferencethatmaycauseundesiredoperation.
