HIK VISION DS-2CC195P(N)-A User manual

Hikvision Technical Manual
©2006 – 2010 by HIKVISION. All rights reserved.
1
DS-2CC195P(N)-A Analog Camera
Technical Manual

Hikvision Technical Manual
©2006 – 2010 by HIKVISION. All rights reserved.
2
Notices
The information in this documentation is subject to change without notice and does not represent any
commitment on behalf of HIKVISION. HIKVISION disclaims any liability whatsoever for incorrect data
that may appear in this documentation. The product(s) described in this documentation are furnished
subject to a license and may only be used in accordance with the terms and conditions of such license.
Copyright © 2006-2010 by HIKVISION. All rights reserved.
This documentation is issued in strict confidence and is to be used only for the purposes for
which it is supplied. It may not be reproduced in whole or in part, in any form, or by any means or
be used for any other purpose without prior written consent of HIKVISION and then only on the
condition that this notice is included in any such reproduction. No information as to the contents or
subject matter of this documentation, or any part thereof, or arising directly or indirectly therefrom,
shall be given orally or in writing or shall be communicated in any manner whatsoever to any third party
being an individual, firm, or company or any employee thereof without the prior written consent of
HIKVISION. Use of this product is subject to acceptance of the HIKVISION agreement required to use
this product. HIKVISION reserves the right to make changes to its products as circumstances may
warrant, without notice.
This documentation is provided “as-is,” without warranty of any kind.
Please send any comments regarding the documentation to:
[email protected]
Find out more about HIKVISION at www.hikvision.com

Hikvision Technical Manual
©2006 – 2010 by HIKVISION. All rights reserved.
3
Contents
1. Key Features
2. Specifications
3. Dimension

Hikvision Technical Manual
©2006 – 2010 by HIKVISION. All rights reserved.
4
1.Key Features
zCompact design
z1/3” inch SONY CCD
zMin. Illumination: 0.02 Lux @ F1.2 (Color), 0.002 Lux @ F1.2 (B/W)
zFlickerless mode
zICR filter auto switch
zDigital Noise Reduction (DNR)
zOSD menu
zAuto iris with DC / video driver
zAuto white balance, auto gain control, electronic shutter control and backlight
compensation
zCS mount lens (provide adapter for C mount lens)
zInternal or Power Synchronization

Hikvision Technical Manual
©2006 – 2010 by HIKVISION. All rights reserved.
5
2.Specifications
ParameterModelDS‐2CC195P(N)‐A
ImageSensor 1/3inchSONYCCD
SignalSystemPAL/NTSC
EffectivePixels
PAL:752(H)×582(V)
NTSC:768(H)×494(V)
Min.
Illumination
Color0.02Lux@F1.2,0.00007Lux@(F1.2,sensitivity×256)
B&W0.002Lux@F1.2,0.000007Lux@(F1.2,sensitivity×256)
ElectronicShutterSpeed 1/50(60)to1/100,000s
LensMountC/CSmount
AutoIrisLensDC/VideoDrive
Day/NightIRCutFilterAutoSwitch
HorizontalResolution(TVL)540(Color),600(B/W)
Synchronization Internal/Powersynchronization
VideoOutput1Vp‐pCompositeOutput(75Ω/BNC)
S/NRatioMorethan50dB
Menu
CameraIDOn/Off(15letters,fixedposition)
AutoGainLow/Middle/High/Off
D/NModeAuto1/Auto2/Day/Night
WhiteBalanceAutotraceWB1/AutotraceWB2/Manual/Auto
PrivateMaskOn/Off,Maximum8Zones
MotionDetectionMode1/Mode2/Mode3/Off
FlickerProofOn/Off
RS‐485Address/Protocol/BaudRate
LanguageEnglish/Chinese
Video
GamaAmendment,DigitalZoom,DigitalNoiseReduction,
POS/NEG,Mirror,Resolution,Sharpness,Y,C,Blemish
Detection
PowerSupply24VAC/20VA±10%,12VDC/300Ma±10%,
WorkingTemperature‐10 ~60 (14°F~140°F)
PowerConsumption3W(10WMAXWithICRWorking)
Dimension68mm×57mm×133.2mm(2.7”×2.2”×5.2”)
Weight500g(1.1lbs)

Hikvision Technical Manual
©2006 – 2010 by HIKVISION. All rights reserved.
6

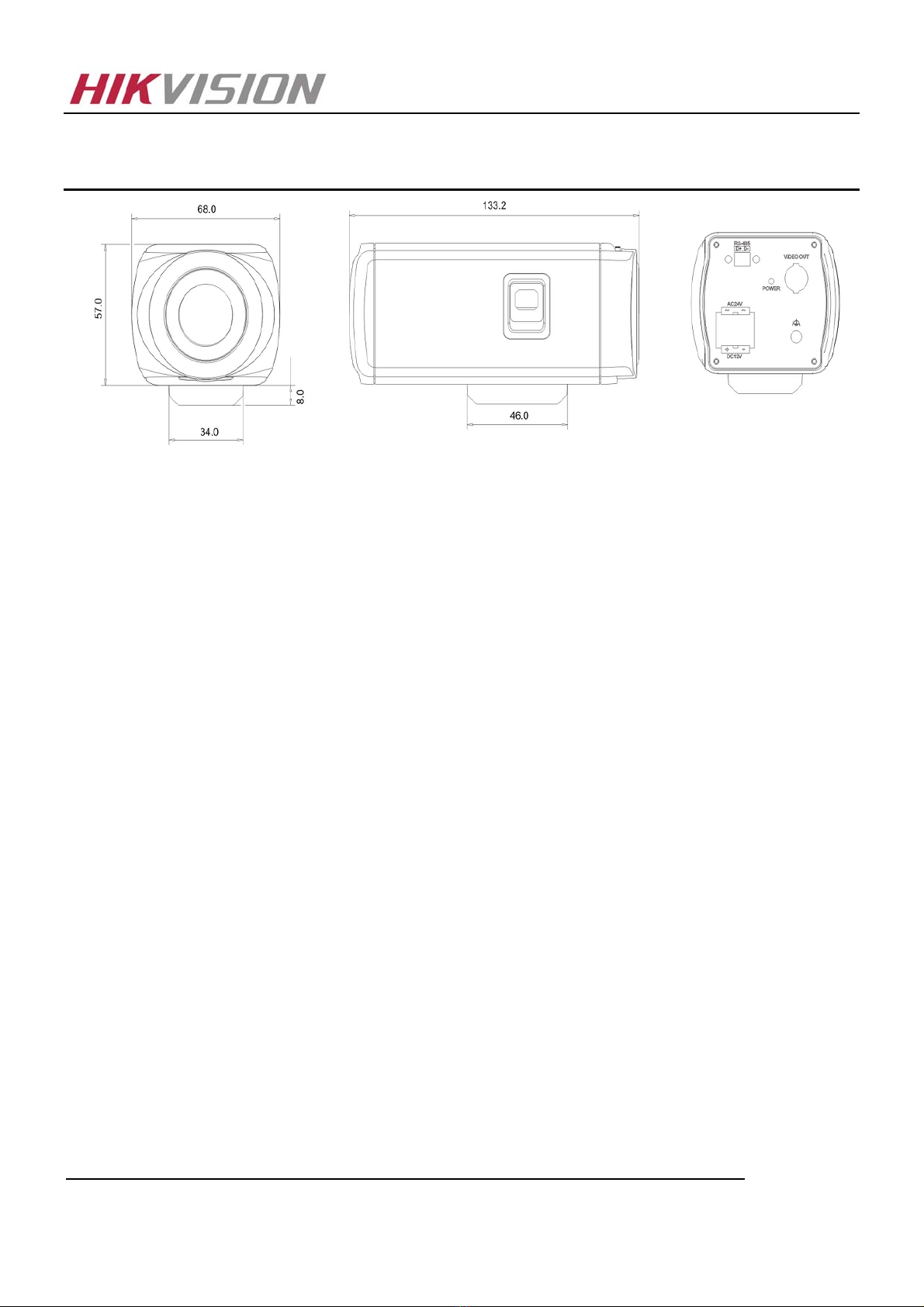

3.Dimension
