HIK VISION DS-5116HFI Series User manual

DS-5116HFI Series
IA Embedded Motherboard
User Manual
V1.0
2010-6-22

Hikvision Technical Manual
©2006 –2010 by HIKVISION. All rights reserved.
Notices
The information in this documentation is subject to change without notice and does not
represent any commitment on behalf of HIKVISION. HIKVISION disclaims any liability
whatsoever for incorrect data that may appear in this documentation. The product(s) described
in this documentation are furnished subject to a license and may only be used in accordance
with the terms and conditions of such license.
Copyright © 2006-2010 by HIKVISION. All rights reserved.
This documentation is issued in strict confidence and is to be used only for the
purposes for which it is supplied. It may not be reproduced in whole or in part, in any form,
or by any means or be used for any other purpose without prior written consent of HIKVISION
and then only on the condition that this notice is included in any such reproduction. No
information as to the contents or subject matter of this documentation, or any part thereof, or
arising directly or indirectly therefrom, shall be given orally or in writing or shall be
communicated in any manner whatsoever to any third party being an individual, firm, or
company or any employee thereof without the prior written consent of HIKVISION. Use of this
product is subject to acceptance of the HIKVISION agreement required to use this product.
HIKVISION reserves the right to make changes to its products as circumstances may warrant,
without notice.
This documentation is provided “as-is,” without warranty of any kind.
Please send any comments regarding the documentation to:
[e-mail]
Find out more about HIKVISION at www.hikvision.com

Hikvision Technical Manual
©2006 –2010 by HIKVISION. All rights reserved.
Index
1 Product Description ..........................................................................................................3
2 Order Model......................................................................................................................3
3. Feature Description .........................................................................................................3
4 Developing Support..........................................................................................................4
5 Motherboard Interface ......................................................................................................5
6. Technical Specification.....................................................................................................6
7. Driver & SDK....................................................................................................................7
Driver Installation..........................................................................................................8
7.2 SDK & Demo Description.....................................................................................20

Hikvision Technical Manual
©2006 –2010 by HIKVISION. All rights reserved.
1 Product Description
DS-51xx series IA Embedded Network DVR is an embedded developing platform which is
compatible with Hikvision Compression Card SDK. Due to the openness of IA structure, various PC
application software can be applied to the product, and provides a flexible embedded hybrid DVR
solution for the software developers or system integrators.
2 Order Model
DS-5116HFI-A
Support 16ch analog video/audio input with 4CIF/2CIF/DCIF/CIF/QCIF real-time encoding
Support 4ch analog video/audio output
Support 16ch alarm input and 4ch alarm output
Provide 1 RS-232 serial port and 1 RS-485 serial port
DS-5116HFI-C
Support 16ch analog video & audio input with 4CIF/2CIF/DCIF/CIF/QCIF real-time encoding
Support 4ch analog video/audio output
Support 6 RS-232 serial port
3. Feature Description
Atom N270 1.6GHZ CPU with low power consumption
Open IA structure, various PC application software can be applied to the product
1000M Ethernet port x2, support multiple IPC connection
Support multiple analog video & audio input
Support multiple analog Video and audio output
Support H.264 hardware compression and hardware decoding
Programmable front panel button & LED configuration
Support 10 SATA interface and 1 CF card interface
Standard ATX motherboard design to fit in standard PC chassis

Hikvision Technical Manual
©2006 –2010 by HIKVISION. All rights reserved.

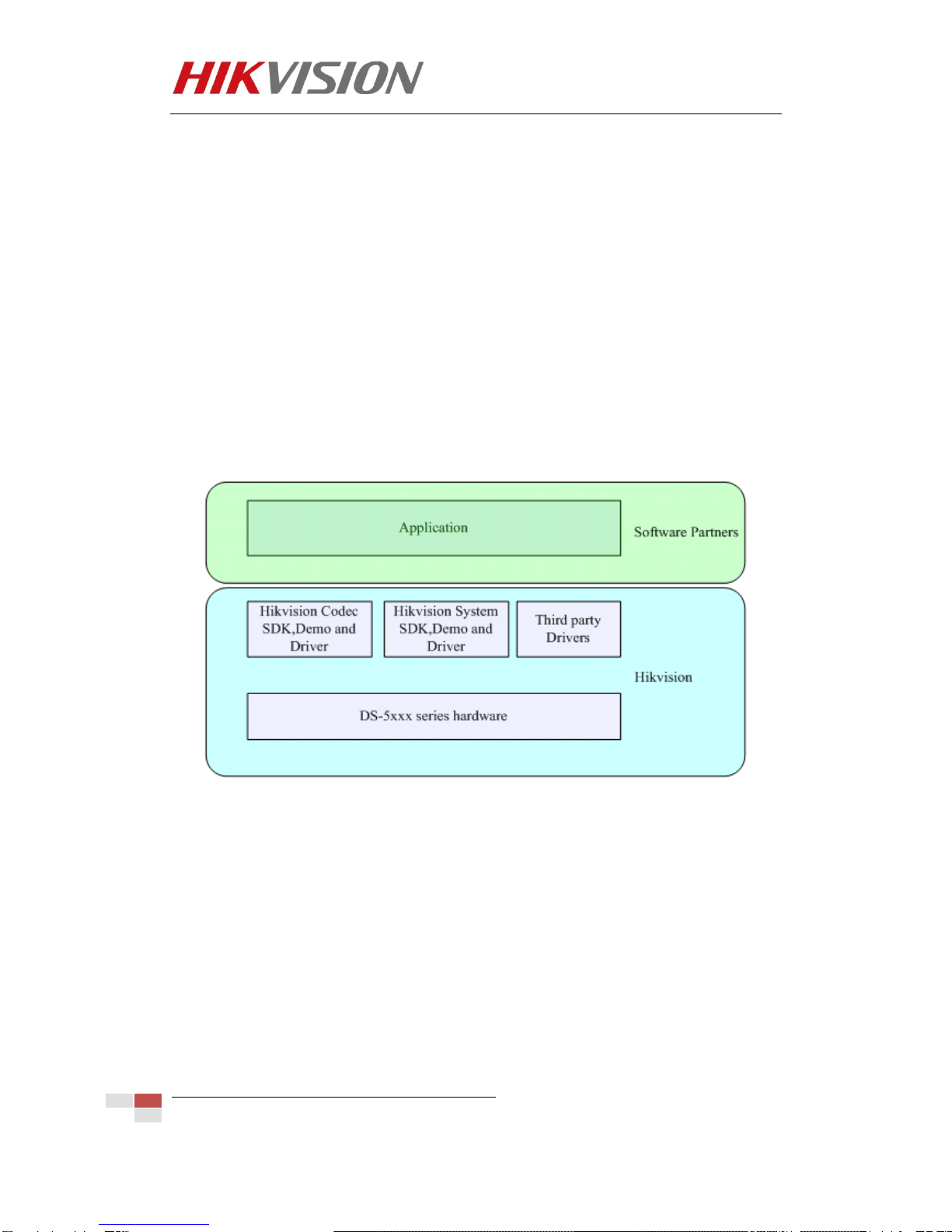

4 Developing Support
Application:
DVR or hybrid DVR for professional digital surveillance
Developing Support
Support Windows XP/XPE & Linux system;
Provide complete SDK and open-source DEMO, and is compatible with HIKVISION compression
card SDK;
Provide system SDK and open-source DEMO for programmable front panel button, LED & alarm
I/O configuration;
Provide third-party drivers including audio driver, LAN driver, display adapter driver, SATAcontroller driver,
etc;

Hikvision Technical Manual
©2006 –2010 by HIKVISION. All rights reserved.

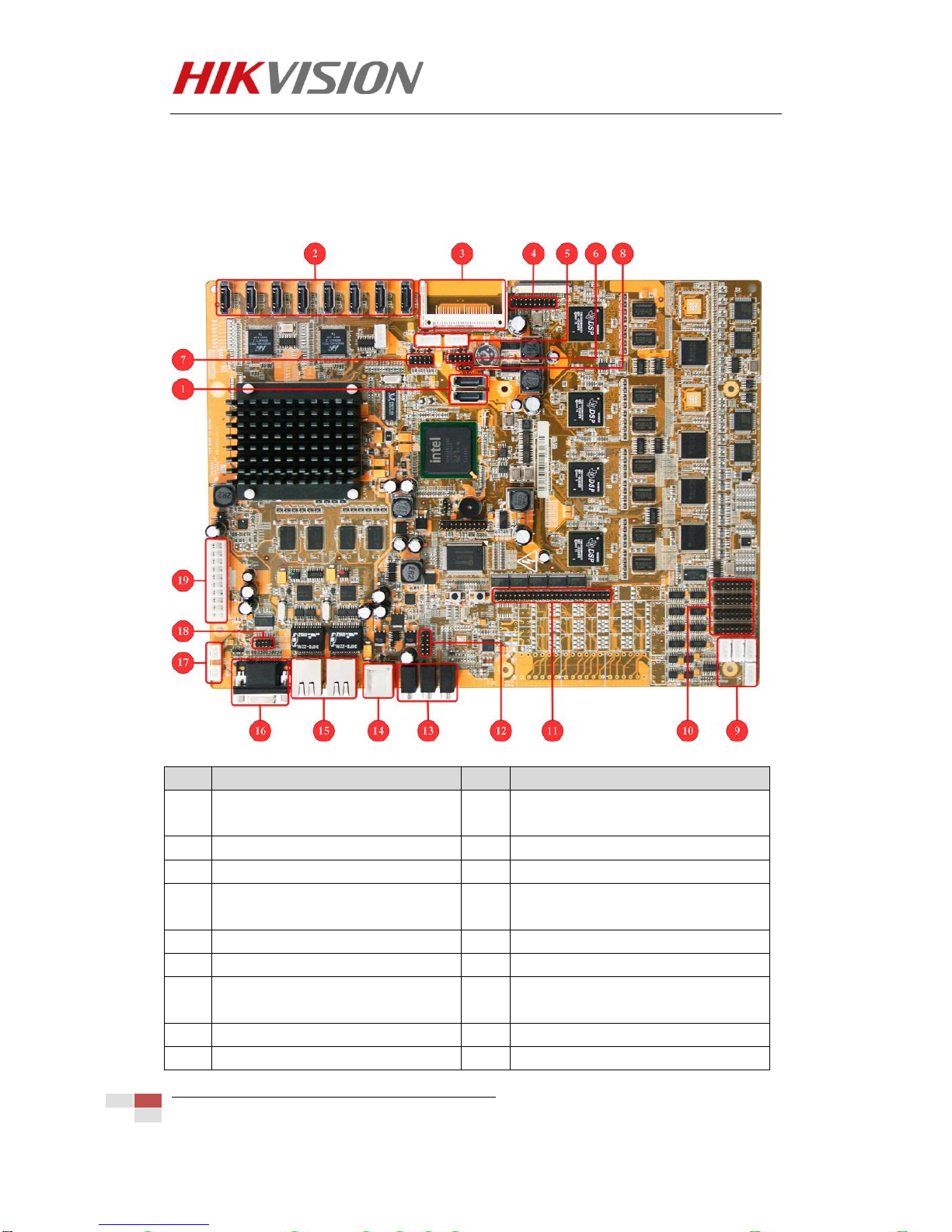

5 Motherboard Interface
DS-5116HFI Motherboard Interface
No
Description
No
Description
1
SATA 1-2 Interface
11
COM2-COM6 or alarm Input/Output &
RS485 (JSP3)
2
SATA 3-10 Interface (Need Driver)
12
Front Panel Audio Pin (J55)
3
CF Card Interface
13
Line In & Line Out & Mic In
4
Front Panel Interface 2 (J13)，please
refer to Notice 2
14
RJ45 10M/100M/1000M Adaptive
Ethernet Interface
5
On-board USB Interface (JP1&JP5)
15
Rear Panel USB Interface
6
On-board USB Interface (J53)
16
VGA Interface
7
Front Panel Interface 1 (J12) , please
refer to Notice 2
17
Fan Power (12V)
8
Pin to clear CMOS Settings (J59)
18
COM1 (J14)
9
Video/Audio Output 1-4 (JAV5—JAV8)
19
ATX Power Supply Interface

Hikvision Technical Manual
©2006 –2010 by HIKVISION. All rights reserved.
10
Audio & Video Input 1-16 (JAV1—JAV4)
Notice 1: All the interfaces highlighted with Blue color can be referred in <DS-51xx Series IA
Embedded Compression Board Pin Description> for detail description.
Notice 2: Front panel interface 1 and Front panel interface2 cannot be used at the same time
6. Technical Specification
Model
DS-5116HFI-A
DS-5116HFI-C
Motherboard
CPU
Intel Atom N270 1.6GHZ
Memory
1GB
VGA
1, support up to 1900*1200@60HZ resolution
Audio
Line In/Line Out/Mic In
Video/Audio In
Analog video
input
16ch BNC (1.0Vp-p, 75Ω)
PAL/NTSC self-adaptive
Audio input
16ch BNC (2.0Vp-p, 1kΩ)
Video/Audio Out
CVBS output
4ch BNC (1.0Vp-p, 75Ω)
Resolution: 704*576/PAL,704*480(NTSC)
Audio output
4ch BNC (Linear level, 600Ω)
Video/Audio
Compression
Video
Compression
H.264
Playback
Resolution
4CIF/DCIF/2CIF/CIF/QCIF
Frame Rate
PAL: 1~25 fps, NTSC: 1~30fps
Bit Rate
32Kbps-4Mbps user adjustable
Stream Type
Video / Video & Audio
Audio
Compression
G. 722
Audio Bit Rate
16kbps
Video/Audio
Decoding
Packet Type
HIK/ PS
Decoding
Resolution
720P/4CIF/DCIF/ 2CIF/CIF/QCIF
Decoding
Channels
32
Decoding
Performance
8ch of 720P, or 16ch of 4CIF, or 32ch of
DCIF/2CIF/CIF/QCIF
HDD
Type
10 SATA Interface (Notice 1)
Maximum
Capacity
Support up to 2TB hard disk for each HDD interface
Other Drivers
Type
1 CF card interface

Hikvision Technical Manual
©2006 –2010 by HIKVISION. All rights reserved.
External Interface
Network
Interface
2 RJ45 10M/100M/1000M adaptive Ethernet port
Serial Interface
1 standard RS-485 serial
interface
1 standard RS-232 serial
interface
6 standard RS-232 serial
interface
USB Interface
6 USB 2.0
Alarm Input
16
--
Alarm Output
4
--
Others
Power Supply
ATX Power Supply
Power
Consumption
≤50W
Working
Temperature
0°C--50°C
Working
Humidity
10%--90%
Dimension
ATX Standard (305mm x 225mm)
Notice 1: SATA1-2 can be detected by BIOS. Please install the operating system on SATA1 or SATA2.
SATA3-10 can be recognized after installing Marvell 6145 driver on the operating system.
7. Driver & SDK

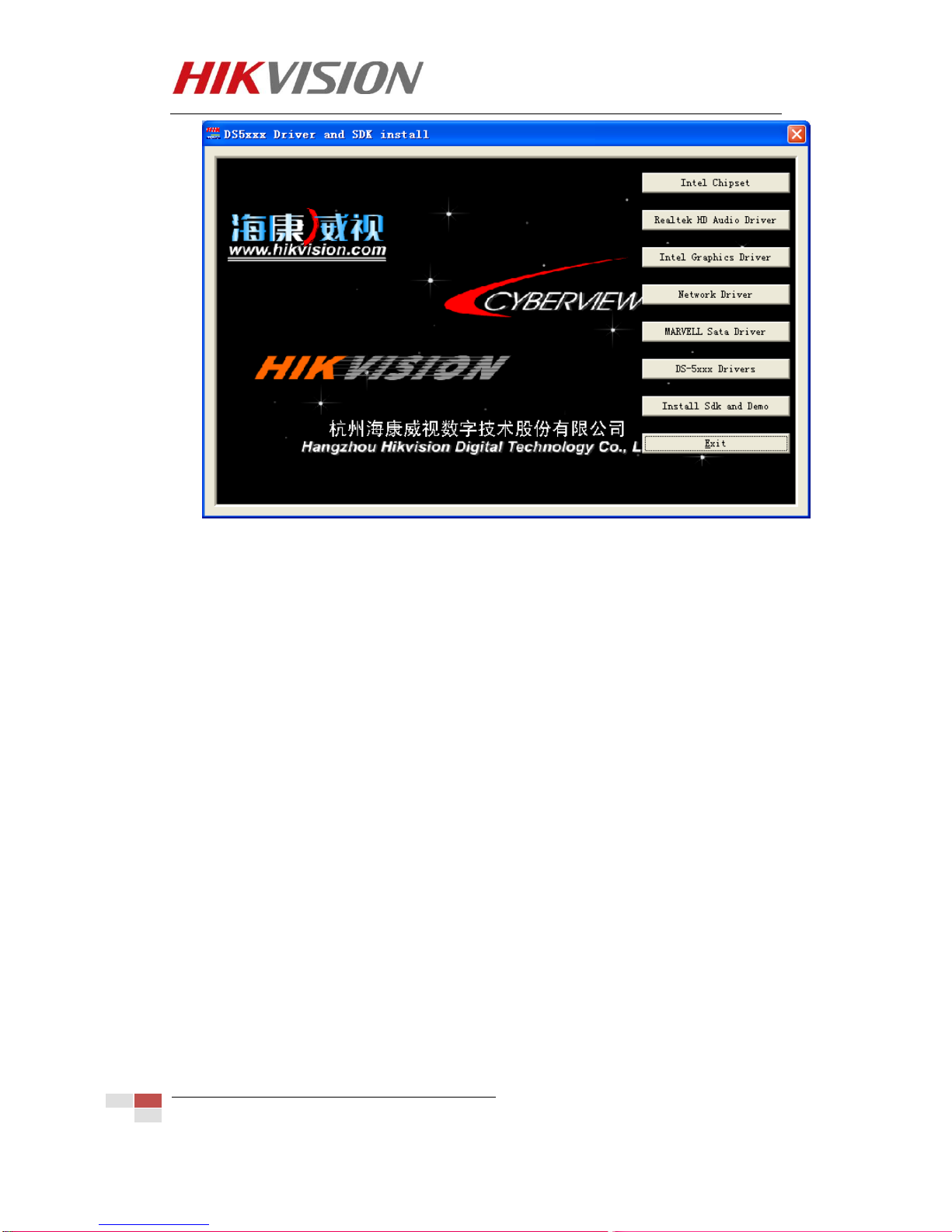

DS-52xxHFI-A Series IA Embedded Network DVR has the driver and SDK installation program,
which are named as ―DS5xxx Driver and SDK Install‖. It is used to install the driver and SDK. The
installation window is as below.

Hikvision Technical Manual
©2006 –2010 by HIKVISION. All rights reserved.
The options on this installation program are described as below:
1. Intel Chipset: motherboard chipset driver
2. Realtek HD Audio Driver: integrated audio adapter driver
3. Intel Graphics Driver: integrated display adapter driver
4. Network Driver: integrated audio adapter driver
5. MARVELL Sata Driver: driver of the on-board MARVELL chipset for SATA interface
6. DS-5xxx Drivers: embedded system driver
7. Install SDK and Demo: SDK installation
8. Exit: Exit from installation
Driver Installation
1. Install motherboard driver
Step1
Click ‖Audio Driver‖

Hikvision Technical Manual
©2006 –2010 by HIKVISION. All rights reserved.
Step2
Select ‖Next‖

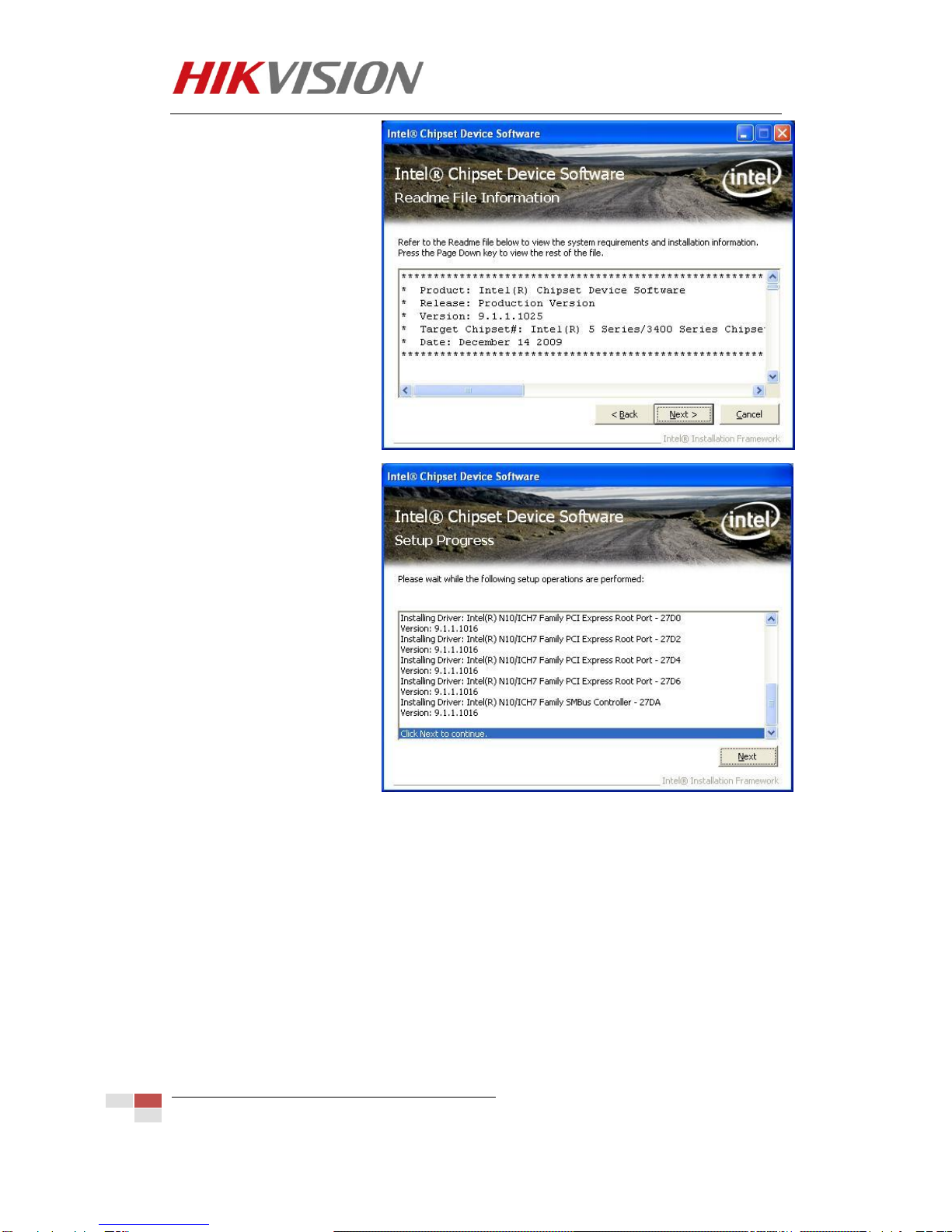

Step3
Select ―I Agree‖

Hikvision Technical Manual
©2006 –2010 by HIKVISION. All rights reserved.
Step 4
Select ‖Next‖
Step 5
Select ‖Next‖

Hikvision Technical Manual
©2006 –2010 by HIKVISION. All rights reserved.
Step6:
Select ‖Finish‖ to complete the
motherboard chipset installation.
2. Install the audio driver
Step1
Select ―Audio Driver‖
Step 2
Click ―Next‖

Hikvision Technical Manual
©2006 –2010 by HIKVISION. All rights reserved.

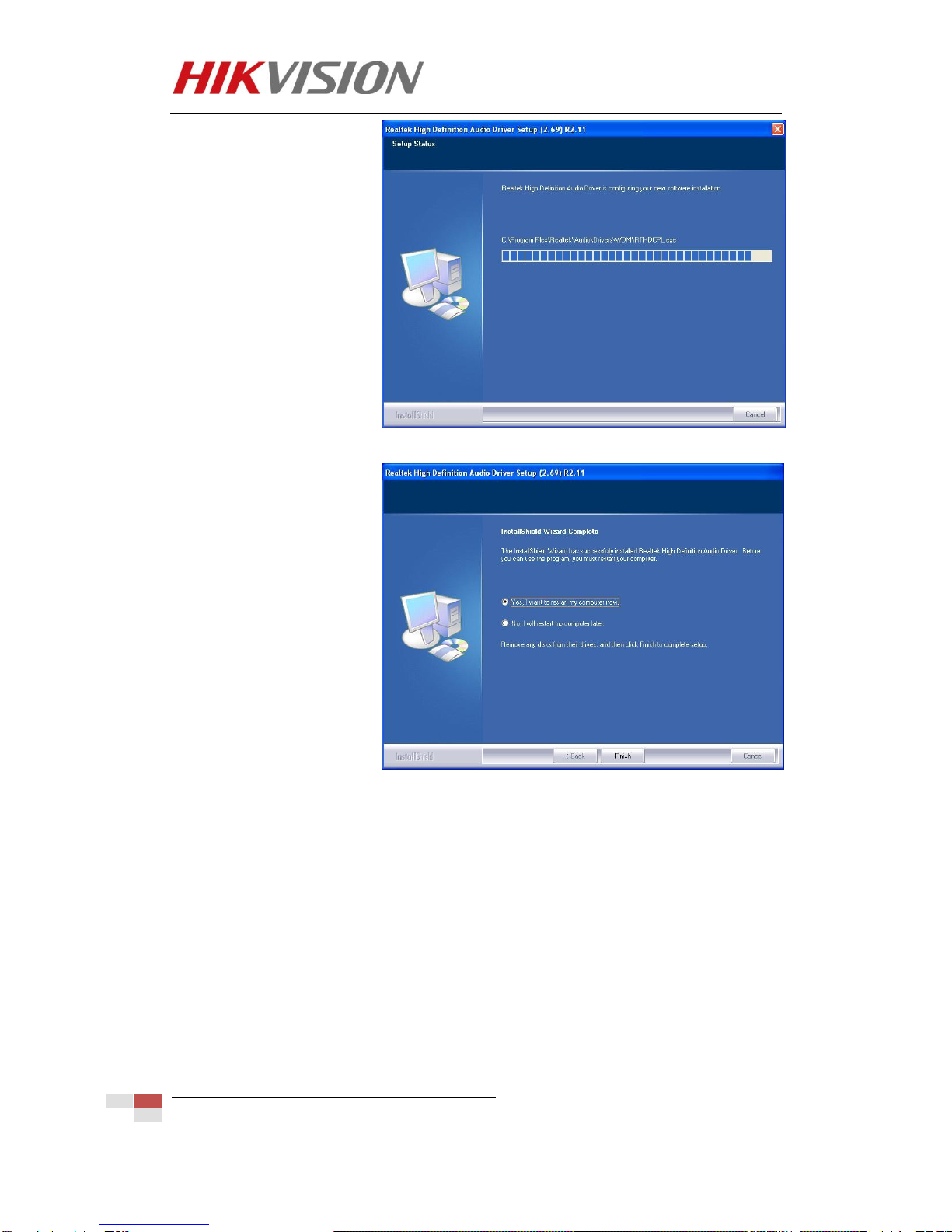

Step 3
Installing
Step 4
Click ―Finish‖ to reboot
3. Install video driver
Step1
Click ―Video Driver‖

Hikvision Technical Manual
©2006 –2010 by HIKVISION. All rights reserved.
Step 2
Click ―Next‖
Step 3
Click ―Next‖

Hikvision Technical Manual
©2006 –2010 by HIKVISION. All rights reserved.
Step 4
Click ―Yes‖
Step 5
Click ―Next‖ until the installation
finished

Hikvision Technical Manual
©2006 –2010 by HIKVISION. All rights reserved.

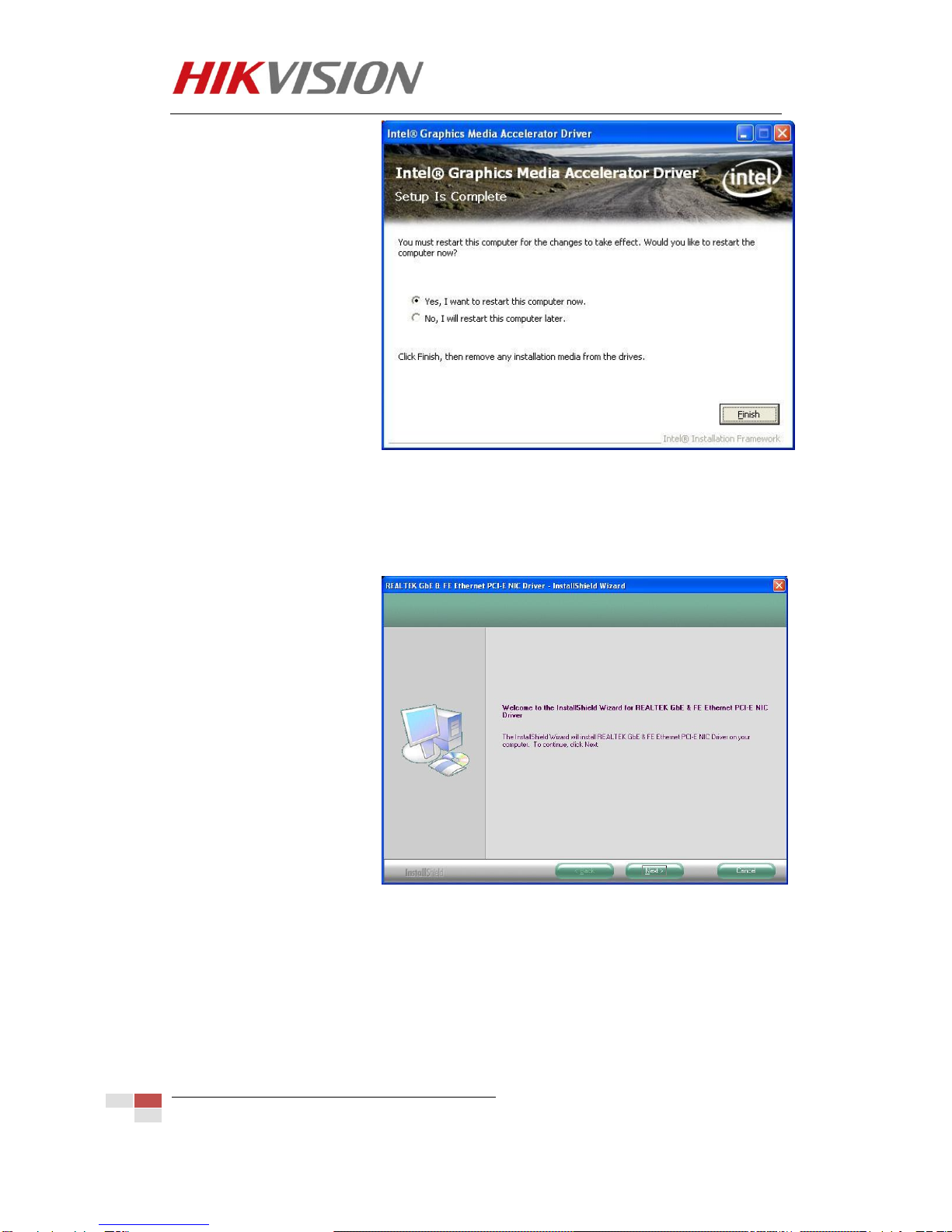

Step 6
Click ―Finish‖ to reboot
4. Install Network Adapter Driver
Step 1
Click ―Lan Driver‖
Step 2
Click ―Next‖

Hikvision Technical Manual
©2006 –2010 by HIKVISION. All rights reserved.

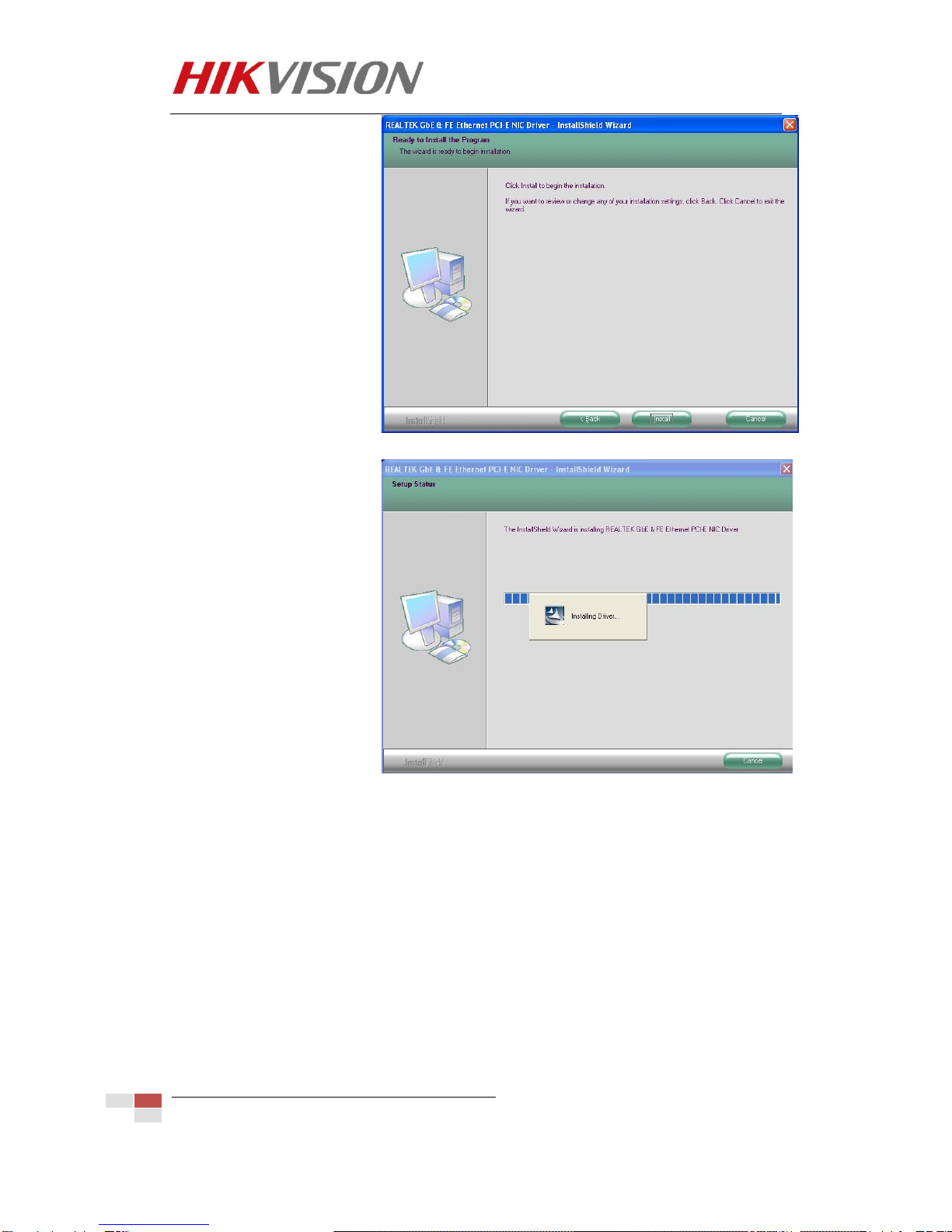

Step 3
Click ―Install‖
Step 4
Installing

Hikvision Technical Manual
©2006 –2010 by HIKVISION. All rights reserved.

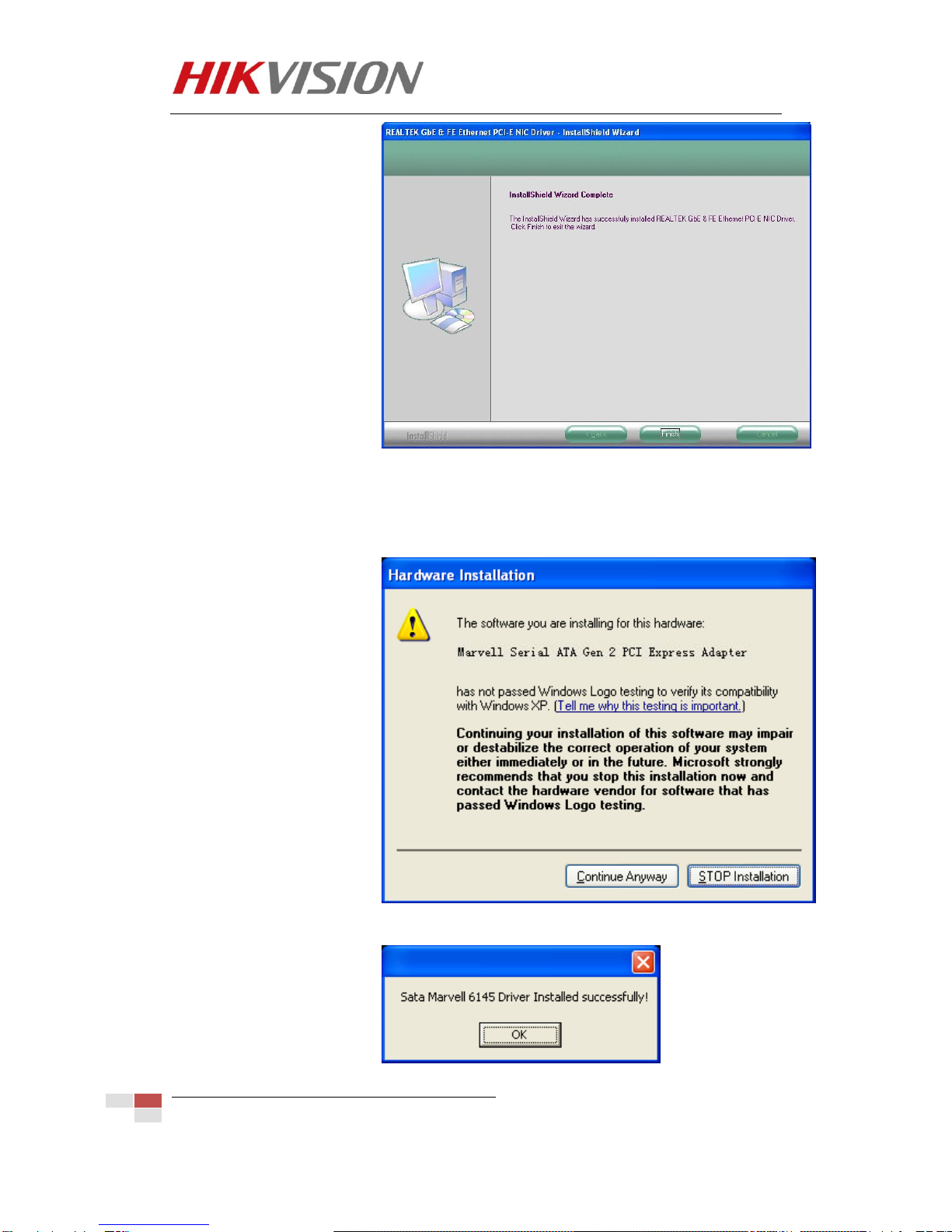

Step 4
Installation finished
5. Install Marvell Driver
Step 1
Click
―MARVELL 6145 Driver‖
Step 2
Click ―Continue‖
Step 3
Marvell driver installation succeed

Hikvision Technical Manual
©2006 –2010 by HIKVISION. All rights reserved.
6. Install Embedded System Driver
Step 1
Click ―DS-5xxx Driver‖
Step 2
Click ―continue‖ until installation
finished
Step 3
Click ―OK‖ to finish the installation
and reboot

Hikvision Technical Manual
©2006 –2010 by HIKVISION. All rights reserved.
After all the drivers are installed successfully, relative items will be displayed on Windows
Device Manager.
