Hisense Chill RC07N1CBD1 User manual

MODEL RC07N1CBD1
USER MANUAL
Beverage Dispenser

1. Important Safety Guide....................... 2
2. Specifications...................................... 5
3. Product Description.... .................... 6....
Installation and Use
Recommendations...............................8
5. Notes before Use...............................11
6. Maintaining this Product...................17
7. Troubleshooting and Maintenance....18
8. Disposal of Used Products.................19
1.1General safety and daily use
It is important to use your appliance
safely. We recommend that you follow the
instructions below.
Please don't try to repair the appliance
yourself. It is dangerous to alter the
specifications or modify this product in
any way. Any damage to the cord may
cause short circuit, fire or electric shock.
Please don't place hot items near the
plastic components of this appliance.
Please make sure to read and follow
operation instructions on installation and
beverage storage provided by the
manufacturer. Please store relevant
canned or bottled beverages according
to instructions given in the manual.
Please do not lift or move Chill when it
is loaded with beverages, or when the
front display door is open.
Chill is designed to refrigerate various
kinds of beverages rather than food.
Please follow the manual’s
recommendations on allowable
container shapes and sizes.
Chill should be operated without
striking or rocking the product. Rough
handling may damage the refrigeration
system, or damage the dispensing
system.
Please do not load different container
shapes and sizes on the same vend rack
level to ensure smoother dispensing.
Please do not place fingers, hands or
arms into the vend rack. If a beverage is
stuck, please follow the troubleshooting
guidelines found in the manual.
It is recommended that the front
display door should be locked to prevent
the door from opening unintentionally.
Contents
1.Important Safety Guide
4.
.
.
.
.
2

1.2 Safety for children and infirm persons
This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or a lack of experience and
knowledge, unless they have been given
supervision or instruction concerning the
use of the appliance by a person
responsible for their safety. Children
should be supervised to ensure that they
do not play with the appliance.
Keep all packaging away from children to
avoid risk of suffocation.
Don’t place items on top of the
appliance as this could cause injury should
they fall off.
Never allow children to play with the
appliance by hanging or standing over or
on the doors, racks, shelves and drawers
etc.
1.3 Safety about electricity
To avoid the risks that are always
present when using an electric appliance,
we recommend that you pay more
attention to the instructions about
electricity below.
Unpack the appliance and check for any
external or internal damage. Should any
damage be evident, do not plug in the
appliance. Keep all packing materials and
contact Hisense.
Please wait for 2 hours before
connecting the appliance with the
appliance in an upright position.
The appliance must be supplied with
single phase alternating current (AC) of
115V/60Hz. If the voltage fluctuates more
than 10% an A.C. automatic voltage
regulator of more than 350W should be
used.
The electrical plug must be accessible
when the appliance is installed.
This appliance must be grounded when
in use.
This appliance is fitted with a 3-prong,
grounding plug in accordance with local
standard. The standard 3-prong plug
should be suitable for use in all homes
fitted with standard sockets in accordance
with local standards.
3

If the 3-prong plug is not suitable for
your outlet, the grounding prong should
NOT be removed under any circumstances.
If no 3-prong outlet is available, please
contact a qualified, registered electrician.
Do not use extension cords with this
appliance.
Always plug your appliance into its own
individual electrical outlet which has a
voltage rating that matching the rating
label, protected by a 15 Amp time delay
fuse or circuit breaker.
Ensure the plug is not damaged;
Damaged cords or plugs may cause a short
circuit, electric shock, or overheat and
even cause a fire.
If the power cord is damaged, the cord
must be replaced by a qualified electrician
or authorized service engineer.
Do not plug into a loose or damaged
outlet to avoid risk of electric shock or
fire.
Switch off the appliance and disconnect
it from electrical power before cleaning or
moving it.
Never unplug the appliance by pulling on
the electrical cord. Always grip the plug
firmly and pull straight out from the
socket to prevent damaging the power
cord.
Any electrical component must be
replaced or repaired by a qualified
electrician or authorized service engineer.
Only genuine Hisense service parts should
be used.
WARNING:
Do not store gasoline or other flammable
vapors or liquids in the product, or in the
product’s vicinity.
4

ELECTRICAL REFRIGERATION
Model RC07N1CBD1 Unit Size ¼HP Hermetically Sealed
Voltage 115V Refrigerant R-134a-
Frequency 60Hz Charge 3.5 ounces
Current 1.3A
DIMENSIONS CAPACITY
Height 60.2inches
153centimeters
Selections
Width 24inches
61centimeters
Levels
Depth 24.4inches
62centimeters
12 Oz. Cans 18 per level, 72 total
Weight 133lbs
60kg
20 Oz. Bottles 9 per level, 36 total
FEATURES
User-
)
customizable front poster image(available at www.fathead.com/chill or
by calling toll free, 1-800-976-3544
User-replaceable vending selections
Lockable Vend compartment, with included key
Each selection individually controlled with Child lockout feature
Pre-Cooling Compartment, for faster and more efficient cooling of beverages
or snacks
Ⱐ
Backlit LED lighting behind front image, with on and off switch
Selection buttons feature “sold out” functionality by blinking when vend rack
level is empty
The fun and excitement of true home vending!
2.Specifications
Refrigerated temperature range of 35 to 46℉(2 to 8℃),user-adjustable
4
4
5

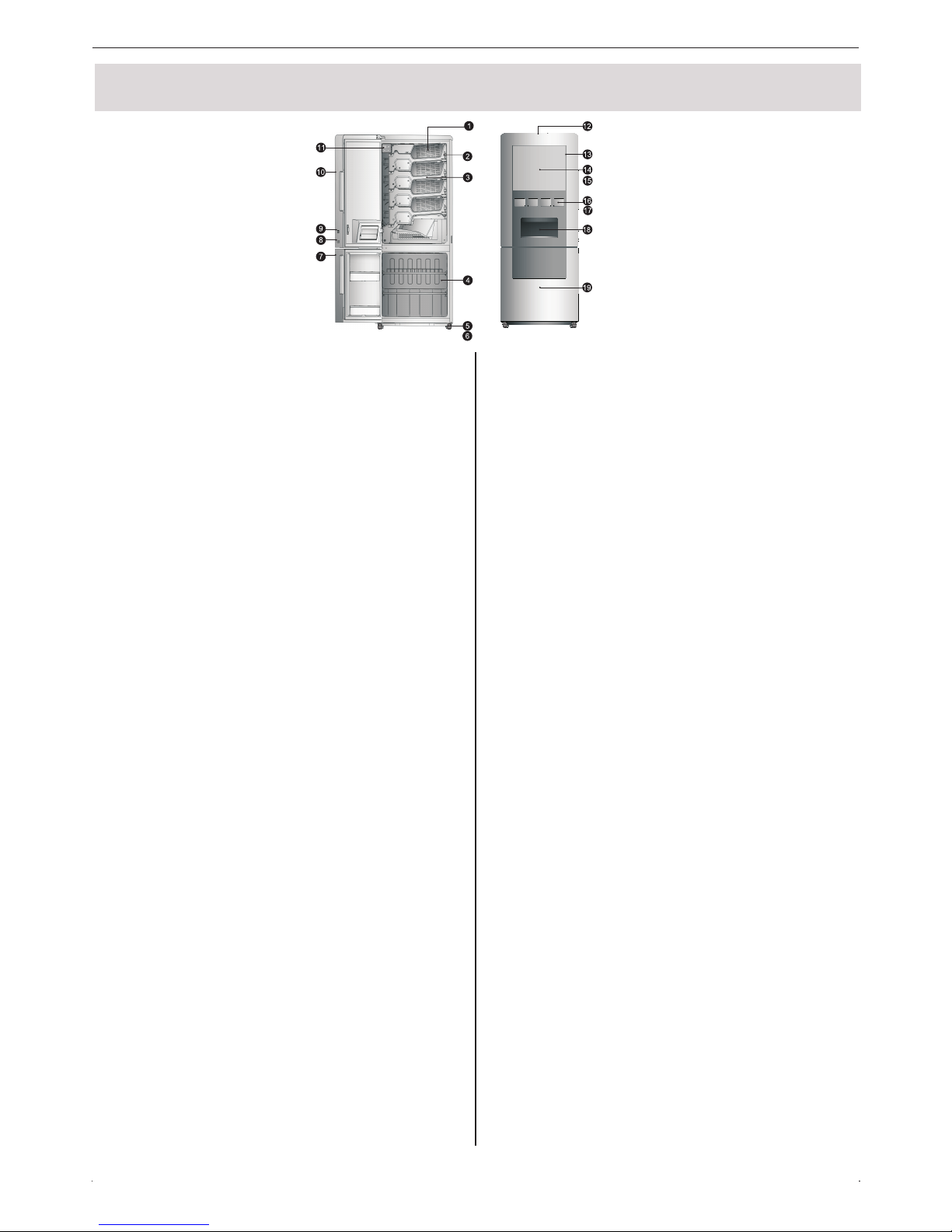

1.Vend Rack : The upper refrigeration
compartment contains a four-level vend
rack. After fully filled, the rack can hold
72 short 12oz cans or 36 long
cans/bottles.
2.Child Lock : In order to ensure
children's safety or prevent unintended
operation, each of the four vend rack
levels can be individually locked,
preventing the vend cycle of locked
selections. Also, the front display door
can be locked with the included key.
3.Can spacer : Used for double row
storage of 12 oz cans, into a front row and
back row.
4.Pre-cooling storage compartment: The
lower refrigeration compartment contains
a two-level rack to store beverages.
5.Rollers : Four rollers permanently
attached to facilitate positioning of the
appliance during installation.
6.Adjustable feet : Height can be adjusted
by turning the feet to extend or retract
them.
7.Storage compartment door : The
storage compartment door provides two
storage bins for storage of beverages.
. 8.Door lock : A lock is located at the right
side of the front display door. It is
recommended that the front display door
be locked to prevent the door opening
unintentionally.
9.Light switch : A manual switch
controlling the poster backlighting.
Please turn the light off when not needed.
10.Front Display Door: Vending
compartment door.
11.Control display : Panel controlling
and displaying temperature of chamber.
3.Product Description
6

12.Poster Frame cover
: A flap cover on
top of upper door, which can be opened
by users to install the poster frame.
13.Poster window : The front display door
window.
14.Poster frame : The supporting frame,
which holds the poster image.
15.Poster : Replaceable decorative image

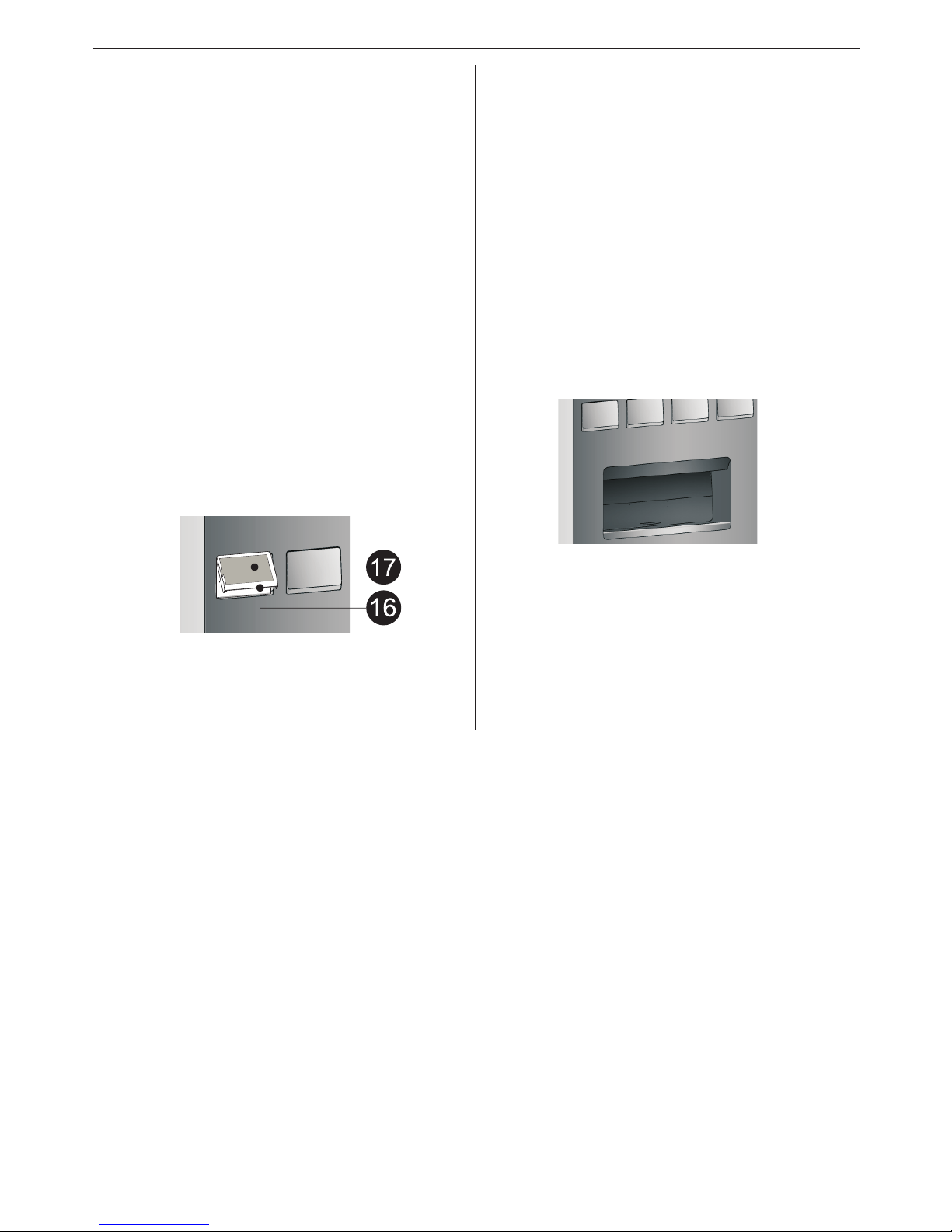

16.Selection Buttons: Buttons select
beverages and are LED backlit. Buttons
contain beverage cards.
17.Beverage cards: Used for marking the
kind of beverage corresponding to each
selection button. Common beverage cards
are included with Chill for users' use and
replacement.
18.Delivery chute: The small opening for
dispensing beverages. The delivery
chute flap should be in place as shown in
the figure to keep cool air inside the
appliance.
19.Document bag: Contains printed
material and should stored safely for
opener for using .
7
future reference. Contains a bottle

Before using the appliance for the first
time, please note the following
recommendations.
In order to improve efficiency of the
cooling system and save energy, it is
necessary to maintain good ventilation
around the appliance for the dissipation of
heat. For this reason, sufficient clear space
should be available around the appliance.
Recommendation: It is advisable for there
to be at least 75 mm (2.9 in) of space from
the back to the wall, at least 100 mm(3.9
in) above the top, at least 100 mm(3.9in)
from its side to the wall and a clear space
in front to allow the doors to open 120°.
As shown in following diagrams.
Other Recommendations:
This appliance performs well in
environments ranging in temperature
from 12.8 (55 ) to 43.3 (110 ) . The℃ ℉ ℃ ℉
Appliance may not work properly if it is
left for a longer period at a temperature
above or below the indicated range.
Install the appliance in a dry place to
avoid high moisture.
Keep the appliance out of direct sunlight，
rain or frost. Stand the appliance away
from heat sources such as stoves, fires or
heaters. This product is not intended for
outdoor use.
In order to avoid serious damage,
please do not lift or move the appliance
when it is loaded with beverages or
when the door is open.
After placing the product in the desired
location for use, please turn the
adjustable feet to ensure the appliance is
level, to prevent rocking.
The adjustable feet should be turned
counter-clockwise, to allow use of the
wheels, before moving the product.
4.Installation and Use Recommendations
8

4.2 Changing Front Poster and
Beverage selection cards
4.2.1 Changing the Beverage Selection
Cards
1.Turn selection button upward from the
bottom to show the beverage selection
card, located on the back of each selection
button.
2.Hold the left side of beverage selection
card, and remove the old card. Slide the
new card into place.
3.Turn the selection card’s side tab
downward before installing it in place.
4.2.2 Changing the Front Poster image
1.Press the "PUSH" key at the front the
poster frame cover with your finger to
show the top of poster frame.
2.Hold the poster frame handle at the
middle top of the poster frame, and pull
the poster frame upward and out.
3.Place the poster frame on a horizontal
surface. Opening the poster frame,
remove the old poster with your finger.
PUSH
9

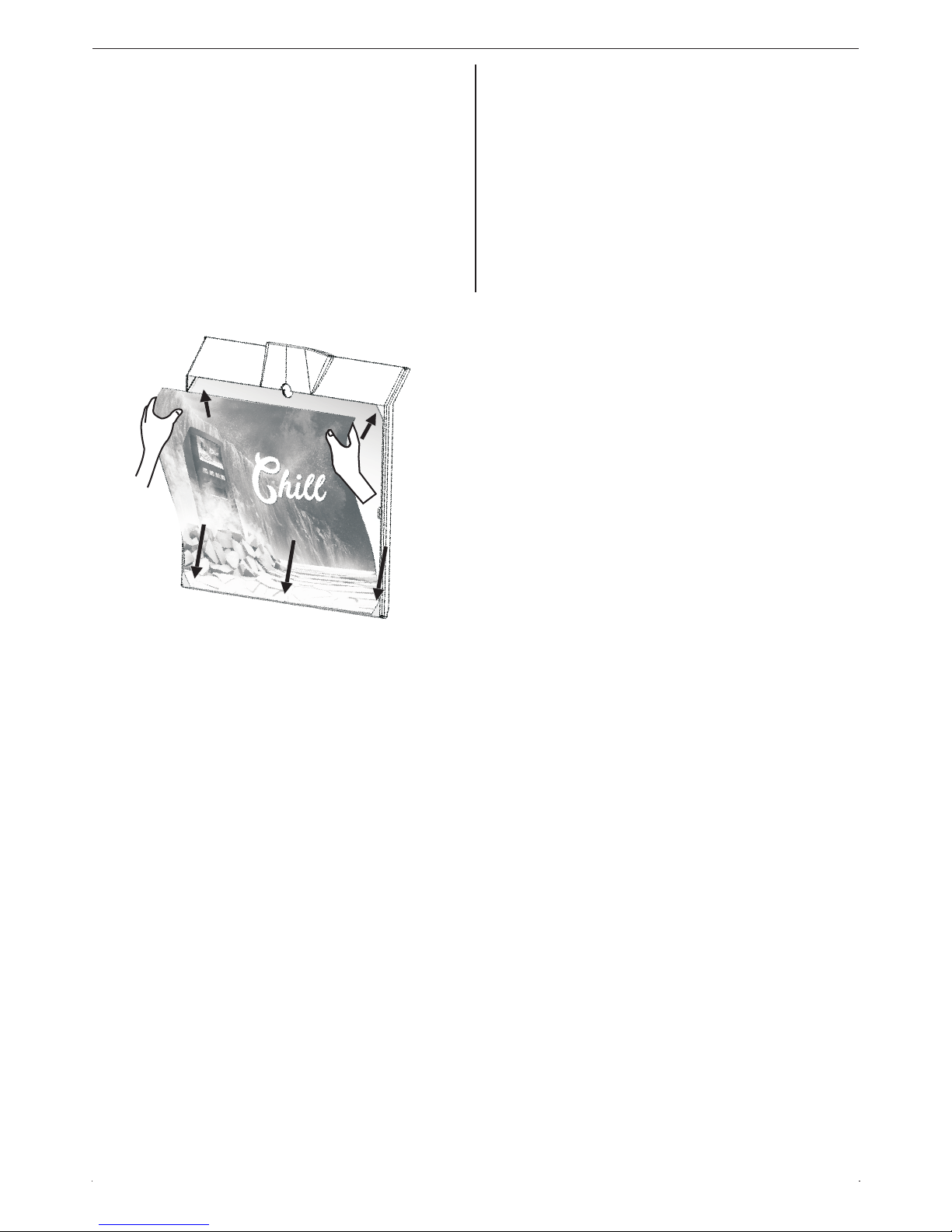

4.Place the new poster in the poster
frame, pushing it downward evenly until
the poster is aligned against the bottom
of the poster frame.
6.Replace the poster frame with the new
poster back to the original place and turn
the top cover downward to the original
place. Close the poster frame cover.
5.Slightly bend the two corners at the top
of poster, inserting them into the slots at
the top corners of the of poster frame.
10
