Hisense H23MOBS5HUK User manual

H23MOBS5HUK

CONTENS
IMPORTANT SAFETY INSTRUCTIONS ............................................................................ 4
CONTROL PANEL ......................................................................................................................10
OPERATION INSTRUCTION .................................................................................................. 11
CARE OF YOUR MICROWAVE OVEN ............................................................................ 17
MOUNTING THE MICROWAVE OVEN .......................................................................... 18
BEFORE YOU CALL FOR SERVICE ................................................................................ 20
GUARANTEE & SERVICE .................................................................................................... 20

We sincerely thank you for your purchase. We believe you
will soon find ample evidence that you can really rely on
our products. To make the use of the appliance easier, we
attach these comprehensive instruction manual.
The instructions should aid you in getting familiar with
your new appliance. Please, read them carefully before
using the appliance for the first time.
In any case, please make sure the appliance was supplied
to you undamaged. Should you identify and transport
damage, contact your sales representative or the regional
warehouse from where the product was delivered. You
will find the telephone number on the receipt or delivery
report.
We wish you a lot of pleasure with your new household
appliance.
The appliance for household use for heating
food and beverages using electromagnetic
energy, for indoor use only.
These instructions are intended for the user.
They describe the cooker and how to use it. They also
apply to dierent types of appliances, therefore you may
find some descriptions of functions that may not apply to
your appliance.
DEAR CUSTOMER
EN
INSTRUCTIONS FOR
USE
MICROWAVE OVEN
We reserve the right to any changes and errors in the
instructions for use.
4

5
Never touch the surfaces of heating
or cooking appliances. They will
become hot during operation. Keep
children at a safe distance. There is a
risk of burning!
Microwave energy & High voltage!
Do not remove the cover.
WARNING! The appliance and its accessible parts
become hot during use. Care should be taken to
avoid touching heating elements. Children less
than 8 years of age shall be kept away unless
continuously supervised. Children should be
supervised to ensure that they do not play with the
appliance.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision
or instruction concerning use of the appliance in
a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning
and maintenance shall not be made by children
unless they are older than 8 and supervised.
Keep the appliance and its cord out of reach of
children less than 8 years.
• WARNING: When the appliance is operated in
the combination mode, children should only
use the oven under adult supervision due to the
temperatures generated; (Only for the model with
grill function)
IMPORTANT SAFETY INSTRUCTIONS

6
• WARNING: If the door or door seals are damaged,
the oven must not be operated until it has been
repaired by a competent person;
• WARNING: It is hazardous for anyone other than
a competent person to carry out any service or
repair operation that involves the removal of a
cover which gives protection against exposure to
microwave energy;
• WARNING: liquids and other foods must not be
heated in sealed containers since they are liable to
explode.
• Children should be supervised to ensure that they
do not play with the appliance.
• Don't remove oven's feet, do not block air events
of the oven.
• Only use utensils that are suitable for use in
microwave ovens.
• When heating food in plastic or paper containers,
keep an eye on the oven due to the possibility of
ignition;
• If smoke is observed, switch o or unplug the
appliance and keep the door closed in order to
stifle any flames;
• Microwave heating of beverages can result in
delayed eruptive boiling, therefore care must be
taken when handling the container;
• The contents of feeding bottles and baby food
jars shall be stirred or shaken and the temperature
checked before consumption, in order to avoid
burns;

7
• Eggs in their shell and whole hard-boiled eggs
should not be heated in microwave ovens since
they may explode, even after microwave heating
has ended;
• When cleaning surfaces of door, door seal, cavity
of the oven, use only mild, nonabrasive soaps, or
detergents applied with a sponge or soft cloth.
• The oven should be cleaned regularly and any food
deposits removed;
• Failure to maintain the oven in a clean condition
could lead to deterioration of the surface that
could adversely aect the life of the appliance and
possibly result in a hazardous situation;
• If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
• Do not let the cord hang over the edge of the table
or worktop.
• Never connect this appliance to an external timer
switch or remote control system in order to avoid a
hazardous situation.
• Never replace the light bulb inside the oven. It must
always be replaced by Hisense service.
• Do not clean the appliance with steam cleaners,
high-pressure cleaners, sharp objects, abrasive
cleaning agents, and abrasive sponges and stain
removers.

8
Listed below are, as with all appliances, certain rules to
follow and safeguards to assure top performance from this
oven:
1. Always have the glass tray, roller arms, coupling and
roller track in place when operating the oven.
2. Do not use the oven for any reason other than food
preparation, such as for drying clothes, paper, or any
other nonfood items, or for sterilizing purposes.
3. Do not operate the oven when empty. This could
damage the oven.
4. Do not use the oven cavity for any type of storage,
such a papers, cookbooks, etc.
5. Do not cook any food surrounded by a membrane,such
as egg yolks, potatoes, chicken livers, etc without first
being pierced several times with a fork.
6. Do not insert any object into the openings on the outer
case.
7. Do not at any time remove parts from the oven such as
the feet, coupling, screws, etc.
8. Do not cook food directly on the glass tray. Place food
in/on proper cooking utensil before placing in the oven.
IMPORTANT - COOKWARE NOT TO USE IN YOUR
MICROWAVE OVEN
– Do not use metal pans or dishes with metal handles.
– Do not use anything with metal trim.
– Do not use paper covered wire twist-ties on plastic
bags.
– Do not use melamine dishes as they contain a
material which will absorb microwave energy. This
may cause the dishes to crack or char and will slow
down the cooking speed.
– Do not use Centura Tableware. The glaze is not
suitable for microwave use. Corelle Livingware
closed handle cups should not be used.
– Do not cook in a container with a restricted opening,
such as a pop bottle or sealed oil bottle, as they
may explode if heated in a microwave oven.
– Do not use conventional meat or candy
thermometers.
– There are the thermometers available specifically for
microwave cooking. These may be used.
9. Microwave utensils should be used only in accordance
with manufacturer's instructions.
10. Do not attempt to deep-fry foods in this oven.
11. Please remember that a microwave oven only heats
the liquid in a container rather than the container itself.
Therefore, even though the lid of a container is not
SAFETY INSTRUCTIONS
FOR GENERAL USE

9
hot to the touch when removed from the oven, please
remember that the food/liquid inside will be releasing
the same amount of steam and/or spitting when the lid
is removed as in conventional cooking.
12. Always test the temperature of cooked food yourself
especially if you are heating or cooking food/liquid for
babies. It is advisable never to consume food/liquid
straight from the oven but allow it to stand for a few
minutes and stir food/liquid to distribute heat evenly.
13. Food containing a mixture of fat and water,
e.g.stock,should stand for 30-60 seconds in the oven
after it has been turned o. This is to allow the mixture
to settle and to prevent bubbling when a spoon is
placed in the food/liquid or a stock cube is added.
14. When preparing/cooking food/liquid and remember
that there are certain foods, e.g. Christmas puddings,
jam and mincemeat, which heat up very quickly. When
heating or cooking foods with a high fat or sugar
content do not use plastic containers.
15. Cooking utensil may become hot because of heat
transferred from the heated food. This is especially true
if plastic wrap has been covering the top and handles
of the utensil. Potholders may be needed to handle the
utensil.
16. To reduce the risk of fire in the oven cavity:
a) Do not overcook food. Carefully attend microwave
oven if paper, plastic, or other combustible materials
are placed inside the oven to facilitate cooking.
b) Remove wire twist-ties from bags before placing
bag in oven.
c) If materials inside the oven should ignite, keep oven
door closed, turn the oven o at the wall switch, or
shut o power at the fuse or circuit breaker panel.

DISPLAY
Shows the clock, cooking time and setting.
COOKING TIME
Use this key to cook food by time.
TIME DEFROST
Use this key to defrost the food by time.
WEIGHT DEFROST
Use this key to defrost the food by weight.
POWER LEVEL
Use this key to select the microwave power level.
CLOCK SETTING
Use this key to set the clock.
KITCHEN TIMER
Use this key to set the timer function.
ICONS
Use these keys to set time and food weight and to choose
the auto menu programmes.
0 – 9
Use these keys to enter the cooking time and weight.
STOP/CANCEL
Use this key to defrost the food by weight.
0 (MEMORY FUNCTION)
Use this key to select the memory programmes.
START/+30 SEC
Use this key to do quick start cooking of 30 seconds,
increase cooking time by 30 seconds (by each press), or
confirm cooking settings.
1. Door Safety Lock System
2. Oven Window
3. Roller Ring
4. Glass Tray
5. Control Panel
6. Wave guide (please do not remove
the mica plate covering the wave
guide)
CONTROL PANEL
10

11
The oven is fitted with a digital clock. When the oven is
in the standby mode, the clock can be set in the 12-hour
mode by pressing the Clock Setting key.
1. Press the Clock Setting and the digits will flash.
2. Press the Numeric (0-9) keys and enter the time. For
example, to input the current time 12:30, you need to
press “1”, “2”, “3”, “0”. The input hour has to be within
1-12 and the input minutes has to be within 0-59.
3. Press the Clock Setting key again to complete the
clock setting. “:” will start flashing. The clock setting is
complete.
NOTE:
Please ensure that you have set the clock prior to use.
Use the countdown timer to set an alarm.
1. Press the Kitchen Timer key. The display will show
“00:00”.
2. Press the Numeric (0-9) keys and enter the timer
time. The longest time you can set is 99 minutes and
99 seconds.
3. Press the START key to confirm the setting.
4. Once the elapsed time is reached, the microwave will
sound and return to its original state.
NOTE:
• When the kitchen timer is running, other functions
cannot be used.
• When the microwave is not in use, this feature allows
you to use the microwave as a timer.
• Please make sure the clock has been set.
1. Press the Cooking Time key. The display will show
“00:00”.
2. Press the Numeric (0-9) keys to enter the cooking
time. For example, enter the cooking time 5min by
pressing “5”, “0”, “0”.
3. Press the Power key and the display will show “PL10”.
4. Press the Numeric (0-9) keys to enter the microwave
power level. (Power level settings are shown in the
table below.) For example, enter the power level by
pressing “6”.
CLOCK
TIMER
COOKING
OPERATION INSTRUCTION

5. Press the START key to confirm and start cooking.
6. While the microwave is in use, press the Power Level
key and then press the Numeric (0-9) keys to change
the microwave power level. The microwave will work
with the selected power for the remaining time.
7. Press the STOP/Cancel key to pause the cooking.
Press the STOP/Cancel key again to cancel the setting.
NOTE:
When PL0 (0%) is selected, no microwave power will be
present. This setting is for deodorizing purposes only.
Input 10 9 8 7 6 5 4 3 2 1 0
Display PL10 PL9 PL8 PL7 PL6 PL5 PL4 PL3 PL2 PL1 PL0
Power 100% 90% 80% 70% 60% 50% 40% 30% 20% 10% 0%
1. Press the Numeric (1-6) keys to start the express
cooking at 100% microwave power. The maximum
time you can set is 6 minutes.
2. Press the STOP/Cancel key to pause the cooking.
Press the STOP/Cancel key again to cancel the setting.
Microwave oven allows cooking in two steps.
1. Press the Cooking Time key. The display will show
“00:00”.
2. Press the Numeric (0-9) keys to enter the cooking
time. For example, enter the cooking time by pressing
“7”, “0”, “0”.
3. Press the Power Level key and the display will show
“PL10”.
4. Press the Numeric (0-9) keys to enter the microwave
power level. For example, enter the microwave power
level by pressing “8”.
5. Press the Cooking Time key. The display will show
“00:00”.
6. Press the Numeric (0-9) keys to enter the cooking
time. For example, enter the cooking time by pressing
“5”, “0”, “0”.
7. Press the Power Level key once and the display will
show “PL10”.
8. Press the Numeric (0-9) keys to enter the microwave
power level. For example, enter the microwave power
level by pressing “1”.
9. Press the START key to confirm and start cooking.
NOTE:
Defrost function can only be used in the first step. Auto
menu cannot be a step in a multi-step cooking program.
SMARTCOOK -
EXPRESS COOKING
MULTI-STAGE COOKING
12

13
For the food in the auto menu, only the type of food and
the weight/amount have to be set. The oven will aid you
in the setting of power and time.
For instance: If you want to cook 2 pieces of potato, please
follow the steps below:
1. Press the Potato key repeatedly to select the weight
option of your food. Please refer to the auto-cook
menu table for more information.
2. Press the START key to confirm and start cooking.
Menu Display Weight Time
Popcorn
50 50g 0'55˝
100 100g 2'00˝
Potato
1 230g 4'00˝
2 460g 8'00˝
3 690g 13'00˝
Pizza
100 100g 0'40˝
200 200g 1'10˝
400 400g 2'30˝
Vegetable
(frozen)
150 150g 4'00˝
350 350g 8'00˝
500 500g 11'00˝
Beverage
1 120ml 1'00˝
2 240ml 2'00˝
3 360ml 3'00˝
My Plate
(meat,
side dish)
250 250g 3'30˝
350 350g 4'30˝
500 500g 6'30˝
AUTO COOKING

NOTE:
• For some food, you may need to turn it over during
cooking to ensure it is thoroughly cooked and browns
evenly.
• The density and thickness of food can aect its
cooking time.
• All cooking times are approximate guides only; adjust
to preferred tastes and recipes.
• Only use suitable microwavable containers and cling
film in the microwave. Pierce the film with a fork
before cooking.
The oven allows defrosting of meat, poultry, and
seafood. Defrosting time and operating power will be
adjusted automatically according to the preset weight.
Weight of the food to be defrosted may be between
100 g and 2000 g.
1. Press the Weight Defrost key and the display will
show “dEF1”.
2. Press the numeric (0-9) keys to enter the weight. For
example, enter the weight by pressing “6”, “0”, “0” for
600g.
3. Press the START key to confirm and start cooking.
NOTE:
Large items may be frozen in the center. Therefore, to
ensure even thawing, turn them over from time to time and
break them into smaller pieces during defrosting.
Drain liquids during defrosting as the juices from food can
get hot and cook the food.
The oven also allows speed defrosting.
1. Press the Time Defrost and the display will show
“dEF2”.
2. Press the numeric (0-9) keys to enter the defrosting
time. For example, enter the defrosting time by
pressing “5”, “3”, “0” for 5minutes and 30 seconds.
3. The default microwave power level is 3 (30%), if you
want to change the power level, press the Power key
once and the display will show “PL3”.
4. Press the numeric (0-9) keys to change the
microwave power level. For example, enter the
microwave power level by pressing “2” for 20% power.
5. Press the START key to confirm and start cooking.
WEIGHT (AUTO)
DEFROST
TIME (SPEED) DEFROST
14

15
NOTE:
Large items may be frozen in the center. Therefore, to
ensure even thawing, turn them over from time to time and
break them into smaller pieces during defrosting.
Drain liquids during defrosting as the juices from food can
get hot and cook the food.
You can set the cooking procedure in the memory. You
can set a maximum of 3 memories, please follow the
steps below.
Example: If you want to cook the food with 80%
microwave power level for 3 minutes and 20 seconds as
the second memory.
1. Press “0” (the Memory key) once and the display
will show “1”. Press “0” key again to enter the next
memory programme. The display will show “2”.
2. Press the Time Cook key, and then enter the cooking
time by pressing “3”, “2”, “0”. The display will show
“3:20”.
3. Press the Power key, and then select the 80%
microwave power by pressing “8”. The display will
show “PL8”.
4. Press the STAR key to save the setting.
To Access Saved Cooking Memory
5. Press “0” (the Memory key) repeatedly to select the
saved memory programme you want. The display will
show “1”, “2” or “3”.
NOTE:
To overwrite the saved memory programme, repeat the
above steps 1-3 in the same memory programme.
If the electricity is cut o, the cooking memory is deleted.
Tips for using the oven
Use this function to rapidly heat (100% microwave power)
or cook your food. In the standby mode, press the START
key and the oven will operate for 30 seconds. With each
consecutive press of the START key, the operating time will
be extended by 30 seconds.
NOTE:
Pressing the START key again will prolong the cooking
time by 30 seconds in all programs except in automatic
mode, multi-step cooking, and in the auto defrost mode.
MEMORY FUNCTION
QUICK START

This function is used to prevent uncontrolled or
inadvertent use of the oven by children. When the
control panel is locked, the relevant icon is displayed,
and all functions are disabled.
To lock the oven, press the STOP key and hold it When
you hear a beep, the oven is locked, and the key symbol
appears on the display unit. If the oven is locked, all keys
are ineective. To unlock the control panel, press the STOP
key and hold it again. When you hear a beep, the oven is
unlocked.
Use this function to mute the keypad sound (beeps).
Press the “8” key and hold it until you hear two short
beeps. Keypad beeps are now muted (cooking end beeps
stay on).
To turn on the keypad beeps again, press the “8” key and
hold it until you hear two short beeps.
CHILD LOCK
KEYPAD SOUND
SETTINGS
16

17
1. Turn the oven o and remove the power plug from
the wall socket before cleaning.
2. Keep the inside of the oven clean. When food
splatters of spilled liquids adhere to oven walls,wipe
with a damp cloth. The use of harsh detergent or
abrasives is not recommended.
3. The outside oven surface should be cleaned with
a damp colth. To prevent damage to the operating
parts inside the oven, water should not be allowed to
seep into the ventilation openings.
4. Do not allow the Control Panel to become wet. Clean
with a soft, damp cloth, Do not use detergents,
abrasives or spray-on cleaners on the control Panel.
5. If steam accumulates inside or around the outside
of the oven door, wipe with a soft cloth.This may
occur when the microwave oven is operated under
high humidity conditions and in no way indicates
malfunction of the unit.
6. It is occasionally necessary to remove the glass tray
for cleaning. Wash the tray in warm sudsy water or in
a dishwasher.
7. The roller ring and oven cavity floor should be
cleaned regularly to avoid excessive noise. Simply
wipe the bottom surface of the oven with mild
detergent, water or window cleaner and dry. The
roller ring may be washed in mild sudsy water or dish
washer. Cooking vapours collect during repeated use
but in no way aect the bottom surface or roller ring
wheels. When removing the roller ring from cavity
floor for cleaning, be sure to replace it in the proper
position.
8. Remove odors from your oven by combining a cup of
water with the juice and skin of one lemon in a deep
microwaveable bowl. Microwave for 5 minutes, wipe
thoroughly and dry with a soft cloth.
Do not throw away the appliance with the normal
household waste at the end of its life, but hand it in at an
ocial collection point for recycling. By doing this, you
help to preserve the environment.
ENVIRONMENT
CARE OF YOUR MICROWAVE OVEN

1. Make sure all the packing materials are removed from
the inside of the door.
2. Inspect the oven after unpacking for any visual damage
such as:
– Misaligned Door
– Damaged Door
– Dents or Holes in Door Window and Screen
– Dents in Cavity
If any of the above are visible, DO NOT use the oven.
3. This Microwave Oven weighs 13 kg and must be placed
on a horizontal surface strong enough to support this
weight.
4. The oven must be placed away from high temperature
and steam.
5. DO NOT place anything on top of the oven.

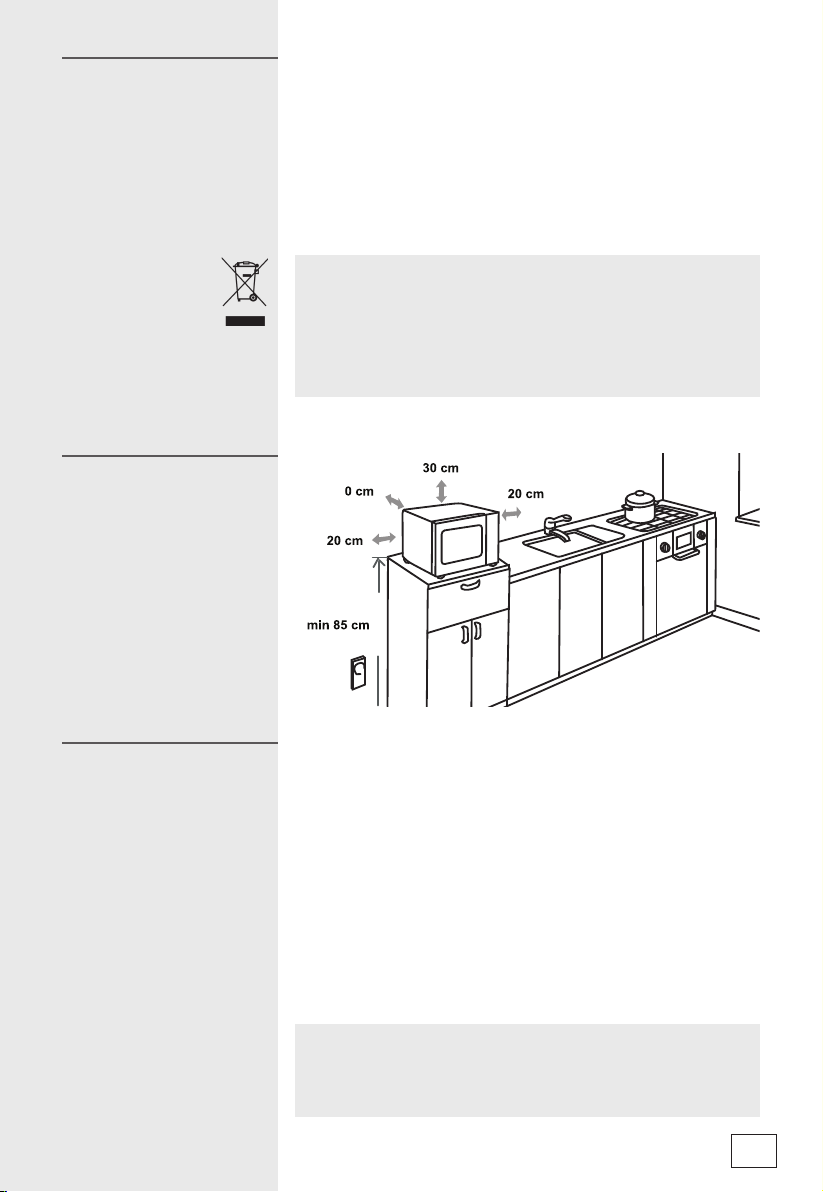

6. Keep the oven at least 20 cm away from both sidewalls
and 30 cm away from rear wall to ensure the correct
ventilation.
7. DO NOT remove the turn -table drive shaft.
8. As with any appliance, close supervision is necessary
when used by children.
9. Make sure that the AC outlet is easily accessible so
that the plug can be removed quickly in an emergency.
Otherwise, it should be possible to disconnect the
device using a switch from the circuit. In this case, the
existing provisions of the electrical safety standards are
considered.
The product has to be correctly installed on earthed
socket with a single-phase AC (230 V/50 Hz).
WARNING! THIS APPLIANCE MUST BE EARTHED!
10. This oven requires 1.3 kVA for its input consultation
with service engineer is suggested when installing the
oven.
CAUTION: This oven is protected internally by a 250V, 8
Amp Fuse.
INSTALLATION
18
MOUNTING THE MICROWAVE OVEN

19
Power consumption............................................. 230V ~50Hz, 1250W
Output power ...................................................................................... 800W
Operating Frequency.................................................................2450MHz
Outside Dimensions...........................................485 x 293 x 410 mm
Oven Capacity..................................................................................23 litres
Uncrated Weight................................................................. Approx. 13 kg
Noise level.............................................................................Lc < 58 dB (A)
This appliance is marked according to the European
directive 2012/19/EU on Waste Electrical and
Electronic Equipment (WEEE).
This guideline is the frame of a European-wide
validity of return and recycling on Waste Electrical
and Electronic Equipment.
Microwave oven may cause interference to your radio, TV,
or similar equipment. When interference occurs, it may be
eliminated or reduced by the following procedures.
a) Clean the door and sealing surface of the oven.
b) Place the radio, TV, etc. as far away from your
microwave oven as possible.
c) Use a properly installed antenna for your radio, TV,
etc. to get a strong signal reception.
WE RESERVE THE RIGHT TO MAKE ANY CHANGES
THAT DO NOT AFFECT THE FUNCTIONALITY OF THE
APPLIANCE.
SPECIFICATIONS
MOUNTING
DIMENSIONS
RADIO INTERFERENCE

1. If the oven will not perform at all, the information on the
display does not appear or the display disappeared:
a) Check to ensure that the oven is plugged in securely.
If it is not, remove the plug from the outlet, wait 10
seconds and plug it in again securely.
b) Check the premises for a blown circuit fuse or a tripped
main circuit breaker. If these seem to be operating
properly, test the outlet with another appliance.
2. If the microwave power will not function:
a) Check to see whether the timer is set.
b) Check to make sure that the door is securely closed to
engage the safety interlocks. Otherwise, the microwave
energy will not flow into the oven.
If none of the above rectify the situation, then contact
the nearest authorized service agent.
The appliance for household use for heating food and
beverages using electromagnetic energy, for indoor use
only.
In the unlikely event you experience any technical issues
do not return your retailer, please contact our dedicated
technical team first who can provide specialist solutions
and trouble-shooting advice.
TEL : [phone]
Calls charged at national rate (free from most depending upon contact)
Visit our webpage : www.hisense.co.uk/support for more information
For personal use only!
WISHES YOU A LOT OF PLEASURE WHILE USING YOUR
APPLIANCE
20
BEFORE YOU CALL FOR SERVICE
GUARANTEE & SERVICE
