EN 1
Dear customer,
You have purchased a product of our new series of appliances. We hope that our product will serve
you well and for a long time.
Read this manual before installation and use of this appliance. It contains important information
concerning how safely and economically operate the appliance. Save the manual together with the
appliance for an eventual further use.
For more detailed instructions and tips, please visit www.hisense.co.uk
Important information
Tips, remarks
CONTENT
2
5
IMPORTANT INFORMATION, INSTRUCTIONS AND
RECOMMENDATIONS
DESCRIPTION AND OPERATION OF APPLIANCE
INTRODUCTION
AND
DESCRIPTION
7
THE USE OF WARMING DRAWER
OPERATION
9
9
9
DISPOSAL OF APPLIANCE AND PACKAGING
CLEANING AND MAINTENANCE
CLAIMS
MAINTENANCE
AND
RECLAMATION
10
11
11
THE CONNECTION OF APPLIANCE TO POWER NET
INSTRUCTIONS FOR INSTALLATION
TROUBLESHOOTING
INSTALLATION
12
TECHNICAL DATA
TECHNICAL
DATA
EN 2
IMPORTANT INFORMATION,
INSTRUCTIONS AND RECOMMENDATIONS
SAFETY MEASURES
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
Before connecting, check that the data concerning the nominal voltage on the
product's data sheet corresponds with the voltage of your electrical network.
The appliance should only be installed and connected to the electrical network
by an authorized service technician or similarly qualified person with national
standards and regulations.
The producer bears no responsibility for damage to the appliance or human
health arising from faulty mounting or connecting.
Have the date of installation confirmed in the in the written Guarantee.
The producer bears no responsibility for damage to the appliance or from
incorrect use or from defects in the protective systems of the electrical network
(e.g. overvoltage).
Use the appliance after it has been fitted in the cabinet.
Caution! Never dismantle the cover of appliance. An eventual contact with
alive parts means endangering of the user safety.
Caution! During any kind of dismantling or assembly of the appliance outside
its normal use, the electrical supply to it should be disconnected and secured in
the OFF state. When disconnecting the appliance one of the following must be
carried out:
•Switch off the fuse or circuit breaker in the distributor box.
•Pull out the plug from the socket. Do not pull the plug out by its cable but take
hold of the plug itself.
Interference with the appliance or unprofessional service could lead to a risk of
serious injury or damage to health as well as damage to the appliance itself.
Installation and all repairs, modifications or checks to the appliance should be
carried out by an authorized service technician or similarly qualified person
EN 3
only. The producer bears no responsibility for personal injuries or losses
caused by incorrect manipulation or unprofessional interference with the
appliance.
A damaged feed cable must only be replaced by a service technician or other
professionally competent person to prevent dangerous situations arising.
If any fault occurs in the appliance within the guarantee period, do not repair it
yourself. Put the appliance out of service and request repair from an authorized
person competent for such work. The producer is not responsible for eventual
losses arising from failure to observe the instructions and recommendations
given in this manual.
This appliance is intended solely for domestic use!
Incorrect use could endanger the user.
This appliance should only be used for warming dinner service, keeping food
warm, for preparation of yogurt, and similar uses. Any other use is not
acceptable and could be dangerous. The producer accepts no responsibility for
dropouts or defects arising as a consequence of unsuitable or incorrect use of
the appliance.
Depending on the chosen temperature and duration of operation, the
temperature inside the appliance can reach up to 80°C. Use oven gloves or a
teatowel to remove dishes from the warming drawer.
WARNING: The appliance self and its accessible parts will be hot during the
use.
Children under the age of 8 should not be allowed near the appliance except
under adult supervision.
Do not sit or lean on the drawer. This could damage the telescopic fittings.
Maximum load of drawer is 30 kg.
CAUTION! Danger of fire: Do not put synthetic dishes or flammable objects
into the warming drawer. Such dishes or objects could melt or ignite after the
drawer is switched on.
Do not use for other purposes, for instance for room heating. The high
temperatures could cause the ignition of flammable objects near the appliance.
Never use steam or pressure cleaners for cleaning of the appliance.
EN 4
There is a risk of electric shock. The steam could damage the electrical parts
and cause a short circuit. The steam pressure could permanently damage the
surface and parts of the appliance.
When you stop using the appliance, such as at the end of its operational life,
disconnect it from the mains and remove the feed cable to ensure the safe
state of appliance.
THE PURPOSE OF THE APPLIANCE
The appliance is designed for usual preparation of food in households and it
should not be used for other purposes.
The individual possibilities of its use are fully described in this manual.
EN 5
DESCRIPTION AND OPERATION OF APPLIANCE
This appliance is intended for fitting into kitchen units and is designed for warming dinner service,
defrosting food, keeping food warm and for preparation of yogurts.
Warming is carried out by a convection system which pumps warm air into the drawer. Thanks to
circulation of the air dishes are heated up evenly and quickly. Even so, dishes in the rear part of
the drawer could be hotter than those at the front.
The control panel includes control sensors with pre-defined programs as well as a manual mode,
which offers a selection temperatures from 40−80 °C (in 10°C steps) and automatic switching off at
the end of the set warming period
(1−4 hours).
The appliance will heat correctly only if the drawer is properly closed.
CONTROL ELEMENTS
The sensor control is activated by touching the corresponding symbol on the control panel with
your finger. The control panel should therefore be kept clean and dry.
Sensor for switching on and off
Heating plates
Heating cups
Keeping food warm
Yogurt preparation
Defrosting
Manual setting
Setting of temperature
Setting of time
Before first use
Clean the appliance according to the instructions in the chapter „Cleaning and maintenance“ before
first use.
Then leave the warming drawer in operation at maximum temperature for at least two hours.
Ensure good ventilation of kitchen during this procedure. The parts of this appliance are protected
with a special coating which can be smelt during this first heating. This smell and any smoke will
disappear after a short period. It does not mean that the appliance or its connection are in any way
defective.
Automatic programs
Manual operation
EN 6
Capacity
The capacity can differ with the size of dishes used.
Orientation capacity guide
Serving set for 6 persons
6 dinner plates 25.5 cm diam.
6 soup plates 22 cm diam.
6 dessert plates 23.5 cm diam.
1 oval plate width 32 cm
1 serving plate 19.5 cm diam.
1 serving plate 18.5 cm diam.
Maximum load of drawer is 30 kg.
THE USE OF WARMING DRAWER
1 - Open the drawer...
2 - Switch ON the drawer by pressing on the touch sensor on/off.
3 - Place the dishes into the drawer.
4 - Select a suitable program or choose the manual operation and set the temperature and time.
5 - Close the drawer...
At the end of the heating time the heating system will stop and a signal will sound. The signal will
sound continuously for one minute and then a short signal will sound after every minute. The
drawer switches off five minutes after the selected program finishes.
If you want to interrupt the selected program open the drawer and press the touch sensor for
switching it off. You can then select another program or prolong the heating duration after opening
of the drawer.
Remark
When interrupting an automatic program the warming drawer will switch to manual operation. The
change can not be done in the program Yogurt.
Heating time
Different factors can influence the length of the heating time:
The material and thickness of dishes
The quantity of heated dishes
The method of organization in the drawer
The setting of temperature
Perfect warming-through can therefore last different periods of time. The pre-set programs are in
this regard for orientation only. After a while you will get to know what is the ideal heating time for
your particular dishes.
The dishes in the rear part of the drawer could be hotter as in the front part of the drawer. Use oven
gloves or a kitchen cloth for removing dishes from the drawer.
EN 7
THE USE OF WARMING DRAWER
The switching the drawer on
The drawer can be switched on by pressing the ON touch sensor.
AUTOMATIC PROGRAMS
Heating plates
Select the program for Heating plates.
This automatic program has a pre-set temperature of 80°C and a 1 hour heating time. It is
designed for pre-heating of dinner servings. The pre-heated plates preserve the temperature of
the served food.
Heating cups
Select the program for Heating cups.
This automatic program has a pre-set temperature of 60°C and a 1 hour heating time. It is
designed for pre-heating cups for preparation of warm drinks such as espresso coffee.
Keeping food warm
Select the program for Keeping food warm.
This automatic program has a pre-set temperature of 60°C and a 2 hour heating time. It is
designed for keeping cooked food warm in the dish or on serving plates.
Yogurt
Select the program for Yogurt preparation.
This automatic program has a pre-set temperature of 40°C and a 4 hour heating time. It is
designed for yogurt preparation. This procedure requires an exact temperature setting and an
exactly determined duration, therefore these values cannot be modified.
Tip: Yogurt preparation
Heat up 1 liter of fresh full-cream milk to a temperature approximately 80 °C and then let it cool
down to 40°C. Stir into the milk 2 spoons of white yogurt with living culture. Pour the milk into jars.
The jars should be totally clean, ideally sterilized. Put the jars into the center of the drawer. Don't
put the jars closer than 10 cm from the back wall of the drawer. The air has to circulate around the
jars, leave the gaps between them. Select the program for Yogurt. The program is complete after 4
hours, then let the yogurt an additional 2 hours in the drawer without heating. The yogurt will be
ready after 10 hours in the refrigerator where it needs to ripe.
EN 8
Defrosting
Select the program for Defrosting.
This automatic program has a pre-set temperature of 40°C and a 2 hour heating time. It is
designed for defrosting frozen food. Put the frozen food into a deeper dish or plate to catch water
released during thawing.
MANUAL OPERATION
Select the Manual operation touch senzor.
Select the required temperature by repeatedly pressing the temperature touch sensor.
A selection of temperatures between 40−80°C are offered in 10°C steps.
The selected temperature is shown on the temperature display.
Select the required heating time period.
A selection of heating times from 1−4 hours is offered in 1 hour steps.
The selected time period is shown on the time display.
Child lock
The child lock is used to prevent children interfering with the drawer controls. You can activate the
child lock by pressing the "Manual operation" touch sensor for 5 seconds.
The sensors will then be inactive. Only the "Manual operation" symbol will be lit up. The child lock
can be deactivated by again pressing the "Manual operation" touch sensor for 5 seconds.
Switching the drawer off
You can switch the drawer off by pressing the OFF touch sensor.
The drawer switches off automatically at the end of the set heating time.
EN 9
DISPOSAL OF APPLIANCE AND PACKAGING
The symbol on the product or on its packaging determines that this appliance
should not be given into the domestic waste. It should be delivered to a
collection spot for recycling of electric and electronic appliances. You can help
to prevent the negative influences on the environment and human health (which
could be caused with inappropriate disposal) with correct disposal of this
appliance. More detailed information on recycling of this product you can
receive at competent local authority, service for disposal of domestic waste or in
the shop, where you had bought the product.
The packaging materials protect the appliance during transport. By recycling the packaging it is
possible to save raw materials and reduce waste volumes.
If you dispose of the packaging yourself, ask local authorities for the location of the nearest
collection centre.
CLEANING AND MAINTENANCE
Warning
Never use steam cleaners or high pressure cleaners for cleaning of the appliance.
For removing of inner glass bottom use enclosed wacuum handle. See picture n.4.
Clean all surfaces with a soft sponge, a drop of detergent and lukewarm water. Then dry all
surfaces with a soft cloth.
Clean front glass panel with cleaning means for glass and soft cloth. Do not use scraper.
Do not use: Detergents containing soda, acids or chloride, abrasive detergents (powder or cream)
abrasive sponges (e.g. steel wool pads) or sponges containing residual abrasive detergent.
CLAIMS
If there is any defect on the appliance within the guarantee period, do not repair it self. Apply a
claim in the shop in which you bought the appliance or at service representatives, mentioned in the
Guarantee conditions. At applying of claim observe the text of Guarantee sheet and Guarantee
conditions. The claim is valid with submitted dully filled up Guarantee sheet only.
EN 10
THE CONNECTION OF APPLIANCE TO THE POWER
MAINS
The appliance may only be connected to the electrical network by an authorized person and in
compliance with national standards and regulations.
A device for disconnecting all poles of the appliance should be included in the circuit before the
appliance for disconnecting the appliance from the network.This obligation is not necessary, when
the supply cord is provided with a plug and this plug can be easily and without obstruction pulled
out from the socket.
The appliance is delivered with a 1.5 mm diameter, three-core cable, type H05VV-F 3G1,5. The
wire ends should be fastened against fraying with pressed on cable ends.
The appliance must be connected to a mains supply with the correct voltage as indicated on the
rating plate and by means of a supply line of the appropriate rating.
CONNECTION
1. Clip against cord tearing
2. Wire ends braced with pressed terminal
EN 11

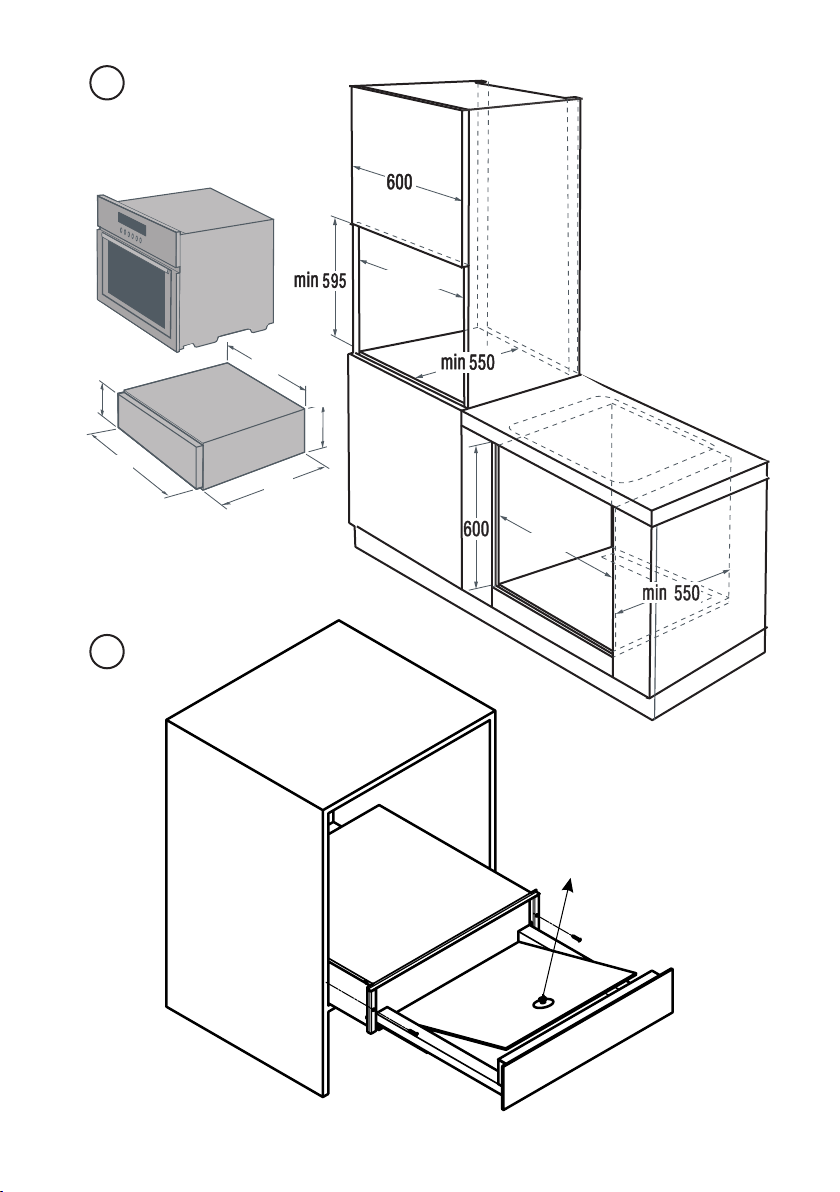

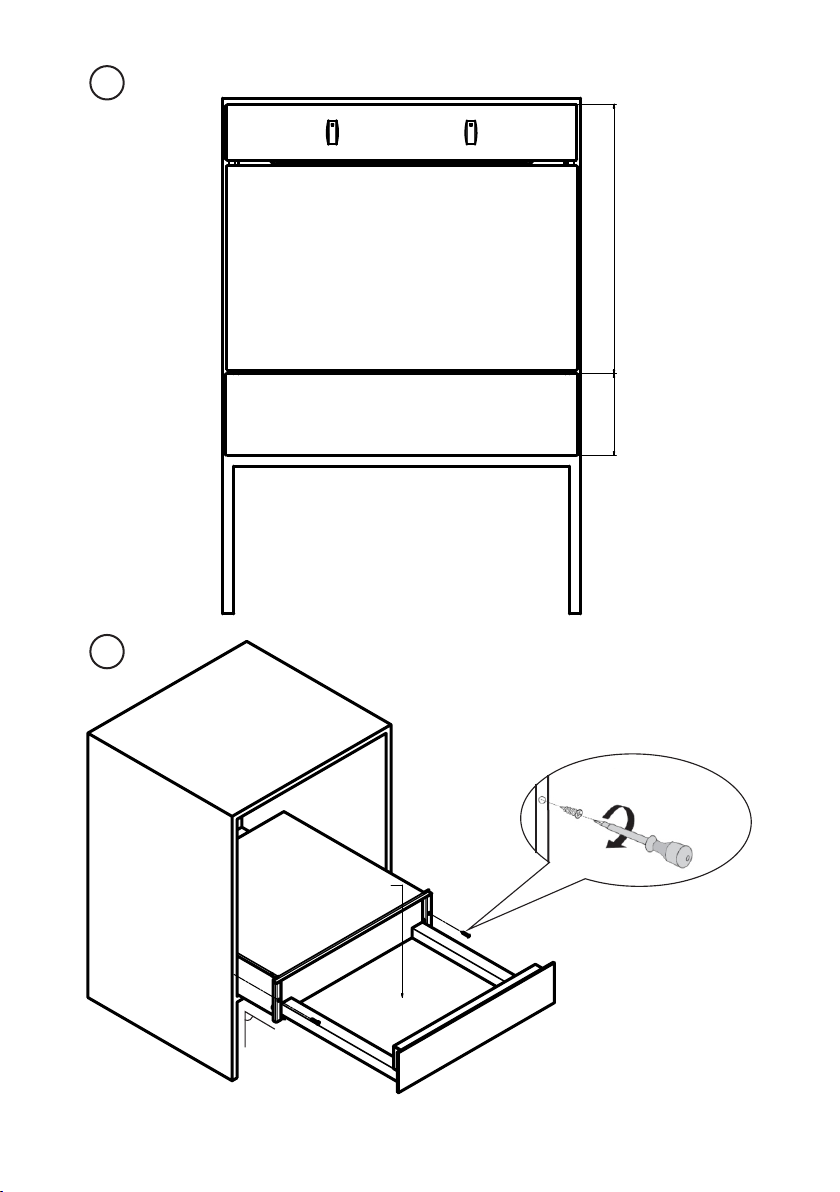

INSTRUCTIONS FOR INSTALLATION
At installation of appliance the following steps should be provided from point of view of
appliance:
The checking of correct connection to electric power net.
Checking the functioning of the heating element, ventilator and regulation elements.
The demonstration of appliance's all functions, operation and maintenance to the customer.
IMPORTANT NOTE!
At any manipulation with the appliance, except of normal use, it is necessary to disconnect the
power, e.g. with pulling out of the plug from the socket or with switching off the main switch in front
of the appliance.
This appliance is not designed for operation with help of an external timer or with a separate
system of remote control.
TROUBLESHOOTING
CAUTION! All repairs should only be carried out by a service technician or similarly
qualified person. Repairs carried out by persons not authorized by the producer could be
dangerous.
In case of minor defects first check if you can correct the fault with the help of this manual.
The dishes are not sufficiently heated.
Check, whether:
•the appliance is switched on;
•a suitable temperature has been set;
•the back wall of the drawer is not fully covered with the dishes;
•the dishes were heated long enough.
The time for heating depends on different factors including:
•the material and thickness of dishes;
•the quantity of dishes;
•the arrangement of dishes,
The dishes are not heated at all.
Check, whether:
•thee fuse hasn't blown or the circuit breaker in the distributor box hasn't been tripped.
•you can hear the ventilator working.
If the ventilator is running then the heating element is defective.
A faulty temperature sensor is signaled by a flashing temperature display and intermittent sound
signal. The drawer will then automatically switch off.
EN 12
TECHNICAL DATA
Technical data
WARMING DRAWER
WDH14BG
Dimensions
560 x 595 x 140 mm
Electric voltage
220-230 V ~; 50/60 Hz
Total electric input
410 W
Hisense UK LTD
Ground floor, Munroe Court, White Rose
Office Park, Millshaw Park Lane, Leeds
LS11 0EA United Kindom
www.hisense.co.uk
GORENJE gospodinjski aparati, d.o.o
Partizanska cesta 12
SI-3320 Velenje, SLOVENIA
The producer reserves the right for small modifications of manual, following from the
technical or technological changes of product, which have no influence to the function of product
SAP 912781en
2023 08 07
SAP 9127818en
www.hisense.co.uk
Table of contents
