Hitachi Kokusai Electric HV-F203SCL User manual

3CCD color camera
HV-F203SCL
Operation Manual
Hitachi Kokusai Electric Inc.
Version in Sep, 2017
RoHS Compliant
These products comply with the requirement of the RoHS (Restriction of the
use of Certain Hazardous Substances in Electrical and electronic Equipment)
Directive 2002/95/EC.
Thank you for purchase this fine Hitachi Kokusai Electric CCD camera.
Before using the camera, please read this operation manual carefully.
There is a possibility that the revised edition is exhibited on web.
Please confirm by web shown in an Installation Guide.
Preliminary version

A
IMPORTANT SAFETY INSTRUCTIONS
1. Read Instructions
All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions
The safety and operating instructions should be retained for future reference.
3. Heed Warnings
All warnings on the product and the operating instructions should be adhered to.
4. Follow Instructions
All operating and use instructions should be followed.
5. Cleaning
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
6. Attachments
Do not use attachments not recommended by the product manufacturer as they may cause hazards.
7. Water and Moisture
Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet
basement; or near a swimming pool; and the like.
8. Accessories
Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious
injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table
recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the
manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.
9. Moving
A product and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
10. Ventilation
Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to
protect it from overheating, and these openings must not be blocked or covered.
The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This
product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is
provided or the manufacturer's instructions have been adhered to.
11. Power Sources
This product should be operated only from the type of power source indicated on the marking label. If you are not
sure of the type of power supply to your home, consult your product dealer or local power company. For products
intended to operate from battery power, or other sources, refer to the operating instructions.
12. Grounding or Polarization
This product is equipped with a three-wire grounding-type plug a plug having a third (grounding) pin. This plug will
only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the
outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the
grounding-type plug.
13. Power-Cord Protection
Power-supply cords should be routed to that they are not likely to be walked on or pinched by items placed upon or
against them, paying particular attention to cords at plug, convenience receptacles, and the point where they exit
from the product.
14. Lightning
For added protection for this product during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet. This will prevent damage to the product due to lightning and
power-line surges.
15. Overloading
Do not overload wall outlets, extension cords or integral convenience receptacles as this can result in a risk of fire or
electric shock.

B
16. Object and Liquid Entry
Never push objects of any kind into this product through openings as they may touch dangerous voltage points or
short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
17. Inflammable and Explosive Substance
Avoid using this product where there are gases, and also where there are inflammable and explosive substances in
the immediate vicinity.
18. Heavy Shock or Vibration
When carrying this product around, do not subject the product to heavy shock or vibration.
19. Servicing
Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage
or other hazards. Refer all servicing to qualified service personnel.
20. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following
conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating instructions. Adjust only those controls that are
covered by the operating instructions as an improper adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to restore the product to its normal operation.
e. If the product has been dropped or damaged in any way.
f. When the product exhibits a distinct change in performance-this indicates a need for service.
21. Replacement Parts
When replacement parts are required, be sure the service technician has used replacement parts specified by the
manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock, or other hazards.
22. Safety Check
Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to
determine that the product is in proper operating condition.
23. Wall or Ceiling Mounting
The product should be mounted to a wall or ceiling only as recommended by the manufacturer.
24. Heat
The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products
(including amplifiers) that produce heat
.
25. Hot attention
Camera the power is turned on, the surface temperature will be more than 50
℃
(122°F).
If you touch the camera, please turn off the power.

C
1. Alle Anweisungen lesen
Vor Betrieb des Erzeugnisses sollten alle Sicherheits-und Bedienungsanleitungen gelesen werden.
2. Die Anweisungen aufbewahren
Die Sicherheits-und Bedienungsanleitungen sollten fünftigen Bezug aufbewahrt werden.
3. Warnungen beachten
Die Warnungen auf dem Erzeugnis und in den Bedienungsanleitungen solten beachtet werden.
4. Anweisungen befolgen
Alle Bedienungsanleitung-und
Verwendungsanweisungen sollten befolgt werden.
5. Reinigung
Den Stecker des Geräts vor Reinigung aus der Steckdose ziehen. Keine flüssigen Reinigungsmittel oder Aerosolreiniger
verwenden. Zum Reinigen einen feuchten Lappen verwenden.
6. Zubehör
Nur vom-Hersteller des Erzeugnisses empfohlenes Zubehör verwenden, da es sonst zu Störungen kommen kann.
7. Wasser und Feuchtigkeit
Dieses Erzeugnis nicht in der Nähe von Wasser verwenden - z.B, in der Nähe einer Badewanne, eines
Waschbeckens, einer Küchenspüle, eines Waschzubers, in einem nassen Keller, in der Nähe eines
Schwimmbeckens usw.
8. Aufstellung
Das Erzeugnis nicht auf einen unstabilen Wagen, Stand, Dreifuß, Träger oder Tisch stellen.
Das Erzeugnis kann sonst herunterfallen und ein kind oder einen Erwachsenen schwer verietzen.
Außerdem kann das Gerät schwer beschädigt werden. Nur mit einem Wagen, Stand, Dreifuß, Träger oder Tisch
verwenden, der vom Hersteller empfohlen oder mit dem Erzeugnis verkauft worden ist. Für jegliche Anbringung
sollten die Anweisungen des Herstellers befolgt werden, und das vom Hersteller empfohlene Anbringungszubehör sollte
verwendet werden.
9. Eine Kombination von Erzeugnis und Wagen sollte vorsichtig bewegt werden
Schneller Halt, übermäßige Krafteinwirkung und unebene Oberflächen können Umkippen der kombination von
Erzeugnis und Wagen verursachen.
10. Ventilation
Schlitze und Öffnungen im Gehäuse dienen der Ventilation. Sie sind für zuverlässigen Betrieb des Gerätes und
Schutz vor Überhitzung erforderlich und dürfen nicht blockiert oder abgedeckt werden. Die Öffnungen sollten niemals
dadurch blockiert werden, daß, das Gerät auf ein Bett, ein Sofa, einen Teppich oder eine ähnliche Oberfläche gestellt
wird.
Das Gerät sollte nur dann in Einbauinstallierung wie in einem Bücherschrank oder einem Gestell verwendet werden,
wenn angemessene Ventilation vorgesehen ist bzw. Die Anweisungen des Herstellers befolgt worden sind.
11. Stromversorgung
Dieses Erzeugnis sollte nur an der auf dem Typenschild angegebenen Stromversorgungsart betrieben werden.
Wenn Sie nicht sicher sind, was für eine Stromversorgung Sie haben, so wenden Sie sich bitte an Ihren
Erzeugnishändler oder an das lokale Elektrizitätswerk. Beziehen Sie sich für Batteriebetrieb oder andere
Stromquellen vorgesehene Erzeugnisse bitte auf die Bedienungsanleitungen.
12. Erdung oder Polarisierung
Dieses Erzeugnis ist mit einem Schutzkontaktstecker mit drei Leitern ausgerüstet, mit einem Erdungskontakt.
Dieser Stecker paßt nur in ein schuko-Steckdose. Dies ist eine Sicherheitsmaßnahme. Wenn Sie den Stecker
nicht in die Steckdose stecken können, so wenden Sie sich bitte an ihren Elektriker, damit er die veraltete Schuts des
Schutzkontaktsteckers unwirksam.
13. Netzkabelschutz
Netzkabel sollten so verlegt werden, deß möglichst nicht darauf getreten wird und daß sie nicht eingeklemmt werden,
mit besonderer Beachtung der kabel an Stackern, Verlängerungskabeln und dem Austritt des Kabels aus dem
Erzeugnis.
14. Blitzschlag
Für zusätzlichen Schutz des Erzeugnisses während eines Gewitters oder bei Nichtverwendung für lange Zeit den
Stecker aus der Steckdose ziehen. Dies verhütet Beschädigung durch Blitzschlag und Netzspannungsstöße.
15. Überlastung
Wandsteckdosen, Verlängerungskabel und eingebaute Bequemlickkeitssteckdosen nicht überlasten, da dies Feuer
oder elektrischen Schlag verursachen kann.
WICHTIGE SICHERHEITS ANWEISUNGEN

D
16. Eindringen von Fremdkörpern und Flüssigkeit
Niemals Objekte irgendwelcher Art durch die Öffnungen in das Gerät schieben, da diese unter hoher Spannung
stehende Teile berühren oder kurzschließen können, wodurch es zu Feuer oder elektrischem Schlag kommen kann.
Niemals Flüssigkeiten irgendwelcher Art auf das Erzeugnis verschütten.
17. Entflammbare und explosive Substanzen
Vermeiden Sie Verwendung dieses Erzeugnisses an Orten mit Gasen bzw. entflammbaren oder explosiven
Substanzen in der direkten Umgebung.
18. Starke stöße oder Vibrationen
Setzen Sie das Erzeugnis beim Transport nicht starken Stößen oder Vibrationen aus.
19. Wartung
Versuchen Sie nicht, dieses Erzeugnis Selbst zu warten, da Sie sich durch Öffnen bzw. Entfernen von
Abdeckungen hohen Spannungen und sonstigen Gefährdungen ausserzen können.
Beziehen Sie sich für jegliche Wartung auf qualifiziertes Wartungspersonal.
20. Beschädigung, die Wartung erfordert
Ziehen Sie den Stecker dieses Erzeugnisses aus der Steckdose und wenden Sie sich an qualifiziertes
Wartungspersonal, wenn eine der folgenden Bedingungen vorliegt:
a. Wenn das Netzkabel oder der Stecker beschädigt ist.
b. Bei Eindringen von Flüssigkeit oder Fremdkörpern in das Gerät.
c. Wenn das Erzeugnis Regen oder Wasser ausgesetzt worden ist.
d. Wenn das Erzeugnis bei Befolgen der Bedienungsanleitungen nicht normal funktioniert.
Nur die Regelelemente verstellen, die in den Bedienungsanleitungen behandelt werden, da unangemessene
Einstellung anderer Regelelemente Beschädigung verursachen kann und oft beträchtliche Arbeit durch einen
qualifizierten Techniker erfordert, um das Erzeugnis wieder, zu normalem Betrieb zurückzubringen.
e. Wenn das Erzeugnis fallen gelassen oder beschädigt worden ist.
f. Wenn das Erzeugnis eine klare Änderung in der Leistung zeigt-dies weist darauf hin, daß Wartung erforderlich ist.
21. Ersatzteile
Wenn Ersatzteile erforderlich sind, darauf achten, daß der Wartungstechniker nur die vom Hersteller festgelegten
Ersatzteile oder Teile mit den gleichen Charakteristiken wie die ursprünglichen Teile verwendet. Unautorisierte
Ersatzteile können Feuer, elektrischen Schlag oder sonstige Gefährdungen verursachen.
22. Sicherheitsprüfung
Bitten Sie den Wartungstechniker nach der Vollendung von Wartung oder Reparaturarbeiten an diesem Erzeugnis
um die Durchführung von Sicherheitsprüfungen, um zu bestimmen, daß das Erzeugnis im angemissenen
Betriebszustand ist.
23. Anbringung an der Wand oder an der Decke
Das Erzeugnis sollte nur entsprechend den Empfehlungen des Herstellers an einer Wand oder an der Decke
angebracht werden.
24. Wärme
Das Erzeugnis sollte fern von Wärmequellen wie Radiatoren, Heizwiderständen, Öfen und anderen Wärme
erzeugenden Erzeugnissen (einschließlich Verstärkern) aufgestellt werden.
25. Hot Aufmerksamkeit
Kamera das Gerät eingeschaltet ist, wird die Oberflächentemperatur mehr als 50
℃
(122 ° F).
Wenn Sie die Kamera berühren, bitte das Gerät ausschalten.

E
MISES EN GARDE IMPORTANTES
1. Lire les instructions
Lire toutes les instructions de sécurité et de fonctionnement avant de faire fonctionner l’appareil.
2. Conserver ces instructions
Conserver les instructions de sécurité et de fonctionnement á des fins de référence ultérieure.
3. Tenir compte des avertissements
Tous les avertissements qui figurent sur l’appareil et dans le mode d’emploi devront être respectés.
4. Observer les instructions
Observer toutes les instructions de fonctionnement et d’utilisation.
5. Nettoyage
Avant de procéder au nettoyage, débrancher l’appareil de la prise secteur. Ne pas utiliser de produits de nettoyage
liquides ou en aérosol.
Nettoyer l’appareil avec un chiffon humide.
6. Fixations
Ne pas utiliser de fixations non recommandées par le fabricant de l’appareil car elles pourraient être source de danger.
7. Eau et humidité
Ne pas utiliser l’appareil á proximité d’eau-ar exemple prés d’une baignoire, d’un lavabo, d’un évier ou d’un bac á lessive, dans
un sous-sol humide, ou prés d’une piscine, etc.
8. Accessoires
Ne pas placer l’appareil sur un chariot, un socle, un pied, un support ou one table instables L’appareil pourrait tomber,
blessant griévement des enfants ou des adultes, et étant sérieusement endommagé.
Utiliser exclusivement le chariot, le socle, le pied, le support ou la table recommandés par le fabricant, ou vendus avec
l’appareil. Pour tout montage de l’appareil, respecter les instructions du fabricant, et utiliser á cette fin l’accessoire de
montage recommandé par le fabricant.
9. L’appareil monté sur son chariot devra être déplacé avec précaution
Des arrêts brusques, une force excessive et des surfaces irréguliéres pourraient provoquer le renversement de
l’ensemble appareil-chariot.
10. Ventilation
Les fentes et les ouvertures du coffret sont prévues pour la ventilation ainsi que pour garantir un fonctionnement en
toute sécurité de l’appareil et le protéger de toute surchauffe, et ces ouvertures ne devront donc être ni obstruées ni
recouvertes. Ne jamais obstruer les ouvertures en placant l’appareil sur un lit, un sofa, un tapis ou toute surface
similaire. Ne jamais placer l’appareil dans un support confiné, par exemple une bibliothéque ou une é tagé re, sans
ventilation suffisante ou sans repecter les instructions du fabricant.
11. Sources d’allmentation
L’appareil devra être alimenté exclusivement sur le type d’alimentation indiqué sur l’étiquette signalétique. Sil’on n’est
pas sûr du type d’alimentatio du local, consulter le revendeur de l’appareil ou la compagnie d’électricité locale. Pour
les appareils qui fonctionnent sur batterie ou sur d’autres sources, voir le mode d’emploi.
12. Mise á la terre ou polarisation
L’appareil est doté d’une fiche trifilaire avec mise á la terre, dont la troisiéme broche assure la mise á la terre. Cette
fiche ne rentrera que dans les prises trifilaires de mise á la terre. Ceci est une mesure de sécurité. Si la fiche ne
rentre pas dans la prise, faire remplacer la prise désuéte par un électricien.
Ne pas rendre vaine la measure de sécurité assurée par cette prise avec mise á la terre.
13. Protection du cordon d’alimentation
Acheminer les cordons d’alimentation de facon qu’on ne risque pas de marcher dessus ou de les coincer sous un objet
placé dessus ou contre eux.
Faire particuliérement attention aux fiches des cordons, á la proximité des prises, et á l’endroit oú ils ressortent de
l’appareil.
14. Foudre
Pour renforcer la protection de l’appareil pendant un orage, ou si l’on s’en éloigne ou qu’on reste longtemps sans
l’utiliser, le débrancher de la source d’alimentation. Ceci permettra d’éviter tout dommage de l’appareil dú á la foudre
et aux surtensions de ligne.
15. Surcharge
Ne pas surcharger les prises, rallonges et prises multiples car cela pourrait entraîner un risque de feu ou de choc
électrique.

F
16. Pénétration d’objets et de liquides
Ne jamais enfoncer d’objets d’aucune sorte dans les ouvertures de l’appareil car ils pourraient toucher des points de
tension dangereuse ou court-circuiter des piéces, ce qui pourrait provoquer un feu ou un choc électrique. Ne jamais
renverser de liquide d’aucune sorte sur l’appareil.
17. Substances inflammabes et explosives
Eviter d’utiliser l’appareil en présence de gaz, ainsi qu’á proximité immédiate de substances inflammables et explosives.
18. Chocs ou vibrations violents
Lorsqu’on transporte l’appareil, ne pas le soumettre á des chocs ou des vibrations violents.
19. Réparations
Ne pas tenter de réparer l’aapareil soi-même car le fait d’ouvrir ou de retirer les caches risque d’exposer l’utilisateur á
des tensions dangereuses notamment. Confier toute réparation á un personnel qualifié.
20. Dommages nécessitant réparations
Débrancher l’appareil de la source d’alimentation et confier les réparations á un personnel qualifié dans les cas suivants:
a. Lorsque le cordon d’alimentation ou sa fiche sont endommagés
b. Si du liquide s’est renversé sur l’appareil ou que des objets sont tombés dedans
c. Si l’appareil a été exposé á la pluie ou á l’eau.
d. Si l’appareil ne fonctionne pas normalement lorsqu’on observe les instructions d’utilisation.
Ne régler que les commandes couvertes par le mode d’emploi ; en effet, un réglage incorrect des autres commandes
pourrait entrainer des dommages et nécessiteront souvent des travaux de réparation coûteux par un technicien
qualifié pour remettre l’appareil en état de marche.
e. Si l’appareil est tombé ou qu’il a été endommagé.
f. Si l’appareil affiche une nette modification de ses performances, cela signifie qu’il a besoin d’être réparé.
21. Piéces de rechange
Si l’on a besoin de piéces de rechange, veiller á ce que le technicien de réparation utilise exclusivement les piéces de
rechange spécifiées par le fabricant ou des piéces ayant les mêmes caractéristiques que les piéces d’origine. Les
piéces de rechange non autorisées risquent de provoquer un feu, un choc électrique et autres dangers.
22. Vérificaton de sécurité
Aprés tout travail d’entretien ou de réparation de l’appareil, demander au technicien de réparation d’effectuer les
vérifications de sécurité pour s’assurer que l’appareil est en bon état de marche.
23.Montage au mur ou au plafond
L’appareil ne pourra être monté au mur ou au plafond que de la maniére recommandée par le fabricant.
24. Chaleur
Eloigner l’appareil des sources de chaleur, telles que radiateurs, appareils de chauffage, cuisiniéres, et de tour produit
engendrant de la chaleur (y compris les amplificateurs).
25. Une attention chaude
Caméra de la mise sous tension, la température de surface sera plus de 50
℃
(122 ° F).
Si vous touchez l'appareil photo, s'il vous plaît éteindre l'appareil.

G
IMPORTANT NOTICE
These products have been tested and found to
comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against
harmful interference when the equipment is operated
in a commercial environment. This equipment
generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance
with the instruction manual, may cause harmful
interference to radio communications. Operation of
this product in a residential area is likely to cause
harmful interference in which case the user will be
required to correct the interference at his own
expense.
WARNING
Changes or modifications not expressly approved by
Hitachi Kokusai Electric Ltd. responsible for
compliance could void the user’s authority to
operate the equipment.
This product does not exceed the class A/class
B limits for radio noise emissions from digital
apparatus as set out in the radio interference
regulations.
Le présent appareil n’émet pas de bruits
radioélectriques dépassant les limités
applicable aux appareils numériques de classe
A prescrites dans le rVglement sur le brouillage
radioélectrique édicter par le ministére des
communications du canada.
USA
For Canada

I
The following statement is related to the regulation on “ Measures for the Administration of the control of Pollution by
Electronic Information Products “ , known as “ China RoHS “.
The table shows contained Hazardous Substances in this camera.
说明书（环境方面：补充资料）
对象产品：彩色摄像机
１．电子产品污染控制标志
此标志是根据
2006
年
2
月
28
日公布的《电子信息产品污染控制管理办法》以及
SJ/T11364-2006
《电子信息产品污染控制标识要求》而制定的，是用来表示适用于
在中华人民共和国流通的电子信息产品的环保使用期限。
只要遵守此类产品的安全事项以及使用上应注意的问题，从制造日起到此年限内，
不会发生产品中的有害物质外泄、突变等，不会对环境、人体以及财产产生严重影
响。同时，此年限是除去必须定期交换的保守部品的，是其他产品的环保使用期限。
产品在正常情况下使用完毕要废弃时，请遵守各地区对电子信息产品的回收・再
利用的相关各项法律、法规。
另外，从第三者处转买的情况下即使在本期限内也视为失去效力。
２．产品中有毒有害物质或元素的名称及含量
部件名称
有毒有害物质或元素
铅
(Pb)
水银
(Hg)
镉
(Cd)
六价铬
(Cr(VI))
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
１ 主机 × ○ × ○ ○ ○
○：表示该有毒有害物质在该部件所有均质材料中的含量均在
SJ/T11363-2006
标准规定的限量要求以下。
×：表示该有毒有害物质至少在该部件的某一均材料中的含量超出
SJ/T11363-2006
标准规定的限量要求。
China RoHS

J
Phenomena inherent to CCD imaging device
The following phenomena are inherent to a charge coupled device imaging element and do not indicate malfunction.
1) Smear and blooming
Vertical bands are visible when a strong light enters the scene. Adjust the camera aiming direction carefully to
avoid strong direct or reflected light.
2) Fixed pattern noise
High ambient temperature can cause fixed pattern noise to appear throughout the scene.
3) Moire
Interaction between patterns can produce an additional "phantom" pattern to appear. The CCD picture elements
(pixels) are arranged in a pattern, which can interact with a pattern in the scene (e.g., a performer wearing a finely
striped necktie) to result in a Moire pattern. The effect should be considered when selecting costumes, props and
other scene elements.
4) Ghosting
Strong direct or reflected light near an object of interest can cause ghosting of the object to appear in the picture.
The effect is more obtrusive with certain iris settings and lens types. Select the scene layout and camera pointing
direction carefully in order to avoid this effect.
5
）
White spot
Imperceptible white spots may rarely come up on the screen due to cosmic rays and so on. It becomes easy to appear
when the sensitivity of the camera is raised in the operation at the high temperature.
Combination with a microscope
The following phenomena occur by combining a camera and optical apparatus and do not indicate malfunction.
1) Vignetting
Depending on a microscope, light may enter into a camera at an angle larger than a lens for large view reservation,
and the portion which becomes dark at the screen upper and lower ends may occur. This phenomenon can be
reduced by the shading compensation function of a camera. However, this phenomenon cannot be rectified
completely. When accessories, such as a relay lens, are prepared for the microscope, vignetting may improve
optically.

K
Operating considerations Notes to users
1. Important safety notes
・
Please supply the direct current 12V of the camera input power supply within the range of 11 to 13V
・
Time will be needed for about four seconds by the time the camera works normally after turning on the power supply.
・
Observe that flammable objects, water or metal do not enter the camera interior. These may lead to failure or
accident.
・
Do not modify the camera or use the camera with external covers removed. These may cause failure, void any
warranties and pose a safety hazard.
・
Sop using the camera at the approach of electrical storm (thunder audible). Protect the camera from rain if using it
outdoors.
・
In event the camera shows any abnormality, switch off the camera and disconnect the power cord. Contract a Hitachi
Denshi service representative.
2. Handling
・
Do not attempt to remove cover.
・
When installing or removing a lens, be sure to use care that water or dust dose not enter the inside of the camera.
3. Installing and storage
Avoid installing or storing the camera in the following environments.
・
Environments exposed to direct sunlight, rain or snow.
・
Environments where combustible or corrosive gas exists.
・
Excessively warm or cold environment (Operating ambient temperature: -10 to 50
℃
).
・
Humid or dusty environment.
・
Place subjected to excessive vibration or shock.
・
Environment exposed to strong electric or magnetic field.
・
Do not aim the camera lens at the sun.
・
Do not shoot strong light.
When such a scene is shot, vertical trailing will appear. However, this is not due to failure. In case strong light enters
camera through the lens, partial deterioration in picture quality will result.
4. To obtain stable performance for long time
When the camera is used continuously for long time under high ambient temperature, the inside electrical parts
become deteriorated, resulting in shortening its life. To use the camera continuously for long time, the highest
temperature must be below 40
℃
.
5. Connectors
Confirm the power is off before connecting or disconnecting a signal cable. Grasp connectors by the body, not the
attached wires.
6. Cleaning
・
Use a blower or a lens brush to remove dusts on the lens or the optical filter.
・
Wipe dirts on the case off with dry soft cloth. If dirks are hardened, wipe them off with cloth moistened with neutral
detergent liquid; wipe the cover with dry cloth.
・
Do not use benzene, thinner, alcohol, liquid cleaner or spray-type cleaner.
・
In event dust or other debris is lodged between the CCD and optical filter, consult dealer for cleaning by an optical
technician.

1
Table of Contents
1.
Overview ..................................................................................................................................................................... 3
2.
Standard composition ................................................................................................................................................ 3
3.
Features ...................................................................................................................................................................... 3
4.
System example ......................................................................................................................................................... 3
5.
Section name and functions ...................................................................................................................................... 4
6.
Camera mounting (Attention Hot!) .......................................................................................................................... 4
7.
Lens ............................................................................................................................................................................. 4
8.
Connector .................................................................................................................................................................... 5
9.
Functions and operations .......................................................................................................................................... 7
9.1 TRIGGER : Setting about external trigger ...................................................................................................... 7
9.2 SHUTTER : Setting of electronic shutter ........................................................................................................ 7
9.3 GAIN LEVEL : Setting of electrical sensitivity .............................................................................................. 8
9.4 ALC LEVEL : setting to practical level for an ALC (Auto level control) ...................................................... 8
9.5 BRIGHTNESS : Adjust offset level .................................................................................................................. 8
9.6 GAMMA : Setting of gamma correction ........................................................................................................... 8
9.7 KNEE : Setting of KNEE................................................................................................................................... 9
9.8 LUT : Setting of Look Up Table ........................................................................................................................ 9
9.9 SHARPNESS : Setting of object contour correction ....................................................................................... 9
9.10 WHITE BALANCE : Setting of white balance. ............................................................................................... 9
9.11 MASKING : Setting of 6 vector independent making ................................................................................ 10
9.12 PAINT BLACK : Setting of paint black (color level of R, G, and B can be separately varied)................. 11
9.13 WHITE SHADING : Setting of white shading correction. ........................................................................... 11
9.14 DNR : Setting of noise reduction. ................................................................................................................... 11
9.15 DATA BIT : Setting of output bit depth ......................................................................................................... 11
9.16 OUTPUT : Setting of output signal from 10 pin of 12 pin DCIN/SYNC connector ................................... 11
9.17 WHITE SPOT : Setting of white spot correction ........................................................................................... 12
9.18 BINNING : Setting of Vertical Pixel Mix ...................................................................................................... 13
9.19 PARTIAL : Setting for Partial Scan ............................................................................................................... 13
9.20 TEST PATTERN : Setting of Video test pattern ........................................................................................... 13
9.21 MEMORY : Save or load the camera setting ................................................................................................. 13
9.22 FACTORY SETTING : File data initialize will become returned to the factory setting .......................... 13
10.
Remote control ...................................................................................................................................................... 14
11.
Command list ....................................................................................................................................................... 21
11.1 Send data
............................................................................................................................................................ 21
11.2 Read-out command
............................................................................................................................................. 25
12.
CameraLink output timing chart ....................................................................................................................... 27
12.1 Horizontal timing
.................................................................................................................................................. 27
12.2 Transmitter LVDS output pulse position measurement
........................................................................................ 27
13.
Trigger operation and timing chart ................................................................................................................... 30

2
13.1
Normal mode (MODE:OFF)
................................................................................................................................... 30
13.2 Fixed shutter mode
.............................................................................................................................................. 32
13.3 ONE trigger mode
................................................................................................................................................ 33
14.
Input / Output signal ........................................................................................................................................... 34
15.
Spectral response ................................................................................................................................................. 34
16.
Specifications ........................................................................................................................................................ 35
17.
Dimensions ........................................................................................................................................................... 36

3
1.
Overview
HV-F203SCL is high precision 3CCD progressive scan color camera, which has single chip digital processing LSI, a C
mount prism, 1/1.8 inch 2M pixels square CCD and CameraLink interface.
2.
Standard composition
Check when unpacking
Camera 1
Installation guide 1
Plug for DC IN/SYNC connector (HR10A-10P-12S) 1
In the CE Marking region, use the shield type and attach clamp filter (ZCAT 2035-0930A: TDK)
at both ends (camera and video processor ends). Refer to System example.
Note : When not using the specified junction box, Mini-CameraLink cable, camera cable and clamp filter, malfunctions may be caused.
3.
Features
・High resolution and color fidelity
The 1/1.8-inch 2.0 million pixels square lattices progressive scan CCD and dichroic prism for RGB color achieves a high
resolution picture and good color reproduction.
・Small and lightweight
The small SDR connector for digital output allows the camera size and mass to be drastically reduced to 55(W) x 55(H) x
89(D) mm / approx. 370g.
・Various picture quality enhancement
Independent size color masking is the Hitachi innovation for optimizing color balance. Saturation and hue of 6 colors (Red,
Green, Blue, Cyan, Magenta and Yellow) can be adjusted independently to deliver the best color in image capture,
microscope and other applications.
In-out gradation control can be arbitrarily adjusted by using LUT.
・Auto shading correction
Color shading due to aberration of the lens is automatically compensated or reduced.
・Versatile CCD drive functions
Video frame capture on demand using external trigger signal
Long integration mode (max. 10 seconds)
Variable shutter mode (min. 1/100,000 second)
Auto electronic shutter mode
4.

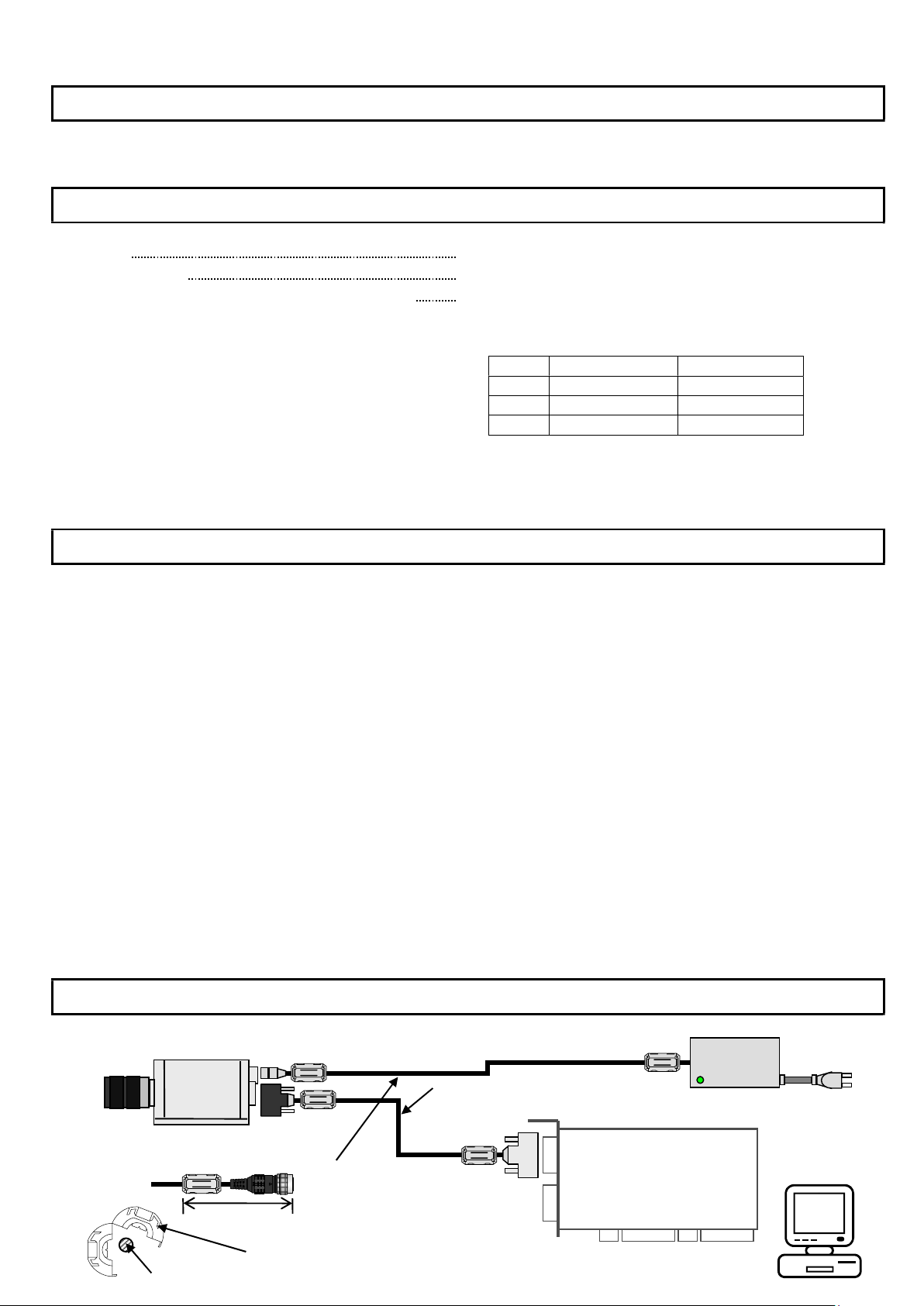

System example
HV-F203SCL connects to frame grabber board using Mini-CameraLink cable.
Optional accessories
(1) 12 pin plug HR10A-10P-12S(01)
(2) Junction box JU-F30
(3) Mini-CameraLink cable.
(CameraLink standard conformity)
(4) Cameracable
Molded type
Shield type
2m
C
-
201KSM
C
-
201KSS
5m
C
-
501KSM
C
-
501KSS
10m
C
-
102KSM
C
-
102KSS
HV-F203SCL
AC adaptor
CameraLink
frame grabber board
Mini-CameraLink cable
(x 2 when Medium configuration)
HITACH
3CCD
Camera cable (C-201KSS) / Mini-CameraLink cable
Clamp filter(ZCAT 2035-0930A: TDK)
Approx. 100 to 150 mm
In the CE Marking region, use following specified cables and clamp filters
Camera cable

4
5.

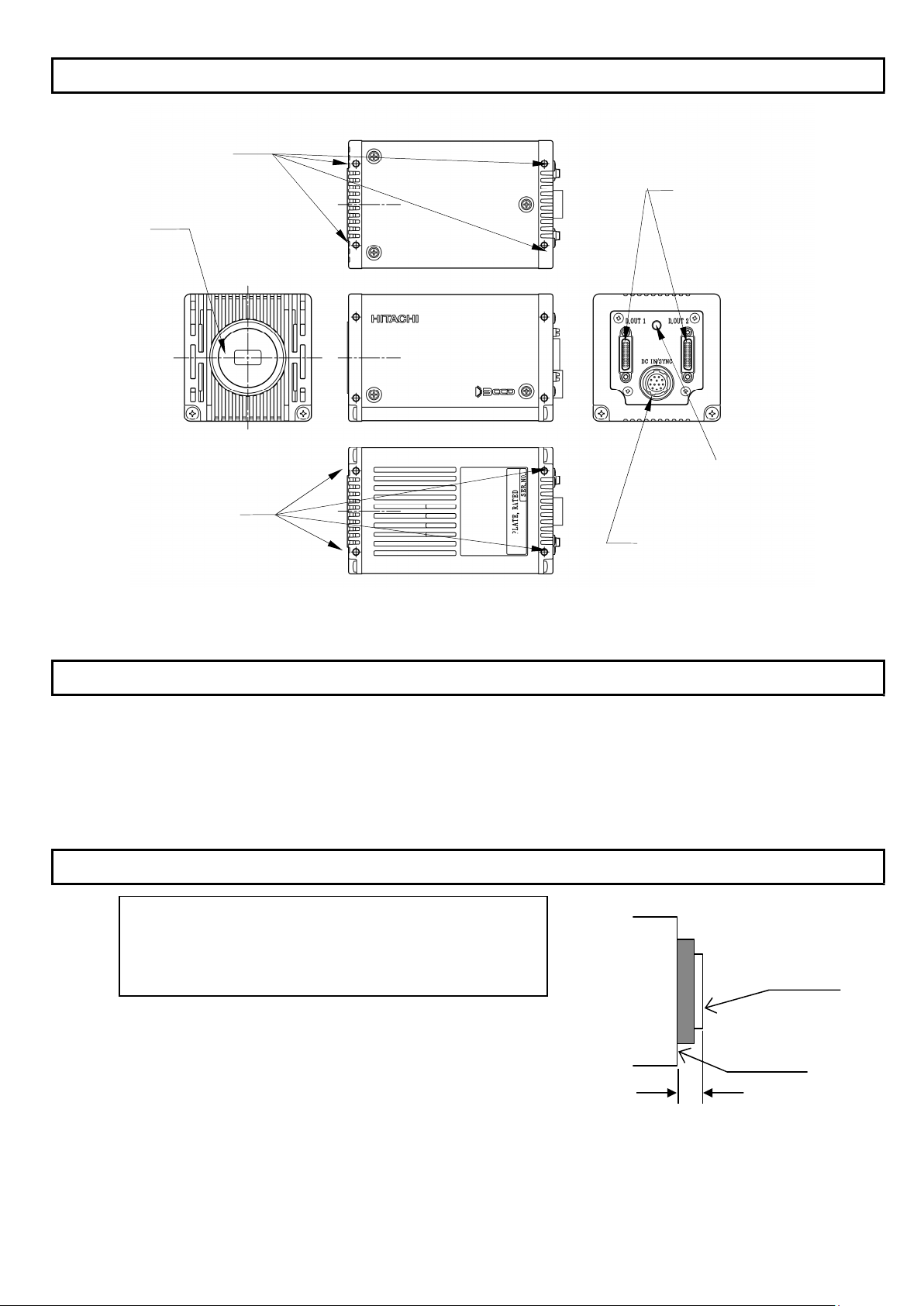

Section name and functions
6.
Camera mounting (Attention Hot!)
This camera has high data rate for high frame rate. A camera chassis will become a very high temperature by high data rate.
Please be careful about handling so that you don't get burned.
Please don't touch the camera a power supply is supplied with. Please wait a moment until a camera gets cold after stopping
supply of a power supply.
When doing the handling which touches a camera, a heat sink is needed.
The heat sink size : Like a size of t10mm x 170mm x 170mm by aluminum plate.
7.
Lens
Selecting a lens
The proper lens is important for obtaining adequate performance from the camera.
Especially in the case of a three elements CCD system C mount camera, the lens
incidence and exit distances are important. If separation is too short, color
irregularity Is apt to occur at the top and bottom of the image.
Conversely if too long, where the lens iris is a nearly fully open, resolution is
impaired, while shading and flare can seriously detract from image quality. When
using 3 CCD color system camera, it is also recommended to use a lens designed
for this purpose.
CameraLink connectors
Use for digital video output
and camera control signal
input/output signal.
Camera / Tripod adaptor
mounting screw holes
Lens mount
（C mount）
DC IN/SYNC connector
Use for DC+12V power or external
trigger / VD signal input or Flash /
VD output
Camera / Tripod adaptor
mounting screw holes
CAUTION
Observe the dimensions of the lens mounting selection as
illustrated at the right.
If the dimensions are not observed, do not use such a lens,
because the lens and the camera will be damaged.
Lens flange
Lens optics
Max 4mm
Pilot lamp
It lights up when power
supply.

5
8.

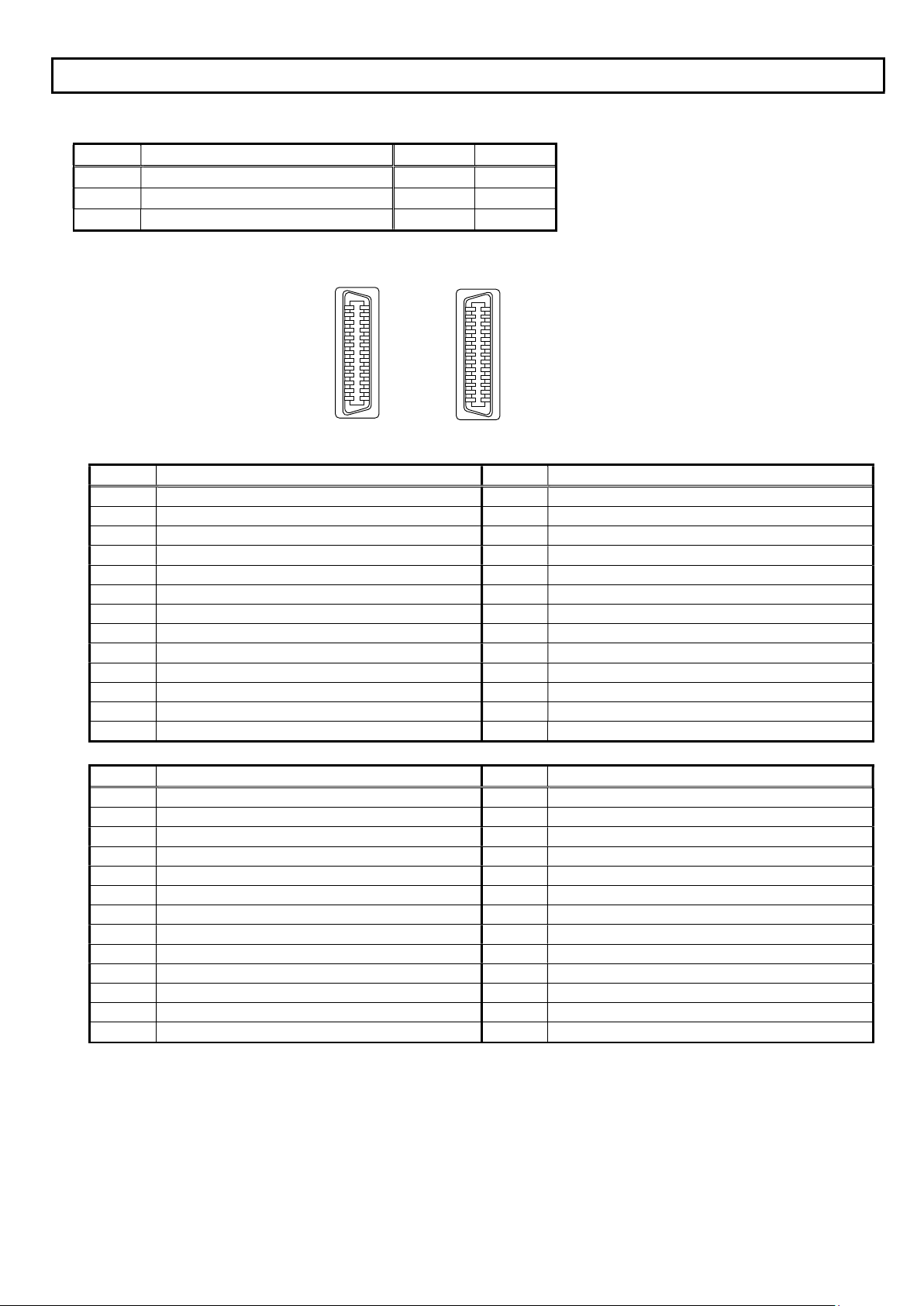

Connector
1. CameraLink connector
(a) Interrelation between number of DATA bit and number of used conndecor
(b) Signal connection of DIGITAL OUT connector
D.OUT 1 (Connector 1)
Pin No. Signal Pin No. Signal
1 N.U.(INNER_SHIELD/POW_IN) 14 GND
2 TXOUT 0 (－) 15 TXOUT 0 (＋)
3 TXOUT 1 (－) 16 TXOUT 1 (＋)
4 TXOUT 2 (－) 17 TXOUT 2 (＋)
5 TXCLKOUT (－) 18 TXCLKOUT (＋)
6 TXOUT 3 (－) 19 TXOUT 3 (＋)
7 RX (＋) [ SERTC (＋) ] 20 RX (－) [ SERTC (－) ]
8 TX (－) [ SERTFG (－) ] 21 TX (＋) [ SERTFG (＋) ]
9 TRIG/VD (－) [ CC1 (－) ] 22 TRIG/VD (＋) [ CC1 (＋) ]
10 N.U. [ CC2 (＋) ] 23 N.U. [ CC2 (－) ]
11 N.U. [ CC3 (－) ] 24 N.U. [ CC3 (＋) ]
12 N.U. [ CC4 (＋) ] 25 N.U. [ CC4 (－) ]
13 GND 26 N.U.(INNER_SHIELD/POW_IN)
D.OUT 2 (Connector 2: used for Medium configuration)
Pin No. Signal Pin No. Signal
1 N.U.(INNER_SHIELD/POW_IN) 14 GND
2 TYOUT 0 (－) 15 TYOUT 0 (＋)
3 TYOUT 1 (－) 16 TYOUT 1 (＋)
4 TYOUT 2 (－) 17 TYOUT 2 (＋)
5 TYCLKOUT (－) 18 TYCLKOUT (＋)
6 TYOUT 3 (－) 19 TYOUT 3 (＋)
7 N.U. 20 N.U.
8 N.U. 21 N.U.
9 N.U. 22 N.U.
10 N.U. 23 N.U.
11 N.U. 24 N.U.
12 N.U. 25 N.U.
13 GND 26 N.U.(INNER_SHIELD/POW_IN)
SDR connector (3M) or equivalent N.U.: Not used
- The digital out cable should be comprised of a twisted pair of wires having 100Ω characteristic impedance and an outer
sheath shield type conductor.
- Connect the shield (ground) of the digital out cable to the ground terminal of the video equipment, frame grabber, etc.
- TX: Transmit data from camera to machine
- RX: Transmit data from machine to camera
(Note) Please do not unplug and insert cable (digital out cable) with a power supplied to a camera.
Install clamp filter (ZCAT2035-0930A: TDK) at both ends (camera and video processor ends) in the CE marking legion.
Number of Data bits D.OUT1 D.OUT2
1 24bit (R: 8bit G: 8bit B: 8bit) O - O: Use
2 30bit (R: 10bit G: 10bit B: 10bit) O O -: Not use
3 36bit (R: 12bit G: 12bit B: 12bit) O O
1
13
14
26
26
14
13
1
D.OU
T1
D.OUT2

6
2. DCIN/SYNC connector
PIN NO. Signal PIN NO. Signal
1 GND (+12V) 7 TRIG
2 +12V 8 GND
3 GND 9 N.C.
4 N.C. 10 FLASH / VD OUT
5 GND 11 N.C.
6 N.C. 12 GND
Connector (camera side) : SANWOO SHN-10-12 (RPCB) or equivalent
Plug (matching cable plug : HR10A-10P-12S(01) HIROSE or equivalent
(Note) Please do not unplug and insert cable (camera cable) with a power supplied to a camera.
Install clamp filter(ZCAT 2035-0930A: TDK) at both ends (camera and video processor ends)
in the CE marking region.
Please do not input any signal to N.U. pin because machine may break down.

7
9.
Functions and operations
Various mode setup and adjustment of HV-F203SCL are performed by the remote control via CameraLink.
Operation and adjustment way of function utilized are described below.
See "Remote control" (page 14
~
) and "Command list" (page 21
~
) about communication method of each command.
9.1 TRIGGER : Setting about external trigger
-MODE- : Selection of mode
OFF (Factory setting） : Trigger mode set to OFF (normal mode).
FIXED SHUTTER : Set to Fixed shutter mode.
ONE TRIGGER : Set to ONE trigger mode.
-POLARITY- : Selection of trigger polarity
POSITIVE (Factory setting) : Input polarity HIGH is made into trigger signal.
NEGATIVE : Input polarity LOW is made into trigger signal.
-SOURCE- : Selection of trigger source
CC1 (Factory setting) : Input trigger signal from CameraLink signal CC1 (see page 5 "Connector").
12pin : Input trigger signal from 7 pin of 12 pin DCIN/SYNC connector.
* See "Trigger operation and timing chart" (page 30
~
).
9.2 SHUTTER : Setting of electronic shutter
OFF : Shutter operation set to OFF (normal shutter).
1/30, 1/60, 1/100, 1/250, 1/1000, 1/2000,
1/10000, 1/50000 second : Set to setting shutter speed (PRESET shutter).
VARIABLE (Factory setting): Set to shutter speed from 10 second to 1/100000 second (VARIABLE shutter).
-VARIABLE VALUE- : Setting speed of VARIABLE shutter.
10 to 1/100000 second : Electronic shutter can be set in the range of 10 to 1/100,000 second in 1536 steps
(Factory setting is 1/30)

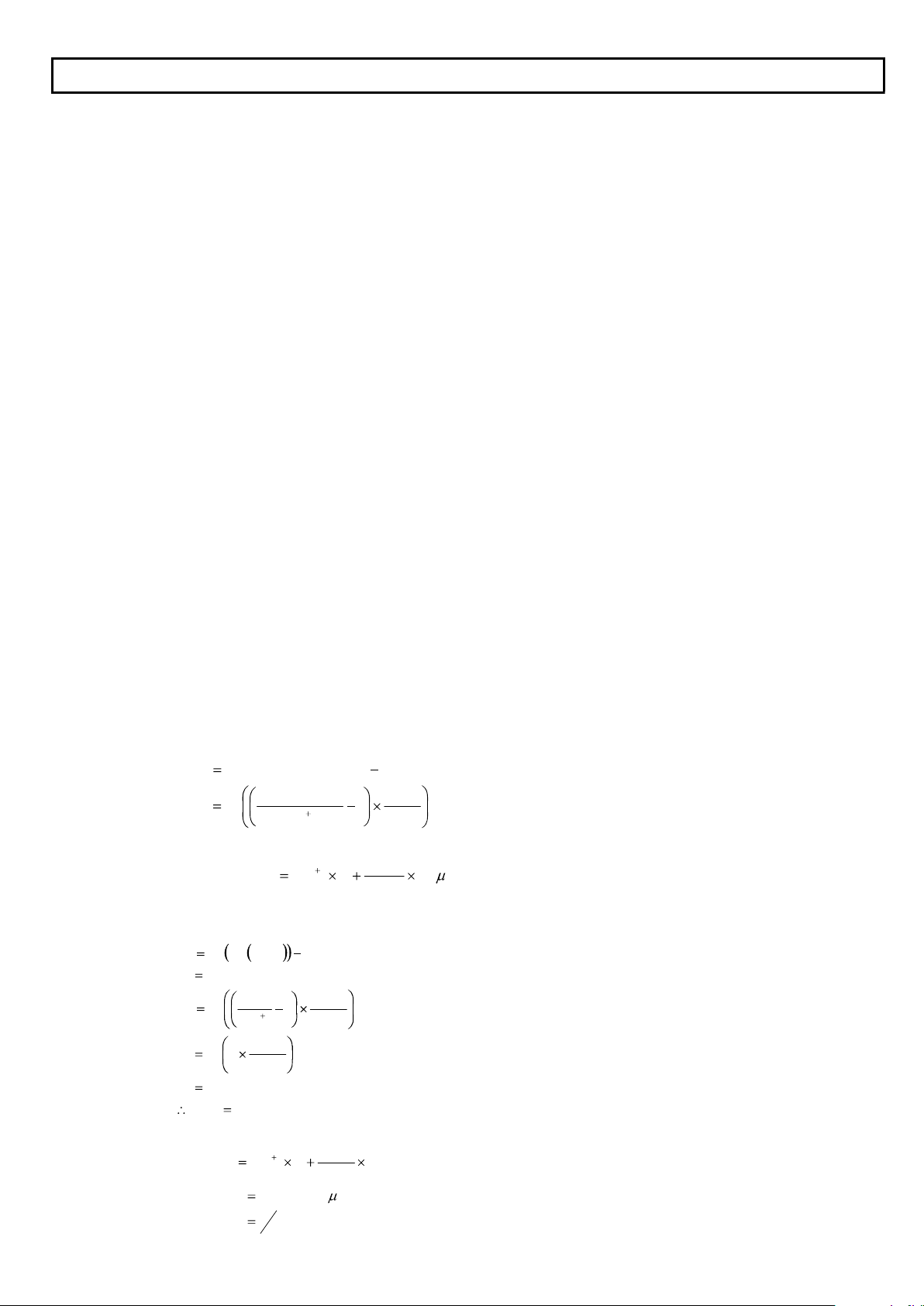

Shutter speed setting value can be derived as follows.
( ShutterSpeed :: μsecond)
a) Setting value xyy obtained from exposure time.
9
100
1
10
1
16
1X
YY
X
edShutterSpe
edShutterSpe
int
))int(log(
b) Exposure time obtained from setting value.
sec])[( 9110
1
16
16
X
100
YY
edShutterSpe
Ex.1 Exposure time = setting value nnn to obtain 1/125 second (= 8000μsecond).
16
16
16
16
12
2C7XYY
C7
9
100
7
9
100
1
10
8000
YY
2
18000X
int
int
logint
Ex.2 Setting value 25Dh that produces 1/234.22 second exposure time.
[sec]
sec][
)(
234.22
1
4269.53
9
100
5D
110
16
16
2 1
edShutterSpe

8
-AES MODE- : selects a control mode of AES (Automatic electronic shutter).
OFF (Factory setting) : Not perform AES (using manual setting of OFF/PRESET/VARIABLE).
ON : An electronic shutter is controlled automatically
so that the brightness of the output image will be practical level.
-AES MIN- : setting to shortest speed limit of an AES.
1/30sec to 1/100,000sec : AES range for minimum exposure limit. (Factory setting : 1/100,000sec)
When become setting AES MAX < MIN, it effects same value on AES MAX.
-AES MAX- : setting to longest speed limit of an AES.
1/30sec to 1/100,000sec : AES range for maximum exposure limit. (Factory setting : 1/30sec)
When become setting AES MAX < MIN, it effects same value on AES MIN.
9.3 GAIN LEVEL : Setting of electrical sensitivity
-Value- : Adjust MANUAL gain level
0 (Factory setting) to 12.04dB : Set MANUAL gain when AGC is OFF.
Adjustable from 0 to 12.04dB in 512 steps.
-AGC MODE- : selects a control mode of AGC (Automatic gain control)
OFF (Factory setting) : Not perform AGC (using manual setting of VALUE).
ON : A gain of electrical sensitivity is controlled automatically
so that the brightness of the output image will be practical level.
-AGC MIN- : setting to lowest gain limit of an AGC.
0 to 12.04dB : AGC range for minimum gain limit. (Factory setting : 0dB)
When become setting AGC MAX < MIN, it effects same value on AGC MAX.
-AGC MAX- : setting to highest gain limit of an AGC.
0 to 12.04dB : AGC range for maximum gain limit. (Factory setting : 12.04dB)
When become setting AGC MAX < MIN, it effects same value on AGC MIN.
9.4 ALC LEVEL : setting to practical level for an ALC (Auto level control)
It is adjustable practical level for the brightness of the output image.
When AES MODE or AGC MODE is ON, those use this practical level.
0 to 255 : Setting value toward 0 side make a dark image and 255 side make a bright image.
(Factory setting : 128).
9.5 BRIGHTNESS : Adjust offset level
-128 to 127 : Set in 256 steps. (Factory setting:0)
9.6 GAMMA : Setting of gamma correction
-MODE- : Selection of mode
OFF (Factory setting) : Not perform gamma correction.
ON 1 : When LEVEL value is 255, that makes gamma = 0.45 so that normal gamma curve.
ON 2 : Dark side expand less than ON1, so that makes a S line gamma curve.
-LEVEL- : Adjust gamma correction
0 (Factory setting) to 255 : Set gamma curve in 256 steps.
Settｉng value 0 makes gamma = 1.0 that nearly equal OFF.
Setting ｖalue 255 makes gamma = 0.45 so that normal gamma curve. (ON 1)

9
9.7 KNEE : Setting of KNEE
-MODE- : Selection of mode
OFF (Factory setting) : Not perform knee.
ON : Knee function provides natural gradation in bright portions.
-KNEE POINT- : Adjust knee point
0 (Factory setting) to 32 :
Setting value toward 0 side increase start level of knee and 32 side decrease start level of knee.
-KNEE SLOPE- : Adjust knee slope
0 (Factory setting) to 159 :
Setting value toward 0 side intensify effective of knee and 159 side weaken effective of knee.
9.8 LUT : Setting of Look Up Table
This function converts input video level to arbitary output level by using table data.
TABLE XXX[n] (XXX=RED, GREEN or BLUE; “n” indicates the input video level) is a table with 0 to 255 elements
corresponding to input video level (0% to 100%).
The input video level “n” is converted to the output level specified by TABLE XXX[n].
-MODE- : Selection of mode
OFF (Factory setting) : Not use the function of LUT.
ON :The output image is converted by the values which is set in TABLE RED/TABLE GREEN/TABLE BLUE.
-TABLE RED [n]- : 256 LUTs for Red (n is table number and that was chosen from the input level).
0 to 255 : The input level “n” is converted to the set value.
Factory setting is the same value to input video level “n”. (TABLE RED[n] = n.)
-TABLE GREEN [n]- : 256 LUTs for Green (n is table number and that was chosen from the input level).
0 to 255 : The input level “n” is converted to the set value.
Factory setting is the same value to input video level “n”. (TABLE GREEN[n] = n.)
-TABLE BLUE [n]- : 256 LUTs for Blue (n is table number and that was chosen from the input level).
0 to 255 : The input level “n” is converted to the set value.
Factory setting is the same value to input video level “n”. (TABLE BLUE[n] = n.)
9.9 SHARPNESS : Setting of object contour correction
-MODE- : Selection of mode
OFF (Factory setting) : Not perform contour correction.
ON : Perform contour correction according to setting value.
-LEVEL- : Adjust sharpness level
0 to 255 : Setting value toward 0 side reduces correction for soft contours
and 255 side increase correction for sharper contours (Factory setting: 0).
9.10 WHITE BALANCE : Setting of white balance.
-MODE- : Selection of mode
MANUAL (Factory setting) : White balance is adjusted manually by adjusting R GAIN and B GAIN.
CONTINUOUS AUTO : White balance is adjusted in real time (automatic tracking).
ONCE AUTO : White balance is adjusted automatically by adjusting R GAIN and B GAIN.
And after adjustment, own status will be changed to MANUAL.
-R GAIN- : Adjust red gain
0 to 255 : Red gain is reduced at 0 side and raised at 255 side (Factory setting is 128).
-B GAIN- : Adjust blue gain
0 to 255 : Blue gain is reduced at 0 side and raised at 255 side (Factory setting is 128).
