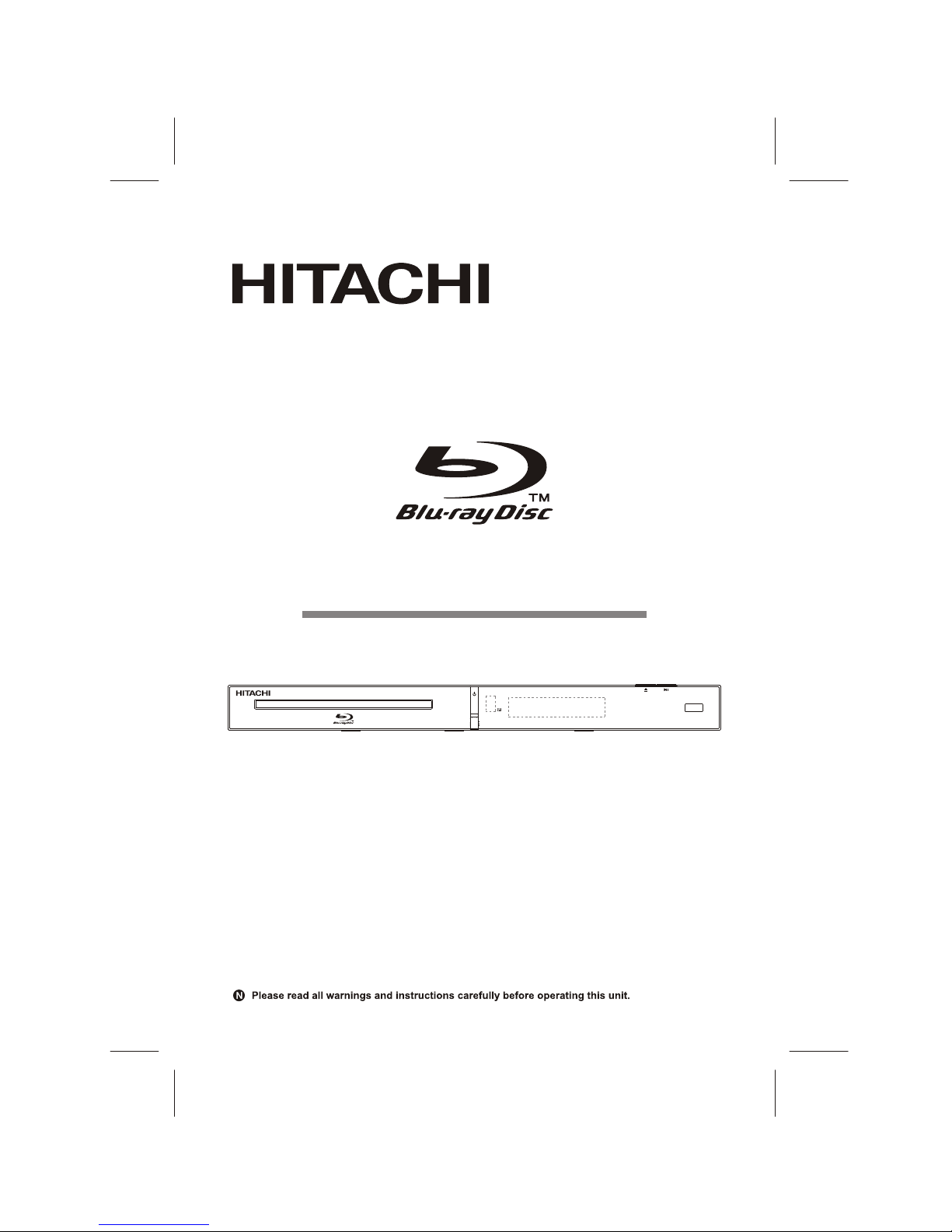

Hitachi HBD316 User manual

MODEL: HBD316
USER MANUAL
USB

SPECIFICATIONS 20
TROUBLE SHOOTING 19
SYSTEM SETUP 15
SPECIAL FUNCTION PLAYBACK
12
ADVANCED PLAYBACK 11
BASIC PLAYBACK 10
REMOTE CONTROL 09
BASIC CONNECTION 07
ACCESSORIES AND PANEL 06
PLAYABLE DISCS 05
NOTICE 04
IMPORTANT SAFETY INSTRUCTIONS 03
SAFETY PRECAUTIONS 01
TABLE OF CONTENTS

SAFETY PRECAUTIONS
01

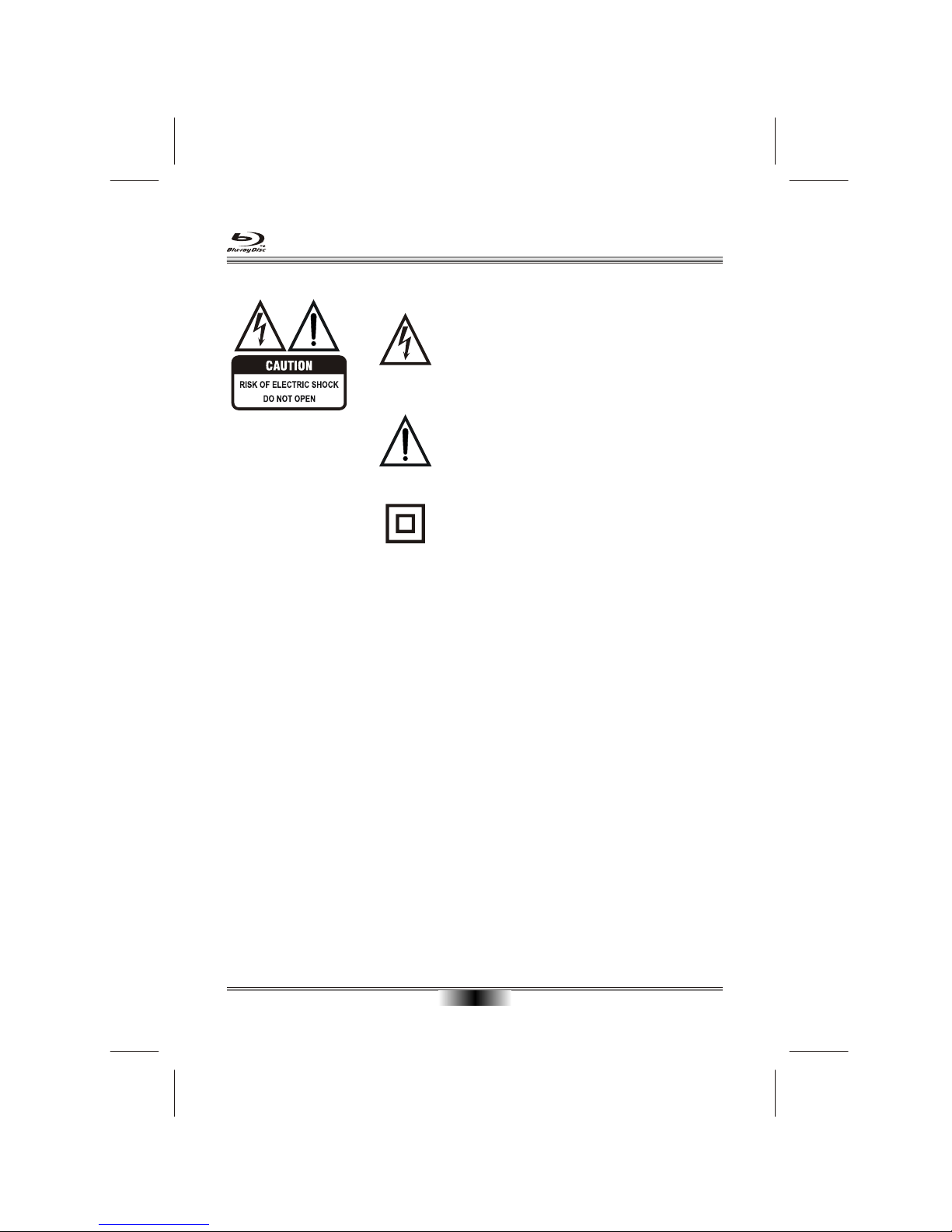

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE, DANGEROUS HIGH VOLTAGES ARE
PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER
SERVICING TO QUALIFIED PERSONNEL ONLY.
When replacing the unit's plug or power cord, the replacement must be the exactly
the same; or one recommended by the manufacturer.
The lightning flash with arrowhead symbol, within an equila-
teral triangle, is intended to alert the user to the presence
of uninsulated "dangerous voltage " within the product's en-
closure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
This Digital Video Disc player employs a laser system.
The symbol for CLASS II (Double Insulation).
Use of controls, adjustments or the performance of procedures other than those
specified may result To prevent direct expo-
sure to laser beam, do not try to open the enclosure.
DO NOT STARE INTO BEAM.
in hazardous exposure to radiation.
WARNING:
CAUTION:
Laser radiated lable stick at the bottom of unit.
*

Disposal of your old appliance
1. When this crossed-out wheeled bin symbol is attached to a product, it means the
product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the
municipal waste stream via designated collection facilities appointed by the
government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative
consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact
your city office, waste disposal service or the shop where you purchased the product.
This item incorporates copyright protection technology that is protected by U.S. patents
and other intellectual property rights. Use of this copyright protection technology must
be authorized by Rovi Corporation, and is intended for home and other limited viewing
uses only unless otherwise authorized by Rovi Corporation. Reverse engineering or
disassembly is prohibited.
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535
& other U.S. and worldwide patents issued & pending. DTS, the Symbol, & DTS and
the Symbol together are registered trademarks & DTS Digital Surround and the DTS
logos are trademarks of DTS, Inc. Product includes software. DTS, Inc. All Rights
Reserved.
FCC statement:
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
You are cautioned that changes or modifications not expressly approved by the part responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
SAFETY PRECAUTIONS
02
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
The Blu-ray Disc player are Energy Star qualified DVD. When in idle mode
these DVD draw less than 1 Watt of current, to help lower your electric bills and protect
the environment. Products that earn the ENERGY STAR prevent greenhouse gas
emissions by meeting strict energy efficiency guidelines set by the U.S. Environmental
Protection Agency and the U.S. Department of Energy.
HBD316

03
53125A
IMPORTANT SAFETY INSTRUCTIONS :
1. Read these instructions - All the safety and operating instructions should be read before this
product is operated.
2. Keep these instructions - The safety and operating instructions should be retained for future
reference.
3. Heed all warnings - All warnings on the appliance and in the operating instructions should be
adhered to.
4. Follow all instructions - All operating and use instructions should be followed.
5. Do not use this apparatus near water - The appliance should not be used near water or moisture.
for example, in a wet basement or near a swimming pool, and the like.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacture’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two
blades with one wider than the other. A grounding plug has two blades and a third grounding prong.
The wide blade or the third prong is provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at the plugs, convenience
receptacles, and at the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart or rack
is used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
13. Unplug the apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been
damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
15. Please keep the unit in a good ventilation environment.
16. WARNING: Do not install this equipment in a confined space such as a book case or similar unit.
The ventilation should not be impeded by covering the ventilation openings with items such as
newspaper, table-cloths, curtains etc.
17. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or
moisture. The apparatus shall not be exposed to dripping or splashing and that no objects filled
with liquids, such as vases, shall not be placed on apparatus.
18. WARNING: The mains plug is used as disconnect device, the disconnect device shall remain
readily operable.
19. Double Insulation. This is CLASS II apparatus.
20. The apparatus is mounted in accordance with the manufacturer’s instructions.
21. Battery pack or batteries installed shall not be exposed to excessive heat such as sunshine,
fire or the like.
22. As the device is with radio-frequency emission appliance, user needs to keep a minimum distance
of 8 inches(20cm) from the device while using it.

04
an vehicle
ELECTRICAL DISTURBANCE
following situations.
suffer from condensation under the
connecting will ensure

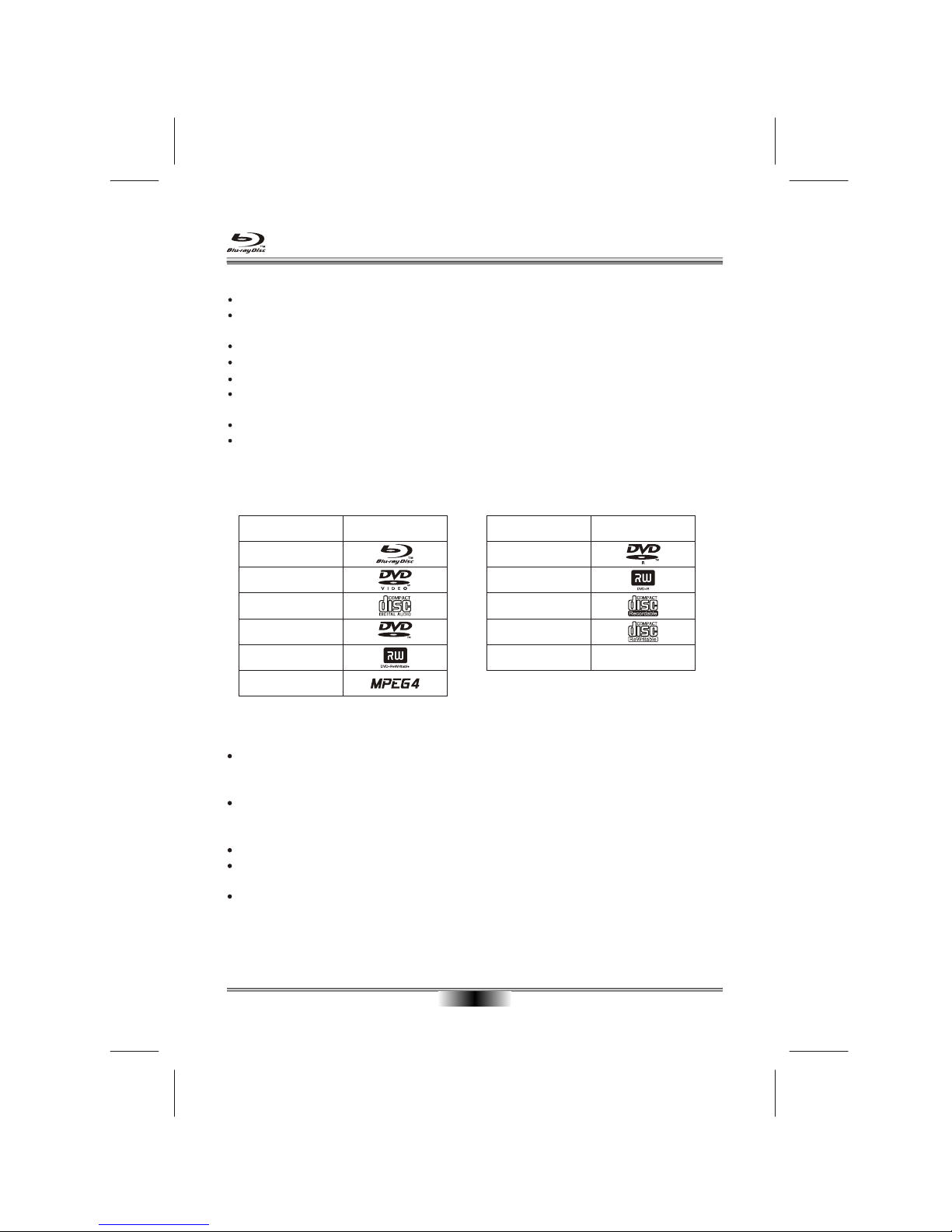

PLAYABLE DISCS
05
Features
Full high-definition video playback at up to 1080p resolution for an amazing viewing experience.
Upconversion of standard definition DVDs for enhanced picture quality at up to 1080p over an HDMI
connection.
Rich multi-channel surround sound.
Easy and simple HDTV connection using a single HDMI cable (cable not included).
Multiple outputs for connecting your home theater system or amplifier.
PIP functionality that lets you display primary and secondary video at the same time (if available on the Blu-ray
Disc).
Pop-up menu display without interrupting playback (if available on the Blu-ray Disc).
HDMI 1080p/fps output (Blu-ray Disc only) that provides smooth playback of video with a frame rate of 60
frames per second (TV must be connected with an HDMI cable and be compatible with an HDMI cable and
be compatible with 1080p 60 frame).
The following types of discs can play in the REF player:
Disc type Logo
Blu-ray Disc
DVD-video Disc
(DVD-ROM)
Audio CDs
(CDDA)
DVD-RW
DVD+RW
DVD-R
RW
MPEG4
Disc type Logo
CD-R
CD-RW
DVD+R
Notes:
Writeable DVD disks (DVD-R/RW, DVD+R/RW) must be finalized, VR-mode only.
Playback may not work for some types of discs, or when specific operations, such as angle change and
aspect ratio adjustment, are being performed. Information about the discs is written in detail on the box.
Please refer to this if necessary.
Do not allow the disc to become dirty or scratched. Fingerprints, dirt, dust,
scratches or deposits of cigarette smoke on the recording surface may make it impossible to use the disc
for playback.
CD-R/-RW, DVD-RW/-R recorded with UDF or ISO9660 format can be played back.
Windows Media Audio (WMA) files must be written to the disc with a .wma file extension in order to be
recognized and played back properly.
JPEG picture files must be written to the disc with an .jpeg or .jpg file extension in order to be recognized
and played back properly
WMA/JPEG/MKV/
WMV9

USB
AV OUT
VIDEO
L
R COAXIAL
HDMI ETHERNET
Manufactured under license under U.S. Patent
Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S.
and worldwide patents issued & pending. DTS,
the Symbol, & DTS and the Symbol together are
registered trademarks & DTS Digital Surround
and the DTS logos are trademarks of DTS, Inc.
DTS, Inc. All Rights Reserved.
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and
(2) This device must accept any interference
received, including interference that may cause
undesired operation.
DVD-Video
Blu-ray
Manufactured under license from Dolby Lab-
oratories. Dolby and the double-D symbol are
trademarks of Dolby Laboratories.
FCC ID: XJGDS0015
MODEL: HBD316 AC: 120V~ 60Hz
S/N: POWER: 17W
MADE IN CHINA
BLU-RAY DISC PLAYER
Hitachi America, Ltd.
900 Hitachi way Chula Vista CA 91914
Manufactured:
(Fabrique)
Complies with 21 CFR 1040.10 and
1040.11 except for deviations
pursuant to Laser Notice No.50,
dated June 24, 2007.
SEARCH CLEAR
123
456
7 8 9
0
STEP
REPEAT
A-B
ABCD
RESOLUTION PIP
ANGLE
SECONDARYAUDIO
AUDIO
ENTER
OSD
POPUPMENU
TITLE MENU
DISCMENU
HOME RETURN
MEDIACENTER ZOOM SUBTITLE
ACCESSORIES and PANEL
06
FRONT PANEL
ACCESSORIES
USER Manual x 1
Remote control x 1
REAR PANEL
5. HDMI OUTPUT
6. ETHERNET INTERFACE
7. WIFI ANTENNA
1. POWER LINE INPUT
2. L/R AUDIO OUTPUT
3. COAXIAL OUTPUT
4. VIDEO OUTPUT
5 732 41 6
1 2 3 4 75
1. TRAY
2. STANDBY/ON
3. REMOTE CONTROL SENSOR
4. LED SCREEN
5. OPEN/CLOSE
6. PLAY/PAUSE
7. USB
USER MANUAL
USER MANUAL
D057-02
6

VIDEO OUT / AUDIO OUT
VIDEO
L
R COAXIAL
HDMI ETHERNET
VIDEO OUT / AUDIO OUT
VIDEO
L
R COAXIAL
HDMI ETHERNET

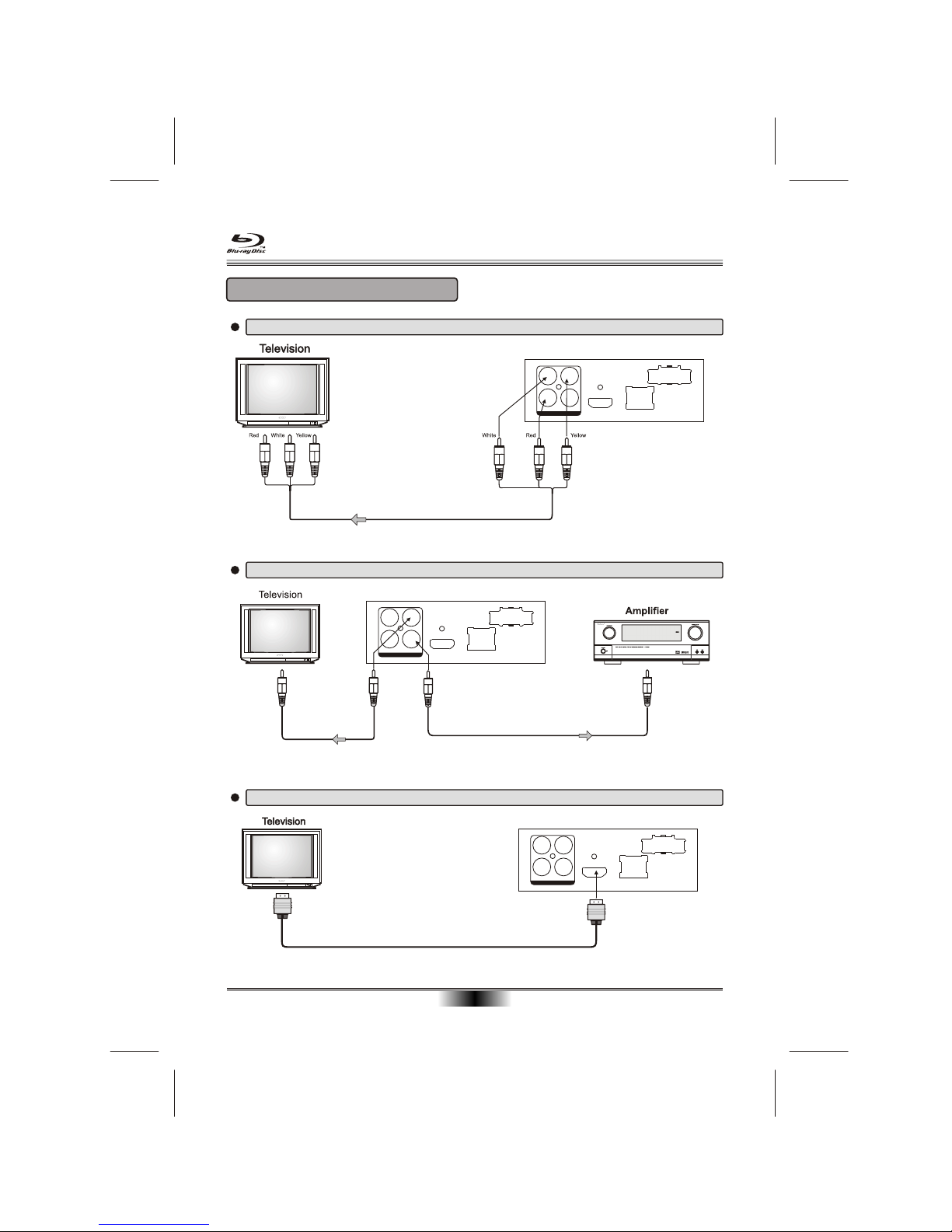

BASIC CONNECTION
07
BASIC CONNECTION
Connecting to a TV with Audio/Video cable
Connecting to an amplifier equipped with a digital audio input and TV
Coaxial cable
To COAXIAL
type digital
audio input
To video input
BD Player
Connecting to a device with HDMI terminal
BD Player
BD Player
To video input(yellow)
To audio inputs(red, white)
VIDEO OUT / AUDIO OUT
VIDEO
L
R COAXIAL
HDMI ETHERNET

VIDEO OUT / AUDIO OUT
VIDEO
L
R COAXIAL
HDMI ETHERNET
BD Player
BASIC CONNECTION
08

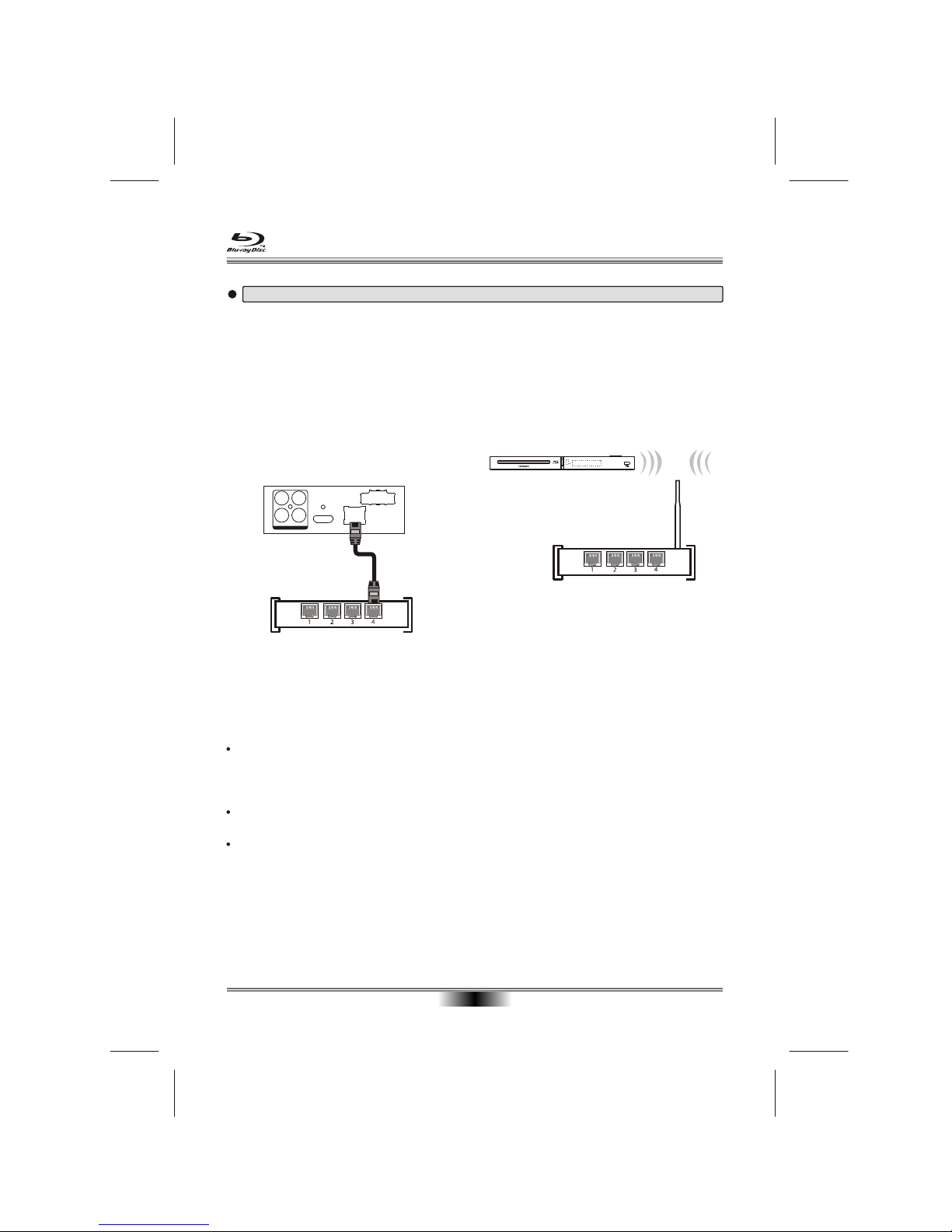

Connecting to your Home Network
This player can be connected to a local area network (LAN) via the LAN port on the rear panel or the internal
wireless module.
Wired network
Connect the player’s LAN port to the corresponding
port on your Modem or Router using a commercially
available LAN or Ethernet cable (CAT5 or better with
RJ45 connector).In the example configuration for
wired connection below, this player would be able to
access content from either of the PC.
Using a wired network provides the best performance,
because the attached devices connect directly to the
network and are not subject to radio frequency
interference.
Note:
When plugging or unplugging the LAN cable, hold
the plug portion of the cable. When unplugging, do
not pull on the LAN cable but unplug while pressing
down on the lock.
Do not connect a modular phone cable to the LAN
port.
Since there are various connection configurations,
please follow the specifications of your telecomm-
unication carrier or internet service provider.
Wireless network
Another connection option is to use an Access Point
or an wireless router. In the example configuration for
wireless connection below, this player would be able
to access content from either of the PC.
Modem/Router
Access Point/
Wireless router
The network configuration and connection method
may vary depending on the equipment in use and
the network environment. This player is equipped
with an IEEE 802.11n wireless module, which also
supports the 802.11b/g standards. For the best
wireless performance, we recommend using a
IEEE 802.11n certified Wi-Fi network (access point
or wireless router).
BD player
Wireless
Communication

REMOTE CONTROL
09
SEARCH CLEAR
123
456
7 8 9
0
STEP
REPEAT
A-B
ABCD
RESOLUTION PIP
ANGLE
SECONDARY AUDIO
AUDIO
ENTER
OSD
POPUP MENU
TITLE MENU
DISC MENU
HOME RETURN
MEDIA CENTER ZOOM SUBTITLE
REMOTE CONTROL
2
3
4
5
6
7
8
9
10
11
23
25
26
27
28
29
30
31
33
32
12
13
14
15
16
17
18
19
34
1
20
21
22
24
Function
18. OPEN/CLOSE DISC TRAY
19. On Screen Display (OSD)
20. STEP
21. A-B REPEAT
22. CLEAR
23. REPEAT
24. PREVIOUS
25. NEXT
26. PAUSE
27. POPUP MENU/TITLE MENU
28. RETURN
29. COLOR Button:YELLOW(C)
30. COLOR Button:BLUE(D)
31.SECONDARY AUDIO
32. ANGLE
33. SUBTITLE
34. AUDIO
Function
1. STANDBY
2. DIGITS BUTTONS
3. SEARCH
4. FAST REVERSE
5. FAST FORWARD
6. STOP
7. PLAY
8. DISC MENU
9. UP/DOWN/LEFT/RIGHT
10. ENTER
11. HOME
12. COLOR Button:RED(A)
13. COLOR Button:GREEN(B)
14. RESOLUTION
15. Secondary Video (Picture-in-picture)
16. MEDIA CENTER
17. ZOOM
D057-02

1. Press STOP button to go to stop mode, the TV
screen will show the start logo. As some disc the
player can recall the location where stopped, such
as BD.
2. Press PLAY to playback to resume playback from
the location where playback is stopped or from the
beginning of the disc.
3. Press STOP twice to stop completely.
Note: Not all Blu-ray Discs support the resume feature.
The resume information is saved even when the power
is turned off.
Stop playback
Pause playback
1. Press PAUSE to pause playback . The sound
will be muted .
2. Press PAUSE or PLAY to resume normal playback.
Basic playback
1. Press STANDBY/ON button on the front panel or
the remote, your player turns on.
2. Turn on the TV, then select the input setting on the
TV that matches the connection method you used to
connect your player.
3. Press OPEN/CLOSE to open the disc tray.
4. Place a disc on the disc tray with the label facing
up, then press OPEN/CLOSE to close the disc
tray. It may take a few seconds for the disc to load.
5. If the disc does not start playing automatically,
press PLAY .
6. If a Blu-ray Disc or DVD menu opens, press
CURSOR button to select , then press ENTER.
7. To eject the disc, press OPEN/CLOSE .
NOTES:
1.
Fast forward and Fast reverse
1. Press F.FWD to fast forward through the disc.
Each time the F.FWD button is pressed, the
fast forward motion speed changes. The speed will
increase through the following sequence: 1,
2, 3, 4, 5.
2. Press PLAY to resume normal playback.
3. Press F.REV to fast reverse through the disc.
Each time the F.REV button is pressed, the
fast reverse motion speed changes. The speed will
increase through the following sequence: 1,
2, 3, 4, 5.
4. Press PLAY to resume normal playback.
Previous and Next
During normal playing, press PREV once can back
to the
back to the previous of the chapter/track
playback.
Each press of NEXT during playing will
start of the chapter/track; Press PREV twice
can
key jump
forward to next chapter/track playback.
BASIC PLAYBACK
10
UP/DOWN/LEFT/RIGHT
When a menu is open, press to highlight an item, then
press ENTER.
When viewing a picture(JPEG file),press to rotate the
picture.
DIGITS BUTTONS
In playback mode, press SEARCH ,
then press the number buttons to enter a title, chapter,
track, or time.
In menu mode, press to enter numbers.
and ENTER button
Step forward
1. When playing DVD/MPEG4/WMV9/MKV/BD
Disc, press Step forward to enter Single-step state.
2. Press PLAY key to resume normal play.

POPUP MENU/TITLE MENU
During DVD/Blu-ray Disc playback, press POPUP
MENU .
To open the pop-up menu opens.
1. Press LEFT/RIGHT buttons to select
an option, then press ENTER.
2. Press to close the menu.
/TITLE MENU
/UP/DOWN
RETURN
ANGLE
During playback, press this button to change the
angleof the picture. This screen will display
.
" Angle:
X/X " th e first "X" indicates the current number of
angle; the second "X" indicates total number of angle
Note: the angle function will not work if your disc
does not contain the multiple angle features.
RETURN
Within the Home menu, Press this button to return to
the previous menu.
REPEAT
Press one or more times to select a repeat mode.
Follow this operation :
Repeat Chapter
Repeat Title
Repeat All
Repeat Off
Press this button repeatedly to display circular the
above operation.
Note:
1. This key is not effect for BD-JAVA disc.
2. Some of the BD discs can not support "Repeat All"
mode.
ADVANCED PLAYBACK
11
CLEAR
This button can cancel the mistake information you
input.
HOME
Press this button and the screen will display the
HOME menu.
Note: The HOME menu will display on the screen
automatically, under No Disc or Stop situations.
IMPORTANT NOTE:
THE FOLLOWING FUNCTIONS ARE APPLICABLE ONLY TO BLU-RAY DISCS. IF OTHER DISC FORMATS
ARE PLAYED, SCREEN DISPLAYAND OPERATION WILL BE DIFFERENT.
A-B
Press " A-B " to begin start-point after two seconds,
press again to set an end point and complete
setting. The selected section A-B will be repeated.
The third press will cancel this function.
Note: this key is invalid to Blu-ray Disc Java.
SEARCH
During playback, press this button and ENTER button,
you can use CURSOR to select a search mode, then
press digits button. ENTER key on the remote to
confirm your selection, could choose the point that
you want to play. Press SEARCH button will cancel
search.
Note: For some discs, the TITLE could not be chosen
in search mode.
DISC MENU
During DVD/Blu-ray Disc playback, press this button
will return a disc menu, then press ENTER button
to play.
OSD
Press this button and the screen will display some
information about disc, such as : " Type of Disc ",
"current chapter " , " Total of chapters " , "Current
playd time in title" , " Audio " , " Subtitle " and so on.
RESOLUTION
This sets the video output resolution: Auto, 1080p,
1080i, 720p, 480p and 480i.
Note:
Setting a resolution your TV cannot support could
result in an unstable picture or a loss of picture. Check
your TV manual for guidance.
This function key will be effective only on HOME mune
interface.
ZOOM
Press to zoom in on a video. Each time you press
this button, the magnification level changes.
Note: this key is invalid to Blu-ray Disc Java.

SPECIAL FUNCTION PLAYBACK
12
AUDIO CHANNEL CHOOSE
Press this button on remote control to change the
mode of audio. Such as "1/2 English Dolby Digital
stereo" .
"1" indicates the current number of audio;
"2" indicates total number of audio;
"English" indicates the language of country.
"Dolby Digital" indicates the description of the current
audio.
"Stereo" indicates the current audio.
SPECIAL FEATURES OF BLU-RAY DISCS
INTRODUCTION
The massive storage capacity of a Blu-Ray (BD) disc
allows a far higher standard of picture and audio quality
and a wealth of special effects and enhanced features.
BLU-RAY AND JAVA.
This player features Java support so enabling you to
get the most out of the latest Blu-Ray discs.
When a BD disc loads always explore the title menu
to enjoy these extra features.
BLU-RAY AND HDMI
HDMI is the only domectic medium capable of trans-
mitting the huge volumes of data required by the very
high picture resolutions and advanced digital audio
codecs that make Blu-Ray such an exciting medium.
PLAYING A BLU-RAY DISC
Blu-Ray discs play very much like standard DVDs but
with a very much higher level of interactivity. All the
standard features of DVD play operate exactly the
same but there are some differences.
PLAY RESUME: This feature is not available on
BD-Java discs.
A-B repeat is disabled on some BD discs.
Primary video
Secondary video
ENHANCED FEATURES
SECONDARY VIDEO (PICTURE IN PICTURE)
During Play:
Press the PIP key to turn on Secondary Video
(Picture in picture)
1.The Secondary video plays. Press the PIP key to
turn the feature "X/Y AVC"and OFF.
SECONDARY AUDIO
To turn audio on/off with the secondary video,
Press the PIP AUDIO button.
The secondary audio is played.
Press the key to turn the feature "X/Y English
DTS-HD LBR Stereo" and OFF.
P-I-P functionality is also known as BonusView.
Note: Only the primary video is played during
search or frame-by-frame play.
P-I-P functionality is also known as Bonus View.
COLOUR BUTTONS
The RED, GREEN, YELLOW and BLUE buttons
are used with interactive menus when operating a
BD-Video disc that includes JavaTM applications
(BD-J). For more information about operating this
kind of disc,please read the instructions that came
with the disc.(The option is used with BD-Live disc)
"X" indicates the current number of audio;
"Y" indicates total number of audio;
"English" indicates the language of country;
"DTS-HD LBR" indicates the description of the
current audio;
"Stereo" indicates the current audio.
"X" indicates the current number of video;
"Y" indicates total number of video.
SUBTITLE
Press this button continuously and the screen will
display "X/X XXX", and " Off " .
the first "X" indicates the current number of this
subtitle language; the second "X" indicates total
number of subtitle language; "XXX" indicates the
subtitle language of country.
(The number of subtitle language depends on disc).

Data Disc
Type Folder
Edit Menu
Exit
POPUP
..
Music
Video
HOME
Using the Edit menu
The Edit menu allows you to do following operations
towards folder or file: Add to Playlist, Select all, Clear
all, and Cancel.
,
press POPUP MENU to open Edit menu.
Press UP/DOWN keys to select the
files need to be added, press RIGHT key to confirm
INTRODUCTION
Using the Playlist
You can custom your playlist by adding to Playlist
option from Edit menu.
1. Select the Playlist folder from the Browser menu.
2. There are 3 folders under Playlist: Photo, Music,
and Video. Please select the folder of your desired
file type.
3. Select your desired file or all files to playback.
NOTE: The Playlist will be cleared after power on.
The maximum file number is 100 for each sub-folder
(Photo, Music, and Video).
Supported file type: JPEG.
In MY MEDIA, you can browse and view your
desired JPEG file freely.
1. Use UP/DOWN keys to highlight the JPEG file you
want to view from the File Browser, then press to
ENTER confirm selecting.
Note: When highlight one JPEG file, its thumbnail is
displayed on the bottom right of the screen. Thus,
you can preview the picture firstly before selecting.
And also the file type, size, and resolution are disp-
layed on the preview area.
2. Now you can start viewing the pictures by the way
of slide show.
The followings is the instructions for the key usage
for viewing the JPEG file:
UP/DOWN/LEFT/RIGHT: Rotate the picture. Use
these 4 keys to select rotate direction.
PAUSE: Press PAUSE to pause JPEG file playback,
then press PLAY to resume play.
STOP: Press STOP to stop(fully stop) the picture
playback and return to File Browser.
REPEAT Track/ALL: Playback one JPEG file or all
files repeatedly. Press this key repeatedly to switch
repeat mode: Repeat Track-Repeat All-Repeat Off.
FF/FR: Change the picture playback speed: Fast
(1 second), Middle(2 seconds), Slow(3 seconds).
DISPLAY: Open the Display menu to view picture
playback relevant information.
Viewing a picture file
SPECIAL FUNCTION PLAYBACK
13
3. Use UP/DOWN keys to highlight Data Disc then
press ENTER to confirm.
NOTE:The operations for USB device are similar to
the steps above.
The file name can be up to 255 characters.
The directory length can be up to 1152 characters.
When playing video discs, you must stop playback,
then switch to USB device.
MY MEDIA
MY MEDIA allows you to browse and play multi-
media files of data disc and USB device.
1. Insert a data disc.
2. After loading, within the HOME menu, you can use
LEFT and RIGHT buttons on the remote control to
select the MY MEDIA, and then press the ENTER
button to open the MY MEDIA menu shown as below:
Data Disc/Photo
Type: JPG
Size: 0.241M
Resolution: 1024x768
Edit Menu
Exit
POPUP
..
0
03
06
0601
0602
0603
Add to Playlist
Select all
Clear all
Cancel
HOME
NOTE: In the first and the second layers, it is not
effect to open Edit menu by using TITLE key.
Add to Playlist: Add the folder/file into Playlist.
Select All: Select all folder/file of current page. All
files or folders of current folder directory are marked
with the check mark.
Clear All: Unselect all selected folder/file.
Cancel: Cancel and exit the Edit menu.
NOTE: The maximum of file number for Select All
option is 100. Thus if there are more than 100 files,
only 100 files can be selected by choosing Select All.

Some (but not all) BD discs contain additional features
that are made available to players that are connected
to the internet, and have additional memory added.
These additional features may include things like:
- the ability to download new movie trailers,
- additional ‘commentary’by actors and directors,
- multperson game play and chat
In order to access BD-Live functions, the player must
be properly configured for BD-Live connection, and
it must be equipped with additional memory.
Note:
1.The USB memory with a minimum memory of 1GB.
2.The function of downloading is related to the disc.
There are three method to update the player: Disc,
USB Storage and Network.
1.Disc/USB Storage Upgrade:
Put the upgrading software USB/disc into player.
When the new software is identified by the player,
there will be notes on the screen, please operate
according to the notes.
2.Network upgrading:
After connecting to the network successfully, then
enter into HOME menu. HOME-SETTINGS-System
-Firmware Update-Netword. When the new software
is identified by the player, there will be notes on the
screen, please operate according to the notes.
3. Upgrade is in progress, which may take a while,
please wait
4. Complete the upgrade. Press ENTER to reboot.
Note: If the package did not pass the verification
(such as the package is not complete), error prompt
is displayed on the screen. Please make sure the
firmware version is not an old version.
Supported file type: MPEG4, WMV9, MKV.
In Media Center, you can browse and watch your
desired video file.
1. Use UP/DOWN keys to highlight the video file
you want to view from the File Browser, then press
ENTER or PLAY to start playback.
2. Now you can start enjoy the music. In File bowser,
the video file type is displayed on the preview area.
The followings is the instructions for the key usage
for watching the video files:
PAUSE: Press PAUSE to pause video file playback,
then press PAUSE or PLAY to resume play.
STOP: Press STOP to stop resume, and press again
to full stop and return to File Browser.
REPEAT Track/ALL: Playback one track or all files
repeatedly. During playback, press this key repeatedly
to switch repeat mode: Repeat Track-Repeat ALL-
Repeat Off.
REPEAT A-B: Playback selected segment (A-B)
repeatedly.
DISPLAY: Open the Display menu to view Video file
playback relevant information.
Supported file type: wma
In Media Center, you can browse and enjoy your
desired music.
1. Use UP/DOWN keys to highlight the wma file you
want to view from the File Browser, then press
ENTER or PLAY to start playback.
2. Now you can start enjoy the music. In File bowser,
the music file type, total time, title, artist, album, and
the genre are displayed on the preview area.
The followings is the instructions for the key usage
for listening to the music files:
PAUSE: Press PAUSE to pause wma file playback,
then press PLAY to resume play.
STOP: Press STOP to stop resume, and press again
to full stop and return to File Browser.
REPEAT Track/ALL: Playback one track or all files
repeatedly. During playback, press this key repeatedly
to switch repeat mode: Repeat Track-Repeat All-
Repeat Off.
REPEAT A-B: Playback selected segment (A-B)
repeatedly.
Playback a music file
Playback a video file
14
SPECIAL FUNCTION PLAYBACK
Upgrade
Using BD-Live

SYSTEM SETUP
15
The HOME menu will display on the screen
automatically, under No Disc or Stop situations.
1. Within the HOME menu, you can use LEFT and
RIGHT buttons on the remote control to move the
cursor, and then press the ENTER button to make
your selection.
Press RETURN can return the previous menu.
2. Press HOME button to display the HOME menu.
Within the HOME menu, you can use LEFT and
RIGHT buttons on the remote control to select the
SETTINGS, and then press the ENTER button to
open the Settings menu.
SETTINGS
Within the HOME menu, you can use LEFT and
RIGHT buttons on the remote control to select the
QUICK SETUP, and then press the ENTER button
to open the QUICK SETUP menu.
An initial setup wizard helps to quick set the unit,
such as the OSD language, resolution, and so on.
Note:
The first time you turn on your player, the Quick
Setup wizard opens automatically. You can use the
wizard to select initial settings for your player, such
as the menu language and video resolution.
QUICK SETUP
16:9 Normal: For a disc with the aspect ration of 4:3,
the output video is resized vertically to match what
will be seen on the display.
16:9 Full: For a disc with the aspect ration of 4:3, the
output video is stretched into 16:9 full screen.
4:3 Pan&Scan: Display a wide picture on the entire
screen and cuts off the redundant portions. Select
when a standard 4:3 TV is connected. The scanning
line is complete, but part of the image is clipped.
4:3 Letterbox: Display a wide picture with two black
borders on the top and bottom of 4:3 screen. Select
when a standard 4:3 TV is connected. The screen is
complete, but due to the lost of scanning line, the
resolution is reduced.
Display
Audio
Language
Network
System
Security
TV Aspect Ratio
Resolution
TV System
HDMI Color Space
HDMI Deep Color
HDMI 1080p 24Hz
16:9 Normal
Auto
NTSC
RGB
Off
Off
HOME Exit
RETURN
Use cursor keys to highlight menu and
Enter key to select
1. Display
1.1 TV Aspect Ratio
Select the Aspect Ratio: 16:9 Normal, 16:9 Full,
4:3 Pan&Scan, 4:3 Letterbox.
Note:
Setting the player for an output resolution not
supported by your TV will result in unpredictable
results.
Only the HDMI output of the player is capable
of supporting 1080p video output at any frame rate.
The CVBS will have the image output only in 480i
or 480p, if the CVBS has no video output then can
be used RESOLUTION key for switch, till appear
the normal video.
1.2 Resolution
Select the video output resolution: Auto, 1080p,
1080i, 720p, 480p and 480i.
Auto: Select the most suitable resolution according
to the input video.
1.4 HDMI Color Space
Select HDMI Color Space: Auto, YCbCr, YCbCr422,
Full RGB and RGB.
1.5 HDMI Deep Color
Select HDMI Deep Color: Auto and Off.
Note: HDMI 1.3 supports 10-bit, 12-bit and 16-bit
(RGB or YCbCr) color depths while 8-bit depths in
previous versions. This expands the colors displayed
from millions to billions, which is much more vivid
than the previous.
1.6 HDMI 1080p 24Hz
Select HDMI 1080p 24Hz: Auto and Off.
1.3. TV System
Select TV system: NTSC and PAL .
NTSC: Select this option when connected with
NTSC-TV.
PAL: Select this option when connected with PAL-TV.

4.1 Connection Type
Wired or Wireless.
Wired: c
Wireless: there are three types of wireless network
connections:
a. Scan: Automatically searches for any networks
within range.
b. Manual: Lets you enter a router’s name or SSID.
c. WPS: Connects your player to a WPS protected
Wi-Fi router.
There are two options:
onnect a network cable to the Ethernet jack
on the back of your player and into a wired router
using a commercially available LAN or Ethernet cable.
SYSTEM SETUP
16
2. Audio
2.4 Dynamic Range
Select the Dynamic Range Control mode. Dynamic
Range is the range between the loudest sounds and
quietest ones, which makes it available to listen to a
movie at a lower volume without losing sound clarity.
Off: Non-dynamic range compress.
On: Dynamic range compress.
2.3 Down Sampling
Select the digital audio signal sampling frequency.
48kHz: The highest sampling rate of digital PCM
output is 48kHz. If the original sampling rate is over
48kHz, it will be down-sampled to 48kHz or below.
This option should be selected only when the receiver
is not capable of handling signals over 48kHz
sampling rate.
96kHz: The highest sampling rate of digital PCM
output is 96kHz.
192kHz: The highest sampling rate of digital PCM
output is 192kHz.
Display
Audio
Language
Network
System
Security
HOME Exit
RETURN
Use cursor keys to highlight menu and
Enter key to select
Digital Out
HDMI Out
Down Sampling
Dynamic Range
PCM
PCM
48kHz
Off
3.4 Disc Subtitle
Set the disc subtitle language.
3.1 OSD
Select the OSD (On-Screen Display) language.
3.2 Disc Menu
Select the disc menu language.
3.3 Disc Audio
Set the disc audio language.
3. Language
Display
Audio
Language
Network
System
Security
HOME Exit
RETURN
Use cursor keys to highlight menu and
Enter key to select
OSD
Disc Menu
Disc Audio
Disc Subtitle
English
Auto
Auto
Off
4. Network
Connection Type
Information
Connection Test
IP Setting
BD-Live Connection
Wired
More...
More...
Auto
Permitted
Display
Audio
Language
Network
System
Security
HOME Exit
RETURN
Use cursor keys to highlight menu and
Enter key to select
2.1 Digital Out
Select the output mode of DIGITAL OUT jack.
Include PCM, Bitstream and Bitstream Re-encode.
PCM: Outputs the signal as processed audio
ready for any receiver. Use this when your
receiver cannot decode the movie soundtrack
on the disc.
Bitstream: Outputs the movie soundtrack
without any processing. This option requires a
receiver that supports the movie soundtrack
format.
Bitstream Re-encode: Combines all audio
signals and outputs as DTS, Dolby, or PCM
depending on the audio stream on the disc.
2.2 HDMI Out
Select the output mode of HDMI DIGITAL OUT jack.
Include PCM, Bitstream and Bitstream Re-encode.
PCM: Outputs the signal as processed audio
ready for any receiver. Use this when your
receiver cannot decode the movie soundtrack
on the disc.
Bitstream: Outputs the movie sound track
without any processing. This option requires a
receiver that supports the movie soundtrack
format.
Bitstream Re-encode: Automatically selects
the HDMI digital signal type according to the
audio stream on the disc.

4.3 Connection Test
The Connection Test menu item allows the user to
test the connectivity of their player’s configuration
by pinging an IP addresses.
SYSTEM SETUP
17
NOTE:
The system will auto upgrade after loading the disc
contains the upgrade file package.
For more detailed information of System Upgrade,
please reference Upgrade.
After system upgrade, you will find the version has
been changed of the system information menu.
5.4 Firmware Update
Download and install product updates for your player.
5.5 Load Default
Reset all settings of Blu-ray Player to initial default
state.
Note: This DOES reset the Parental Control
Password.
4.2 Information
To view the Network information:Address Type,
IP Address, subnet Mask and so on.
5.2 Disc Auto Playback
Open/close disc auto playback: On/Off
If set to On, the disc will auto playback after loading.
5. System
Screen Saver
Disc Auto Playback
CEC
Firmware Update
Load Defaults
Deactivate Online Serv...
5 Minutes
On
Off
More...
More...
Display
Audio
Language
Network
System
Security
HOME Exit
RETURN
Use cursor keys to highlight menu and
Enter key to select
5.1
Sets the time of entering screen saver status.
Screen Saver
5.7 System Information
To view the system related information: Software
version, and so on.
5.8 BD-Live Storage
There are two option: Information and Erase BD-Live
data.
5.6 Deactivate Online Service
Reset the website setting.
4.5 BD-Live connection
Select BD-Live connection: Permitted, Partial
Permitted or Prohibited.
Permitted: Always allows Internet access.
Partial Permitted: Allows internet access to BD-Live
content with valid certificates only.
Prohibited: Never allows Internet access.
5.3 CEC
Open/Close CEC (Consumer Electronics Control) ,
which allows all the A/V devices supportable to HDMI
work together as a total system.
When CEC is turned on on your player, CEC is
turned on on your TV, and you use your TV's remote
control to turn off your TV, your player switches to
standby mode. After putting disc into player, use your
player's remote control to turn on your player. When
player is playing the disc, your TV also turns on.
4.4 IP setting
There are two options: Auto and Manual.
Auto: allocate the IP address automatically by system.
Manual : set an IP address manually as below:
a. The Network Information page will display, and the
highlight is in IP Address row.
b. Use UP/DOWN/LEFT/RIGHT buttons to move the
highlight among the columns, use digits 0-9 buttons
to enter the IP Address value, use CLEAR button to
clear the entries.
C. Press ENTER to confirm the IP address you set
manually.

SYSTEM SETUP
18
6.1 Change Password
You can change the password,
please type 4 numerals as new password.
Note: (Initial password : 0000)
Be sure remember new password. When set parental
control function you must input new password .
Change Password:
6. Security
Display
Audio
Language
Network
System
Security
HOME Exit
RETURN
Use cursor keys to highlight menu and
Enter key to select
More...
Off
Change Password
Parental Control
6.2 Parental Control
Allow user to select playback contents especially for
parents to keep their children from unhealthy program.
Choose playing contents age level among following
options: Off, KID SAFE, G, PG, PG-13, PGR, R,
NC-17, and ADULT.
Off: close the parental control.
KID SAFE: Safe for kids
G: All children and general guidance
PG: Parental guidance
PG-13: Parental guidance for children under 13
PGR: Parental Guidance Recommended.
R: Restricted viewing
NC-17: No one 17 and under allowed
ADULT: Adult only
Note:
1. After you set the parental control, When you play-
back a disc with level higher than current parental
control level, or you want to change the parental
control level, a dialog box will pop up to ask you to
enter the 4-digit password.
2. When playing BD disc which contain the parental
control level, the parental control must be set to Off.
Display
Audio
Language
Network
System
Security
HOME Exit
RETURN
Use cursor keys to highlight menu and
Enter key to select
Change Password
Please enter current Password:
