Please read this manual thoroughly before use and keep it handy for future reference.
Rev.0400908
CAMERA HOUSING
CAMERA HOUSINGCAMERA HOUSING
CAMERA HOUSING Series
SeriesSeries
Series
INSTALLATION MANUAL
10-Inch/12-Inch CAMERA
ENCLOSURES

ii
TABLE OF CONTENTS
1. CAMERA HOUSING SERIES INTRODUCTION
1.1 PURPOSE ............................................................................ 1
1.2 FEATURES........................................................................... 1
2. HOUSING INSTALLATION INTRODUCTIONS
2.1 CONTENTS OF PACKAGE …………………………………. 2
2.2 PREPARATION FOR INSTALLATION …………………….. 2
2.3 INSTALLATION OF OPTIONAL COMPONENTS ………... 4
2.3-1 Blower Kit Installation ………………………………………… 4
2.3-2 Heater Kit Installation ………………………………………… 5
2.3-3 Blower Kit with Heater Kit ……………………………….…… 7
2.4 CAMERA MOUNTING ………………………………………. 9
2.5 SUNSHIELD INSTALLATION............................................. 11
2.6 WALL BRACKET MOUNTING ...........................................11
2.7 MAINTENANCE.................................................................. 12
3. SPECIFICATIONS
3.1 CAMERA HOUSING SERIES SPECIFICATIONS .............13
3.2 SUNSHIELD (OPTIONAL).................................................. 14
3.3 HEATER (OPTIONAL)........................................................ 14
3.4 BLOWER (OPTIONAL) ......................................................14

1
1. CAMERA HOUSING SERIES INTRODUCTION
1.1 PURPOSE
The camera housing series are stylishly and functionally
designed enclosures for 1/2" and 1/3" CCD cameras with fixed
focal length or small zoom lenses. This manual describes how to
assemble the housing and its optional components, affix the
camera, and mount the assembly to a suitable surface.
1.2 FEATURES
The camera housing series includes the fallowing feature:
•Contemporary design
•Die-cast and extruded aluminum construction
•Adjustable mounting track
•Removable body for easy servicing
•Optional heater kit, blower kit and snap-on sunshield
components
•Indoor/outdoor applications
•Epoxy powder coating for corrosion resistance
•IP66 rated

2
2. HOUSING INSTALLATION INSTRUCTIONS
2.1 CONTENTS OF PACKAGE
Remove the camera housing from the carton and verify that it
was not damaged in shipment.
The package includes:
1. Camera housing (including screws and washers)
2. Optional accessories and hardware
(varies by specific model purchased.)
3. Desiccant bag
4. UNC 1/4"-20 machine screws
5. Manual
2.2 PREPARATION FOR INSTALLATION
This section contains comprehensive instructions for installing
the heater kit and blower kit for the camera housing series.
These kits are sold as add-on components or are available in a
pre-assembled package. The MODEL A(B)-HB is a 10(12)-inch
camera housing with an installed sunshield, heater and blower.
After unpacking and identifying the package contents, perform
the following steps to mount the camera in the housing:
1. Locate the following items which may be needed during
installation but are NOT supplied with the enclosure:
•Screwdriver
•Camera and camera cable
•Power supply

3
2.2 PREPARATION FOR INSTALLATION
2. If applicable, move the sunshield by sliding it forward on the
main housing unit. Set the sunshield aside until needed.
3. Unlatch the lid and open the upper body.
4. Before closing the housing, remove the desiccant bag from
the protective packaging and place the desiccant bag inside
the housing to absorb moisture.
5. Locate the gold, panhead 1/4"-20 UNC screws and set them
aside for later use.
6. Continue with installation of additional components as needed.
If no additional components are installed, continue to
instructions for camera mounting.
OPEN
UNLATCH
LID

4
2.3 INSTALLATION OF OPTIONAL COMPONENTS

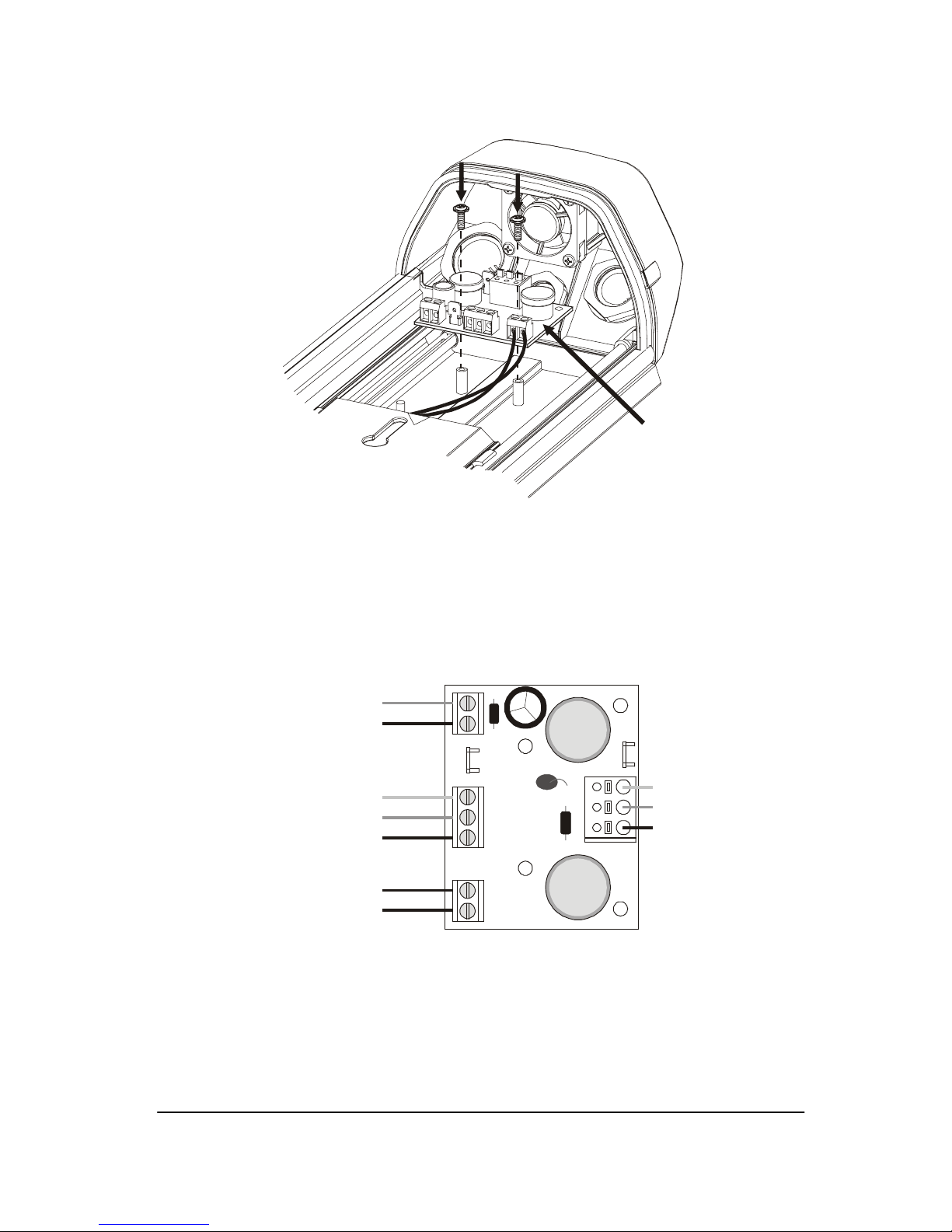

2.3-1 BLOWER KIT INSTALLATION
1. Mount the blower unit located two on the rear of the housing.
Align the hole and secure using the small Philips panhead
screw.
2. Mount the blower circuit board located on the lower body.
Align the holes and keep the wiring on the same side. Insert
the small Philips panhead screws and secure the assembly.
BLOWER UNIT
SMALL
PHILIPS
PANHEAD
SCREWS
SMALL
PHILIPS
PANHEAD
SCREWS

5
2.3 INSTALLATION OF OPTIONAL COMPONENTS
3. Connect the external power supply (not included) to the circuit
board. The recommended power supply is 24Vac, 50VA.
4. If adding a heater kit, see instructions for adding both the
blower kit and heater kit. If no other components will be
added, proceed to camera mounting instructions.
2.3-2 HEATER KIT INSTALLATION
1. Mount the heater unit in on the support rail on the lower body.
Align the tapped hole and secure the unit using the small
Phillips panhead screw.
24Vac Out
to Heater
24Vac Power
Supply Output
24Vdc Out
to Blower
24Vac Power
Supply Input
Ground Ground
(B+)
(Ground)
J3
J6J4J5
J1
LOWER BODY
SMALL PHILIPS
PANHEAD SCREW

6
2.3 INSTALLATION OF OPTIONAL COMPONENTS
2. Mount the heater circuit board on the lower body. Align the
holes and keep the wiring on the same side. Use the small
Phillips panhead screws to secure the assembly.
3. Connect the external power supply (not included) to the circuit
board. The recommended power supply is 24Vac, 50VA.
4. Continue with instructions for mounting the camera.
SMALL
PHILIPS
PANHEAD
SCREWS
24Vac Out
to Heater
24Vac Power
Supply Output
24Vac Power
Supply Input
Ground Ground
J6J4J5
J1

7
2.3 INSTALLATION OF OPTIONAL COMPONENTS
2.3-3 BLOWER KIT WITH HEATER KIT
1. Follow steps detailed previously to install the Blower Kit.
2. Using a small screwdriver, disconnect the wiring to the J1 and
J5 ports on the heater circuit board.
3. Replace the heater circuit board with the circuit board that is
wired to the blower. To do this, locate the two Philips
panhead screws on the heater circuit board. Unscrew them
and remove the board from the lower body of the housing.
Mount the blower circuit board located on the lower body.
Align the holes and keep the wiring on the same side. Use
the small Philips panhead screw to secure the assembly.
(Refer to drawing on next page.)
HEATER
CIRCUIT
BOARD
DISCONNECT
WIRING TO
J1 AND J5
PORTS

8
2.3 INSTALLATION OF OPTIONAL COMPONENTS
4. Connect the heater wiring harness to the blower circuit board
as shown. Connect the external power supply (not included)
to the circuit board. The recommended power supply is 24 V
ac, 50 VA.
5. Continue with instructions for mounting the camera.
BLOWER
CIRCUIT
BOARD
24Vac Out
to Heater
24Vac Power
Supply Output
24Vdc Out
to Blower
24Vac Power
Supply Input
Ground Ground
(B+)
(Ground)
J3
J6J4J5
J1

9
2.4 CAMERA MOUNTING
This section contains comprehensive instructions for installing a
camera into any one of the camera housing series. If you are
installing optional equipment, such as a heater/blower kit, please
consult instructions detailed previously for installation of optional
components. Continue with mounting the camera only when
instructed.
1. Follow instructions detailed under
“PREPARATION FOR INSTALLATION” section.
2. Remove the mounting plate from the lower body by
unscrewing the one Philips panhead screw. Retain the screw.
3. Tilt the mounting plate.
4. Install the camera using the 1/4" Philips panhead screw. The
mounting plate may need to be turned over to better
accommodate your camera.
3
2
MOUNTING
PLATE
4

10
2.4 CAMERA MOUNTING

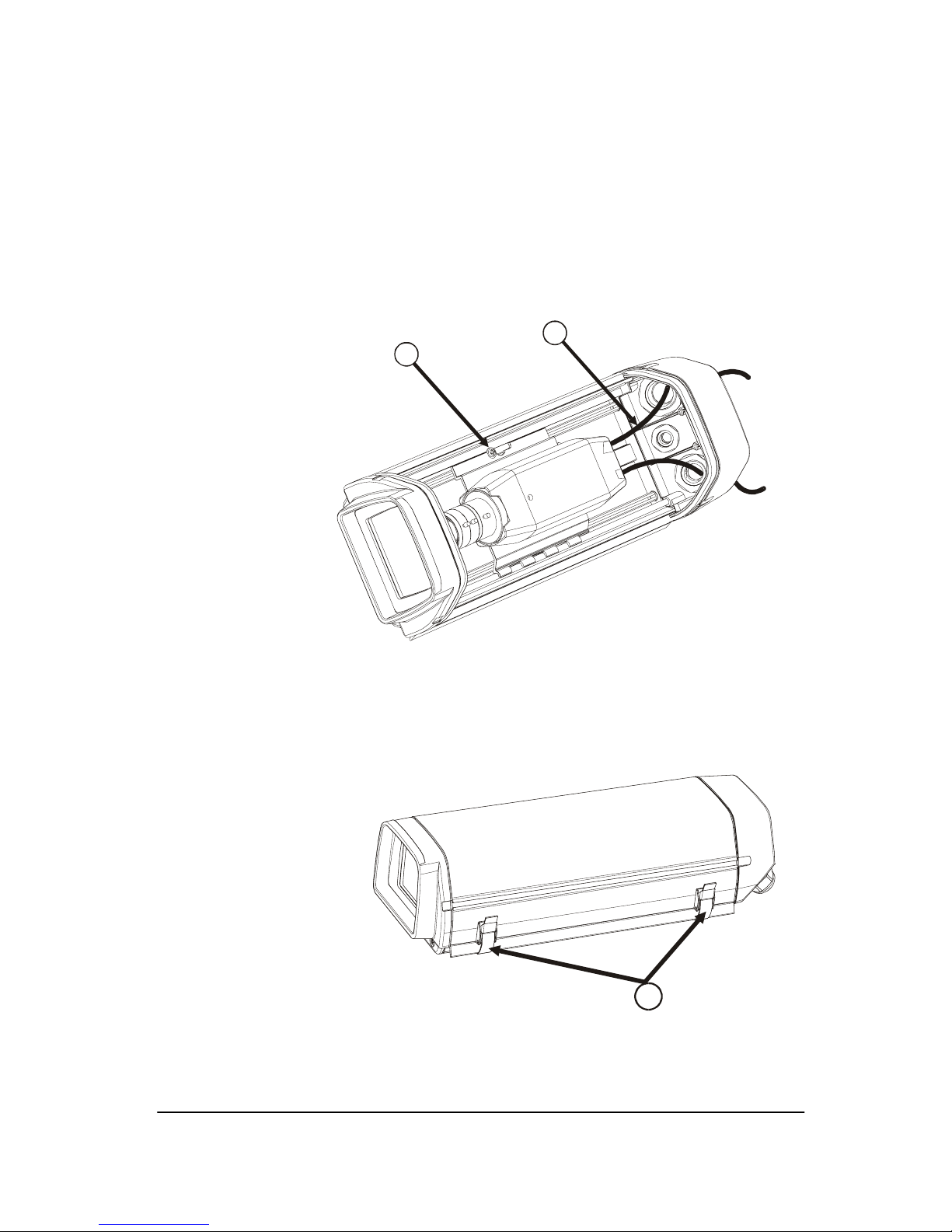

5. Return the mounting plate to its original position and secure
the assembly by tightening the Philips panhead screw through
the mounting plate into the lower body.
6. Insert the camera cable through the compression glands and
make all of the necessary electrical connections as described
in the camera instructions. Be sure that the compression
glands are firmly fixed.
7. Reassemble the housing unit, close the upper body, and
latch the lid.
8. If applicable, reinstall the sunshield by sliding it across the
top of the housing unit.
6
5
7

11
2.5 SUNSHIELD INSTALLATION
This section contains instructions for installing the sunshield for
the camera housing series. The sunshield is sold as an optional
component and is also available in a pre-assembled package.
The MODEL A(B) is the pre-assembled camera housing and
sunshield combination.
1. After the camera is installed and the housing is reassembled,
install the sunshield by sliding it across the top of the housing
unit. (Begin at the front of the housing.)
2. To mount the completed assembly, refer to the bracket
mounting instructions.
2.6 WALL BRACKET MOUNTING
This section contains instructions for mounting the recommended
wall bracket (sold separately).
Be sure that the camera and optional components have been
properly installed before proceeding with the mounting
instructions.
1. Use fasteners of appropriate size and type to attach the
bracket to the wall surface. Position the housing so that it
allows for viewing of the selected area.
2. Locate two nuts that freely slide along the channel. Position
the nuts approximately 2 inches from each other.
3. Place the housing onto the mount, aligning the holes. Insert
the two provided 1/4"-20 UNC screws through the mount and
into the nuts. Secure the assembly.

12
2.6 WALL BRACKET MOUNTING
4. Adjust the moveable arm of the wall bracket to attain the
desired position. Once it is in place, tighten the bolt located at
the pivot point of the movable arm and tighten set screw.
2.7 MAINTENANCE
Regularly scheduled maintenance prolongs the operational life
and appearance of equipment.
On a regular basis, perform the following:
•Clean the viewing area window with a soft cloth using a
mild detergent and water to maintain picture quality.
•Verify that all mounting hardware is secure.
1
4
3
2"
2

13
3. SPECIFICATIONS
3.1 CAMERA HOUSING SERIES SPECIFICATIONS
Dimensions (WxHxL): (with sunshield)
MODEL A 5.8 x 4.6 x 14.0 in
(147 x 118 x 356 mm)
MODEL B 5.8 x 4.6 x 16.0 in
(147 x 118 x 406 mm)
Weight: MODEL A 4.9 lbs. (2.2 kg)
MODEL B 5.5 lbs. (2.5 kg)
Maximum Camera Size Accommodates camera/lens
(WxHxL): combinations
(Including BNC) up to:
MODEL A 3.1 x 3.2 x 9.5 in
(78 x 82 x 240 mm)
MODEL B 3.4 x 3.2 x 11.4 in
(78 x 82 x 290 mm)
Option Heater & Blower:
MODEL A 3.1 x 3.2 x 7.1 in
(78 x 82 x 180 mm)
MODEL B 3.1 x 3.2 x 9.0 in
(78 x 82 x 230 mm)
Viewing Area: 2.9 x 2.4 in (73 x 61 mm)
Viewing Window: Clear 1/8" Double Density Glass
Construction: Extruded and Die-cast Aluminum
Finish: Epoxy Powder Coating
Environment: Indoor / Outdoor:
-4oF to 140oF (-20oC to 60oC)
IP66 Rated
Camera Mounting: Slotted camera sled.
Recommended Mounts: Ceiling J Mount & Wall Mount
Cable Entry: 3 compression fittings,
PG9, PG16, PG21.

14
3.2 SUNSHIELD (OPTIONAL)
Dimensions: (sunshield only)
MODEL A 5.83 x 2.36 x 14.0 in
(148 x 60 x 356 mm)
MODEL B 5.83 x 2.36 x 16.0 in
(148 x 60 x 406 mm)
Weight:
MODEL A 0.88 lbs (0.4 kg)
MODEL B 1.23 lbs (0.5 kg)
3.3 HEATER (OPTIONAL)
Power Supply: 24V ac
Power Consumption: 20W
Heater ON: Heater turns ON at 41oF (5oC)
Heater OFF: Heater turns OFF at 59oF (15oC)
3.4 BLOWER (OPTIONAL)
Power Supply: 24V ac
Power Consumption: 3.4W
Blower ON: Blower turns ON at 104oF (40oC)
Blower OFF: Blower turns OFF at 86oF (30oC)
Printed in Korea50301507B
