HjScott Velocity VF5000 User manual

Foosball Table
VF5000
3 GOALIE

VF5000
2 - VF5000 - 0618 - JX
We strive to ensure that our products are of the highest quality
and free of manufacturing defects or missing parts. However,
if you have any problems with your new product
DO NOT RETURN IT TO THE STORE
please contact us toll free at:
1 [phone]
FAX: [phone]
[email protected]
Or write to:
Cue&Case A Global Division of Escalade Sports
Customer Service Department
190 Cumberland Park Drive
St. Augustine, FL 32095
Please visit our website at:
www.cueandcase.com
When contacting Cue&Case please have your model number, proof
of purchase (sales reciept stating you are original owner), date code
(if applicable) and part number if requesting a replacement part. These
numbers are located on the product, packaging, and this owners manual.
Your Model Number ________________________________________
Date Code ______________________________________________
Purchase Date ____________________________________________
PLEASE RETAIN THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE
BY
All Rights Reserved © 2018 Cue&Case For Customer Service Call 1 [phone]
1

2
Congratulations! We hope you will enjoy many hours of play
on your new HJScott Velocity Foosball Table!
Please Carefully read all safety instructions and directions before
proceeding.
1) Your table is designed for use indoors in a climate controlled environment only.
Damage can occur if the table is exposed to water, dampness, high humidity, freezing
temperatures, etc.
2) The foosball table is heavy. Two or more people are required for assembly.
3) Only use the table for its intended purpose.
4) Damaged or worn parts may be dangerous for users and the integrity of the table.
Replace worn or damaged components immediately and do not use the table until
any issues have been resolved. For best results, use only spare parts available
through supplier.
5) Unauthorized repairs or altering the table’s design or functions may be dangerous and
will void the warranty.
6) Check all screws, bolts, etc. on a regular basis to ensure that they are in good working
condition and have not loosened over time.
7) Please keep the balls, lubricant and other parts out of reach of children and pets.
8) This is not a toy. Adult supervision is recommended when being used by children.
9) Please use care when pushing or pulling the rods so people or objects nearby do
not get injured or damaged.
All Rights Reserved © 2018 Cue&Case For Customer Service Call 1 [phone]

3
All Rights Reserved © 2018 Cue&Case For Customer Service Call 1 [phone]
PARTS LIST
TABLE BODY LEGS-LEFT LEGS-RIGHT
GOALIE ROD
ASSEMBLED TO
SCORER
F4*1-3/4mm
BOLTS LEG LEVELERSSCREWS
BEARINGS
1438*756*400
mm
1 PC
VF5000JX1 VF5000JX2 VF5000JX3
VF5000JX4 VF5000JX5 VF5000JX6
VF5000JX7 VF5000JX8 VF5000JX9
VF5000JX10 VF5000JX11 VF5000JX12
VF5000JX13 VF5000JX14 VF5000JX15
VF5000JX17 VF5000JX18 VF5000JX19
VF5000JX20 VF5000JX21 VF5000JX22
VF5000JX23
VF5000JX26
VF5000JX24 VF5000JX25
660*100*80mm 660*100*80mm
1010mm Ø57*48.5mm 57*6mm
10*65mm
1086mm 1254mm 1124mm
Ø90*50mm
240*35*24mm 5mm-2pcs
6mm-1pc
2PLAYERS ROD
3PLAYERS ROD
5PLAYERS ROD
9
11 12
788
10
45 6
123
13
(Add a Check (√ ) to the box to indicate receipt of each part.)
NOTE: There are 8 sets of Bearings (#8 & #9) have already been aached on the Table Body (#1).
2 PCS 2 PCS
2 PCS 2 PCS 2 PCS
2 PCS 16 PCS 16 PCS
4 PCS 16 PCS 4 PCS
2 PCS
ADDITIONAL AND PRE-INSTALLED PARTS. (FOR REFERENCE ONLY.)
SOCCER BALLS
ALLEN KEYS PLASTIC WRENCH
LUBRICANT
PLAYER
Black-1pc
Yellow-1pc
50ml
MATERIAL
SAMPLE
BOLTS
10*65mm
ROLL PIN PUNCH
14
18 19
20 21 22
23 24 25
ROLL PIN
15
1 PC
Pink-2pcs
Yellow-2pcs 1 PC
4*50mm 5*5*3.8cm
1 PC1 PC2 PCS
BUMPERS
Ø16mm
2PCS
4.2*35mm-6pcs
4.2*28mm-2pcs
BEARINGS
Ø57*48.5mm
26
2 PCS
ASSEMBLED TO
57*6mm
17 26
2 PCS

4
All Rights Reserved © 2018 Cue&Case For Customer Service Call 1 [phone]
ASSEMBLY INSTRUCTIONS
We recommend that four adults work together to assemble this table.
•
FIG. 1
CAUTION: Four adults are recommended to turn the table
over as shown.
1.
Lift the table off the ground.
2.
3.Place it on all four feet at the same time on the ground.
Turn the table over.
DO NOT LEAN THE
TABLE ON ITS LEGS
HOLD TABLE
CABINET DO NOT HOLD THE LEGS
•
Attach the Legs (#2 & #3) between the Side and End Aprons with four Bolts (#11) per Leg as shown in Fig.1. Use the
Allen Key (#14) provided.
NOTE: Please lightly tighten each of the four leg bolts equally before finally tightening each bolt securely.
•
•
Insert the Leg Levelers (#12) into the bottom of the Legs (#2 & #3) . See Fig.1.
Once legs are securely fastened with the leg levelers installed, use four adults to rotate the table into an upright position.
2
3
11
11
2
23
3
12
12
1
1
FIG. 1: LEG ASSEMBLY
=(1)
=(2)
=(2)
=(16)
=(4)

5
All Rights Reserved © 2018 Cue&Case For Customer Service Call 1 [phone]
b c
FIG. 2: PLAYER / BEARING / SCORER ASSEMBLY
FIG. 2FIG. 2
= BLACK
= YELLOW
IMPORTANT!
EACH TEAM SHOULD BE HEAD
UPAND FACING THEIR OWN
GOAL
FIG. 3
ORDER OF PLAYERS
6
8
5
4
7
6
7
8
9
5
4
13
13
10
8
9
SHORT
LONG
5
6
7
4
9
10
13
8
=(2) =(16)
=(16)
=(4)
=(2)
=(2)
=(2)
=(2)
a
•
•
•
apron wall.
•
• Remove the Aluminium foil from top of the bole, then cut a hole in the end. Spray the lubricant into a clean, so
cloth and then use the cloth to wipe the player rods where they come into contact with the bearings. See Fig 3.
Aach the Scorer Assemblies(#13) in the middle of each Top Slat Board using two Screws(#10) per Scorer. See Fig 2.
Aach all of the bearings(#8) to the side aprons as shown in figure 2.
Slide the Player Rods(#4-#7) through the Side Apron in the order shown. See Fig 2.

6
All Rights Reserved © 2018 Cue&Case For Customer Service Call 1 [phone]
FIG. 4: PLAYER MAINTENANCE
•
remove the pin from the player. Remove the player and then install the replacement player and reinsert the pin (#20)
using the punch (#24).
FIG. 2FIG.4
25
24
24
25
20
20
=(8)
=(1)
=(1)
TABLE MAINTENANCE
TABLE
SURFACE Keep your table covered. If there is dust on the playfield or the aprons, use a vacuum or wipe
with a clean, so cloth to remove. Do not sit on the table and do not use the table outside.
RODS
Occasionally wipe the rods with a clean, so cloth. Never li the table by the rods . Do not spin
or press the rods too aggressively, as this may cause damage . We recommend the use of
lubricant to wipe the Player Rods and Bearings from the outside of the game so as not to drip
onto the playfield.
LEGS
BOLTS
Check that the leg bolts are ght. When moving the table, li table off of its legs and place it
Please make sure that all the bolts are ghtened before using.
down squarely on the legs, do not drag the table.
#24

7
All Rights Reserved © 2018 Cue&Case For Customer Service Call 1 [phone]

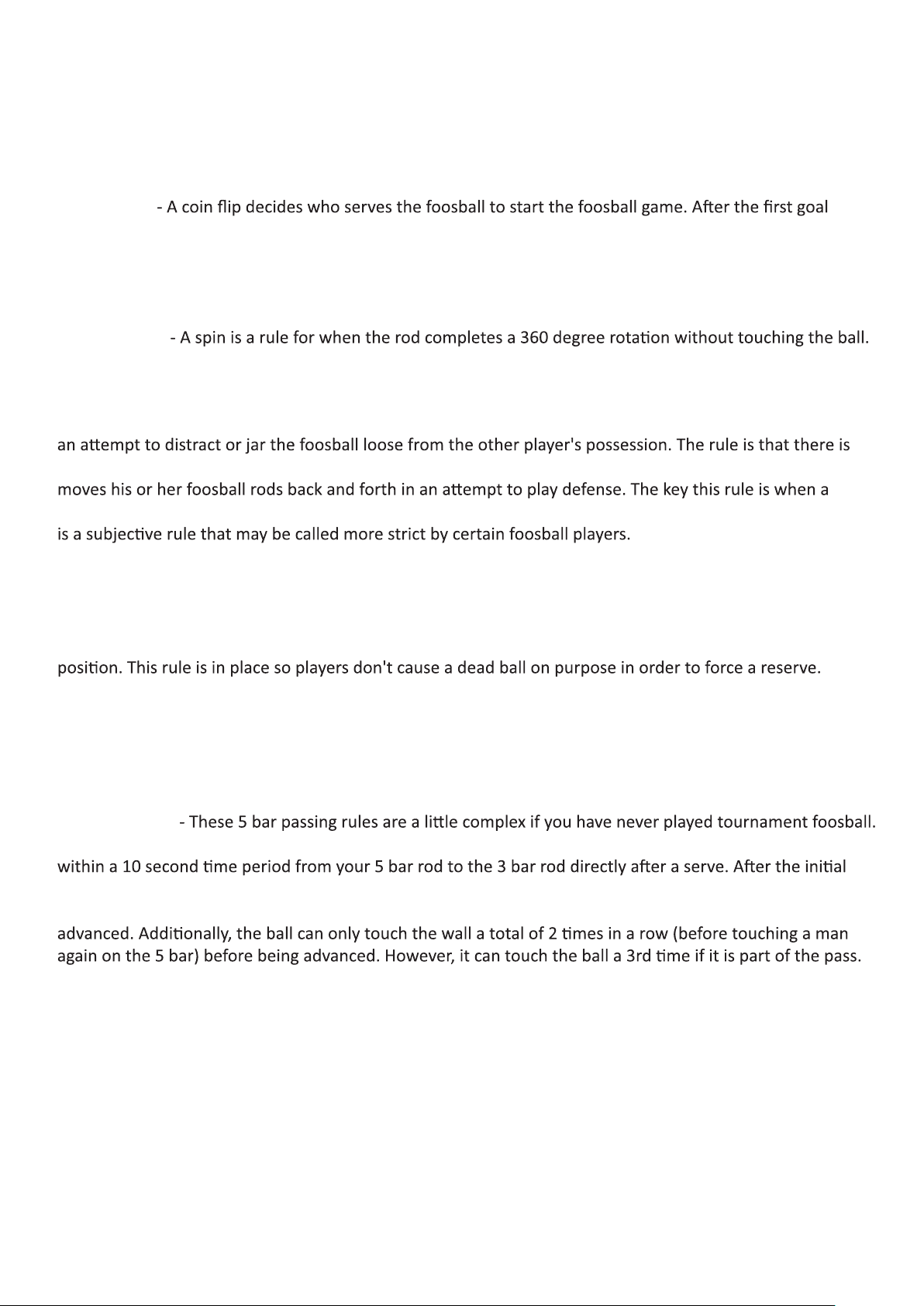

Basic Foosball Rules
Flip A Coin
is scored, the rule is that the team who was last scored on gets to serve the next ball. This rule keeps the
game fair for both opponents. The foosball must be touched by a man before the ball goes into a goal for
a legal goal to occur.
No Spinning
This is deemed an illegal move in the rules of foosball.
No Jarring - Jarring is a rule for when a player slams his or her rods against the wall of the foosball table in
no jarring allowed at any point during a game. This is not the same as when a player on the opposite team
player hits the wall of the table with enough force to jar the ball or distract the opponent. That is why this
Dead Balls - If a foosball stops in the middle of two opposing team rods, the ball must be picked up and
reserved. The serve goes back to the team that was last scored on. If a dead ball occurs on the defensive
side of the table behind the defensive 2 bar, the defensive player must move the ball back into playing
Out of Play - If a ball comes off the table area or hits a top rail and comes back into the table area, the
ball is ruled out of play and must be reserved by the team that was last scored on.
5 Bar Passing
These passing rules do not apply to the other foosball rods, just the 5 bar. You are required to pass the ball
serve, you then are allowed 15 seconds to pass from the 5 bar. A ball cannot be completely stopped on the
5 bar and passed forward to the 3 bar, it must be moving and touch 2 men on the 5 bar before being

8
All Rights Reserved © 2018 Cue&Case For Customer Service Call 1 [phone]
PRODUCT PARTS LIST FOR MODEL # VF5000
Key # Part # Description Qty.
1 VF5000JX 1438*756*400mm Table Body 1
2 VF5000JX 660*100*80mm Left Legs
660*100*80mm Right Legs 2 3 VF5000JX 2
4 VF5000JX 1086mm Goalie Rod 2
5 VF5000JX 1254mm 2 Players Rod
1124mm 3 Players Rod
1010mm 5 Players Rod
2
6 VF5000JX 2
7 VF5000JX 2
8 VF5000JX ø57*48.5mm Bearings 16
9 VF5000JX 57*6mm Assembled To 8 16
10 VF5000JX F4*1-3/4” Screws 4
11 VF5000JX 10*65mm Bolts 16
12 VF5000JX ø90*50mm Leg Levelers 4
13 VF5000JX 240*35*24mm Scorer 2
14 VF5000JX 5mm & 6mm Allen keys 2 & 1
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15VF5000JX Plastic Wrench 1
16 16VF5000JX Instruction Manual 1
Key # Part # Description Qty.
VF5000JX 57*6mm Assembled To 26 217 VF5000JX Pink & Yellow Soccer Balls
50ml Lubricant 2 & 2
18 VF5000JX 119 VF5000JX 4.2*35mm & 4.2*28mm Roll Pin 6 & 2
20 VF5000JX ø16mm Bumpers
1 Black & 1 Yellow Player
10*65mm Bolts
221 VF5000JX 2
22 VF5000JX 2
23 VF5000JX 4*50mm Roll Pin Punch 1
24 VF5000JX 5*5*3.8cm Material Sample 1
25
26 26
17
18
19
20
21
22
23
24
25
VF5000JX ø57*48.5mm Bearings 2
ADDITIONAL AND PRE-INSTALLED PARTS LIST FOR MODEL # VF5000

9
All Rights Reserved © 2018 Cue&Case For Customer Service Call 1 [phone]
