LUCAS 600 BASS
GESAMT
HK0203-EX-R03-1A 1A
C. LORIS 19.03.04 1/2
HK0203-EX-R03-1A-BASS-GESAMT
KLAUS BIRSTER 23.03.04

TITEL:
ERSTELLT VON: BLATT:
AM:
ZEICHNUNGS-NR.:
66606 St. Wendel / Germany
VERSION: REVISION:
GEPRÜFT/
FREIGEGEBEN VON:
AM:
WERKSTOFF: OBERFLÄCHE:
DATEINAME:
BLÄTTER
INDEX ÄNDERUNG ZEICHNER
3 E 520098
1E 1107
2E 400167
4E 972008
12 E 976132
5E 974145
6 E 974216
7E 974319
8 E 974338
9E 976001
10 E 976015
11E 976072
13E 994110
14E 994133
HK0203-EX-R04-1A
HK0203-SO-R01-1B
HK0203-HZ-R02-1G
HK0203-SO-R04-1A
LUCAS 600 TOP
GESAMT
HK0203-EX-R05-1A 1A
C. LORIS 22.03.04 1/2
HK0203-EX-R05-1A-BASS-GESAMT
KLAUS BIRSTER 23.03.04

Part No. Description Quantity

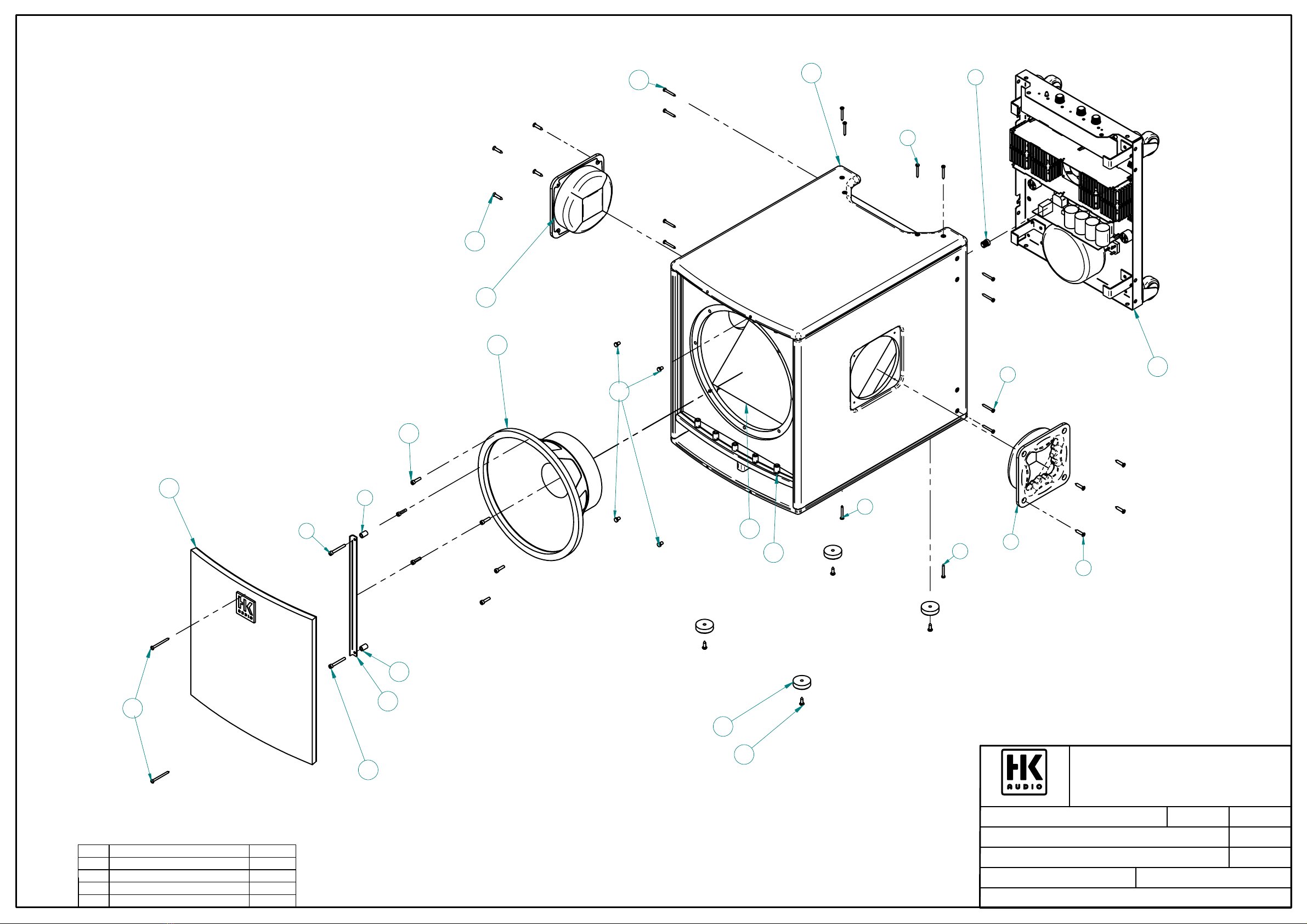

E400166 Speaker housing Lucas 600 Subwoofer 1
E976097 Insert handle 2
E976009 Rubber foot 38 mm 4
E1108 Frontgrille Lucas 600 Subwoofer 1
E970611 Protective frame for speaker 1
E994162 12" Speaker B&C 12 pz 32 8 ohms 1
E502142 Elektronic Chassis Lucas 600, 230 V 1
Art. No. Artikel Stückzahl
E400166 Leergehäuse Lucas 600 Subwoofer 1
E976097 Kunststoff Schalengriff 2
E976009 Gummifuß 38 mm 4
E1108 Frontgitter Lucas 600 Subwoofer 1
E970611 Schutzbügel für Lautsprecher 1
E994162 12" Speaker B&C 12 pz 32 8 ohms 1
E502142 Elektronic Chassis Lucas 600, 230 V 1
Part No. Description Quantity

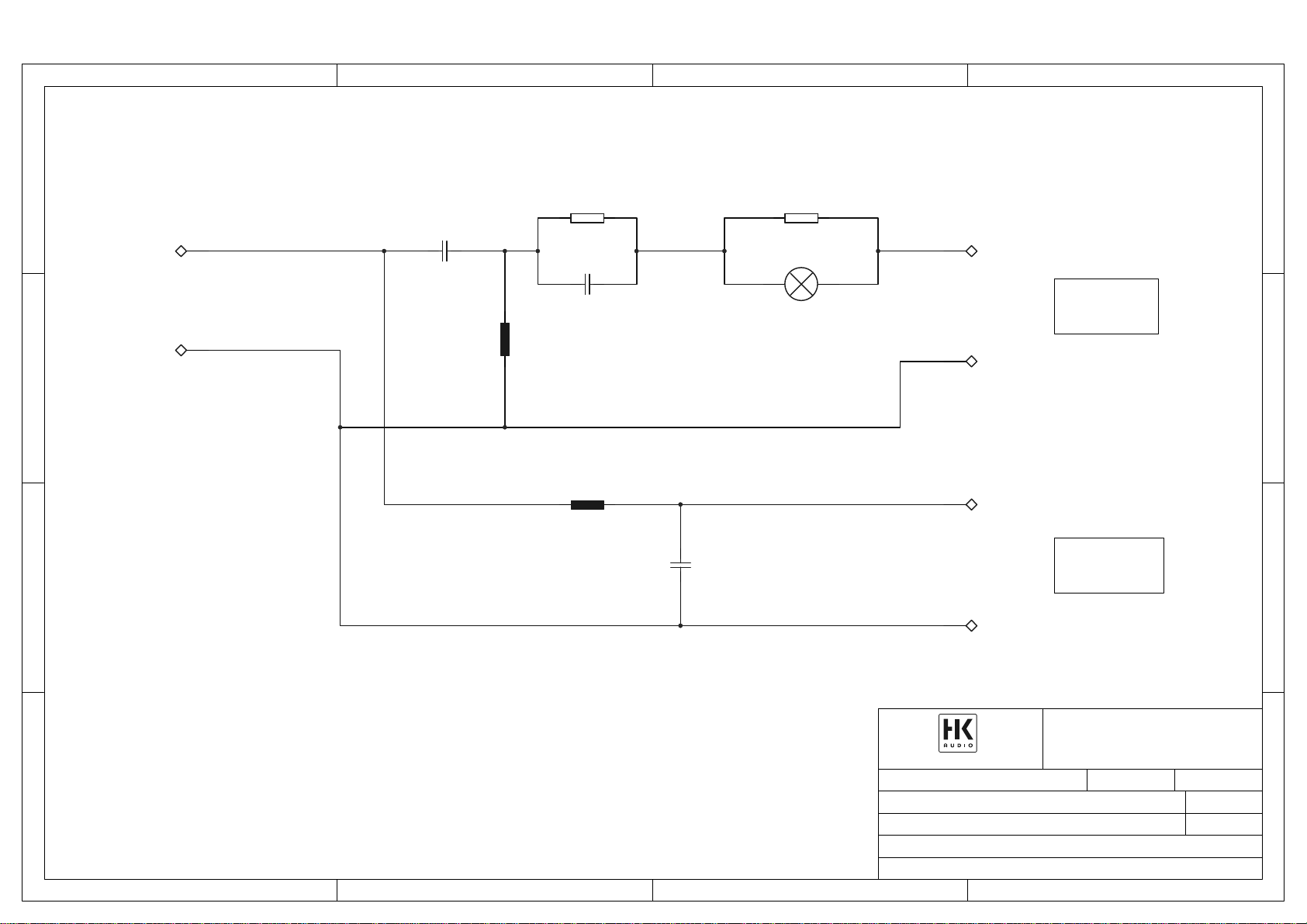

E400167 Speaker housing Lucas 600 Satellite 1
E1107 Frontgrille Lucas 600 Satellite 1
E976132 HK AUDIO MonoTilt 1
E520098
Crossover Lucas 600 Satellite 1
E994110 8" Speaker EM 8326, 4 ohms 1
E994133 Horn with driver EAPT 150 1
E994146 Diphragm for EAPT 150 1
Art. No. Artikel Stückzahl
E400167 Leergehäuse Lucas 600 Satellite 1
E1107 Frontgitter Lucas 600 Satellite 1
E976132 HK AUDIO MonoTilt 1
E520098
Frequenzweiche Lucas 600 Satellite 1
E994110 8" Speaker EM 8326, 4 ohms 1
E994133 Horn mit Treiber EAPT 150 1
E994146 Schwingspule EAPT 150 1
L.U.C.A.S 600 Satellite
L.U.C.A.S 600 Sub

1 2 3 4
A
B
C
D
4
321
D
C
B
A
All rights reserved. No part of this schematic maybe reproduced, stored in a retrieval system, transmitted in anyformor
byanymeans, electronic, mechanical, photocopying, recordingor otherwise, without the prior permission of the author. Filename: HK0203-SP-R02-1B.SCH
PCB No.:
Page:
Pages
1
4
Checked by:
Drawn by: Date:
Date:
Frank Sitter
Michael Bohlender
07.07.2003
19.01.2004
Number: Version: Revision:
1HK0203-SP-R02-1B B
66606 St. Wendel / Germany

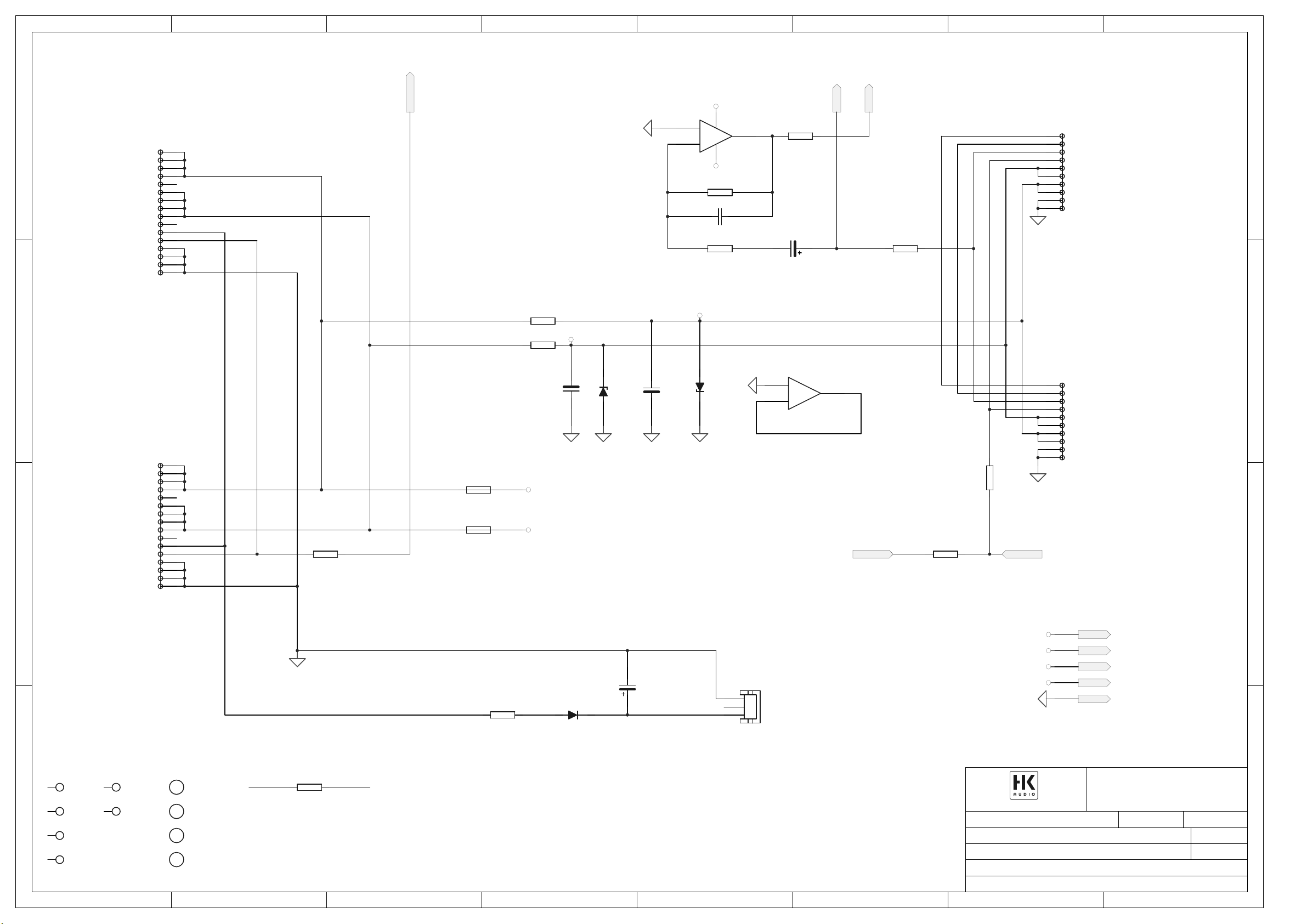

Title: HK0203 -- L.U.C.A.S. 600
NA= not assembled part ----- EX = exclusive part, no alternative allowed

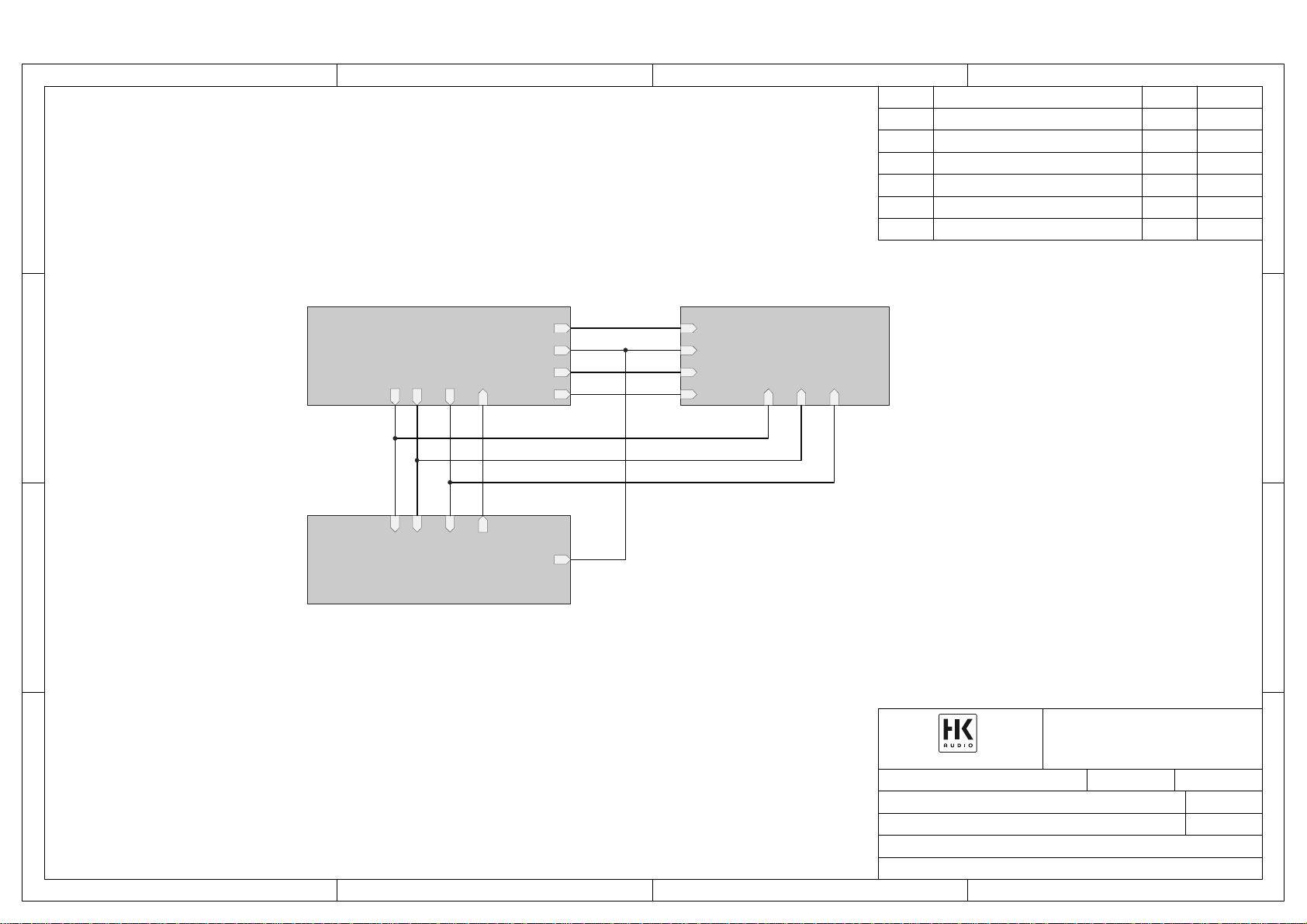

+15V -15V GND INPUT 1
RIGHT
LEFT
LIMIT BASS
BASS
1_Input_A
1_Input_A
+15V
-15V
GND
RIGHT
INPUT 1
2_Input_B
2_Input_B
+15V -15V GND
RIGHT
LEFT
BASS
LIMIT BASS
3_Diplay_Sch
3_Diplay_Sch
Date Modification Revision Name
Preamp and Filter
19.01.2004 R55 = 4k7, R59 = 10k, R61 = 5k6, R54 = 33k 1B M. Bohlender
R38 = 5K6, R11 = 5k6, R27 = 33k

1 2 3 4 5 6 7 8
A
B
C
D
8
7654321
D
C
B
A
Allrights reserved. No part ofthis schematic may be reproduced, stored in a retrieval system, transmitted in anyformor byany means, electronic, mechanical, photocopying, recording or otherwise, without the prior permission ofthe author. Filename: 1_Input_A
PCB No.:
Page:
Pages
2
4
Checked by:
Drawn by: Date:
Date:
Frank Sitter
Michael Bohlender
08.07.03
19.01.2004
Number: Version: Revision:
1HK0203-SP-R02-1B B
66606 St. Wendel / Germany
Title: HK0203 -- L.U.C.A.S. 600
NA = not assembled part ----- EX = exclusive part, no alternative allowed
-15V
+15V +15V
-15V
GND
C50
22n/63V C51 22n/63V
C47
220n/63V
C38
220n/63V
C37
220n/63V
D10
BZX79C_2V7
D9
BZX79C_2V7
+
3
-
21
4 11
VCCVEE
U5A
MC33079P(MOT)
+
10
-
98
U2C
MC33079P(MOT)
+
12
-
13 14
U2D
MC33079P(MOT)
+
3
-
21
411 VCCVEE
U2A
MC33079P(MOT)
R76
82K
+
10
-
98
U3C
MC33079P(MOT)
L R
P3
RK16-B10K-CC
INPUT 1
R70
100K
C46
47p/100V-K
R69
10K
R55
4K7
C40
330n/63V
+
5
-
67
U2B
MC33079P(MOT)
C42
330n/63V
R67
2K2
1
9
2
10
3
4
5
6
7
8
JP1
MTA100-10P
-15V
+15V
-15V
+15V
RIGHT
LEFT
LIMIT BASS
-15V
+15V
-15V
+15V
BASS
R28
22K
R29
22K
R31
22K
R32
22K
D5
1N4148
D6
1N4148
C21
100p/100V-K
C24
47p/100V-K
D7
1N4148
D8
1N4148
-15V
+15V
-15V
+15V
C19
10u/63V
C20
10u/63V
C22
100n/63V
R30
47R/1W
B1
G2
R3
JP3
JST-S03B-EH
C23
220n/63V-K
C26
47p/100V-K
+
10
-
98
U5C
MC33079P(MOT)
+
12
-
13 14
U3D
MC33079P(MOT)
+
3
-
21
411 VCCVEE
U3A
MC33079P(MOT) +
5
-
67
U3B
MC33079P(MOT)
+
12
-
13 14
U5D
MC33079P(MOT)
R33
100K
R36
10K
R138
10K
R148
10K
R66
47R
-15V
+15V
R38
5K6
R37
11K
R39
1K8
R40
20K
R42
2K2
R41
11K
C27
100n/63V
C28
330n/63V
C29
100n/63V
C30
330n/63V
R64
4K7
R63
4K7
R137
4K7
R68
9K1
R56
33K
R58
20K
R57
2K0
R59
10K
R60
18K
C39
56n/63V
R61
5K6
R62
18K
C41
56n/63V
R44
0R0
NA
R48
0R0
NA
R142
0R0
NA
R78
0R0
NA
R140
24K R141 56K R51 68K R143 20K
R77
6K8
-15V
+15V
R43
10K
R45
150K
R52
68K
R46
5K6
R50
150K
R53
68K
+
3
-
21
8 4
VCCVEE
U11A
MC33078P(MOT)
+
5
-
67
U11B
MC33078P(MOT)
R47
3K3
R49
47K
R54
33K
C31
3n9/63V C34 3n9/63V C32 3n9/63V C35 3n9/63V C33 1n2/63V C36 1n2/63V
R75
82K
+
C61
2u2/25V-T
+
C62
2u2/25V-T +
C43
2u2/25V-T
+
C44
2u2/25V-T
+
5
-
67
U5B
MC33079P(MOT)
Input and Filters - Left Ch.
GAIN LEFT (max 0dB)
SUBWOOFER
LEVEL
BR10
0R0
INPUT2 INPUT2
INPUT2
BR1
0R0
INPUT2 INPUT2
GAIN_LEFT
BR9
0R0
GAIN_LEFT GAIN_LEFT
BASS
BR20
0R0
BASS BASS
R34
0R0
L R
P2
RK16-B10K
R35
10K
NA
C25
47p/100V-K
NA

1 2 3 4 5 6 7 8
A
B
C
D
8
7654321
D
C
B
A
Allrights reserved. No part ofthis schematic may be reproduced, stored in a retrieval system, transmitted in anyformor byany means, electronic, mechanical, photocopying, recording or otherwise, without the prior permission ofthe author. Filename: 2_Input_B
PCB No.:
Page:
Pages
3
4
Checked by:
Drawn by: Date:
Date:
Frank Sitter
Michael Bohlender
08.07.03
19.01.2004
Number: Version: Revision:
1HK0203-SP-R02-1B B
66606 St. Wendel / Germany
Title: HK0203 -- L.U.C.A.S. 600
NA = not assembled part ----- EX = exclusive part, no alternative allowed
C48
22n/63V C49 22n/63V
+
3
-
21
4 11
VCCVEE
U4A
MC33079P(MOT)
R72
82K
+
5
-
67
U4B
MC33079P(MOT)
INPUT 1
R1
22K
R2
22K
R4
22K
R5
22K
D1
1N4148
D2
1N4148
C3
100p/100V-K
C5
47p/100V-K
D3
1N4148
D4
1N4148
-15V
+15V
-15V
+15V
C1
10u/63V
C2
10u/63V
C4
100n/63V
R3
47R/1W
B1
G2
R3
JP4
JST-S03B-EH C8
47p/100V-K
+
10
-
98
U1C
MC33079P(MOT)
+
3
-
21
411 VCCVEE
U1A
MC33079P(MOT)
+
12
-
13 14
U1D
MC33079P(MOT)
R6
100K
R7
10K
R139
10K
R151
10K
R65
47R
-15V
+15V
R11
5K6
R10
11K
R12
1K8
R13
20K
R15
2K2
R14
11K
C9
100n/63V
C10
330n/63V
C11
100n/63V
C12
330n/63V
R17
0R0
NA
R21
0R0
NA
R146
0R0
NA
R74
0R0
NA
R144
24K R145 56K R24 68K R147 20K
R73
6K8
-15V
+15V
R16
10K
R18
150K
R25
68K
R19
5K6
R23
150K
R26
68K
R20
3K3
R22
47K
R27
33K
C13
3n9/63V C16 3n9/63V C14 3n9/63V C17 3n9/63V C15 1n2/63V C18 1n2/63V
R71
82K
+
5
-
67
U1B
MC33079P(MOT)
Input and Filters - Right Ch.
-15V
+15V
RIGHT
+
10
-
98
U4C
MC33079P(MOT)
+
12
-
13 14
U4D
MC33079P(MOT)
GAIN RIGHT (max 0dB)
-15V
+15V+15V
-15V
GND
+
3
-
21
84 VCCVEE
U6A
MC33078P(MOT)
+
5
-
67
U6B
MC33078P(MOT)
C6
220n/63V
GAIN_RIGHT
BR16
0R0
BR19
0R0
GAIN_RIGHT
GAIN_RIGHT
GAIN_RIGHT
GAIN_RIGHT
INPUT1_INV
BR6
0R0
INPUT1_INV INPUT1_INV
BR7
0R0
INPUT1_INV INPUT1_INV
BR12
0R0
R8
0R0
L R
P1
RK16-B10K
R9
10K
NA
C7
47p/100V-K
NA

1 2 3 4 5 6 7 8
A
B
C
D
8
7654321
D
C
B
A
Allrights reserved. No part ofthis schematic may be reproduced, stored in a retrieval system, transmitted in anyformor byany means, electronic, mechanical, photocopying, recording or otherwise, without the prior permission ofthe author. Filename: 3_Diplay_Sch
PCB No.:
Page:
Pages
4
4
Checked by:
Drawn by: Date:
Date:
Frank Sitter
Michael Bohlender
08.07.03
19.01.2004
Number: Version: Revision:
1HK0203-SP-R02-1B B
66606 St. Wendel / Germany
Title: HK0203 -- L.U.C.A.S. 600
NA = not assembled part ----- EX = exclusive part, no alternative allowed
-15V
+15V+15V
-15V
GND
R79
10K
R90
2MEG2
R93
2MEG2
R80
4MEG7
R81
47K
R83
47K
R82
22R
R84
47K
R85
47K
R96
150K
R86
220K
R87
1K5/1W
R97
1K5/1W
R94
47K
R92
150K
R95
5K6
+
5
-
67
U7B
TL074CN
+
10
-
98
U7C
TL074CN
+
3
-
21
411 VCCVEE
U7A
TL074CN
+
12
-
13 14
U7D
TL074CN
D11
1N4148
D12
1N4148
C52
680p/100V-K
C53
10n/63V
C54
100n/63V
R89
470K
R88
2MEG2
-15V
+15V
+15V
-15V
R117
10K
R128
2MEG2
R131
2MEG2
R118
4MEG7
R119
47K
R121
47K
R120
22R
R122
47K
R123
47K
R134
150K
R124
220K
R125
1K5/1W
R135
1K5/1W
R132
47K
R130
150K
R133
5K6
+
5
-
67
U9B
TL074CN
+
10
-
98
U9C
TL074CN
+
3
-
21
411 VCCVEE
U9A
TL074CN
+
12
-
13 14
U9D
TL074CN
D17
1N4148
D18
1N4148
C58
680p/100V-K
C59
10n/63V
C60
100n/63V
R127
470K
R126
2MEG2
-15V
+15V
+15V
-15V
RIGHT
LEFT
B1
G2
R3
JP5
JST-S03B-EH
R98
10K
R109
2MEG2
R112
2MEG2
R99
4MEG7
R100
47K
R102
47K
R103
47K
R104
47K
R115
150K
R105
220K R106
1K5/1W
R116
1K5/1W
R113
47K
R111
150K
R114
5K6
D14
1N4148
D15
1N4148
C55
680p/100V-K
C57
100n/63V
R107
2MEG2
-15V
+15V
+15V
BASS
R101
47R
123
456
SW1
G2UEE*2UM
JP2
FASTON-6.3-ST
LIMIT BASS
LIMIT INDICATORS
LIMIT_RIGHT
LIMIT_LEFT
C56
47n/63V
+
3
-
21
84 VCCVEE
U8A
TL072CN
+
5
-
67
U8B
TL072CN
R108
220K
R110
4K7
R150
22K
-15V
+
3
-
21
84 VCCVEE
U10A
TL082CN
+
5
-
67
U10B
TL082CN
+15V
-15V
D13
5MM-RG
D19
5MM-RG
D16
5MM-RG
C45
47n/250V
BR5
0R0
-15V -15V
BR8
0R0
GND GND
BR11
0R0
-15V -15V
R_GREEN
R_RED
L_GREEN
L_RED
BR13
0R0
R_GREEN R_GREEN
BR14
0R0
-15V -15V
BR17
0R0
-15V -15V
BR18
0R0
GND GND
BR21
0R0
GND GND
BR22
0R0
GND GND
BR23
0R0
GND GND
BR24
0R0
+15V +15V
R136
1K5/1W
-15V
D20
5MM-R

1 2 3 4
A
B
C
D
4
321
D
C
B
A
All rights reserved. No part of this schematic may be reproduced, stored in a retrieval system, transmitted in anyform or
byanymeans, electronic, mechanical, photocopying, recordingor otherwise, without the prior permission of the author. Filename: HK0203-SP-R03-1A.sch
PCB No.:
Page:
Pages
1
1
Checked by:
Drawn by: Date:
Date:
Michael Bohlender
Frank Sitter
23.07.2003
23.07.2003
Number: Version: Revision:
1HK0203-SP-R03-1A A
66606 St. Wendel / Germany
Title: HK0203 - L.U.C.A.S. XT12
NA= not assembled part ----- EX = exclusive part, no alternative allowed
Z1
24V/18W_15/41
JS3
JS4
JS5
JS6
TOP Crossover Circuit
R2
27/10WS
INPUT HIGH OUT EAPT150-2
E994133
8 Ohms
+
–
MID/LOW OUT HK 8" Custom
E994110
4 Ohms
+
–
C1
MKP-2.2u/250V
+
–
HK0203-LP-R03-1A.pcb
L3
1.50mH/0.80mm_LI
R1
18/20WS
C2
MKP-2.2u/250V
C3
MKP-18u/250V
L1
1.20mH/1.00mm_LU
JS1
SP1.5Q
JS2
SP1.5Q

1 2 3 4
A
B
C
D
4
321
D
C
B
A
All rights reserved. No part of this schematic may be reproduced, stored in a retrieval system, transmitted in anyform or
byanymeans, electronic, mechanical, photocopying, recordingor otherwise, without the prior permission of the author. Filename: HK0203-SP-R04-1C-01Main.Sch
PCB No.:
Page:
Pages
1
4
Checked by:
Drawn by: Date:
Date:
Michael Bohlender
Michael Bohlender
07.10.2003
19.01.2004
Number: Version: Revision:
1HK0203-SP-R04-1C C
66606 St. Wendel / Germany
Title: HK0203 -- L.U.C.A.S. 600
NA= not assembled part ----- EX = exclusive part, no alternative allowed

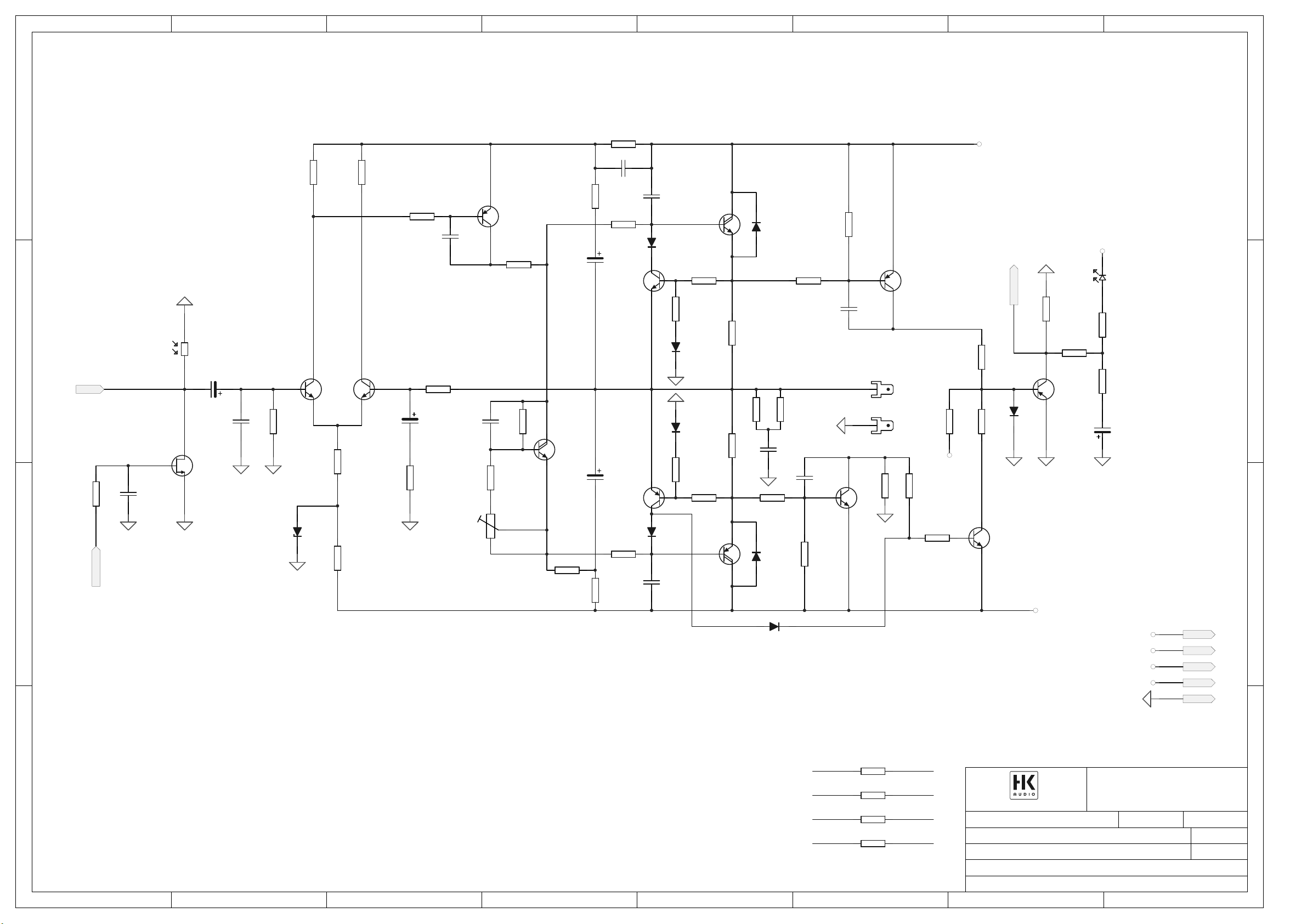

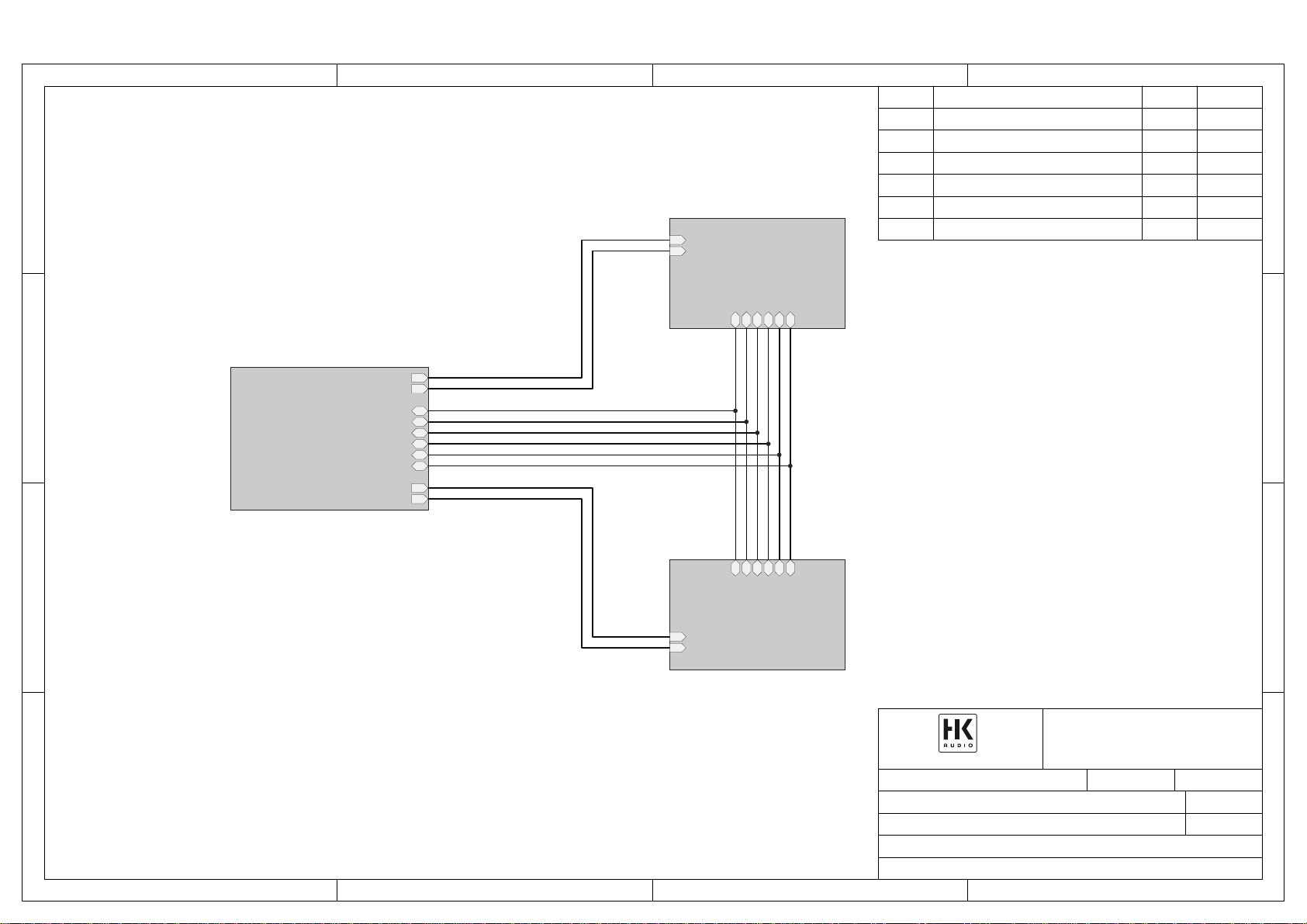

AE250 Bass Power Amp Unit
Date Modification Revision Name
07.10.2003 Übernahme und Anpassung aus HK1198 1A M. Bohlender
IN A
IN B
FET_DC
LIMIT_A
LIMIT_B
+50V
-50V
+15V
-15V
AGND
INPUTS AND PLUGS
IN A
LIMIT_A
FET_DC +50V -50V -15V AGND +15V
POWER AMP CHANNEL A
IN B
FET_DC
LIMIT_B
+50V
-50V
+15V
-15V
AGND
POWER AMP CHANNEL B
HK1198-LP-R01, always use latest revision
20.11.2003 R19, R29 changed to 15k, C38 removed 1B M. Bohlender
19.01.2004 Capacitors C42 .. C45 added to current limiters 1C M. Bohlender
resistors R83/R82 reduced to 330R

1 2 3 4 5 6 7 8
A
B
C
D
8
7654321
D
C
B
A
Allrights reserved. No part ofthis schematic may be reproduced, stored in a retrieval system, transmitted in anyformor byany means, electronic, mechanical, photocopying, recording or otherwise, without the prior permission ofthe author. Filename: HK0203-SP-R04-1C-02Inputs.sch
PCB No.:
Page:
Pages
2
4
Checked by:
Drawn by: Date:
Date:
Michael Bohlender
Michael Bohlender
07.10.2003
19.01.2004
Number: Version: Revision:
1HK0203-SP-R04-1C C
66606 St. Wendel / Germany
Title: HK0203 -- L.U.C.A.S. 600
NA = not assembled part ----- EX = exclusive part, no alternative allowed
AE250 Bass Inputs and Plugs
+
3
-
21
84 VCCVEE
IC3A
MC33078P(MOT)
+
5
-
67
IC3B
MC33078P(MOT)
D15
1N4007G
R85
150R/5W
R28
47K
R12
6K2
R59
33K R72
5K6
C31
10u/63V
C33
47pF/100V-K
+
C24
2u2/35V-T
+
C25
2u2/35V-T
C35
470u/25V
-50V
+50V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Plug6
AWG24-16-2.54
B
1
G
2
R
3
Plug9
JST-B03B-EH-A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Plug5
AWG24-16-2.54
1
2
3
4
5
6
7
8
9
10
Plug7
AWG24-10-2.54
1
2
3
4
5
6
7
8
9
10
Plug8
AWG24-10-2.54
IN A IN B
FET_DC
LIMIT_A LIMIT_B
HO2
DK-R34-B32
HO3
DK-R34-B32
HO4
DK-R34-B32
HO5
DK-R34-B32
HO6
DK-R34-B32
HO1
DK-R34-B32
D13
BZX85C_15V
HT
D14
BZX85C_15V
HT
+15V
-15V
+15V
-15V
F2
F1
BR13
0R0
AGND AGND
LIMIT_B
LIMIT_A BR3
0R0
BR11
0R0
+50V
-50V
+15V
-15V
AGND
+50V
-50V
+15V
-15V
HO9
NDK-R0-B40
HO10
NDK-R0-B40
HO8
NDK-R0-B40
HO7
NDK-R0-B40
HK1198-LP-R01, always use latest revision
R82
330R/5W
HT
R83
330R/5W
HT
T4A
T4A
BR15
0R0

1 2 3 4 5 6 7 8
A
B
C
D
8
7654321
D
C
B
A
Allrights reserved. No part ofthis schematic may be reproduced, stored in a retrieval system, transmitted in anyformor byany means, electronic, mechanical, photocopying, recording or otherwise, without the prior permission ofthe author. Filename: HK0203-SP-R04-1C-03ChannelA.sch
PCB No.:
Page:
Pages
3
4
Checked by:
Drawn by: Date:
Date:
Michael Bohlender
Michael Bohlender
07.10.2003
19.01.2004
Number: Version: Revision:
1HK0203-SP-R04-1C C
66606 St. Wendel / Germany
Title: HK0203 -- L.U.C.A.S. 600
NA = not assembled part ----- EX = exclusive part, no alternative allowed

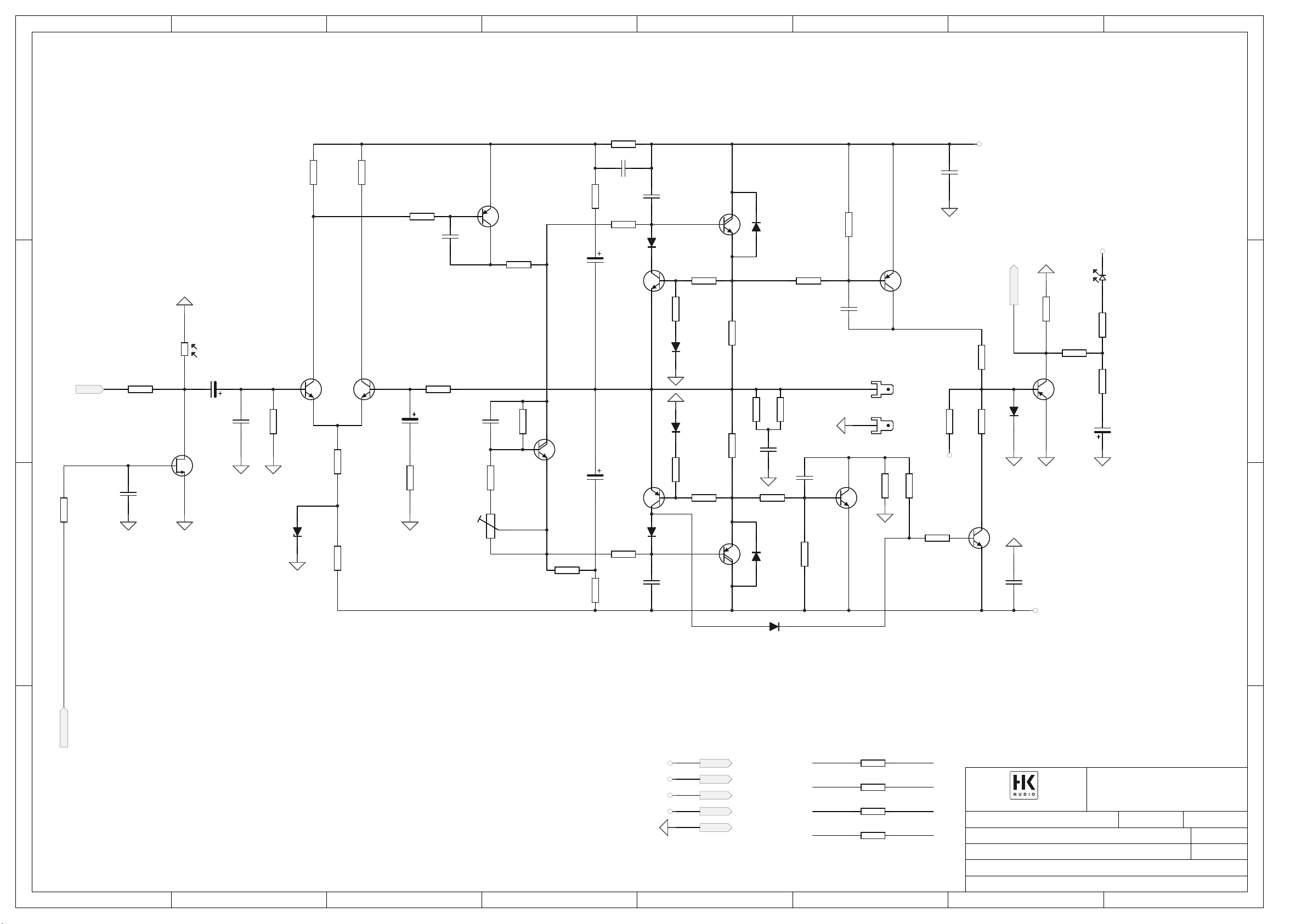

AE250 Bass Ch. APower Amp
Plug1
FASTON-4.8-ST
R8 47R/1W R9 47R/1W
C9
47n/250V
T21
BC556B
D11
1N4007G
R61
22K
T19
BC640
C27
220p/100V-K
R55
22K
R4
0R22/5W
T3
MJ11016
R56
4K7
R2
470R
R6
10K
D3
1N4007G
D19
BY500-1000
+50V
T1
BC546B
D4
1N4007G
C6 220p/100V-K
R14 0R22/5W
D2
1N4007G
D20
BY500-1000
D1
1N4007G
C10 220p/100V-K
T2
MJ11015
R1
2K2
T4
BC556B
R5
47K
-50V
D17
1N4007G
R66
22K
T22
BC639
R65
220K
R98
22K
R18
180R/2W
C2
4n7/63V
R3
470R/2W
R25
39R
C13
47u/100V
R24 1K5/1W
R26
10R
R17
1K5/1W
L R
TR1
PT10LV-10K
R7
3K9
T9
BD679
C11
220p/100V-K
R23
2K7
R27
15K
R10
560R
R22
100R
T6
BD238
C12
100p/100V-K
R21
100R
T8
BC546B
T7
BC546B
R16
100R
R15
1K5
R20
4K7
R11
5K6
D5
BZX55V_6V8
C4 220p/100V-K
C5
10u/63V
T5
BF245B
IN A
R91
100K
C40
470n/63V
C8
47n/250V
C7
47n/250V
LIMIT_A
FET_DC
R92
100K R93
330K
L R
TR3
PT10LV-500K
R90
82K
C41
1u/63V
T3_B
T3_ET2_E
T2_B
BR5
0R0
T3_B T3_B
BR4
0R0
T3_E T3_E
BR1
0R0
T2_B T2_B
BR2
0R0
T2_E T2_E
BR12
0R0
R57
33K
-50V
+50V
-50V
+15V
-15V
AGND
+50V
-50V
+15V
-15V
LIMIT_A
R86
3K3
HK1198-LP-R01, always use latest revision
C1
47u/63V
C3
47u/63V
R19
15K
C42
100n/63V
C43
100n/63V

1 2 3 4 5 6 7 8
A
B
C
D
8
7654321
D
C
B
A
Allrights reserved. No part ofthis schematic may be reproduced, stored in a retrieval system, transmitted in anyformor byany means, electronic, mechanical, photocopying, recording or otherwise, without the prior permission ofthe author. Filename: HK0203-SP-R04-1C-04ChannelB.sch
PCB No.:
Page:
Pages
4
4
Checked by:
Drawn by: Date:
Date:
Michael Bohlender
Michael Bohlender
07.10.2003
19.01.2004
Number: Version: Revision:
1HK0203-SP-R04-1C C
66606 St. Wendel / Germany
Title: HK0203 -- L.U.C.A.S. 600
NA = not assembled part ----- EX = exclusive part, no alternative allowed

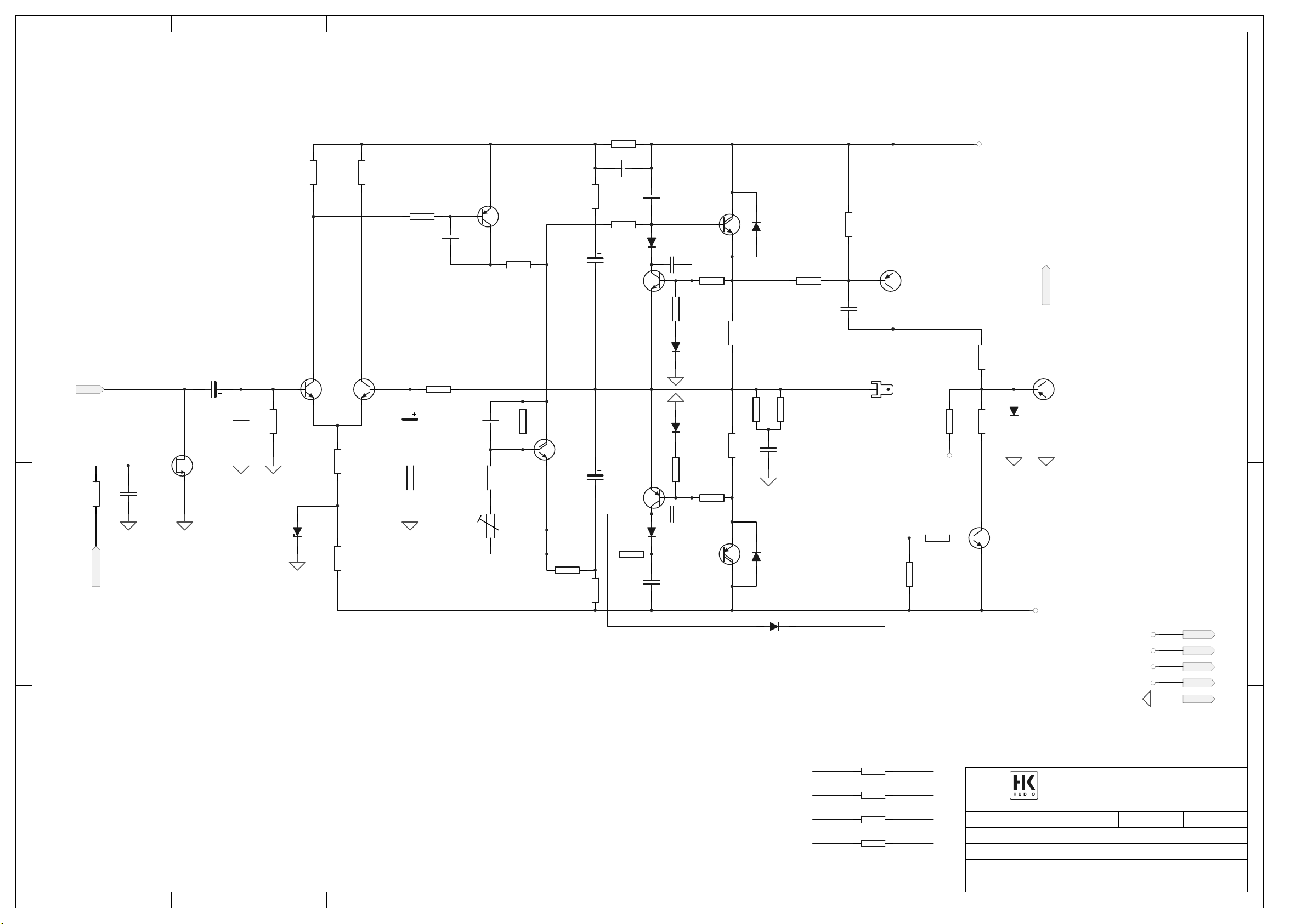

AE250 Bass Ch. B Power Amp
Plug3
FASTON-4.8-ST
R53
47R/1W
R54
47R/1W
C26
47n/250V
T23
BC556B
D12
1N4007G
R73
22K
T17
BC640
C30
220p/100V-K
R67
22K
R44
0R22/5W
T25
MJ11016
R68
4K7
R47
470R
R49
10K
D7
1N4007G
D21
BY500-1000
+50V
T15
BC546B
D10
1N4007G
C19
220p/100V-K
R45 0R22/5W
D8
1N4007G
D22
BY500-1000
D9
1N4007G
C20 220p/100V-K
T24
MJ11015
R48
2K2
T16
BC556B
R50
47K
-50V
D18
1N4007G
R78
22K
T26
BC639
R77
220K
R81
22K
R43
180R/2W
C18
4n7/63V
R51
470R/2W
R42
39R
C17
47u/100V
R40 1K5/1W
R41
10R
R39
1K5/1W
L R
TR2
PT10LV-10K
R52
3K9
T13
BD679
C14
220p/100V-K
R38
2K7
R36
15K
R37
560R
R35
100R
T12
BD238
C15
100p/100V-K
R34
100R
T11
BC546B
T10
BC546B
R31
100R
R30
1K5
R32
4K7
R33
5K6
D6
BZX55V_6V8
C23
220p/100V-K
C22
10u/63V
T14
BF245B
IN B
FET_DC
R46
4MEG7
LIMIT_B
T25_B
T25_ET24_E
T24_B
BR7
0R0
T25_B T25_B
BR6
0R0
T25_E T25_E
BR9
0R0
T24_B T24_B
BR8
0R0
T24_E T24_E
R69
33K
-50V
+50V
-50V
+15V
-15V
AGND
+50V
-50V
+15V
-15V
LIMIT_B
HK1198-LP-R01, always use latest revision
C34
10n/63V-K
C16
47u/63V
C21
47u/63V
R29
15K
C44
100n/63V
C45
100n/63V

1 2 3 4
A
B
C
D
4
321
D
C
B
A
All rights reserved. No part of this schematic may be reproduced, stored in a retrieval system, transmitted in anyform or
byanymeans, electronic, mechanical, photocopying, recordingor otherwise, without the prior permission of the author. Filename: HK0203-SP-R05-1B-01Main.Sch
PCB No.:
Page:
Pages
1
4
Checked by:
Drawn by: Date:
Date:
Michael Bohlender
Michael Bohlender
07.10.2003
20.11.2003
Number: Version: Revision:
1HK0203-SP-R05-1B B
66606 St. Wendel / Germany
Title: HK0203 -- L.U.C.A.S. 600
NA= not assembled part ----- EX = exclusive part, no alternative allowed
AE250 TOP Power Amp Unit
Date Modification Revision Name
07.10.2003 Übernahme und Anpassung aus HK1198 1A M. Bohlender
IN A
IN B
FET_DC
LIMIT_A
LIMIT_B
+50V
-50V
+15V
-15V
AGND
INPUTS AND PLUGS
IN A
LIMIT_A
FET_DC +50V -50V -15V AGND +15V
POWER AMP CHANNEL A
IN B
FET_DC
LIMIT_B
+50V
-50V
+15V
-15V
AGND
POWER AMP CHANNEL B
HK1198-LP-R01, always use latest revision
20.11.2003 R91 und C40 entfernt 1B M. Bohlender

1 2 3 4 5 6 7 8
A
B
C
D
8
7654321
D
C
B
A
Allrights reserved. No part ofthis schematic may be reproduced, stored in a retrieval system, transmitted in anyformor byany means, electronic, mechanical, photocopying, recording or otherwise, without the prior permission ofthe author. Filename: HK0203-SP-R05-1B-02Inputs.sch
PCB No.:
Page:
Pages
2
4
Checked by:
Drawn by: Date:
Date:
Michael Bohlender
Michael Bohlender
07.10.2003
20.11.2003
Number: Version: Revision:
1HK0203-SP-R05-1B B
66606 St. Wendel / Germany
Title: HK0203 -- L.U.C.A.S. 600
NA = not assembled part ----- EX = exclusive part, no alternative allowed
AE250 TOP Inputs and Plugs
T27
BC556B
R95
47K
R79
10K
R96
220K
C28
22u/50V
-50V
+50V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Plug6
AWG24-16-2.54
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Plug5
AWG24-16-2.54
1
2
3
4
5
6
7
8
9
10
Plug7
AWG24-10-2.54
1
2
3
4
5
6
7
8
9
10
Plug8
AWG24-10-2.54
IN A IN B
FET_DC
LIMIT_A LIMIT_B
HO2
DK-R34-B32
HO3
DK-R34-B32
HO4
DK-R34-B32
HO5
DK-R34-B32
HO6
DK-R34-B32
HO1
DK-R34-B32
R94
2K2
D16
BZX55V_27V
u
R84
PTC-T80/30V
+15V
-15V
F2
T4000mA
F1
T4000mA
R60
4K7
R71
4K7
BR13
0R0
AGND AGND
LIMIT_BLIMIT_A
BR11
0R0
+50V
-50V
+15V
-15V
AGND
+50V
-50V
+15V
-15V
HO9
NDK-R0-B40
HO10
NDK-R0-B40
HO8
NDK-R0-B40
HO7
NDK-R0-B40
HK1198-LP-R01, always use latest revision
R83
470R/5W
R82
470R/5W

1 2 3 4 5 6 7 8
A
B
C
D
8
7654321
D
C
B
A
Allrights reserved. No part ofthis schematic may be reproduced, stored in a retrieval system, transmitted in anyformor byany means, electronic, mechanical, photocopying, recording or otherwise, without the prior permission ofthe author. Filename: HK0203-SP-R05-1B-03ChannelA.sch
PCB No.:
Page:
Pages
3
4
Checked by:
Drawn by: Date:
Date:
Michael Bohlender
Michael Bohlender
07.10.2003
20.11.2003
Number: Version: Revision:
1HK0203-SP-R05-1B B
66606 St. Wendel / Germany
Title: HK0203 -- L.U.C.A.S. 600
NA = not assembled part ----- EX = exclusive part, no alternative allowed
AE250 TOP Ch. APower Amp
Plug1
FASTON-4.8-ST
R8 47R/1W R9 47R/1W
C9
47n/250V
T21
BC556B
D11
1N4007G
R61
22K
T19
BC640
C27
220p/100V-K
R55
22K
R4
0R22/5W
T3
MJ11016
R56
4K7
R2
470R
R6
10K
D3
1N4007G
D19
BY500-1000
+50V
T1
BC546B
D4
1N4007G
C6 220p/100V-K
R14 0R22/5W
D2
1N4007G
D20
BY500-1000
D1
1N4007G
C10 220p/100V-K
T2
MJ11015
R1
2K2
T4
BC556B
R5
47K C29
220p/100V-K
R62
22K
R63
4K7
-50V
T20
BC639
R64
22K
D17
1N4007G
R97
220K
R66
22K
T22
BC639
R65
220K
R18
180R/2W
C2
4n7/63V
R3
470R/2W
R25
39R
C13
47u/100V
R24
1K5/1W
R26
10R
R17
1K5/1W
L R
TR1
PT10LV-10K
R7
3K9
T9
BD679
C11
220p/100V-K
R23
2K7
R27
15K
R10
560R
R22
100R
T6
BD238
C12
100p/100V-K
R21
100R
T8
BC546B
T7
BC546B
R16
100R
R15
1K5
R20
4K7
R11
5K6
D5
BZX55V_6V8
R19
22K
C4 220p/100V-K
C5
10u/63V
T5
BF245B
IN A
C8
47n/250V
C7
47n/250V
Plug2
FASTON-4.8-ST
R58
4MEG7
LIMIT_A 1 2
IC1A
LT3011/2-1
R86
470R
R87
1K5
-15V
R99
47R
C36
100u/25V
34
IC1B
LT3011/2-1
R13
4MEG7
FET_DC
T3_B
T3_ET2_E
T2_B
BR5
0R0
T3_B T3_B
BR4
0R0
T3_E T3_E
BR1
0R0
T2_B T2_B
BR2
0R0
T2_E T2_E
BR12
0R0
R57
33K
-50V
+50V
-50V
+15V
-15V
AGND
+50V
-50V
+15V
-15V
LIMIT_A
HK1198-LP-R01, always use latest revision
C38
10n/63V-K
C1
47u/63V
C3
47u/63V

1 2 3 4 5 6 7 8
A
B
C
D
8
7654321
D
C
B
A
Allrights reserved. No part ofthis schematic may be reproduced, stored in a retrieval system, transmitted in anyformor byany means, electronic, mechanical, photocopying, recording or otherwise, without the prior permission ofthe author. Filename: HK0203-SP-R05-1B-04ChannelB.sch
PCB No.:
Page:
Pages
4
4
Checked by:
Drawn by: Date:
Date:
Michael Bohlender
Michael Bohlender
07.10.2003
20.11.2003
Number: Version: Revision:
1HK0203-SP-R05-1B B
66606 St. Wendel / Germany
Title: HK0203 -- L.U.C.A.S. 600
NA = not assembled part ----- EX = exclusive part, no alternative allowed
AE250 TOP Ch. B Power Amp
Plug3
FASTON-4.8-ST
R53
47R/1W
R54
47R/1W
C26
47n/250V
T23
BC556B
D12
1N4007G
R73
22K
T17
BC640
C30
220p/100V-K
R67
22K
R44
0R22/5W
T25
MJ11016
R68
4K7
R47
470R
R49
10K
D7
1N4007G
D21
BY500-1000
+50V
T15
BC546B
D10
1N4007G
C19
220p/100V-K
R45 0R22/5W
D8
1N4007G
D22
BY500-1000
D9
1N4007G
C20 220p/100V-K
T24
MJ11015
R48
2K2
T16
BC556B
R50
47K C32
220p/100V-K
R74
22K
R75
4K7
-50V
T18
BC639
R76
22K
D18
1N4007G
R80
220K
R78
22K
T26
BC639
R77
220K
R43
180R/2W
C18
4n7/63V
R51
470R/2W
R42
39R
C17
47u/100V
R40
1K5/1W
R41
10R
R39
1K5/1W
L R
TR2
PT10LV-10K
R52
3K9
T13
BD679
C14
220p/100V-K
R38
2K7
R36
15K
R37
560R
R35
100R
T12
BD238
C15
100p/100V-K
R34
100R
T11
BC546B
T10
BC546B
R31
100R
R30
1K5
R32
4K7
R33
5K6
D6
BZX55V_6V8
R29
22K
C23
220p/100V-K
C22
10u/63V
T14
BF245B
IN B
R70
4MEG7
Plug4
FASTON-4.8-ST
FET_DC
R46
4MEG7
LIMIT_B 1 2
IC2A
LT3011/2-1
3 4
IC2B
LT3011/2-1 R88
470R
R89
1K5
-15V
R100
47R
C37
100u/25V
T25_B
T25_ET24_E
T24_B
BR7
0R0
T25_B T25_B
BR6
0R0
T25_E T25_E
BR9
0R0
T24_B T24_B
BR8
0R0
T24_E T24_E
R69
33K
-50V
+50V
-50V
+15V
-15V
AGND
+50V
-50V
+15V
-15V
HK1198-LP-R01, always use latest revision
C34
10n/63V-K
C16
47u/63V
C21
47u/63V

1 2 3 4
A
B
C
D
4
321
D
C
B
A
All rights reserved. No part of this schematic may be reproduced, stored in a retrieval system, transmitted in anyform or
byanymeans, electronic, mechanical, photocopying, recordingor otherwise, without the prior permission of the author. Filename: HK0203-SP-R05-1C-01Main.Sch
PCB No.:
Page:
Pages
1
4
Checked by:
Drawn by: Date:
Date:
Michael Bohlender
Michael Bohlender
07.10.2003
27.01.2004
Number: Version: Revision:
1HK0203-SP-R05-1C C
66606 St. Wendel / Germany
Title: HK0203 -- L.U.C.A.S. 600
NA= not assembled part ----- EX = exclusive part, no alternative allowed
AE250 TOP Power Amp Unit
Date Modification Revision Name
07.10.2003 Übernahme und Anpassung aus HK1198 1A M. Bohlender
IN A
IN B
FET_DC
LIMIT_A
LIMIT_B
+50V
-50V
+15V
-15V
AGND
INPUTS AND PLUGS
IN A
LIMIT_A
FET_DC +50V -50V -15V AGND +15V
POWER AMP CHANNEL A
IN B
FET_DC
LIMIT_B
+50V
-50V
+15V
-15V
AGND
POWER AMP CHANNEL B
HK1198-LP-R01, always use latest revision
20.11.2003 R91 und C40 entfernt 1B M. Bohlender
Diodes D14 and D13 added27.01.2004 1C M. Bohlender

1 2 3 4 5 6 7 8
A
B
C
D
8
7654321
D
C
B
A
Allrights reserved. No part ofthis schematic may be reproduced, stored in a retrieval system, transmitted in anyformor byany means, electronic, mechanical, photocopying, recording or otherwise, without the prior permission ofthe author. Filename: HK0203-SP-R05-1C-02Inputs.sch
PCB No.:
Page:
Pages
2
4
Checked by:
Drawn by: Date:
Date:
Michael Bohlender
Michael Bohlender
07.10.2003
27.01.2004
Number: Version: Revision:
1HK0203-SP-R05-1C C
66606 St. Wendel / Germany
Title: HK0203 -- L.U.C.A.S. 600
NA = not assembled part ----- EX = exclusive part, no alternative allowed
AE250 TOP Inputs and Plugs
T27
BC556B
R95
47K
R79
10K
R96
220K
C28
22u/50V
-50V
+50V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Plug6
AWG24-16-2.54
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Plug5
AWG24-16-2.54
1
2
3
4
5
6
7
8
9
10
Plug7
AWG24-10-2.54
1
2
3
4
5
6
7
8
9
10
Plug8
AWG24-10-2.54
IN A IN B
FET_DC
LIMIT_A LIMIT_B
HO2
DK-R34-B32
HO3
DK-R34-B32
HO4
DK-R34-B32
HO5
DK-R34-B32
HO6
DK-R34-B32
HO1
DK-R34-B32
R94
2K2
D16
BZX55V_27V
u
R84
PTC-T80/30V
+15V
-15V
F2
T4000mA
F1
T4000mA
R60
4K7
R71
4K7
BR13
0R0
AGND AGND
LIMIT_BLIMIT_A
BR11
0R0
+50V
-50V
+15V
-15V
AGND
+50V
-50V
+15V
-15V
HO9
NDK-R0-B40
HO10
NDK-R0-B40
HO8
NDK-R0-B40
HO7
NDK-R0-B40
HK1198-LP-R01, always use latest revision
R83
470R/5W
R82
470R/5W
D13
BZX85C_15V
HT
D14
BZX85C_15V
HT
