HK Audio Lucas nano 300 User guide

www.hkaudio.com
Application Guide
Unbelievable Size.
Unbelievable Options.
Unbelievable Power.
Lucas_Nano300_Application_Guide_final.indd 1 10.01.2013 09:59:51

2
LUCAS NANO 300 is the product of the HK AUDIO engineering
division’s considerable R & D capabilities. All that collective know-
how culminated in the smallest, most efcient and most versatile
LUCAS yet.
In fact, LUCAS NANO 300 is probably the world’s smallest, lightest,
and pound-for-pound loudest PA! It can be a fullrange rig for pub
gigs, a keyboards and e-drums monitor, or a compact PA for DJs.
But whatever the scenario, LUCAS NANO 300 always delivers
clear, assertive sound, leaves a tiny footprint, and handles with
utmost ease, including the onboard mixing console.
Unbelievable Size.
Unbelievable Options.
Unbelievable Power.
Lucas_Nano300_Application_Guide_final.indd 2 10.01.2013 09:59:55

3
Acoustic Guitar ...................................4
Keyboard ............................................6
Presentation .......................................8
E-Drums ...........................................10
Party .................................................12
Desktop Recording/Gaming .............14
Home Cinema ...................................16
Accessories .....................................18
Technical Specications ...................19
Lucas_Nano300_Application_Guide_final.indd 3 10.01.2013 09:59:59

4Setup option
Lucas_Nano300_Application_Guide_final.indd 4 10.01.2013 10:00:01

5
Out Link In/Out
Sub
Mode Setup
Balance
A: Rec Out
B: CH 2 Thru
Bal.
Speaker Out
to Satellite
Speaker Out
to Satellite
Connect a 2nd
LUCAS NANO
L R
L R
L R L R Stereo
L R
A B
Mute
1 2 3
1 2 3
Channel 1 Channel 2
Acoustic Guitar
LUCAS NANO 300 gets you and your guitar heard in glorious audio
quality. Simply mount the two satellites on the subwoofer using
a speaker pole (you need the Add-On Package One for this), and
nothing more stands in the way of your performance. All you have
to do now is dial in the right balance of guitar and microphone
signals on the integrated mixing console. And the recording output
(Rec Out) lets you capture your performance for posterity. Handling
does not get any easier than this.
Lucas_Nano300_Application_Guide_final.indd 5 10.01.2013 10:00:02

6
Monitor setup option PA setup option
Lucas_Nano300_Application_Guide_final.indd 6 10.01.2013 10:00:04

7
Out Link In/Out
Sub
Mode Setup
Balance
A: Rec Out
B: CH 2 Thru
Bal.
Speaker Out
to Satellite
Speaker Out
to Satellite
Connect a 2nd
LUCAS NANO
L R
L R
L R L R Stereo
L R
A B
Mute
1 2 3
1 2 3
Keyboard
LUCAS NANO 300 lets you entertain audiences ranging up to
50people. And the best way to go about this entertaining business
is with Add-On Package One. Its tripod and speaker pole let
you align the satellites perfectly to the audience. Or you can use
LUCAS NANO 300 as your personal monitor. With the accessories
in Add-On Package Two, you can set the two satellites on a stable
base on your instrument.
Channel 1 Channel 2
Lucas_Nano300_Application_Guide_final.indd 7 10.01.2013 10:00:05

8
Setup options
Lucas_Nano300_Application_Guide_final.indd 8 10.01.2013 10:00:07

9
Out Link In/Out
Sub
Mode Setup
Balance
A: Rec Out
B: CH 2 Thru
Bal.
Speaker Out
to Satellite
Speaker Out
to Satellite
Connect a 2nd
LUCAS NANO
L R
L R
L R L R Stereo
L R
A B
Mute
1 2 3
1 2 3

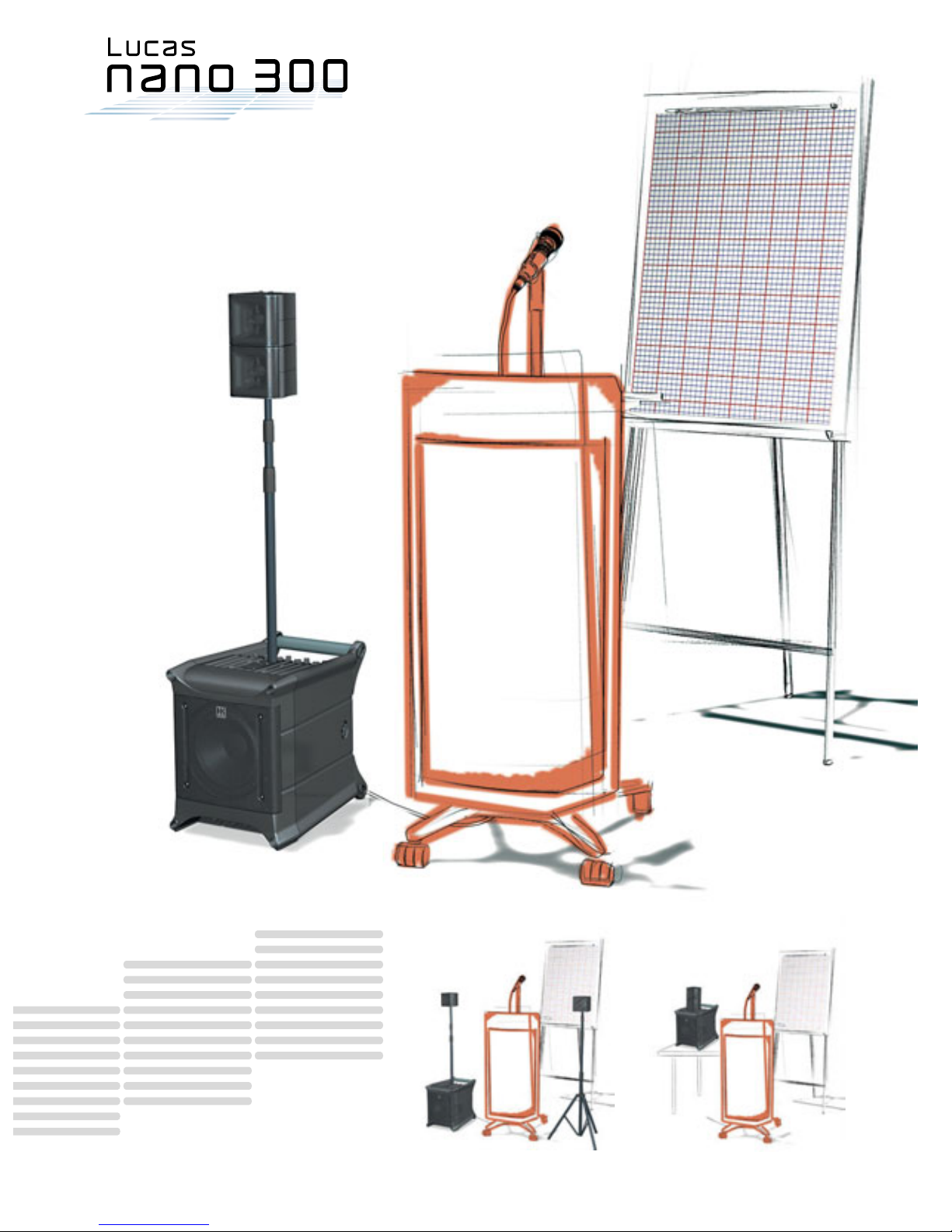

Presentation
LUCAS NANO 300 is the ideal companion for every kind of
presentation. In the most convenient case scenario, you will
need only the basic system: Simply place the two satellites on
the subwoofer and you’re good to go. Or you can use Add-On
Package One to mount the satellites on a speaker pole and/
or tripod to aim the speakers so they line up perfectly with your
audience.
Channel 1 Channel 3
Lucas_Nano300_Application_Guide_final.indd 9 10.01.2013 10:00:08

10
Setup options
Lucas_Nano300_Application_Guide_final.indd 10 10.01.2013 10:00:10

11
Out Link In/Out
Sub
Mode Setup
Balance
A: Rec Out
B: CH 2 Thru
Bal.
Speaker Out
to Satellite
Speaker Out
to Satellite
Connect a 2nd
LUCAS NANO
L R
L R
L R L R Stereo
L R
A B
Mute
1 2 3
1 2 3

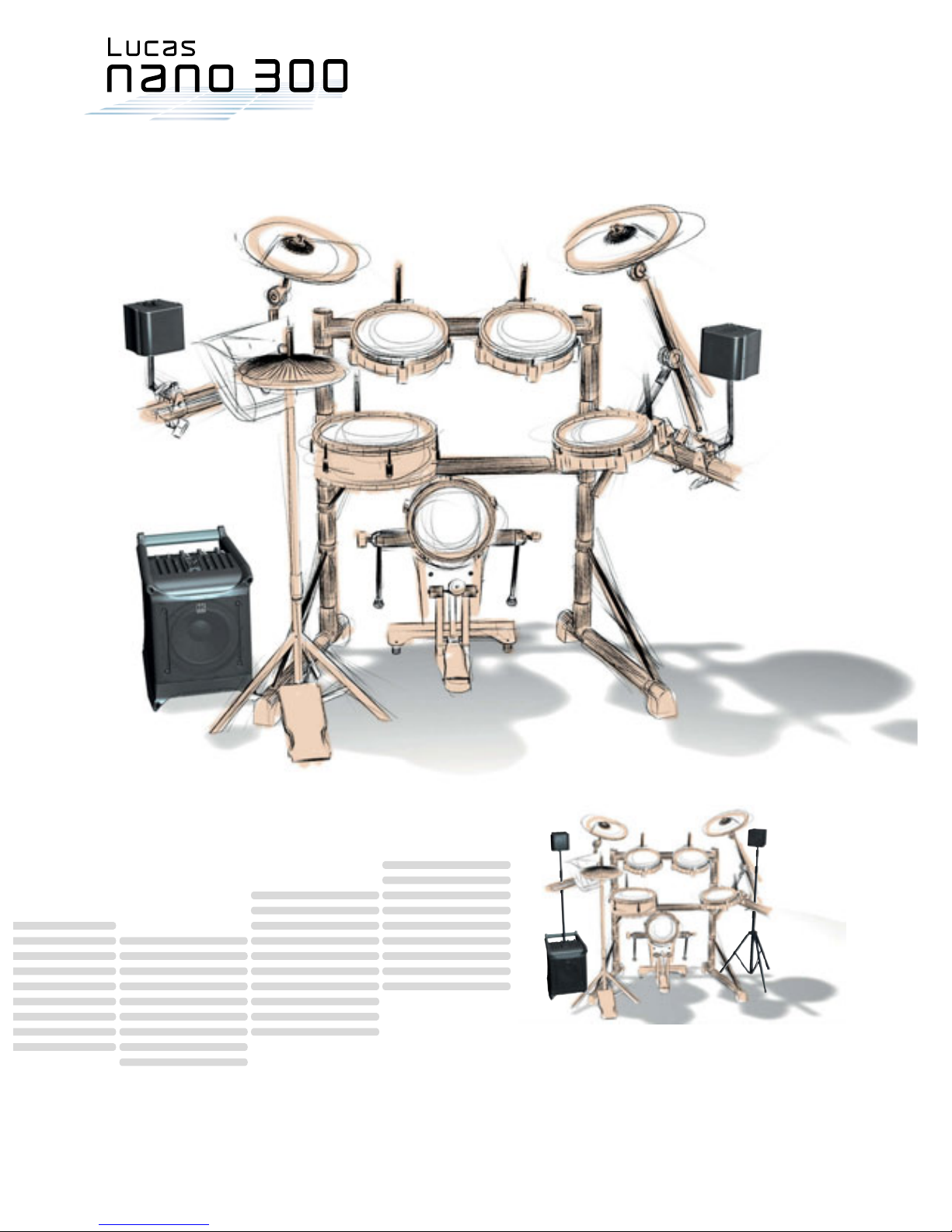

Drums
A few twists of the wrist are all it takes to turn LUCAS NANO 300
into a compact yet remarkably powerful personal monitor for your
(E) drum kit. The standard 3/8" threaded inserts in the bottom panel
let you attach satellites to your drums, directly and easily, using
adjustable clamps available from countless providers. If space is
available, the satellites can also go on a speaker pole or tripod.
Channel 2 Channel 2
Channel 3
Lucas_Nano300_Application_Guide_final.indd 11 10.01.2013 10:00:11

12
Out Link In/Out
Sub
Mode Setup
Balance
A: Rec Out
B: CH 2 Thru
Bal.
Speaker Out
to Satellite
Speaker Out
to Satellite
Connect a 2nd
LUCAS NANO
L R
L R
L R L R Stereo
L R
A B
Mute
1 2 3
1 2 3
Channel 1 Channel 2 Channel 3
Lucas_Nano300_Application_Guide_final.indd 12 10.01.2013 10:00:13

13
Out Link In/Out
Sub
Mode Setup
Balance
A: Rec Out
B: CH 2 Thru
Bal.
Speaker Out
to Satellite
Speaker Out
to Satellite
Connect a 2nd
LUCAS NANO
L R
L R
L R L R Stereo
L R
A B
Mute
1 2 3
1 2 3

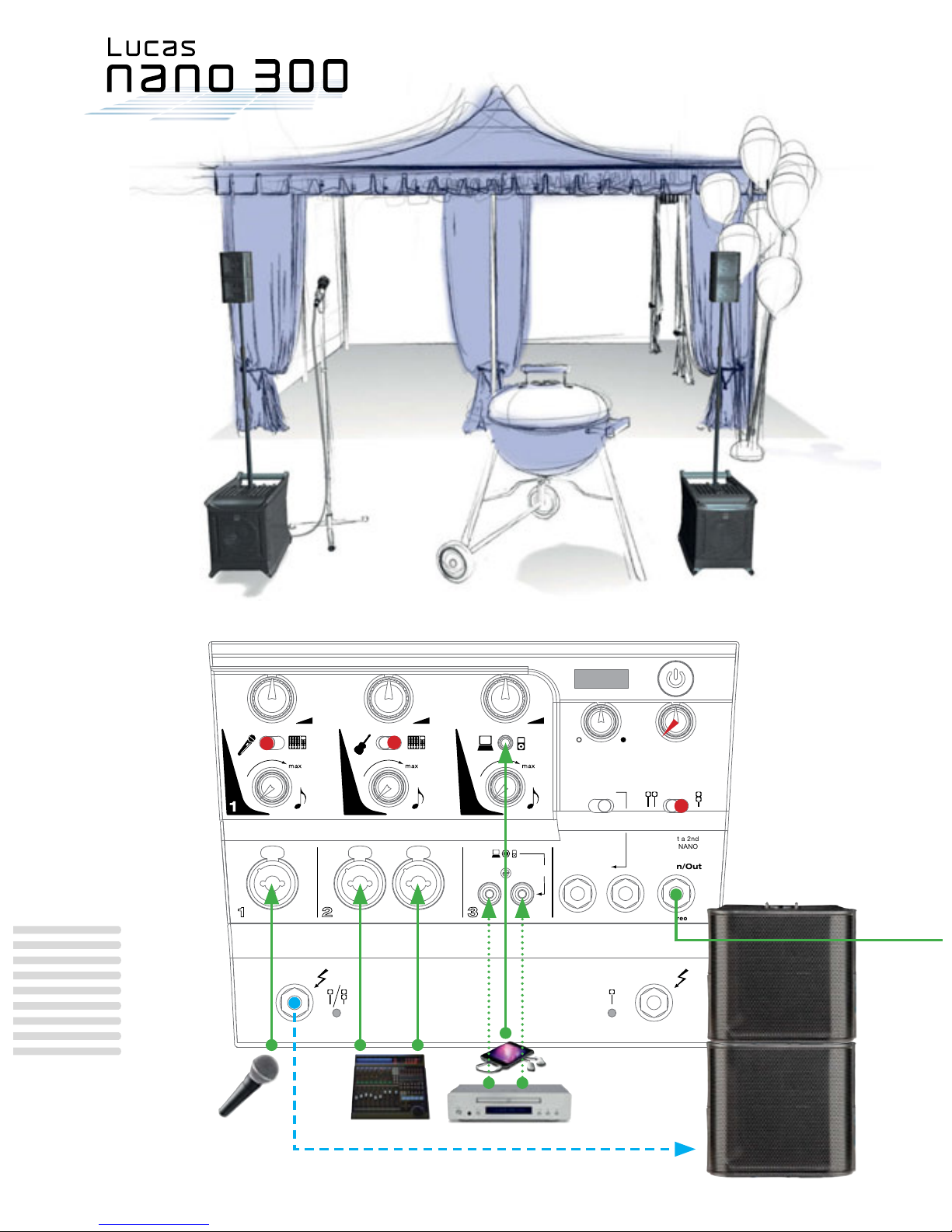

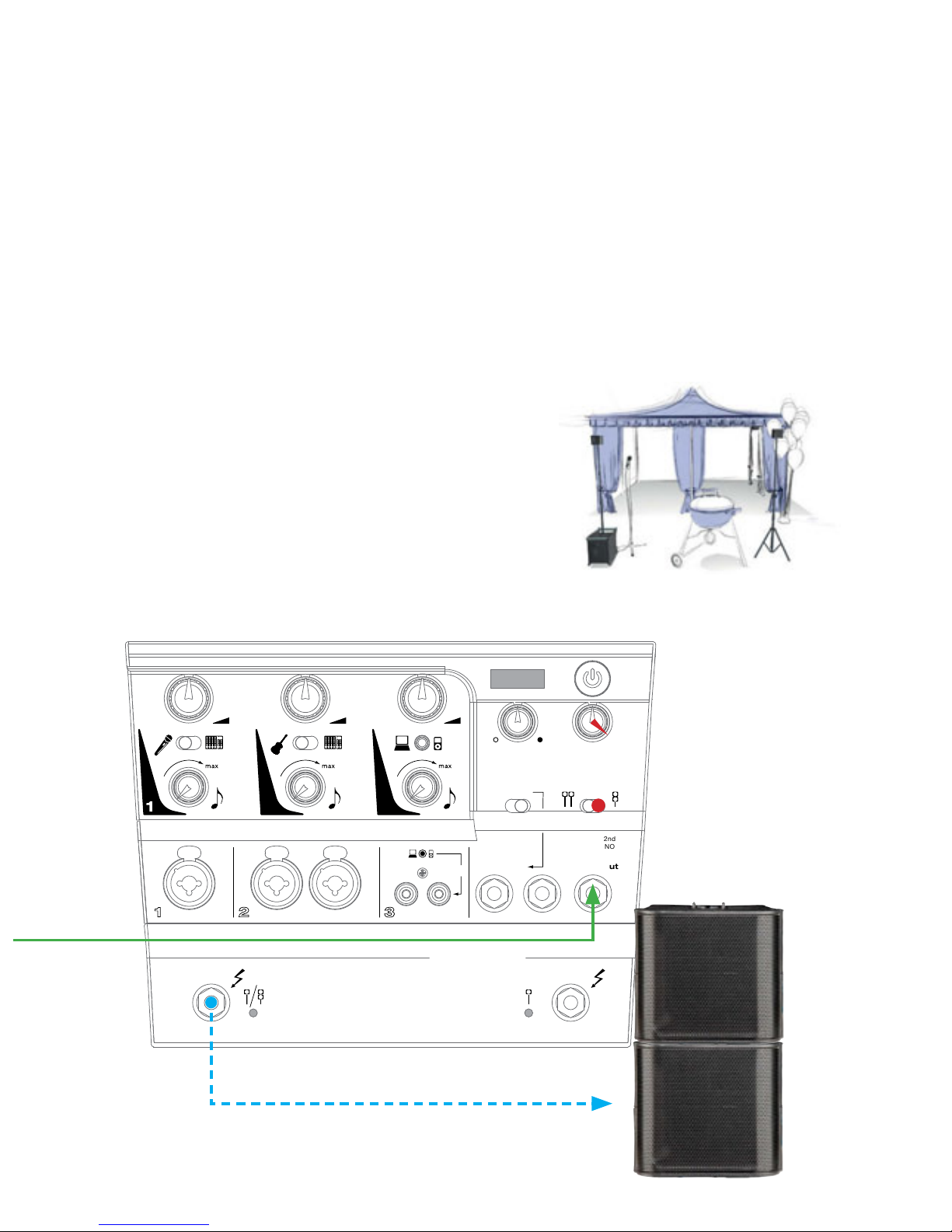

DJ/Party
If the party turns out to be a somewhat larger affair, you can simply
connect two LUCAS NANO 300 systems using a simple stereo ¼"
(6.3 mm) cord to congure one system that is twice as powerful
(2 x Compact Mono). A single system is all it takes to provide
great sound for smaller soirees and garden parties. You can set
up a stereo rig with one satellite each on a tripod and speaker
pole or opt for greater sound pressure
and increased range by joining the two
satellites together to create a compact
mono system. The choice is all yours
because the Add-On Package lets you
do both.
Stereo cable
Lucas_Nano300_Application_Guide_final.indd 13 10.01.2013 10:00:14

14
Lucas_Nano300_Application_Guide_final.indd 14 10.01.2013 10:00:15

15
Out Link In/Out
Sub
Mode Setup
Balance
A: Rec Out
B: CH 2 Thru
Bal.
Speaker Out
to Satellite
Speaker Out
to Satellite
Connect a 2nd
LUCAS NANO
L R
L R
L R L R Stereo
L R
A B
Mute
1 2 3
1 2 3

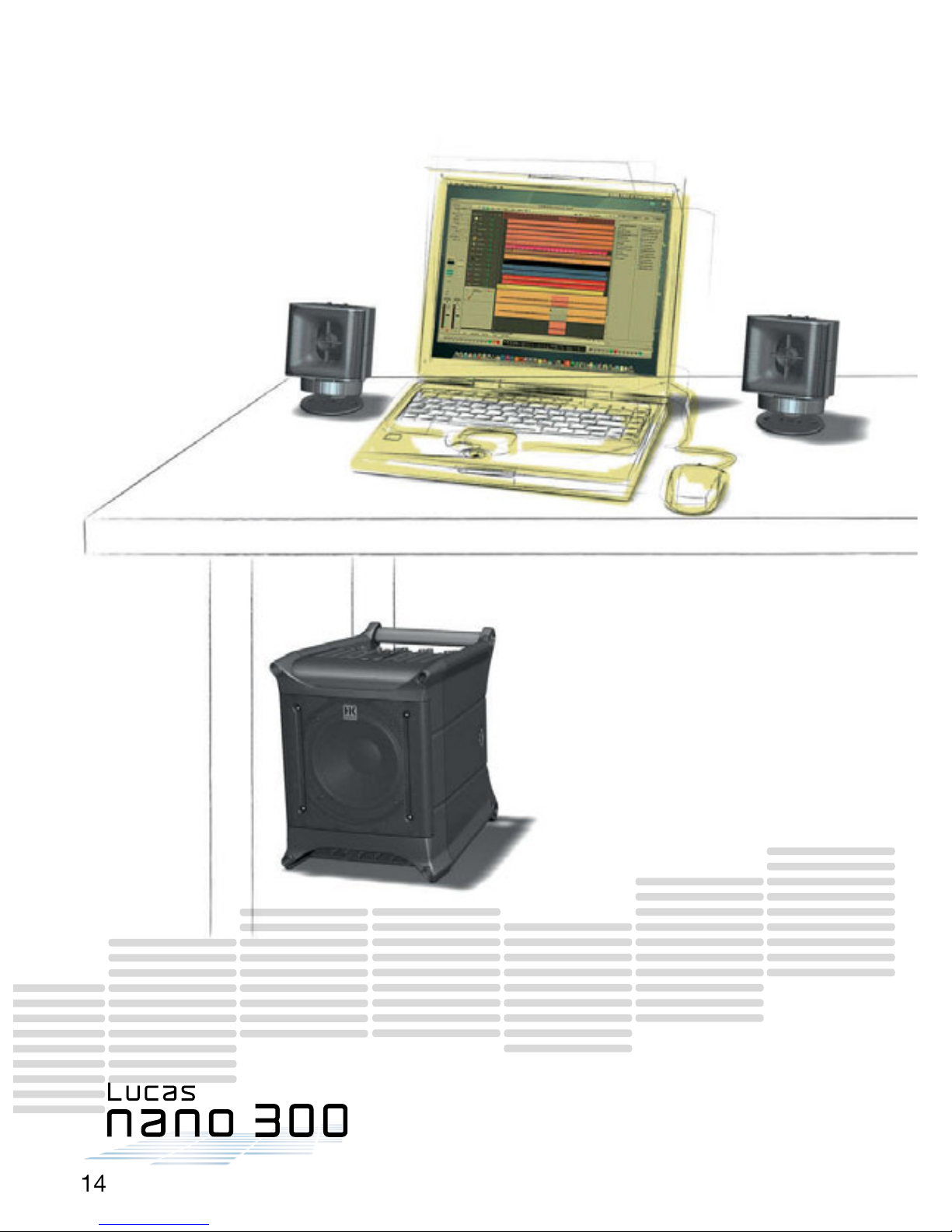

Desktop Recording/Gaming
LUCAS NANO 300 pumps up the volume of your PC multimedia
content. It’s also perfectly suitable as no-comprise, 2.1 monitoring
system for desktop recording. Add-On Package Two’s tabletop
tripods provide the perfect pedestals for the satellites on your
desk, while the subwoofer can be tucked away in an inconspicuous
spot below the desk.
Channel 2
Sound Card
Channel 3
Lucas_Nano300_Application_Guide_final.indd 15 10.01.2013 10:00:16

16
Setup option
Lucas_Nano300_Application_Guide_final.indd 16 10.01.2013 10:00:18

17
Out Link In/Out
Sub
Mode Setup
Balance
A: Rec Out
B: CH 2 Thru
Bal.
Speaker Out
to Satellite
Speaker Out
to Satellite
Connect a 2nd
LUCAS NANO
L R
L R
L R L R Stereo
L R
A B
Mute
1 2 3
1 2 3
Channel 3
Home Cinema
LUCAS NANO 300 is an excellent alternative to the loudspeakers
built into your TV set. You can set the satellites right next to the
screen or mount them wherever you wish on walls using the
combined tabletop tripod/ wall-mount in Add-On Package Two.
Lucas_Nano300_Application_Guide_final.indd 17 10.01.2013 10:00:19

18
Accessories
Setting up and toting your rig is an exercise in convenience with
our purpose-built accessory packages:
Add-On Package One
Set of:
1 x tripod base
2 x speaker pole
2 x speaker cord
Add-On Package Two
Set of:
2 x tabletop tripod/ wall-mount
Roller Bag
For easy transport
Lucas_Nano300_Application_Guide_final.indd 18 10.01.2013 10:00:31

19
* half-space
Technical Specifications
Satellite Single Double
Power output 35 W @ 8 Ω 70 W @ 4 Ω
Frequency response 190 Hz – 20 kHz 190 Hz – 20 kHz
Max. SPL @ 10% THD* 112 dB 116 dB
Max. SPL Peak* 116 dB 120 dB
Mid/high unit dispersion
pattern, horizontal/vertical
60° x 40° 60° x 40°
Dimensions (W x H x D) 13 x 13 x 11.5 cm 13 x 26 x 11.5 cm
Weight 1 kg 2 kg
Subwoofer
Power output 160 W @ 2 Ω
Frequency response 44 Hz – fx
Max. SPL @ 10% THD* 116 dB
Max. SPL Peak* 118 dB
Dimensions (W x H x D) 30 x 39 x 42 cm
Weight 8.3 kg
Lucas_Nano300_Application_Guide_final.indd 19 10.01.2013 10:00:32

For more
Information:
www.hkaudio.com/lucasnano
HK AUDIO®• Postfach 1509 • 66595 St. Wendel, Germany
[e-mail] • www.hkaudio.com
© 2013 Music & Sales P.E. GmbH
Subject to change without notice, 9880636, MS D-2544, 01/2013
