HLA SNOW SnowBlade SB3000 Series User manual
8082 Rd 129 · Listowel · ON N4W 3G8 · Canada
519-291-4162 ·1-866-567-4162 · Fax 1-519-291-5388
!
Do not attempt to operate the equipment without thoroughly
reviewing this manual for safe and proper operation.
Rev 040122 HS00114 SB3, 4, 5 & 6000 Series Snow Blades. Operator Manual.070220
Operator’s Manual
Keep this manual with the machine at all times
PRINTED IN CANADA
!
CAUTION
Operational Hazard
Personal Protection Equipment
(PPE) is required when operating
or maintaining this machine.
SNL00001
SB300010 SB600014EF
SB3000 SB4000 SB5000 SB6000
Series Snow Blades & EdgeFlex Snow Blades
see inside manual for full model listing.
2
Introduction � � � � � � � � � � � � � � � � � � � � � � � � � � � 3
Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
General Information � � � � � � � � � � � � � � � � � � � � 4
Serial Number Location � � � � � � � � � � � � � � � � � 4
Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
California Proposition 65 . . . . . . . . . . . . . . . . . . .4
Safety � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . .5
Accident Prevention . . . . . . . . . . . . . . . . . . . . . . .6
Safety Guidelines . . . . . . . . . . . . . . . . . . . . . . . . .7
Safety Training . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Storage Safety . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Operation Safety. . . . . . . . . . . . . . . . . . . . . . . . . .8
Safe Work. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Maintenance Safety . . . . . . . . . . . . . . . . . . . . . . .9
Hydraulic Safety . . . . . . . . . . . . . . . . . . . . . . . . . .9
Safety Labels � � � � � � � � � � � � � � � � � � � � � � � � � 10
Safety Label Descriptions. . . . . . . . . . . . . . . . . .10
If labels need to be replaced: . . . . . . . . . . . . . . .10
Safety Label Layout . . . . . . . . . . . . . . . . . . . . . . 11
� � � � � � � � � � 12
. . . . . . . . . . . . . . . . . . . . . . . . . . .12
Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Components and Features � � � � � � � � � � � � � 14
Main Blade Angle . . . . . . . . . . . . . . . . . . . . . . . .15
Spring Trip Cutting Edge . . . . . . . . . . . . . . . . . .15
Lateral Float . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Floating Blade Hinge . . . . . . . . . . . . . . . . . . . . .15
EdgeFlex Technology . . . . . . . . . . . . . . . . . . . . .15
Initial Setup � � � � � � � � � � � � � � � � � � � � � � � � � � 16
Attach Snow Blade . . . . . . . . . . . . . . . . . . . . . . .16
Attach Adapter Frame . . . . . . . . . . . . . . . . . . . . . . 16
Hydraulics . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Hydraulics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Test and Inspect . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Field Operation � � � � � � � � � � � � � � � � � � � � � � 18
Operation Safety Checklist . . . . . . . . . . . . . . . . .18
Prepare. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Mount the Snow Attachment. . . . . . . . . . . . . . . .19
Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Hydraulics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Test the Snow Blade . . . . . . . . . . . . . . . . . . . . . . . . 19
Snow Clearing . . . . . . . . . . . . . . . . . . . . . . . . . .20
Starting to clear snow: . . . . . . . . . . . . . . . . . . . . . . 20
Snow Clearing Tips . . . . . . . . . . . . . . . . . . . . . . . . . 20
Snow Clearing Tips - cont . . . . . . . . . . . . . . . . . . . . 21
Storage � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 22
Storage Safety Checklist . . . . . . . . . . . . . . . . . .22
Placing in Storage: . . . . . . . . . . . . . . . . . . . . . . .22
Service & Maintenance � � � � � � � � � � � � � � � � 23
Maintenance Safety Checklist . . . . . . . . . . . . . .23
General Maintenance . . . . . . . . . . . . . . . . . . . . .23
Hydraulic Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Grease: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Lubricate: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
SB3000 Series . . . . . . . . . . . . . . . . . . . . . . . . . .24
SB4000, SB5000 & SB6000 Series . . . . . . . . . .25
Adjust Spring Trip: . . . . . . . . . . . . . . . . . . . . . . .26
Wear Part Inspection & Replacement: . . . . . . . .27
Left and Right Skid Shoes (SB3000 Series) . . . . . . 27
Cutting Edge & Skid shoe . . . . . . . . . . . . . . . . . . . . 28
EdgeFlex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Rubber Cutting Edge . . . . . . . . . . . . . . . . . . . . . . . 30
Bolt Torque Table . . . . . . . . . . . . . . . . . . . . . . . .31
Trouble Shooting � � � � � � � � � � � � � � � � � � � � � 32
Accessories � � � � � � � � � � � � � � � � � � � � � � � � � 34
Rubber Cutting Edge . . . . . . . . . . . . . . . . . . . . .34
Snowblade Marker (SBM27) . . . . . . . . . . . . . . .34
Spring Hose Mount Kit (SHMK) . . . . . . . . . . . . .34
90” Hose Kit c/w Flat Faced Couplers (HK90) . .34
Floating Blade Hinge . . . . . . . . . . . . . . . . . . . . .34
Carbide Tipped Cutting Edges . . . . . . . . . . . . . .34
EdgeFlex Carbide Tipped Cutting Edge (346CCE)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Curb Runner . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Index � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 35
3
Thank you for purchasing your new HLA Snow SB series snow blade � Your SB snow blade has been designed and
manufactured to give you many years of dependable service. SB Series unique design helps to increase productivity by
SB
Each SB series snow blade mouldboard features a precision engineer curve that folds and rolls the snow for reduced
sticking, side tracking and spill over.
SB Series requires that you or any other person, who will be operating,
maintaining, or working with this product, are required to read and completely understand the information and instructions
contained in this manual.
Each of the SB series are designed to be used with matching power units:
SB3000 up to maximum 13000 lbs
SB4000 up to maximum 25000 lbs
SB5000 up to maximum 40000 lbs
SB6000 up to maximum 60000 lbs
If anyone does not fully understand every part of this manual, please obtain further assistance by contacting the dealer
from which this product was purchased, or by contacting Horst Welding with the information listed on the cover of this
manual.
Keep this operators manual available for reference by the operator, and to pass on to new owners and or operators .
This manual covers models:
Models
SB300006 SB300007 SB300008 SB300009 SB300010 SB400009 SB400010
SB400012 SB400014 SB500009 SB500010 SB500012 SB500014 SB500016
SB500018 SB600010 SB600012 SB600014 SB600016 SB600018 SB600020
SB300006EF SB300007EF SB300008EF SB300009EF SB300010EF SB400009EF SB400010EF
SB400012EF SB400014EF SB500009EF SB500010EF SB500012EF SB500014EF SB500016EF
SB500018EF SB600010EF SB600012EF SB600014EF SB600016EF SB600018EF SB600020EF
SB300010
SB600014EF
SB500018
SB400014
4
Model Number _________________________________________________________
Serial Number _________________________________________________________
The purpose of this manual is to assist you in safely operating and maintaining your SB Series in a safe manner. Read
this manual carefully to obtain valuable information and instructions that will help you achieve safe and dependable
service. The illustrations and data used in this manual were current at the time of printing, but due to possible engineering
and or production changes, this product may vary slightly in detail. Horst Welding HLA reserves the right to update and or
In this manual the SB3000, SB4000, SB5000 & SB6000 series may be referred to as SB Series, SB snow blade,
attachment or machine.
References may be made to the power unit which is the engine-driven, loader equipped machine to which this product is
attached: skid steer, telehandler, wheel loader, or tractor.
OPERATOR ORIENTATION - The directions left, right, front, and rear, as mentioned throughout this manual, are
determined when sitting in the power unit driver’s seat, and facing in the direction of travel
power units for the sole purpose of clearing snow.
The parts lists and hydraulic schematics for this product can be found online. Visit hlasnow.com and click on the PARTS
tab to be directed to our online parts catalogue.
You may see a warning label like the following:
WARNING
Cancer and Reproductive Harm
www.P65 Warnings.ca.gov
This warning is required by California Proposition 65 (Prop 65), which is meant to notify California residents of exposures
to Prop 65-listed chemicals. For more information go to ‘www.P65Warnings.ca.gov.’
The serial number for your SB series is located on the back top right side of the mould board.
Please record your serial number here as a handy reference. In case of warranty issues, your dealer will ask for the serial
number to verify your warranty.
Manufactured by
HORST WELDING
MODEL NO.
SERIAL NO.
MADE IN CANADA
5
!
This Safety Alert Symbol means:
ATTENTION!
BECOME ALERT!
-
al. When you see this symbol, read and understand the message, be alert to the potential
hazard in the message. Follow the instructions in the safety message.
Throughout this manual, the terms are used to indicate the degree of
hazard to personnel if proper safety procedures and guidelines are not followed. The appropriate term for each message
has been selected using the following guide-lines:
In the owners manual, when a hazard is present you will see a safety message box. The box may contain:
• The safety alert symbol
• The safety term
• The safety hazard
• The safety hazard explanation
When applicable you may also see the appropriate safety label displayed with the message, as shown below.
!
WARNING
Pinch Point Hazard
The top rail and beam form a poten-
tial pinch point, be aware of where
hands and feet are while adjusting
the top rail. SL00002
Safety Label
Safety Alert
Safety Hazard
Safety Term
Safety Hazard Explanation
The safety information given in this manual does not replace any safety codes, insurance needs, government, and local laws.
- Indicates an imminently hazardous situation that, if not avoided, will result in death
or serious injury, and includes most extreme situations typical for machine compon-
ents which, for functional purposes, cannot be guarded.
WARNING - Indicates a potentially hazardous situation that, if not avoided, could result in death
or serious injury, and includes hazards that are exposed when guards are removed.
It may also be used to alert against unsafe practices.
CAUTION - Indicates a potentially hazardous situation that, if not avoided, may result in minor or
moderate injury. It may also be used to alert against unsafe practices.
IMPORTANT - Indicates a situation that could result in damage to the machine or other property.
6
YOUR HELP!
YOU are responsible for the SAFE operation and maintenance of your machine. YOU must ensure that you and anyone
else who is going to use, maintain, or work around the machine be familiar with the work and maintenance procedures
and related SAFETY information contained in this manual. This manual will take you step-by-step through your working
day and alerts you to all good safety practices that should be used.
Remember, YOU are the key to safety. Good safety practices not only protect you but also the people around you. Make
with the recommended maintenance and work procedures and follow all the safety precautions. Most accidents can be
prevented. Do not risk injury or death by ignoring good safety practices.
The best accident prevention is a careful operator�
Horst Welding and your dealer ask that YOU be that careful, responsible equipment operator�
YOU ARE THE KEY TO SAFETY:
•Familiarize yourself, and anyone else
who will operate, maintain, or work around
this product, with the safety and operation
information contained in this manual.
• Read and understand the safety labeling which
appears on the machine.
•
the need arise and know how to use it.
• Pay attention to the job at hand. Do not let your mind
lose concentration on what you are doing. No accident
prevention program can be successful without the
wholehearted cooperation of the person who is
directly responsible for the operation of the machine.
•
the need arise and know how to use it.
• Reduce the risk of injury or death by following all
safety precautions and by using good safety practices.
• Accidents can to be prevented: that prevention will
come from equipment operators who accept their
complete responsibility and anticipate the results of
their actions.
• Never exceed the limits of the machine. Safety of the
operator and safe operation are the main concerns in
designing a safe product, however ignoring machine
which could have been prevented.
•Do not allow riders on the machine,
loaded or empty.
•Do not operate this machine under the
• Be responsible for the SAFE operation and
MAINTENANCE of YOUR machine.
• Wear appropriate personal protective equipment
(PPE). This list includes but is not limited to:
• Hard hat
• Heavy gloves
• Hearing Protection
• Protective foot wear
• Protective eye wear
• Safety Vest
7
Safety of the operator and bystanders is one of the chief concerns in developing and designing equipment. However,
every year many accidents occur which could have been avoided by a few seconds of thought and a more cautious
approach to handling equipment.
You, the operator, can avoid many accidents by observing the following precautions in this section. To avoid personal
injury or death, study the following precautions and insist those working with you, or for you follow them.
and accident prevention are dependent upon the awareness, concern, and proper training of personnel involved in the
operation, transport, maintenance, and storage of the machine. Refer also to safety messages and operation instruction in
the machine.
1. In order to provide a better view, certain illustrations
in this manual may show an assembly with a safety
device removed. However, equipment should never be
used in this condition. Keep all safety devices in place,
if removal becomes necessary for repairs, replace the
device prior to use.
2. Replace any safety label or instruction sign that is
unreadable or is missing. Location of safety signs is
indicated in this manual.
3. Never use alcoholic beverages or drugs which
can hinder alertness or coordination while using
this machine. Consult your doctor about using this
machine while taking prescription medications.
4. Under no circumstances should young children be
allowed to work with this machine.
5. This machine is dangerous to persons unfamiliar with
its operation. Do not allow persons to use or maintain
this unit until they have read this manual and have
developed a thorough understanding of the safety
precautions and of how it works. Review the safety
instructions with all users annually.
6. If the elderly are assisting with work, their physical
limitations need to be recognized and accommodated.
Assistants should be responsible, properly trained and
physically able persons familiar with machinery and
trained in this machine’s operations.
7. Never exceed the limits of the machine. If its ability
to do a job, or to do so safely, is in question - DON’T
TRY IT.
8. Do not modify the machine in any way. Unauthorized
may impair the function and life of the machine.
• Train all new personnel with the instructions
alongside the machine. Be certain only a properly
trained and physically able person will use the
machinery.
• Working with unfamiliar equipment can lead to
careless injuries. If this machine is used by any
person other than yourself, or is loaned or rented, it
is the machine owner’s responsibility to make certain
that the operator, prior to using:
• Reads and understands the operator’s manuals.
• Is instructed in safe and proper use of the snow blade.
• If the elderly are assisting with the work, their
physical limitations need to be recognized and
accommodated.
the machine. An untrained operator exposes himself and bystanders to possible serious injury or death.
• Operators or maintenance personnel who are not
fully able to read and understand this manual should
not operate or work on the machine until suitably
trained:
• Make certain that all operators and maintenance
personnel have complete understanding of the full
and exact contents of this manual and safety labeling.
• ALL information contained in this manual and labeling
on the machine must be conveyed CLEARLY and
FULLY, in order to be able to operate safely and
knowledgeably.
• Review the machine and instructions regularly with
existing workers.
8
1. Store the unit in an area away from human activity.
2. Do not allow children to play on or around the stored
machine.
3. Store the unit in a dry, level area. Cover if stored
outside.
4. Guard any sharp corners.
5. Ensure components and safety features are not
damaged and in good condition before storing the
machine. Make repairs now to be ready for the
following season.
6. Secure the machine to prevent unwanted movement.
1. Inspect snow blade for shipping damage. If damage
does exist, do not use. Notify your dealer immediately
to have damaged parts replaced or repaired.
2. Ensure safety guards, attach points, power unit tires
are not damaged and in good condition.
3. Inspect all fasteners that they are not loose or
missing. Ensure fasteners and wheel bolts are torqued
according to the torque chart at the back of this
manual.
4. If traveling at night, ensure provincial, state and local
laws for lighting requirements have been met.
5. Ensure that all applicable safety decals are installed
and legible.
6. Personal protection equipment (PPE) including hard
hat, safety glasses, safety shoes, and gloves are
recommended during assembly, installation, operation,
adjustment, maintaining, repairing, removal, cleaning,
clothing or jewelry to be around equipment.
7. PROLONGED EXPOSURE TO LOUD NOISE MAY
CAUSE PERMANENT HEARING LOSS!
Gas or diesel powered equipment can often be noisy
enough to cause permanent, partial hearing loss. We
recommend that you wear hearing protection on a full-
time basis. Noise over 85dB on a long-term basis can
cause severe hearing loss. Noise over 90db adjacent
to the Operator over a long-term basis may cause
permanent, total hearing loss.
8. When not attached to the power unit, secure the unit
to prevent movement.
1. NEVER allow helpers or bystanders under or near the
snow blade.
2. Make sure that the snow blade is fastened securely to
the power unit before moving.
3. Inspect all fastening devices, do not use if worn or
damaged.
4. Make sure that everyone is clear before moving the
snow blade. NEVER position yourself between the
power unit and the snow blade.
5. Do not permit riders while using this snow blade.
6. Where possible, avoid operating near ditches,
embankments and holes.
7. Snow clearing speed is dependent upon many
factors which includes but is not limited to: visibility,
obstructions and surface condition. Never exceed 15
km/h (10 mph) while clearing snow. Serious personal
injury can result from clearing at excessive speeds if
an obstruction is encountered.
8. Travelling between job sites, do not exceed 40 km/h
(25 mph). Ensure slow-moving-vehicle (SMV) emblem
has been properly installed at rear of power unit.
9. Avoid distractions and pay attention to the job at hand:
wait until it is safe to operate mobile communication
equipment such as cell phones, text messaging
devices, pagers, or two-way radios.
10. Always wear the seat belt, if equipped, when clearing
snow. Sudden contact with a hidden object can result
in serious personal injury.
11. Inspect areas to be cleared before snowfall for
potential hazards, and mark obstructions with stakes
that will be seen when snow covers the ground.
12. Always lower the snow blade to the ground when not
in use.
13. When moving in reverse, turn and look behind you
instead of relying on vehicle mirrors.
14. When exiting or entering your power unit, use caution,
the entry area may be slippery from snow and ice
buildup.
9
1. Make sure that all the components in the hydraulic
system are kept in good condition and are clean.
2. Before applying pressure to the system, inspect
for leaks at all components, and that lines, hoses ,
connections and couplings are not damaged and leak
free.
3. Do not attempt any makeshift repairs to the
clamps or cements. The hydraulic system operates
under extremely high pressure. Such repairs will
fail suddenly and create a hazardous and unsafe
condition.
4. Wear proper hand and eye protection when searching
for a high pressure hydraulic leak. Use a piece of
wood or cardboard as a backstop instead of hands to
isolate and identify a leak.
5. If injured by a concentrated high-pressure stream of
Serious infection or toxic reaction can develop from
6. Relieve pressure on hydraulic system before
maintaining or working on system.
7. All hydraulic work must be done by
personnel.
Not all work spaces are the same, but the principles
presented here can be applied to any work space.
Survey the work site, remove debris and make note of
nearby or overhead obstructions, knowing your work area
will make the clearing job easier and safer.
Where possible, avoid operating near ditches,
embankments and holes.
For worker safety a preseason site visit is recommended.
Make a site clearing plan to identify hidden obstacles,
structures and piling areas. Sudden impact from obstacles
hidden under the snow may cause injury.
Be aware of:
Bystanders or any one not directly involved with the
work are only allowed outside of the work area, minimized
hazards.
Workers helping the operator must wear the appropriate
PPE and must always make eye contact with the operator
before entering the work area. Unauthorized Workers or
bystanders are not allowed in the work area. Hazards are
present.
Operator, do not operate the snow blade outside of the
operator area.
1. Good maintenance is your responsibility, follow the
maintenance schedule. Poor maintenance is an
invitation to trouble.
2. Follow good shop practices.
• Keep service area clean and dry.
• Be sure electrical outlets and tools are properly
grounded.
• Use adequate light for the job at hand.
3. Never work under or around the snow blade unless it
is braced securely.
4. Use personal protection equipment (PPE) such as
eye, hand and hearing protectors.
5. Never adjust, service, clean or lubricate the snow
power unit.
6. Ensure hardware is torqued according to the torque
chart at the back of this manual.
7. Disconnect battery ground cable before servicing any
part of the electrical system.
10

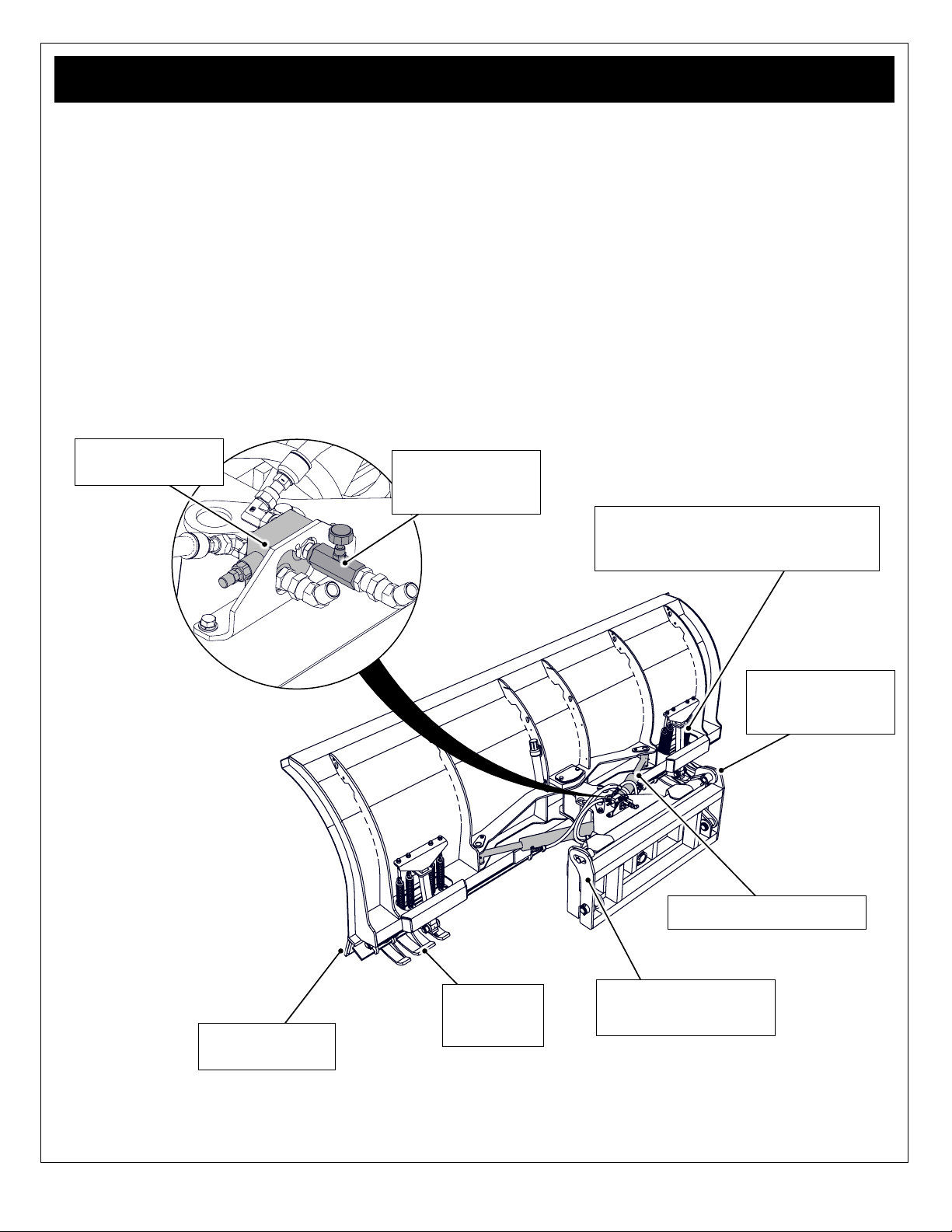

Safety labeling is an important part of the overall safe use of the snow blade. Safety labeling alerts and warns against
potential injury or death, and is important to follow these points to help keep your snow blade safe for you and others who
may be using it.
• Be sure that the installation area is clean and dry.
•
• Determine exact position before you remove the backing paper.
• Remove the smallest portion of the split backing paper.
•
• Slowly peel back the remaining paper and carefully smooth the remaining portion of the sign in place.
• Small air pockets can be pierced with a pin and smoothed out using the piece of sign backing paper.
• Keep safety signs clean and legible at all times.
• Replace safety signs that are missing or have become
illegible.
• Replaced parts that displayed a safety sign should
also display the current sign.
• Safety signs each have a part number displayed with
it. Use this part number when ordering replacement
labels.
• Safety signs are available from your authorized
distributor or the factory order desk.
SL00022
SL00004
SNL00001
Caution: read and understand ALL safety and
operating instructions in the manual, read
and understand ALL safety labels located on
the snow blade. The most important safety
device on this equipment is an informed SAFE
operator.
Caution: Personal Protection Equipment (PPE)
is required when operating or maintaining this
snow blade. Failure to wear PPE will result in
personal injury.
SL00015
Caution: Pivoting attachment, do not stand
around or between the attachment and the
power unit while the power unit is running.
Possible crushing, collision hazard.
SL00021
SL00002
Caution: Moving parts present a potential pinch
hazard and could result in a serious injury. Use
caution and be aware of parts as they are being
moved or adjusted.
Caution: do not place your hand or any part
of your body on or near the front mount while
coupling to the power unit. Parts moving
together present a pinch point and may cause
serious injury Possible laceration, crushing,
amputation hazard.
aware that hydraulic leaks could develop with
out warning. Do not check for leaks with your
serious injury could result. Possible burns or
11
Safety signs and locations on the equipment are shown in the illustrations below.
Good safety practice requires that you familiarize yourself with the label and the safety message it is delivering. Be aware
of the equipment or particular equipment feature that requires your SAFETY AWARENESS.
The SB600012 is shown but the label layout is similar for all SB series snow blades.
SL00022
SL00021
SL00021
SNL00001
SL00004
SL00015
SL00015
SL00015
SL00022
12
Model SB3000 Series SB4000 Series SB5000 Series SB6000 Series
Recommened Power
Unit Size
Minimum:2267 kg (5000 lb)
Maximum:5897 kg (13000 lb)
Minimum:5897 kg (13000 lb)
Maximum:11340 kg (25000 lb)
Minimum:11340 kg (25000 lb)
Maximum:18144 kg (40000 lb)
Minimum:18144 kg (40000 lb)
Maximum:27216 kg (60000 lb)
Mouldboard Height 30” high mould board 34” high mould board 42” high mould board 53” high mould board
Spring Trip Cutting Edge Standard - four tension springs
Horizontal Blade Angle Range
Floating Blade Range
---
+ / - 5°
angle pivot
Quick Attach
Snow Blade Crossover Relief
Valve
Snow Blade Lateral Float
Precision Engineered Mouldboard
Profile
Replaceable, Reversible Steel
Cutting Edge
AR400 Skid Shoes Standard - Adjustable Skid Shoes
EdgeFlex Technology
1-1/2” x 6” Dura-Blade Rubber
Cutting Edge
-
-
SB3QDM Quick Attach Snow
Blade Mount
SB4QDM Quick Attach Snow
Blade Mount
SB5QDM Quick Attach Snow
Blade Mount
-
Options
Standard on EdgeFlex models only - Hardox 450 or carbide tipped edges
Tungsten Carbide Tipped Cutting Edge
availalble for standard and EdgeFlex models (except SB3000EF series)
High Tensile Long Wear Skid-Shoe
Snowblade Marker
Standard - eight tension springs
Floating Blade Hinge
35° angle either direction, dual hydraulic cylinder controlled .
Yes
Standard - protects hydraulics
Standard - Fixed Skid Shoes
1-1/2” x 8” Dura-Blade Rubber Cutting Edge
90” Hose Kit c/w Flat Faced Couplers
Curb Runner (left & right side)
Standard - 5° tilt follows ground contour
Standard - folds and rolls the snow, limiting spill over
Standard - 1060 Carbon Steel Edge
13
Model
Approximate
Weight
Length Width
Width
(Angled @ 35°)
Overall
Height
SB300006 453 kg
1000 lb
106 cm
42 in
182 cm
72 in
149 cm
59 in
80 cm
31.5 in
SB300007 480 kg
1060 lb
106 cm
42 in
213 cm
84 in
175 cm
69 in
80 cm
31.5 in
SB300008 512 kg
1130 lb
106 cm
42 in
243 cm
96 in
199 cm
78.5 in
80 cm
31.5 in
SB300009 542 kg
1195 lb
106 cm
42 in
274 cm
108 in
224 cm
88.5 in
80 cm
31.5 in
SB300010 569 kg
1255 lb
106 cm
42 in
304 cm
120 in
250 cm
98.5 in
80 cm
31.5 in
SB400009 877 kg
1935 lb
114 cm
45 in
274 cm
108 in
224 cm
88.5 in
88 cm
35 in
SB400010 923 kg
2035 lb
114 cm
45 in
304 cm
120 in
250 cm
98.5 in
88 cm
35 in
SB400012 1009 kg
2225 lb
114 cm
45 in
365 cm
144 in
299 cm
118 in
88 cm
35 in
SB400014 1136 kg
2505 lb
114 cm
45 in
426 cm
168 in
350 cm
138 in
88 cm
35 in
SB500009 1109 kg
2445 lb
127 cm
50 in
274 cm
108 in
199 cm
78.5 in
107 cm
42.25 in
SB500010 1156 kg
2550 lb
127 cm
50 in
304 cm
120 in
250 cm
98.5 in
107 cm
42.25 in
SB500012 1276 kg
2815 lb
127 cm
50 in
365 cm
144 in
299 cm
118 in
107 cm
42.25 in
SB500014 1403 kg
3095 lb
127 cm
50 in
426 cm
168 in
350 cm
138 in
107 cm
42.25 in
SB500016 1544 kg
3405 lb
127 cm
50 in
487 cm
192 in
401 cm
158 in
107 cm
42.25 in
SB500018 1678 kg
3700 lb
127 cm
50 in
548 cm
216 in
452 cm
178 in
107 cm
42.25 in
SB600010 1519 kg
3350 lb
149 cm
59 in
304 cm
120 in
250 cm
98.5 in
138 cm
54.5 in
SB600012 1666 kg
3675 lb
149 cm
59 in
365 cm
144 in
299 cm
118 in
138 cm
54.5 in
SB600014 1791 kg
3950 lb
149 cm
59 in
426 cm
168 in
350 cm
138 in
138 cm
54.5 in
SB600016 1995 kg
4400 lb
149 cm
59 in
487 cm
192 in
401 cm
158 in
138 cm
54.5 in
SB600018 2134 kg
4705 lb
149 cm
59 in
548 cm
216 in
452 cm
178 in
138 cm
54.5 in
SB600020 2295 kg
5060 lb
149 cm
59 in
609 cm
240 in
502 cm
198 in
138 cm
54.5 in
Width Length
Heigth
Width (angled)
14
The SB series snow blades are designed to handle snow in a reliable, safe way. Its features make it the best choice for
getting plowing jobs done quickly and easily.
The owner or operator has the responsibility of being familiar with all the features of the SB Series and know how to
operate them. Each owner or operator must train all other operators before they start working with the machine.
By following instructions in conjunction with a good maintenance program, your SB series snow blade will provide many
years of trouble-free service.
Do not operate this machine if you are not familiar with its features.
The SB600012 is illustrated below, showing its basic components and features. Components and features are similar for
all SB series unless noted. Review the various components and their position. The names of the components will be used
to describe where they are and how they work through out the manual.
Hydraulic angle cylinders
Cutting edge spring trip
SB3000 series two dual springs
SB4,5 & 6000 series two quad springs
Abrasion
resistant skid
shoes
1060 Carbon steel
cutting edge
Adapter frame
Cross over relief
valve w/ 1/2” NPT Flow Control valve
w/ 1/2” NPT
n/a SB3000 series
Floating Blade Hinge
SB6000 series only
15
cylinder. The hydraulics are protected against impact from
hidden obstacles with a cross over relief valve. The relief
valve redirects hydraulic pressure, providing a cushion
against hazards.
35° 35°
Allows blade to follow ground contours for better
clearing performance. The blade is designed to move
characteristics even on irregular surfaces.
The SnowBlade and EdgeFlex SnowBlade feature a dual
quad spring trip system. Under normal use the springs
keep the cutting edge in place, and folds back if hidden
obstacles are encountered reducing damage to both the
snow blade and equipment.
The standard bolt on cutting edge is reversible and easily
High performance skid shoes made of hard wearing
Abrasion resistant steel are integrated into the spring trip
cutting edge to for increased performance and prolonged
SB6000 series
This allows the blade to better follow the surface contour.
Option available for SB3, 4 and 5000.
5°
5°
The SB series feature a abrasion resistant
segmented cutting edge that provides the adaptability to
maintain consistent contact over uneven surfaces. Each
individual section moves independently to provide quick
response to the changing surface.
EdgeFlex models only.
1.5" travel
5°
5°
16
To prevent potential injury during installation and to ensure safe working conditions, avoid working around the power unit
chocks, to prevent unwanted movement during the installation process.
The following describes the typical connection procedure with supplied materials. Before proceeding, lubricate all grease
This is a one time set up procedure, and will not have to be repeated.
The initial setup of the SB series snow blade involves a few basic steps.
• Attach the snow blade to the power unit.
• Install hydraulic hoses (when equipped)
• Test and inspect.
dealer would have paired up an adaptor frame for your power unit at the time of ordering. Follow the instructions below to
mount the frame on your blade.
If you purchased a HLA Quick Attach Snow Blade Mount, then follow the install instructions for the SBQ Quick Attach
Follow the instructions that came with your power unit to attach the snow blade. This ensures a safe and secure
attachment to the power unit.
!
CAUTION
Heavy or bulky parts
Prevent potential strain injury, use approved
lifting equipment or ask for help when lifting or
moving heavy, bulky parts.
!
CAUTION
PinchPoint
Do not place your hand or any
part of your body on or near the
snow blade frame while coupling
is in progress. SL00002
Adapter frames are shipped separate from your blade, and require
some minor assembly.
• At the center bottom of the adapter frame, remove the bolt, lock-
washer and frame pin retainer plate.
• Remove the frame pin assembly.
• Apply some grease on the front and rear of the rounded portions of
the sub frame main plate.
• With a helper, carefully place the adapter plate over the sub frame
main plate.
• Liberally apply a good quality aluminum based anti-seize lubricant
to the frame pin assembly.
• Insert the frame pin assembly into the adapter frame and align the
pin head with the gusset.
• Assemble the bolt, lock-washer and frame pin retainer plate.
• Secure and torque the bolt as required (see torque chart).
• Apply grease to the grease zerks on the frame, and ensure the
Adapter frame
Frame pin
assembly:
apply anti
seize lubricant
Sub frame
main plate
17
Coupler
Mount
!
CAUTION
Operational Hazard
product may contain air or an
to remove all the air from the hydraulic cylinders can
cause dangerous uneven, jerky cylinder movement
during use or unwanted cylinder movement when not
being operated.
!
CAUTION
Operational Hazard
Do not lock the auxiliary hydraulics in the
“ON” position, dangerous and unexpected
movement will occur.
!
WARNING
High Pressure Hazard
Be aware that hydraulic leaks
could develop with out warning.
Do not check for leaks with your
pressurized
SL00015
Cross-over
relief valve
Hydraulic
connectors
Hydraulic connections from the power unit to the SB snow blade are made at the snow blade. Hydraulic hoses and
connectors from the snow blade to the power unit is the responsibility of the owner.
The following describes the typical connection procedure, however customizing the connections is possible (mid mount
loader valve, etc) and is up to the customer. See your power unit manual on how to operate your auxiliary hydraulics.
Caution: only
• The hydraulic hoses must be:
• Good quality, 3000 psi min
•
• 3/8 i.d. minimum.
• Snow blade end of the hose must have 1/2” NPT
•
ports.
• At the power unit, route the hydraulic hoses from the
power units auxiliary remote hydraulic connections to
the SB snow blade connection at the cross over relief
valve.
• Do not lock the auxiliary hydraulics in the “ON”
position unless your snow blade has the optional HLA
Wired Joystick Control, open center valve kit.
• Ensure the hydraulic hose is secured and protected
from snags, crimping or pinching.
• Mark the connections appropriately on the hoses.
Once the SB is securely attached and hydraulics connected test the function of the hydraulics. Ensure there are no
bystanders in the working area around the snow blade or power unit to avoid potential injury.
Check clearances for the hydraulic hoses and wire harnesses, rotate blade left and right and look for any interference.
components several times, fully cycle through their range of motion until all air has been completely removed from all
components.
18
9NEVER allow bystanders near snow blade while
mounting.
9When not in use, lower the snow blade to the ground.
9Inspect all fastening devices, do not use if worn or
damaged.
9Ensure your power unit equipment is properly rated
for the snow blade model.
9Be familiar with the work area for hidden obstructions.
following recommended procedures, a safe working environment is provided for the operator, bystanders and the area
around the work site. Not all situations and conditions can be addressed, proceed with care & caution and use safety as
your guide.
The owner or operator has the responsibility of being familiar with the operation of the SB series and must train all other
operators before they start working with the snow blade.
Work in a safe manner and follow all instructions exactly, safety is everyone’s business. Untrained operators are not
9Make sure that everyone is clear before moving the
snow blade.
9Do not allow anyone between the power unit and the
attachment while it is running.
9Where possible, avoid operating near ditches,
embankments and holes.
9Inspect power unit for safe operating condition, check
that brakes, lighting, beacons and indicators are
operational, and wear a seat belt.
• Training: each operator must be trained and familiar
with the set up and operation of the equipment and its
components. Review:
• Components and Features
• Operation Safety Checklist
• Power unit operators manual
• For worker safety and prevent equipment and property
damage, a preseason site visit is recommended.
Make a site clearing plan to identify hidden obstacles,
structures and piling areas.
• Survey the work site, remove debris and make note of
nearby obstructions.
• Review your particular method of attachment, ensure
attachment easier and safer.
• Clear the area of bystanders, especially small children.
• It is recommended that operators and helpers wear
appropriate Personal Protective Equipment (PPE).
PPE equipment is designed to prevent injury to any
personnel in the area. This list includes but is not
limited to:
• Safety shoes with slip resistant soles.
• Safety glasses.
• Hearing protection.
• Heavy or leather gloves.
• Safety vest.
• Before use, inspect the snow blade (see service &
maintenance section) and check the following:
• All nuts, bolts and screws and ensure they are all
properly secured.
• Hydraulic connections and hoses for leaks and
properly secured.
• Periodic maintenance has been performed.
!
CAUTION
Prepare
Read and understand ALL safety and
operating instructions in the manual,
read and understand ALL safety
labels located on the machine.
SL00004
!
CAUTION
Operational Hazard
Personal Protection Equipment
(PPE) is required while assembling
or maintaining this machine.
SNL00001
19
Mount the Snow Attachment
Ensure your quick attach system is secure.
• Position the hydraulic connectors away from the quick
attach points to prevent damage from pinching.
• Prepare your particular quick attach system.
• With the power unit, slowly approach the snow
attachment, carefully align the quick attach with the
snow attachment.
• Engage your quick attach adapter and hook onto the
snow blade.
• Close and secure any locks or pins to lock the snow
blade to the quick attach.
!
CAUTION
Operational Hazard
Always ensure the quick attach locks or pins
are engaged. A disengaged snow blade could
slip out of the quick attach.
!
CAUTION
Heavy or bulky parts
Prevent potential strain injury, use approved
lifting equipment or ask for help when lifting or
moving heavy, bulky parts.
Connect the hoses from the snow blade hydraulics to the
auxiliary hydraulic connectors on the power unit.
• Connect the two hydraulic hoses to the auxiliary
hydraulic connectors.
• Check connections and test for function.
Auxiliary hydraulic
connectors
Hydraulic hoses
from snow blade
!
WARNING
High Pressure Hazard
Be aware that hydraulic leaks
could develop with out warning.
Do not check for leaks with your
pressurized
SL00015
1. Inspect that all are securely attached and in place.
• Hydraulic connections.
• Quick attach points and locks.
2. Test the functions of the hydraulics .
• Rotate mouldboard left and right..
3. Check for any interference with the hydraulic hoses.
The SB series snow blade is now ready for operation.
20
Once the SB series snow blade is mounted and tested it is ready for snow clearing operations.
combination of variables:
• Power unit characteristics.
• Condition and type of surface to be cleared.
• Your experience using the SB series snow blade.
Knowing the capabilities and features of your power unit and snow blade, coupled with your experience is the best way to
• Ensure the snow blade is parallel to the surface,
not curled too far forward or back, to ensure the snow
rolls and folds properly
• Chose a blade angle.
• Lower the snow blade, ensure the mouldboard rests
squarely on the surface, cutting edge and skid shoes
are even.
•
to speed.
• As you near the far side of the row, reduce speed and
raise the blade to help stack the snow.
Parallel to
the surface
!
CAUTION
Operational Hazard
WARNING: Always wear seat belt when
clearing snow. Sudden contact with a hidden
object can result in serious personal injury.
site clearing plan.
• Before snow even begins to fall, use stakes or wands
to mark the edges of places that need to be cleared,
so that you can clear safely and neatly without
damaging the surrounding lawns. You can also mark
hydrants, utility boxes, gas meters, sewer vent pipes,
etc
• Clearing requires a safe, manageable speed limit,
generally no greater than 15 km/h (10 mph). Faster
speed reduces your visibility by pushing or blowing
snow onto the windshield. If you hit an obstruction
while clearing, the faster you’re going, the greater the
potential for personal injury or damage to equipment.
•
mailboxes, property, and parking areas.
• Use caution when clearing next to curbs.
•
during the storm rather than letting snow accumulate.
Deep snow is heavy and unmanageable to move,
costing time and increasing wear on equipment
• Remove snow before it becomes too wet. Wet snow
is much heavier and could add extreme mechanical
stress to the snow blade.
• If snow accumulates, it may be necessary to raise
area is cleared. Work small areas in multiple passes
to push snow to outer edges.
• Allow the snow depth and water content to determine
the width of your pass, or how much blade overlap
you use for each pass. Move just enough snow with
equipment, the blade or vehicle.
