HNCSMILE C80 User manual
User Manual
C80
Mini PC Box
GETTING STARTED
1. Turn on your TV / Monitor, change video output to
HDMI.
2. Connect mini PC box to HDMI port of your TV / Monitor
with the HDMI cable.
3. Connect mini PC box to power by using AC power
adapter. Check that LED indicator is on.
USING YOUR MINI BOX
1. Press power key and hold it for 5 seconds, Start screen
will appear.
2. To turn off the device, press power key and hold it for
10 seconds.
Note: Never unplug the power adapter to turn off device.
ENTERING DESKTOP
1. Recovery: Choose “See advanced repair options”.
2. Choose an option: “Continue”.
3. Choose Region and Language.
4. Choose “Personalize”.
5. Get online: please don’t choose network, just skip it.
6. Settings.
7. Your account.
8. Start screen.
9. Connect to network.
TROUBLESHOOTING
Unable to connect to wireless network
Make sure that you are within network range and signal
strength is good. And double check network and password.
Unstable Operation
Installing too many apps or apps from unknown sources
can cause system instability. Reset device and uninstall
some apps.
Black Screen, unable to turn mini box on
Connect your mini box to the AC power outlet,
Restart the device.
No Sound in Headphones
Increase the volume.
Check headphone cable connection.
Check if headphone jack is dirty.
Try another headphone.
Right click on the speaker icon in the bottom right corner,
choose ”Playback Device”–“Sound”–“Playback Options” -
"Intel SST Audio Device". Right click "Intel SST Audio
Device" and choose “Set Default Device”.
If you have other problems, please send email to:
TECHNICAL SPECIFICATIONS
Processor: Quad-Core Intel Atom processor Z3735F
Graphic:Processor provides 2D and 3D acceleration
Operating System: Windows 10
Memory: 2GB DDR3 RAM
Storage: 16GB/32GB eMMC
Wireless LAN: Wi-Fi 802.11 b/g/n
Built-in Bluetooth：V4.0
Micro SD Cardslot：up to 32GB compatible
Ports: 1*micro USB, 1*3.5mm mini audio jack, 2*USB
1*micro HDMI, 1*TF card slot
Battery: Li-Polymer battery, around 3 hours of work
without external power supply
Operating Environment: 5℃to 35℃Celsius
Relative Humidity: 10%-75%
Dimensions:152.7*82.5*11.5mm
Weight: 250g
HNCSMILE reserves the right to change or improve its
products and to make changes in the content of this
manual without obligation to notify any person or
organization of such changes or improvements.
Information in this document is subject to change without
prior notice.
DECLARATION
The user manual includes all the information of safe and
correct operation instruction. To avoid accident and
product damage, please study the manual carefully before
using the device.
1. Please keep the device away from high temperature,
humid and dusty environment.
2. Do not drop or crash the device.
3. Do not cut off the device when it is under formatting or
upgrading, otherwise system error will occur.
4. Do not dismantle the device or clean it with alcohol,
thinner or benzene.
5. We reserve the right to upgrade and modify the
product.
6. Disclaimer: we only provide warranty and after-sale
service of the device hardware. We are not responsible for
any data loss.
7. Device is not water-proof.
8. All pictures in the manual are for reference only.
WINDOWS
User manual for HNCSMILE C80 mini box
This manual explains the basic operations of HNCSMILE
C80 mini box. If you are looking for detailed information
on Windows 10, please visit the website:
http://windows.microsoft.com/en-gb/windows-
10/getstarted-whatsnew
Before you begin
Thank you for choosing HNCSMILE C80 mini box. We wish
you like the device.
HNCSMILE C80 mini box is a multi-purpose device, and
can be used for work, education and entertainment.
Thanks to its minimal size and light weight you can now
go online everywhere without having to carry along the
usual more bulky personal computers . Clear and intuitive
interface helps you navigate the menu at ease. Please
read the user guide and keep it for further reference. The
user guide contains important information regarding safe
and effective use of the mini box.
Product & Accessories
1. 1*HNCSMILE C80 MINI BOX
2. 1*HDMI Cable
3. 1*AC Power Adapter
4. 1*User Manual

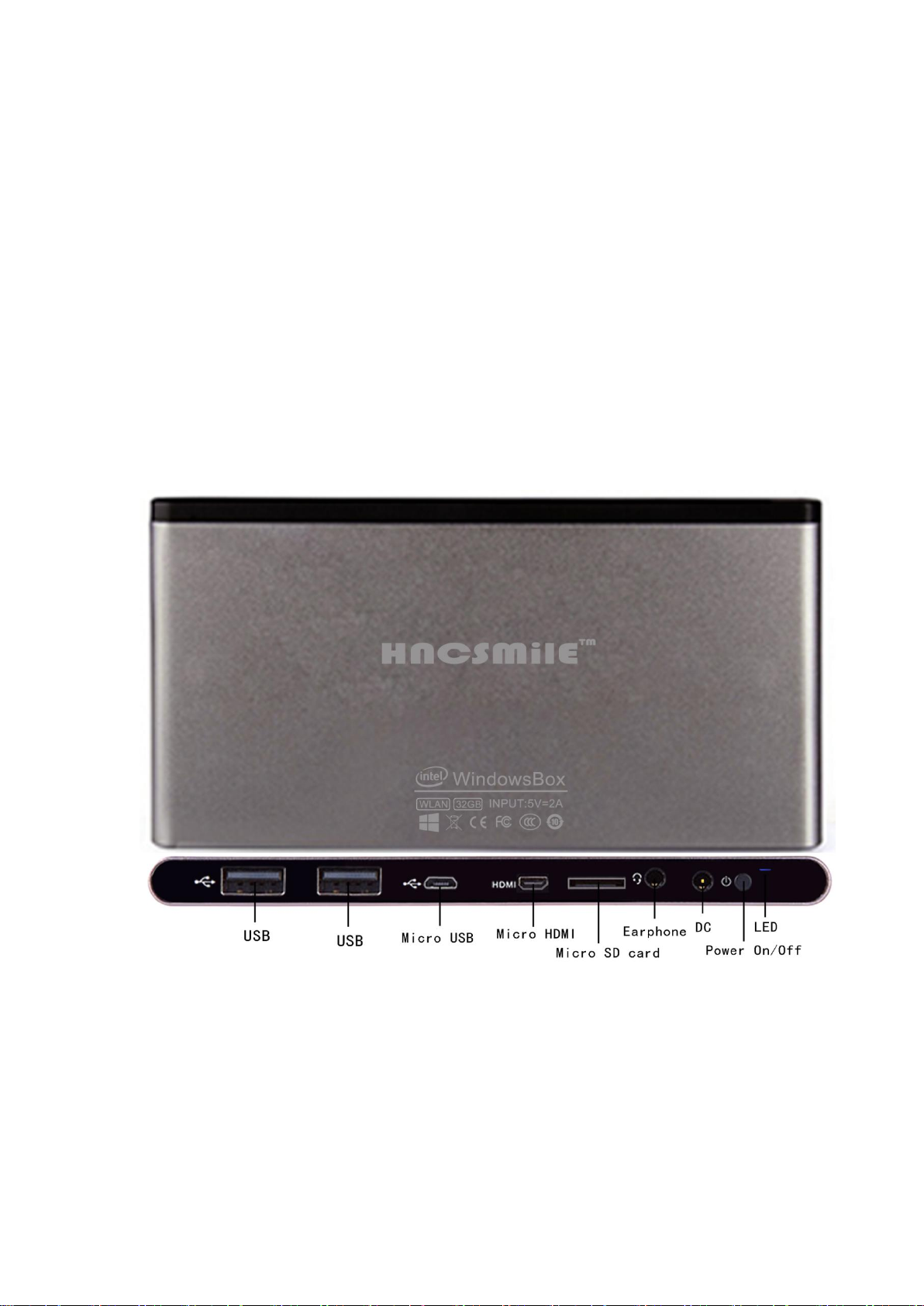

PRODUCT OVERVIEW
Parts and buttons of the device

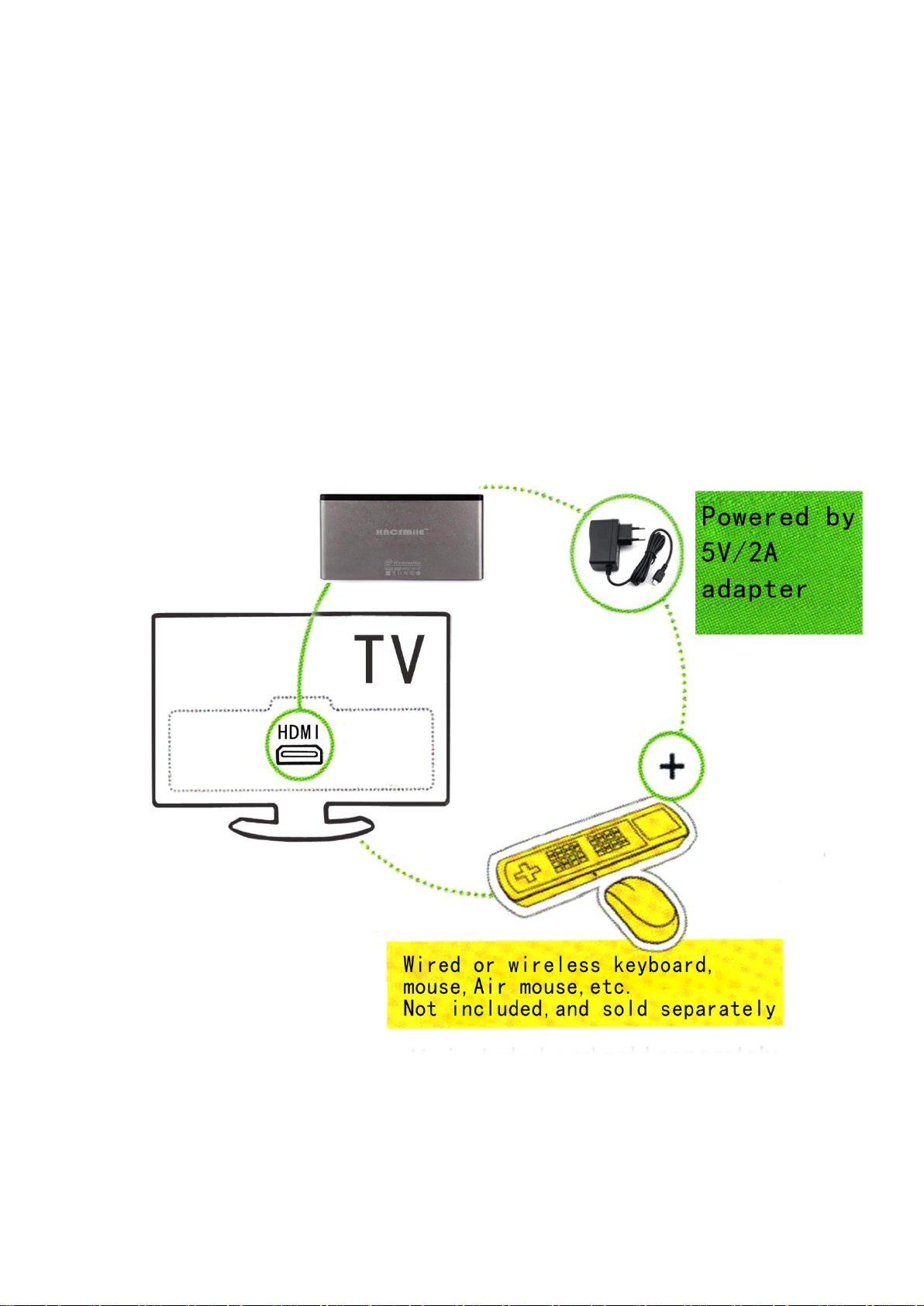

PRODUCT CONNECTION
Connect C80 mini PC box to HDMI port of your TV /
Monitor with the HDMI cable. Then connect mini PC box
to power by using AC power supply. Finally connect the
input device(wired or wireless mouse, etc) to the USB
connector of your C80 mini box.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
