HNE Aviation CAFS 50 User manual

MADE IN GERMANY
www.hne.ag

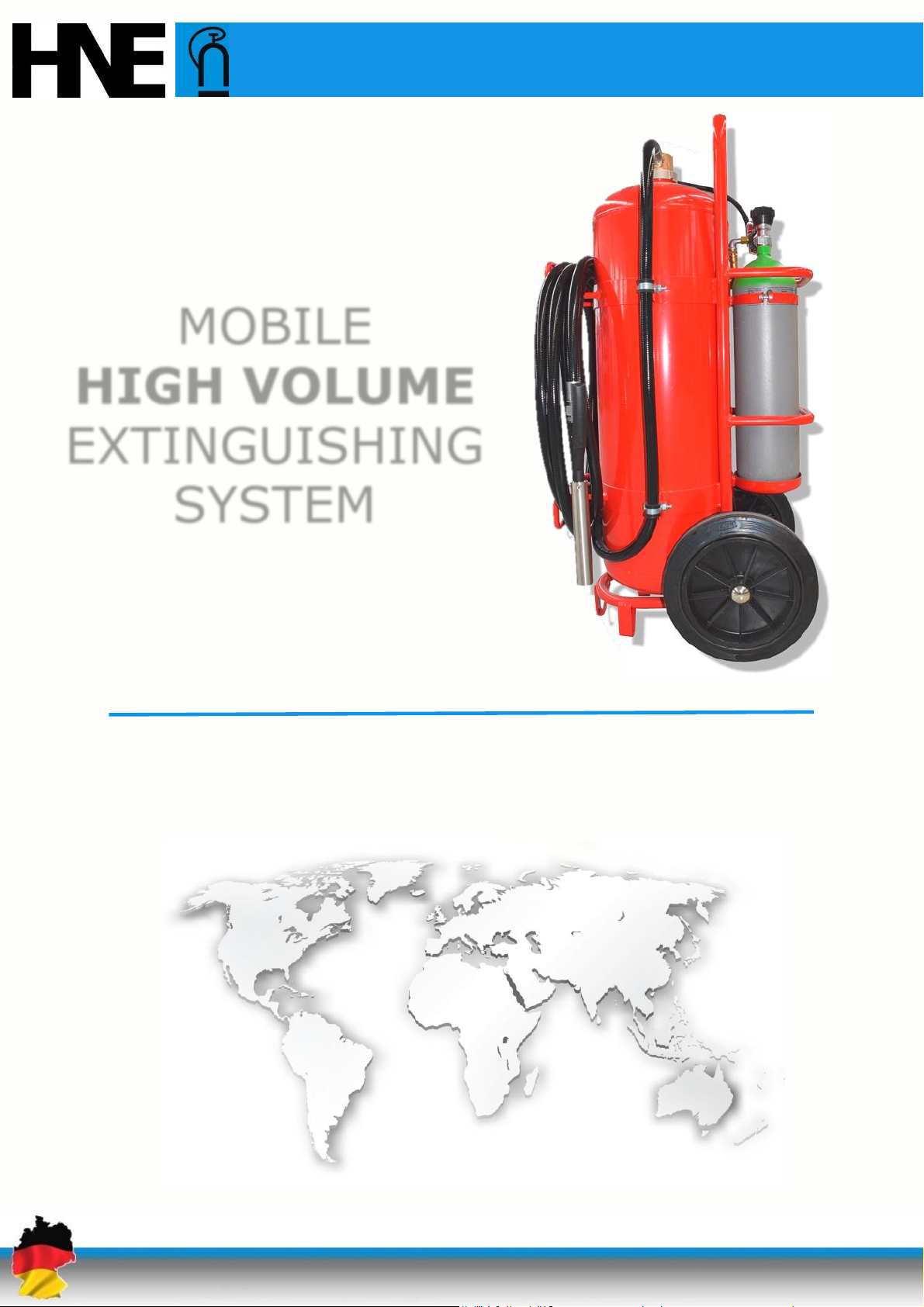

OPERATING INSTRUCTIONS
MOBILE
HIGH VOLUME
EXTINGUISHING
SYSTEM
CAFS
Aviation

MADE IN GERMANY www.hne.ag
Aviation CAFS 50
Content Page
Important information........................
Symbols and warnings........................
Unpacking.........................................
Device overview.................................
Storage.............................................
Extinguishing agents...........................
Filling................................................
Replacing the pressure bottle...............
Applying the system............................
Optional jet gun.................................
Service and maintenance.....................
Legal inspections................................
Technical data....................................
Warranty...........................................
Declaration of conformity.....................
Contact.............................................
Servicing notes..................................
1
2
2
3
4
4
5 - 6
7 - 8
9
10
11
12
13
14
15
16
17

MADE IN GERMANY
www.hne.ag
Important basic information
thank you for choosing one of our products. You have acquired
a premium class fire fighting device, worldwide known for
superior performance and highest quality.
This manual will help you to keep operational readiness and
lifespan of your extinguisher on highest level and to take full
advantage of its technical superiority. Please read it carefully
before using the extinguisher for the first time. In case of
questions or technical problems, please contact us.
Reliability and performance of the Aviation-CAFS system exceed
toughest demands for professional use. The extra high and
constant working pressure offers excellent fire rating and
increased safety and capabilities for fire fighters during action.
Dear customer,
This manual is an important part of the extinguisher. It refers
to safe and proper use of the device in the interest of safety.
It has to be accessible for users and must be passed on in
case of sale.
We assume no liability for injuries, damage or malfunctions,
which arise due disregard of these user instructions.
The warranty for this device applies for flaws of material,
assembly, quality and function. It is void if the device is not
applied, operated and maintained as described.
Without our written permission, no content of this manual
shall be reproduced or forwarded to others. All technical
specifications and illustrations are subject to copyright.
Technical modifications are subject to change without notice.
Aviation CAFS 50

MADE IN GERMANY www.hne.ag
Symbols and meaning
Important information is highlighted with the following icons.
Please note them with particular attention in the interest of safety.
Indication of possible danger. Disregard can result in
damage or hazard to device, vicinity, operator or other
persons.
Important information for proper use and handling of
extinguisher, necessary tools, accessories and supplies.
Warning of possible hazards by pollutants and chemicals.
Legal requirements for protection of environment must
be observed.
Additional information, advice and recommendations.
•Extinguisher with chassis, bottle holder, hose holder
•10 meters of hose with jet gun
•Plastic bottle with foam concentrate, portioned for first filling
•compressed air cylinder, 6.8 liters, steel
•hook wrench
Scope of delivery
Unpacking
The whole packing material is recyclable, please dispose
of it in an environmentally responsible way. Check the
condition of packaging and content upon delivery and
contact us immediately in case of damage to the device
due transport.
Aviation CAFS 50

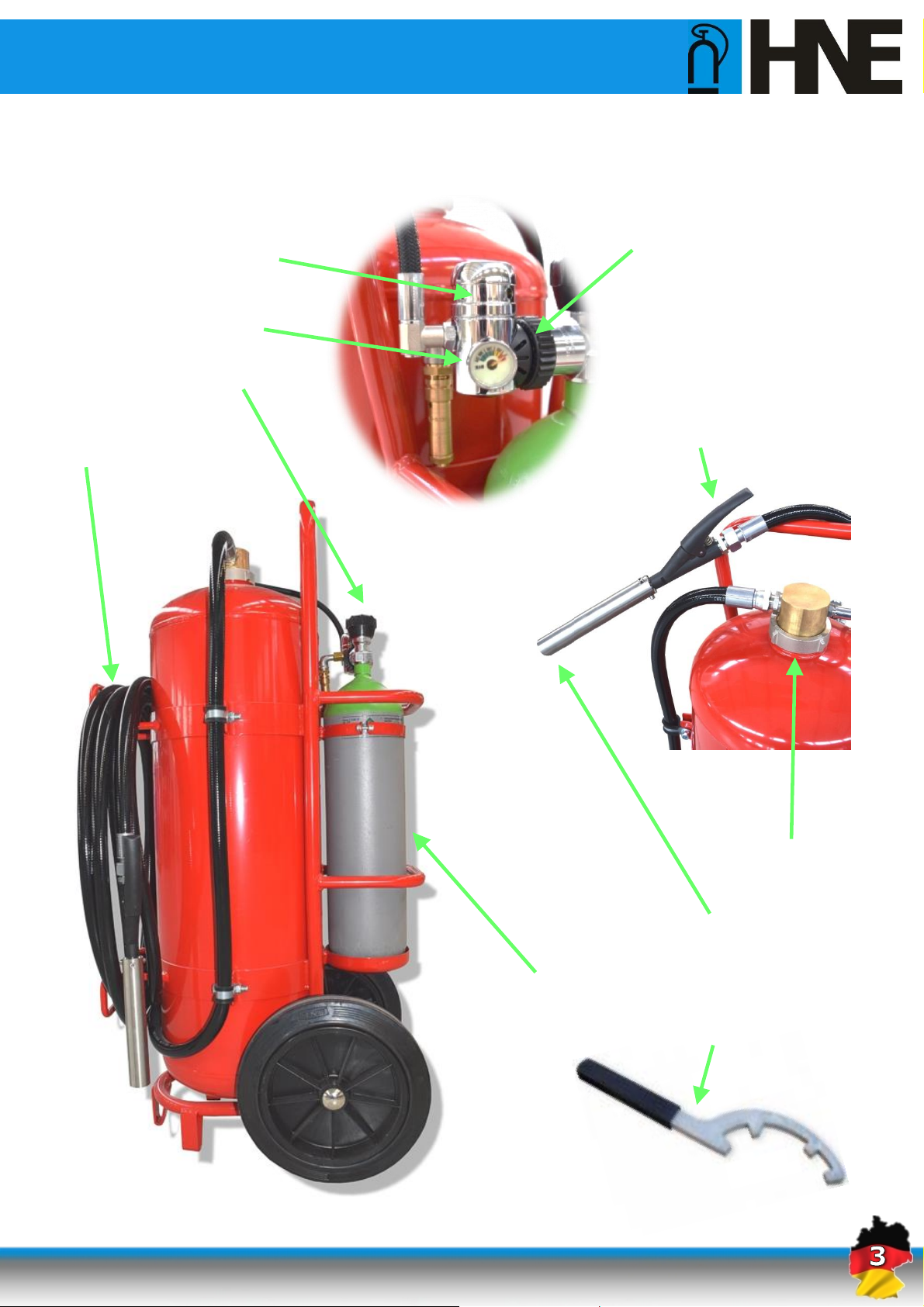

Overview
container lid
compressed air cylinder
cylinder valve
pressure gauge
jet nozzle
MADE IN GERMANY
www.hne.ag
hand wheel for air
cylinder connection
hose holder
Aviation CAFS 50
hook wrench
tripping lever
pressure reducer

VARIO 9
MADE IN GERMANY www.hne.ag
Storage
In filled condition the extinguisher must be stored in an upright
position. The environment should be dry, cool and dust-free.
Avoid direct sunlight; in the long run, ultraviolet light harms
plastic, rubber and textiles. If filled with regular extinguishing
agent, do not expose the device to temperatures near freezing
point or below. Frozen extinguishing media causes irreparable
damage! Use frost proof additives for cold conditions.
Extinguishing agents
Clean tap water represents the simplest way of filling for non-
polluting and cost-free user training. For foam generation, fill
the device with a mixture that is listed on the containers label.
As suitable extinguishing agents we recommend:
Foam agent with extra high extinguishing effect,
suitable for fires of class A + B.
MG 6-30
Premix
SC-6
AFFF 1%
Ready-for-use agent with -30°C freeze protection.
Suitable for fire class A + B.
Regular range of temperature: +5 to +60° C
With frost proof extinguishing agent: -25 to +60° C
Do not store the filled extinguisher in horizontal position.
NOTE: With the use of unlisted extinguishing agents,
the device no longer meets the EN-3 approval. In this
case, successful fire extinction and the safety of the
specified minimum distance to electrical installations
can not be guaranteed by HNE!
Aviation CAFS 50

VARIO 9
MADE IN GERMANY
www.hne.ag
Avoid spilling of extinguishing agent. Flush affected
surfaces and components with water.
Empty the container completely before filling.
Dispose of chemicals with ecological responsibility.
Do not use any leftover extinguishing again.
Never overfill the container.
The threads of container and lid have to be free of dirt
and debris. Clean if necessary and lubricate with silicon
grease.
Always wear goggles, gloves and apron when dealing
with extinguishing agent. The chemicals can cause skin
irritation or allergies.
After contact with eyes or mouth, immediately flush out
with plenty of clean water.
Also observe the safety instructions in the data sheet of
the extinguishing agent manufacturer.
Extinguishing agents are polluting and hazardous to
health. They must not seep into soil or sewer system.
Use a suitable container to dispose of it in an
environmentally friendly way.
The extinguisher achieves its optimal performance only with
accurate filling. Prepare things thoroughly and perform all steps
with necessary care. We recommend a clean and steady work
area with water supply.
Filling
We recommend to mark the extinguisher after filling as
ready for use. For example, a paper seal can state the
date and type of extinguishing agent.
Aviation CAFS 50

MADE IN GERMANY www.hne.ag
The container needs a total filling of exactly 50.0 liters, consisting
mostly of clean tap water. The amount of additive depends on the
extinguishing agent used. Exact mixing details can be found on
the container label and must be strictly observed.

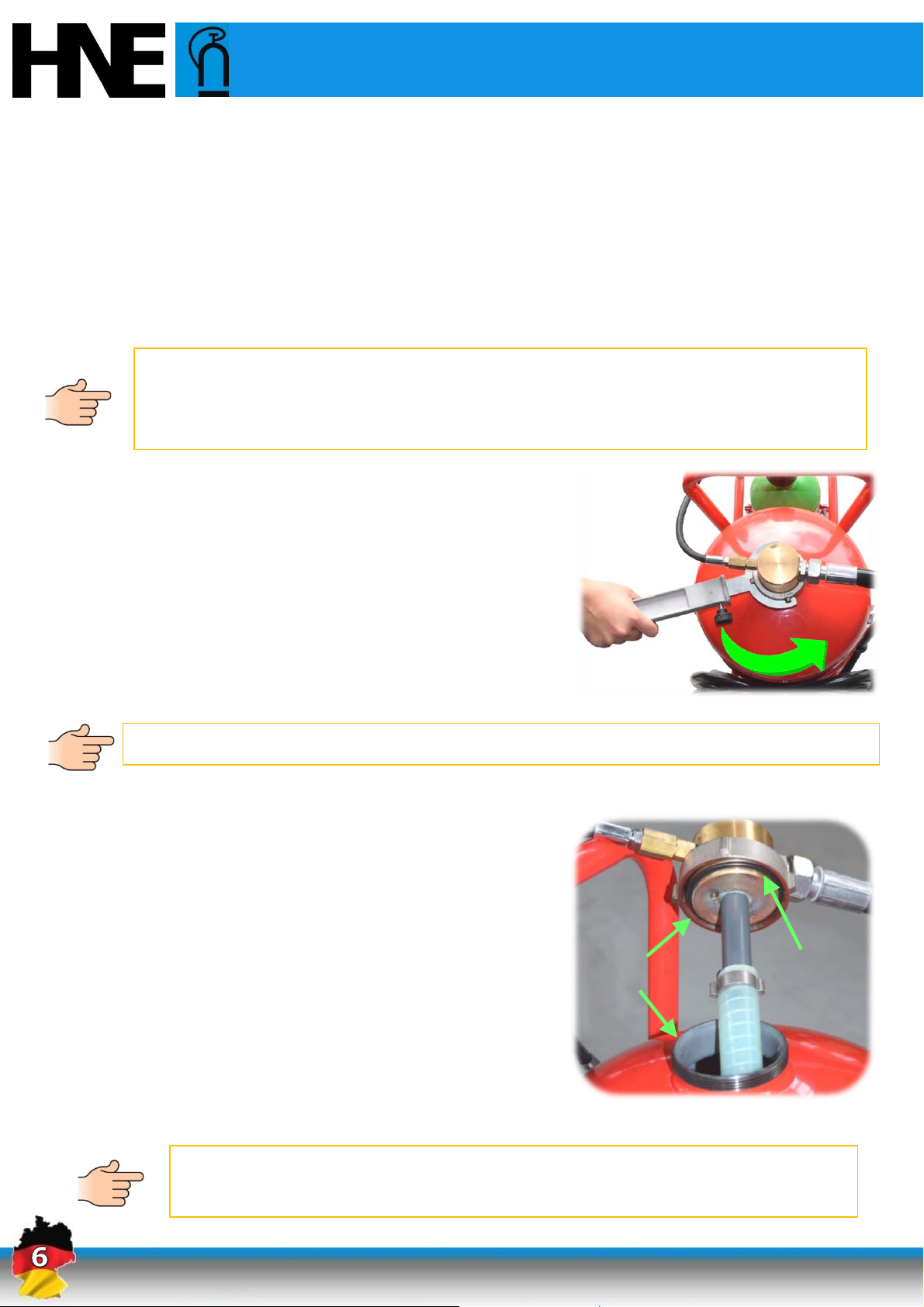

Always relieve the system from residual pressure before
opening the container. Even after complete discharge,
new pressure may occur due rising temperature.
Venting and opening:
Amount and mixing ratio:
A thin layer of silicon grease on thread and sealing
ring increases lifetime and facilitates opening.
Correct order of liquids:
2. Press and hold the trigger of the jet gun
until no more hissing is heard.
3. Unscrew the lid with the help of the
hook wrench.
1. Close the valve of the pressure bottle.
Note: The vessel must be completely empty for refilling!
threads sealing
ring
Aviation CAFS 50
2. Add the extinguishing concentrate.
The fluid is self-mixing; stirring is
not required.
3. Screw the lid back and tighten it.
Check threads and sealing ring for
cleanliness.
1. Pour the proper amount of water into
the container (funnel recommended.

MADE IN GERMANY
www.hne.ag
Replacing the pressure bottle
Do not use tools to tighten the hand screw at the air
cylinder connection.
Partially emptied air cylinders must be recharged or
replaced before the next use of the extinguisher.
The threads of air cylinder and regulator must be free of
dirt and debris. Clean if necessary, but do not lubricate.
Do not open the cylinder valve before the next use.
Never overfill an air cylinder. Maximum pressure: 300 bar.
Use approved pressure bottles of same size only.
If necessary, clean the threads of pressure tank and air cylinder
connection with compressed air or a small brush. Do not
lubricate. Check the condition of the O-ring before screwing the
regulator to the compressed air cylinder.
inner threat
air outlet
valve-
hand wheel
outer
threat
O-ring
Pressurized vessels represent significant hazard for user
and vicinity in case of negligence or mishandling. Always
treat filled air cylinders with due diligence.
Aviation CAFS 50

MADE IN GERMANY www.hne.ag

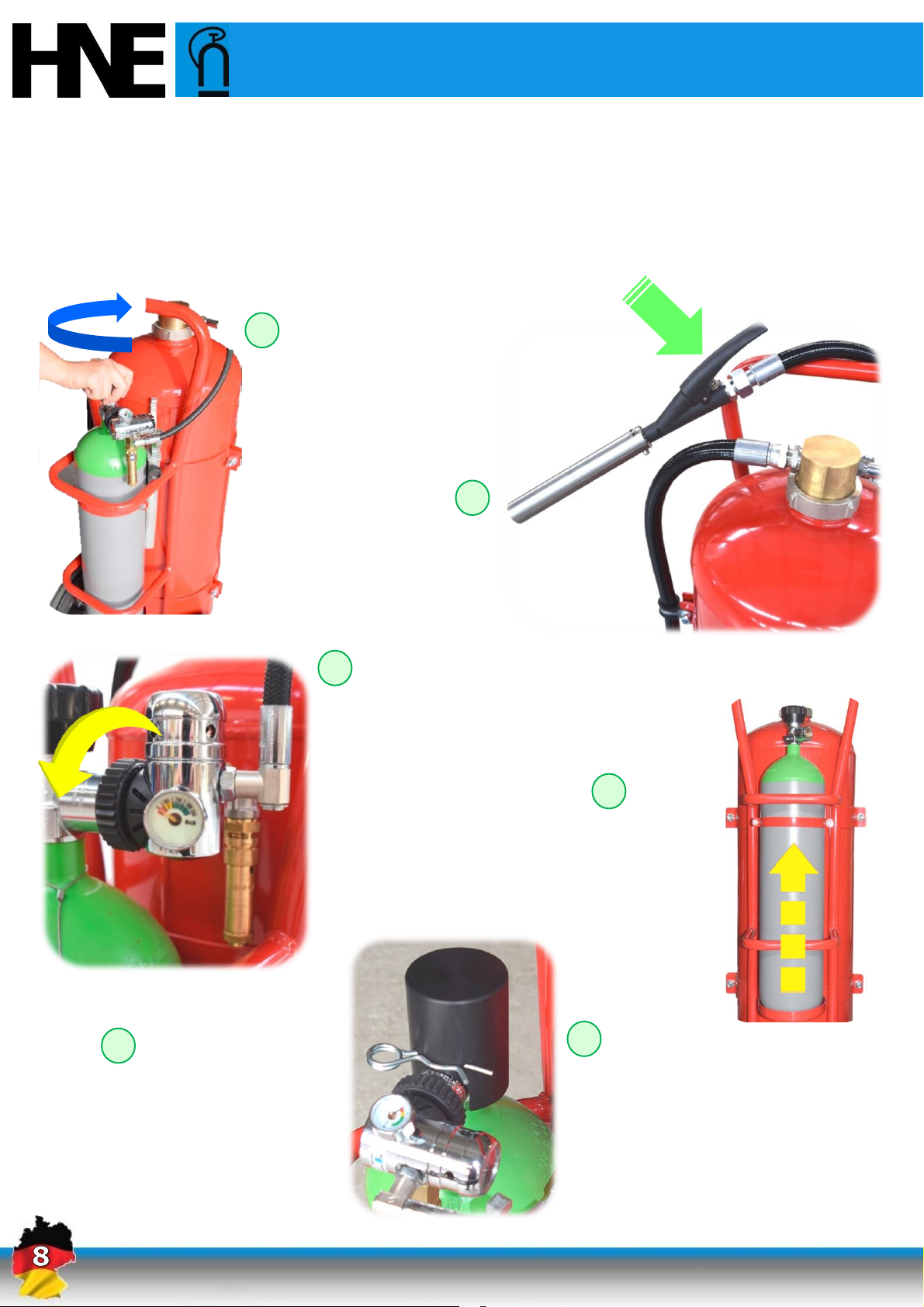

Replacing the pressure bottle
A compressed air cylinder with 6.8 Liter volume serves as
propellant. It needs to be filled with a suitable compressor; the
maximum pressure of 300 bar must not be exceeded.
Aviation CAFS 50
Unscrew the pressure
reducer from the
air cylinder...
Place a fully
pressurized cylinder
into the mounting
and screw back the
pressure reducer.
6
4
Protect the valve against
accidental opening:
Attach the cap and
safety cotter.
Actuate the jet
gun until all residual
pressure is relieved.
1
2
Close the valve
completely by turning
it clockwise.
3
...and remove the
empty bottle
upwards.
5

MADE IN GERMANY
www.hne.ag
Applying the system
Users must be sufficiently familiar with the device by
instruction and training.
Aviation CAFS 50
Open the valve fully.
A howling indicates
pressure build up
in the vessel.
The extinguisher is now ready for operation.
Press the lever at the gun to trigger the foam jet.
1
2
Pull the safety
cotter and
remove the cap
Take the jet gun from its
holder and uncurl the hose.
The pressure
gauge shows the
filling status of the
compressed air
cylinder.
3
4
The device is also fully applicable in horizontal position

MADE IN GERMANY www.hne.ag
Aviation CAFS 50

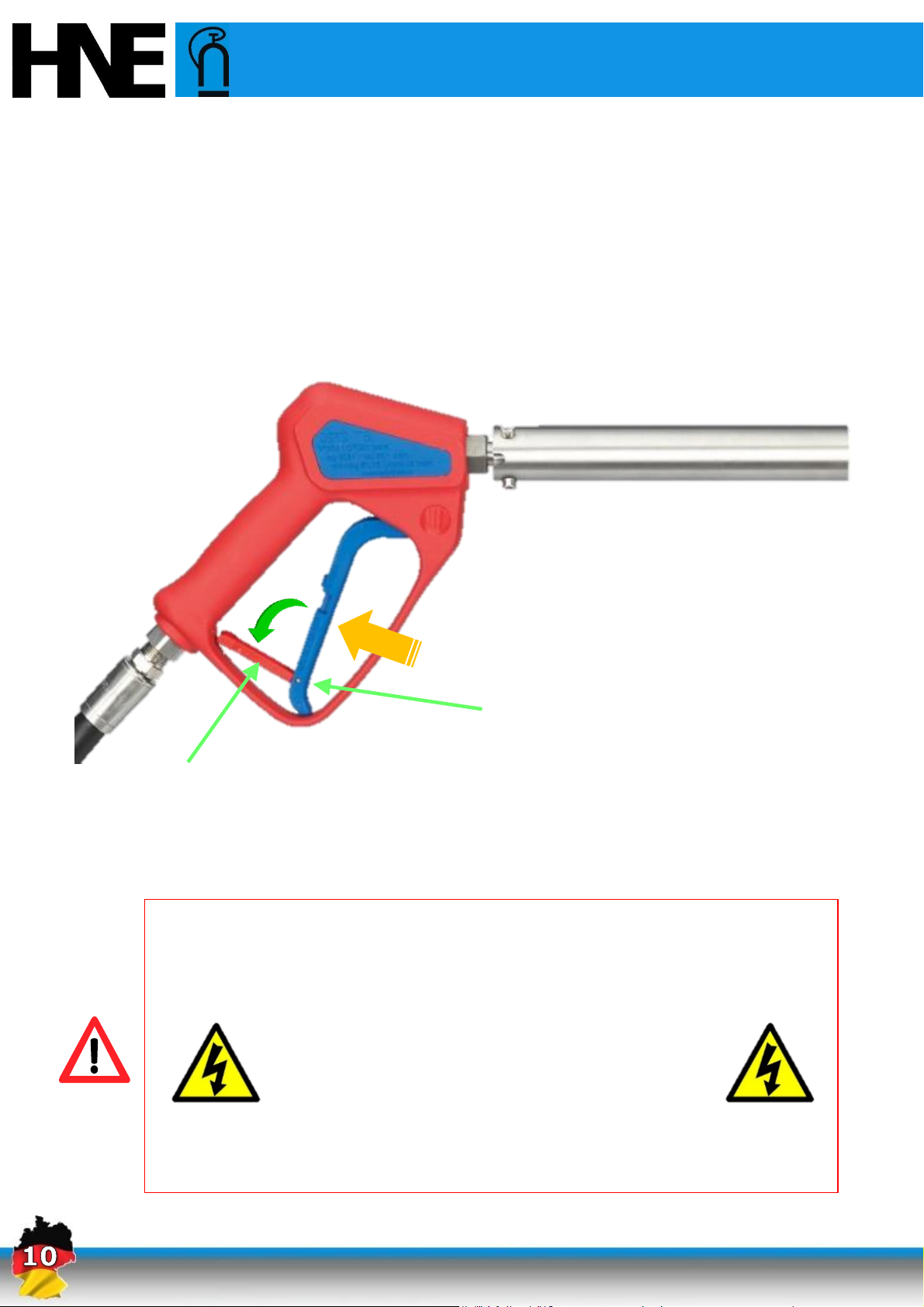

Optional jet gun
Every Aviation-CAFS system can be optionally equipped with a
multifunctional jet gun. Range and flow rate are variable by
stepless actuation. This increases efficiency and duration
significantly when fighting small fires. A foldable safety catch
prevents accidental actuation.
●Caution, compact jet with up to 18 m of range.
●Never aim directly at people or living animals.
●Hazard of suffocation under a layer of foam.
Caution when jetting into
electrical installations !
Keep a minimum safety distance of 4 Meters within
the limit of 1000 Volts !
Safety catch:
unlocked in upper position.
Trigger:
press fully for maximum
range and flow rate

MADE IN GERMANY
www.hne.ag
Service and maintenance
HNE-extinguishers have to be inspected regularly for function
and readiness by qualified personnel, but at least every 12
months according to the following inspection scope:
•General condition and cleanliness
•Legibility, completeness and correctness of the labelling
•Fittings, hoses and attachment parts
•Damage to protective coating and possible corrosion
•Plastic parts of jet gun and chassis for cracks or deformation
•Smooth operation of all moving parts and switches
•Age of Filling: change at the latest after 12 months
•Condition of internal coating: check with inspection lamp
•Filling state of the compressed air cylinder: 300 bar
•Condition of seal rings in filler neck and at pressure reducer
Check and clean the extinguisher thoroughly after every
use, even if it has not been applied.
Check the fully operational condition. If necessary,
restore it by repair within the limits of your legitimation.
All spare parts must be approved for use with the device.
To gain full performance, extinguishing media in the
container must not be older than 12 months. Do not use
any leftover extinguishing agent again.
After maintenance or repair, the extinguisher should be
labeled with filling date and content.
NOTE: As a highly safety-relevant element, the pressure
reducer is absolutely maintenance-free. Any work or repair
at it is solely reserved for HNE. Unauthorized action leads
to the complete loss of warranty.
Aviation CAFS 50

MADE IN GERMANY www.hne.ag
Legal inspections
Extinguishers are subject of periodic
checks for function and safety. Legally
prescribed inspections are country
specific and vary. Owners are
responsible for compliance with the
prescribed intervals. Therefore, the
container is labeled with badges for
the date of manufacturing and maturity
of the next inspection. The punched-
out areas mark the exact period.
Compressed air cylinders too must be approved and
tested regularly. Please keep yourself informed about the
regulations in your country.
The badge for the next inspection date must be updated
after every inspection.
Pressure safety
The entire pressure system is extremely
robust and designed to withstand high
overload. In addition, there is an automatic
pressure relief valve for safe discharge of
potential overloads. It is located at the
protected position between container and
backpack and requires no maintenance.
The safety valve is precisely adjusted and sealed.
Do not adjust or work at it with tools.
If the safety valve is responding, only the effect, not
the cause of excess pressure is eliminated. The
device must be checked thoroughly before next use.
Sicherheits-
ventil
Aviation CAFS 50

MADE IN GERMANY
Technical data
SPECS
filling capacity
50.0 Liters
propellant
air cylinder, 300 bar/6.8 l
working pressure
22 bar, constant
duration
app. 78 sec.
jet range
*
up to
16 m
jet pattern
compact jet
fire rating
max. A IV B
temp. range (regular additive)
5
to 60° C
temp.range
(with frost-proof additive)
-
25 to 60° C
distance to electric systems
min. 4 m, max. 1000 V
weight (empty)
app. 48 kg
weight (filled)
app. 98 kg
length
–width - height
55
–42 –109 cm
design of pressure vessel
steel, CE 0036 conform
hose length
10 m
certification
SQ 60/15
www.hne.ag
Depending on temperature,
wind, type of additive and
foam settings.
The device is approved as
special extinguisher
according to EN 3
*
Aviation CAFS 50

MADE IN GERMANY www.hne.ag
Manufacturer warranty
... the defect occurs later than 2 years after date of purchase.
... the device has not been used according to its purpose.
... maintenance or inspection intervals are not respected.
... the device was subject of unauthorized repair.
... unapproved parts were used for maintenance or repair.
... the device was modified by customer or third party.
... the device was damaged by external influences.
... relevant instructions in this manual have been disregarded
Technical reliability and sturdiness are indispensable when
manufacturing life-saving equipment. Only high quality parts
from certified suppliers are used and each assembled device is
tested thoroughly for pressure safety, function and performance.
For all HNE products, a limited warranty period of 2 years
applies for any defects in material, assembly, function and
performance starting from the date of commissioning.
For at least 10 years all spare parts and services for
maintenance and repair are available after sale.
The warranty is void if...
If a recognized warranty case occurs, the decision for
replacement or repair of single components or the entire device
lies solely with HNE. Incurred costs for replacement parts, repair
and transportation are assumed by HNE.
Aviation CAFS 50

MADE IN GERMANY
Augsburg, 08.09.2015
Type: mobile foam extinguisher
Aviation CAFS 50
Drawing number. : 0001 0592, 0036
Certification no.: Z-IS-DDB-MUC-15-05-705893-001d
www.hne.ag
Directive: 97/23/EG/EEC, Annex VII
DECLARATION OF CONFORMITY
declare our sole responsibility that the device specified with type,
drawing number and serial number (see identification of pressure
vessel) to which this declaration refers, is in accordance with the
directions 97/23 EC and the AD-pamphlets. The product was
subjected to the following evaluation test of conformity:
EC Type-examination Modules B and C1
This inspection is performed by TÜV of southern Germany,
Westendstraße 199, D-80686 Munich
We are in possession of the certificate of type approval EC for the
pressure vessel.
We:
Alter Postweg 96, D-86159 Augsburg
signed: S. Cerny
(chairman)
Aviation CAFS 50

CONTACT
MADE IN GERMANY www.hne.ag
HNE Germany:
HNE Technologie AG
Alter Postweg 96
D-86159 Augsburg
Tel. [phone]
Fax [phone]
Internet: www.hne.ag
mail: [email protected]
Sales & Service Singapore:
HNE Technology
No. 99, Kaki Bukit Av. ‚# 02-08
SG 415984 Singapore
Tel. [phone]
Mobile: [phone]
Internet: www.hne.ag
Email: [email protected]
THANK YOU FOR USING
OUR PRODUCT!
In case of questions or technical problems, please
contact our customer service and have type, date of
manufacture and serial number of the device ready.
HNE Technologie AG
HIGH PERFORMANCE FIREFIGHTING SYSTEMS

MADE IN GERMANY
SERVICING NOTES
www.hne.ag
Proper inspection and repair are crucial for reliability and
optimal life span of the device. For traceability, we
recommend to document such measures on this page.
Mobile foam extinguisher
Type : Aviation CAFS 50
Date of manufacture: ________________
please look at container and fill in

MADE IN GERMANY
WORLDWIDE
SAVING ●PROTECTING ●PRESERVING
TECHNOLOGIE AG
OPERATING INSTRUCTIONS
www.hne.ag
MOBILE
HIGH VOLUME
EXTINGUISHING
SYSTEM
