HOLDEN CG CAPTIVA 7 User guide

OWNER’S HANDBOOK
CG CAPTIVA 7
HOLDEN.COM.AUCG CAPTIVA 7

GM Holden Ltd, ABN 84 006 893 232 (hereinafter Holden)
Change of name, address or ownership
In the event of a Safety Recall, or for various reasons,
Holden may need to contact you as the owner of this vehicle.
If you have recently changed your address, or name, or purchased this
vehicle second-hand, please help us to help you by taking a few minutes
to ll in and mail the forms at the beginning of the Service/warranty booklet.
For information about GM Holden’s privacy policy or to update owner
details online, please visit Holden’s website at www.holden.com.au
Note Please refer to the inside front cover of the Service/
warranty booklet for the Vehicle Identication Certicate.
Printed in Australia
Part No. 92274448
March 2014 (MY14 CG Captiva 7. Print 2)
© 2014 GM Holden Ltd
Reproduction in whole or part is prohibited
without written approval from GM Holden Ltd,
ABN 84 006 893 232
CAPTIVA 7_IFC.indd 1 14/03/2014 10:34:25 AM

Contents 1
Introduction .................................... 2
In brief ............................................ 4
Keys, doors, and windows ........... 16
Seats, restraints ........................... 29
Storage ........................................48
Instruments and controls ............. 53
Lighting ........................................83
Infotainment system ..................... 89
Climate control ........................... 141
Driving and operating ................ 151
Vehicle care ............................... 190
Service and maintenance .......... 240
Technical data ............................ 242
Customer information ................ 248
Index ..........................................250
BOOK_MY14_CAPTIVA 7.indb 1 19/11/2013 2:56:46 PM

2 Introduction
Introduction
We thank you for choosing Holden and want to
assure you of our continuing interest in your
driving pleasure and satisfaction.
This handbook applies to the current Captiva model.
Therefore, due to different models and options, you may
nd reference in this Handbook to some equipment
not tted to your own vehicle.
Please note that all information, illustrations and
specications in this Handbook are based on the latest
production information available at the time of printing.
Holden reserves the right to make changes at any time
without notice and without incurring any obligation.
BOOK_MY14_CAPTIVA 7.indb 2 19/11/2013 2:56:46 PM

Introduction 3
Introduction
Your vehicle is a designed
combination of advanced technology,
safety, environmental friendliness and
economy.
This Owner’s Handbook provides
you with all the necessary
information to enable you to drive
your vehicle safely and efciently.
Make sure your passengers are
aware of the possible risk of accident
and injury which may result from
improper use of the vehicle.
Using this manual
• The In brief section will give you
an initial overview.
• The table of contents at the
beginning of this manual and
within each chapter shows where
the information is located.
• The index will enable you to
search for specic information.
• Directional data, e.g. left or right,
or front or back, always relate to
the direction of travel.
• Depending on the model variant,
integrated special equipment
and accessories, the scope of
equipment of your vehicle can
differ from the descriptions in this
Owner’s Handbook.
• The Bluetooth®word mark and
logo are registered trademarks
and are owned by the Bluetooth
SIG, Inc.
Danger, warnings
and cautions
Danger
Text marked Danger provides
information on risk of fatal injury.
Disregarding this information may
endanger life.
Warning
Text marked Warning
provides information on risk of
accident or injury. Disregarding
this information may lead to injury.
Caution
Text marked Caution provides
information on possible damage
to the vehicle. Disregarding this
information may lead to vehicle
damage.
BOOK_MY14_CAPTIVA 7.indb 3 19/11/2013 2:56:46 PM

4 In brief
In brief
Initial drive
information
Unlocking the vehicle
Remote keyless entry
A
Q K
L
The keyless access transmitter
operates all door locks:
Q: Lock
K : Unlock
L
: Panic vehicle/locate button
The code number for the keys is
stamped on the key plate (A).
Keys and locks, see page 16.
Doors, see page 19.
Manual door locks
A
Q K
L
To remove the key for manual door
operation:
1. Press (A).
2. Remove the key from the
transmitter.
Note
Do not remove the key without
pressing the button.
BOOK_MY14_CAPTIVA 7.indb 4 19/11/2013 2:56:47 PM

In brief 5
B
A
• To lock all doors, insert the key
into the driver’s door lock and
turn anticlockwise (A), then turn
back to the vertical position and
remove.
• To unlock all doors, insert the
key into the driver’s door lock
and turn clockwise (B), then turn
back to the vertical position and
repeat, then remove.
Keys and locks, see page 16.
Doors, see page 19.

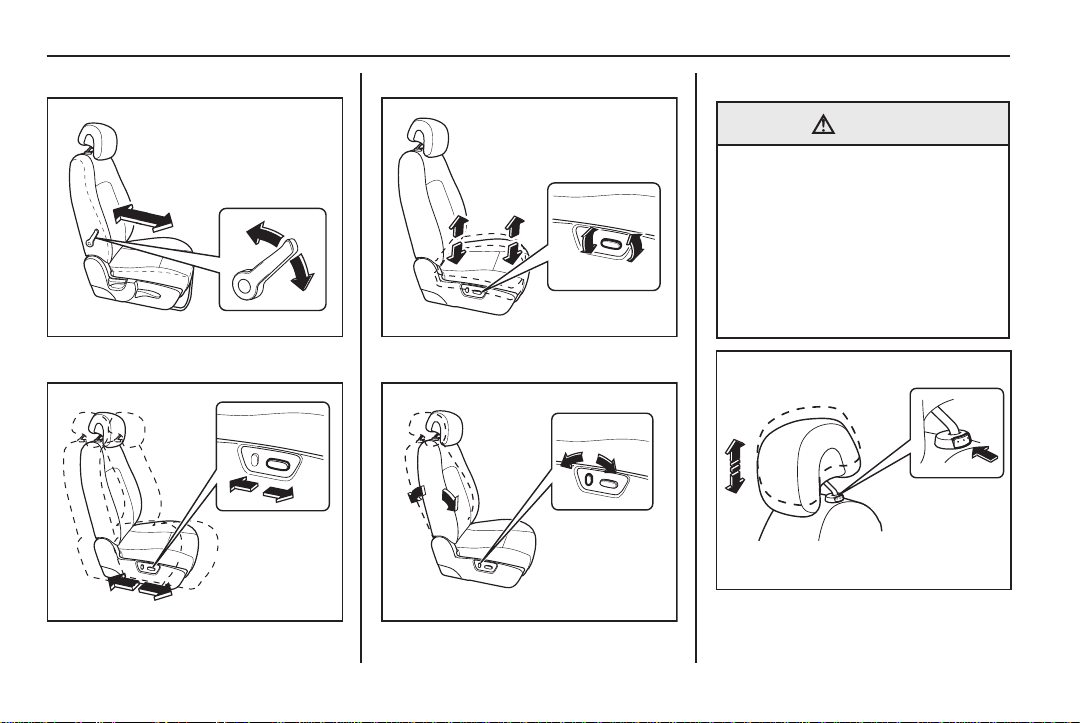

Seat adjustment
The vehicle may have the following
levers and switches for seat
adjustment.
Forwards/backwards (Type A)
Up/down (Type A)
Recline (Type A)
BOOK_MY14_CAPTIVA 7.indb 5 19/11/2013 2:56:47 PM

6 In brief
Lumbar
Forwards/backwards (Type B)
Up/down (Type B)
Recline (Type B)
Front seats, see page 30.
Head restraints
Warning
The head restraint safety feature
is not intended to rest the head
upon. It is solely for the reduction
of whiplash neck movement in an
accident involving the vehicle.
The centre of the head restraint
should be at eye level, never at
neck level.
To adjust the height:
1. Push the button in.
BOOK_MY14_CAPTIVA 7.indb 6 19/11/2013 2:56:47 PM

In brief 7
2. Pull the head restraint up or push
the head restraint down.
To tilt the front head restraints:
1. Place the head restraint in its
upright position by pushing it
forward fully and releasing it.
2. Push the head restraint forward
carefully to the required position.
Head restraints, see page 29.
Seat belts
The belt should not be twisted. It
should lie at and t rmly across
your hips.
1. Pull the metal tongue across
your body.
2. Clip it into the buckle.
When the metal tongue is locked
safely into place you will hear a
click.
Three point belt, see page 37.
Mirror adjustment
Rear view mirror
Adjust the rear view mirror by
moving right or left, up or down.
To reduce headlamp glare at night
from following vehicles, pull the lever
towards the rear of the vehicle.
For daylight operation, push the
lever towards the front of the vehicle.
Interior mirrors, see page 24.
Automatic dimming rear view mirror,
see page 25.
BOOK_MY14_CAPTIVA 7.indb 7 19/11/2013 2:56:47 PM

8 In brief
Steering wheel
adjustment
Warning
Do not attempt to adjust the
steering wheel while driving.
1. To unlock, move the lever down.
2. To adjust, move the steering
wheel up, down, closer or away.
3. To lock, move the lever up.
Ensure the steering wheel is
locked in position before driving.
Controls, see page 54.
Exterior mirrors
Power mirrors
A
B
To adjust the mirrors, turn the
ignition control knob to the on or
accessories position:
• Move switch (A) to the right to
operate the driver side mirror.
• Move switch (A) to the left to
operate the passenger side
mirror.
Exterior mirrors, see page 23.
BOOK_MY14_CAPTIVA 7.indb 8 19/11/2013 2:56:47 PM

In brief 9
Instrument panel overview
020
1
456
7
8
40
6080 100 120140
160
180
200
220
0
A C E F G IH
VW S R Q MT
B D
U P O N L K J
A. Side vent outlet.....................149
B. Hazard warning
asher button ..........................84
Electronic Stability Control
(ESC)....................................167
C. Graphic Information
Display (GID)..........................70
Navigation system/Colour
Information Display (CID)
(not shown)...........................106
Storage compartment
(not shown).............................48
D. Descent Control System
(DCS)....................................169
E. Lever for wipers
and washers ...........................55
F. Instrument cluster...................59
G. Driver Information
Centre (DIC) ...........................70
H. Horn pad.................................55
I. Lever for:
Turn signal..............................85
High/low beam........................84
Fog lamps...............................85
BOOK_MY14_CAPTIVA 7.indb 9 19/11/2013 2:56:47 PM

10 In brief

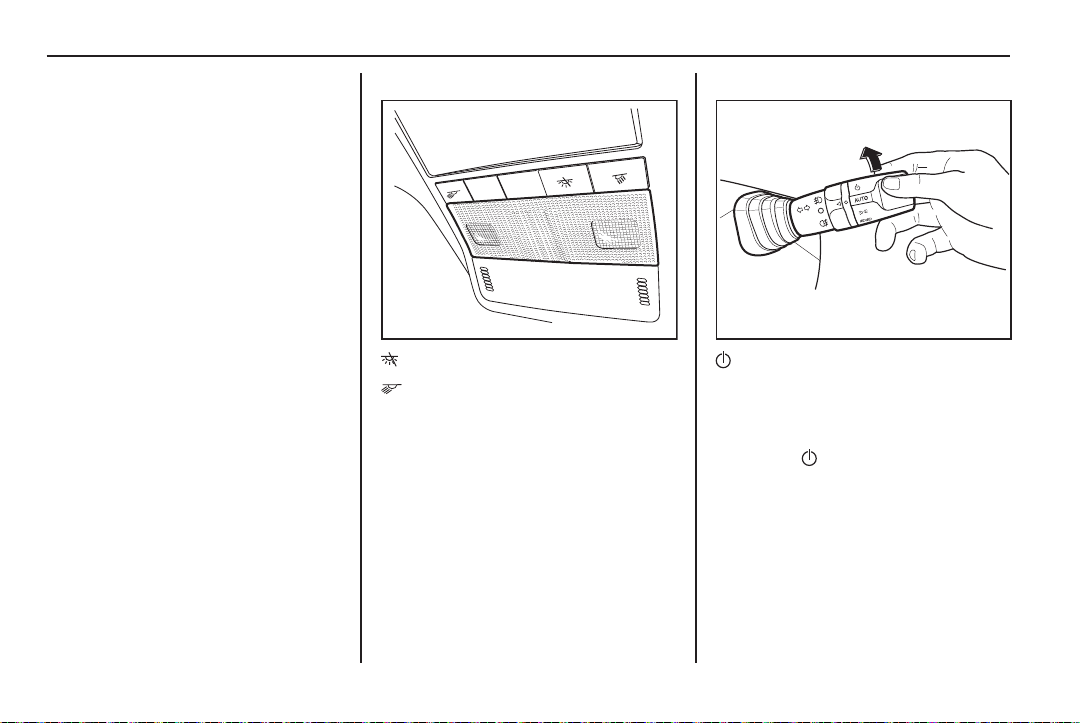

Interior lighting
: On/off
: Dome lamps
Interior lighting, see page 87.
Dome lamps, see page 88.
Exterior lighting
: All lamps are off.
The switch will return to the AUTO
position once released.
To turn the automatic lamp control
on, turn to again.
AUTO: Parking lamps and
headlamps will turn on automatically
depending on the outside light.
8: Parking lamps, number plate
lamps and instrument panel lights
illuminate.
The headlamps will not come on.
J. Card holder.............................49
K. Coin storage ...........................49
L. Bonnet release lever.............193
M. Cruise control........................171
Climate control......................141
N. Steering wheel adjustment .....54
O. Steering wheel
remote controls.......................91
P. Power socket ..........................57
Q. Electric Park Brake (EPB).....165
R. ECO button...........................161
S. Shift lever..............................159
T. Climate control......................141
U. Audio system..........................89
V. Glove box................................49
W. Front passenger’s
seat belt reminder...................61
BOOK_MY14_CAPTIVA 7.indb 10 19/11/2013 2:56:48 PM

In brief 11
High/low beam
High beam: Push lever
Low beam: Pull lever from high
beam position
Headlamp ash: Pull lever
The high beam lamps can be ashed
even if the headlamps and/or ignition
are off.
Exterior lighting, see page 83.
High/low beam, see page 84.
9 P: Parking lamps, number plate
lamps, instrument panel lights and
headlamps illuminate.
>: Front fog lamps
rRear fog lamps
Exterior lighting, see page 83.
Turn signals
Left: Lever up
Right: Lever down
Exterior lighting, see page 83.
Turn signals, see page 85.
BOOK_MY14_CAPTIVA 7.indb 11 19/11/2013 2:56:48 PM

12 In brief

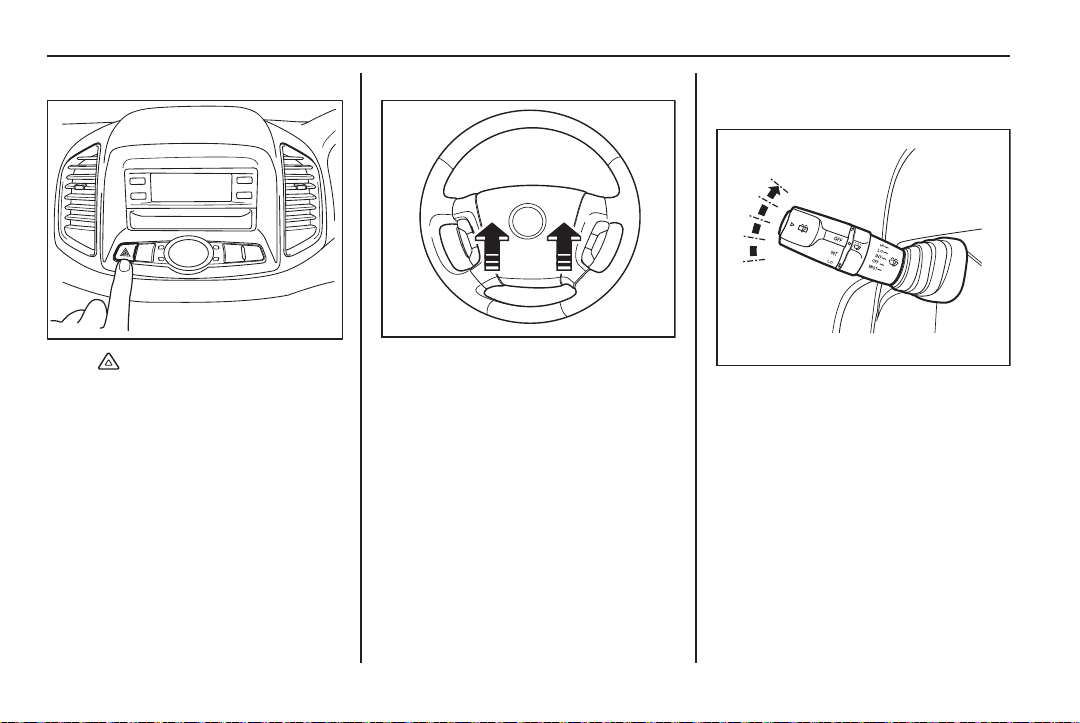

Horn
Press the horn pad on either side.
Hazard warning asher
Press to turn the hazard warning
asher on and off when the ignition
is in any position.
Hazard warning asher,
see page 84.
Washer and
wiper systems
Mist: Wipers cycle while the lever is
held down
OFF: Wipers off
INT: Rotate the collar
LO: Move the lever up two levels.
HI: Move the lever up three levels.
Pull to wash the windscreen.
Windscreen wipers/washers,
see page 55.
Washer uid, see page 56.
BOOK_MY14_CAPTIVA 7.indb 12 19/11/2013 2:56:48 PM

In brief 13
Climate control
OFFMODE
A/C
SYNC AUTO
R
The vehicle may have climate
control.
The climate control panel is located
in the centre of the dashboard.
The settings are displayed on the
Graphic Information Display (GID).
Graphic Information Display (GID),
see page 70.
Climate control, see page 141.
Manual air conditioning system, see
page 142.
Transmission
6 speed transmission
P: Park R: Reverse
N: Neutral D: Drive
Apply the brake pedal and press
the select button on the shift
lever to shift.
Press the select button on the
shift lever to shift.
It is not necessary to apply the
brake pedal or press the select
button on the shift lever to shift.
Automatic transmission, see
page 159.
Starting off
Check before starting
• Check that windows, mirrors and
lamps are clean.
• Visually check tyre ination.
Check the tyre pressures
each week.
• Ensure that all doors are closed
and secured.
• Position your seat for
comfortable driving.
• Adjust rear view mirrors.
• Fasten seat belts.
• Check that the warning indicators
illuminate when turning the
ignition on.
Starting and operating, see
page 153.
Starting the engine, see page 156.
BOOK_MY14_CAPTIVA 7.indb 13 19/11/2013 2:56:48 PM

14 In brief
• The shift lever must be in
P (Park) or N (Neutral). The
engine will not start in any other
position.
• The brake pedal must be
pressed to start the engine.
1: (Lock/off).
2: (Accessories) When the ignition
control knob is in the accessories
position, the audio system will
operate.
3: (On) When the ignition control
knob is in the on position, the engine
is ready to start and all electrical
systems are active.
Note
Do not leave the ignition control
knob in the on position for a
prolonged period, unless the engine
is running, otherwise the vehicle
battery will discharge.
Starting the engine
Warning
Do not switch the engine off while
the vehicle is moving as there
will not be any power assist for
brakes or steering.
1
2
3
4
• The keyless access transmitter
must be inside the vehicle.
4: (Start) Petrol engine: Turn the
ignition control knob to the start
position momentarily and then
release.
The engine starts automatically.
Diesel engine: Turn the ignition
control knob to the on position
for preheating until the Klight
extinguishes. Turn the ignition
control knob to the start position.
The ignition control knob
automatically returns to the on
position when released.
Note
• If the engine control knob
does not turn, push the knob
in and turn.
• If the transmitter is not in the
vehicle or there is interference,
Electronic Key Not Detected
is displayed. See Vehicle
messages on page 80.
Ignition positions, see page 154.
BOOK_MY14_CAPTIVA 7.indb 14 19/11/2013 2:56:48 PM

In brief 15
Parking
1. Apply the park brake.
Before leaving the vehicle,
ensure is illuminated on
the instrument panel.
Electric Park Brake (EPB),
see page 165.
2. Select position P.
3. Shut all windows.
4. Switch off all exterior lamps.
5. Turn the ignition control knob to
the off position.
6. Lock all doors.
BOOK_MY14_CAPTIVA 7.indb 15 19/11/2013 2:56:48 PM

16 Keys, doors and windows
Keys and locks
Keys
A
Q K
L
The keyless access transmitter
operates all door locks:
Q: Lock
K : Unlock
L
: Vehicle locate button
The code number for the keys is
stamped on the key plate (A).
Keys, doors
and windows
Keys and locks ............................16
Doors............................................19
Vehicle security.............................23
Exterior mirrors.............................23
Interior mirrors..............................24
Windows.......................................26
Roof..............................................27
Record the number, remove the key
plate and keep the number and the
key plate in a safe place (not in the
vehicle).
If the original keyless access
transmitters are lost, any additional
or replacement transmitters must be
purchased from and programmed by
a Holden Dealer, using the key code
number.
Vehicle locate button
• To locate the vehicle, press
L
briey.
The exterior lamps will ash and
the horn will chirp.
BOOK_MY14_CAPTIVA 7.indb 16 19/11/2013 2:56:48 PM

Keys, doors and windows 17
Matching transmitter(s)
to the vehicle
Each remote keyless access
transmitter is coded to the vehicle.
If the vehicle’s transmitter is lost,
inform a Holden Dealer immediately
so the vehicle can be reprogrammed
and will no longer recognise the
missing transmitter.
Additional transmitters also require
re-coding to match the new
transmitter.
Warning
The remote control unit contains
precision electronic parts.
To help avoid transmitter trouble:
Do not leave the remote control
unit in direct sunlight.
Do not treat the remote control
unit carelessly.
Do not allow the remote control
unit to get wet.
Starting the vehicle with
a low transmitter battery
If the transmitter battery is weak, the
Driver Information Centre (DIC) may
display Electronic Key Not Detected,
when trying to start the vehicle.
To start the vehicle:
1. Open the storage bin. See Front
cup holders on page 50.
2. Lift the mat on the base of the
centre console bin.
Q K
L
3. Place the transmitter on the base
of the centre console bin in the
position shown, with the buttons
facing up.
4. Place the shift lever in P (Park)
or N (Neutral).
5. Press the brake pedal and rotate
the ignition control knob.
6. Replace the transmitter battery
as soon as possible.
BOOK_MY14_CAPTIVA 7.indb 17 19/11/2013 2:56:49 PM

18 Keys, doors and windows
Replacing the battery in
the remote control
A
As soon as the range of the remote
control reduces, replace the battery:
1. Remove the key from the
transmitter. See Manual door
locks on page 20.
2. Separate the transmitter by
placing a at, thin object into the
slot on the side of the transmitter.
3. Remove the battery (A) and
replace with the new one, making
sure the positive (+) side of the
battery is facing down. Replace
with a CR2032 or equivalent
battery.
4. Reassemble the transmitter
ensuring the cover is engaged
correctly.
5. Insert the key back into the
transmitter.
6. Test the operation of the
transmitter.
Note
Avoid touching the at surfaces of
the battery, the circuit board and
other components inside the remote
control with bare ngers. Handling
will shorten battery life.
About the keys
• Ensure that other keys on the
key ring are not between the
transmitter and the vehicle.
• The remote control in the
transmitter has a range of
approximately 30 metres.
• The range depends on
the charge of the transmitter
battery, on ambient conditions,
the transmitter’s location and the
area between the transmitter and
the vehicle.
• If the transmitter buttons do not
work, move closer to the vehicle.
• Take care that no button is
pressed unintentionally, especially
when the vehicle is out of sight.
• Metallic window tint reduces the
range of the transmitter.
• The transmitter buttons may not
work if the vehicle is parked near
strong radio activity, such as
under TV towers (most likely in
high lookout car parks).
BOOK_MY14_CAPTIVA 7.indb 18 19/11/2013 2:56:49 PM
