HOLDEN MY19 TJ Trax User manual

MY19 TJ Trax
MY19 TJ Trax
Owner’s Manual
holden.com.au

GM Holden Ltd, ABN 84 006 893 232, Holden New Zealand Ltd., Company Number 1602 (hereinafter Holden)
Change of name, address or ownership
If you drive a pre-owned Holden, have moved house or changed any of your details, we’d like to hear from you!
Holden uses your details to keep your vehicle’s factory provided RoadsideAssistance and Warranty details up to date.
It also helps us let you know if there is an existing rework action required on your vehicle. To update your details, please
take a few minutes to ll in and mail the form at the back of the Service & Warranty Booklet or visit Holden’s website at:
www.holden.com.au/forms/change-of-owner-details
GM Holden Ltd (Holden) is collecting the new owner’s personal information in order to process the request for
transfer for the specied vehicle. We may disclose your personal information to our related companies and third
parties who provide us with (or help us provide) products and services, including to overseas locations such as the
USA, and other countries in Europe, Oceania and Asia.
Holden’s privacy policy (available at: www.holden.com.au/privacypolicy) states how you can seek to access or correct
any personal information Holden holds about you, how to complain about a privacy breach by Holden and how
Holden will deal with a privacy complaint.
You can contact Holden on 1800 033 349 or alternatively, you may prefer to email Holden at:
[email protected]
Note: Please refer to the inside front cover of the Service & Warranty Booklet for the Vehicle Identication Certicate.
© 2018 GM Holden Ltd.
© 2018 Holden New Zealand Ltd.
Printed in Australia Reproduction in whole or part is
Part No. 92510134 prohibited without written approval from
June 2018 GM Holden Ltd., ABN 84 006 893 232 (Australia) or
(MY19 TJ Trax. Print 1) Holden New Zealand Ltd., Company Number 1602 (New Zealand)

Contents 1
Introduction..................................... 2
In brief............................................. 4
Keys, doors and windows............. 17
Seats, restraints............................ 35
Storage......................................... 54
Instruments and controls.............. 58
Lighting......................................... 87
Infotainment system ..................... 93
Climate control............................ 134
Driving and operating ................. 139
Vehicle care................................ 172
Service and maintenance........... 217
Technical data............................. 219
Customer information................. 224
Index........................................... 227

2 Introduction
Introduction
We thank you for choosing Holden and want to assure you
of our continuing interest in your driving pleasure and satisfaction.
This owner’s manual applies to the current Trax vehicle.
Therefore, due to different models and options, you may
nd reference in this manual to some equipment
not tted to your own vehicle.
Please note that all information, illustrations and
specications in this manual are based on the latest
production information available at the time of printing.
Holden reserves the right to make changes at any time
without notice and without incurring any obligation.

Introduction 3
Introduction
Your vehicle is a designed
combination of advanced technology,
safety, environmental friendliness and
economy.
This Owner’s Manual provides you
with all the necessary information
to enable you to drive your vehicle
safely and efciently.
Make sure your passengers are
aware of the possible risk of accident
and injury which may result from
improper use of the vehicle.
Using this manual
• This manual describes all options
and features available for this
model. Certain descriptions,
including those for display and
menu functions, may not apply
to your vehicle due to model
variant.
• The In brief section will give you
an initial overview.
• The table of contents at the
beginning of this manual and
within each chapter shows where
the information is located.
• The index will enable you to
search for specic information.
• Directional data, e.g. left or right,
or front or back, always relate to
the direction of travel.
• For a complete list of the
registered trademarks contained
in this manual:
Trademarks and licence
agreements 0224
Symbols
Page references indicated with 0.
This indicates ‘see page’.
Danger, warnings
and cautions
Danger
Text marked Danger provides
information on risk of fatal injury.
Disregarding this information may
endanger life.
Warning
Text marked Warning
provides information on risk of
accident or injury. Disregarding
this information may lead to injury.
Caution
Text marked Caution provides
information on possible damage
to the vehicle. Disregarding this
information may lead to vehicle
damage.

4 In brief
In brief Initial drive
information
Locking/unlocking the
vehicle

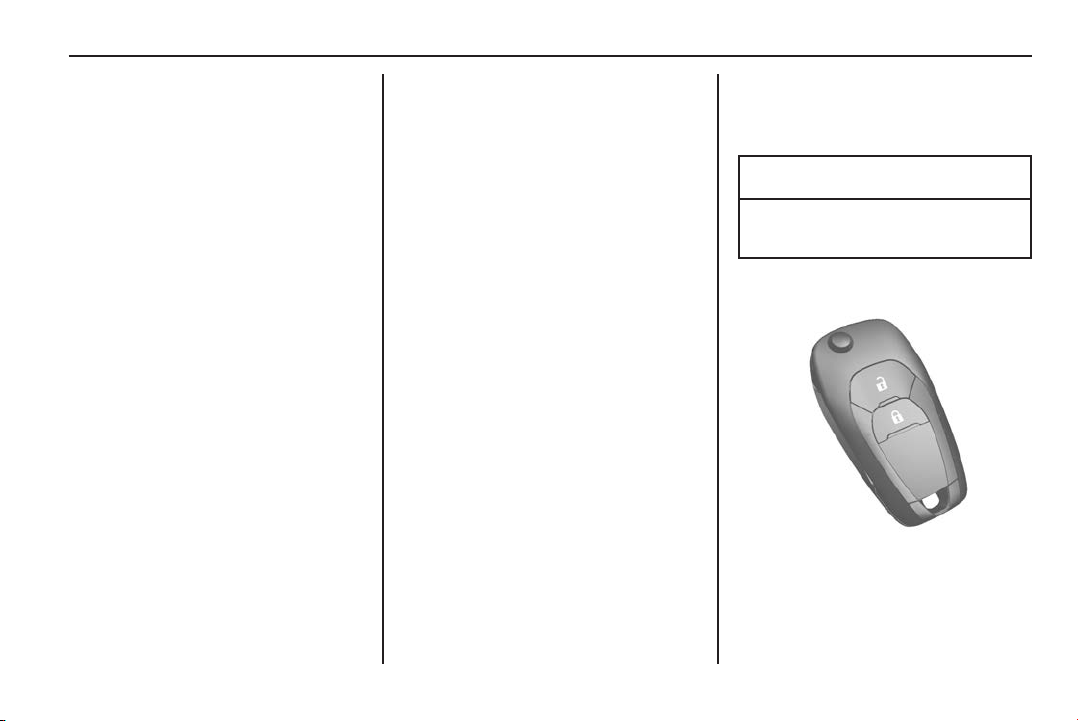

Remote keyless entry
With ignition switch
With electronic key system
The key operates all doors and the
ignition.
• Press cto unlock the doors.
The hazard lamps ash twice.
• Press eto lock the doors.
The hazard lamps ash once.
Central locking system 022
Tailgate 027
Initial drive information..........4
Locking/unlocking the vehicle ......4
Seat adjustment...........................5
Head restraint adjustment............6
Seat belts.....................................6
Mirror adjustment.........................6
Steering wheel adjustment...........7
Instrument panel overview...........8
Exterior lighting ............................9
High/low beam .............................9
Hazard warning ashers ..............9
Turn and lane change signals....10
Horn ...........................................10
Washer and wiper systems........10
Climate control...........................12
Transmission..............................12
Getting started ...........................14
Starting the engine.....................14
Parking.......................................16

In brief 5

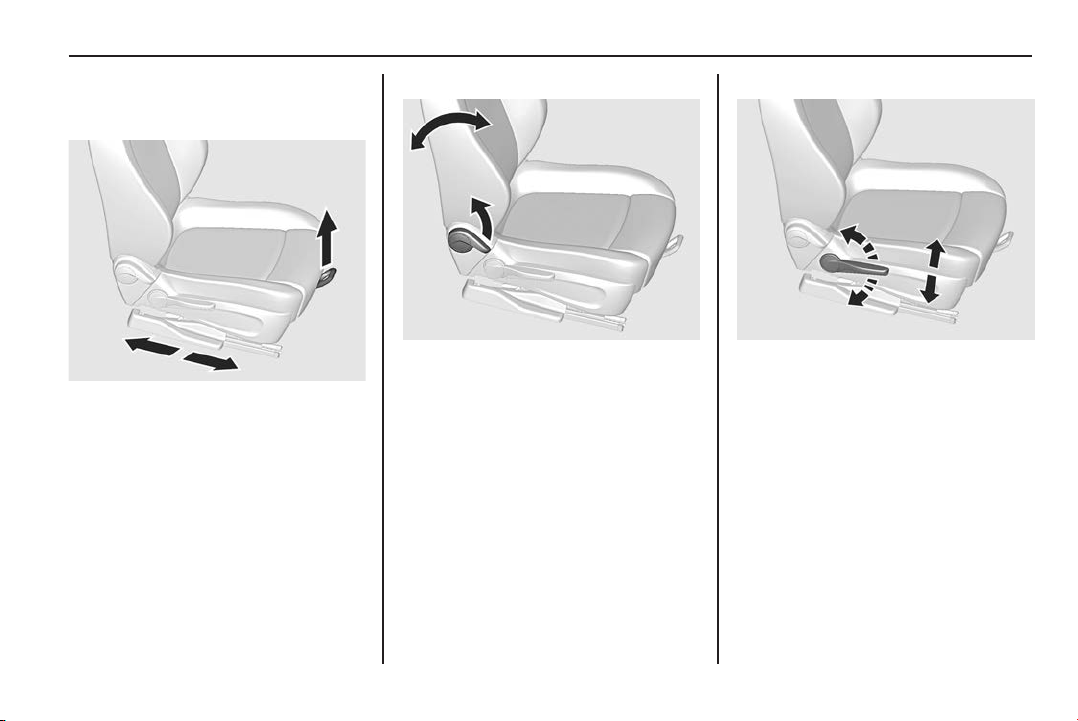

Seat adjustment
Seat positioning
1. Move the seat forwards or
backwards by lifting the handle at
the front and sliding the seat.
2. Release the handle to engage
the latch.
Try to move the seat back and
forth to be sure it is locked in
place.
Seat position 037
Seat adjustment 037
Seat backrests
1. Recline the seatback by lifting
the lever.
2. Adjust the angle and release
the lever.
3. Allow the seat to engage.
Note
Do not lean on the seat when
adjusting.
Seat adjustment 037
Seat height
• To lower the seat cushion, push
the lever down several times.
• To raise the seat cushion, pull
the lever up several times.
Seat adjustment 037

6 In brief
Head restraint adjustment
• To raise the head restraint, pull
the head restraint upwards.
• To lower the head restraint, press
(1) and push the head restraint
downwards.
Head restraints 035
Seat belts
1. Withdraw the belt from the reel.
2. Pull the metal tongue across
your body into the buckle, until it
clicks into place.
3. Tension the lap belt regularly
while driving by tugging the
shoulder belt.
Seat belts 043
Mirror adjustment
Interior mirrors
To reduce headlamp glare from
following vehicles, pull the lever
towards the rear of the vehicle.
Interior mirrors 030

In brief 7

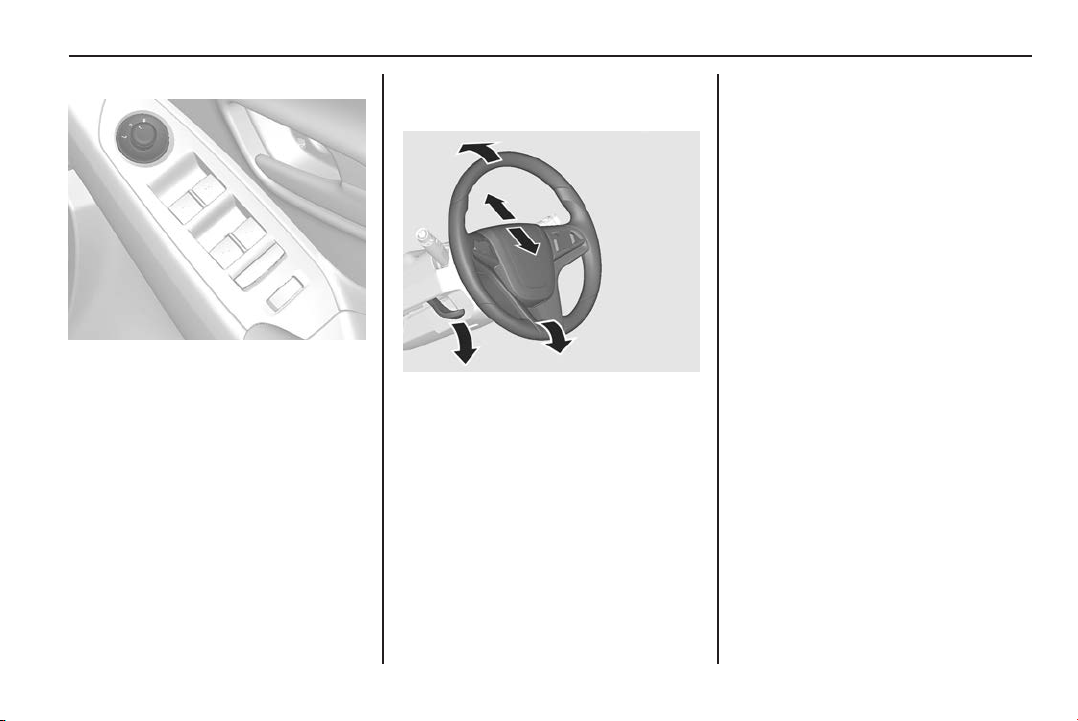

Exterior mirrors
L: Left side mirror selected
R: Right side mirror selected
O: No mirrors selected
To adjust an exterior rear view
mirror:
1. Rotate the switch to Lor R.
2. Swivel the switch to adjust the
mirror.
Exterior mirrors 029
Steering wheel
adjustment
1. To unlock, move the lever down.
2. Adjust the steering wheel.
3. To lock, move the lever up.
4. Ensure the steering wheel is
locked in position before driving.
Steering wheel adjustment 059

8 In brief

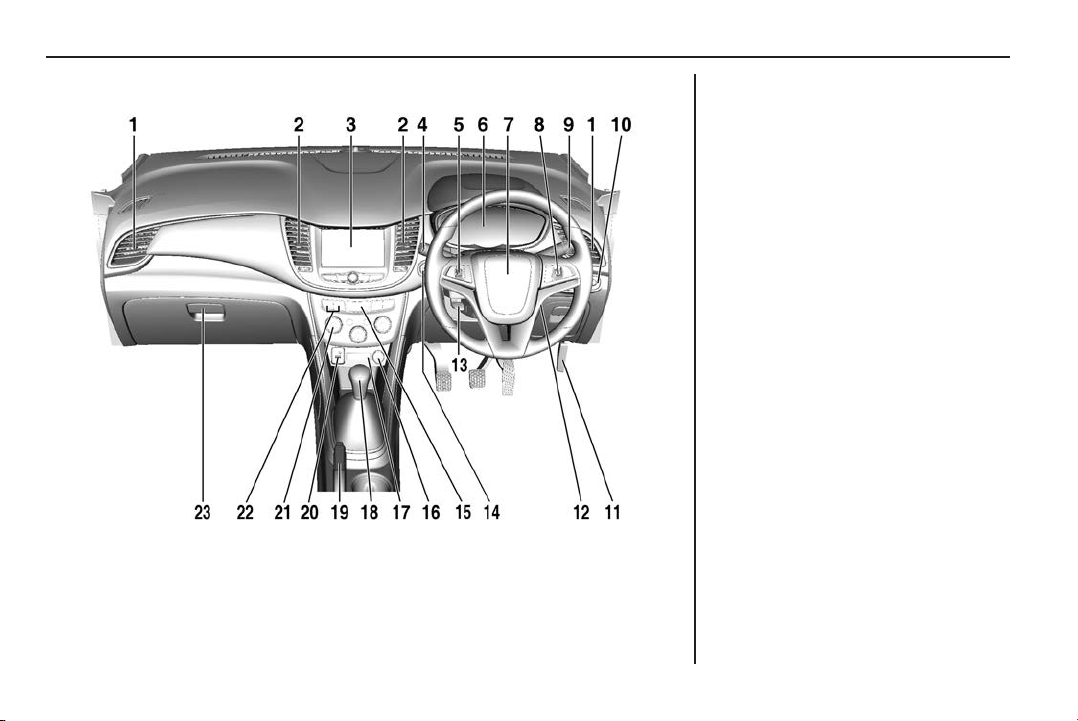

Instrument panel overview 1. Side air vents 0137
2. Central air vents 0137
3. Infotainment system 093
4. Wiper and washer lever 060
5. Cruise control 0156
6. Instrument cluster 065
7. Horn, driver’s airbag 059, 59
8. Steering wheel remote controls 097
9. Turn signals 089
10. Exterior lamp switch 087
11. Bonnet release lever 0175
12. Ignition switch/lock 0140
13. Steering wheel adjustment 059
14. Engine Start/Stop button 0140
15. Hazard warning asher 089
16. Power outlet 063
17. Passenger seat belt light 069
18. Shift lever 0146, 151
19. Parking brake 0153
20. AUX, USB port 0108
21. Climate control system 0134
22. TSC/ESC/DCS switches 0153
23. Glove box 054

In brief 9
Exterior lighting
(OFF): Rotate to turn all lamps
and lights off.
AUTO: Exterior lamps and
instrument panel lights turn on or
off automatically, depending on the
ambient light.
8(Park lamps): Turns on the park
lamps, number plate lamps and
instrument panel lights.
9(Headlamps): Turns on the
headlamps and all park lamps.
Exterior lighting 087
High/low beam
• To switch from low to high beam,
push the lever.
• To switch to low beam, push
again or pull the lever.
Headlamp high/low beam 088
Hazard warning ashers
Press ¨to turn the hazard warning
ashers on or off, when the ignition
is in any position.
Hazard warning ashers 089

10 In brief

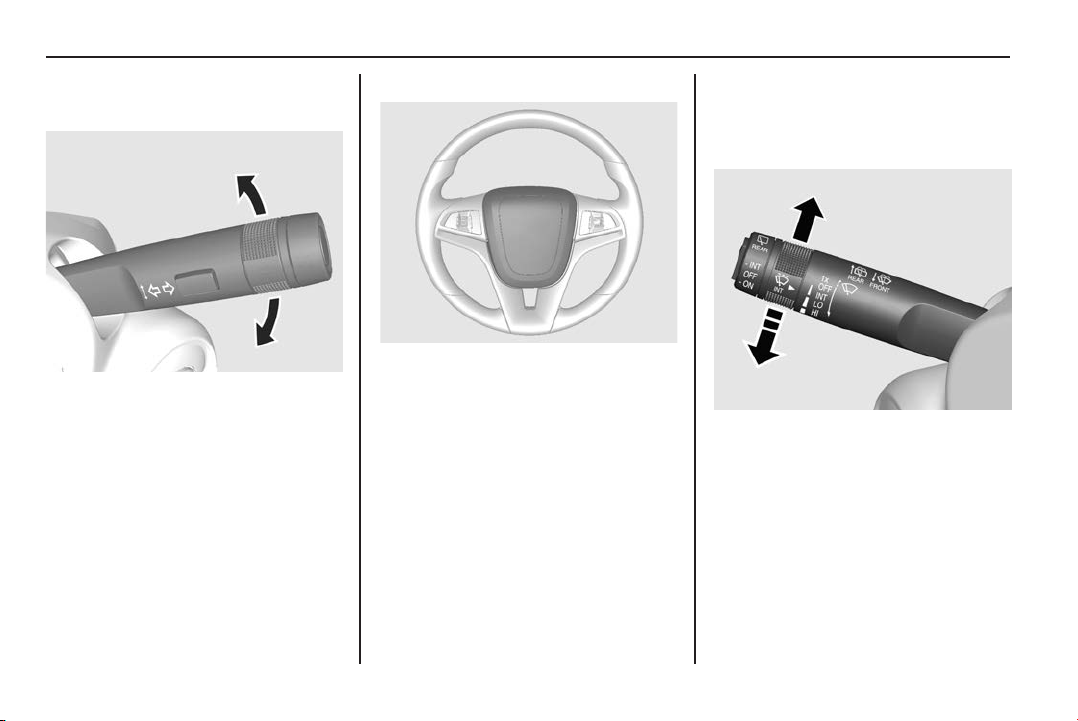

Turn and lane change
signals
• Push the lever in the direction
the steering wheel is turned.
• A green arrow on the instrument
cluster ashes when the lamps
are in operation.
Turn and lane change signals 089
Horn
Press j.
Washer and wiper
systems
Windscreen wiper
1x: Mist
OFF: Off
INT: Intermittent operation
LO: Continuous wipe, slow speed
HI: Continuous wipe, fast speed
For a single wipe when the
windscreen wipers are off, lightly
move the lever up and release it.
Windscreen wiper/washer 060

In brief 11
Windscreen washer
Pull the lever rearwards to wash the
windscreen.
Washer uid is sprayed onto the
windscreen and the wipers cycle
once.
Windscreen wiper/washer 060
Washer uid 0182
Rear window wiper/washer
Wiper
INT: Intermittent wipes, push in at
the top of the button.
ON: Continuous wipes, push in at
the bottom of the button.
OFF: To turn the wipers off, place
the switch in the OFF position.
Rear window wiper/washer 062
Washer
Push the lever forwards.
Washer uid is sprayed onto the rear
window and the wiper swipes for a
few strokes.
Rear window wiper/washer 062
Washer uid 0182

12 In brief

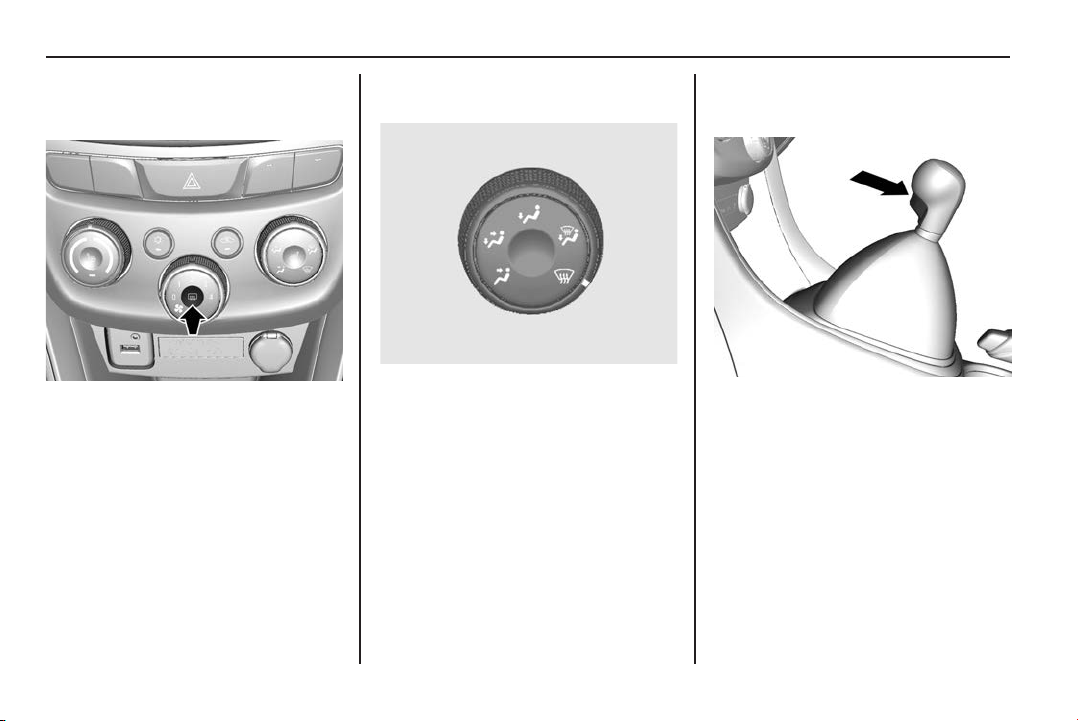

Climate control
Heated rear window
Press Ü.
Note
The engine must be running.
Heated rear window 032
Demisting and defrosting
the windows
Rotate to select V.
Windscreen demister 0135
Transmission
Manual transmission
Select reverse gear while the vehicle
is stationary:
1. Press the clutch pedal to the oor.
2. Wait 3 seconds.
3. Pull the button of the front of the
shift lever up.
4. Move the shift lever to position R.
If the gear does not engage:
1. Return the shift lever to neutral.
2. Release the clutch pedal.

In brief 13
3. Push the clutch pedal again and
repeat gear selection.
Manual transmission 0151

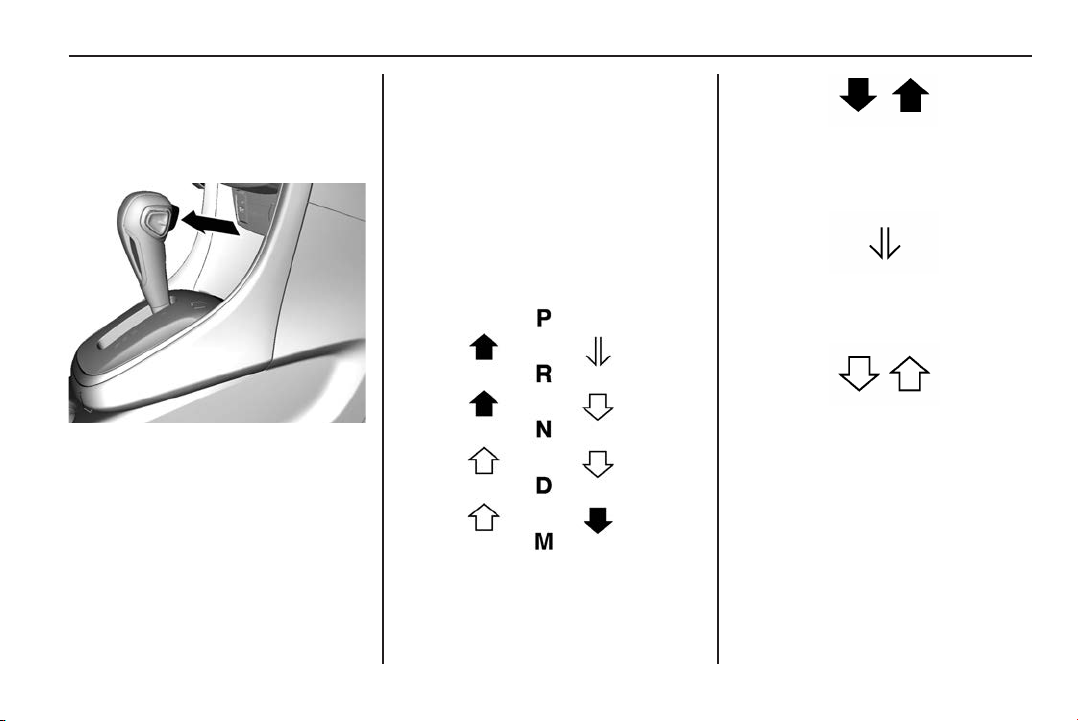

Automatic transmission
P: (park) In park position, the front
wheels are locked. Select Ponly
when the vehicle is stationary
and the park brake is applied.
R: (reverse) Place in reverse only
when the vehicle is stationary.
N: (neutral).
D: (drive) Used for general driving.
Allows the transmission to be
shifted into any of the six
forward gears.
M: (manual).
Movement between certain gear
positions requires pressing the
release button on the shift lever
and/or depressing the brake pedal.
Follow the descriptions as indicated
by the arrows when moving the
shift lever.
Press the release button to select
a gear.
Depress the brake pedal and press
the release button to select a gear.
Shift freely to select a gear.
Automatic transmission 0146

14 In brief
Getting started
1. Check the windows, mirrors and
lamps are clean.
2. Visually check tyre ination.
Check tyre pressures weekly.
3. To ensure pedal travel is
uninhibited, there must be no
loose mats in the area of the
pedals. Floor mats 0216
4. Close and secure all doors.
5. Position the seat for comfortable
driving.
6. Adjust rear view mirrors.
7. Fasten seat belts.
8. Check the warning indicators
illuminate when turning the
ignition on.
Warning lights, gauges and
indicators 065
Driving and operating 0139
Starting the engine
Vehicles with ignition switch
Warning
Do not turn the engine off while
the vehicle is moving as there
will not be any power assist for
brakes or steering.
Never remove the key while the
vehicle is moving, as this will lock
the steering.

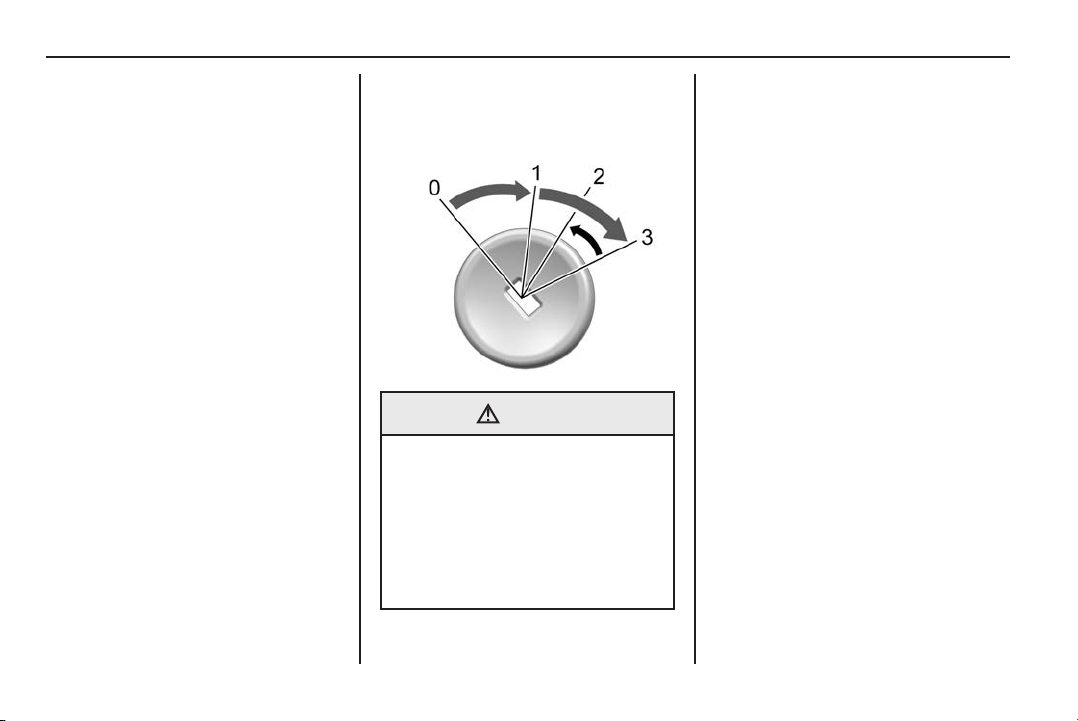

0: (LOCK) The key can only be
inserted and removed from this
position.
1: (ACC) When the key is in this
position, the audio system operates.
2: (ON) When the key is in this
position, the engine is ready to start
and all electrical systems are active.
Do not leave the switch in this
position for a long time, unless the
engine is running, otherwise the
vehicle’s battery will discharge.
3: (START) Turn the key to this
position and release when the
engine is running.

In brief 15

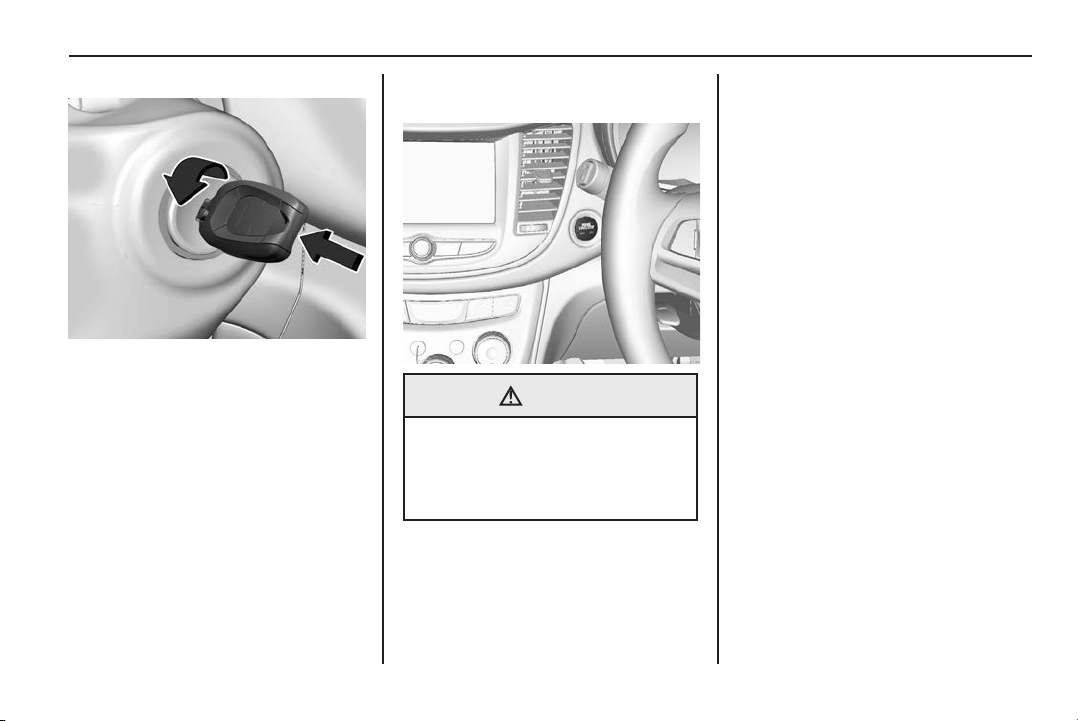

Turning the ignition off
To turn the ignition off:
1. Stop the vehicle and shift the
automatic transmision to P
(Park).
2. Push the key toward the steering
column and turn the key to
LOCK. Remove the key
3. Apply the parking brake rmly.
Ignition positions 0140
Vehicles with electronic key
system
Warning
Do not turn the engine off while
the vehicle is moving as there
will not be any power assist for
brakes or steering.
1. Have the electronic key inside
the vehicle.
2. Depress the brake pedal.
3. Automatic transmission in P or N.
4. Do not operate the accelerator
pedal.
5. Press the Engine Start/Stop
button.
The engine starts after a short delay.
Starting the engine 0142

16 In brief
Parking
1. Apply the park brake rmly
without pushing the release
button.
2. Automatic transmission: Select
position P.
Manual transmission: If facing
uphill or on at ground, select
1st gear. If facing downhill, select
reverse gear.
3. Shut all windows.
4. Turn the ignition off and remove
the key.
5. Press eon the key to lock all
doors.
Driving and operating 0139
Warning
If the vehicle has a manual
transmission, never get out of the
vehicle without rst moving the
shift lever into 1st or R (Reverse),
setting the park brake and turning
the ignition off. The vehicle can
roll, which could cause serious
injury or death.

Keys, doors and windows 17
Keys, doors and
windows Keys and locks
Keys
Caution
Do not attach heavy or bulky
items to the ignition key.
With ignition switch
Keys and locks .....................17
Keys...........................................17
Foldaway/removable key blade..18
Radio remote control .................19
Electronic key system ................21
Memorised settings....................22
Central locking system...............22
Electronic key system
operation....................................24
Automatic door locks..................25
Doors.....................................26
Manual door locks......................26
Child security rear door locks.....26
Tailgate.......................................27
Vehicle security..........................28
Auto door unlock........................28
Immobiliser.................................29
Exterior mirrors ....................29
Convex mirror.............................29
Power mirrors.............................29
Interior mirrors......................30
Rear view mirror.........................30
Windows................................31
Power windows..........................31
Heated rear window...................32
Sun visors ..................................33
Roof .......................................33
Sunroof.......................................33

18 Keys, doors and windows
With electronic key system
The key operates all doors and the
ignition.
• Press cto unlock the doors and
tailgate.
The hazard lamps ash twice.
• Press eto lock the doors and
tailgate.
The hazard lamps ash once.
Central locking system 022
Tailgate 027
Foldaway/removable key
blade
With ignition switch
1. Press button to extend the key
blade.
2. To retract the key blade, press
the button and fold the blade into
the key.
With electronic key system
1. Press button to remove the key
blade.
2. Reinsert the key blade into the
key.
