UNDERSTANDING THE MANUAL
Read and understand this manual completely.
Some parts & guards have been removed for clarity purposes.
This product has been designed and fabricated to deliver efficient and reliable service provided it is
operated safely and maintained in accordance with the instructions in this manual.
This manual is provided as a guideline to the owner and operator(s) for the operation and maintenance of
this attachment. The manual is based on the attachment at the time of manufacture and does not cover
any after-market modifications.
The owner and operator(s) should ensure that they have read and have a clear understanding of this
manual as well as the operator’s manual for the tractor to which this attachment will be mounted. The
efficient and safe operation of the unit depends on this understanding. Safety recommendations should be
adhered to by all users of this attachment.
Refer to the model and serial number when requesting parts or service. Enter your serial number and date
of purchase in the space provided below.
MODEL NUMBER: ____________________________________________________
SERIAL NUMBER: ____________________________________________________
DATE OF PURCHASE: ____________________________________________________

Angle Plow
Owner’s Man al and Parts List
Page | 4 of 19 Holder Tractors Inc. www.holdertractors.ca
SAFETY INFORMATION
Read all safety information in this manual.
General safety practices are listed on the safety information pages and specific safety information is
located throughout this manual.
SAFETY SYMBOL
This is the safety alert symbol. It is used in the manual and on safety labels to remind
operators and repair personnel of important safety practices and procedures. When you see
this symbol, become alert – your safety is involved. Safety is no accident!
HAZARD DEFINITIONS
Three classifications of hazard are listed in this manual and on safety labels. In order of seriousness from
the greatest to the least, they are:
DANGER:
Indicates an immediately hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING:
Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION:
Indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury.
IMPORTANT:
Indicates that equipment or property damage could result if
instructions are not followed.
NOTE:
Gives helpful information.

Angle Plow
Owner’s Man al and Parts List
Page | 5 of 19 Holder Tractors Inc. www.holdertractors.ca
Safety Guidelines:
1. Prior to operation, the equipment should be thoroughly inspected and every operator should have
a clear understanding of the potential dangers inherent with the operation of this equipment.
2. Children and equipment do not mix; do not allow children to play on or around equipment and work
area.
3. Use extreme care and caution when approaching areas such as blind corners, playgrounds, and
other busy or sight-obstructed spots.
4. Ensure all guards and covers are securely fastened and that all safety equipment and lights are
functioning properly.
5. Wear appropriate clothing that cannot become entangled in the equipment’s moving parts or
accidentally snag a control lever.
6. Some attachments increase the swing radius of an articulated tractor, be sure of where your
machine ends.
7. Before starting tractor, ensure that hydraulic and PTO drives are disengaged.
8. Do not attempt to service, repair or adjust any attachment on a machine that is running.
9. Do not modify or alter the attachment without consulting your dealer.
Safety before Operation:
1. Read and understand manuals for the tractor and attachments to be used. Know how to operate
all controls and to stop the equipment quickly.
2. Ensure that all attachments are properly installed and fastened before operation.
3. Check the fittings and fasteners on tractor and implement. Perform any repairs or adjustments
before starting machine.
4. Ensure that all safety decals are clearly visible and legible.
5. Ensure that PTO and hydraulic drives are disengaged before starting engine.
6. Tractors and attachments must be properly lubricated and adjusted at the beginning of each shift
and at specified intervals thereafter.
7. Before beginning sweeping operations, clear the area to be swept of all large objects that may
damage the equipment or may be damaged by the machine.
Safety during Operation:
1. In order to avoid accidents, be familiar with the area of operation such as blind spots, driveway
crossings, road crossings and other dangerous areas.
2. Do not carry passengers unless the machine is equipped for them.
3. Wear seat belt, eye and hearing protection while operating equipment.
4. Keep hands, feet, hair and loose clothing away from all moving parts of the engine, drive lines,
chains, sweeper brush and other moving parts.
5. All chain covers and shields must be in place before operating equipment.
6. Never sweep towards people, pets, buildings, vehicles or other objects that can damaged by flying
debris. Always use the most effective brush speed for the operating conditions.
7. Yield to pedestrians in your work area, bring the tractor to a complete halt and turn off the
attachment until it is safe to resume operations.
8. If you must leave the tractor during operation, disengage PTO/hydraulic drives, bring the machine
to a complete stop, lower the implement, shut off the engine, set the parking brake and remove the
ignition key.
9. Always operate the tractor within the manufacturer’s recommended safety guidelines. Operate the
tractor at speeds compatible with the working conditions.
10. Inspect the equipment after hitting a solid object to ensure that all aspects of the equipment
continue to function properly.

Angle Plow
Owner’s Man al and Parts List
Page | 6 of 19 Holder Tractors Inc. www.holdertractors.ca
Important – All signs & labels need to be visible at all time. Clean and or replace damage signs and
labels.
Your spare parts department should have these in stock.
Label Part Location
Part name

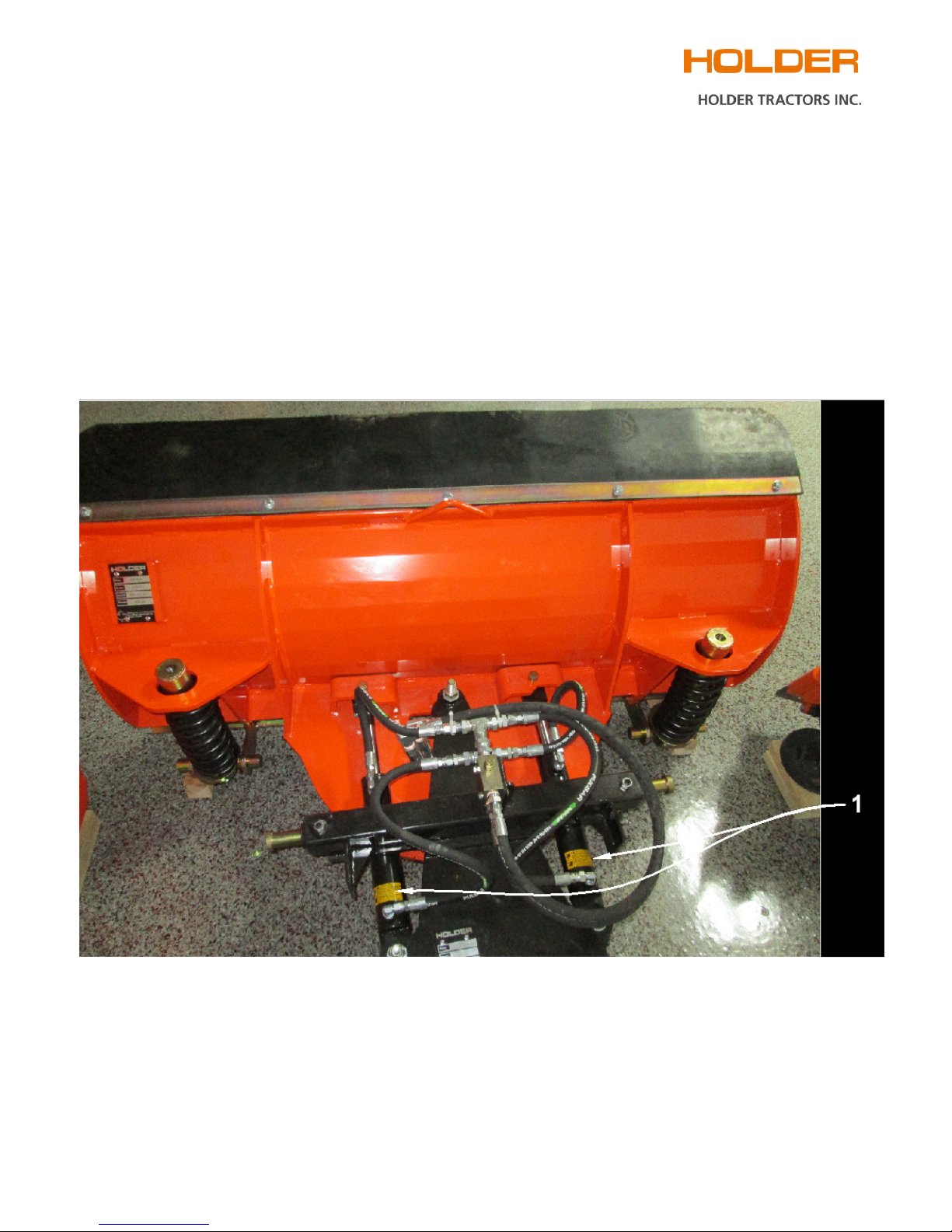

Fig 1 item 1 Warning label

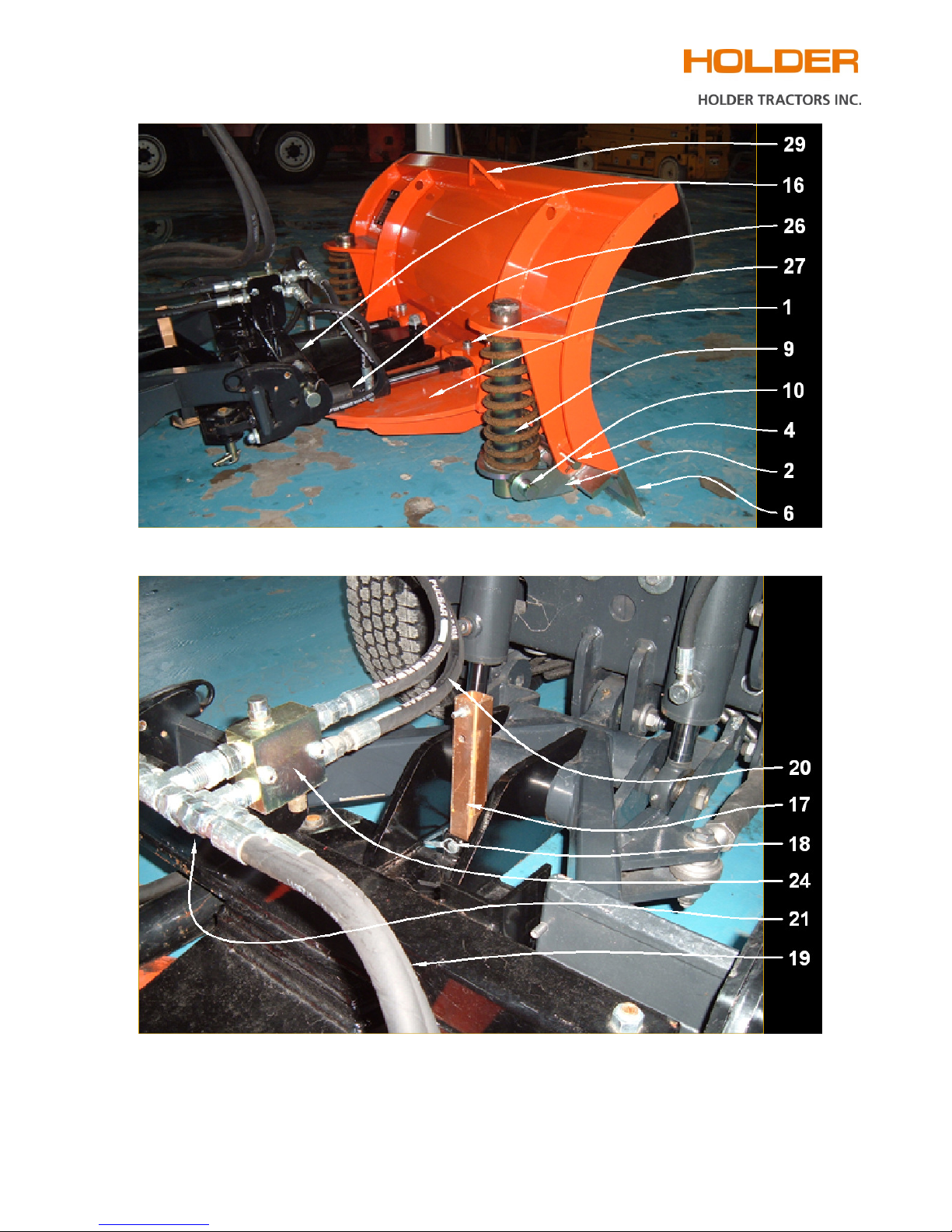

Part numbers are in the part list section
Figure 1

Angle Plow
Owner’s Man al and Parts List
Page | 7 of 19 Holder Tractors Inc. www.holdertractors.ca
Representation of Labels
Figure 2

Angle Plow
Owner’s Man al and Parts List
Page | 8 of 19 Holder Tractors Inc. www.holdertractors.ca
INSTALLATION
1. Align lift arm with the brackets and lock in place.
2. Hook-up the hydraulic hoses to the tractor.
3. Test the hydraulic connections to ensure the desired direction of the plow angle.
4. Inspect the installed plow to ensure that it functions properly and that the unit is securely attached.
GENERAL OPERATING INSTRUCTIONS
1. The plow should be angled to direct the snow to a safe and acceptable location.
2. Do not operate the plow if pedestrians are approaching from the front.
3. Do not put your hands or feet near the trip edge of the blade or other moving parts of the turntable.
4. Do not wear loose clothing when operating the equipment.
5. Use extreme caution when operating on gravel surfaces as the plow may dig into the gravel and
cause the whole tractor to swerve or stop suddenly.
6. Never operate the plow without ensuring that the cutting edge is securely attached and protecting
the body of the blade.
7. Protect yourself by wearing all necessary safety equipment such as safety glasses and earplugs or
earmuffs.
STORAGE
Before storing your Plow, certain precautions should be taken to protect it from deterioration.
1. Clean the plow thoroughly.
2. Make all necessary repairs.
3. Repaint all parts from which paint has worn or peeled and replace any missing or damaged decals.
4. Thoroughly lubricate all moving parts.
5. Secure hydraulic hoses against the blade to avoid damage.
6. Store on a level surface in a dry environment.
7. If possible, store in an area protected from direct sunlight to avoid weathering of the paint and
rubber parts.
8. If you need to store in a location where you need to lift, there is a lifting eye that can be seen on
Fig 3 page 16
MAINTENACE
Help your new plow keep its value! Use only Genuine Parts
1. Grease all grease fittings following each shift, ensuring that all fittings accept grease. Replace any
fittings that do not accept grease. Insufficient lubrication will result in premature bearing and sleeve
failure.
2. Secure hydraulic hoses to prevent chafing against other parts.

Angle Plow
Owner’s Man al and Parts List
Page | 9 of 19 Holder Tractors Inc. www.holdertractors.ca
MAINTENANCE RECORD
Use this log to record maintenance performed on your unit.
Date Maintenance Performed Performed by Comments

Angle Plow
Owner’s Man al and Parts List
Page | 10 of 19 Holder Tractors Inc. www.holdertractors.ca
SCHEDULE
PROCEDUR
E
SCHEDULE
Before
each
use
After
every
40
hours
After
each
use
Refer
to
tractor
manual
When
needed
Hardware
-
Tighten √√
Lubrication Points
–
Lubricate with high-quality
grease.
√

Angle Plow
Owner’s Man al and Parts List
Page | 11 of 19 Holder Tractors Inc. www.holdertractors.ca
US to METRIC - METRIC to US CONVERSION
U.S. to Metric
To change...................................... To.................................. Multiply By
Inches............................................ Centimeters........................... 2.540
Feet ............................................... Meters................................... 0.305
Yards ............................................. Meters................................... 0.914
Miles .............................................. Kilometers ............................. 1.609
Square Inches................................ Square Centimeters .............. 6.451
Square Feet................................... Square Meters....................... 0.093
Square yards ................................. square Meters ....................... 0.836
Cubic Feet ..................................... Cubic Meters......................... 0.028
Cubic Yards ................................... Cubic Meters......................... 0.765
Fluid Ounces.................................. Milliliters .............................. 29.573
Pints .............................................. Liters ..................................... 0.473
Quarts............................................ Liters ..................................... 0.946
Gallons .......................................... Liters ..................................... 3.785
Pounds .......................................... Kilograms.............................. 0.454
Pound-Feet.................................... Newton-Meters.................... 1.3356
Pounds per square Inch................. Bar ........................................ 0.070
Miles per Hour ............................... Kilometers per Hour .............. 1.609
Metric to U.S.
To change ..................................... To.................................. Multiply By
Centimeters ................................... Inches ................................... 0.394
Meters............................................ Feet....................................... 3.280
Meters............................................ Yards .................................... 1.094
Kilometers...................................... Miles ..................................... 0.621
Square Centimeters....................... Square Inches....................... 0.155
Square Meters ............................... Square Feet ........................ 10.764
Square Meters ............................... Square Yards ........................ 1.196
Cubic Meters.................................. Cubic Feet........................... 35.315
Cubic Meters.................................. Cubic Yards .......................... 1.308
Milliliters......................................... Fluid Ounces......................... 0.034
Liters.............................................. Pints...................................... 2.113
Liters.............................................. Quarts ................................... 1.057
Liters.............................................. Gallons.................................. 0.264
Kilograms....................................... Pounds.................................. 2.205
Newton-Meters .............................. Pound-feet ............................ 0.738
Bar................................................. Pounds per Square Inch........ 14.50
Kilometers per Hour....................... Miles per Hour....................... 0.621

Angle Plow
Owner’s Man al and Parts List
Page | 12 of 19 Holder Tractors Inc. www.holdertractors.ca
BOLT TORQUE SPECIFICATIONS
Bolt Coarse Grade 5 Grade 8
SizeThread*
Inches per Inch Torque in foot pounds
1/4 20 10 14
5/16 18 19 29
3/8 16 33 47
7/16 14 54 78
1/2 13 78 119
9/16 12 114 169
5/8 11 154 230
3/4 10 257 380
7/8 9 382 600
1 8 587 700
1-1/8 7 794 1430
1-1/4 7 1105 1975
1-3/8 6 1500 2650
1-1/2 6 1775 3200
To determine the torque for a fine-thread bolt, increase rating by 9%.
All torques are measured on dry standard bolts.

Angle Plow
Owner’s Man al and Parts List
Page | 13 of 19 Holder Tractors Inc. www.holdertractors.ca
PARTS
Illustration may not necessarily reproduce the full detail and exact shape of the parts or depict the actual
models and are intended for reference only.
Please include the model, make, serial number, and the part number to place an order.
Right hand and Left hand sides of the tractor are determined from the viewpoint of the operator when
seated in the tractor.
The dealer reserves the right to change or eliminate the product, specifications or product line without
notice or obligation.
•-- The last two numbers in the model number represents the width of the plow
Plow number 4160-AP has a blade width of 60”, where
Plow number 4172-AP has a blade width of 72”.
•-- O/L means that the part common hardware which can be “Obtained Locally”.
•-- N/S means that the part is Not Shown.
•-- Quantities indicated are for the 60” angle plow, and may vary for larger or other models.
•-- Top link and Block, Safety chain and Pin are not included with the Plow.
•-- Please note that “XX” denotes the width of the angle plow blade. Thus the part number for a 60”
angle plow’s blade and turntable assembly would be M-AP-60-001, but for a 72” angle plow it
would be M-AP-72-001. Quantities indicated are for 60” angle plow, and may vary for larger or
other models.

Angle Plow
Owner’s Man al and Parts List
Page | 14 of 19 Holder Tractors Inc. www.holdertractors.ca
Figure 3
Figure 4

Angle Plow
Owner’s Man al and Parts List
Page | 15 of 19 Holder Tractors Inc. www.holdertractors.ca
Figure 5
Figure 6

Angle Plow
Owner’s Man al and Parts List
Page | 16 of 19 Holder Tractors Inc. www.holdertractors.ca
Figure 7

Angle Plow
Owner’s Man al and Parts List
Page | 17 of 19 Holder Tractors Inc. www.holdertractors.ca
PLOW PARTS LIST
# Description Fig Part # Qty.
01--Blade & Turntable Assembly ----------------------------- Fig 3, 5, 6 & 7--- M-AP-XX-001----------------- 1
02--Trip edge R/H --------------------------------------------------- Fig 3, 6 & 7--- M-AP-XX-002----------------- 1
03--Trip edge L/H ------------------------------------------------------------Fig 7--- M-AP-XX-003----------------- 1
04--Trip edge hinge pin outer---------------------------------------- Fig 3 & 7--- M-AP-XX-004----------------- 2
05--Trip edge hinge pin center --------------------------------------------Fig 7--- M-AP-XX-005----------------- 1
06--Scraper blade R/H ------------------------------------------ Fig 3, 5, 6 & 7--- M-AP-XX-006----------------- 1
07--Scraper blade L/H------------------------------------------------- Fig 5 & 7--- M-AP-XX-007----------------- 1
08--Cutting edge hardware---------------------------------------------------O/L--- ----------------------------------- 8
09--Trip edge spring guide ------------------------------------------- Fig 3 & 6--- M-AP-XX-009----------------- 2
10--Trip edge spring guide pin -------------------------------------- Fig 3 & 6--- M-AP-XX-010----------------- 2
11--Pivot pin bolt & nut--------------------------------------------------------O/L--- ----------------------------------- 1
12--Spherical bearing -----------------------------------(N/S, under Item 01)--- M-AP-XX-012----------------- 1
13--Spherical bearing washer -------------------------(N/S, under Item 01)--- M-AP-XX-013----------------- 1
14--Rubber grease gasket -------------------------------------------------- N/S--- M-AP-XX-014----------------- 1
15--Spring Pins for Hinge Pin -----------------------------------------------O/L--- ----------------------------------- 10
16--A frame (Be sure to specify Tractor # as well) ---------- Fig 3, 6 & 7--- M-AP-XX-201----------------- 1
17--Support stand ------------------------------------------------------ Fig 4 & 6--- M-AP-XX-202----------------- 1
18--Support stand hitch pin ------------------------------------------ Fig 4 O/L--- ----------------------------------- 1
19--Hydraulic hoses to blade ---------------------------------------- Fig 4 & 5--- M-AP-XX-203----------------- 4
20--Hydraulic hoses to tractor --------------------------------------- Fig 4 & 5--- M-AP-XX-204----------------- 2
21--“T” fitting-------------------------------------------------------- Fig 4 & 5 O/L--- ----------------------------------- 2
22--Quick coupler (not shown) ----------------------------------------------O/L--- ----------------------------------- 2
23--90°swivel fittings (not shown) -----------------------------------------O/L--- ----------------------------------- 4
24--Crossover valve --------------------------------------------------- Fig 4 & 5--- M-AP-XX-205----------------- 1
25--Hardware for crossover valve ------------------------------------------O/L--- ----------------------------------- 2
26--Hydraulic cylinders--------------------------------------------- Fig 3, 5 & 6--- M-AP-XX-206----------------- 2
27--Hydraulic cylinder pin -------------------------------------------- Fig 3 & 6--- M-AP-XX-207----------------- 4
28--Cotter pin--------------------------------------------------------------------O/L--- ----------------------------------- 2
29--Spring --------------------------------------------------------------- Fig 3 & 7--- M-AP-XX-011----------------- 2

Angle Plow
Owner’s Man al and Parts List
Page | 18 of 19 Holder Tractors Inc. www.holdertractors.ca
PRODUCT WARRANTY REGISTRATION CARD
Please detach along the dotted line and mail and keep Warranty for your records
Product:
Sweeper Vario plough Angle plough Snow blower Hydro sweeper Rotary snow plough
Model number__________________________ Serial Number_______________________________
Name: _________________________________________________________________________
Address: _________________________________________________________________________
City: ______________________Province/State _______________Postal/zip code____________
Country: ____________________________________
Tel No: ____________________________________ Email: ________________________________
Date of Purchase __________________________ New Replacement
……………………………………………………………………………………………………………………………
Warranty:
This product is warranted against defect of material and workmanship for the period of one year, against
any and all part of this attachment.
The procedure to obtain repair under the warranty is to contact the Holder Company of North America.
The warranty is void if any part of the equipment is altered or modified in ways.
Some photos might be slightly different then your equipment.
Any changes made will be done without notification.
