Holtkoetter 6247/2 User manual

Major lamp parts manufactured in Germany by Holtkötter Leuchten GmbH.
Bulbs manufactured in Germany by Osram GmbH.
Final assembly by Holtkötter International, Inc. in South St. Paul, MN.
Holtkötter ®and Holtkötter Leuchten®are registered trademarks
of Holtkötter International, Inc. All Rights Reserved.
© Holtkötter International, Inc.
HOLTKÖTTER INTERNATIONAL, INC.
155 Hardman Avenue South, South St. Paul, MN 55075
fax: [phone] • phone: [phone]
ASSEMBLY INSTRUCTIONS FOR
www.holtkoetter.com
e-mail: [e-mail]
CAUTION, IMPORTANT SAFETY INSTRUCTIONS
This portable luminaire has a polarized plug (one blade is wider than the other) as a feature to
reduce the risk of electrical shock. This plug will fit a polarized outlet only one way. If the plug does
not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician.
Never use with an extension cord unless plug can be fully inserted. Do not alter the plug.
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC
SHOCK, EXPOSURE TO EXCESSIVE UV RADIATION OR
INJURY TO PERSONS
WARNING - To reduce the risk of FIRE, ELECTRIC
SHOCK, EXPOSURE TO EXCESSIVE UV RADIATION OR
INJURY TO PERSONS:
Turn off power/unplug and allow to cool before replacing bulb.1.
Bulb gets HOT quickly. Contact only switch/plug when turning on.2.
Do not touch hot lens, guard or enclosure.3.
Do not remain in light if skin feels warm.4.
Do not look directly at lighted lamp.5.
Keep lamp away from materials that burn.6.
Use only with a 75 Watt or smaller bulb.7.
Do not touch the bulb at any time. Use a soft cloth. Oil from skin may damage bulb.8.
Do not operate the portable luminaire with a missing or damaged guard, lamp containment9.
barrier or UV filter.
SAVE THESE INSTRUCTIONS
Please make sure that all the parts for your lamp are enclosed. The following
parts should be included with this package:
1. Reflector Kit
Glass ShadeA.
Two Frosted glass shieldsB.
Two Bayonet base halogenC.
bulb (75-Watts, Clear)
Allen WrenchD.
2. Lamp Base

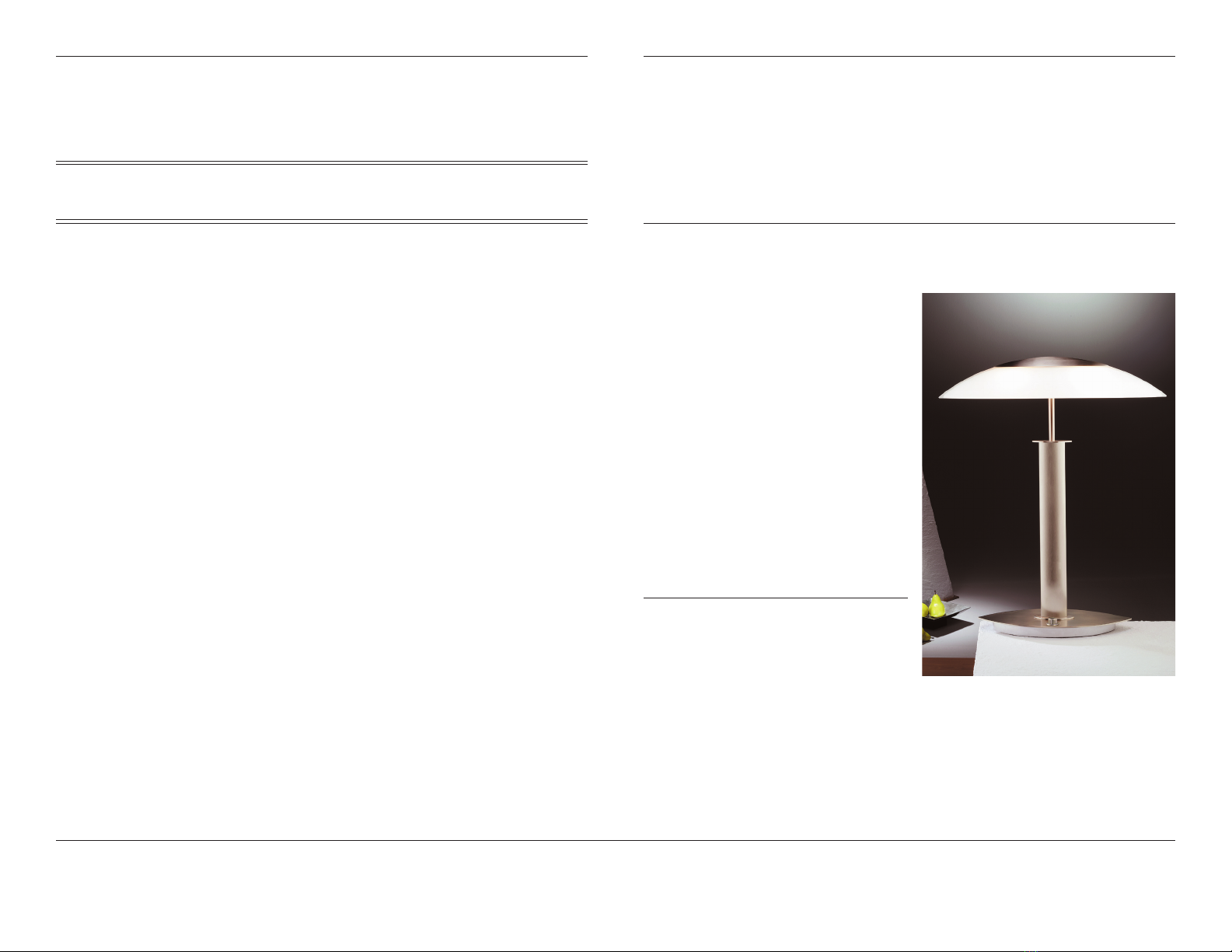

Halogen Table Lamp
No. 6247/2
Care Instructions
Use only a soft, dry cloth to clean. If
necessary, a slightly damp, soft cloth
may be used to spot clean.
Do not use common household
cleaners or brass cleaners on lamps or fixtures, as the lacquer on the outside of
the brass may be damaged as a result. Enjoy your new Holtkötter lamp.

Major lamp parts manufactured in Germany by Holtkötter Leuchten GmbH.
Bulbs manufactured in Germany by Osram GmbH.
Final assembly by Holtkötter International, Inc. in South St. Paul, MN.
Holtkötter ®and Holtkötter Leuchten®are registered trademarks
of Holtkötter International, Inc. All Rights Reserved.
© Holtkötter International, Inc.
HOLTKÖTTER INTERNATIONAL, INC.
www.holtkoetter.com
e-mail: [e-mail]
ASSEMBLY INSTRUCTIONS FOR
(B) Finished Reflector Cover
(E) Aluminum Nuts
(A) Glass Shade
(D) White Shade Support
(F) Bulbs
(J) Glass Shield Holder
(L) Washers
(H) Finished Screws
(C) Small White Knobs
(G) Frosted Glass Shields
(K) Allen Wrench
Assembly Instructions (see diagram):
To install the glass shade (A), remove the finished reflector cover (B) by1.
unscrewing the small white knobs (C) located just below the white shade
support (D). Set the cover and knobs aside.
Next remove the aluminum nuts (E) from the column. Install the glass shade2.
over the white shade support (D) and screw the aluminum nuts (E) back in
place.
Now reinstall the finished reflector cover (B) by placing it over the installed3.
glass shade (A). Align the cover with the glass and screw the small white
knobs (C) back in place.
To install the bulbs (F), insert the bulb into the bayonet socket. The bulb4.
is inserted by pushing it slightly down into the socket and then turning it
clockwise. Repeat on the other side. NOTE: BE CAREFUL NOT TO TOUCH THE
BULB WITH YOUR BARE HANDS.
Next, remove the finished screws (H) and washers (L) located below the5.
glass shield holder (J) with the allen wrench (K). Set aside.
Finally, install the frosted glass shields (G). Holding the glass shield in place6.
with the smooth side down, carefully align the shield with the holder, place
the washer (L) on the screw (H) and tighten in place. DO NOT OVERTIGHTEN.
Repeat on the other side.
Plug the lamp into the outlet. Your lamp is now operational.7.
Assembly Diagram
Halogen Table Lamp
No. 6247/2
