Holtkoetter 6260/1 User manual

Major lamp parts manufactured in Germany by Holtkötter Leuchten GmbH.
Bulbs manufactured in Germany by Osram GmbH.
Final assembly by Holtkötter International, Inc. in South St. Paul, MN.
Holtkötter ®and Holtkötter Leuchten®are registered trademarks
of Holtkötter International, Inc. All Rights Reserved.
© Holtkötter International, Inc.
HOLTKÖTTER INTERNATIONAL, INC.
155 Hardman Avenue South, South St. Paul, MN 55075
fax: [phone] • phone: [phone]
ASSEMBLY INSTRUCTIONS FOR
www.holtkoetter.com
e-mail: [e-mail]

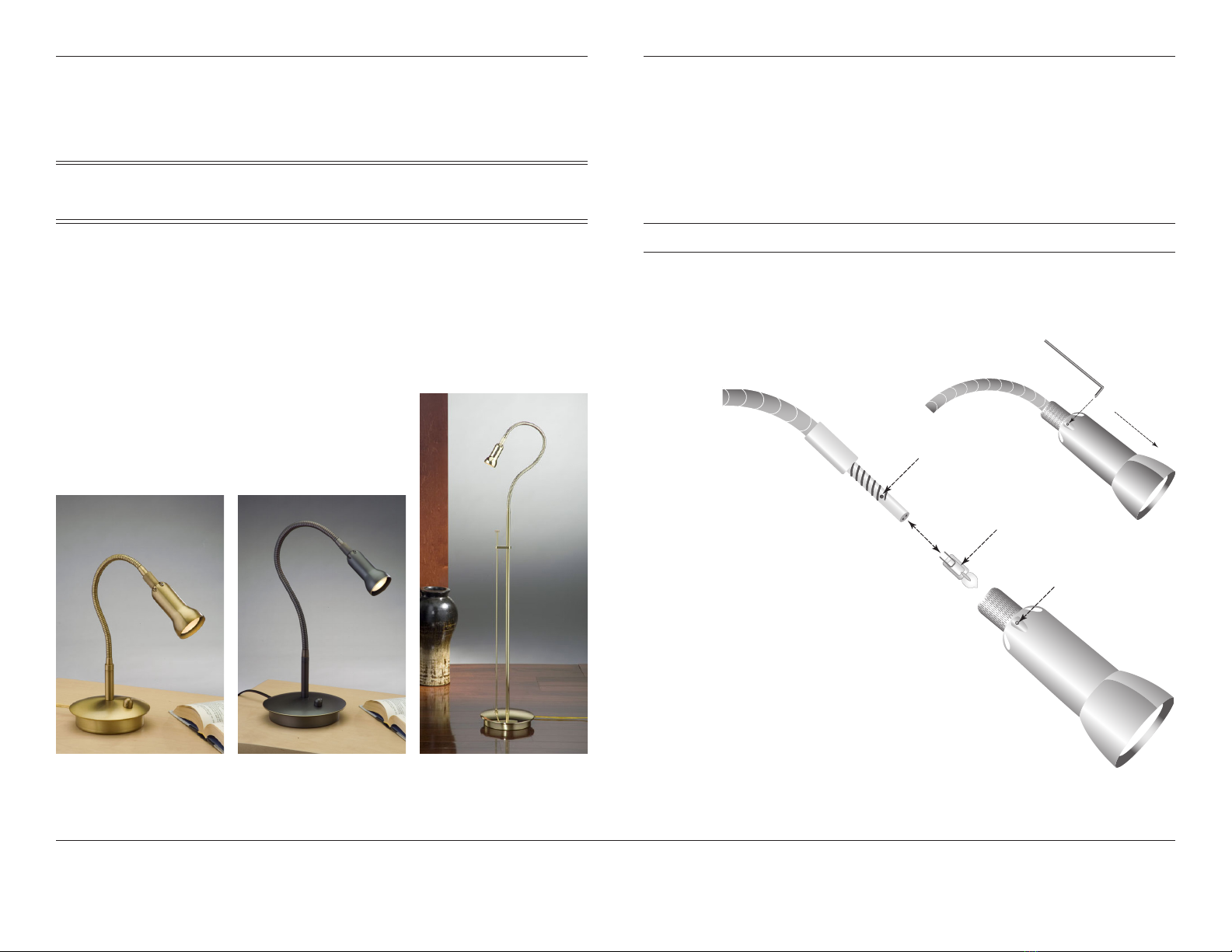

Glass Shield and Bulb Replacement Instructions
In order to replace the bulb, special care must be taken to remove the shade. The lamp must1.
be turned off and unplugged for at least 15 minute prior to removing the shade.
Turn the shade clockwise until it stops. Using the allen wrench provided, loosen the set-screw2.
located on the inner part of the vent. Do not remove this set-screw.
Take the shade assembly off the lamp.3.
Congratulations, you have just purchased one of the finest reading lamps available on the market
today. This lamp has a telescoping shade that allows the user to focus the halogen light where
they want it and a full-range dimmer to control the light output. The reflector houses a secondary
aluminum reflector covered with a frosted glass shield that evens and focuses the light output of
the encased 20 Watt Halogen bulb. The table lamps come fully assembled, the floor lamp requires
the dimmer rod to be installed.
Replacement Bulb Order Code: 9250*020-HSTAR-G4
Care Instructions
Use only a soft, dry cloth to clean. If necessary, a slightly damp,
soft cloth can be used to spot clean. Do not use common
household cleaners on lamps or fixtures, as the lacquer on the
outside of the brass may be damaged as a result.
Enjoy your new Holtkötter lamp.
Chair and Bedside Reading Lighting
6260/1, 6261/1 & 6360/1
6260/1 6360/16261/1
Allen Wrench
Holding4.
the black
rubber washer,
remove the old bulb.
Insert the new bulb being5.
careful not to touch the bulb
with bare fingers. Hold the bulb
with a small cloth or tissue. This will
help prolong the life of the bulb.
To replace the shade, slide the reflector6.
over the bulb up to the lamp arm. Screw the
shade onto the lamp until the set-screw lines up
with the grooves in the arm of the lamp.
Tighten the set-screw to hold the reflector onto the7.
lamp. Check the lamp by turning the shade counter-
clockwise. If the shade can be turned past the set-screw,
the shade is not correctly placed. Slide the shade back up to
the arm of the lamp and line up the set-screw with the groove
again. Proper installation of the shade will not allow it to be twisted
past the set-screw.
Set-Screw
Bulb
Set-Screw

Major lamp parts manufactured in Germany by Holtkötter Leuchten GmbH.
Bulbs manufactured in Germany by Osram GmbH.
Final assembly by Holtkötter International, Inc. in South St. Paul, MN.
Holtkötter ®and Holtkötter Leuchten®are registered trademarks
of Holtkötter International, Inc. All Rights Reserved.
© Holtkötter International, Inc.
HOLTKÖTTER INTERNATIONAL, INC.
www.holtkoetter.com
e-mail: [e-mail]
ASSEMBLY INSTRUCTIONS FOR
For the 6360/1:
Install the Dimmer Rod
Lower the dimmer stem through the1.
hole in the bracket (A) on the main
stem into the small dimmer knob (B)
on the base, being careful not to
scratch the stem surface.
Tighten the set-screw on the small2.
dimmer knob (near the base) with
the allen wrench provided.
Chair and Bedside Reading Lighting
6260/1, 6261/1 & 6360/1
CAUTION, IMPORTANT SAFETY INSTRUCTIONS
This portable luminaire has a polarized plug (one blade is wider than the other) as a feature to
reduce the risk of electrical shock. This plug will fit a polarized outlet only one way. If the plug does
not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician.
Never use with an extension cord unless plug can be fully inserted. Do not alter the plug.
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC
SHOCK, EXPOSURE TO EXCESSIVE UV RADIATION OR
INJURY TO PERSONS
WARNING - To reduce the risk of FIRE, ELECTRIC
SHOCK, EXPOSURE TO EXCESSIVE UV RADIATION OR
INJURY TO PERSONS:
Turn off power/unplug and allow to cool before replacing bulb.1.
Bulb gets HOT quickly. Contact only switch/plug when turning on.2.
Do not touch hot lens, guard or enclosure.3.
Do not remain in light if skin feels warm.4.
Do not look directly at lighted lamp.5.
Keep lamp away from materials that burn.6.
Use only with a 20 Watt, low-voltage Halostar G4 or smaller bulb.7.
Do not touch the bulb at any time. Use a soft cloth. Oil from skin may damage bulb.8.
Do not operate the portable luminaire with a missing or damaged guard, lamp containment9.
barrier or UV filter.
SAVE THESE INSTRUCTIONS
(A)
(B)
Special note on focusing: When
focusing the light, be sure to grasp
the front of the shade -- not the back
of the shade near the heat vents. The
back of the lamp shade will get hot
when used for prolonged periods of
time.
To diffuse the light/broaden the
beam:
Turn the shade
counter-clockwise
to move the shade
away from the
surface being lit,
casting a broader
beam of light.
To intensify the light/narrow the
beam:
Turn the shade
clockwise to move
the shade toward
the surface being
lit, casting a
narrower beam of
light.
