HOMAC 250 User manual

1
ADAPTABLE WASTE PUMP FOR SHOWER
SHOWER PUMP
SHOWER & BASIN WASTE PUMP
Installation and Utilization Instructions

2
HOMAC 250
Power: 250W Voltage: 220~240V /50Hz
Horizontal discharge: 100M Vertical discharge: 10M
Max. Water temperature: 65’C Thermal protection: 90’C
Max. flow rate: 120L /Min IP rate: IPX7
②
③①
⑤④

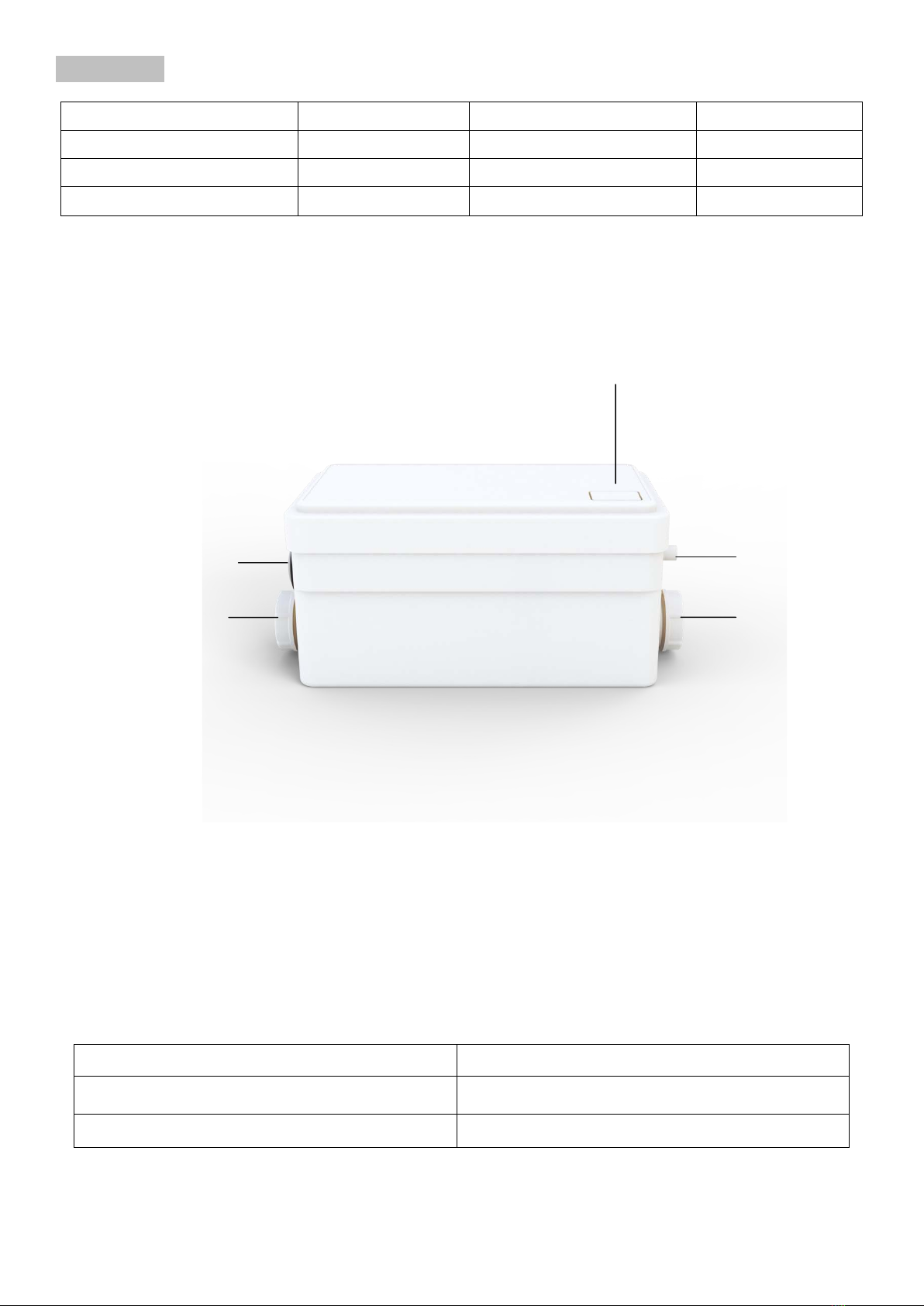

①Exigency Outlet ②Air Vent
③Outlet φ23/28mm ④Inlet φ40mm
⑤Inlet φ40mm

3
Fig1: Size
Fig2: Spare parts

4
Fig3: Equipment
1, Outlet check valve is necessary
2, Install an extra manual check valve for repair (Suggestion)
3, Lift the shower 11cm high, when you connect the side inlet
4, Using filter in shower & lavatory to reduce hair come into machine
Fig4: Connection

5
Fig5: Inlet cover (Cover the inlets for unused)
Fig6: Fixation

6

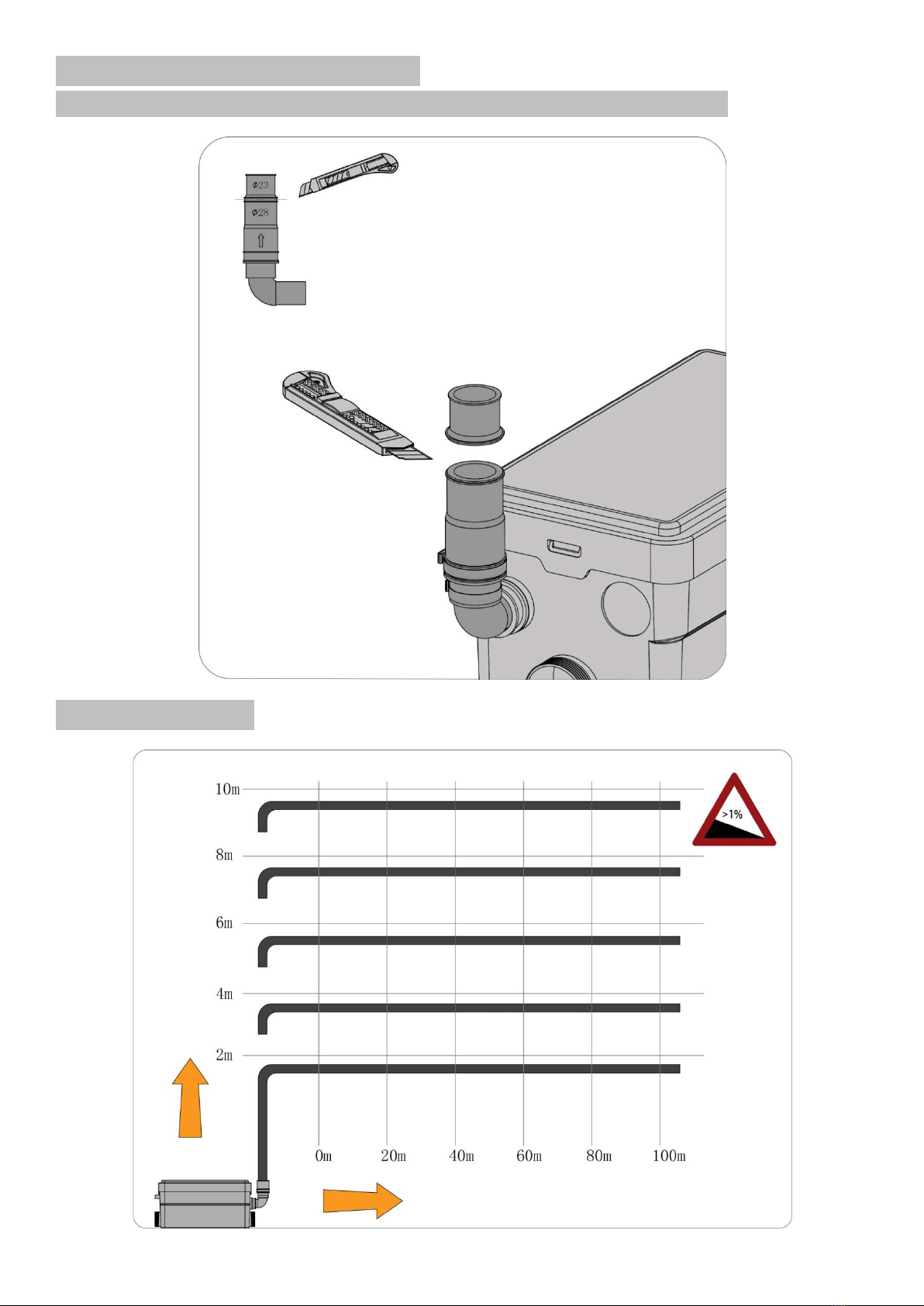

Fig7: Outlet (Check Valve 23/28mm)
Discharge pipe insert the check valve is only 1~2CM, avoid too much insert
Fig8: Pumping head

7

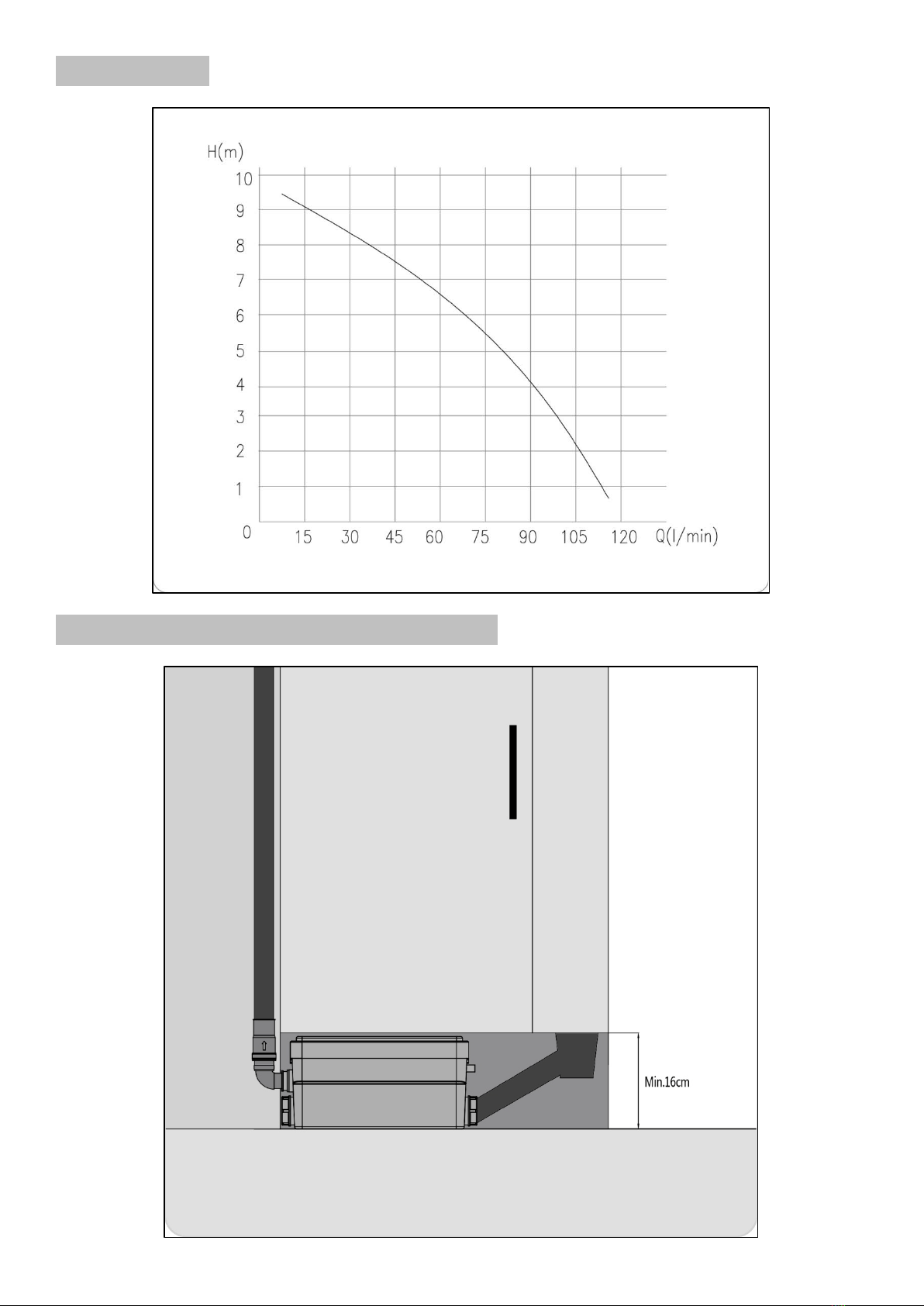

Fig9: Flow Rate
Fig10: Min Size below the shower is 160mm

8
Fig11: angle
We suggest to using 2pcs 45’ elbow to instead of 1pc 90’ elbow
Fig12&13: Discharge Pipe connection

9
1. Warning
-The appliance is only ready for use after installation.
-The appliance must be supplied through a residual current device (RCD) having a rated residual
operating current not exceeding 30mA.
-If the supply cord is damaged, it must be replaced by the manufacture or its service agent or a
similarly qualified person in order to avoid a hazard.
-This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
-Children should be supervised to ensure that they do not play with the appliance.
- This appliance is of domestic use only
2. NOTCE
In order to ensure optimal performance of this appliance, the installation and maintenance
instructions, described in this notice, must be strictly followed.
“ATTENTION” Referring to specific instructions, which if not respected, may cause the appliance
to malfunction.
In order to enjoy maximum benefit from this appliance, please read the assembly instructions
given
Note that this pump is not suitable for underground installation and not to be installed in
hazardous locations.
3. GENERAL DESCRIPTIONT
This appliance may be used to pump waste water produced by basins and showers in a domestic
situation.
4. INSTALLATION
The appliance must be installed in such a way as to ensure easy access for repair and
maintenance. Installation must be carried out by a qualified person.
5.1 ELECTRICAL CONNECTIONS
All electrical connections must comply with local codes in your region. The current must be single
phase220V/50Hz. The electrical outlet must be located at a minimum distance of 1000mm from
the shower or bath. Only connect this appliance to a safety protected circuit.

10
5.2 STARTING AND OPERATING INSTRUCTIONS
Run the water from the bathroom or from kitchen appliance connected to the pump and check
that connections are water tight and that the pump starts and stops correctly.
The pump starts automatically as soon as the bath, the shower or the sink begins to drain. It
shuts down when all the water has been drained.
Note that the pump will work intermittently as the pump will turn on and off or several cycles until
it discharges all the water.
“ATTENTION”: Never drain alkaline or acidic liquids, solvents, Oils, paints paint strippers, food
leftovers, or bleaches that may jam, damage or corrode this appliance.
In case of power failure, do not use any of the bathroom appliances connected to the pump,
because they will not function properly until power is restored.
Never submerse pump entirely under water nor allow water to seep in through electric wire
access.
Make sure that all faucets are fully shut otherwise the motor may stop and start, leading to a short
circuit. This may also lead to flooding.
If you do not plan to use the pump for a long period of time (vacation, major power shortage,
maintenance, renovation), shut off water).
In regions prone to frost and freezing, the appliance must be adequately protected against
freezing. This requires emptying all pipes and the pump body. Antifreeze may be used to protect
the system. Pour 1 liter of antifreeze into a sink connected to the pump. This will activate the
pump and any remaining water will be replaced by antifreeze. Neither labor nor parts are covered
if the appliance is damaged by frost or freezing
6. SERVICE
Disconnect power before working on the appliance
This appliance does not require any particular maintenance. In case of appliance failure, all repair
work must be performed by a professional workers.
This applies particularly when replacing power cord.
7. WARRANTY
This HOMAC 250 appliance bears a 1 year warranty starting from date of purchase, subject to
proper installation and use, in compliance set out in this notice
8. TROUBLE SHOOTING GUIDE

11
PROBLEM
CAUSE
SOLUTION
Motor runs properly, but
pump does not drain water
Clogged drain pipe or
valve; Outlet valve is half
closed
Clean pipes and valves.
Check outlet valve
Pump doesn’t start;
water doesn’t drain Clogged ventilation duct Clean ventilation duct
Pump does not start, water
doesn’t drain
Power cut off.
The thermal limit switch
does not work
Wait for thermal limit
switch to come on (about
20 minutes)
The motor hums but doesn’t
turn on
Foreign body obstructing
pump.
Defective condenser
Check the pump
Water drains, but motor
continues to run for a long
time and the thermal limit
switch is activated
Drain pipe blocked or
twisted;
damaged membrane, gear
wheel damage, pump
partially blocked
Check for blockage
After draining, motor restarts
several times before shutting
down
Water flows back to pump,
back flow valve does not
work
Flush once or twice with
clean water to clear valve
or remove valve and clean
Motor is running with loud
noise, but does not drain or
shut off
Back-siphonage or poor
counter pressure in drain
pipe, causing air pockets;
Presence of foreign body
Modify drain pipe in order
to prevent back-siphonage
or to increase counter
pressure (for example, use
smaller pipes and add a
curve to pipe).
If problem persists, consult
a certified technician
Motors runs, but makes
strange noise
A solid body is in pump Consult a certified
technician
Water flows back to bath or
shower
Insufficient gravity flow.
Inlet valve defective
Ensure that gravity flow is
at least 1/4 inch at 12
inches between other
bathroom appliances and
pump.
Clean inlet valves

12
9. MAINTENANCE
DISCONNECT THE ELECTRICAL POWER SUPPLY, BEFORE ATTEMPTING ANY
WORK ON THE UNIT.
No need of any particular maintenance.
This unit is fitted with an active carbon filter, and requires no external venting.
Correct disposal of this product
This marking shown on the product or its literature, indicates that it should not be disposed with
other household wastes at the end of its working life. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, please separate this from other types of wastes
and recycle it responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local
government office, for details of where and how they can take this item for environmentally safe
recycling.
Business users should contact their supplier and check the terms and conditions of the purchase
contract. This product should not be mixed with other commercial wastes for disposal
Manufactory: Ningbo Homac Electrical Appliance Co., Ltd
Address: No.369, South of Dongshao, Jiangbei District, Ningbo, Zhejiang Province, China (315032)
