Home appliances GMWG28TK User manual

User Manual
60cm Built-in Microwave
GMWG28TK

Page ii GMWG28TK 60cm Microwave Oven User Manual
Product / Installer details
For future reference we suggest that you staple a copy of your purchase receipt here and complete the below so the
information is always at hand.
Product Details
Model number: ________________________________________________________________________________________
Description: ___________________________________________________________________________________________
Serial number: _________________________________________________________________________________________
(Located on the product rating label)
Purchase Details
Date of purchase: ______________________________________________________________________________________
Place of purchase: _____________________________________________________________________________________
Store name: ___________________________________________________________________________________________
Address: ______________________________________________________________________________________________
Telephone: ____________________________________________________________________________________________
Invoice / receipt number: ________________________________________________________________________________
Installation Details
Electrical date of installation: ___________________________________________________________________________
Electrician Installers Details: Company / Installers Name: _____________________________________________
Licence Number: ______________________________________________________
Telephone Number: ____________________________________________________
Gas date of installation: _________________________________________________________________________________
Gas installers details: Company / Installers Name: _____________________________________________
Licence Number: ______________________________________________________
Telephone Number: ____________________________________________________
Plumbing date of installation: ___________________________________________________________________________
Plumbers installers details: Company / Installers Name: _____________________________________________
Licence Number: ______________________________________________________
Telephone Number: ____________________________________________________

GMWG28TK 60cm Microwave Oven User Manual Page iii
Dear Customer,
Congratulations on the purchase of your new product from
Home Appliances Pty Ltd.
We recommend you please take some time to read the instruction manual
thoroughly to familiarise yourself with the functionality and operations to ensure
optimum performance of your new appliance.
After reading the manual, please store it in a safe and accessible location for
future reference.
Installation
The installation of your new appliance must be carried out by a qualied
installer / technician in accordance to local regulations.
The packaging of your appliance has been selected from environmentally
friendly materials and can usually be recycled. Please ensure these are disposed
of correctly.
Customer Care
Our Customer Care centre is available should you wish to learn more about your
appliance in relation to how to use it to its best potential, or tips on cleaning as
well as available accessories.
For further details please contact our Customer Care team on
1800 444 357 or email: customercar[email protected]
Thank you
Regards,
Home Appliances

Page 1 GMWG28TK 60cm Microwave Oven User Manual
(a) Do not attempt to operate this oven with the door
open since this can result in harmful exposure to
microwave energy. It is important not to break or tamper
with the safety interlocks.
(b) Do not place any object between the oven front face
and the door or allow soil or cleaner residue to accumulate
on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the
oven must not be operated until it has been repaired by
a competent person.
ADDENDUM
If the apparatus is not maintained in a good state of
cleanliness, its surface could be degraded and affect the
lifespan of the apparatus and lead to a dangerous situation.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
Specifications
Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Rated Input Power(Grill):
Oven Capacity:
Turntable Diameter:
External Dimensions:
Net Weight:
GMWG28TK
240V~50Hz
900W
2
Approx. 19kg
1450W
1100W
8L
315mm
595x400x388mm
2

GMWG28TK 60cm Microwave Oven User Manual Page 2
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of fire, electric shock, injury to
persons or exposure to excessive microwave oven
energy when using your appliance, follow basic
precautions, including the following:
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.( For appliance with
type Y attachment)
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY".
4. If the supply cord is damaged, it must be replaced by
before replacing the lamp to avoid the possibility of
electric shock.
5. WARNING: Ensure that the appliance is switched off
1. Read and follow the specific:"PRECAUTIONS TO
3. Keep the appliance and its cord out of reach of children
less than 8 years.
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children unless they are older than 8
2. This appliance can be used by children aged from 8
and supervised. Children less than 8 years of age shall be
kept away unless continuously supervised.
3

Page 3 GMWG28TK 60cm Microwave Oven User Manual
.ovens
and keep the door closed in order to stifle any flames.
delayed eruptive boiling, therefore care must be taken
when handling the container.
shall be stirred or shaken and the temperature checked
before consumption, in order to avoid burns.
12.The contents of feeding bottles and baby food jars
13. Eggs in their shell and whole hard-boiled eggs should
not be heated in microwave ovens since they may
explode, even after microwave heating has ended.
deposits removed.
14. The oven should be cleaned regularly and any food
11. Microwave heating of beverages can result in
keep an eye on the oven due to the possibility of ignition.
in sealed containers since they are liable to explode.
could lead to deterioration of the surface that could
15. Failure to maintain the oven in a clean condition
7. WARNING: Liquids and other foods must not be heated
10. If smoke is emitted, switch off or unplug the appliance
competent person to carry out any service or repair
operation that involves the removal of a cover which
gives protection against exposure to microwave energy.
6. WARNING: It is hazardous for anyone other than a
8. When heating food in plastic or paper containers,
9. Only use utensils that are suitable for use in microwave
adversely affect the life of the appliance and possibly
result in a hazardous situation.
4

GMWG28TK 60cm Microwave Oven User Manual Page 4
-by clients in hotels, motels and other residential type
environments;
-farm houses;
-bed and breakfast type environments.
beverages. Drying of food or clothing and heating of
warming pads, slippers, sponges, damp cloth and similar
may lead to risk of injury, ignition or fire.
and similar applications such as:
-staff kitchen areas in shops, offices and other working
environments;
decorative door open. (for ovens with a decorative door.)
this oven.(for ovens provided with a facility to use a
16.Only use the temperature probe recommended for
temperature-sensing probe.)
allowed during microwave cooking.
cleaner.
17.The microwave oven must be operated with the
20. Metallic containers for food and beverages are not
21. The appliance shall not be cleaned with a steam
18.This appliance is intended to be used in household
19.The microwave oven is intended for heating food and
22. Care should be taken not to displace the turntable
when removing containers from the appliance. (For fixed
appliances and built-in appliances being used equal or
higher than 900mm above the floor and having detacha le
turntables. But this is not applicable for appliances with
horizontal bottom hinged door.)
b
5

Page 5 GMWG28TK 60cm Microwave Oven User Manual
READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE
be taken to avoid touching heating elements inside the
oven.
27. During use the appliance becomes hot. Care should
24. Steam cleaner is not to be used.
25. Surface of a storage drawer can get hot.
28. WARNING: Accessible parts may become hot during
use. Young children should be kept away.
29. The appliance must not be installed behind a
decorative door in order to avoid overheating. (This is not
applicable for appliances with decorative door.)
become hot during use. Care should be taken to avoid
touching heating elements. Children less than 8 years
of age shall be kept away unless continuously supervised.
26. WARNING: The appliance and its accessible parts
adult supervision due to the temperatures generated.
combination mode, children should only use the oven under
23. The microwave oven is intended to be used built-in.
30. WARNING: When the appliance is operated in the
to clean the oven door glass since they can scratch
which may result in shattering of the glass.
scrapers
the surface,
31. Do not use harsh abrasive cleaners or sharp metal
6

GMWG28TK 60cm Microwave Oven User Manual Page 6
To Reduce the Risk of Injury to Persons
Grounding Installation
DANGER
Electric Shock Hazard
Touching some of the
internal components can
cause serious personal
injury or death. Do not
disassemble this
appliance.
WARNING
Electric Shock Hazard
Improper
use of the grounding
can
result in electric shock.
Do not plug into an outlet
until appliance is properly
installed and grounded.
This appliance must be
grounded. In the event of
an electrical short circuit,
grounding reduces the
risk of electric shock by
providing an escape wire
for the electric current.
This appliance is equipped
with a cord having a
grounding wire with
a grounding plug. The
plug must be plugged into
an outlet that is properly
installed and grounded.
Consult a qualified
electrician or serviceman
if the grounding instructions
are not completely
understood or if doubt exists
as to whether the appliance
is properly grounded.
If it is necessary to use an
extension cord, use only
a 3-wire
1. A short power-supply cord
is provided to reduce the risks
resulting from becoming
entangled in or tripping over a
longer cord.
2. If a long cord set or extension
cord is used:
1)The marked electrical rating
of the cord set or extension cord
should be at least as great as
the electrical rating of the
appliance.
2)The extension cord must be
a grounding-type 3-wire cord.
3)The long cord should be
arranged so that it will not drape
over the counter top or tabletop
where it can be pulled on
by children or tripped over
unintentionally.
extension cord.
7

Page 7 GMWG28TK 60cm Microwave Oven User Manual
CLEANING
Be sure to unplug the appliance from the power supply.
1. Clean the cavity of the oven after using with a slightly damp
cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be
cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the oven door glass since they can scratch the surface,
which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the
food cooked can touch: Place half a lemon in a bowl, add 300ml
(1/2 pint) water and heat on 100% microwave power for 10
minutes. Wipe the oven clean using a soft, dry cloth.
UTENSILS
CAUTION
Personal Injury Hazard
It is hazardous for
anyone other than a
competent person to
carry out any service
or repair operation that
involves the removal of
a cover which gives
protection against
exposure to microwave
energy.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
8

GMWG28TK 60cm Microwave Oven User Manual Page 8
Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
9

Page 9 GMWG28TK 60cm Microwave Oven User Manual
A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
F
G
A
C B
ED
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Hub (underside)
Glass tray
Turntable ring assembly
a. Never place the glass tray upside down. The glass
tray should never be restricted.
b. Both glass tray and turntable ring assembly must
always be used during cooking.
c. All food and containers of food are always placed
on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or
breaks, contact your nearest authorized service
center.
Turntable Installation
Turntable shaft
Grill Rack( Can not be used in microwave
function and must be placed on the glass tray )
10

GMWG28TK 60cm Microwave Oven User Manual Page 10
Installation and connection
1.This appliance is only intended for domestic use.
2.This oven is intended for built-in use only. It is not intended
for counter-top use or for use inside a cupboard.
3.Please observe the special installation instructions.
4.The appliance can be installed in a 60cm wide wall-
mounted cupboard.
5.The appliance must be fitted above 850mm from floor
level, it is not suitable for underbench installation.
6.The appliance is fitted with a plug and must only be
connected to a properly installed earthed socket.
7.The mains voltage must correspond to the voltage
specified on the rating plate.
8.The socket must be installed and connecting cable must
only be replaced by a qualified electrician. If the plug is no
longer to accessible following installation, an all-pole
disconnecting device must be present on the installation
side with a contact gap of at least 3mm.
9.Adapters, multi-way strips and extension leads must not be
used. Overloading can result in a risk of fire.
HOT SURFACE SYMBOL
The accessible surface
may be hot during
operation.
11

Page 11 GMWG28TK 60cm Microwave Oven User Manual

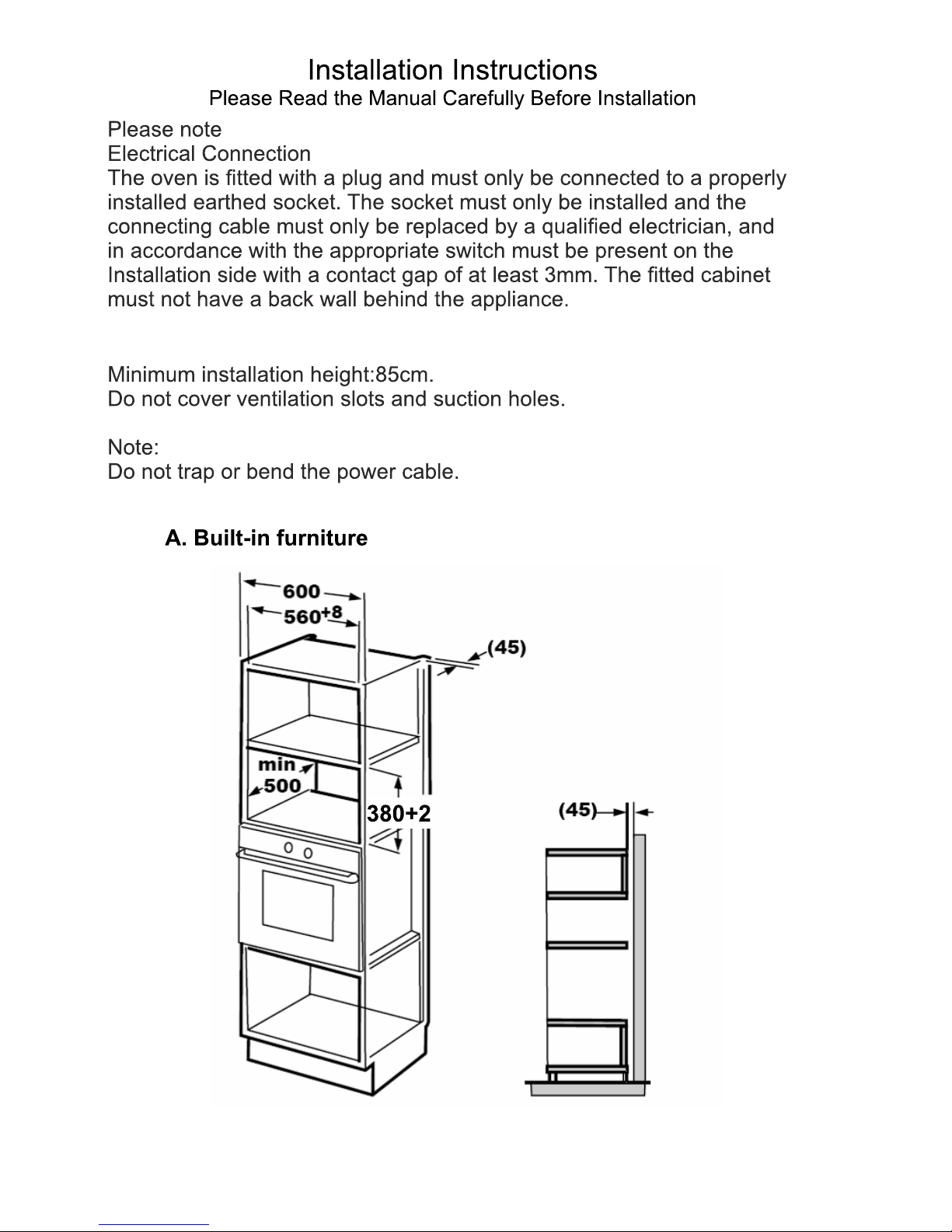

A gap must be maintained between the wall and the base of the unit
above. Specific gap size could be referenced by the diagrams.
12
NOTE: Microwave must be installed above 850mm minimum above floor level. Underbench installation is
prohibited due to AS/NZS 60335.2.6:2014 standard

GMWG28TK 60cm Microwave Oven User Manual Page 12
Screw
13
Mounting Plate

Page 13 GMWG28TK 60cm Microwave Oven User Manual
14
"a""seloH
PN:261800316968
3. Remove the bottom cabinet template and fix the mounting plate with screw.
2. Make the marks on the bottom plane of cabinet according to marks"a" of
the template
put the template on the bottom plane of cabinet.
1. Read the instruction on the BOTTOM CABINET TEMPLATE ,
B.Prepare the cabi inet

GMWG28TK 60cm Microwave Oven User Manual Page 14
15
C.Install the oven
4. Install the oven to the cabinet
- Make sure the back of the oven is locked by mounting plate.
- Do not trap or kink the power cord.
5. Open the door, fix the oven to the cabinet with Screw , at the installation hole.
Mounting
Plate

Page 15 GMWG28TK 60cm Microwave Oven User Manual
Operation Instructions
1) Press " " once, the screen display "P100".
2) Turn " " to adjust the hour figures, the input time should be within 0--23.
3) Press " ", the minute figures will flash.
3) Press " " to confirm, and the screen displays "P 80".
4) Turn " " to adjust the cooking time until the oven displays "20:00".
5) Press " " to start cooking .
1. Clock Setting
When the microwave oven is electrified, the screen will display "0:00", buzzer will ring once.
1) Press " " twice to select clock function, the hour figures will flash.
4) Turn " " to adjust the minute figures, the input time should be within 0--59.
5) Press " " to finish clock setting. ":" will flash, and the time will light.
2) Press " " once again or turn " " to choose 80%
microwave power.
Note: 1) If the clock is not set, it would not function when powered.
2) During the process of clock setting, if you press " ", the oven
will go back to the previous status automatically.
2. Microwave Cooking
Press " " once, the screen will display "P100". Press
" "
"
confirm, and turn " " to set
0:05 to 95:00. Press " " again to
Example: If you want to use 80% microwave power to cook for 20 minutes, you can
operate the oven as the following steps.
Micro./Grill/Combi.
Start/+30Sec./Confirm
Start/+30Sec./Confirm
Start/+30Sec./Confirm
Stop/Clear
Start/+30Sec./Confirm
" to choose the power you want, and
"P100", "P 80", "P 50", "P 30
press " " to
s
Kitchen Timer/Clock
Kitchen Timer/Clock
Kitchen Timer/Clock
cooking time from
start cooking.
,"P 10" ,"G" ,"C-1" or "C-2" will display for each
added press. Then
Micro./Grill/Combi.
Micro./Grill/Combi.
Micro./Grill/Combi.
repeatedly or turn "
16

GMWG28TK 60cm Microwave Oven User Manual Page 16
3. Grill or Combi. Cooking
Note: the step quantities for the adjustment time of the coding switch are as follow:
0---1 min : 5 seconds
1---5 min : 10 seconds
5---10 min : 30 seconds
10---30 min : 1 minute
30---95 min : 5 minutes
Order Microwave
Power
Display
1
2
3
4
5
6
7
8
100%
80%
50%
30%
10%
Grill
Power
100%
45%
64%
0%
55%
36%
P100
P80
P50
P30
P10
G
C-1
C-2
Example: If you want to use 55% microwave power and 45% grill power(C-1) to cook
for 10 minutes, you can operate the oven as the following steps.
Press " " once, the screen will display "P100". Press
" "
"
confirm, and turn " " to set
0:05 to 95:00. Press " " again to
Micro./Grill/Combi.
Start/+30Sec./Confirm
Start/+30Sec./Confirm
" to choose the power you want, and
"P100", "P 80", "P 50", "P 30
press " " to
cooking time from
start cooking.
,"P 10" ,"G" ,"C-1" or "C-2" will display for each
added press. Then
Micro./Grill/Combi. repeatedly or turn "
" " Pad instructions
Micro./Grill/Combi.
17

Page 17 GMWG28TK 60cm Microwave Oven User Manual
1) Press " " twice, and the oven will display "dEF2".
2) Turn " " to select the defrost time. The MAX time is 95 minutes.
1) Press " " once, and the oven will display "dEF1".
2) Turn " " to select the weight of food from 100 to 2000 g.
3) Press " " to start defrosting.
1) In waiting state, Press " " to start 30 seconds cooking with
100% power, each added press will increase 30 seconds cooking time up to 95
2) In microwave, grill, combination cooking or time defrost state, each press of
" " can increase 30 seconds of cooking time.
3) In waiting state, turn " " left to set cooking time with 100%
microwave power, then press " " to start cooking.
4. Quick Start
6. Defrost By Time
5. Defrost By Weight
Weight/Time Defrost
Start/+30Sec./Confirm
Start/+30Sec./Confirm
Start/+30Sec./Confirm
Start/+30Sec./Confirm
3) Press " " to start defrosting. The defrost power is P 30, and
it cannot be changed.
Start/+30Sec./Confirm
minutes.
Weight/Time Defrost
Note:If half the grill time passes, the oven sounds twice, and this is normal. In order
to have a better effect of grilling food, you should turn the food over,
close the door, and then press" " to continue cooking.
If no operation, the oven will continue working.
1) Press " " once, the screen display " ".
3) Press " " to confirm, and the screen displays "C-1".
4) Turn " " to adjust the cooking time until the oven displays "10:00".
5) Press " " to start cooking.
2) Press " " for times or turn " " to choose combi. 1 mode.
Start/+30Sec./Confirm
Start/+30Sec./Confirm
s P100
Micro./Grill/Combi.
Micro./Grill/Combi.
Start/+30Sec./Confirm
18
