HomeBeyond E70-27 Assembly instructions

Built-In Range Hood
IMPORTANT:
Read and save these instructions.
NOTICE:
Installer: Leave this guide with the homeowner
Homeowner: Keep this guide for future reference
Installation Guide
and Users Manual
Built-In Series Range hood
E70-27
version:2019a

Important Safety Notice
Read all Instructions before Installing and operating this appliance
The installation in this manual is intended for qualied installers, service technicians or persons with •
similar qualied background. Installation and electrical wiring must be done by qualied profession-
als and in accordance with all applicable codes and standards, including re-rated construction.
DO NOT• attempt to install this appliance yourself. Injury could result from installing the unit due to
lack of appropriate electrical and technical background.
Range hood may have very sharp edges; please wear protective gloves if it is necessary to remove any •
parts for installing, cleaning or servicing.
Activating any switch ON before completing installation may cause ignition or an explosion.•
Due to the size and weight of this range hood, two people installation is recommended.•
To reduce the risk of re, electric shock, or injury to persons:
For general ventilating use only. • DO NOT use to exhaust hazardous or explosive materials and va-
pors.
The combustion air ow needed for safe operation of fuel-burning equipment may be affected by this •
unit’s operation. Follow the heating equipment manufacturer’s guideline and safety standards such
as those published by the National Fire Protection Association (NFPA), and the American Society of
Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
Before servicing or cleaning unit, switch power OFF at service panel and lock service panel to pre-•
vent power from being switched ON accidentally.
Clean grease laden surfaces frequently. To reduce the risk of re and to disperse air properly, make •
sure to vent air outside. DO NOT vent exhaust into spaces between walls, crawl spaces, ceiling, attics
or garages.
Ducted fans MUST always be vented to the outdoors.•
Use only metal ductwork and this unit MUST be grounded.•
Sufcient air is needed for proper combustion and exhausting of gases through the duct to prevent •
back drafting.
When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hid-•
den utilities.
All electrical wiring must be properly installed, insulated and grounded.•
Old duct work should be cleaned or replaced if necessary to avoid the possibility of a grease re.•
Check all joints on duct work to insure proper connection and all joints should be properly taped.•
Use this unit only in the manner intended by the manufacturer. If you have questions, contact the •
vendor.
To reduce the risk of a stove top grease re:
Keep all fan, bafe, spaces, lter, grease tunnel, oil container and grease-laden surfaces clean. Grease •
should not be allowed to accumulate on fan, bafe, spaces, lter, grease tunnel and oil container.
Always turn range hood ON when cooking at high heat or when cooking aming foods. •
Use high settings on cooking range only when necessary.•
Never leave surface units unattended at high settings. Boil overs cause smoking and greasy spillovers •
that may ignite. Heat oils slowly on low or medium settings. Page 1

Page 2
Important Safety Notice
Read all Instructions before Installing and operating this appliance
WARNING
Your safety and the safety of others is very important. We have provided many important safety mes-
sages in this manual and on your appliance. Always read and obey all safety messages. All safety mes-
sages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you
what can happen if the instructions are not followed.
This is the safety alert symbol. This symbol alerts you to potential hazards that can hurt you and others.
All safety messages will follow the safety alert symbol and the word “WARNING”.
The manufacturer and/or distributor/reseller declines all responsibility in the event of failure to ob-
serve the instructions given here for installation, maintenance and suitable use of the product.
The manufacturer and/or distributor/reseller further declines all responsibility for injury due to neg-
ligence and the warranty of the unit automatically expires due to improper maintenance.
The manufacturer and/or distributor/reseller will not be held responsible for any damages to per-
sonal property or real estate or any bodily injuries whether caused directly or indirectly by the range
hood.
Clean ventilating fan frequently.•
Always use appropriate cookware and utensils size.•
Always use cookware appropriate for the size of the surface element.•
To reduce the risk of injury to persons in the event of a stove top grease re:
SMOTHER FLAMES with a close-tting lid, cookie sheet, or metal tray, then turn OFF the burner. •
BECAREFUL TO PREVENT BURNS. NEVER PICK UP A FLAMING PAN—you may be burned.
KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the ames DO
NOT go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT or dial your local
emergency service immediately.
DO NOT USE WATER, including wet dishcloths or towels — a violent steam explosion will result.•
Use an extinguisher ONLY if:•
You know you have a Class A, B, C extinguisher, and you already know how to operate it.•
The re is small and contained in the area where it is started.•
The re department is being called.•
You can ght the re with your back to an exit.•
To reduce the risk of injury to persons in the event of a gas leaks:
Extinguish any open ame.•
DO NOT turn on the range hood fan or any type of ventilator.•
DO NOT turn on the lights or any type of appliance.•
Open all doors and windows to disperse the gas. If you still smell gas, call the gas company and re •
department, or dial your local emergency service immediately.

Page 3
Venting Requirements
Vent system must terminate to the out-•
side (roof or side wall), unless using a
recirculating kit.
Do not terminate the vent system in an •
attic or other enclosed area.
Do not use 4” (10.2 cm) laundry-type •
wall caps.
Use metal/aluminum vent only. Rigid •
metal/aluminum vent is recommended.
Do not use plastic vent.•
Always keep the duct clean to ensure •
proper airow.
Calculate the following gures before •
installation:
Distance from the oor to the ceil-1.
ing.
Distance between the oor to the 2.
countertop/stove (recommend 24in
to 30in).
Distance between the countertop/3.
stove to the range hood.
Height of hood and duct cover.4.
For the most efcient and quiet
operation:
It is recommended that the range hood •
be vented vertically through the roof
through 6” (15 cm) round metal/ alu-
minum vent work.
The size of the vent should be uniform.•
Use no more than three 90° elbows.•
Make sure there is a minimum of 24” •
(61 cm) of straight vent between the
elbows if more than one elbow is used.
Do Not install two elbows together.•
The length of vent system and number •
of elbows should be kept to a mini-
mum to provide efcient performance.
The vent system must have a damper. •
If roof or wall cap has a damper, Do
Not use damper supplied with the
range hood.
Use duct tape to seal all joints in the •
vent system.
Use caulking to seal exterior wall or •
roof opening around the cap.
Height & Clearance
Cabinet
Range hood
Venting Pipe
36” base
Min: 24”
Max: 30”

Page 4
IMPORTANT:
A minimum of 6” round (standard for this range hood) or 3-1/4 x 10” rectangular duct (purchased separate-•
ly) must be used to maintain maximum airow efciency.
Always use rigid type metal/aluminum ducts if available to maximize airow when connecting to provided •
duct.
Please use • Duct Run Calculation below to compute total available duct run when using elbows, transitions
and caps.
ALWAYS, when possible, reduce the number or transitions and turns. If long duct run is required, increase •
duct size from 6” to 7 or 8”. If a reducer is used, install a long reducer instead of a pancake reducer. Reduc-
ing duct size will restrict airow and decrease airow, thus reduce duct size as far away from opening as
possible.
If turns or transitions are required: Install as far away from opening and as far apart, between 2, as possible.•
Minimum mount height between range top to hood bottom should be no less than 24”.•
Maximum mount height should be no higher than 30”•
It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat •
damage and re hazard; while hoods mounted too high will be hard to reach and will loose its performance
and efciency.
If available, also refer to manufacturer’s height clearance requirements and recommended hood mounting •
height above range.
Minimum Duct Size:
Round- 6” minimum•
Rectangular- 3-1/4 x 10” minimum (requires a 6” to 3-1/4x10” adaptor not supplied)•
Duct Run Calculation:
Recommended maximum run
6” or 3-1/4 x 10” duct 50 ft
Vent piece deduction
Each 90º elbow used 9 ft
Each 45º elbow used 5 ft
Each 6” to 3/14 x 10” transition used 7 ft
Side wall cap with damper 0 ft
Roof cap 0 ft
Duct Run Calcuation example:
One roof cap, two 90º elbow, and one 45º elbow used:
0ft + 9ft + 9ft + 5ft = 23ft used.
Deduct 23ft from 50ft, 27ft maximum available for
straight duct run.
Calculating vent system length
To calculate the length of the system you need, deduct the equivalent feet for each vent piece used in the system
from the recommended maximum duct run.

Page 5
Venting Methods
This built-in range hood is factory set for venting through the roof or wall. For non-vented (re-circulating) •
installations, see Ductless Conversion (Non-Vented) below.
Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed.•
IMPORTANT:
NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or •
garages. All exhaust must be ducted to the outside.
Use metal/aluminum duct work only. •
Fasten all connections with sheet metal screws and tape all joints with certied Silver Tape or Duct Tape.•
Use caulking to seal exterior wall or roof opening around the cap.•
Ductless Conversion
Ductless conversion is intended for applications where an exhaust duct work is not possible to be installed. •
When converted, the hood functions as a purifying hood rather than an exhaust hood. Fumes and exhaust
from cooking is drawn and ltered by a set of charcoal lters. The air is then puried and re-circulated back
within the home.
We recommend to ALWAYS exhaust air outside of the home by employing existing or installing new duct •
work, if possible. Only when the exhaust option is not possible should you recourse to converting the hood
into a purifying unit.
When converted to be a “purifying” unit, a set of charcoal lters and an air-diverter are required in addition to •
its standard aluminum lter set. Available at your local authorized reseller. The standard aluminum lters are
intended to capture residue from cooking, the optional charcoal lters help to purify fumes exhausted from
cooking, and the optional air-diverter redirects ltered clean air back to the house.
Round Duct
Wall Cap
Round Elbow
Roof Cap
24” to 30” Above
Cooking Surface
Elite 50 Series
Range Hood

Page 6

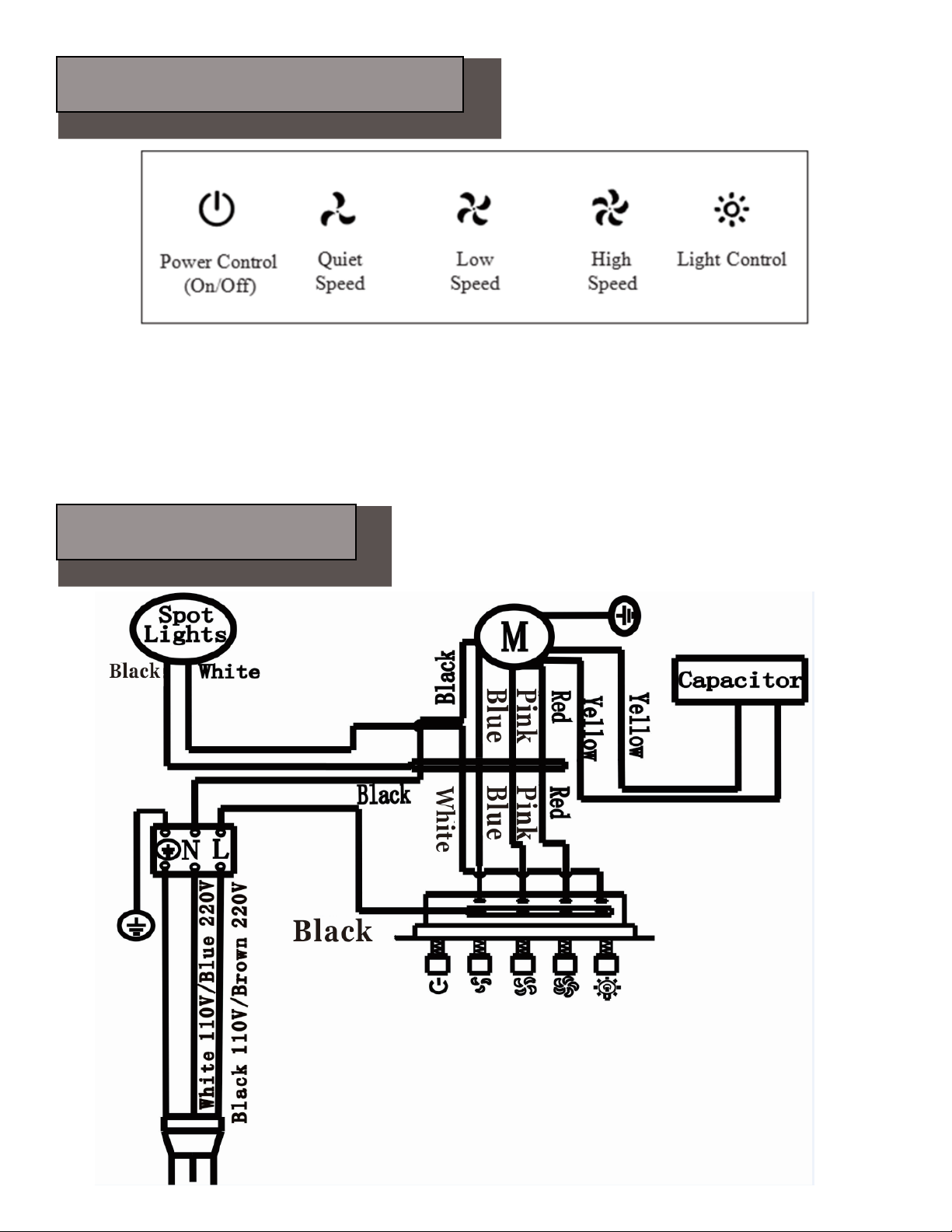

Electrical Requirements
IMPORTANT: Observe all governing codes and ordinances.
(Please consult with a qualied electrician for 220-Volt 50 Hz voltage)
It is the customer’s responsibility:
To contact a qualied electrical installer.
To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/
NFPA 70 — latest edition*, or CSA Standards C22. 1-94, Canadian Electrical Code, Part 1 and C22. 2 No. 0-
M91 - latest edition** and all local codes and ordinances.
If codes permit and a separate ground wire is used, it is recommended that a qualied electrician determine •
that the ground path is adequate.
A 120-volt, 60 Hz, AC-only, fused electrical supply is required on a separate 15-amp circuit, fused on both •
sides of the line.
Do not ground to a gas pipe.•
Do not have a fuse in the neutral or ground circuit.•
RISK OF ELECTRICAL SHOCK. This range hood must be properly grounded. Check with a qualied •
electrician if you are not sure whether the range hood is properly grounded.
The range hood should be connected directly to the fused disconnect (or circuit breaker) box through ex-•
ible armored or non-metallic sheathed copper cable. A U.L. - or C.S.A. - listed strain relief must be provid-
ed at each end of the power supply cable. Do not use extension cord or adapter plug with this appliance.
The range hood must be connected with copper wire/plug only.•
Always use plug provided. If not •
possible, connect three wires ac-
cording to its color (black to hot,
white to neutral, and green to
ground) to house wires and cap
with wire connectors:
Wire sizes (copper wire only) and connections must conform with the rating of the appliance as specied on the
model/serial rating label. Wire sizes must conform to the requirements of the National Electrical Code ANSI/
NFPA 70 — latest edition*, or CSA Standards C22. 1-94, Canadian Electrical Code Part 1 and C22. 2 No. 0-
M91 - latest edition** and all local codes and ordinances. A U.L. - or C.S.A. - listed conduit connector must be
provided at each end of the power supply cable (at the range hood and at the junction box).
Copies of the standards listed may be obtained from:
* National Fire Protection Association ** CSA International
Batterymarch Park 8501 East Pleasant Valley Road
Quincy, Massachusetts 02269 Cleveland, Ohio 44131-5575
Charcoal Filter Installation Methods
Severe Injury
Hood may have very shape edges. Please wear
protective gloves if it is necessary to remove
any parts for installing, cleaning or servicing.
NOTE: The charcoal lters might preinstalled if you purchased the range hood with re-circulating kit from us.
Remove grease lter on hood.1.
Position the charcoal lters onto each side of the motor and turn until it locks. Re-install aluminum lters.2.
Charcoal lters should be replaced after 120 hours of use (or approximately every 2 to 3 months based on 3.
the average of 1 to 2 hours of daily cooking time).
Severe Injury
Hazard of electrical shock!
Electrical wiring must be done
by qualied person

Page 7
Installation
Excessive Weight
Require two or more person to move and
install this range hood. Spinal or other bodi-
ly injuries could occur if it is not followed.
INSTALL THE HOOD
Due to excessive weight, two or more person is recommended for this step.
NOTE: the hood has to be installed, inside the cabinet, at
minimum 1-1/2” from the rear wall cabinet and at 2” from the front wall cabinet.
The internal height of cabinet has to be minimum 28”.
The hood should be mounted centered over the cook top burners.
Remove the decorative panel from the range hood.1.
Cut a hole in the bottom of the cabinet, using the dimensions shown in the table below (ref. to Fig. A).2.
Insert the hood in the cabinet and secure with the (4) mounting screws from the inner side of the range hood 3.
(Fig. B). Note: Wood blocking might need to be built if it’s not available in order to secure the mounting
screws.
In the Non-Ducted Recirculation Conguration, install the Non-ducted recirculation Filter before replacing 4.
the grid (see section “Non-ducted recirculation lter installation”).
Replace the decorative panel.5.
Wood Blocking
Fig. B
Fig. A
Cut a hole in the bottom of the
cabinet
X
Y
Model X Y
E50-20 19 1/2” 11 1/4”
E50-28 25 1/2” 11 1/4”
E70-27/S27 26 1/2” 10 3/4”
E70-30/S30 28 1/2” 10 3/4”

Page 8
Range Hood Operations
Wiring Diagram
Turn On:
Press the speed control (Quiet Speed, Low Speed, High Speed) switch to select the desired level of•
power. Once button is pressed, the previous speed mode will cancel.
Press the Light Switch to power on the lights.•
Turn Off:
Press the Power Switch to turn off the power.•
Press the Light Switch to power off the lights•

Page 9
Troubleshooting
If the range hood does not operate after installa-1.
tion:
Check if the range hood has been plugged in, make •
sure that all power has been turned back on and all
electrical wiring are properly connected.
Swap out light assembly to working ones to deter-•
mine whether it is caused by defective bulbs. (See
Replacing the light bulbs, page 11)
The range hood vibrates when the blower is on:2. The range hood might not have been secured prop-•
erly on to the ceiling.
The blowers seems weak:3. Check that the duct sized used is at least 6” or •
3-1/4 x 10”. Range hood WILL NOT function
efciently with insufcient duct size. For example:
7” duct over 6” hole and loosely secured.
Check if duct is clogged or if damper unit is not •
opening properly. A tight mesh on a side wall cap
unit might also cause restriction to the air ow.
The lights work but the blower is not spinning at 4.
all, is stuck or is rattling.
The blower might be jammed or scraping the bot-•
tom due to shipping damage.
The hood is not venting out properly:5. Make sure the distance between the cook top and •
the bottom of the hood is within 24” and 30” in
range.
Reduce the number of elbows and length of duct •
work. Check if all joints are properly connected,
sealed, and taped.
Make sure the power is on high speed for heavy •
cooking
NOTE: For all other inquiries, please contact us. Our contact information can be found on the back cover page.

Page 10
Use and Care Information
WARNING — TO REDUCE THE RISK OF FIRE, ELEC-
TRIC SHOCK, OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING: Use this unit only in the manner in-
tended by the manufacturer. If you have questions, contact
the manufacturer. Before servicing or cleaning unit, switch
power off at service panel and lock switch power off at
service panel and lock service panel to prevent power from
being switched on accidentally. When the service discon-
necting means cannot blocked, securely fasten prominent
warning device such as a tag to the service panel.
CAUTION: For general ventilating use only. Do not use to
exhaust hazardous or explosive materials and vapors.
WARNING — TO REDUCE THE RISK OF A RANGE
TOP GREASE FIRE: Never leave surface units unattended
at high settings. Boil overs cause smoking and greasy spill-
overs that may ignite. Heat oils slowly on low or medium
settings.
Always turn hood ON when cooking at high heat or when
cooking flaming foods.
Clean ventilating fans frequently. Grease should not be al-
lowed to accumulate on fan or filter.
Use proper pan size. Always use cookware appropriate for
the size of the surface element.
WARNING — TO REDUCE THE RISK OF INJURY TO
PERSONS IN THE EVENT OF A RANGE TOP GREASE
FIRE, OBSERVE THE FOLLOWING: SMOTHER
FLAMES with a close-fitting lid, cookie sheet, or metal
tray, then turn off the burner. BECAREFUL TO PREVENT
BURNS. If the flames do not go out immediately, EVACU-
ATE AND CALL THE FIRE DEPARTMENT. NEVER
PICK UP A FLAMING PAN— you may be burned.
DO NOT USE WATER, including wet dishcloths or towels
— a violent steam explosion will result. Use an extinguish-
er ONLY if:
You know you have a Class ABC extinguisher, and you
already know how to operate it.
The fire is small and contained in the area where it is
started.
The fire department is being called. You can fight the fire
with your back to an exit.
Specifications*:
Body Stainless Steel / Sheet Metal
Power Rating 120V/60Hz (USA & Canada standard)
General Input Power 126 W (120W + 2x3W)
Motor Input Power 120 W
Motor Revolution 800 RPM (±10%) to 1600 RPM (±10%)
Levels Of Speed Control 3 Levels
Maximum Airflow 600 CFM
Air Pressure 150 Pa (200 Pa Maximum)
Noise Level (dB / sone) Approximately 23.5 / 0.4 to 60 / 7.0 (Lowest to highest Speed)
Motor Type Ultra Quiet
Fan Type Centrifugal / Sirocco
Control Type Push Button
Illumination 3W 12V LED lights
Venting Size 6 inch Round
Interference Protection Radio Frequency Interference Protected
Specifications
* Subject to change without notice, please contact your local authorized reseller for details.

Page 11
Maintenance
SAFETY WARNING: Never put your hand into area housing the fan while the fan is operating!
For optimal operation, clean range hood and all baffle/spacer/filter/grease tunnel/oil container regularly. Regular care will
help preserve the appearance of the range hood.
Cleaning Exterior surfaces:
Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent (e.g. Comet•
Power Scruv®, EZ-Off®oven cleaner), or steel wool/scoring pads, which will scratch and damage the stainless steel
surface. For heavier soil use liquid degrease such as “Forumla 409®” or “Fantastic®” brand cleaner.
If hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the surface of the hood. Avoid getting•
cleaning solution onto or into the control panel. Follow directions of the stainless steel cleaner. CAUTION: Do not
leave on too long as this may cause damage to hood finish. Use soft towel to wipe off the cleaning solution, gently
rub off any stubborn spots. Use dry soft towel to dry the hood.
After cleaning, you may use non abrasive stainless steel polish such as 3M• ®or ZEP®, to polish and buff out the stainless
luster and grain. Always scrub lightly, with clean cotton cloth, and with the grain.
DO NOT allow deposits to accumulate or remain on the hood.•
DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface and cause rusting.•
DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in contact with stainless steel •
for extended periods. Many of these compounds contain chemicals, which may be harmful. Rinse with water after ex-
posure and wipe dry with a clean cloth.
Cleaning Aluminum Grease Filter / Stainless Steel Filterless Grill:
IMPORTANT: Drain oil from oil containers before oil and residue overflow!
The metal filters fitted by the factory are intended to filter out residue and grease from cooking. It need not be replaced•
on a regular basis but are required to be kept clean.
Filters should be cleaned after every 30 hours of use.•
Remove and clean by hand or dishwasher. Spray “Formula 409• ®” or equivalent degreasing detergent and leave to soak
if heavily soiled. Dry filters and re-install before using hood.
Replacing Filters:
Should filters wear out due to age and prolonged use, please contact your local reseller for replacement filters.•
Note: Also replace damaged filter that has punctured or broken mesh, bent or broken frame.•
Hazard of Burns!
Light bulb become extremely hot when turned on.
DO NOT touch bulb until switched off and cooled.
Touching hot bulbs could cause serious burns.
Replacing LED Light Fixture:
•
• Make sure the range hood is unplugged or turn OFF breaker and
the lights are cool to touch.
• ,
gently pry up the light housing and search for the metal clip.
•
ture.
•
Light Housing
Hood
Body
Flat-head Screwdriver
Power Plug
Metal Clip

Page 12Page 12
One Year Parts Warranty:
For one year from the date of original purchase, your local reseller will provide free of charge, non-consumable replace-
ment parts or components that failed due to manufacturing defects. Subject to the conditions and limitations set forth
below, your local reseller will, at its option, either repair or replace any part of its products that prove defective by reason
of improper workmanship or materials. Repaired parts or replacement products will be provided by your local reseller
on an exchange basis, and will be either new or refurbished to be functionally equivalent to new. The consumer is re-
sponsible for all shipping costs. Consumable parts not covered by this warranty include but not limited to: Light bulbs,
metal, aluminum and charcoal lters.
Who is Covered:
This warranty is extended to the original purchaser for products purchased for ordinary home use.
This Warranty Will Be Voided When:
Product damaged through negligence, improper installation, accident, abuse, misuse, natural disaster, insufcient or
excessive electrical supply, abnormal mechanical or environmental conditions, or any unauthorized disassembly, repair,
modication, or failure to follow installation instructions. When product is used commercially or other than its intended
purpose. Damaged because of improper connection with equipment of other manufacturers. Repaired or modied by
anyone other than your local reseller’s authorized agents. This limited warranty also does not apply to any product on
which the original identication information has been altered, obliterated or removed, has not been handled or packaged
correctly or has been sold as second-hand.
What is Not Covered:
Consumable parts such as light bulbs, metal and charcoal lters. The natural wear of nish, and wear due to improper
maintenance, use of corrosive and abrasive cleaning products, pads, and oven cleaner products. Chips, dents or cracks
due to abuse, misuse, freight damage, or improper installation. Damage of product caused by accident, re, oods or
act of God. The manufacturer and/or distributor/reseller is not liable for, and does not cover under warranty, any loss of
properties or any costs associated with removing, servicing, installing, or determining the source of problems with this
product.
This warranty is valid in the country of the original purchase at retail. It is non-transferable and applies only to the original
purchaser and does not extend to subsequent owners of this product. Any applicable implied warranties, including the war-
ranty of merchantability, are limited in duration to a period of express warranty as provided herein beginning with the date
of original purchase at retail and, no warranties, whether express or implied, shall apply to this product thereafter.
To obtain warranty service, you may contact your local reseller from which you purchased this product. Please conrm the
terms of your local reseller’s policies prior to contacting. Typically, you must include product identication information,
including model number and serial number with a detailed description of the problem you are experiencing. You must also
include proof of the date of original retail purchase as evidence that the product is within the applicable warranty period.
TO OBTAIN SERVICE UNDERWARRANTY:
You must present proof of original purchase date.
Please provide an original dated proof of purchase (sales receipt / invoice) in order to obtain service under warranty.
The information in this document is subject to change without notice, please contact your local reseller for updated details.
Warranty

Page 13
Carefully inspect all items for damages before accepting delivery. note any damages on the freight bill or
express receipt. request name and signature of the carrier’s agent and keep copy to support your claim. Upon
acceptance of items, owner assumes responsibility for its safe arrival. Report damages to the carrier and le
a claim immediately. Failure to do so may result in the denial of your claim. The carrier will furnish you with
necessary forms for ling a claim.
Damages caused during transit are not covered under our warranty. Please contact us to le an insurance claim.
Please inspect contents of package(s) carefully upon receiving! We must be notied of any damages and/or
missing parts within ve (5) days upon your receipt of package(s). Claims will not be accepted after ve (5)
days. NOTE: Items were thoroughly tested and carefully packed in our factory before shipping.
Products must be returned in good working condition with ALL original parts and documentation packed in
ALL original cartons, llers and shipping cartons. A restocking fee of 15% will be charged for all approved
return(s). Exchanges or returns may not be accepted if any packaging is missing.
Make sure to inspect the hood for damages and defects before installation. Appearance aws of the hood found
after installation and not affecting hood performance is not covered under our warranty for returns or exchang-
es. Service visits not covered under warranty will carry a service charge.
Before Installation: Return for exchange or refund (please see above for acceptable returns).
After Installation: NO exchange or refund.
If you need any assistance, please contact your local reseller. Please have your order number and model of the
range hood ready. This information will help them better respond to your request.
If you need replacement parts, we recommend that you only use genuine parts. Our accessories and parts are
engineered and designed specically for this series of range hood, each is rigorously tested assuring the utmost
in durability and reliability, providing a factory match, factory-installed appearance and functionality tailored to
each individual range hood model.
Contact Us
Disclaimer
The information in this document is subject to change without notice, please contact your local reseller for updated details.

Page 14
Your Notes

21 Simmons ln,Menands,New York 12204 USA
