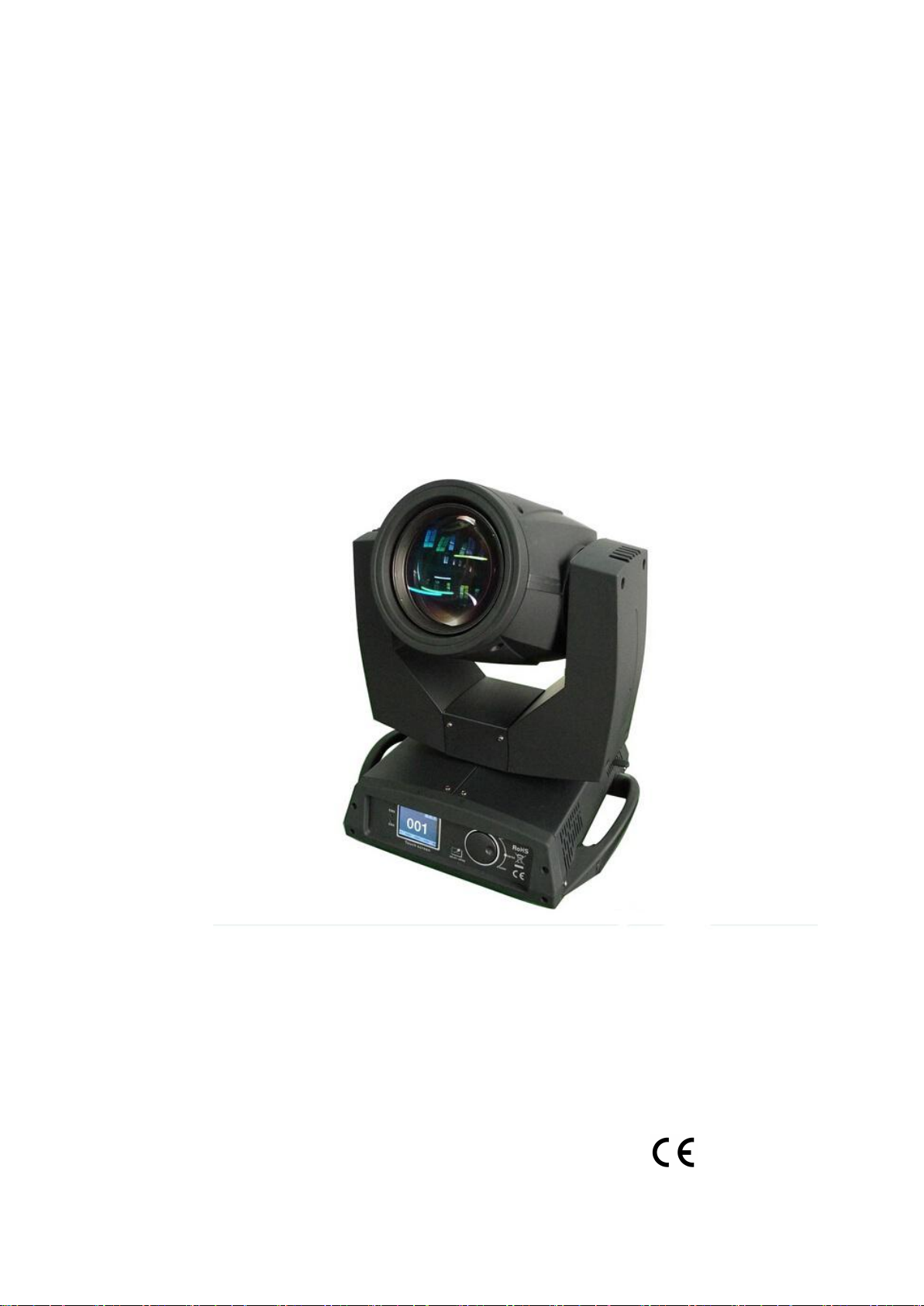

Homeilicht HM-M230 User manual

230W Beam Moving Head
（16/20CH/Silent）
User Manual

Please read this user manual carefully, and check every instruction and operation
requirements.
- Make sure the installation, operation, transportation, warehouse inventory and others are
made by the qualified mount guard staffs;
- Observe whether there is damage of the products in transportation, please immediately
contact with your suppliers, DON NOT use in electricity.
1. Button Instruction
The function of “L” (Left) and “R” (Right) is the same:
Back to last interface
“Up”、“Down” button
Choose、edit
“OK” button :
Executive function、start editing、exit editing
Take the "modify DMX address code" as an example, show the use of button as below:
1. If the current interface is not the main one, press the "Left" button (one or multiple) can
get back to the main interface
2. In the main interface, press the "Up" key or "Down" button to select the "Settings" button
3. Press the "OK" button, enter the "Settings" interface
4. In the "Settings" interface, press the "Up" button or "Down" button to select "DMX
address"
5. Press the "OK" button to enter edit state
6. Press the "Up" button or "Down" button to modify the DMX address code
7. Press the "OK" button to exit editing state
If use the touch screen, the process is more convenient.
1. In the main window touch "Settings" button to enter the "Settings" interface
OK
Down
Up
L
R

2. It is the same with 4 ~ 7 steps (can use the true buttons, also can use the touch button),
no longer talk about them in details.
2. Interface Instruction
2.1.Main Interface
The 3 top right buttons are used for language switching and screen rotation.
The corresponding interface instruction of the 4 bottom buttons is as below.
2.2.Setting Interface
Option
Instruction
Operation
Mode
DMX
Slave state：Receive the DMX signal from controller or the
host one
Auto
Master state：Auto run, and send DMX signal to slave one
Notice：If the lamp is off before, it can’t light the lamp by
itself. If you need the observe the lamp effect, please light
the lamp firs, then enter the auto state.
DMX
address
1~51
2
Press the "OK" button to enter edit state. And it chosen the
hundred position, press the "Up" and "Down" button to
change address code. Press "OK" button once again to
select ten position editing. Click "OK" button twice again to
select the unit editing. Click again exit editing state.
CH mode
16
CH17~20 no function
20
CH17~20 control the speed（See the channel table）
X inversion
Off
On
Y inversion
Off
On
XY
exchange
Off
On
Exchange XY channels(Included fine adjustment)
XY coder
On
Use the coder(optocoupler) to judge whether out of step,
and correct position automatically
Off
Don’t use the coder( optocoupler ) to correct position
NO DMX
signal
Retai
n
According to the original state to continue running
Reset
Motors return, stop running
Screen
protection
On
No operation for 30 seconds, the backlight will be off
Off
The backlight will be on all the time

2.3.Information Interface
Option
Instruction
Software version
Current software version
Total usage time
Total usage time is accurate to minutes
Usage time of this
time
Usage time of this time is accurate to minutes
DMX channel value
Enter into the son interface from this, shows the numerical and
percentage channel value for check
System error record
If the red ERR light shine, it means the light has operation error,
the details can be view in son interface. After the check, can
click "OK" button, the error record will empty
Note: Sometimes it's not really the installation problem of hall or
optocoupler, but the motor line are reversed.
2.4.Manual Control Interface
The interface is used to control the current light, not only does not belongs to the slave
state (don’t receive DMX signal), but also does not belong to the master state (don’t
send DMX signal).
Option
Instruction
Reset
Press the “OK” button, see the confirmation dialog box, click"
OK "button again, enter reset interface, all motor reset
Color wheel
0~255
Press the "OK" button to enter edit state. And it chosen the
hundred position, press the "Up" and "Down" button to
change address code. Press "OK" button once again to select
ten position editing. Click "OK" button twice again to select
the unit editing. Click again exit editing state.
……
0~255
Gobo speed
0~255
Lamp
control
On
Off
2.5.Advanced Interface
The password is "up and down up and down". Operation process is: press the "Up" key
(appear first "*"), click again "Down" key (appear the second "*"), then press the "Up" key
(appear third "*"), click again "Down" key (appear fourth "*"), and press the "ok" button to
Lamp on
Off
After power on reset directly, bulb doesn’t light up(need to
use the menu or controller to manual light bulb)
On
After power on, bubble light automatically, and to wait on
the bulb light successfully, then reset.
Default
Settings
Click "OK" button, see the confirmation dialog box, click
"OK" button again to recover default Settings

verify password.
Option
Instruction
Touch
screen calibration
Into the calibration interface, according to cross cursor
indication to touch the corresponding position, if four
position to receive the correct data, then complete
calibration and keep calibration data.
If calibration fail, this process will continue cycle down,
can by press the "OK" button at any time to stop
calibration
Reset calibration
Enter the son interface, can adjust the X, Y motor reset
position, to make up for the hardware installation error.
Be different from the address code and channel value,
reset calibration does not support unit, ten, hundred
separate editing, also does not support long press, and
must be calibrated step by step as 1 for unit.
Note: please do not do reset calibration when the motor
is running! If the motors are running, please reset
calibrate after the motors stop
When necessary, please perform a reset operation
before reset calibration.
3. DMX Channel Data
CHANN
EL
CHANNEL MODE
16
20
1
COLOUR WHEEL
COLOUR WHEEL
2
STOP/STROBE
STOP/STROBE
3
DIMMER
DIMMER
4
STATIC GOBO CHANGE
STATIC GOBO CHANGE
5
PRISM INSERTION
PRISM INSERTION
6
PRISM ROTATION
PRISM ROTATION
7
EFFECTS MOVEMENT
(UNUSED)
EFFECTS MOVEMENT
(UNUSED)
8
FROST
FROST
9
ZOOM
ZOOM
10
PAN
PAN
11
PAN FINE
PAN FINE
12
TILT
TILT
13
TILT FINE
TILT FINE
14
FUNCTION (UNUSED)
FUNCTION (UNUSED)
15
RESET
RESET
16
LAMP CONTROL
LAMP CONTROL
17
PAN-TILT TIME
18
COLOUR TIME

19
DIMMER-PRISM-FROST
TIME
20
GOBO TIME

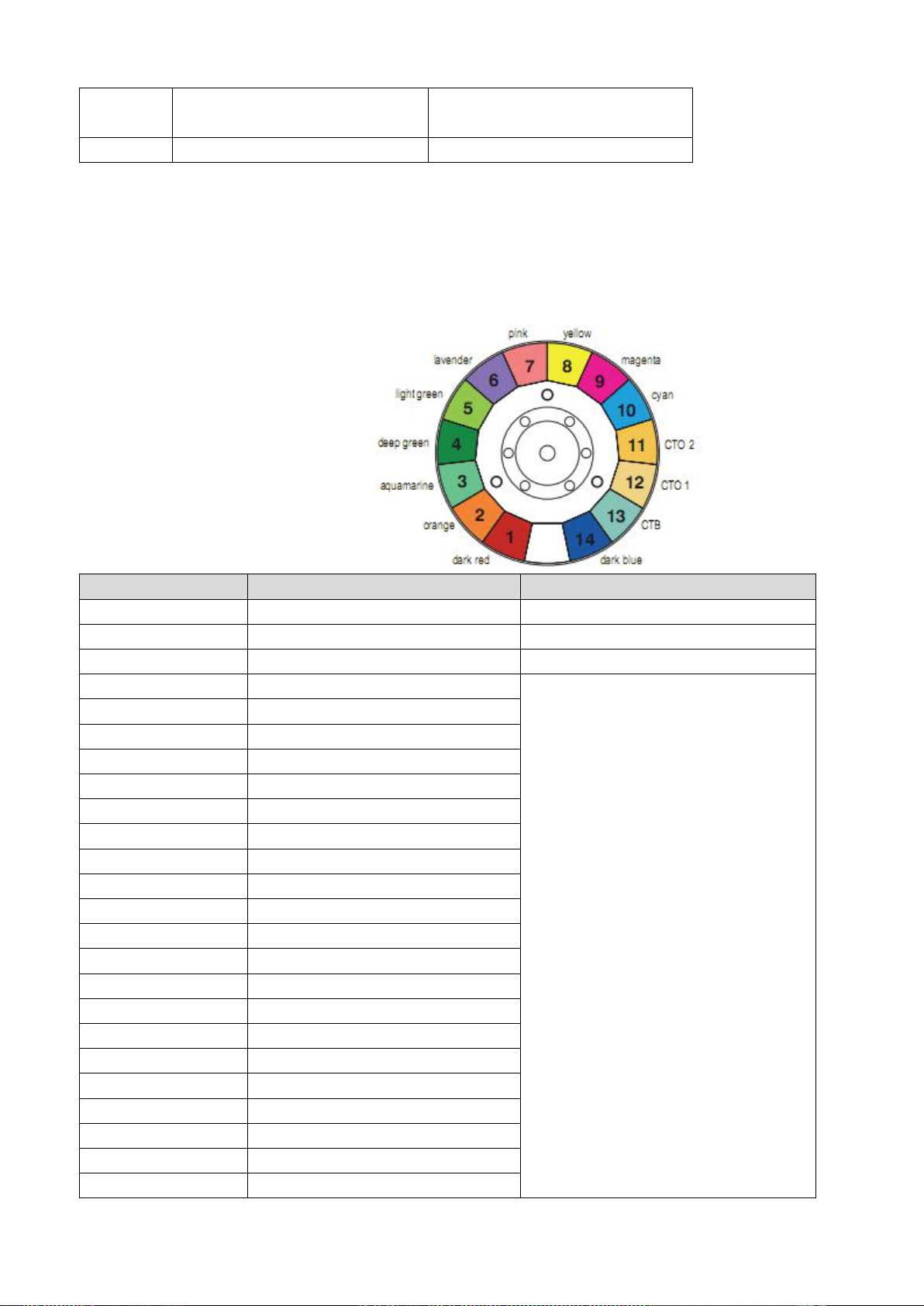

COLOUR WHEEL - channel 1
BIT
EFFECT
Remarks
255
FAST ROTATION
……
……
150
SLOW ROTATION
145
BLUE + WHITE
In order to facilitate the memory,
color value is always a multiple of
5.
Color ratio can be adjusted, such
as: when numerical is 5, white
50% red 50%, if the value is 4,
white60% red 40%; If the value is
6, white 40% red 60%
140
BLUE
135
CTB 8000 + BLUE
130
CTB 8000
125
CTO 190 + CTB 8000
120
CTO 190
115
CTO 260 + CTO 190
110
CTO 260
105
CYAN + CTO 260
100
CYAN
95
MAGENTA + CYAN
90
MAGENTA
85
YELLOW + MAGENTA
80
YELLOW
75
PINK + YELLOW
70
PINK
65
LAVENDER + PINK
60
LAVENDER
55
LIGHT GREEN + LAVENDER
50
LIGHT GREEN
45
GREEN + LIGHT GREEN

40
GREEN
35
AQUAMARINE + GREEN
30
AQUAMARINE
25
ORANGE + AQUAMARINE
20
ORANGE
15
RED + ORANGE
10
RED
5
WHITE + RED
0
WHITE

STOP/STOBE - channel 2
BIT
EFFECT
Remarks
252-255
OPEN
Controlled by dimmer
channel
239-251
RANDOM FAST STROBE
226-238
RANDOM MEDIUM STROBE
213-225
RANDOM SLOW STROBE
208-212
OPEN
Controlled by dimmer
channel
207
FAST PULSATION
……
……
108
SLOW PULSATION
104-107
OPEN
Controlled by dimmer
channel
103
FAST STROBE
……
……
4
SLOW STROBE
0-3
CLOSED
DIMMER - channel 3
BIT
EFFECT
备注
255
100%
……
……
0
0%
STATIC GOBO CHANGE - channel 4

BIT
EFFECT
Remarks
255
GOBO 17 SHAKE, FAST SPEED
Every 5 values is
corresponding to a
gobo
……
……
251
GOBO 17 SHAKE, SLOW SPEED
250
GOBO 16 SHAKE, FAST SPEED
……
……
246
GOBO 16 SHAKE, SLOW SPEED
……
……
180
GOBO 2 SHAKE, FAST SPEED
……
……
176
GOBO 2 SHAKE, SLOW SPEED
175
GOBO 1 SHAKE, FAST SPEED
……
……
171
GOBO 1 SHAKE, SLOW SPEED
170
FAST ROTATION
……
……
135
SLOW ROTATION
130-134
STOP
129
SLOW ROTATION
……
……
90
FAST ROTATION
85
GOBO 17
The value is always
multiple of 5
80
GOBO 16
75
GOBO 15
70
GOBO 14
65
GOBO 13
60
GOBO 12
55
GOBO 11
50
GOBO 10
45
GOBO 9
40
GOBO 8
35
GOBO 7
30
GOBO 6
25
GOBO 5
20
GOBO 4
15
GOBO 3
10
GOBO 2
5
GOBO 1
0
WHITE

PRISM INSERTION - channel 5
BIT
EFFECT
Remarks
128-255
PRISM INSERTED
0-127
PRISM EXCLUDED
PRISM ROTATION - channel 6
BIT
EFFECT
Remarks
255
FAST ROTATION
……
……
193
SLOW ROTATION
191-192
STOP
190
SLOW ROTATION
……
……
128
FAST ROTATION
0-127
POSITION
EFFECTS MOVEMENT - channel 7 (NOUSED)
FROST - channel 8
BIT
EFFECT
Remarks
128-255
FROST INSERTED
0-127
FROST EXCLUDED
ZOOM - channel 9
BIT
EFFECT
Remarks
255
Zoom 100%
……
……
0
Zoom 0%
PAN - channel 10
（Omit）
PAN FINE - channel 11
（Omit）
TILT - channel 12
（Omit）
TILT FINE - channel 13
（Omit）

FUNCTION - channel 14 (NOUSED)
RESET - channel 15
BIT
EFFECT
Remark
128-255
COMPLETE RESET
Stay 5 seconds in corresponding
area, then begin to reset.
77-127
PAN/TILT RESET
26-76
EFFECTS RESET
0-25
UNUSED RANGE
LAMP CONTROL- channel 16
BIT
EFFECT
Remark
101-255
LAMP ON
Stay 5 seconds in corresponding
area, then begin to switch the
lamp.
10-100
LAMP OFF
0-9
UNUSED RANGE
TIMING CHANNELS
Timing
Channel
Channel function
Remark
17
Pan-Tilt time
Pan-Tilt-(Pan fine-Tilt fine)
255 SLOW SPEED
…… ……
0 FAST SPEED
18
Colour time
Colour wheel
19
Beam time
Dimmer-Prism -Frost
20
Gobo time
Static Gobo
