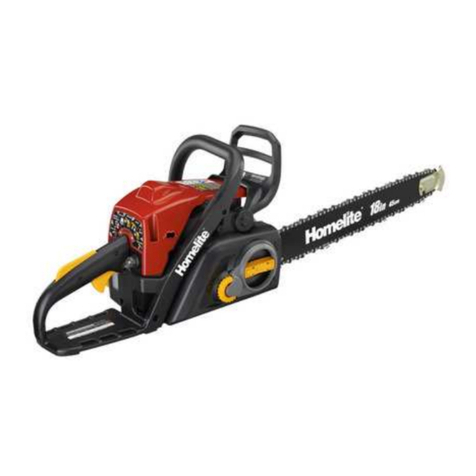

Homelite CSP3816 - UT74123A User manual

YournewchainsawhasbeenengineeredandmanufacturedtoHomelite’shighstandardfordependability, ease of operation
and operator safety.Properly cared for, it will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual.
Thank you for buying a Homelite chainsaw.
SAVE THIS MANUAL FOR FUTURE REFERENCE
OPERATOR’S MANUAL
CSP3816 - UT74123A - 406 mm 16 in. 38cc Chainsaw
CSP4518 - UT74125A - 457 mm 18 in. 45cc Chainsaw
CSP4520 - UT74127A - 508 mm 20 in. 45cc Chainsaw

UK - Page 2
QQ
QQ
QIntroduction ..................................................................................................................................................................... 2
QQ
QQ
QGeneralSafety Rules ................................................................................................................................................... 3-4
QQ
QQ
QSpecific Safety Rules................................................................................................................................................... 5-6
QQ
QQ
QSymbols....................................................................................................................................................................... 7-8
QQ
QQ
QSpecifications ................................................................................................................................................................. 9
QQ
QQ
QFeatures........................................................................................................................................................................ 10
QQ
QQ
QOperation ..................................................................................................................................................................11-25
QQ
QQ
QMaintenance .............................................................................................................................................................26-36
QQ
QQ
QBarand ChainCombination ........................................................................................................................................... 37
QQ
QQ
QTroubleshooting .........................................................................................................................................................37-38
QQ
QQ
QWarranty........................................................................................................................................................................ 39
QQ
QQ
QSafety Directive ............................................................................................................................................................ 39
Look for this symbol to point out important safety precautions.
It means attention!!! Your safety is involved.
WARNING:
Carefullyreadthroughthisentireoperator’smanual
before using your new saw. Pay close attention to the
Safety Rules and all Safety Alert Symbols including
Danger,Warning and Caution. Thesesafetyrules are
for your safety and to prevent possible serious injury.
If you use your saw properly and only for what it is
intended, you will enjoy years of safe, reliable
service.
IMPORTANT
Servicing requires extreme care and knowledge and
should be performed only by a qualified service
technician.When servicing use only identical Homelite
replacement parts.
Forsafeoperation,read and understand all instructions
before using the chainsaw. Follow all safety instructions.
Failure to follow all safety instructions listed below may
result in serious personal injury.
INTRODUCTION
TABLE OF CONTENTS
The operation of any tool can result in foreign objects being thrown into the eyes, which may
cause severe eye injury. Before beginning tool operation, always wear safety goggles or
safety glasses with side shields and a full face shield when needed. We recommend Wide
Vision Safety Mask for use over glasses or standard safety glasses with side shields. Always
weareyeprotection.
WARNING:

UK - Page 3
WARNING:
The warnings, labels and instructions found in this
section of the operator’s manual are for your safety.
Failure to follow all instructions may result in serious
personalinjury.
Safe operation of this tool requires that you read and
understand this operator’s manual and all labels affixed to
the tool. Safety is a combination of using common sense,
staying alert, and knowing how your saw works.
READ ALL INSTRUCTIONS
QQ
QQ
QKNOW YOUR TOOL. Readtheoperator’s manual
carefully.Learn the saw’s applications and limitations as
well as the specific potential hazards related to this
tool.
QQ
QQ
QCHAINSAWS are designed forcutting wood only.
QQ
QQ
QKICK-BACK MAY OCCUR WHEN THE NOSE OR TIP
OF THE GUIDE BAR touchesanobject or when the
wood closes in and pinches the saw chain in the cut.Tip
contact in some cases may cause a lightning-fast
reverse reaction kicking the guide bar up and back
towardthe operator.Pinching thesawchainalong the
top of the guide bar may push the guide bar rapidly back
towards the operator.Either of these reactions may
cause you to lose control of the saw, which could result
in serious personal injury.DO NOT rely exclusively on
the safety devices built into the saw. As a chainsaw
user, you should take several steps to keep cutting jobs
freefromaccidentor injury.
1. With a basic understanding of kick-back, you can
reduceoreliminatetheelementofsurprise.Sudden
surprise contributes to accidents.
2. Keep a good firm grip on the saw with both hands
whentheengine is running. Place yourrighthandon
therearhandleandyourleft hand on the front handle
with thumbs and fingers encircling the chainsaw
handles. A firm grip together with a stiff left arm will
help you maintain control of the saw if kick-back
occurs.
3. Make sure that the area in which you are cutting is
free from obstructions. DO NOT let the nose of the
guide bar contact a log, branch, fence or any other
obstructionwhichcouldbehitwhile you are operating
the saw.
4. Cut at high engine speeds. Always cut with the
engine running at full speed. Fully squeeze the
throttle trigger and maintain a steady cutting speed.
5. Do not overreach or cut above shoulder height.
6. Followthemanufacturer’s sharpening and mainte-
nance instructions for the saw chain.
7. Only use replacement bars and chains specified by
themanufacturerortheequivalent.
QQ
QQ
QDO NOT OPERATE A CHAINSAW WITH ONE HAND.
Seriousinjury to the operator,helpersand/orbystanders
mayresultfromone-handedoperation.Achainsawis
intendedfor two-handed use.
QQ
QQ
QDO NOT OPERATE A CHAINSAW WHEN YOU ARE
FATIGUED. Neveroperate a chainsawwhen youare
tired or under the influence of medication, drugs or
alcohol.
QQ
QQ
QUSE SAFETY FOOTWEAR. Wearsnug-fitting clothing,
protectiveglovesandeye,hearingandheadprotection
devices.
QQ
QQ
QDO NOT STAND ON ANY UNSTABLE SURFACE while
using your chainsaw.This includes ladders, scaffolding,
trees etc.
QQ
QQ
QUSE CAUTION WHEN HANDLING FUEL. Move the
chainsaw at least 9 m (25 ft) from the refuelling point
before starting the engine.
QQ
QQ
QDO NOT ALLOW OTHER PERSONS tobenearthe
chainsaw when starting or cutting with the chainsaw.
Keep bystanders and animals out of the work area.
QQ
QQ
QDO NOT START CUTTING until you have a clear work
area, secure footing and a planned retreat path from the
falling tree.
GENERAL SAFETY RULES

UK - Page 4
GENERAL SAFETY RULES
QKEEP ALL PARTS OF YOUR BODY away from the saw
chainwhen the engineisrunning.
QQ
QQ
QALWAYS CARRY THE CHAINSAW WITH THE ENGINE
STOPPED AND THE BRAKE ENGAGED, theguidebar
and saw chain to the rear, and the silencer away from
your body.When transporting the chainsaw, use the
appropriateguide barscabbard.
QQ
QQ
QDO NOT OPERATE A CHAINSAW THAT IS DAMAGED,
improperlyadjusted,ornot completely and securely
assembled. Be sure that the saw chain stops moving
whenthethrottle control trigger is released.
QQ
QQ
QTURN OFF THE ENGINE beforeputtingthechainsaw
down.DO NOT leave theenginerunningunattended.
As an additional safety precaution, apply the chain brake
before putting down the saw.
QQ
QQ
QUSE EXTREME CAUTION whencuttingsmall-size
brush and saplings because slender material may catch
the saw chain and be whipped toward you or pull you
off balance.
QQ
QQ
QWHEN CUTTING A LIMB under tension, be alert for
spring-back so you will not be struck when the tension
in the wood fibres is released.
QQ
QQ
QKEEP THE HANDLES dry, clean and free of oil or
fuelmixture.
QQ
QQ
QOPERATE THE CHAINSAW ONLY inwellventilated
areas.
QQ
QQ
QDO NOT OPERATE A CHAINSAW IN A TREE unless
you have been specifically trained to do so.
QQ
QQ
QALL CHAINSAW SERVICE, other than the items listed
in the instruction manual, and all maintenance should
beperformedbycompetent chainsaw service personnel.
For example, if improper tools are used to remove the
flywheel or if an improper tool is used to hold the
flywheel in order to remove the clutch, structural
damage to the flywheel may occur and subsequently
cause the flywheel to burst.)
QQ
QQ
QKEEP ALL PARTS OF YOUR BODY away from the saw
chainwhenthe engine is running.
QQ
QQ
QKEEP SAFE-T-TIP ANTI-KICK-BACK NOSE GUARD
properlymountedontheguidebartopreventrotational
kick-back.
QQ
QQ
QFOLLOW THE SHARPENING andmaintenance
instructions for the saw chain.
QQ
QQ
QUSE ONLY THE REPLACEMENT GUIDE BARS and
low kick-back chains specified for your saw.
QQ
QQ
QDO NOT adapt your power head to a bow guide or use it
to power any attachments or devices not listed for
yoursaw.
QQ
QQ
QSAVE THESE INSTRUCTIONS. Refer to them
frequently and use to instruct other users. If you lend
someone this tool, lend them these instructions too.

UK - Page 5
WARNING:
The warnings, labels and instructions found in this
section of the operator’s manual are for your safety.
Failure to follow all instructions may result in serious
personalinjury.
GENERAL PRECAUTIONS
QQ
QQ
QDO NOT CUT VINES and/orsmall underbrushlessthan
76 mm (3 in.) in diameter.
QQ
QQ
QSILENCER SURFACES ARE VERY HOT duringand
after operation of the chainsaw; keep all body parts
away from the silencer. Serious burns may occur if
contact is made with the silencer.
QQ
QQ
QALWAYS HOLD THE CHAINSAW WITH BOTH HANDS
when the engine is running. Use a firm grip with thumbs
andfingersencircling the chainsaw handles.
QQ
QQ
QNEVER LET ANYONE USE YOUR CHAINSAW whohas
not received adequate instructions in its proper use.
This applies to hired as well as privately owned saws.
QQ
QQ
QBEFORE YOU START THE ENGINE, make sure the
saw chain is not contacting any object.
QQ
QQ
QOPERATE THE CHAINSAW onlyin wellventilatedareas.
SAFETY APPAREL
QQ
QQ
QWearsnug-fittingclothing.Alwayswear heavy, long
trousers, boots and gloves. Do not wear jewellery,
shorts, sandals, or go barefoot. Do not wear loose fitting
clothing which could be drawn into the engine or catch
thechain or underbrush. Wearoveralls,jeans or chaps
made of cut-resistant material or ones that contain
cut-resistant inserts. Secure hair so that it is above
shoulderlevel.
QQ
QQ
QWearnon-slipsafetyfootwearandheavy-dutygloves to
improve your grip and to protect your hands.
QQ
QQ
QWeareye,hearingandheadprotectionwhenoperating
thisequipment.
REFUELLING DO NOT SMOKE!)
QTo reduce the risk of fire and burn injury, handle fuel with
care. It is highly flammable.
QQ
QQ
QMix and store fuel in a container approved for petrol.
QQ
QQ
QMix fuel outdoors where there are no sparks or flames.
QQ
QQ
QSelect bare ground, stop the engine, and allow it to cool
beforerefuelling.
QQ
QQ
QLoosen the fuel cap slowly to release pressure and to
keep fuel from escaping round the cap.
QQ
QQ
QTighten the fuel cap securely after refuelling.
QQ
QQ
QWipe spilled fuel from the unit. Move 9 m (25 ft.) away
from refuelling site before starting engine.
QQ
QQ
QNever attempt to burn off spilled fuel under any
circumstances.
BASIC PRECAUTIONS IN THE CUTTING/
WORK AREA
QQ
QQ
QDo not operate a chainsaw in a tree.
QQ
QQ
QDo not cut from a ladder: this is extremely dangerous.
QQ
QQ
QKeep bystanders and animals out of the work area.Do
not allow other persons to be nearby during starting or
cutting with the chainsaw.
NOTE: Thesizeofthework areadependsonthe job
being performed as well as the size tree or work piece
involved.For example, felling a tree requires a larger work
area than making other cuts such as bucking cuts etc.
SPECIFIC SAFETY RULES

UK - Page 6
PULL
PUSH
Fig. 1
PUSH AND PULL
The reaction force is always opposite to the direction the
chain is moving.Thus, the operator must be ready to
control the PULL when cutting on the bottom edge of the
bar and the PUSH when cutting along the top edge.
MAINTENANCE PRECAUTIONS
Neveroperateachainsawthatisdamaged, improperly
adjusted, or not completely and securely assembled. Be
sure that the saw chain stops moving when the throttle
control trigger is released. If the saw chain moves at idling
speed,thecarburettormayneedadjusting.Referto
“Operation” later in this manual. If the saw chain still
moves at idling speed after adjustment has been made,
contact a Homelite service dealer for adjustment and
discontinue use until the repair is made.
WARNING:
All chainsaw service, other than items in the operator’s
manualmaintenanceinstructions,shouldbeperformed
bycompetentchainsaw service personnel. If improper
tools are used to remove the flywheel or clutch, or if an
improper tool is used to hold the flywheel in order to
remove the clutch, structural damage to the flywheel
could occur which could subsequently cause the
flywheel to burst with possible serious injury.
KICK-BACK
Kick-back is a dangerous reaction which may lead to
serious injury.Do not rely only on the safety devices
provided with your saw.As a chainsaw user, you must take
special safety precautions to help keep your cutting jobs
free from accident or injury.
NOTE: Seethe“Operation”sectionlaterinthismanualfor
added information on kick-back and how to avoid serious
personalinjury.
NOTE: Your chainsaw has been fully factory tested. It is
normal to find some slight oil residue on the saw.
SPECIFIC SAFETY RULES

UK - Page 7
SYMBOLS
Important: Someofthefollowingsymbolsmaybeusedonyourtool.Pleasestudythemandlearntheirmeaning.Proper
interpretation of these symbols will allow you to operate the tool better and more safely.
SYMBOL NAME EXPLANATION
Indicates danger, warning or caution. It means
attention!!! Your safety is involved.
Your manual contains special messages to bring
attention to potential safety concerns and machine
damage, as well as helpful operating and servicing
information. Please read all the information carefully to
avoid injury and machine damage.
Wear eye, hearing and head protection when operating
this equipment.
The SAFE-T-TIP®nose guard on the guide bar helps
prevent kick-back.
No smoking, sparks or open flame.
Hold and operate the saw properly with both hands.
Do not operate the saw using only one hand.
Engines produce carbon monoxide which is an odourless,
deadly poison. Do not operate in an enclosed area.
Danger – beware of kick-back.
Avoid bar nose contact.
Wear non-slip gloves.
To stop the engine, move the switch to the “O” STOP
position.
I = ON to Run
O = OFF to Stop
Safety Alert Symbol
Read Your Operator’s Manual
Eye,HearingandHeadProtection
SAFE-T-TIP® NoseGuard
NoSmoking
OperatewithTwoHands
OneHanded
Gloves
BarNoseContact
Kick-back
CarbonMonoxide
Switch
RUN
“O”
STOP

UK - Page 8
SAVE THESE INSTRUCTIONS
SYMBOLS
NoSmoking Do not smoke when mixing fuel or filling fuel tank.
Petrol Useunleaded petrolintended formotor vehicleuse
with an octane rating of 87 [R + M] / 2) or higher.
Oil Use 2-cycle oil for air-cooled engines.
Mix Petrol and Oil Mix the fuel mix thoroughly and also each time
beforerefuelling.

UK - Page 9
Weight - No bar, chain, fuel or oil.............................................................................................................................. 4.4 kg
Fuel tank capacity ................................................................................................................................................. 575 cm3
Oil tank capacity..................................................................................................................................................... 350cm3
Barlengths ......................................................................................................................................................... 33 - 46 cm
Chainpitch ............................................................................................................................................................ 8.25mm
Chaingauge........................................................................................................................................................... 1.25mm
Chaintype ......................................................................................................................... Semi-Chisel, LoPro, Skip Tooth
Drivesprocket ........................................................................................................................................................7 - tooth
Enginedisplacement CSP3816 ..................................................................................... 38 cm3
CSP4518andCSP4520 .............................................................. 45 cm3
MaximumenginepowerISO7293) CSP3816 .....................................................................................1.6 kW
MaximumenginepowerISO7293) CSP4518ANDCSP4520 .............................................................1.9 kW
Maximumenginespeedwithattachment ..........................................................................................................12,500min-1
Idleenginespeed....................................................................................................................................2,600 - 3,400 min-1
Soundpressure levelISO 7182) CSP3816 ........................................................................99.4 LpA / dBA
CSP4518andCSP4520 .................................................99.4 LpA / dBA
SoundpowerlevelISO9207) CSP3816 ................................................................... 112.0 LwA / dBpA
CSP4518andCSP4520 ............................................ 112.0 LwA / dBpA
VibrationISO7505):
FrontHandle CSP3816 .................................................................................. 4.3 M/S2
RearHandle CSP3816 ................................................................................ 10.7 M/S2
FrontHandle CSP4518andCSP4520 ........................................................... 4.3 M/S2
RearHandle CSP4518andCSP4520 ......................................................... 10.7 M/S2
SPECIFICATIONS

UK - Page 10
STOP
Fig. 2
FRONT HAND GUARD/
CHAIN BRAKE
FRONT
HANDLE
CYLINDER
COVER
TRIGGER
RELEASE
REAR
HANDLE
THROTTLE
TRIGGER
ON/OFF SWITCH
FUEL MIX CAP
CHAIN OIL CAP
STARTER/FAN HOUSING
STARTER GRIP
SAFE-T-TIP®
PRIMER BULB
CHOKE LEVER
FEATURES
SILENCER
CARBURETTOR
ADJUSTMENT
CHAIN
CATCHER

UK - Page 11
WEAR HEAD
PROTECTION
WEAR EYE
PROTECTION
WEAR HEARING
PROTECTION
WEAR TRIM-FITTING CLOTHING. AVOID SCARVES OR
OTHER LOOSE CLOTHING WHICH COULD GET
CAUGHT IN THE MACHINE
WEAR “NON-SLIP”
GLOVES
WEAR STURDY
BOOTS
Fig. 3
For your safety, study this entire manual before operating
the saw.Pay particular attention to the precautions and
instructions listed in the operator’s manual.
WARNING:
The warnings and instructions in this section of the
operator’s manual are for your safety and to prevent
seriouspersonalinjury.
UNDERSTANDING YOUR CHAINSAW
SAFETY DEVICES
SAFE-T-TIP® ANTI-KICK-BACK NOSE GUARD
The SAFE-T-TIP®prevents kick-back because it covers the
tip of the bar where rotational kick-back is generated.
Inexperiencedpersonsshould never attempt to cut when
the SAFE-T-TIP®has been removed from the bar tip.
Fig. 4
Users, such as professional loggers who need to draw the
tip through the cut, make boring cuts, or cut logs bigger
than the bar length, should reinstall the SAFE-T-TIP®as
soon as those cuts are complete.When cutting without the
SAFE-T-TIP®, the user must use proper techniques as
shown in the manual to avoid kick-back.
NOTE: Referto“Maintenance”laterin this manual for
instructions on reinstalling the SAFE-T-TIP®nose guard.
LOW KICK-BACK SAW CHAIN
The rakers (depth gauges) ahead of each cutter can
minimise the force of a kick-back reaction by preventing
the cutters from digging in too deeply at the kick-back
zone. Only use replacement chain which is equivalent to
the original chain or has been certified as a low
kick-back chain.
As saw chains are sharpened, they lose some of the low
kick-back qualities and extra caution is required.
GUIDE BARS
Generally, guide bars with small radius tips have somewhat
lowerkick-backpotentials.
When making a replacement, be sure to order one of the
Homelite bars listed for your saw in this operator’s manual.
The proper size SAFE-T-TIP®nose guard comes installed
on the bar. Use only guide bars that have a provision for
mountingtheSAFE-T-TIP®.
SAFE-T-TIP
OPERATION
WEAR HEAVY DENIM
OR CHAPS

UK - Page 12
CHAIN BRAKE
Chain brakes are designed to quickly stop the chain from
rotating.When thechainbrake lever/handguardis pushed
towards the bar, the chain should stop immediately.
A chain brake does not prevent kick-back.
The chain brake should be cleaned and tested daily. Refer
to“Operation” later in thismanual for additional information.
RUN POSITION
BRAKE
POSITION
Fig. 5
WARNING:
KICK-BACK occurs when the moving chain contacts
an object at the upper portion of the tip of the guide
bar or when the wood closes in and pinches the saw
chain in the cut. Contact at the upper portion of the
tip of the guide bar can cause the chain to dig into
the object and stop the chain for an instant. The
result is a lightning-fast, reverse reaction which kicks
the guide bar up and back towards the operator. If
the saw chain is pinched along the top of the guide
bar, the guide bar can be driven rapidly back toward
the operator. Either of these reactions may cause
loss of saw control which can result in serious injury.
Do not rely exclusively upon the safety devices built
into the saw. As a chainsaw user, you should take
several steps to keep your cutting jobs free from
accident or injury.
OPERATION
WARNING:
Even with daily cleaning of the mechanism, the
dependability of a chain brake to perform under field
conditions cannot be certified. Keep the SAFE-T-TIP
nose guard on the saw guide bar and use proper
cuttingtechniques.
ROTATIONAL
KICK-BACK
Fig. 7
KICK-BACK PRECAUTIONS
Rotational kick-back occurs when the moving chain con-
tacts an object at the Kick-back Danger Zone of the guide
bar.The result is a lightning-fast, reverse reaction which
kicks the guide bar up and back towards the operator.This
reaction may cause loss of control which can result in
serious injury.
KICK-BACK DANGER
ZONE
Fig. 6

UK - Page 13
WARNING:
Always turn off engine before refuelling. Never add
fuel to a machine with a running or hot engine. Move
at least 9 m (25 ft.) from refuelling site before starting
the engine. DO NOT SMOKE! Failure to heed this
warning may result in possible personal injury.
FUEL AND REFUELLING
HANDLING THE FUEL SAFELY
FILLING THE TANK
Refer to “Specific Safety Rules – Refuelling” earlier in this
manualforadditional safety information.
1. Cleanthesurfaceround fuel cap to prevent contamina-
tion.
2. Loosen the fuel cap slowly.
3. Carefully pour the fuel mixture into the tank. Avoid
spillage. See Figure 8.
4. Before replacing the fuel cap, clean and inspect the
gasket.
5. Immediately replace the fuel cap and hand tighten. Wipe
up any fuel spillage.
NOTE: It is normal for the engine to emit smoke during
and after the first use.
QQ
QQ
QAlways handle fuel with care, it is highly flammable.
QQ
QQ
QAlwaysrefueloutdoorsanddonotinhalefuelvapour.
QQ
QQ
QDo not let petrol or oil come in contact with skin.
QQ
QQ
QKeep petrol and oil away from the eyes. If petrol or oil
comes in contact with the eyes, wash them immediately
with clean water. If irritation is still present, see a doctor
immediately.
QQ
QQ
QClean up spilled fuel immediately.
MIXING THE FUEL
QQ
QQ
QThis product is powered by a 2-cycle engine and requires
pre-mixingpetroland 2-cycleoil.Pre-mixunleadedpetrol
and2-cycleengineoil in a clean container approved
forpetrol.
QQ
QQ
QThisengineiscertified to operate on unleaded petrol
intended for motor vehicle use with an octane rating of
87 ([R + M] / 2) or higher.
QQ
QQ
QDo not use any type of pre-mixed petrol/oil from fuel
service stations. This includes the pre-mixed petrol/oil
intended for use in mopeds, motorcycles etc.
QQ
QQ
QUse a high quality 2-cycle self-mixing oil for air-cooled
engines. Do not use motor vehicle oil or 2-cycle out-
boardoil.
OPERATION
QQ
QQ
QMix 2% oil into the petrol. This is a 50:1 ratio.
QQ
QQ
QMix the fuel thoroughly and each time before refuelling.
QQ
QQ
QMix in small quantities. Do not mix quantities larger than
usable in a 30-day period. A 2-cycle oil containing a fuel
stabiliserisrecommended.
WARNING:
Check for fuel leaks. If any are found, correct them
before using the saw to prevent fire or burn injury.
}50:1
1 Litre + 20 ml =
2 Litres + 40 ml =
3 Litres + 60 ml =
4 Litres + 80 ml =
5 Litres + 100 ml =

UK - Page 14
STOP
ADDING OIL
Use HOMELITE Bar and Chain Oil. It is designed for
chains and chain oilers, and is formulated to perform over a
widetemperaturerangewithnodilutionrequired.Chainsaw
should use approximately one tank of oil per tank of fuel.
NOTE: Donot use dirty,usedor otherwise contaminated
oils. Damage may occur to the oil pump, bar or chain.
1. Carefully pour the bar and chain oil into the tank. See
Figure 9.
2. Fill the oil tank every time you refuel the engine.
STARTING THE ENGINE
WARNING:
Keep your body to the left of the chain line. Never
straddle the saw or chain, or lean over past the chain
line.
1. Place the chainsaw on level ground and ensure that no
objects or obstructions which could come in contact with
the bar and chain are in the immediate vicinity.
2. Hold the front handle firmly with the left hand and put
your right foot onto the base of the rear handle. See
Figure 10.
BRAKE POSITION
IGNITION SWITCH
IN THE RUN
POSITION
PRIMER BULB
Fig. 9
Fig.13
Fig.12
Fig.11
Fig.10
Fig. 8
OPERATION

UK - Page 15
STOP
Fig.14
CHOKE LEVER
Fig.15 THROTTLE TRIGGER
TRIGGER
RELEASE
Fig.16
Fig.18
RUN POSITION
STARTER
GRIP
STARTING A COLD ENGINE:
3. Move the chain brake to the BRAKE position.
NOTE: Set the chain brake by pushing the chain brake
lever/handguardforward(towardsthebar)tothebrake
position.Referto“Operation–OperatingChainBrake”
foradditionalinformation.
4. Set the ignition switch to the RUN (I) position.
5. Fully press and release the PRIMER BULB 7 times.
6. Pull CHOKE lever all the way OUT to full position. The
partial throttle position is automatically set when the
choke lever is set at full choke.
OPERATION
Fig.17
STARTER
GRIP
CHOKE
LEVER

UK - Page 16
7. Pull STARTER until engine attempts to start.
Slowly pull the starter grip out for a short distance until
you feel the starter engage, then briskly pull straight up.
Do not pull to the end of the rope; this may damage the
starter.Hold ontothegripduring rewinding—see
figure16.
Pull the starter rope until the first firing of the engine is
heard(nomorethan five pulls).
NOTE: Anewunit may requireadditionalpulls.
8. Push CHOKE lever all the way IN.
9. Pull STARTER until engine runs.
NOTE: Allow the saw to run in this position
15-30seconds, dependingonthe temperature.
10. ImmediatelySQUEEZEand release the throttle trigger.
Immediatelydepressthe throttle trigger, which releases
thetriggerlockbutton. Squeeze and release the throttle
trigger to let the engine idle.
12. Move chain brake to RUN position.
Placechainbrakelever/handguard intotheRUN
position,asshowninfigure18.Referto“Operation–
OperatingChain Brake”foradditional information.
CAUTION:
Failure to release partial throttle when chain brake
lever is in the brake position will result in serious
damage to the unit. Never squeeze and hold the
throttle trigger while the chain brake is in the brake
position.
Now you are ready to pick up the saw. Use the proper grip
forbothhandles—referto“Operation”foradditional
information.
STARTING A WARM ENGINE:
Follow the instructions for starting a cold engine (steps
1-9), but do not attempt to start in the full choke position
(skip step 5). Push and release primer bulb 7 times.
Pull the choke out and push back it in to the original
runposition.
STOPPING THE ENGINE
Release the throttle trigger and let the engine return to idle.
To stop the engine, move the ignition switch to the “O”
stop position.Donot put the chainsaw on the ground when
the chain is still moving. For additional safety, set the
chain brake when the saw is not in use.
In the event that the ignition switch will not stop the saw,
pull the choke lever out to the fully extended position (Full
Choke / ) and engage chain brake to stop the engine.
If the ignition switch will not stop the saw when set to the
“O” stop position,have theignition switchrepaired before
using the chainsaw again to prevent unsafe conditions or
seriousinjury.
Important: When you have finished using the saw, relieve
tank pressures by loosening the CHAIN OIL and FUEL MIX
caps. Then retighten the caps. Allow the engine to cool
beforestoring.
Fig.19
IGNITION SWITCH
IN THE STOP
POSITION
OPERATION

UK - Page 17
PREPARING FOR CUTTING
PROPER GRIP ON HANDLES
Refer to “Specific Safety Rules – Safety Apparel” earlier in
thismanualfor appropriate safety equipment.
QQ
QQ
QWearnon-slipgloves for maximum grip and protection.
QQ
QQ
QHold the saw firmly with both hands. Always keep your
LEFTHANDon the front handle andyourRIGHTHAND
on the rear handle, so that your body is to the left of the
chainline. See Figure 20
WARNING:
Neveruse aleft-handed(cross-handed) griporany
stance which would place your body or arm across
the chain line.
QQ
QQ
QMaintainaproper grip on the saw whenever theengineis
running.The fingers shouldencirclethehandle and the
thumbbewrappedunderthe handlebar.Thisgrip is least
likely to be broken by a kick-back or other sudden
reaction of the saw.Any grip in which the thumb and
fingers are on the same side of the handle is dangerous
because a slight kick of the saw can cause loss of
control.
WARNING:
DO NOT operate the throttle trigger with your left hand
andholdthe front handle with your right hand. Never
allow any part of your body to be in the chain line while
operatingasaw.
PROPER CUTTING STANCE
QQ
QQ
QBalance your weight with both feet on solid ground.
QQ
QQ
QKeep left arm with elbow locked in a “straight arm”
position to withstand any kick-back force.
QQ
QQ
QKeep your body to the left of the chain line.
QQ
QQ
QKeepyourthumb on underside of handlebar.
CHAIN LINE
PROPER GRIP
STRAIGHT
ARM
CHAIN LINE
THUMB ON
UNDERSIDE OF
HANDLE BAR
Fig.22
Fig.20
Fig.21
OPERATION

UK - Page 18
STOP
BASIC OPERATING/CUTTING PROCEDURES
Practise cutting a few small logs using the following
technique, to get the “feel” of using your saw before you
begina major sawingoperation.
1. Take the proper stance in front of the wood with the saw
idling.
2. Accelerate the engine to full throttle just before entering
the cut by squeezing the throttle trigger.
3. Begin cutting with the saw against the log.
4. Keep the engine at full throttle the entire time you are
cutting.
5. Allow the chain to cut for you;exert only light downward
pressure. Forcing the cut could result in damage to the
bar, chain or engine.
6. Release the throttle trigger as soon as the cut is
completedallowingthe engine toidle.Runningthe saw
at full throttle without a cutting load can result in
unnecessarywearto the chain, bar and engine.
7. Do not put pressure on the saw at the end of the cut.
WORK AREA PRECAUTIONS
QQ
QQ
QCutonlywoodor materials made from wood; no sheet
metal, no plastics, no masonry, no non-wood building
materials.
QQ
QQ
QNever allow children to operate your saw.Allow no
person to use this chainsaw who has not read this
operator’smanual or received adequateinstructionsfor
the safe and proper use of this chainsaw.
QQ
QQ
QKeepeveryone –helpers, bystanders, childrenand
animals—aSAFE DISTANCE fromthecuttingarea.
During felling operations, the safe distance should be a
least twice the height of the largest trees in the felling
area.During bucking operations, keepaminimum
distance of 4.5 m (15 ft) between workers.
ADJUSTING THE CARBURETTOR
Before adjusting the carburettor, clean the air filter and the
starter cover vents. Allow the engine to warm up before
carburettor adjustment. Refer to “Maintenance” later in this
manual.
Thecarburettorisfactorysetandshouldnotrequireadjust-
ing.The carburettor will permit only limited adjustment of the
“L”LowJet) and “H”High Jet) needles. Any adjustment
shouldbe donebya Homeliteservice dealer.
Underno circumstancesshould the“L”Low Jet)and “H”High
Jet)needles be forced outside the range of adjustment.
CAUTION:
Serious damage may occur to the engine if improper
adjustments are made to the “L” and “H” needles.
Do not force the “L” and “H” needles outside the
adjustmentrange!
AIR FILTER
STARTER COVER
VENTS
QQ
QQ
QAlways cut with both feet on solid ground to prevent
beingpulledoff balance.
QQ
QQ
QDo not cut above chest height, as a saw held higher is
difficult to control against kick-back forces.
QQ
QQ
QDo not fell trees near electrical wires or buildings.
Leavethisoperation for professionals.
QQ
QQ
QCut only when visibility and light are adequate to
see clearly.
Fig.25
Fig.23
Fig.24
OPERATION

UK - Page 19
STOP
WARNING:
Weather conditions and altitude may affect
carburation.
Do not allow bystanders close to the chainsaw while
adjustingthecarburettor.
ADJUSTING IDLING SPEED
QQ
QQ
QIf the engine starts, runs, and accelerates but will not
idle, turn the idling speed screw “ T ” clockwise to
increaseidlingspeed.
QQ
QQ
QIf the chain turns at idle, turn the idling speed screw “ T ”
anticlockwise to reduce the idling RPM and stop the
chain movement. If the saw chain still moves at idling
speed, contact a Homelite service dealer for adjustment
and discontinue use until the repair is made.
WARNING:
THE SAW CHAIN SHOULD NEVER TURN AT IDLE.
Turn the idling speed screw “T” anticlockwise to
reduce the idling RPM and stop the chain, or contact
a Homelite service dealer for adjustment and
discontinue use until the repair is made.
Serious personal injury may result from the saw chain
turning at idle.
OPERATING THE CHAIN BRAKE
Refer to “Safety” earlier in this manual for additional
information.
Checktheoperating condition of the chain brake before
each use.
1. Start the engine and grasp the front and rear handles
securely with both hands.
2. Pull the throttle trigger to bring the chainsaw up to full
speed. Using the back of your left hand, engage the
chainbrakeby pushing the chain brakelever/handguard
towards the bar while the chain is rotating rapidly.See
Figure 27.
NOTE: Thechain brakeshould engage and stopthe
chain immediately. If not, stop the saw by pressing the
“ | / O ” on ignition switch.Take the saw to a Homelite
service dealer for repair and discontinue use until the
repairismade.
3. Reset the chain brake back into the RUN position by
graspingthe right-hand side (fromoperator’sposition) of
thechainbrake lever/hand guard andpulltowardsthe
front handle until you hear a click. See Figure 28.
BRAKE POSITION
WARNING:
If the chain brake does not stop the chain
immediately, take the saw to a Homelite service
dealerforrepairbeforeuse.
Fig.27
Fig.28
Fig.26 RUN POSITION
OPERATION

UK - Page 20
FELLING TREES
HAZARDOUS CONDITIONS
See Figure 29.
OPERATION
C
WARNING:
Do NOT fell trees near power lines or near buildings
which could be struck by falling limbs or the tree itself.
STAY AWAY FROM
ELECTRICAL LINES
AND BUILDINGS
Fig.29
KEEP
BYSTANDERS
AWAY
CONSIDER THE
DIRECTION IN
WHICH THE TREE
LEANS
WEAR EYE, HEAD AND
HEARING PROTECTION
AS WELL AS OTHER
SAFETY APPAREL
RETREAT
PATH
DEAD LIMBS
WEIGHT OF HEAVY LIMBS
When felling a tree, it is important that you heed the
following warnings to prevent possible serious injury.
QQ
QQ
QWeareye,hearingandheadprotectionwhenoperating
thisequipment.
QQ
QQ
QDo not cut down trees having an extreme lean or large
trees with rotten or dead limbs, loose bark or hollow
trunks.Have these treespushed or draggeddownwith
heavy equipment and then cut them up.
QQ
QQ
QConsider the distribution and weight of heavy limbs.
QQ
QQ
QClearout the underbrush roundthe tree to befelled.
QQ
QQ
QDo not cut trees near electrical wires or buildings.
QQ
QQ
QConsider the direction in which the tree leans.
QQ
QQ
QCheckthe tree fordamaged or deadbranches which
could fall and hit you during felling.
QQ
QQ
QPeriodically glance at the top of the tree during the
back-cut to assure the tree is going to fall in the
desireddirection.
QQ
QQ
QKeep all bystanders at a safe distance (at least twice
the height of the tree).
QQ
QQ
QPrepare a path of safe retreat.
QQ
QQ
QIf the tree starts to fall in the wrong direction, or if the
saw gets caught or hung up during the fall, leave the
saw and save yourself!
QQ
QQ
QConsiderthe winddirectionbefore fellingatree.
QQ
QQ
QDonot fell trees near power lines or near buildings which
could be struck by falling limbs or the tree itself.
QThe chainsaw operator should keep on the uphill side of
the terrain, as the tree is likely to roll or slide downhill
after it is felled.
QRemove dirt, stones, loose bark, nails, staples and wire
from the tree where felling cuts are to be made.
WARNING:
Do not fell trees during periods of high wind or heavy
precipitation. Wait until the hazardous weather has
ended.
CLEAR
UNDERBRUSH
