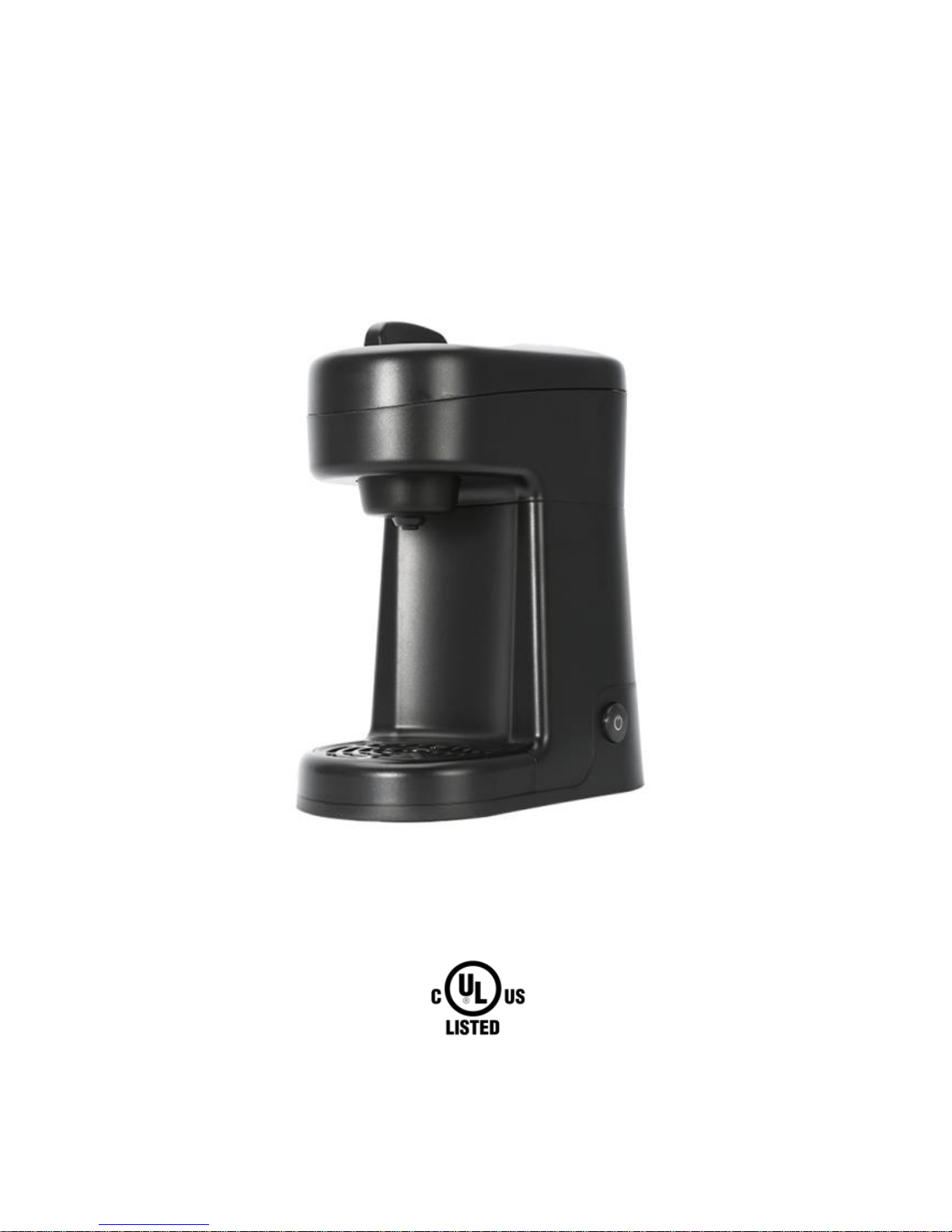

Homia KAHVE User manual

Single Serve Coffee Brewer
User Manual
Model: KAHVE
Household Use Only

IMPORTANT SAFEGUARDS
When using an electrical appliance, basic safety precautions should always be followed
including the following:
1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against fire, electric shock and injury to humans, do not immerse cord, plugs, or
body in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or
taking off parts and before cleaning the appliance.
6. Do not operate appliance with a damaged cord or plug. If appliance malfunctions, or has
been damaged in any manner, return appliance to the nearest authorized service facility for
examination, repair or adjustment.
7. The use of accessory attachments not recommended by manufacturer may cause hazards
or injuries.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. To disconnect, turn control to “off”, then remove plug from wall outlet.
12. Do not use appliance for other than intended use.
13. Scalding may occur if the lid is removed during the brewing cycles.
14. Do not use the appliance if socket, cord, or unit is damaged.
15. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
16. This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure that they do not play with the appliance.
17.Please keep these instructions for reference.
Caution:there is a sharp Plastic Piercing tip that punctures the K-cup® on the
underneath side of the lid assembly. there is also a stainless steel Piercing tip on the
bottom of the K-cup® Holder. To avoid risk of injury, do NOT put your fingers on the
underneath side of the lid assembly or on the inside bottom of the K-cup® holder. Also,
any breakage or damage to the Piercing tips will void the warranty for this appliance.
SAVE THESE INSTRUCTIONS

Product specification
Model: KAHVE
Voltage: 120V, 60Hz, 800W
Capacity: Maximum 12oz (360cc)
Size: 5.2" Width ×9.8" height×8.7" depth
133mm Width ×251mm height×223mm depth
Net weight: 2.9 LB (1.32Kg)
Safety compliance: UL
FEATURES
A. Locker Knob
B. Lid Assembly
C. Coffee Outlet
D. Power Button
E. Drip Tray Cover
F. Drip Tray
G. Water Tank with filter basket
H. Capsule for K-Cup
I. Capsule Chamber
*Automatic shut off after brewing
OPERATING INSTRUCTIONS:
1. Turn the Locker Knob to unlocked position, and then lift up the Lid Assembly to open (step1)
2. Pour the right amount of water into the water tank, the water should not exceed max.360ml
and no less than 100ml (step2-3)
Step 1
Step 4-6
Step 2-3

*When pouring water into the water tank, the Filter Basket must be fit on
the water tank to prevent the coffee powder or other dust from falling into
the water tank.
3. Put a Capsule into the Capsule Chamber (step 2-3)
4. Close the Lid Assembly and turn the Locker knob to Locker position (step4-6) and press it
down by your hand.
5 Place a cup on the Drip Tray Cover. Please make sure that the middle of the Cup is under
the Coffee Outlet. (step 4-6)
*Remove Drip Tray to adjust the height of the cup table (please see the pic.1)
Or place the opposite side of the Drip Tray Cover on the Drip Tray to adjust the height
of the cup table (please see the pic.2)
6. Plug into the 120V power supply and press the power button to turn on the machine.
At the beginning, the boiler is heating up, the indicator light keeps flashing at the same time,
after heating, the water is pumped and the light will be on until the end of brewing.
7. The machine turns off automatically after brewing.
8. You can stop brewing at any time if you wish, and then if you need to continue to brewing,
you can press the power button to work once again, but if the indicator light keeps flashing fast,
it means the system temperature of the machine is too hot, you have to wait for at least 1
minutes or you can pour some cold water into water tank, then start the machine again.
9. Please use water to clean the water tank for the first use or for use after a long period of
time.
Caution: During normal working, don't allow to open the Lid Assembly.
CARE AND CLEANING
To clean the outside of the brewer:
1. Unplug the machine and let it cool down before cleaning.
2. Use a clean damp cloth to clean all outside surfaces. Do not use harsh abrasives to clean.
3. When cleaning the Capsule Chamber, you can take out and rinse the coffee outlet
periodically, place cup on the Drip tray Cover, and then pour some pure water to the Capsule
Chamber to clean it.
* Please pay attention to the stainless steel Piercing tip on the bottom of
the K-cup® Holder and a sharp Plastic Piercing tip that punctures the
K-cup® on the underneath side of the lid assembly, to avoid risk of injury.
4. Remove drip tray from the machine, and lift drip tray cover off the drip tray. Wash all pieces
with soap and water.
5. Take out the Filter Basket from the water tank to clean it, in parallel please pour pure water
(no more than 360CC) into the water tank and shake the machine several times to clean it, and
then pour off the water from the water tank. (please see the pic.3)
To descale the inside of the brewer Unit:
1. Fill the water tank with 12OZ water with household scale remover (ratio 4:1);you can also
use citric acid with 3% ratio instead of professional scale remover, which can be bought in a
lab or pharmacy, then close the lid assembly, place the coffee cup on the drip tray, and press

power button to descale the machine.
2. Empty and rinse the cup after finishing the step 1, please pour about 12oz.pure water into
water tank, and then press Power Button to start rinsing process until the light is off.
3. Repeat step 2 to remove any remaining unpleasant taste if necessary. Also you can take out
the filter basket, and directly pour no more than 360CC pure water into the water tank and
shake the machine several times to clean it, and then pour out the water from the water tank.
4. Please descale the water tank in a reasonable time.
Troubleshooting
1. If the indicator light keeps flashing fast when the cold machine is powered on, it indicates
that the internal hardware is wrong and it can't work normally, please contact professional
technician or local distributors for repairing.
2. If the indicator light keeps flashing fast when the hot machine is powered on, it indicates that
the system temperature is too high, you have to wait for at least 1 minute to start the machine
again, or you can pour some cold water into water tank, then start the machine again.
3. If you pour hot water into the water tank, and press the power button, the indicator light
might keep flashing fast, you can press the power button to stop and then press the power
button once again to start work.
4. When less than 100ml water is poured into water tank, the system may detect it in the
high-temperature condition, and the water maybe be not pumped out, which is quite normal.
Please pour at least 100ml water for next use.
5. Once you find the water pumps slowly, please descale and clean the water tank as following
the above instructions.

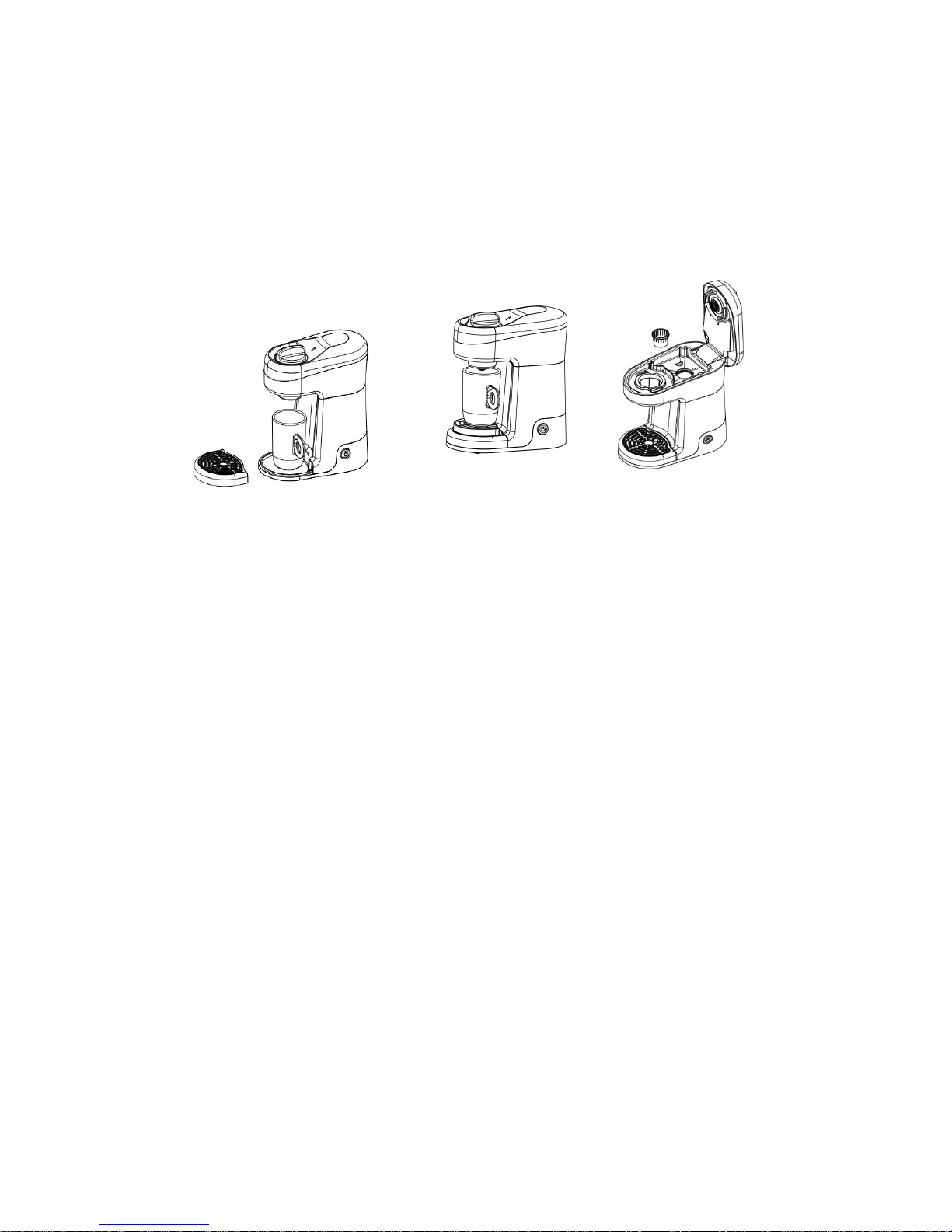

Pic.1
Pic.3
Pic.2

Storage
1. Please store the appliance out of reach of children.
2. Storage space should be dry and clean, away from direct sun exposure and away from heat
sources.
Maintenance and service
1. If there's any question or problem when using the appliance, please contact by emailing us
or call us. Do not repair yourself.
2. Maintenance is NOT provided in the following circumstances:
a. Improper use such as improper installation, or misuse.
b. Appliance has been disassembled by unauthorized person.
c. Damage by natural cause. Wear and tear under normal use.

QUESTIONS? COMMENTS?
MULTISKILLS, LLC
1990 NE 163RD STREET, #227
NORTH MIAMI BEACH, FL. US 33162
Mon-Fri (8AM - 5:00PM EST)
[phone]
[phone] mobile
[e-mail]
