Honeywell Home CHC8480W User manual

C2 Wi-Fi Security
Camera
CHC8480W
Quick Installation Guide
M35532
Download the Honeywell Home app
NOTE: Have your WiFi password available.
1 Make sure bluetooth is enabled on your
mobile device.
2 Search for Honeywell Home in the App
Store or Google Play.
3 Download the Honeywell Home app.
GET IT ON

2

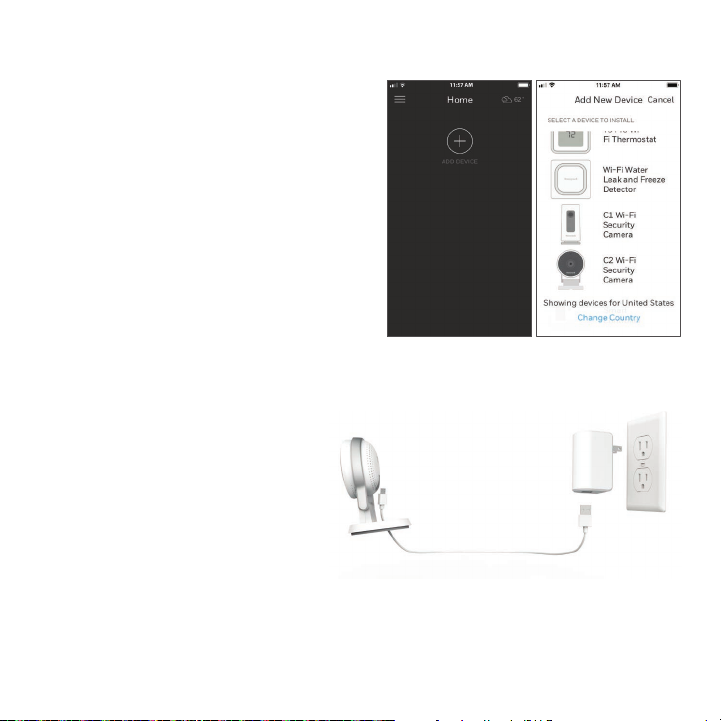

Launch the app
1 Launch the Honeywell Home app.
2 Create an account (if necessary), or sign
in to your Honewell Home account. Tap
ADD DEVICE or the plus sign.
3 Select the C2 WiFi Camera to install,
then follow the instructions in the
Honeywell Home app to name the
camera and its location.
Connect the power cord
1 Plug the power cord’s micro
USB end into the camera.
2 Plug the power cord’s USB end
into the wall outlet adapter, and
plug your camera into a power
outlet.
3 Wait until the LED on the
camera blinks blue (about 1
minute), then tap NEXT.
NOTE: If the LED turns solid red, it
means the connection mode timed out. Unplug the camera
and plug it back in.
Installation

2 3
Connect
Connect to Wi-Fi
Be sure you are on the same WiFi network
you wish to connect your camera to.
1 Choose your WiFi network from the
list. Tap NEXT.
2 Enter your WiFi password, if necessary.
Tap NEXT.
NOTE: The camera will beep during some
steps in this process.
Connect to mobile device
1 Enable bluetooth on your mobile device.
2 The app will look for the camera.
• For one camera, it will connect
automatically.
• For more than one camera, the app
will prompt you to select one camera
at a time. Each camera has a unique
MAC ID printed on the back. Use that
ID to select the camera you want to
connect.
3 A QR code will display in the app. To
connect your camera to the app, hold
the QR code approximately 36 inches
(715 cm) from the camera lens.
4 The camera LED turns purple and the camera beeps.

4
Wi-Fi connection LEDs
During WiFi connection, the LED indicates the following.
LED Camera state
Blinking Green Connecting to WiFi network.
Solid Green Connected to WiFi network.
Solid Red (for 2
seconds)
Connection failed. LED will then turn solid purple.
Solid Purple QR Code scan complete.
Go to “Connect to WiFi” on page 3.
Blinking Blue Camera has lost bluetooth connection. Unplug
camera and plug it back in. See “Connect the power
cord” on page 2 for instructions.
Options
Choose your Geofencing and Resideo Membership options (if you skip them you
can change them easily later).
Placement
With stand
Place the camera in a desired
location for viewing and recording.
On the wall
You can also mount the camera
directly to the wall without the stand.

4 5
Operation
Honeywell Home app experience
When you launch the application, your Home
screen is displayed.
All of your devices (cameras, thermostats, water
leak detectors, etc.) are displayed. Select a camera
from the list to view live video from that camera.
Testing smoke/CO alarm detection
If your smoke or carbon monoxide alarm goes off
and your camera is on, it will send you an alert that
a smoke or CO alarm has been detected.
To test this feature, press and hold the Test button
on your smoke/CO detector for at least 5 seconds
or 3 cycles of the detector’s alarm. A shorter test
might not trigger a sound event.
For a list of compatible alarms see Honeywellhome.com.

6
Camera overview
LED
indicator
Camera
lens
Power
cord
Stand/wall
mount
Backplate
and rubber
feet Reset hole SD card and slot
Reset
If your WiFi connection fails or you need to connect to a different WiFi network,
insert one end of a paperclip into the reset hole. Press and hold it for 10 seconds
until you hear a chirp.
SD card
The camera comes with an encrypted 8GB SD card installed. It stores images if the
camera’s connection to the cloud is lost. You can replace it with any compatible
SD card.

6 7
Status LED
The camera has an LED that gives device status.
LED Camera state
During installation
Blinking Blue Powered up. Ready to begin setup.
Solid Blue Connected to App. Ready to complete setup.
Solid Purple QR Code scan complete.
Go to “Connect to WiFi” on page 3.
Blinking Green Connecting to WiFi network.
Solid Green Connected to WiFi and operating.
Solid Red Setup timed out. Unplug camera, plug it back in, and
restart the process.
During operation
Blinking Green Connecting to WiFi network.
Solid Green Connected to WiFi and operating.
Blinking Red Not connected to WiFi.

8 9
FCC Regulations
§ 15.19 (a)(3)
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
§ 15.21
Changes or modifications not expressly approved by the party responsible for
compliance could void the user‘s authority to operate the equipment.
§ 15.105(b)
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
For product available in the USA/Canada market, only channel 111 can be
operated. Selection of other channels is not possible.
This device is restricted to indoor use.

8 9
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator and your body.
This device and its antenna(s) must not be co-located or operating in conjunction
with any other antenna or transmitter.
IC Regulations
This device contains license-exempt transmitter(s)/receiver(s) that comply with
Innovation, Science and Economic Development Canada’s license-exempt RSS(s).
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause
undesired operation of the device.
This device is restricted to indoor use.
IC Radiation Exposure Statement:
This device complies with IC radiation exposure limits set forth for an uncontrolled
environment. This device should be installed and operated with minimum distance
of 20cm between the radiator and your body.
This device and its antenna(s) must not be co-located or operating in conjunction
with any other antenna or transmitter.
The operation of this equipment is subject to the following two conditions: (1) this
equipment or device may not cause harmful interference, and (2) this equipment
or device must accept any interference, including interference that may cause
undesired operation.

10 11
FAQ
Why did the camera not detect the smoke alarm sound
when I tested it for compatibility?
The camera is programmed to detect a series of alarm
sounds in case of smoke or fire provided that the smoke
alarm device has beeped or sounded for at least 5 seconds.
When you enable the intelligent sound detection feature
and test the smoke alarm device, please press-and-hold the
Test button on your smoke alarm device for AT LEAST FIVE
SECONDS.
How soon can I get the alert on my app once it’s detected
as a smoke alarm at my home/office?
If the camera detected the smoke alarm sound, our camera
will send the notification immediately to you or an approved
person on your account. It normally takes up to 30 seconds
for the email and push notifications to be sent, but delivery
times are subject to the limitations of your network and
WiFi performance.
How do I get the alert/notification of smoke alarm?
If you have the intelligent sound detection feature enabled,
the camera will send the app notification as “Smoke alarm
detected from CAM at your HOME/OFFICE” and send a
message to the registered email address once the alarm
sound is detected by the camera.
What is the minimum distance required to detect the
smoke alarm?
The camera is designed to detect anywhere within 49 feet
or 15 meters distance from the sound source even with
door open or closed at your home. Once you have placed
the camera in the desired and permanent location, you
should test the intelligent sound detection feature with your
detector to ensure normal operation and that the alert is
being sent to the app.
What should the audio sensitivity be set at, especially for
successful smoke alarm detection?
If your camera has been installed within a reasonable
distance (approx. 32.8 feet or 10 meters) of the detector,
you can keep it at normal sensitivity level. After you place
the camera in the desired, permanent location, you should
test the intelligent sound detection feature with your
detector to ensure normal operation and that the alert is
being sent to the app.
How do I conduct a test trial of smoke alarm?
To use the intelligent sound detection feature, you must first
test your camera with your detector. To test the smoke alarm
detection functionality, place the camera in the location
where you intend to keep it and then press Test button on
your smoke/ CO detector and hold for at least 5 seconds or
hold until 3 cycles of alarm sounds are heard. Otherwise, the
C2 will not detect the alarm sound. It is especially important
to do this to avoid any false alerts from other similar
sounding devices in your house (like microwaves, etc.)
Will this camera detect smoke alarm sounds from
devices of all brands? What brands of smoke and carbon
monoxide detectors are recognized by the Intelligent
Sound Detection feature on C2 WiFi Security Camera?
Camera is compatible with detectors of these
manufacturers: Resideo, Kidde, Nest, First Alert:
The camera is designed to detect all alarm sounds which
generate alarm sounds for more than 5 seconds. If your
detector brand is not that listed above, you can still test the
camera for compatibility with your detector by following the
instructions above.
Is there a chance to have a high detection rate if I install
this camera facing the smoke alarm direction?
Our camera microphone is designed to detect the sound
coming from all directions. So, you can place your camera
wherever you want to focus, but follow the instructions
above to ensure compatibility by testing it the first time
you use it.
I see that sometimes the camera sends a false alarm
(prompted by sounds from my microwave) as “smoke
detected”, what should I do?
To provide the best experience to the customer, the camera
is programmed to detect any alarm-like sound. If the false
alarm continues try changing the sensitivity level to “low”
in sound configuration page. In all events, once you change
the setting you will need to re test the camera with your
detector to ensure that it detects the alarm sounds and
delivers an alert to the app.
Will this camera detect the sound if the camera is
installed on the second floor and the smoke alarm
emanates from first floor?
The camera is designed to detect the smoke alarm sound
as long as the distance of the camera from the source of
the beeping smoke detector is within 49 feet or 15 meters,

10 11
even if it is partitioned by glass/ door. You will need to test
the camera with the detector to ensure that it is working and
sending alerts to the app.
Will this camera always listen for smoke alarm sound
AND any other sound detection as well?
We programmed the camera to detect any sound which
meets certain criteria on the sensitivity level at which you
configured the camera. The camera will send the smoke
alert notification if the detected sound gets classified as
a smoke alarm (based on internal libraries), otherwise the
camera will send out the notification simply as “sound
detected”.
Can I program my camera to receive audio alerts from
beeping smoke alarms only, and no other audio sounds?
Not right now. However, we continue to upgrade the App
features and this customization could be part of future
releases of the App.
My camera keeps sending me many sound detected alert
notifications every day. What should I do? Is there a way
to avoid this?
As our camera’s microphone sensitivity is very sharp,
it will report whatever audio it hears and discerns in
your premises. To avoid getting inundated with many
notifications, you can adjust the audio sensitivity level
and set it as “Low” on our sound configuration page on
the Honeywell Home App. Once you change the audio
sensitivity level you should retest the detector and camera
to ensure that the intelligent sound detection feature is
working and that alerts are being sent to the app.
My camera is working fine, but I hear no audio in the
stored video clip. Why?
Please check if the volume on your smart device is turned
on. If the volume on your smart device is set correctly, and
you still don’t hear audio in your video clip, try power cycling
the camera (unplug the camera’s power outlet, wait for
about 30 seconds and power the camera back on. Wait for
the camera to reboot, and that should solve the problem).
What will the camera do next, once it detected beeping
smoke alarm sound? Will it also send a message to a fire
station?
As this is a DoItYourself camera, it would not notify fire
station. For further peace of mind, you can upgrade to
professionally monitored security from Resideo.
The camera will send you an in-app and email notification
like any other audio or motion detected event. It could take
up to 30 seconds or more, subject to your network and WiFi
performance, for the notifications to be sent across. The
camera would also generate a 30 second video clip that can
be accessed via the App.
Are these cameras recording everything and sending to
any other private cloud service?
No. Unlike other products on the market, our cameras do not
hog your bandwidth with continuous recording. We also take
customer data privacy and security seriously and provide
end to end encryption and security in our cameras and
cloud implementation, which includes AES 256 encryption,
hardware authentication crypto-encryption, secure session
and streaming authentication, etc.
The cameras are designed to detect any suspicious motion
and/or any sound (including smoke alarm sound) at your
home. The detection algorithm operates on the camera
firmware and the notifications are relayed to you via the
cloud.
In the event of a motion or audio detected event, only
detected sound will be recorded for 30 seconds and sent
to the cloud for you to view the clips through your App or
download the clip to your smart device memory as required.
How long will it take to create recorded video, once the
camera detects smoke alarm or any other sound?
The process starts almost immediately, but it could take 30
seconds or longer depending on your network and WiFi
performance to view the new clips on your Honeywell Home
App.
My smoke detector is 10/20 years old. Will this camera
detect the sound?
It should, but you should test the compatibility of the
detector and the camera before first use by following the
testing procedure described in this FAQ.

www.resideo.com
Resideo Inc., 1985 Douglas Drive North
Golden Valley, MN 55422
33-00413EFS—05 M.S. Rev. 06-19 | Printed in United States
This product is manufactured by Resideo Technologies, Inc., Golden Valley, MN,
1-800-633-3991
©2019 Resideo Technologies, Inc. The Honeywell Home trademark is used
under license from Honeywell International Inc. All rights reserved.
33-00413EFS-05
Need help?
• Web: Honeywellhome.com
• Phone: 18006333991

M35532
Caméra de sécurité
Wi-Fi C2
CHC8480W
Guide d’installation
rapide
M35532
Téléchargez l’application Honeywell Home
REMARQUE : Avant l’installation, ayez en main le mot de passe du réseau WiFi.
1 Assurez-vous que Bluetooth est activé
sur votre appareil mobile.
2 Cherchez Honeywell Home dans l’App
Store ou sur Google Play.
3 Téléchargez l’application Honeywell
Home.
GET IT ON

2
Lancement de l’application
Honeywell Home
1 Lancez l’application Honeywell Home.
2 Créez un compte (si nécessaire)
ou connectez-vous à votre compte
Honeywell Home. Appuyez sur AJOUTER
UN APPAREIL ou sur le signe plus (+).
3 Sélectionnez la caméra WiFi C2 à
installer, puis suivez les instructions
de l’application Honeywell Home pour
nommer la caméra et son emplacement.
Branchement du cordon d’alimentation
1 Plug the power cord’s micro
USB end into the camera.
2 Plug the power cord’s USB end
into the wall outlet adapter, and
plug your camera into a power
outlet.
3 Attendez environ 1 minute
que le voyant DEL devienne
bleu et clignote, puis touchez
SUIVANT.
REMARQUE : Si le voyant DEL devient rouge fixe, cela signifie que le mode
de connexion est expiré. Débranchez et rebranchez la caméra.
Installation

2 3
Connexion
Connexion à un réseau Wi-Fi
Assurez-vous d’être connecté au même
réseau WiFi que celui auquel vous souhaitez
connecter votre caméra.
1 Sélectionnez votre réseau WiFi à partir
de la liste. Touchez SUIVANT.
2 Entrez le mot de passe du réseau WiFi,
au besoin. Touchez TERMINÉ.
REMARQUE : La caméra émet des signaux
sonores à certaines étapes de la procédure.
Connexion à un appareil mobile
1 Activez Bluetooth sur votre appareil
mobile.
2 L’application recherche la caméra.
• Pour une seule caméra, la connexion
se fait automatiquement.
• Lorsqu’il y a plusieurs caméras,
l’application vous demande de
sélectionner une caméra à la fois.
Chaque caméra possède une adresse
MAC unique imprimée au dos. Utilisez
cette adresse pour sélectionner la
caméra que vous désirez connecter.
3 L’application affiche un code QR. Pour
connecter la caméra à l’application,
maintenez le code QR à une distance de 7 à 15 cm (de 3 à 6 pouces)
devant l’objectif de la caméra.
4 Lorsque la connexion est réussie, le voyant DEL devient mauve et la
caméra émet un signal sonore.

4
Voyant DEL lors de la connexion Wi-Fi
Lors de la connexion au réseau WiFi, le voyant DEL indique l’état de la caméra.
DEL État de la caméra
Vert clignotant Connexion au réseau WiFi.
Vert fixe Connectée au réseau WiFi.
Rouge fixe (pendant
2 secondes)
Échec de la connexion. Le voyant DEL devient
ensuite mauve fixe.
Mauve fixe Balayage du code QR terminé. Go to « Connexion
à un réseau WiFi », à la page 3.
Bleu clignotant La connexion Bluetooth a été perdue. Débranchez
et rebranchez la caméra. Reportez-vous aux
instructions de la section « Branchement du
cordon d’alimentation », à la page 2.
Options
Choisissez les options Geofence et les options d’adhésion Resideo (si vous sautez
cette étape, vous pouvez facilement modifier ces options plus tard).
Positionnement
Avec le socle
Placez la caméra à l’endroit souhaité.
Sur le mur
Vous pouvez également fixer la caméra
directement sur un mur, sans le socle.

4 5
Fonctionnement
Fonctionnement de l’application
Honeywell Home
Lorsque vous lancez l’application, la page d’accueil
s’affiche.
Tous vos appareils (caméras, thermostats, détecteurs
de fuites d’eau, etc.) sont affichés. Sélectionnez une
caméra pour visionner son signal vidéo en direct.
Test de détection de l’alarme du
détecteur de fumée ou de monoxyde de
carbone
Si l’alarme de votre détecteur de fumée ou de
monoxyde de carbone se déclenche, et que votre
caméra est activée, vous recevrez une alerte vous avisant qu’une
alarme du détecteur de fumée ou de monoxyde de carbone a été
détectée.
Pour tester cette fonction, maintenez enfoncé le bouton de test de
votre détecteur de fumée ou de monoxyde de carbone pendant au
moins cinq secondes ou trois cycles d’alarme du détecteur. Un test
plus court pourrait ne pas être détecté par la caméra.
Pour voir la liste d’alarmes compatibles, visitez le site
Honeywellhome.com.

6
Aperçu de la caméra
Voyant
DEL
Objectif de la
caméra
Cordon
d’alimentation
Socle/montage
mural
Plaque arrière
et pied en caou-
tchouc Bouton de réinitialisation hole Fente et carte SD
Réinitialisation
Si la connexion WiFi est interrompue ou si vous devez vous connecter à un réseau
différent, appuyez sur le bouton de réinitialisation en insérant l’extrémité d’un
trombone dans l’ouverture. Maintenez-le enfoncé pendant 10 secondes jusqu’à ce
que vous entendiez un signal sonore.
Carte SD
Une carte SD chiffrée de 8 Go est préinstallée dans la caméra. Celle-ci enregistre
les images si la connexion au nuage est interrompue. Vous pouvez la remplacer
avec n’importe quelle autre carte SD compatible.

6 7
Voyant DEL d’état
La caméra est munie d’un voyant DEL indiquant son état.
DEL État de la caméra
Pendant l’installation
Bleu clignotant Allumée. Prête à commencer l’installation.
Bleu fixe Connectée à l’application. Prête à terminer la
configuration.
Mauve fixe Balayage du code QR terminé.
Go to « Connexion à un réseau WiFi », à la page 3.
Vert clignotant Connexion au réseau WiFi.
Vert fixe Connectée au réseau WiFi.
Rouge fixe Délai de configuration expiré. Débranchez et
rebranchez la caméra, puis recommencez la procédure.
En fonctionnement
Vert clignotant Connexion au réseau WiFi.
Vert fixe Connectée au réseau WiFi et en état de marche.
Rouge
clignotant
Non connectée au réseau WiFi.

8 9
Règlements de la FCC
§ 15.19 (a)(3)
Cet appareil est conforme à la partie 15 des règlements de la FCC. Son
fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit
pas causer d’interférences nuisibles et (2) doit accepter toutes les interférences
reçues, notamment celles à l’origine d’un fonctionnement indésirable.
§ 15.21
Les modifications qui ne sont pas expressément autorisées par la partie
responsable de la conformité peuvent annuler le droit de l’utilisateur à utiliser
l’appareil.
§ 15.105(b)
Cet équipement a subi des tests prouvant sa conformité aux limites prescrites
pour les appareils numériques de classe B, selon la partie 15 des règlements de la
FCC. Ces limites ont été conçues pour fournir une protection raisonnable contre
les interférences nuisibles lorsque l’appareil est utilisé dans un environnement
résidentiel. Cet équipement génère, utilise et peut émettre de l’énergie
radiofréquence et, s’il n’est pas installé et utilisé conformément aux instructions,
peut causer des interférences nuisibles aux communications radio. Toutefois, il n’y
a aucune garantie que ces interférences ne puissent survenir dans une installation
donnée. Si cet équipement cause des interférences nuisibles à la réception de
signaux de radio ou de télévision, ce qui peut être déterminé en l’éteignant et en
l’allumant, l’utilisateur peut essayer de corriger ces interférences par les mesures
suivantes :
• Réorienter ou déplacer l’antenne réceptrice.
• Augmenter la distance entre l’équipement et le récepteur.
• Brancher l’équipement sur un circuit différent de celui sur lequel le récepteur est
branché.
• Consulter le détaillant ou un technicien expérimenté en radio/télévision.
Pour les produit disponible sur le marché des ÉtatsUnis et le Canada, seul les
canaux 111 peuvent être utilisés. La sélection des autres canaux est impossible.
Cet appareil est destiné à un usage intérieur seulement.
