HS100-1900B
Electric Sweeper
User Manual
Version: V1.1
Thank you for using electric sweeper of Shenzhen Hopewind Electric Co,. Ltd & Hopwinn Innovation
Technology. Before using the product, you are advised to read this manual carefully.
This manual is compiled according to the "current" product and has been audited. Due to the
continuous optimization of the manual, the relevant illustrations in the manual may be different from
physical objects, please take physical objects as standard. There may be unavoidable omissions in the
compilation of this manual. We will continue to improve the quality of it. If there are any updates, no
further notice will be given.
If you have any questions about the product or manual, you can consult our technical staff or email
to [e-mail]
If you want to know more product information, you can visit our official website www.hopeinn.com.
The copyright of this manual is owned by Hopewind Electric and Hopwinn innovation technology. All
rights reserved.

i
Contents
1 Notices For User...........................................................................................................................2
2 Product Description.................................................................................................................... 3
2.1 What Is In The Package....................................................................................................................3
2.2 Main Components..............................................................................................................................3
2.3 Technical Parameters........................................................................................................................6
3 Operation Guide........................................................................................................................... 8
3.1 Check Before Operation................................................................................................................... 8
3.2 Operation Method.............................................................................................................................. 9

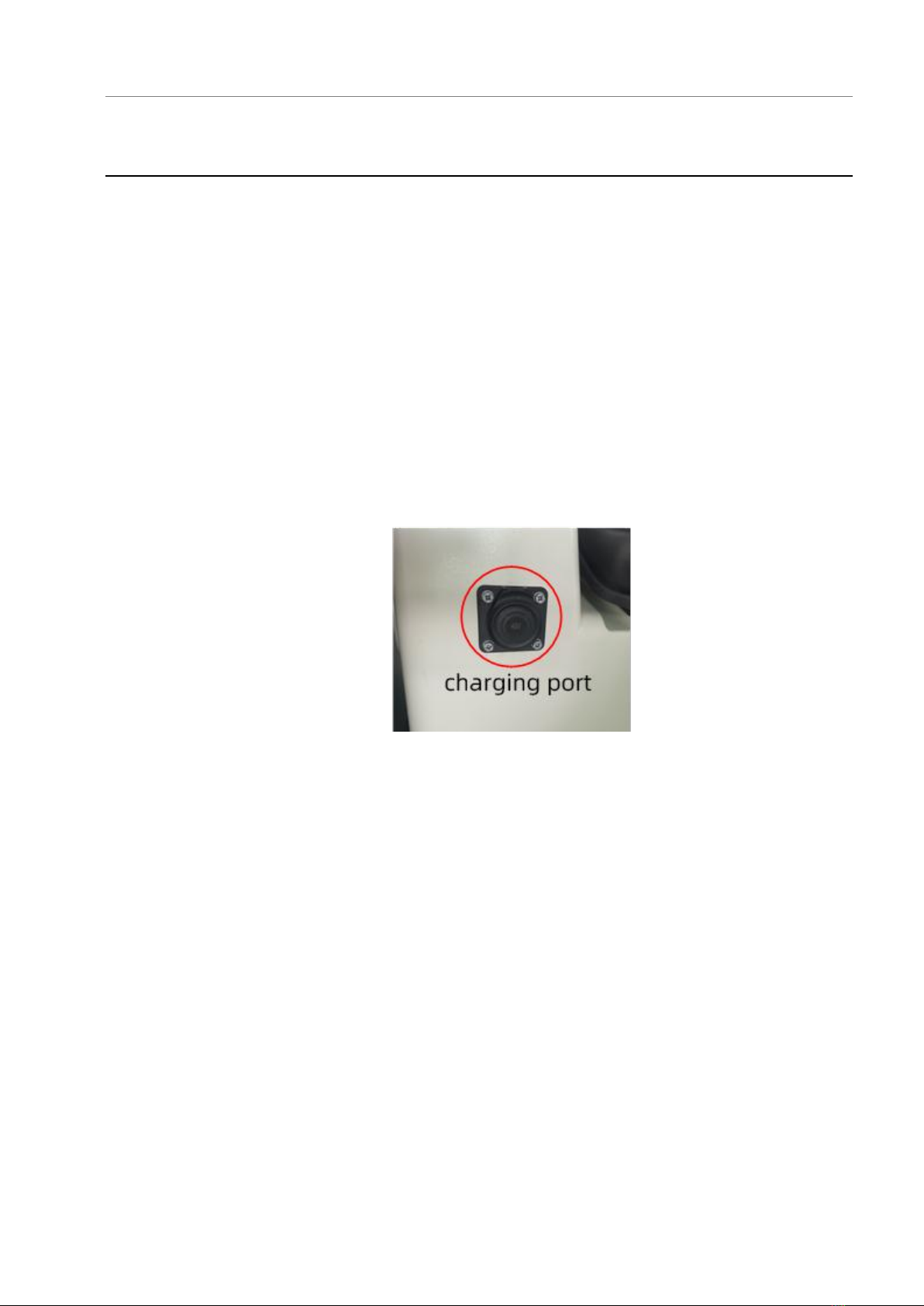

4 Charging Guide...........................................................................................................................11
4.1 Safety Precautions...........................................................................................................................11
4.2 Charging Method..............................................................................................................................11
5 Maintenance guide.................................................................................................................... 12
5.1 Main malfunctions and solutions................................................................................................... 12
5.2 Main malfunctions and solutions................................................................................................... 14

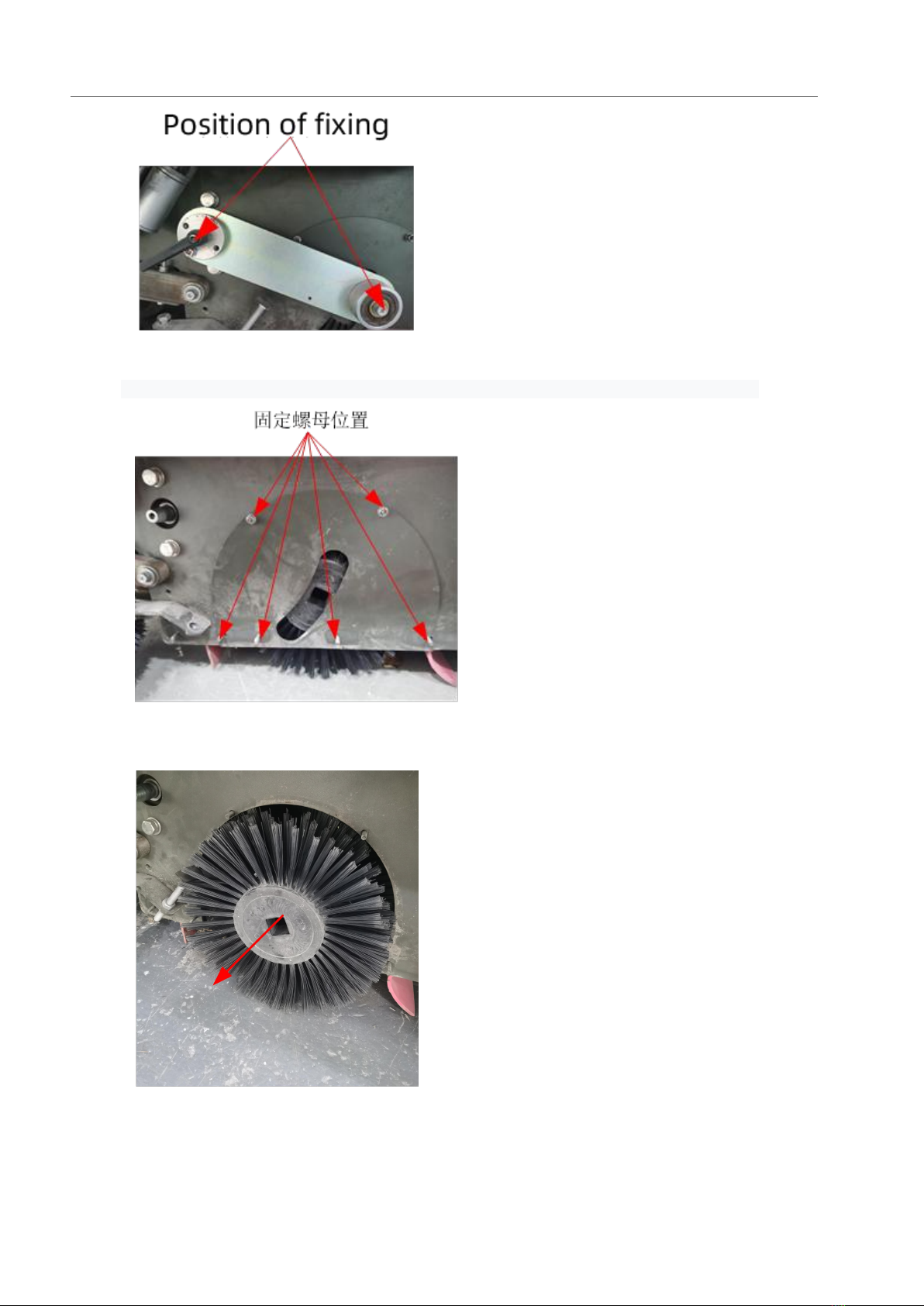

5.2.1 Adjusting the brush height............................................................................................................14
5.2.2 Replacing the sub brush...............................................................................................................14
5.2.3 Replacing the main brush............................................................................................................ 15
5.2.4 Cleaning and replacing the filter................................................................................................. 16
5.2.5 Replacing the fuse.........................................................................................................................18
5.3 Regular maintenance...................................................................................................................... 20
Appendix: Warranty Assurance................................................................................................ 21

Electric Sweeper User Manual
2
1Notices For User
Thank you very much for choosing our products. Before you start using this product, please read the
contents of this chapter carefully and strictly abide by it, in order to achieve the best cleaning effect and
prevent damage to personnel and machinery.
This product can only be used for cleaning purposes, and our company is not responsible for
any harm caused by outside the normal scope of use.
This product can clean small and micro daily garbage. It is strictly forbidden to clean cords,
cables, high-temperature objects, and flammable, explosive, toxic or hazardous materials that
are hazardous or safety hazards, so as not to cause harm to equipment and personal safety.
This product can only be used by professionally trained personnel.
Avoid wearing accessories and loose clothing when using this product.
During operation, please keep the corners of clothes, hair, fingers and other parts away from
the moving parts of the machine to avoid being caught.
During operation, a safe speed should be maintained.
This product cannot be operated under severe weather conditions such as rain and snow.
The water in the water tank must be drained before storing and operating this product in an
environment below 0°C.
When stopping work, park the product in a flat place where it can be sheltered from wind and
rain and ensure that it does not slide naturally, and then turn off the power.
When the operator leaves the sweeper, the power should be turned off and the key should be
removed to prevent the operation of unrelated personnel from causing harm.
Before performing any repairs and maintenance, make sure that the power of the device is
turned off.
Strictly follow the charging guide in this manual when charging this product.
In the event of a fire in this product or its surroundings, powder fire extinguishers should be
used instead of water.

HS100-1900B150P
3
2Product Description
2.1 What Is In The Package
When you receive this product, you should first check whether the product has obvious signs of
damage, and keep the corresponding documents and outer packaging, so that you can make a
declaration of damage to the shipping company.
There are several things within the package
Name
User Manual * 1
HS-1900B Key
Portable Charger
2.2 Main Components
This product is an electric sweeper, which is used to clean dust and small garbage on relatively flat
cement, asphalt and other ground.
The configuration of the whole vehicle is shown in the figure below.

User Manual - HS-1900B Electric Sweeper
4
1. Ceiling
Mainly used for shading, avoid direct sunlight to the operator.
2. Steering wheel and control panel
No
Name
Description
1
Steering wheel
Control the driving direction of the sweeper.
2
Combination Switch
Control lights, turn signals and horn.
3
Control
Board
4
Emergency stop
switch
Emergency stop of the sweeper.
5
Electricity meter
View the total working time, battery voltage
and remaining power of the sweeper.
6
Forward/backward
switch
Control whether the sweeper moves
forward or backward.
7
Sweeping switch
Sprinkling switch
Start and stop the sweep&sprinkle system
of the sweeper (ONE Click & Double Click)
8
Key Hole
On/Off switch of the sweeper.

HS100-1900B150P
5
3. Pedal
No.
Name
Description
1
Accelerator pedal
Control the driving speed of the sweeper, and the function is the
same as the accelerator of a car.
2
Brake pedal
Brake the sweeper.
3
Main brush front baffle
pedal
If you encounter larger size garbage (3mm＜height＜60mm), you
can step on this pedal to lift the front baffle of the main brush, so
that the garbage can enter the cleaning area of the main brush.
4. Front lights
Mainly used for lighting.
5. Side brushes
The side brush can clean the garbage in the ditch or corner, and gather the garbage to the
cleaning area of the main brush.
6. Front wheel
Drive wheel, solid rubber tires.
7. Main brush
The main brush rotates at a high speed to throw the garbage that enters the cleaning area
into the garbage hopper.
8. Driver's seat
During the operation, the operator should sit in the driver's seat to operate the electric
sweeper.
9. Battery and filter
Components such as batteries and filter are stored here.
10. Rear wheel
Driven wheels, pneumatic rubber tires.
11. Rear lights
It has the function of turn signal.
12. Garbage hopper

User Manual - HS-1900B Electric Sweeper
6
It is used to store the cleaned garbage. After each operation or when the garbage
hopper is full, the garbage hopper needs to be cleaned up in time.
2.3 Technical Parameters
Type
Parameter
Value
Whole vehicle
Dimensions
(length*width*height)
2050*1900*1900
Weight
About 440kg
Motor (Rated power)
Wheel drive motor
1000W
Main brush drive motor
600W
Sub brush drive motor
360W
Fan motor
250W
Dust vibrating motor
100W
Wheel
(Diameter * width)
Front wheel
250*84.8mm
Rear wheel
350*100mm
Steering and braking
Steering wheel
Front wheel
Minimum turning
radius
1087mm
Braking method
Front wheel electromagnetic brake or rear wheel drum
brake, combined with mechanical pedal
Motion parameters
Maximum travel speed
9.5km/h
Maximum climbing
ability
20%
Sweeping width
Maximum sweeping
width
1900mm
Main brush sweeping
width
700mm
Garbage hopper
Capacity
120L
Clean up method
Manual dumping with bag
Cleaning brushes
Main brush type
Cylindrical, V-shaped arrangement of bristles
Side brush type
Disc shape (4pcs)
Power supply
Working voltage
48V
Battery type
Lithium

HS100-1900B150P
7
Battery capacity
86Ah (optional 150Ah)
Maximum working
hours
3~5h
Charging method
Charging via portable charger
AC input voltage
220V
Charging time
3.5~5h
Environment
Working temperature
-10~40℃
Working humidity
30~90%
Storage temperature
-10~40℃
Storage humidity
30~90%

User Manual - HS-1900B Electric Sweeper
8
3Operation Guide
3.1 Check Before Operation
Before starting the operation, please conduct a regular inspection of the sweeper to ensure that the
sweeper can operate normally.
Before starting the sweeper, please fill up the water in the water tank. The water inlet is located
on the car shell on the left side of the control panel.
Water Inlet
Caution: If the environment of the sweeper is below 0°C, the water in the water tank must
be drained. The drain valve is located at the front of the vehicle bottom.
Check whether there is any foreign matter entangled on each brush of the sweeper, if so,
remove the foreign matter.
Use the key switch to start the sweeper and observe the electricity meter to ensure that the
voltage is within the normal range and the electricity is sufficient to complete the operation.
Test run the sweeper, check whether the driving system (especially the brake system) and the
cleaning system are normal, and pay attention to whether the sweeper makes abnormal noises
during the whole process.

HS100-1900B150P
9
Caution:
(1) If any part is opened/disassembled during inspection, it must be restored to its original
condition after inspection to ensure accuracy and reliability.
(2) It is forbidden to directly wash the interior of the sweeper with water, especially the
electrical system.
(3) It is forbidden to touch moving parts (such as wheels, side brushes, etc.) when the
sweeper is running. If you need to check, please turn off the sweeper and remove the
key.
3.2 Operation Method
Insert the key and turn the key switch to start the sweeper.
After pressing the forward/backward button, lightly step on the accelerator pedal to move the
sweeper forward/backward.
Adjust the stepping depth of the accelerator pedal to control the speed of the sweeper, turn the
steering wheel to control the direction of the sweeper, and step on the brake pedal to brake the
sweeper.
Rotate the lever (combination switch) behind the steering wheel to control the light switch;
move the control lever up to turn on the right turn signal, move it down to turn on the left turn
signal; and press the button on the top of the lever to sound the horn.
Press the sweeping switch to turn on the sweeping system. The sweeping system of this
sweeper is fully automatic with one-button control, and the user only needs to concentrate on
controlling the driving of the sweeper after turning on the sweeping system, without distracting
to control the sweeping system.
When you need to clean the larger garbage on the road (3mm＜height＜60mm), step on the
main brush front baffle pedal when the garbage comes under the vehicle, and then release the
pedal after the sweeper passes the location of the garbage.
Caution: Do not clean slender rope-like objects such as ropes and metal wires, so as not
to be entangled with the brush and affect normal operation.
Do not clean un-extinguished or high-temperature objects, as well as toxic and harmful
objects, so as not to burn the brush and ignite/contaminate other garbage.
When you need to stop the sweeper in an emergency, you can directly press the emergency
stop switch on the left side of the control panel, and the sweeper will stop immediately.
When parking the sweeper, park the sweeper on a flat ground, make sure that the
forward/backward switch and the sweeping switch are in the stop position, and then remove the
key.
The method of cleaning up the garbage hopper is as follows:
(1) After holding the handle of the garbage hopper (①in the figure below), open the lock of
the garbage hopper (②in the figure below), and then gently place the back of the garbage
hopper on the ground.

User Manual - HS-1900B Electric Sweeper
10
(2) Gently press down on the handle of the garbage hopper to lift the front end of the garbage
hopper out of the chassis, and then pull the garbage hopper back out of the sweeper.
(3) After the garbage hopper is emptied to the garbage dump, the garbage hopper is loaded
back to the sweeper in the reverse order of the above steps.
Caution: When reinstalling the garbage hopper, make sure that the front end of the
garbage hopper is correctly stuck on the chassis of the sweeper.

HS100-1900A150P
11
4Charging Guide
4.1 Safety Precautions
This product uses a portable charger to charge the sweeper. Before charging, please read the
safety instructions carefully and strictly follow them.
Do not store the charger in a harsh environment (the storage environment should be kept dry,
and the temperature should not exceed the range of -40°C to 95°C).
Please charge in a well-ventilated, dry, and suitable temperature (-30℃~65℃) environment.
The charging socket should be a solid and reliable standard mains (220V) three-hole socket.
Check the charging cable, plug, and socket carefully for damage or poor contact before
charging, and replace them in time.
4.2 Charging Method
1. First plug the charger output connector into the sweeper charging port (the sweeper charging
port is located on the right side of the driver's seat).
Charging Port
2. Plug the charger's power cord into the socket, and the charger's LED light will light up.
3. During the charging process, you can check the charging progress by checking the LED light of
the charger. When the green light is on, it is fully charged.
4. After charging is complete, please disconnect the charger from the power supply, and then
disconnect the charger from the sweeper.

User Manual - HS-1900B Electric Sweeper
12
5Maintenance guide
5.1 Main malfunctions and solutions
Note: Be sure to turn off the power of the sweeper and remove the key before performing
maintenance.
Failure performance
Possibility
Solutions
The power meter does not
display when the key
switch is turned on
（to be confirmed）fuse is blown
Replace the fuse
Battery is not powered or abnormal
Charge; replace battery when not charging
Key Switch Fiber Exception
Check the fibers; replace if the switch is
damaged
The voltmeter shows that
the voltage is not in normal
range
Insufficient or abnormal battery voltage
Charge; replace battery when not charging
Power meter is abnormal
Check the gauge wiring; replace it if the
gauge is damaged
Unable to move forward or
reverse
（to be confirmed）fuse is blown
Replace the fuse
Moving motor or accelerator pedal or
step forward/back switch fiber exception
Check the wiring
Moving motor or accelerator pedal or
step forward/back switch is damaged
Change defective parts
No reaction after pressing
the cleaning switch
（to be confirmed）fuse is blown
Replace the fuse
Clean Switch Connector Abnormal or
Damaged
Check the wiring；replace it if the switch
is damaged
The brush does not drop
automatically
Brush limit bolt too high
Lower brush limit bolt height
（to be confirmed）fuse is blown
Replace the fuse
Damage to Electric Push Rod
Replace Electric Push Rod
Brush does not work or
spins too slowly
Corresponding fuse is blown
Replace corresponding fuse
Damage to the drive belt
Replace the drive belt
The motor of brush is damaged
Replace the motor of brush
The brush is too noisy to
work
There is a tangle on the brush
Remove the tangle
Brush is not fastened
Securing Screw for Fastening Brush
The motor of brush is abnormal
Replace the motor of brush
Car lights, loudspeakers do
not work
（to be confirmed）fuse is blown
Replace the fuse
Damage to lights, speakers
Change defective parts

HS100-1900A150P
13
Poor cleaning effect
The brush height is unreasonable or the
brush wear leads to insufficient contact
between the brush and the ground
Reduce brush limit bolt height; replace the
brush if it is too badly worn
Twisting or deformation of brush
remove winding; replace the corresponding
brush if the hair is badly deformed
Driving too fast in cleaning
Please reduce the speed of the sweep
Large garbage after
cleaning (leaves, small
paper tray lamps)
The main brush front block pedal is not
stepped on while the larger garbage is
being cleaned; the main brush front block
pedal is not working properly
Correct operation according to specifications;
repair of the main brush front bezel linkage
device
Dust residues after
cleaning are obvious
Filter Jam or Damage
Cleaning filters; replacing filters if they are
damaged
Damage to the Main Brush Bezel
Replace the Damaged Bezel
The brush wear too fast
The work position of the brush is too low
Raise the height of brush limit bolts
The ground is too rough
Do not sprinkle water while
cleaning
Insufficient water in the water tank
Add water to the tank
Water pump damage
Replace the water pump
Can't charge
Charging socket is abnormal
Replace charging socket
Charging cable is damaged
Replace charging cable
Charger is damaged
Replace charger
Battery is damaged
Replace battery
Battery discharges too
fast
Battery is aging or damaged
Replace battery
The fuse blows
frequently
Fuse quality problem
Replace the fuse brand
There is a short circuit in the sweeper
Check the circuit

User Manual - HS-1900B Electric Sweeper
14
5.2 Main malfunctions and solutions
5.2.1 Adjusting the brush height
Both the main brush and the sub brush adjust the working height through the limit bolts. The
position of the limit bolts of each brush is as follows (the test plate has been removed):
①Limiting bolt of main side brush
②Limiting bolt of secondary brush
③Main brush limit bolt
1. Before adjustment, please make sure that the sweeper has been powered off and the key device has
been unplugged.
2. Adjust the bolt upward to increase the height of the brush from the ground, and adjust the bolt
downward to reduce the height of the brush from the ground.
3. After the adjustment is complete, you can use the key to start the sweeper, and press the sweep
switch to check the working height of the brush.
5.2.2 Replacing the sub brush
1. Unscrew the 3 fixing screws of the side brush.
2. Press down the side brush or beat it evenly.
3. Install the new side brush and tighten the screws.

HS100-1900A150P
15
Position of fixing nut
5.2.3 Replacing the main brush
1. Unscrew the two fixing nuts of the left fender of the vehicle, and remove the left fender.
Position of fixing
2. Unscrew the six fixing nuts shown in the figure, and remove the three plates ①②③.
3. Unscrew the thumbscrew shown in the figure, and remove the entire drive plate.

User Manual - HS-1900B Electric Sweeper
16
Position of fixing
4. Unscrew the six fixing screws as shown in the figure, and remove the semicircular baffle.
Position of fixing
5. Pull out the main brush for replacement.
5.2.4 Cleaning and replacing the filter
1. The garbage hopper needs to be removed before cleaning/replacement of the filter element.
