Code: BVP-2400
Date: 11/09/09 Edition: Op: Even

Motor: 2400W
Input: 230-240V ~ 50Hz
No load speed: 9,000 - 15,000/min
Air speed: 180-300km/h
Air volume: 15m3/min
Mulching ratio: 10:1
Collection bag size: 45 Litres
Weight (tool only): 6.5kg
1. Lower tube
2. Upper tube
3. Main handle
4. Secondary handle
5. On/Off switch
6. Variable speed dial
7. Mode selection lever
8. Collection bag
9. Shoulder strap hook
10. Nose guide wheels
11. Patio head
12. Adjustable tube locking button
13. Extension cord restraint
2
SPECIFICATIONS - MODEL NO. BVP-2400
7
3
6
4
2
1
8
9
10
12
5
13
11
BVP-2400 Manual.qxd 9/11/09 5:40 PM Page 2

3
TABLE OF CONTENTS
SPECIFICATIONS………………………………………….
INTRODUCTION…………………………………………..
GENERAL SAFETY INSTRUCTIONS……………………..
GENERAL SAFETY RULES………………………………..
ADDITIONAL SAFETY INSTRUCTIONS…………………
ASSEMBLY……………………………………………………
OPERATION………………………………………………..
MAINTENANCE……………………………………………
DESCRIPTION OF SYMBOLS…………………………….
CONTENTS…………………………………………………
WARRANTY…………………………………………………
Page 2
Page 4
Page 4
Page 5-6
Page 7
Page 8-9
Page 10-11
Page 12
Page 13
Page 14
Page 15
BVP-2400 Manual.qxd 9/11/09 5:40 PM Page 3

INTRODUCTION
ELECTRICAL SAFETY
4
The Ozito 3 in 1 Blower, Vacuum & Mulcher provides a complete solution to your
garden maintenance needs.
It is ideal for blowing leaves, grass clippings and other debris from courtyards,
driveways, decks and footpaths. The variable speed ensures greater control when
blowing different material from lightweight grass clippings to wet leaves.
The single action lever allows quick change over from blow to vacuum mode, it is suitable
for vacuuming leaves, grass clippings and garden debris.
Featuring a 10:1 mulching ratio it will reduce large piles of waste into easily manageable
mulch. A metal mulching blade ensures greater durability and delivers the strength to
mulch hard garden waste such as twigs and nuts.
With a large 45 litre collection bag the vacuum collects all of your material for easy
disposal or composting.
This product is intended for DIY use only.
Warning! When using mains-powered equipment, basic safety precautions,
including the following, should always be followed to reduce risk of fire,
electric shock, personal injury and material damage.
Read and understand the manual prior to operating this tool.
Save these instructions and other documents supplied with this tool for future reference.
The electric motor has been designed for 230V and 240V only. Always check that
the power supply corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for
Australia and New Zealand.
This tool is double insulated in accordance with AS/NZS 3100; therefore no
earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician or a power
tool repairer in order to avoid a hazard.
Note: Double insulation does not take the place of normal safety precautions when
operating this tool. The insulation system is for added protection against injury
resulting from a possible electrical insulation failure within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool.
Before use, inspect the extension lead for signs of damage, wear and ageing.
Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of
an extension lead not suitable for the power input of the tool or which is damaged or
defective may result in a risk of fire and electric shock.
It is recommended that the extension lead is a maximum of 25m in length. Do Not
use multiple extension leads.
GENERAL SAFETY INSTRUCTIONS
BVP-2400 Manual.qxd 9/11/09 5:40 PM Page 4

!
!
5
GENERAL SAFETY RULES
Warning! Read all instructions. Failure to follow all instructions listed below
may result in electric shock, fire and/or serious injury. The term “Power Tool”
in all of the warnings listed below refers to your mains operated (corded)
power tool or battery operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
1) WORK AREA
a) Keep work area clean and well lit. Cluttered and dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases, or dust. Power tools create sparks which
may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions
can cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric shock if
your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use a power tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of inattention while operating power
tools may result in serious personal injury.
b) Use safety equipment. Always wear eye protection. Safety equipment such as
dust mask, non-skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
c) Avoid accidental starting. Ensure the switch is in the off position before
plugging in. Carrying power tools with your finger on the switch or plugging in
power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A
wrench or a key left attached to a rotating part of the power tool may result in
personal injury.
BVP-2400 Manual.qxd 9/11/09 5:40 PM Page 5

6
GENERAL SAFETY RULES (cont.)
e) Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly used. Use of
these devices can reduce dust related hazards.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the rate
for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any
power tool that can not be controlled with the switch is dangerous and must
be repaired.
c) Disconnect the plug from the power source before making any
adjustments, changing accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools, unplugged & out of the reach of children and do not
allow persons unfamiliar with the power tool or these instructions to operate
the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power
tools operation. If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance with
these instructions and in the manner intended for the particular type of
power tool, taking into account the working conditions and the work to
be performed. Use of the power tool for operations different from intended
could result in a hazardous situation.
h) This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
i) Children should be supervised to ensure that they do not play with
the appliance.
5) SERVICE
a) Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power tool
is maintained.
b) If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
BVP-2400 Manual.qxd 9/11/09 5:40 PM Page 6

7
ADDITIONAL SAFETY RULES FOR BLOWERS VACS
Always wear adequate protective clothing when operating the tool to avoid injuries to
face, eyes, hands, feet, head or hearing. Use safety glasses or a face shield, high boots
or sturdy shoes, long trousers, work gloves, a hard hat and ear defenders.
Do not start the tool when it is upside down or when it is not in the operating position.
Switch the motor off and remove the plug when the tool is not being used, left
unattended, being cleaned, being moved from one place to another or when the
extension cord is entangled or damaged.
Do not operate the tool near people, especially children or pets. Turn it off if they get
too close. Maintain a safe distance of at least 5m from other people when using the tool.
Never direct the blower direction nozzle towards bystanders or pets. Never blow
debris in the direction of bystanders or pets. The operator is responsible for accidents
or hazards occurring to other people or their property.
Do not handle the plug or the tool with wet hands and do not use the tool in the rain.
Use only outdoor rated extension leads that are so marked. Keep the extension cord
away from heat, oil and sharp edges.
Ensure that the extension lead is secured in a manner that prevents it form
disconnecting from the plug whilst in use.
Keep all the air intakes and the blower tube free of dust, lint, hair and other material
that may cause a reduction in air flow.
Keep a balanced and stable stance while using the tool. Do not switch on the tool in
enclosed or poorly ventilated spaces or in the presence of inflammable and/or
explosive substances such as liquids, gasses and powders.
Do not get distracted and always concentrate on what you are doing. Use common
sense. Never operate the tool when you are tired, sick or under the influence of
alcohol or other drugs.
Do not operate this appliance with long loose hair or loose fitting jewellery. Tie long
loose hair back and remove loose fitting jewellery.
Only operate the tool during broad daylight or with adequate artificial light.
When the tool is not in use, store it in a dry place and out of reach of children.
Only use the tool according to the instructions given in this manual.
Check regularly that the screws are tight.
Do not allow the blower vac to pick up any burning or smouldering materials like ashes,
cigarette butts etc.
Do not attempt to pick up breakable objects like glass, plastics, china etc.
Do not use in vacuum operation without the collection bag fitted.
Do not use the blower vac in either the vacuum or the blow position on gravel surfaces.
BVP-2400 Manual.qxd 9/11/09 5:40 PM Page 7

8

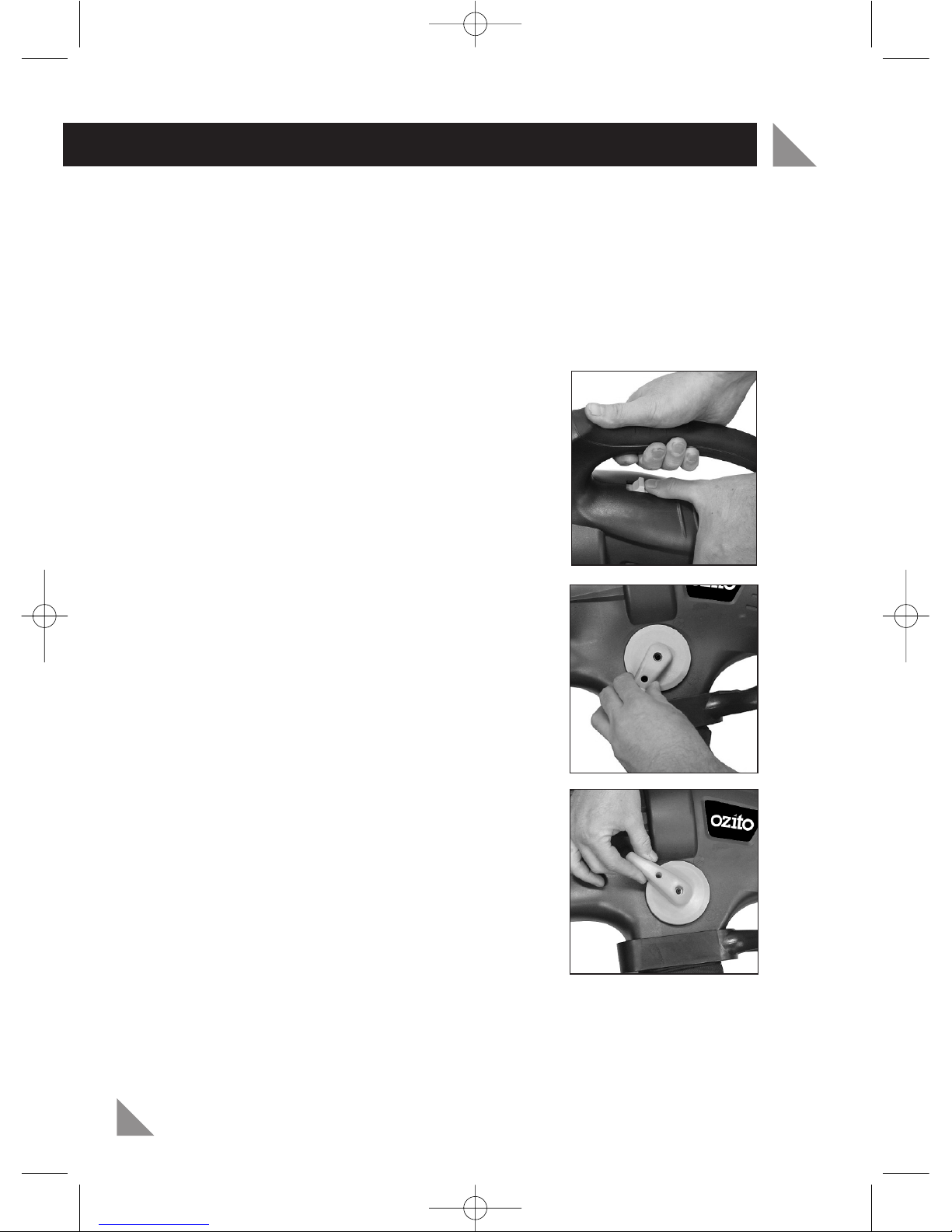

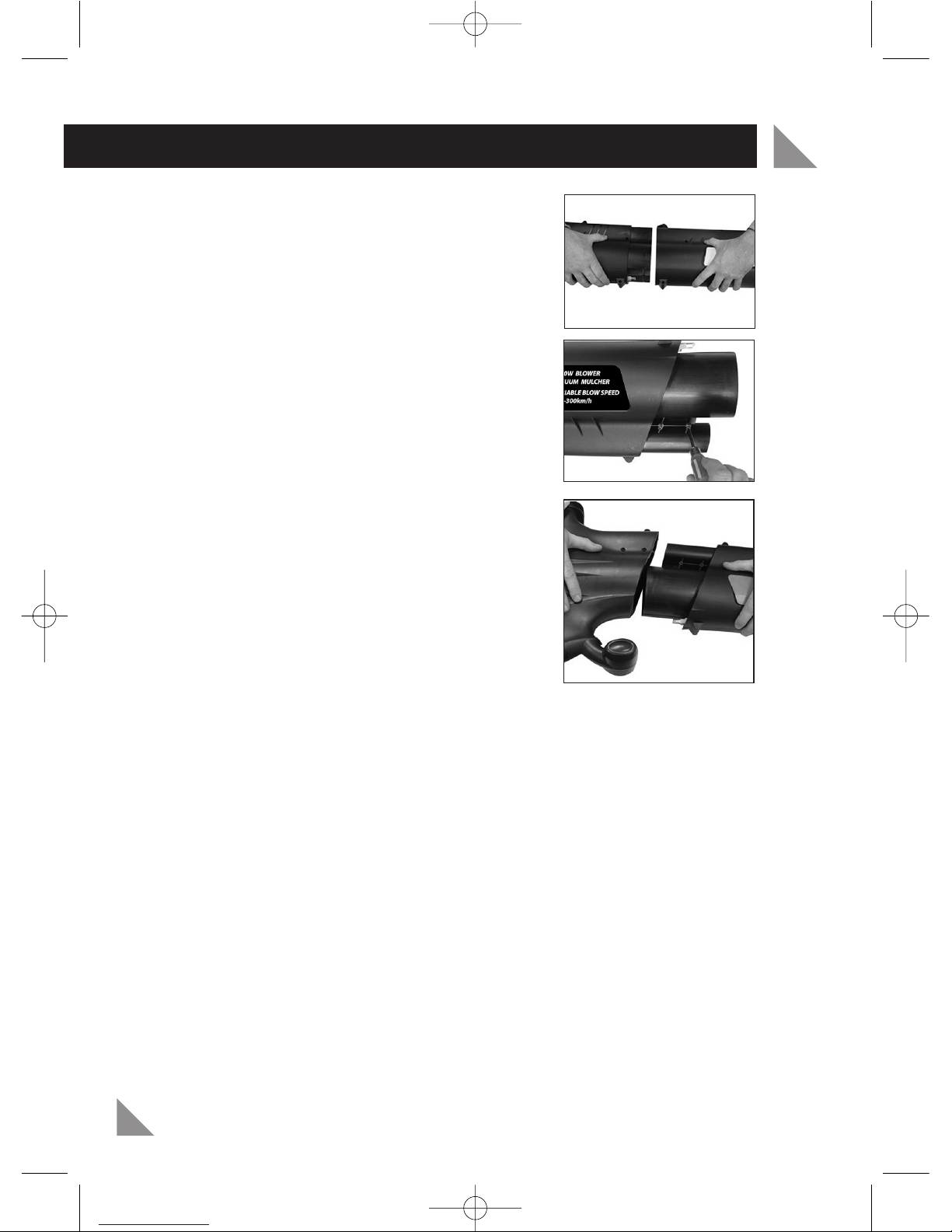

Assembling the tubes to the blower vac
1. Insert lower tube (1) into upper tube (2) and
push them together until they are connected
firmly (Fig. 1).
2. Loosen and remove the four screws from the
upper tube using a screwdriver (not included).
(Fig. 2)
3. Slide the assembled tubes into the
motor housing (Fig. 3).
4. Secure the previously removed screws into the
lower screw holes on both sides of the blower
vac housing.
5. Check the tubes are firmly secured to the
motor housing.
Caution: In the interest of safety the tubes
should not be dismantled after they have
been assembled.
NOTE: THE BLOWER VAC HAS BEEN DESIGNED SO AS NOT TO SWITCH ON
SHOULD THE TUBES NOT BE CONNECTED PROPERLY.
THIS IS A SAFETY DESIGN TO ENSURE THE USER DOES NOT COME TO ANY
HARM. DUE TO THE MULCHING FUNCTION IT WOULD BE HAZARDOUS TO
USE THIS TOOL WITHOUT THE TUBES FULLY ASSEMBLED.
ENSURE THE TUBES ARE PROPERLY SECURED PRIOR TO OPERATION.
ASSEMBLY
Fig. 1
Fig. 2
Fig. 3
BVP-2400 Manual.qxd 9/11/09 5:40 PM Page 8

9
Fitting the collection bag
Prior to fitting the collection bag (8), the lower & upper
tubes must be fitted to the housing.
1. Attach the strap on the collection bag to the hook
underneath the upper tube (Fig. 4).
2. Attach the plastic
connector to the outlet in
the housing, ensuring that
the latch at the back
‘clicks’ into position
(Fig. 5 & 6).
To remove the collection bag,
disconnect the attachments in the reverse order.
Note: As a safety feature the blower vac will not function without the collection bag
connected.
Fitting the patio head
The patio head is ideal for vacuuming flat surfaces such
as driveways and patios, depending on the application
the patio head can be easily fitted or removed from the
blow/vac tube.
1. Hold the blower/vac upside down so you are looking
down into the blow/vac tube.
2. Ensure the patio head is positioned correctly.
3. Firmly press the patio head into the blow/vac tube until it is secure.
Extension cord restraint
During use of the blower vac, the extension cord will
continually be pulled as you move from one area to
another.
An extension cord restraint (13) has been provided to
prevent the electrical connection between the extension
cord and blower vac plug being forced apart.
Position the extension cord through the cord restraint
channels (Fig. 8).
Fig. 4
Fig. 5
ASSEMBLY (cont.)
Fig. 6
Fig. 7
Fig. 8
BVP-2400 Manual.qxd 9/11/09 5:40 PM Page 9

10
OPERATION
Prior to use
Prior to using the blower vac, ensure you have read and understood this
instruction manual.
Ensure you are wearing suitable clothing and safety equipment including safety
glasses, ear protection and a mask if necessary.
Ensure the attachments on the blower vac are correctly fitted and adjusted.
Be aware of other people and animals in the area where you will be operating the
blower vac.
Turning on and off
CAUTION: Both the tubes and collection bag must
be fitted prior to switching on the blower vacuum.
To switch on, push the switch (5) to the “1” on position (Fig. 9).
To switch off, push the switch (5) to the “0” off position.
Important: After you have turned the blower vac off, do
not leave the product unattended until the blower vac
has been fully disconnected from the electrical supply.
Variable speed
Variable speed provides greater control when using
the blower vac, the blow speed can be adjusted
depending on the application and the weight of the
material being blown.
To adjust the blow speed rotate the variable speed dial (6).
The dial is numbered 1 to 6, setting to 1 provides the slowest
blow speed, setting to 6 provides the fastest blow speed.
Blowing
Move the mode selection lever (7) down towards the
collection bag (Fig. 10). The arrow on the lever will
point towards the blow icon on the motor housing.
When the blow operation is selected, air is expelled
through the outlet in the lower tube.
When the blow operation is selected ensure the
blower vac is pointed, directed and used in a safe
manner. Do not direct the air flow from this blower
vac directly or indirectly towards another person.
Vacuuming
Move the mode selecting lever upwards towards the
top of the housing (Fig. 11), the arrow on the lever will
point towards the vacuum icon on the motor housing.
When the vacuum operation is selected, air and debris is drawn up through the
vacuum tube, and forced through the mulching impellor.
The debris is mulched and then blown down into the collection bag.
Important: Always ensure the collection bag is correctly attached. Always be
aware of what is being drawn up into the blow/vac tube. This product is designed
to vacuum garden debris including leaves, grass, twigs and garden cuttings.
Fig. 9
Fig. 11
Fig. 10
BVP-2400 Manual.qxd 9/11/09 5:40 PM Page 10

Important notes when using the blower/vacuum selection lever
Do not force the lever. The lever should move with very little resistance. If the lever is
difficult to move, disconnect the power supply, remove the collection bag, inspect the
motor housing and ensure debris, dirt or mud has not jammed the lever.
When selecting either of the operations, ensure the selection lever is fully in one
position or the other, not half way.
Adjusting the blower tube
The blower vac is fitted with an adjustable 3 position
tube that can be adjusted to obtain the
optimal working height.
To adjust the height of the blower tube depress the
tube locking button (12) and adjust the lower tube up
or down to one of the 3 positions.
Emptying the collection bag
The collection bag (8) is attached to the blower vac in 2 positions. It is not necessary
to remove the collection bag from the blower vac when the bag needs to be emptied.
The rear of the bag is fitted with a full length zip.
Simply open the zip and empty the contents.
Ensure to close the zip prior to operating the blower vac.
Note: The collection bag must be fitted for the blower vac to operate.
Tips for using your blower vac
The following points will assist in the operation of the blower vac.
• Always try and vacuum dry leaves, cuttings or general garden debris. Wet material
is difficult to mulch and can cause the blower vac to clog.
•If the leaves are damp, first use the blower vac in blow mode to pile the leaves in
one area. Vac and mulch the leaves when dry.
• Avoid using the vac on areas where there are stones or other hard objects. These
objects will damage the impellor of the blower vac.
•Do not allow the blower vac to pick up soil. Soil generally contains moisture and
when combined with other garden debris can clog the blower vac.
•The blower vac is not a garbage disposal unit. Do not attempt to mulch any
material other than general garden debris.
•For better performance and comfort, it is recommended the collection bag is
emptied when it becomes approximately half full. This reduces the weight and
also allows the vacuum operation to perform at its highest level.
OPERATION (cont.)
11
Fig. 12
BVP-2400 Manual.qxd 9/11/09 5:40 PM Page 11

MAINTENANCE
12
•Place switch in “O” off position and unplug from the power supply before the
blower vac is serviced, cleaned or maintenance is performed.
• Keep air intake clean and air vents free of debris to avoid overheating the
motor.
• Do not use cleaning agents to clean the plastic parts of the tool. A mild detergent
on a damp cloth is recommended. Water must never come into contact with the
tool.
• If the blower vac vibrates abnormally, stop motor immediately. Abnormal
vibration usually indicates a mechanical problem continued operation could
lead to injury or damage.
• No lubrication is necessary as the motor is equipped with lifetime-lubricated
bearings.
• Keep the ventilation vents of the tool clean at all times, if possible, prevent
foreign matter from entering the vents.
• After each use, blow air through the tool housing to ensure it is free from all
dust particles which may have built-up.. Build up of dust particles may cause
the tool to overheat and fail.
•If the enclosure of the tool requires cleaning do not use solvents but a moist
soft cloth only. Never let any liquid get inside the tool; never immerse any part
of the tool into a liquid.

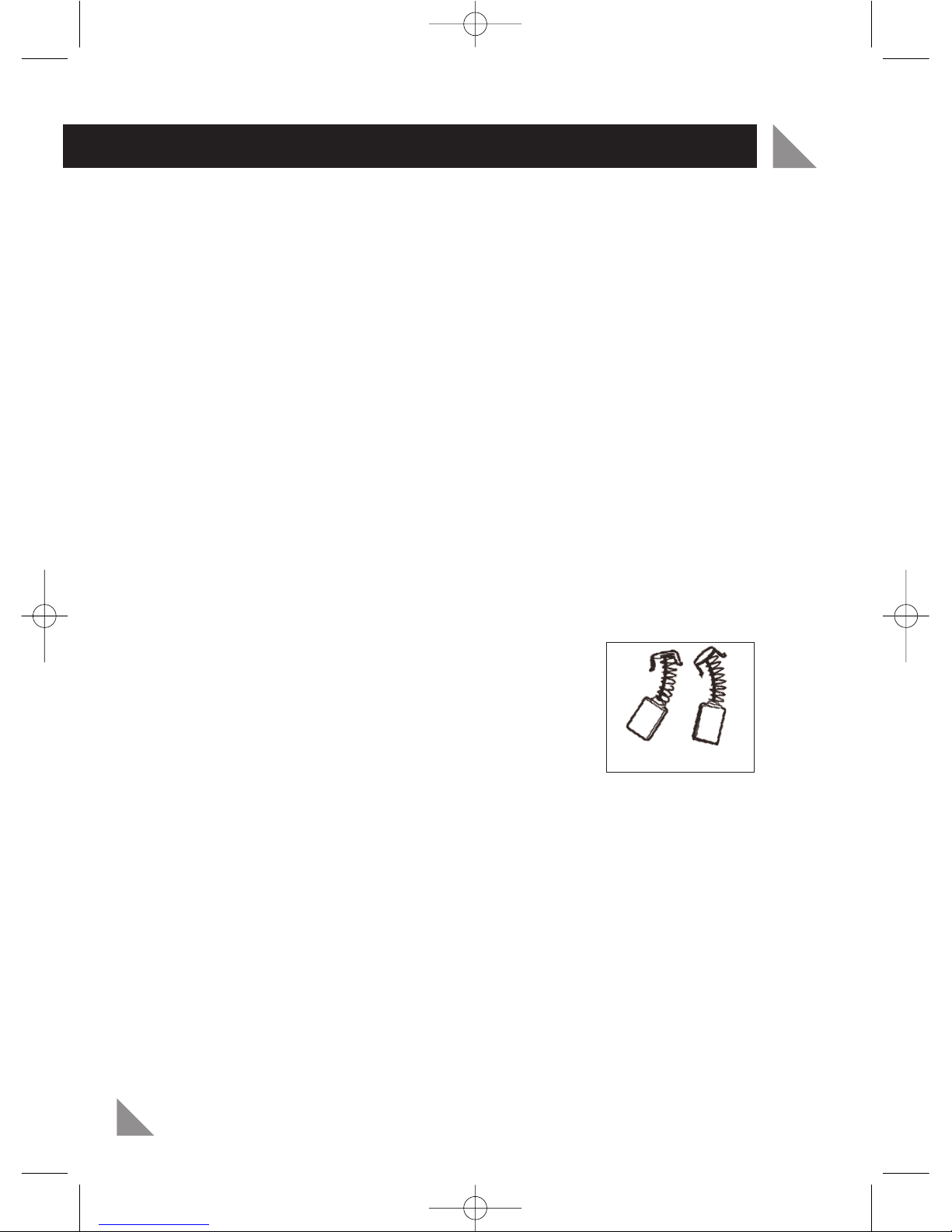

Carbon brushes
When the carbon brushes wear out the tool will spark
and/or stop. Discontinue use as soon as this happens.
They should be replaced prior to recommencing use of the
tool. Carbon brushes are a wearing component of the tool
and therefore not covered under warranty. Continuing to
use the tool when carbon brushes need to be replaced may
cause permanent damage to the tool.
Carbon brushes will wear out after many uses, when the carbon brushes need to
be replaced take the tool to an electrician or a power tool repairer for a quick and
low cost replacement. Always replace both carbon brushes at the same time.
Note: Ozito Industries will not be responsible for any damage or injuries caused by
repair of the tool by an unauthorised person or mishandling or mistreatment of the
tool. This tool is designed for DIY use - use in commercial or industrial
environments will void the warranty.
Carbon brushes
BVP-2400 Manual.qxd 9/11/09 5:40 PM Page 12

SPARE PARTS
13
Limited spare parts are available subject to availability. Please contact your local
Bunnings Special Orders Desk to order the required spare parts.
Most common spare parts listed below
Spare Part Part No.
Front Wheel Assembly SPBVP2400-03a
Rear Wheel Assembly SPBVP2400-6a
Belt Assembly SPBVP2400-29
Speed Controller SPBVP2400-43
Collection Bag SPBVP2400-66
Carbon Brush (Pair) SPBVP2400-75
Double insulated VVoltage
Regulator compliance mark Hz Herts
n o No load speed WWattage
/min Revolutions or
reciprocation per minute
Warning
Keep by standers away
~ Alternating current dB Decibel (noise) rating
m
3
Metres cubed
Disconnect from power supply
when performing maintenance
Wear Eye, Ear & Breathing
Safety Gear during use
Do not use in wet weather
Be aware of people around you and do not direct
towards them
Read operating instructions
before use
Disconnect and discontinue use should the power-cord
be damaged
DESCRIPTION OF SYMBOLS
BVP-2400 Manual.qxd 9/11/09 5:40 PM Page 13

CARING FOR THE ENVIRONMENT
14
AUSTRALIA (Head Office)
1-23 Letcon Drive, Bangholme, Victoria, Australia 3175
Telephone: [phone]
Facsimile: + 61 3 9238 5588
Website: www.ozito.com.au
Email: [email protected]
1 x Blower Vac BVP-2400
2 x Blower Tubes
2 x Screws
1 x Shoulder Strap
1 x Collection Bag
1 x Patio Head
1 x Operating Instructions
Power tools that are no longer usable should not be
disposed of with household waste but in an environmentally
friendly way. Please recycle where facilities exist. Check with
your local council authority for recycling advice.
Recycling packaging reduces the need for landfill and raw
materials. Reuse of recycled material decreases pollution in the
environment. Please recycle packaging where facilities exist.
Check with your local council authority for recycling advice.
CONTENTS
OZITO INDUSTRIES PTY LTD
BVP-2400 Manual.qxd 9/11/09 5:40 PM Page 14

WARRANTY
THIS WARRANTY FORM AND CONFIRMED BUNNINGS REGISTER RECEIPT SHOULD
BE RETAINED BY THE CUSTOMER AT ALL TIMES
The warranty is only made available by returning the product to your nearest
Bunnings Warehouse with a confirmed Bunnings register receipt.
PURCHASED FROM:________________________________________________
DATE PURCHASED: ________________________________________________
2 YEAR REPLACEMENT WARRANTY
Your Ozito tool is guaranteed for a period of 24 months from the ORIGINAL date of
purchase under the following conditions: Professional, industrial or high frequency
use will VOID this warranty.
WARNING
The following actions will result in the warranty being void.
•If the tool has been operated on a supply voltage other than that specified on
the unit.
•If the tool shows signs of damage or defects caused by or resulting from abuse
accidents or alterations.
• If the tool has been disassembled or tampered with in any way.
Note: Warranty excludes consumable parts such as carbon brushes, collection bags,
batteries, sanding pads, blades, discs, drill bits, collets and router bits.
YOUR WARRANTY FORM SHOULD BE RETAINED
BY YOU AT ALL TIMES.
SHOULD YOU HAVE ANY QUESTIONS PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY OR
REPAIR PLEASE TELEPHONE OUR CUSTOMER
SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER
AND DATE OF PURCHASE AVAILABLE. AN OZITO CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS
YOU MAY HAVE RELATING TO THE WARRANTY POLICY OR PROCEDURE.
BVP-2400 Manual.qxd 9/11/09 5:40 PM Page 15
