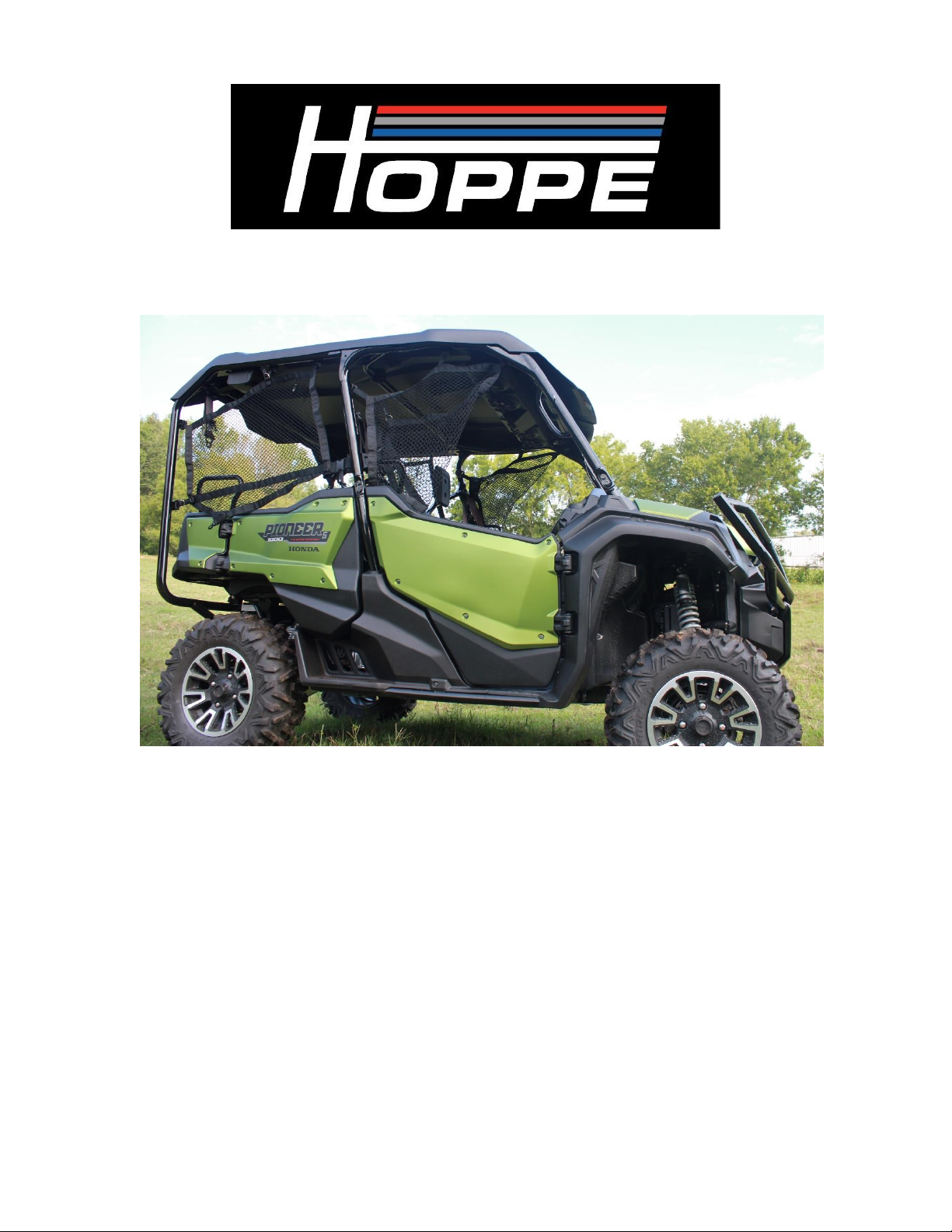

Hoppe AUDIO MINI Service manual

INSTALLATION INSTRUCTIONS / OWNER’S MANUAL:
AUDIO MINI
OFF-ROAD SOUND SYSTEM FOR HONDA PIONEER 1000 / PIONEER 1000-5
MODELS
www.hoppeindustries.com
22667 FM 15 Troup, TX 75789
[phone]

Revision - 2 of 18
Thank you for choosing the Hoppe Audio Mini off-road sound system. We hope you
enjoy the off-road sound system, and we ask that you follow these instructions very
closely. Doing so will save you time and ensure that your experience with the new Audio
Mini is a positive one.
We strongly suggest that you read the complete instructions before beginning the
installation process to eliminate the possibility of performing unnecessary work.
Having a safe and clean environment and using the proper tools is essential for a
successful installation.
It is critical that proper eye wear, ear protection, and protective clothing is worn
throughout the top installation.
When you receive your Audio Mini off-road sound system, please check to ensure that all
parts and hardware are included. If there are any parts missing or if you have any
questions concerning the system at this time call Hoppe at (262)-552-2770 Mon-Thur.
8am-5pm CST or Friday 8am -12pm CST. Or you can email us at
[email protected].
Hoppe reserves the right to change specifications, equipment, or designs at any time
without notice and without incurring obligation.

Revision - 3 of 18
TABLE OF CONTENTS
SECTION 1 –Tools Required............................................................................................ 4
SECTION 2 –About your Audio Mini sound system ......................................................... 4
2.1 Applicable Year Models:.......................................................................................... 4
2.2 Audio Equipment Details:......................................................................................... 4
2.3 Warranty: .................................................................................................................. 5
2.4 Care and Maintenance: ............................................................................................. 5
2.5 Warnings:.................................................................................................................. 6
SECTION 3 –Pre-Installation Inspection ......................................................................... 7
SECTION 4 –Installation.................................................................................................. 8

Revision - 4 of 18
SECTION 1 – Tools Required
Socket wrench set
Combination wrench set
Wire cutters
In addition to the above items, you may need shop supplies such as electrical tape, wire
ties, thread locking compound, etc.
SECTION 2 – About your Audio Mini sound system
2.1 Applicable Year Models:
This Audio Mini off-road sound system is designed to fit the following Pioneer 1000/
Pioneer 1000-5 models:
2016-2021 Pioneer 1000 (all versions)
2016-2021 Pioneer 1000-5 (all versions)
All versions means it includes sub models such as Deluxe and Limited Edition
editions.
This system is compatible with most front windshields (Full and Two-Piece Poly
and Full Glass) and roofs.
Accessories that mount overhead near the front of the roll cage such as rear view
mirrors, wiper motors, etc. may not be compatible or may require modification.
Contact Hoppe customer service for questions.
2.2 Audio Equipment Details:
Your Audio Mini off-road sound system is powered by using
their marine series audio equipment. This equipment is designed to function in all
weather conditions with an IPX6 water resistance (powerful water jet) rating. The stereo
is specifically engineered to provide excellent sound quality and volume in an open air
enviroment so you can enjoy your music on the go.
To learn more details about your stereo system, you can access product information and
manuals for the stereo equipment here:
KMC2 receiver: https://www.kicker.com/kmc2
Speakers: https://www.kicker.com/41KM604W
You can feel free to crank up the volume without much worry of harming your system.
However, it is wise to use a little common sense. If you hear any distortion, back off a
little.
Use the equalizer settings in your KMC2 receiver to adjust the settings to your
preferences.

Revision - 5 of 18
2.3 Warranty:
Your Audio Mini comes equipped with a 1 year limited warranty covering the light, the
stereo equipment, and the fiberglass enclosure. The date of warranty coverage will be
determined by the registration date of the warranty card or online warranty registration.
http://www.motortrike.com/TrikeAccWarranty.aspx
If the warranty is not registered with Hoppe, the warranty period will begin when the
Audio Mini was shipped from Hoppe's factory.
2.4 Care and Maintenance:
Your off-road sound system does not require any maintenance other than an occasional
cleaning. To clean your audio system, simply hose off or power wash from a distance. If
needed, use a mild automotive soap and sponge or brush. Use common sense. Do not use
a high pressure power washer up close where it could cut, scar, or force water beyond the
design intent of the enclosure, light, or stereo equipment.
There is an inline fuse, close to the end of the chassis harness where it connects to the
battery. It can be accessed by pulling the cap off of the fuse holder. There is also a 40
amp capacity skirted mini ignition relay built into the chassis harness next to the inline
fuse. See Figure 1.

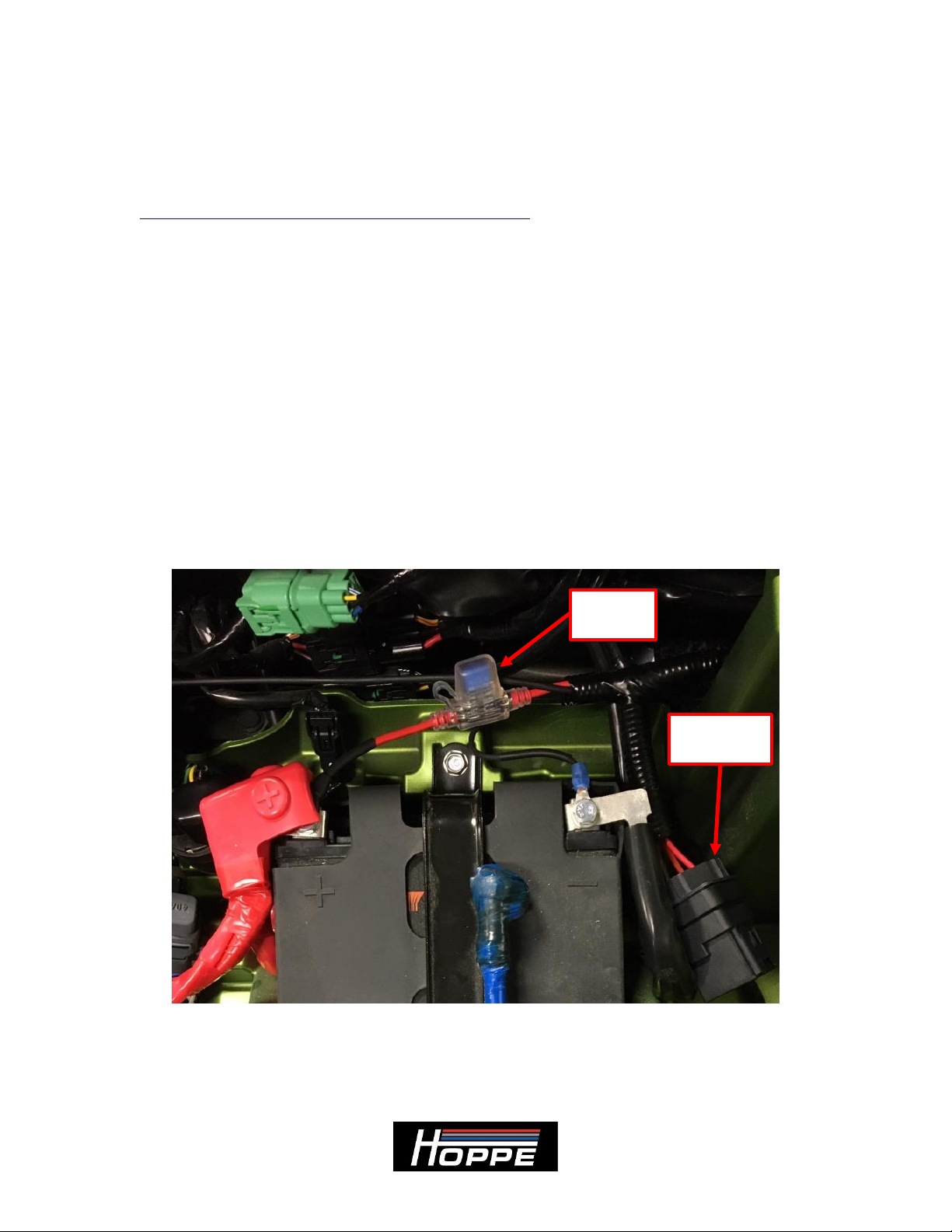

Figure 1: Fuse location.
Fuse 1: 15 amp mini fuse for light / radio receiver power.
IGNITION
RELAY
INLINE
FUSE

Revision - 6 of 18
2.5 Warnings:
This off-road system adds up to 25 lbs. to your vehicle and is located up high on the roll
cage. This increases the vehicle’s center of gravity and changes the vehicle dynamics and
handling characteristics. Use extra caution as you learn the driving characteristics of your
vehicle with your new off-road sound system installed. High speed cornering, off camber
or side hill, acceleration, and braking performance will be negatively impacted by the
weight of the sound system.
Do not listen to your stereo at an uncomfortable volume for extended periods of time.
Potential hearing loss may result.

Revision - 7 of 18
SECTION 3 – Pre-Installation Inspection
Included in your off-road sound system are the following components:
Pre-assembled Audio Mini off-road sound system (All speakers and electronics
come preinstalled with interior wire harness.)
Chassis wire harness
Mounting brackets
Hardware bag
Zip ties
If any of the parts are missing, damaged, or you have any questions concerning them,
please call Hoppe at (262)-552-2770 Mon-Thur. 8am-5pm CST.
In addition to accounting for all of the parts that you should receive with the top, you
should inspect the vehicle in the following ways.
Ensure that the vehicle is equipped with the factory roll cage, and the roll cage has
not been bent out of shape in a roll over.
Make sure the vehicle does not have any aftermarket accessories that are
incompatible with the top.
Make sure the battery is in good condition and holds a charge.
Make sure the charging system is in good condition.

Revision - 8 of 18
SECTION 4 – Installation
1. Remove the factory bolts from the safety nets as indicated in Figure 2. The bolts
will not be reused, but the remaining hardware will be used.

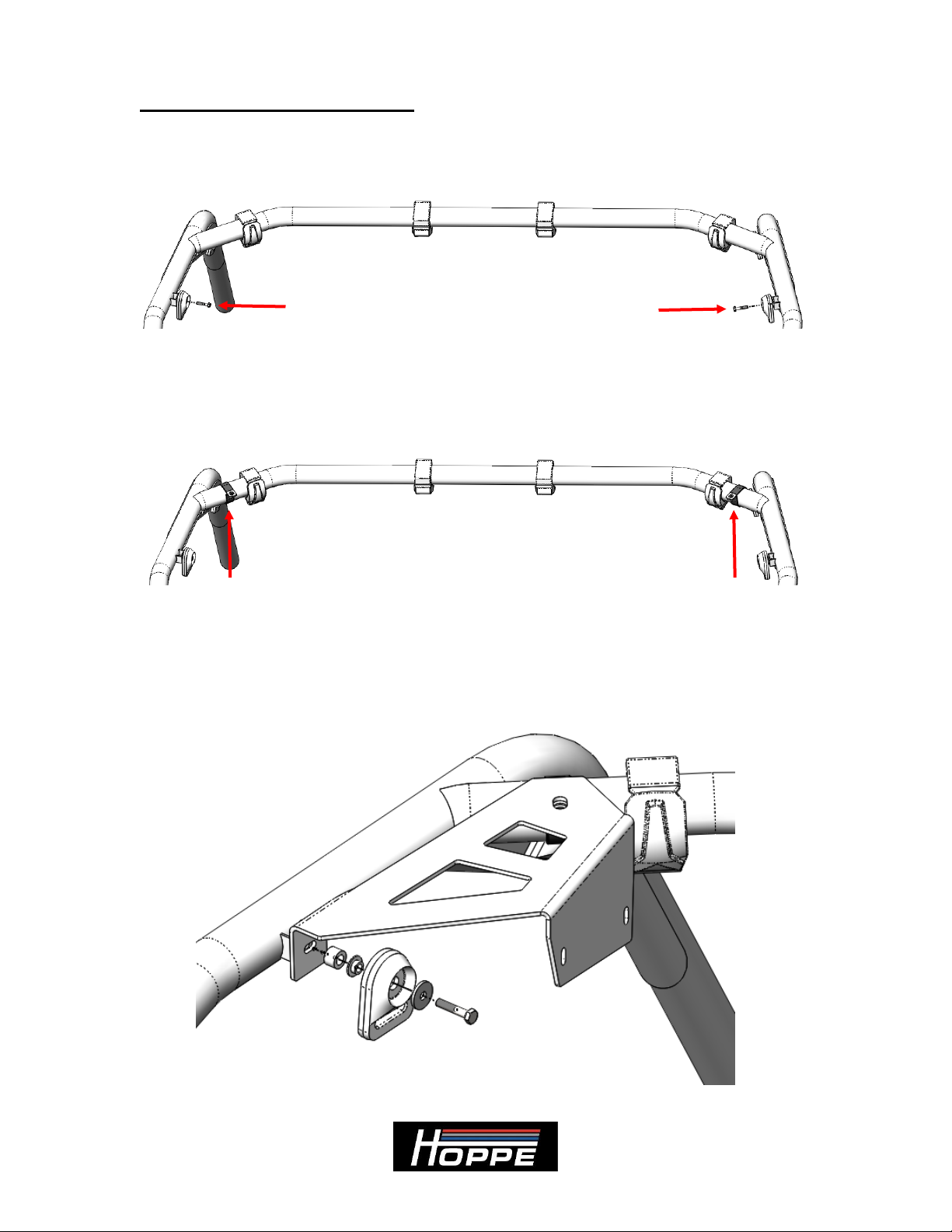

Figure 2: Remove the factory safety net bolts.
2. Place the provided loop clamps in the approximate mounting location on the front
roll bar. The Audio Mini brackets will rest on the loop clamps and be tightened in
the following steps. See Figure 3.
Figure 3: Approximate locations of the loop clamps.
3. Using the supplied M6 x 1.0 x 30mm bolt and spacer, mount the bracket as shown
in Figure 4 still utilizing the factory safety net mount. Loosely tighten the bolts to
allow for adjustment of the Audio Mini placement. Note: Driver side bracket
shown. (Passenger side similar)
Figure 4: Mounting locations of Audio Mini brackets.

Revision - 9 of 18
4. Use the supplied 3/8”-16 x 1” bolts, washers, and nylock nuts to secure the loop
clamps to the mounting brackets. Loosely tighten the bolts to allow for adjustment
of the Audio Mini placement. See Figure 5.
Figure 5: Hardware for mounting the loop clamps to the brackets.
5. Using an assistant, hang the Audio Mini off-road sound system on the brackets
using the supplied ¼”-20 bolts and washers (loosely tightened). Note: The sound
system weighs up to 25 lbs. Since you will have to lift and bolt each end, it is
helpful to have an assistant for this step. See Figure 6 and Figure 7.

Revision - 10 of 18
Figure 6: Install the ¼”-20 bolts and washers to mount the Audio Mini to the brackets.
Figure 7: Loosely install the sound system on the mounting brackets.
6. Tighten the 4 bracket mounting bolts so that the Audio Mini is equally spaced
from the front roll bar. See Figure 8.

Revision - 11 of 18
Figure 8: Audio Mini equally spaced from front roll bar.
7. Tighten the 4 mounting bracket bolts after achieving the desired up-down position
relative to the roof or roll cage. Slots in the brackets allow up-down movement.
See Figure 9.
Figure 9: Up-down positioning of the Audio Mini.
8. Plug the chassis harness into the mating connector on top of the Audio Mini.
Route the chassis harness over the front roll bar as shown in Figure 10.
REAR
EDGE
FRONT
ROLL BAR

Revision - 12 of 18
Figure 10: Chassis harness connected and routed over front roll bar.
9. Route the chassis harness, using the provided zip ties, down the driver’s front
pillar. Zip ties are at the indicated locations. See Figure 11.

Revision - 13 of 18
Figure 11: Route the chassis harness down the driver’s front pillar.
10. Remove the radiator hood access panel from the front of the vehicle by lifting and
rotating the ¼ turn clips, lifting the hood, and sliding it towards the front of the
vehicle. See Figure 12.

Revision - 14 of 18

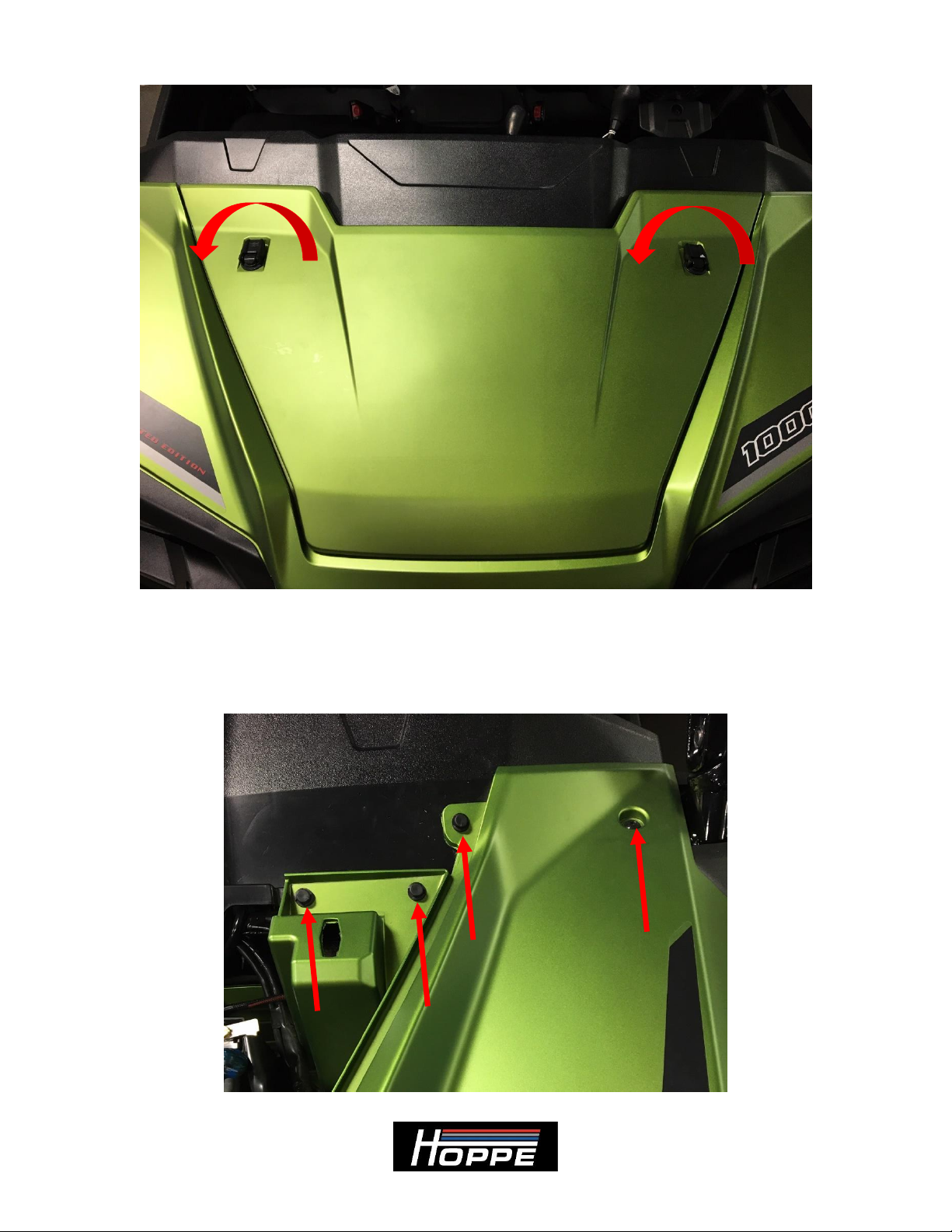

Figure 12: Remove the radiator hood access panel.
11. Remove the right Torx screw and the 3 plastic rivets to route the wiring under the
plastic panel. The plastic rivets are released by first prying the center head up,
then pulling the entire rivet out. See Figure 13.
Figure 13: Remove the Torx screw and plastic rivets to run the chassis harness under the panel.

Revision - 15 of 18
12. Connect the chassis harness battery cables to the battery. Remove the battery bolts
from each terminal as you connect the cables, and replace the bolts with the
provided M6 x 1.0 x 14 mm battery bolts to clamp the cables on top of the
existing cables. Connect the red harness wire to the terminal with the existing red
battery cable (+ 12V). Connect the black harness wire to the terminal with the
existing black battery cable (- 12V). See Figure 14.
Figure 14: Battery cable connections.
13. Run the orange ignition wire, with the two attached connectors, through the hole
in the rubber protector (with the factory wire harness). The connectors are
accessible under the rubber protector by lifting the left rear corner of the rubber
protector. See Figure 15 and Figure 16.
RED TO +
BLACK TO -

Revision - 16 of 18

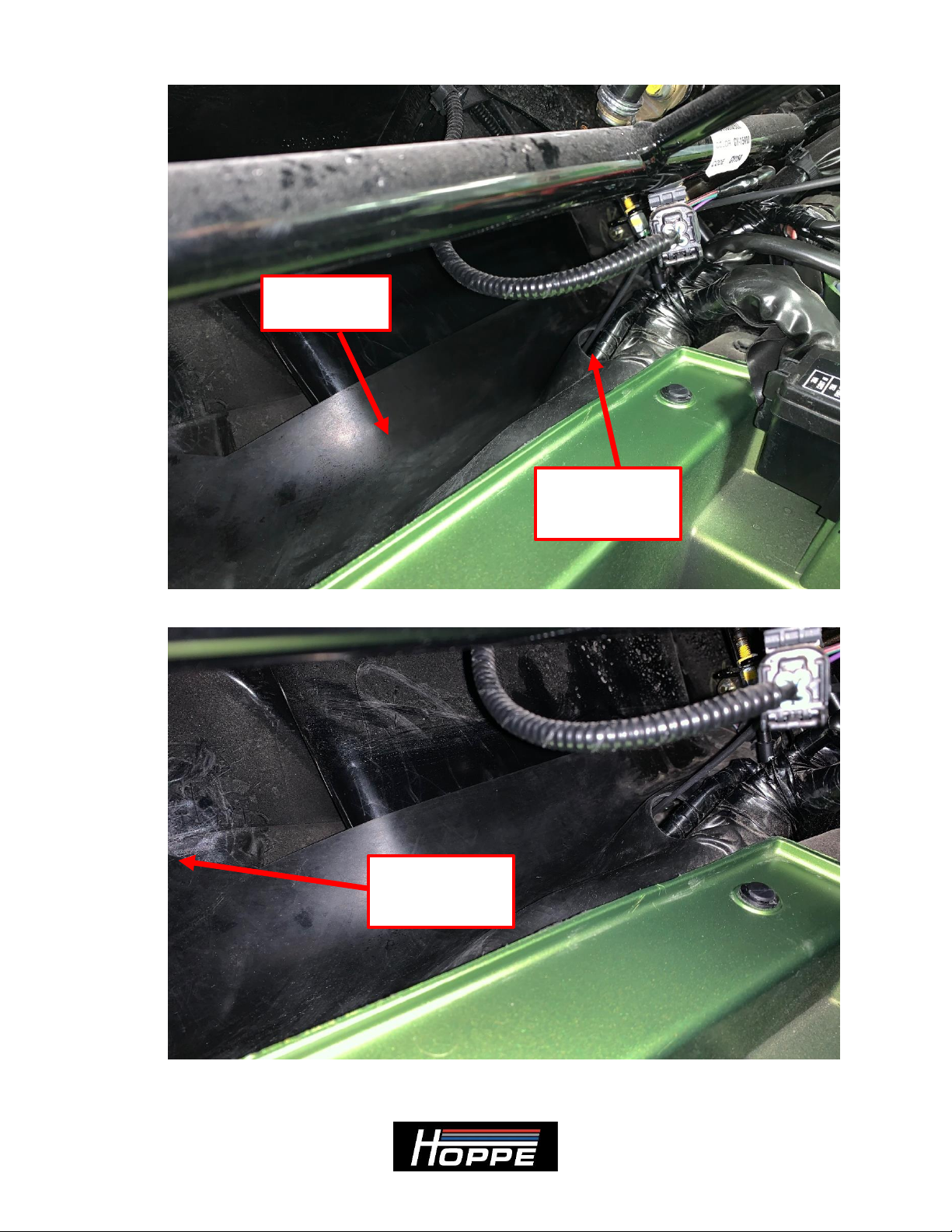

Figure 15: Ignition wire and connector routing.
Figure 16: Rubber protector access location.
RUBBER
PROTECTOR
IGNITION
WIRE AND
CONNECTORS
UNHOOK
AT THE
CORNER

Revision - 17 of 18
14. The female connector will replace the OEM connector attached to the back of the
accessory cigarette lighter as shown in Figure 17. This connection point is
accessible through the hood opening under the rubber protector (Figure 17 from
wheel well shown for a better view). The male connector on the chassis harness
can then be connected to the OEM female connector.
Figure 17: Connection location for chassis harness connectors.
15. Reinstall the Torx screw, plastic rivets, and hood.
16. You are now ready to enjoy the music and lighting provided by your Audio Mini
off-road sound system. Basic operation works as follows:
a. Turn the vehicle ignition switch on to power up the stereo system. (You
must press the power button for first time connections or if the power was
previously turned off manually.)
b. Press the mode button on the stereo receiver to select the input source
from AM/FM radio or Bluetooth.
c. Hold the mode button to access additional menus.
d. The dome light can be used with or without the vehicle’s ignition switch
on. Press the on/off switch to activate the light.Warning: Extended use
of the dome light or stereo without the vehicle’s charging system
functioning will deplete the battery and the engine may not start.
FEMALE CHASSIS
CONNECTOR TO
CIGARRETTE
LIGHTER

Revision - 18 of 18
To learn about the more advanced features and operation of your stereo, visit the
Kicker website links found in SECTION 2 –About your Audio Mini sound system
of this document.
Thank you for choosing the Hoppe Audio Mini off-road sound system for you Honda
Pioneer UTV. We hope you enjoy your new sound system and lighting. We invite you, in
your travels, to stop by our manufacturing plant in Troup, Texas, for a factory tour and to
meet the people who designed and manufactured your Audio Mini off-road sound system.
This will also give you an opportunity to check out our sister company
and our extensive line of trike conversions, motorcycle, and power sports accessories.
We believe you will be impressed by what you witness and the people you will meet.
